Model Whirlpool C3882VRV ELECTRIC RANGE – Common Parts & Diagrams

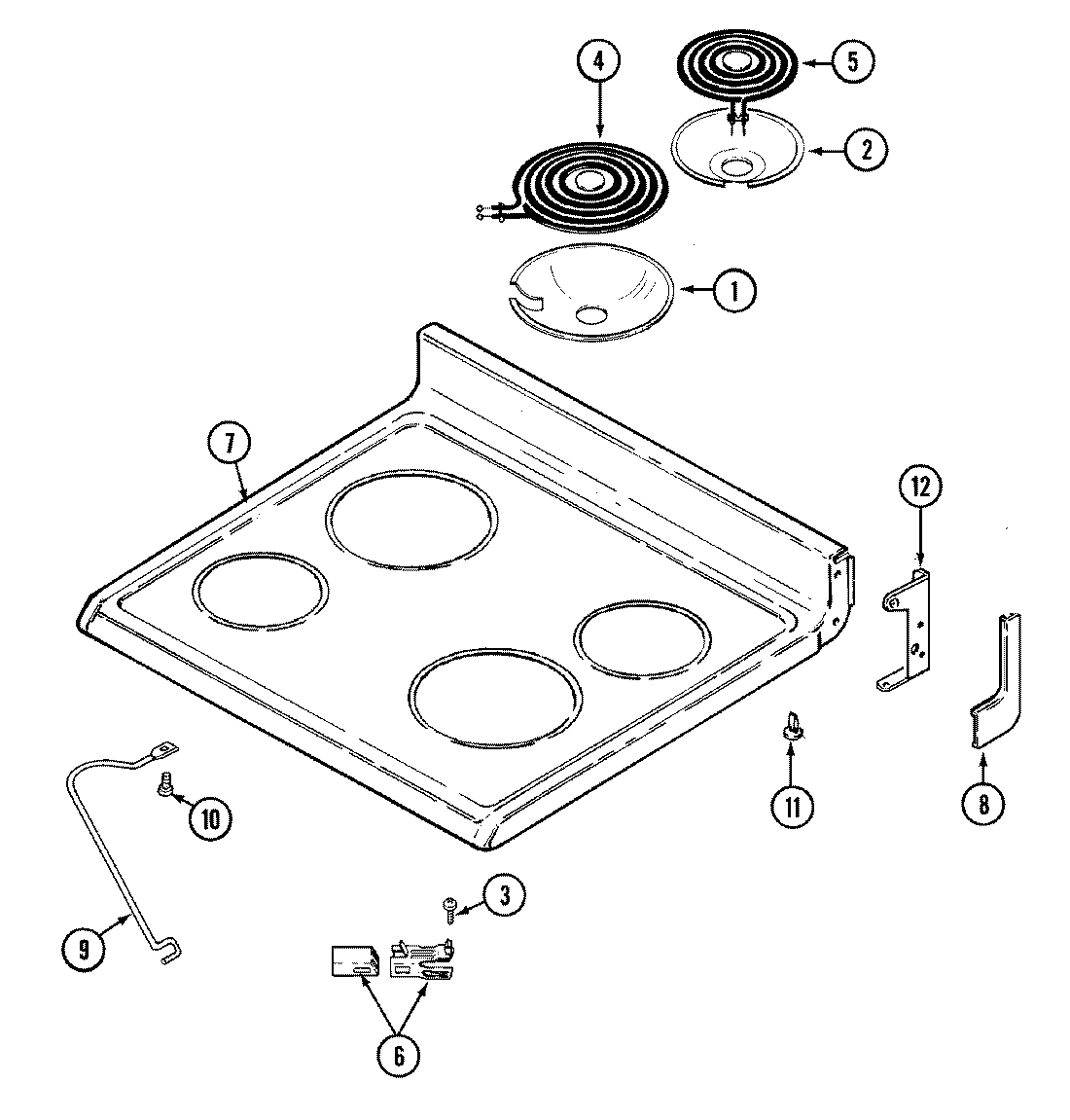

05 - TOP ASSEMBLY

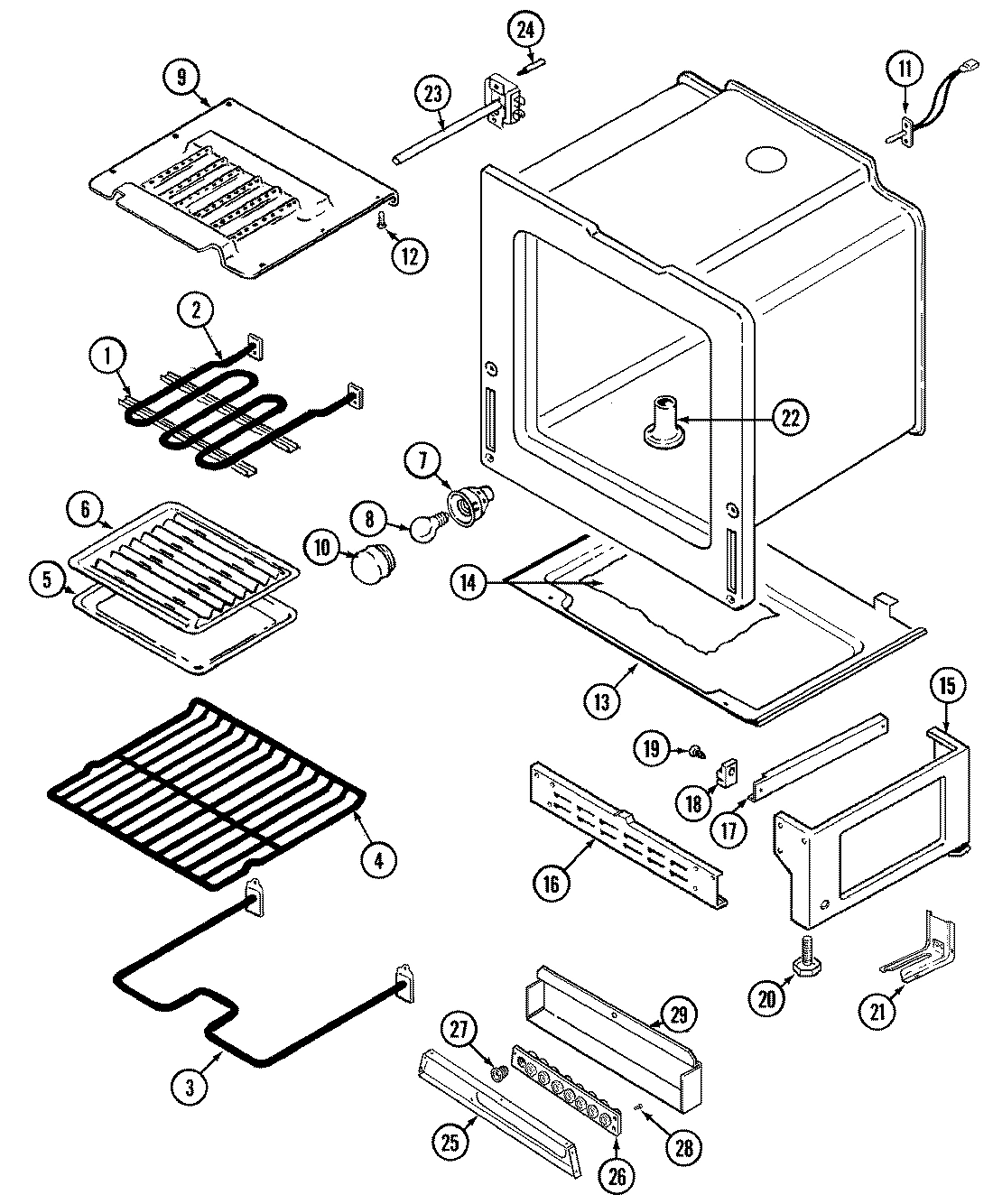

04 - OVEN/BASE

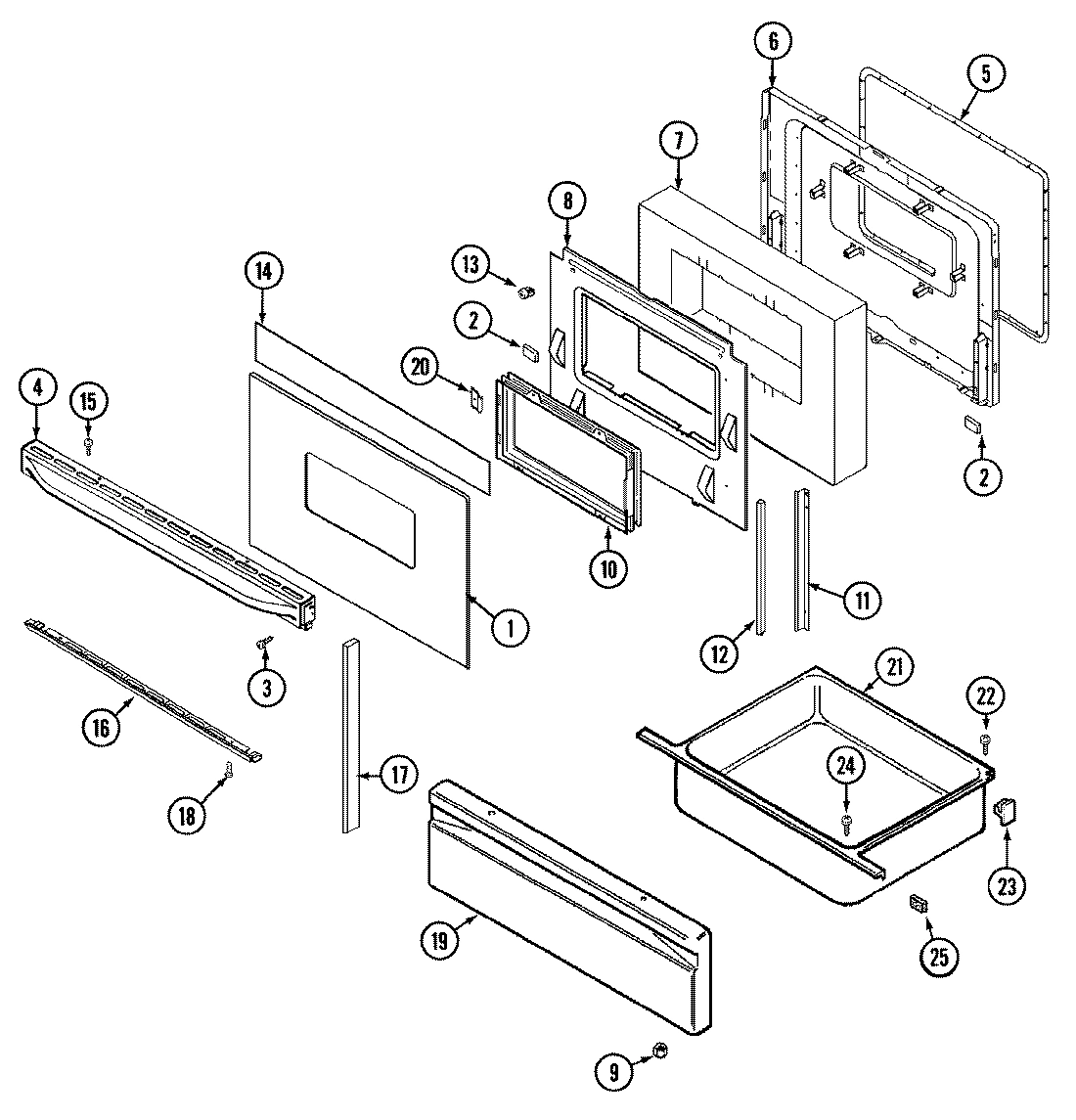

03 - DOOR/DRAWER

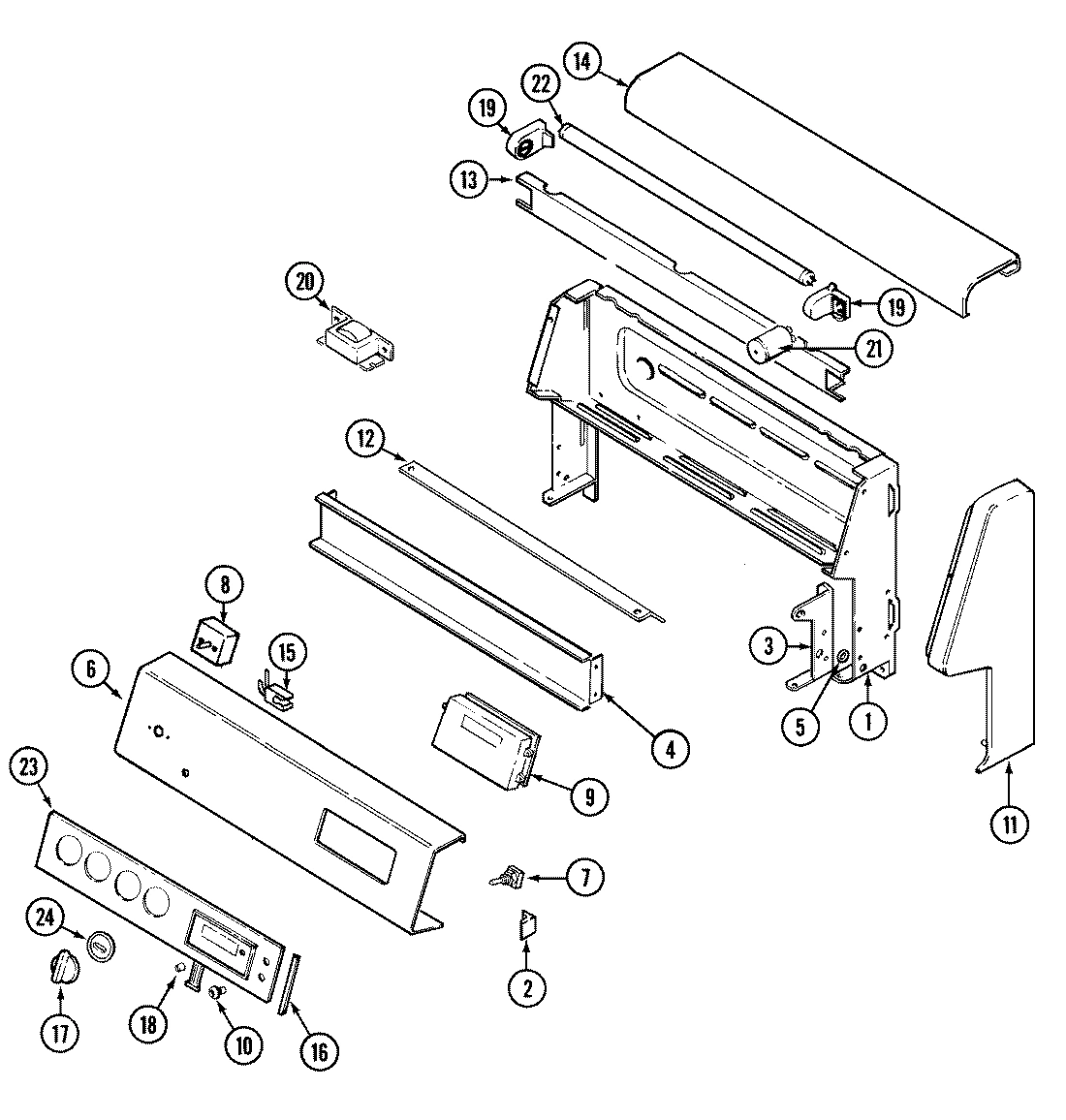

02 - CONTROL PANEL

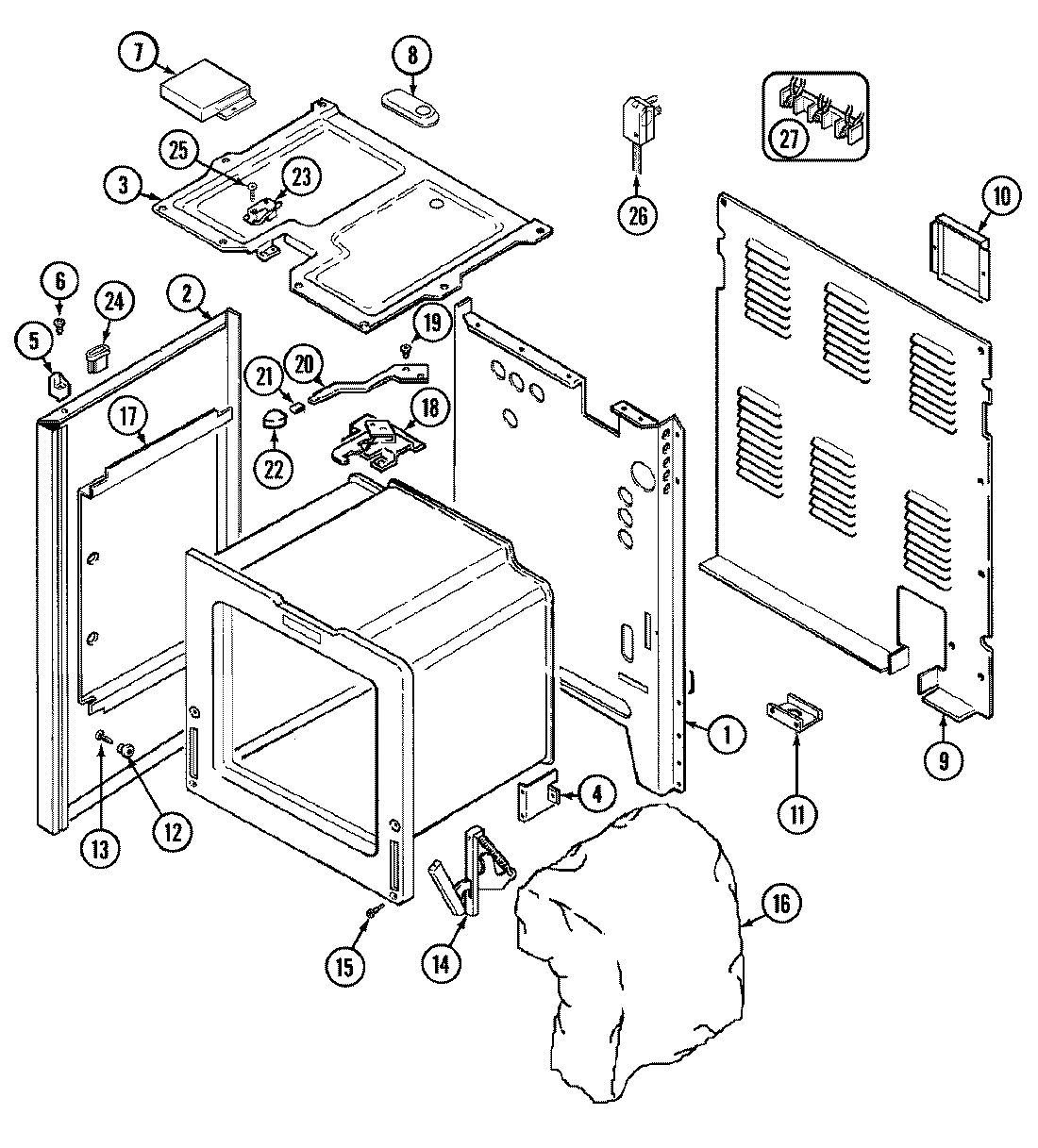

01 - BODY
Common parts from model Whirlpool C3882VRV ELECTRIC RANGE
1
BOWL, DRIP (8``) (CHR) WPL 7725P01960 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
1
BACK, MAIN WPL 74001341 Contact Us For Availability
1
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
BOWL, DRIP (6``) (CHR) WPL 7725P01860 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
3
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
3
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
BOX, BURNER WPL 4011F21919 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P07060 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P08860 Contact Us For Availability
4
RACK WPL 7801P04060 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 7701P14560 Contact Us For Availability
4
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P06960 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P08760 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
NUT, SPEED WPL 7103P12960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
LINING, DOOR WPL 74001058 Contact Us For Availability
6
SCREW WPL 7101P34660 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 7703P45560 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
INSULATION, DOOR WPL 74001842 Contact Us For Availability
7
SWITCH, PUSH (WHT) WPL 7403P20460 Contact Us For Availability
7
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
8
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
8
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
COVER, VENT WPL 4005F43245 Contact Us For Availability
8
SCREW WPL 7101P10360 Contact Us For Availability
9
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
CLOCK WPL 7601P20560 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
10
SCREW 3/8`` WPL 7101P14160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
SLEEVE, SWITCH (WHT) WPL 7214P02360 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
11
GLIDE WPL 8016P01360 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
END CAP (RT-WHT) WPL 7726P05760 Contact Us For Availability
11
END CAP (LT-WHT) WPL 7726P05860 Contact Us For Availability
11
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
13
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
13
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
14
COVER, LIGHT (WHT)----NA WPL 7724P05960 Contact Us For Availability
14
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 4020W00767 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
15
LAMP SIGNAL WPL 7407P09060 Contact Us For Availability
15
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
16
PEDESTAL (FR & REAR) WPL 4020F00167 Contact Us For Availability
16
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
16
TRIM, GLASS RETAINER (WHT) WPL 7720P16060 Contact Us For Availability
16
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
16
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
17
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
18
KNOB, CLOCK (WHT) WPL 7711P49360 Contact Us For Availability
18
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
18
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
19
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
19
WASHER WPL 7109P01560 Contact Us For Availability
20
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
20
BALLAST WPL 7412P01060 Contact Us For Availability
20
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
21
STARTER WPL 7415P00160 Contact Us For Availability
21
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
22
BULB, FLUORESCENT LI WPL 7407P03760 Contact Us For Availability
22
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
23
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
23
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
23
PANEL, CONTROL ASSY WPL 4876S01659 Contact Us For Availability
23
SHIELD, LOCK SWITCH WPL 3604F20345 Contact Us For Availability
23
SCREW WPL 7101P03160 Contact Us For Availability
23
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
23
SWITCH, LOCK----NA WPL 7403P32360 Contact Us For Availability
24
SCREW STANDOFF WPL 7118P02060 Contact Us For Availability
24
BEZEL, KNOB (WHT) WPL 7740P02660 Contact Us For Availability
24
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
25
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
25
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
26
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
26
CORD, POWER WPL 7402P05060 Contact Us For Availability
27
FUSE, 125V 30A WPL 7416P00460 Contact Us For Availability
27
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
27
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
27
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
28
SCREW WPL 7101P06860 Contact Us For Availability
28
NUT WPL 7103P06460 Contact Us For Availability
29
COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D14660 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P00760 Contact Us For Availability
× ![]()
