Model Whirlpool C3542XRA ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

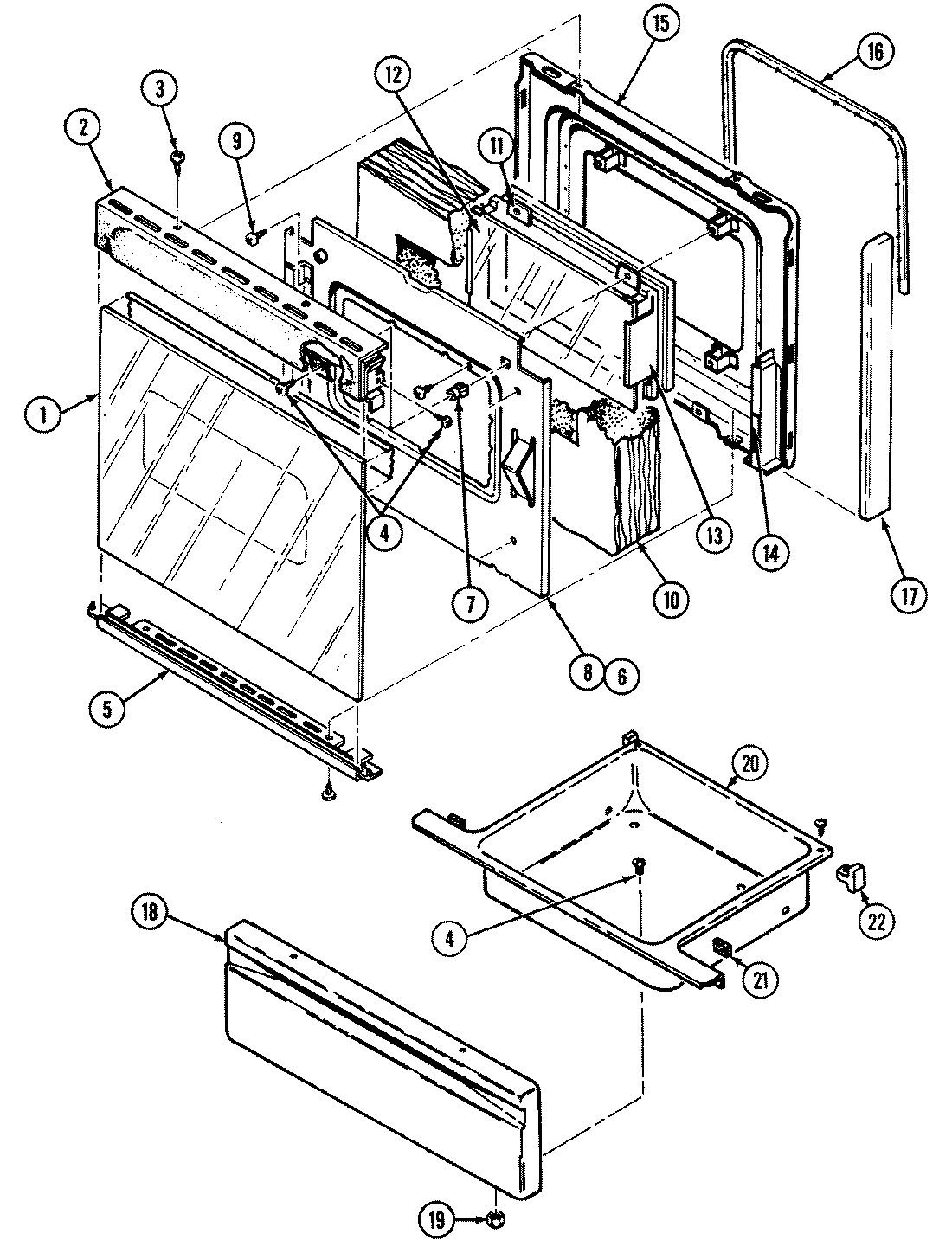

03 - DOOR/DRAWER

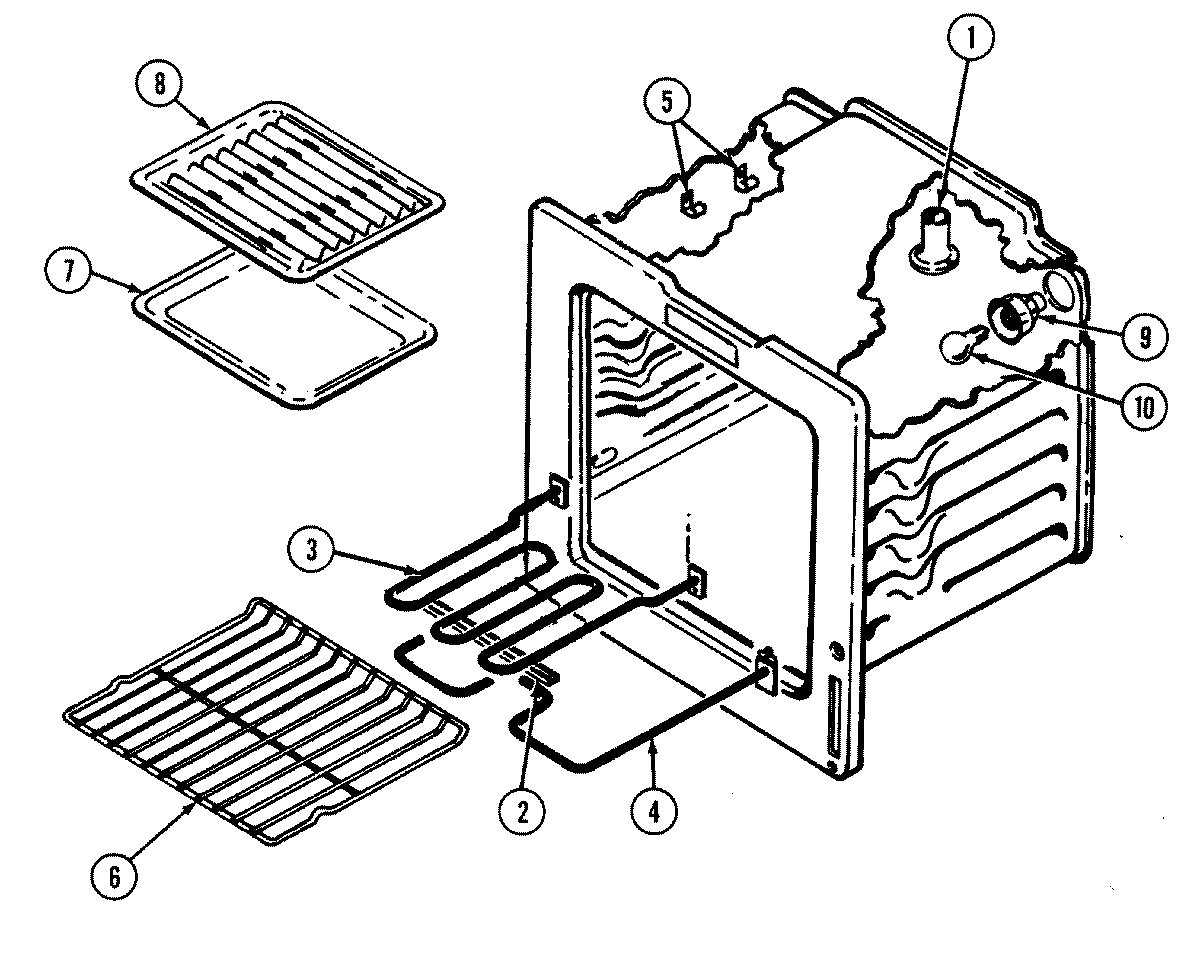

04 - OVEN

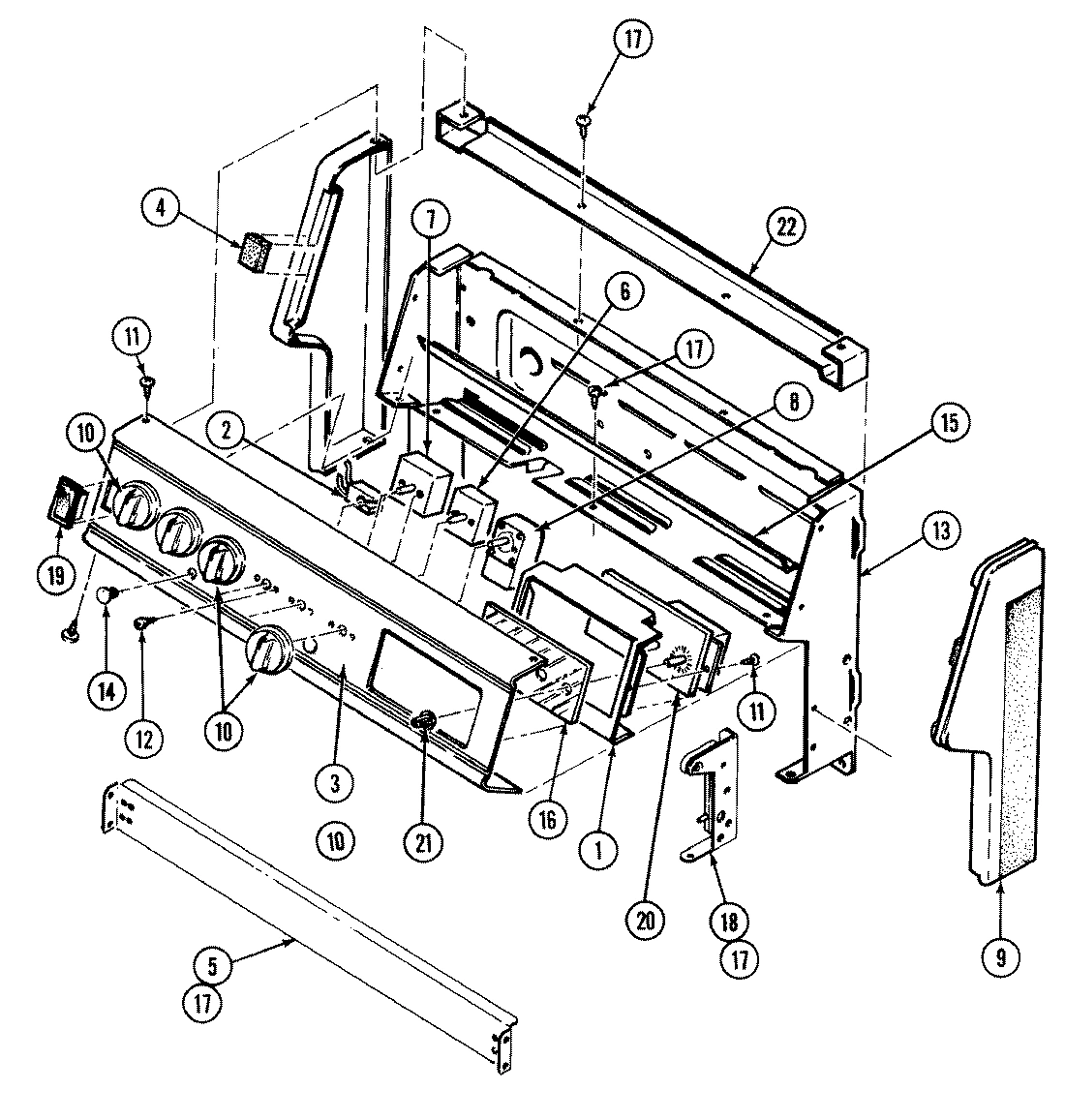

02 - CONTROL PANEL
Common parts from model Whirlpool C3542XRA ELECTRIC RANGE
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
SCREW WPL 7101P29060 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
BRACKET, CLOCK WPL 3801F31745 Contact Us For Availability
1
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
SCREW WPL 7101P30060 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P44360 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
4
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
RACK WPL 7801P04060 Contact Us For Availability
6
SWITCH WPL 7403P25460 Contact Us For Availability
7
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
7
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
NUT, SPEED WPL 7103P12960 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P04660 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05060 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
10
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
10
BULB, OVEN WPL 7407P09560 Contact Us For Availability
10
KNOB, INFINITE WPL 7737P02860 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
FRAME, WINDOW WPL 3603F03680 Contact Us For Availability
11
SCREW WPL 7118P01960 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
12
SCREW WPL 7101P30960 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
13
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020F00280 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
14
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
14
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
15
LINING, DOOR WPL 2402W20319 Contact Us For Availability
15
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
16
GASKET WPL 7201P05660 Contact Us For Availability
16
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
17
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
18
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
18
SCREW WPL 7101P11560 Contact Us For Availability
18
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
18
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
19
NUT, LOCK WPL 7103P08560 Contact Us For Availability
19
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
20
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
20
CLOCK WPL 7601P17060 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
21
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
21
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
22
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
22
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
22
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
22
HARNESS, LOOSE WIRE WPL 5125A33760 Contact Us For Availability
22
HARNESS, CONTROL PANEL WPL 5170D14460 Contact Us For Availability
22
HARNESS, FUSE WPL 5175D05960 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
27
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
28
SCREW STANDOFF WPL 7118P02060 Contact Us For Availability
29
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
30
COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability
30
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
31
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
31
CORD, POWER WPL 7402P03660 Contact Us For Availability
31
CORD, POWER WPL 7402P05060 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02160 Contact Us For Availability
× ![]()
