Model Whirlpool C3521WRV ELECTRIC RANGE – Common Parts & Diagrams

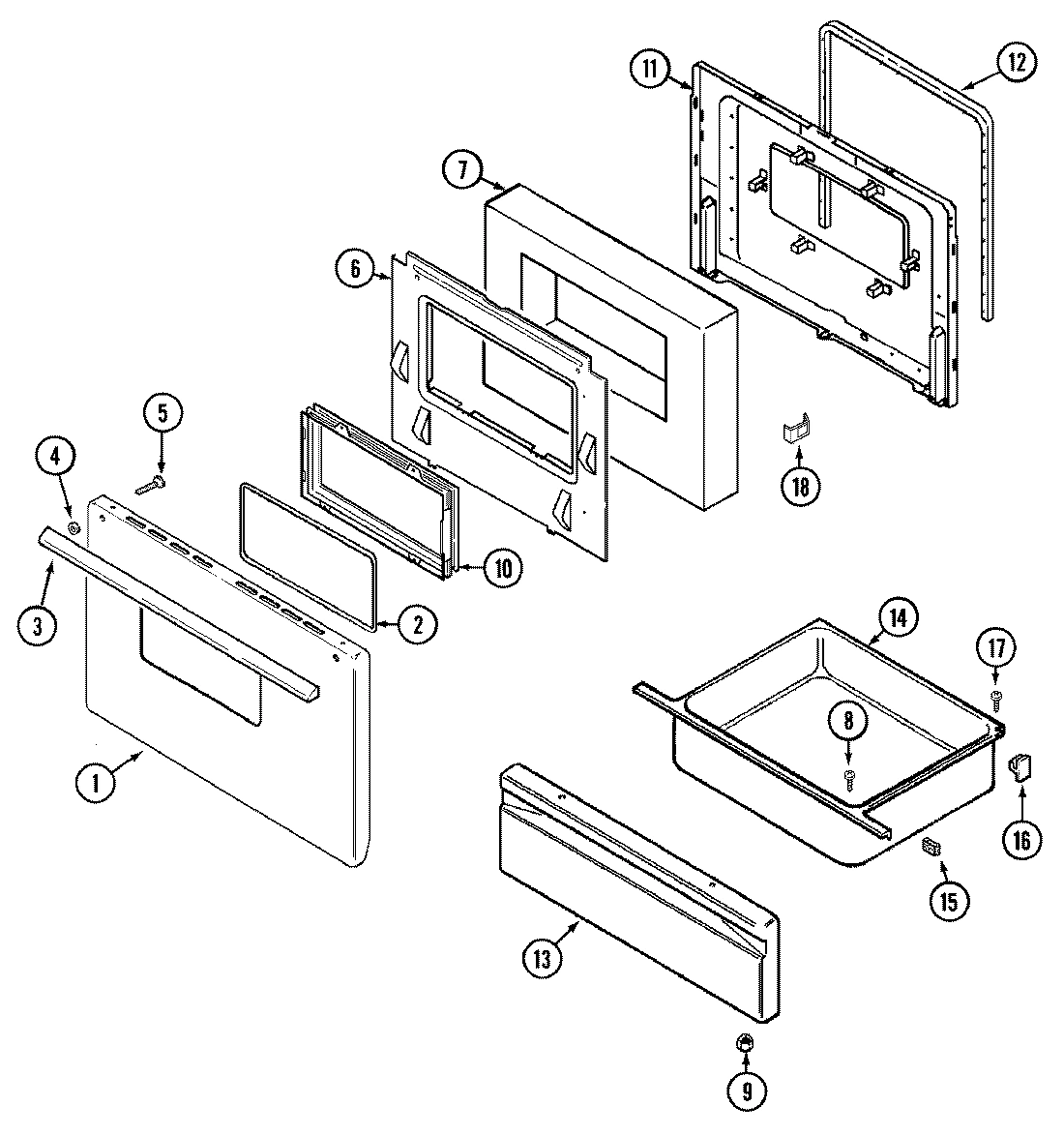

03 - DOOR/DRAWER (SERIES 01)

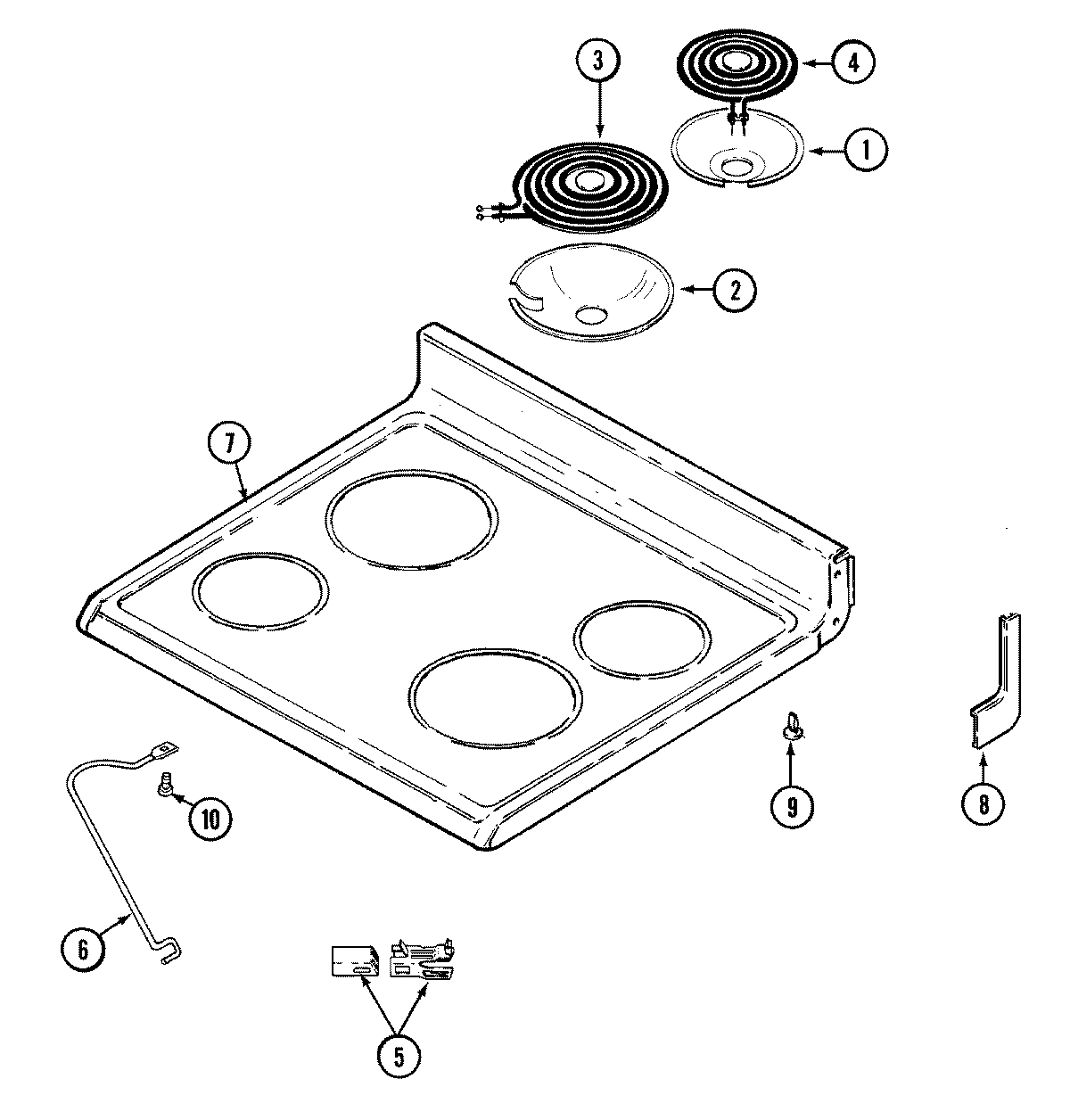

06 - TOP ASSEMBLY

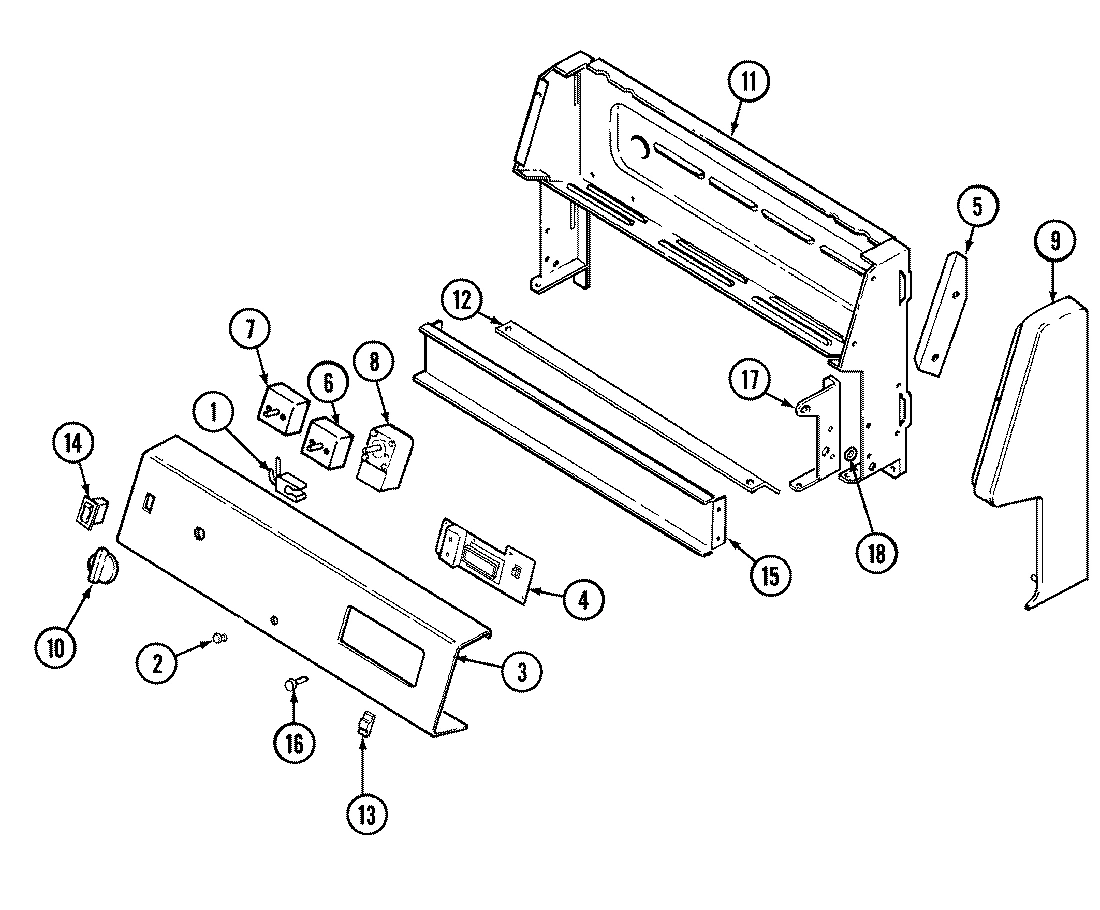

02 - CONTROL PANEL

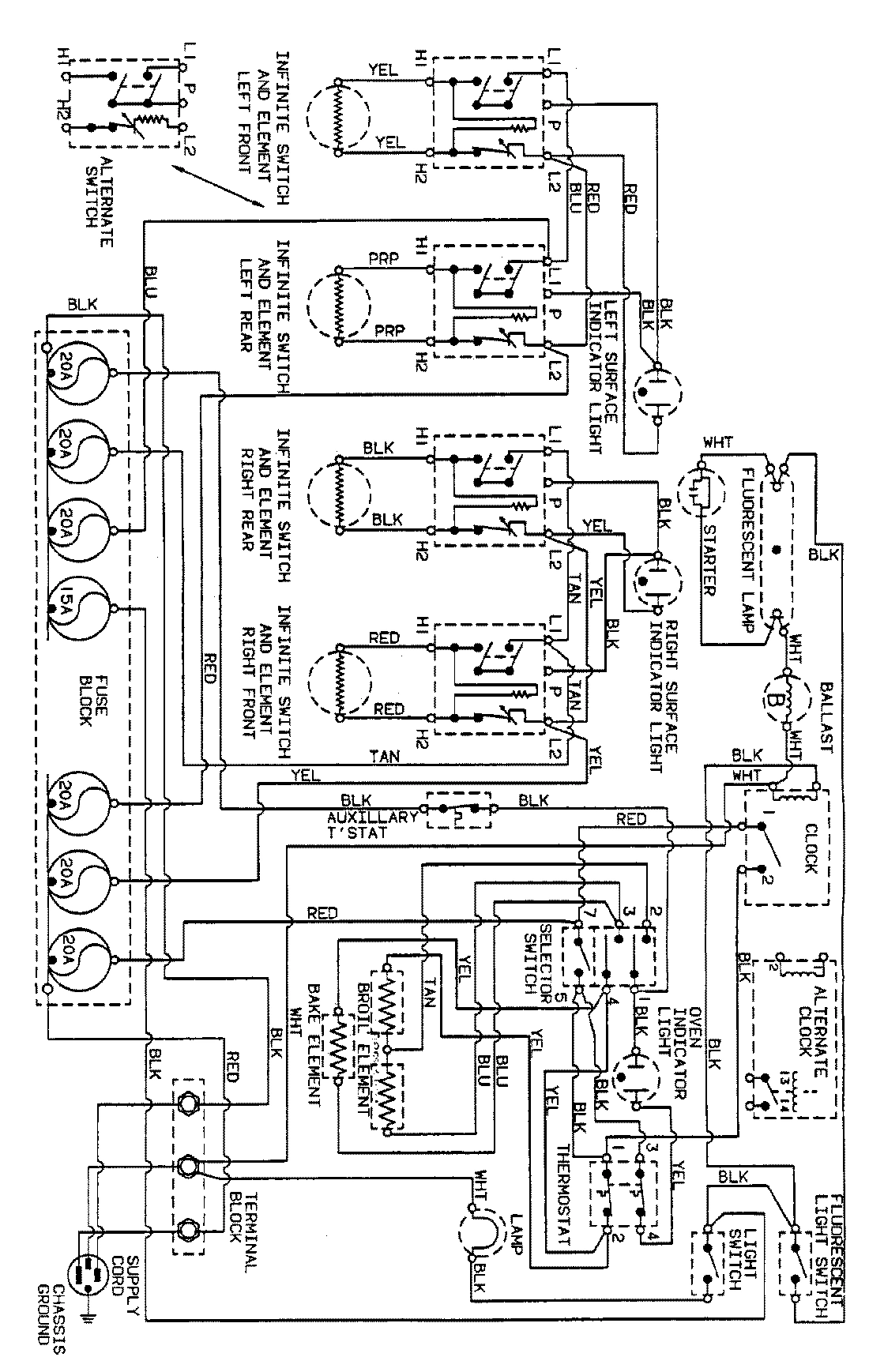

07 - WIRING INFORMATION

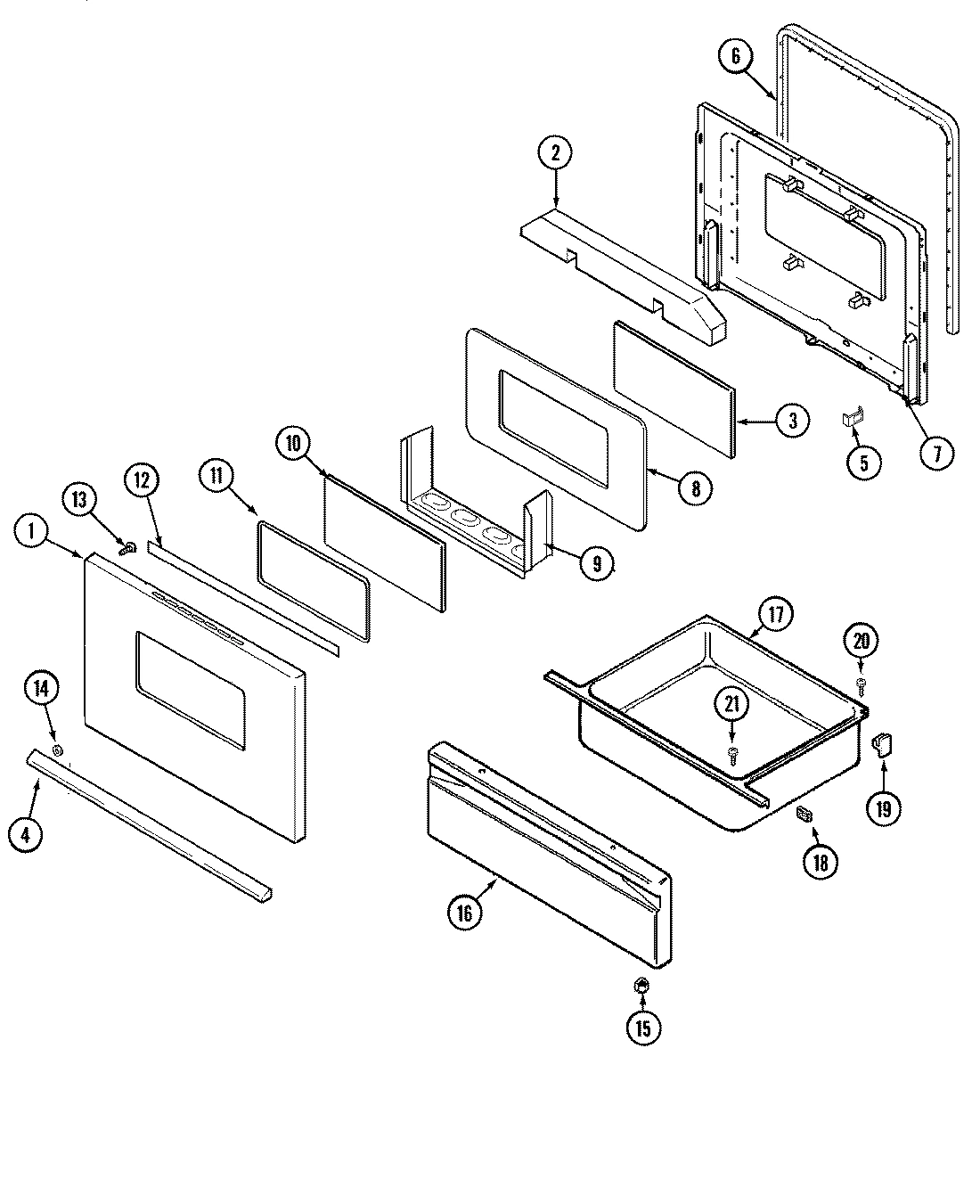

04 - DOOR/DRAWER (SERIES 45)

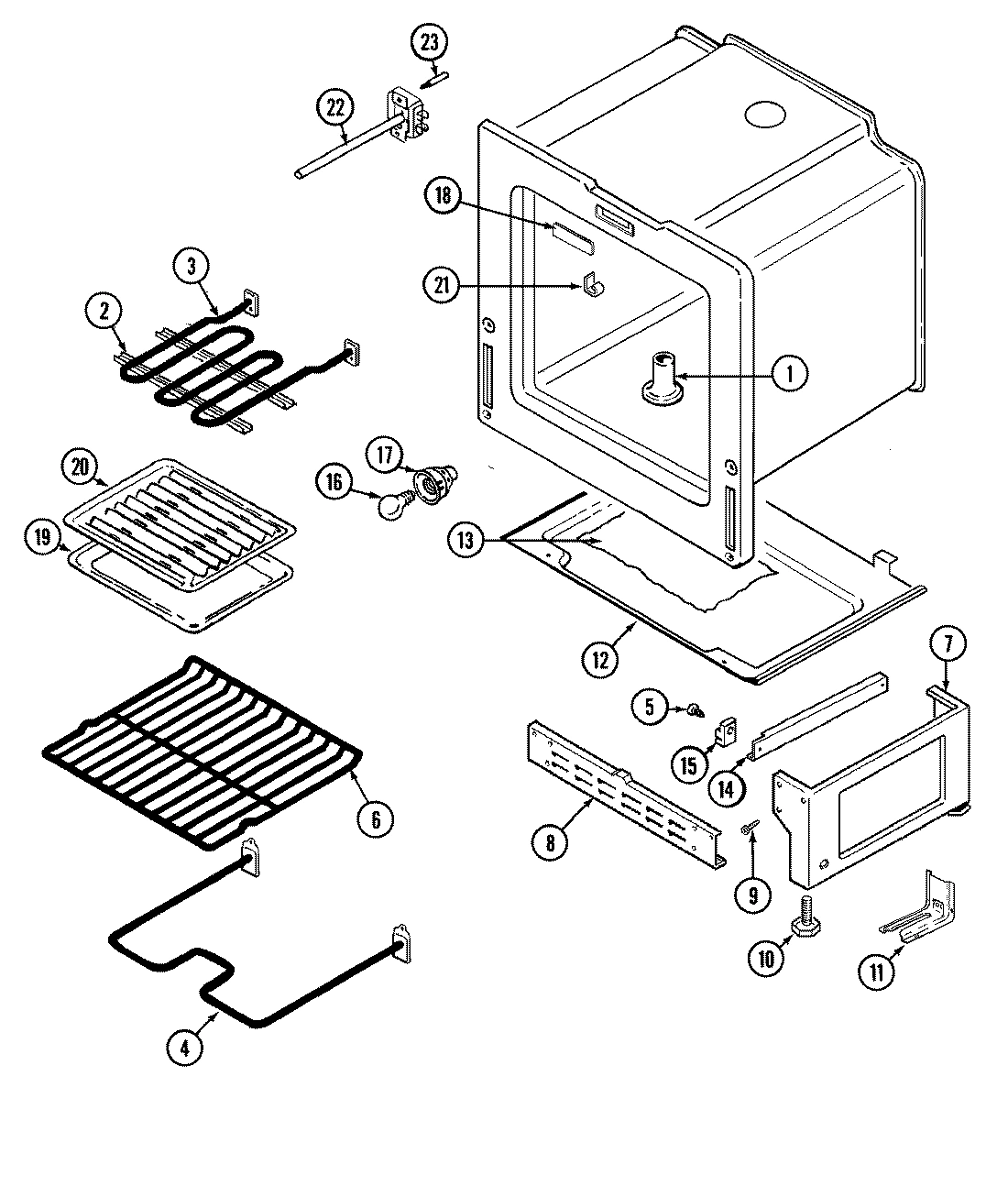

05 - OVEN/BASE

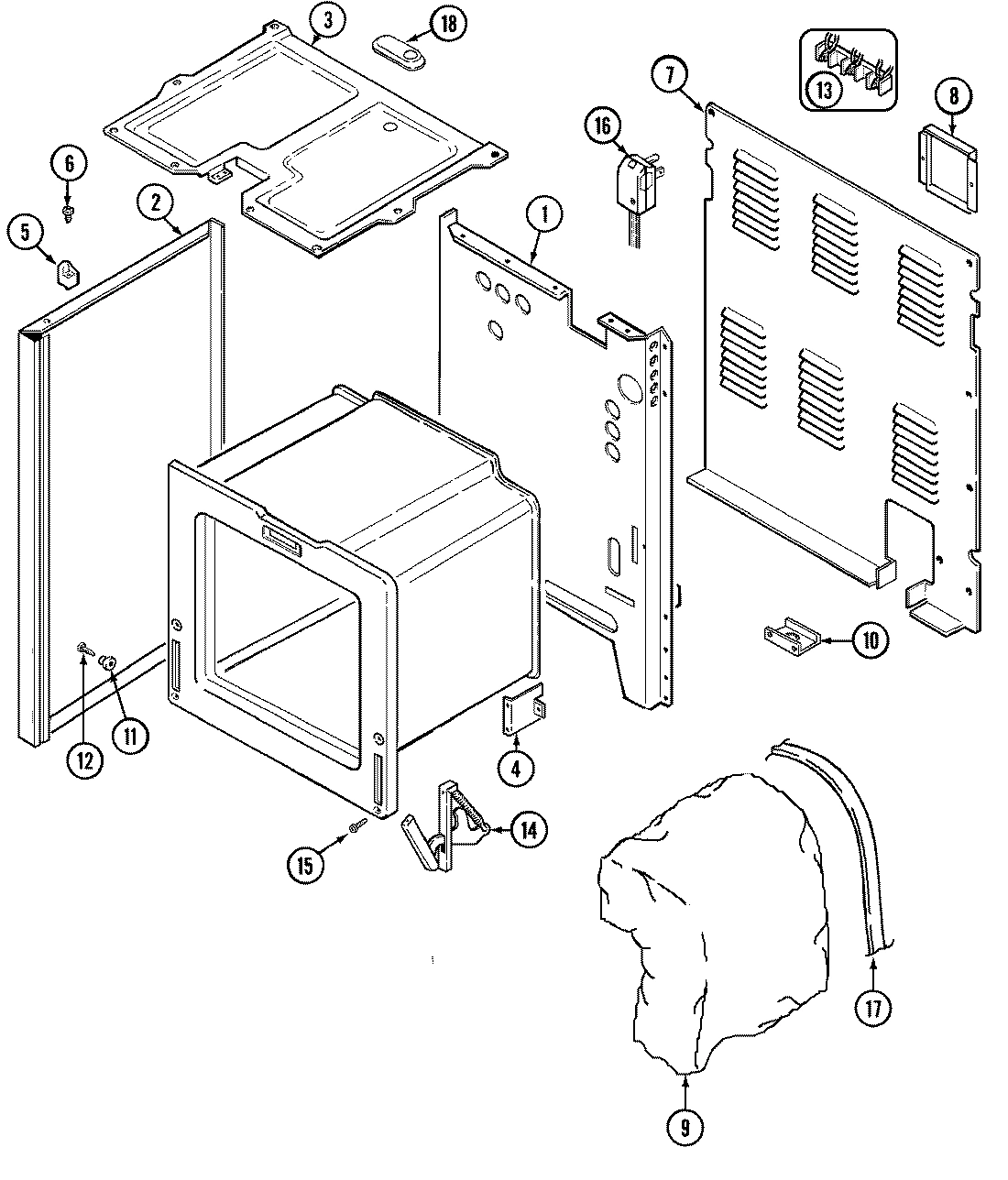

01 - BODY
Common parts from model Whirlpool C3521WRV ELECTRIC RANGE
1
PANEL, DOOR (WHT) WPL 2401F09771 Contact Us For Availability
1
SCREW WPL 7101P29060 Contact Us For Availability
1
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
1
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
1
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
1
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F12171 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
BACK, MAIN WPL 4002F17780 Contact Us For Availability
2
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
2
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
2
INSULATION, DOOR WPL 74002458 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
SCREW WPL 7101P30060 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
3
PANEL, CONTROL (WHT) WPL 4876S04759 Contact Us For Availability
3
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
3
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability
4
SCREW WPL 7101P29360 Contact Us For Availability
4
CLOCK WPL 7602P10460 Contact Us For Availability
4
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
5
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
5
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
6
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
6
RACK, OVEN WPL 7801P03660 Contact Us For Availability
7
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07881 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
LINING, DOOR WPL 74002785 Contact Us For Availability
7
LINING, DOOR WPL 74003248 Contact Us For Availability
7
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
8
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
8
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
8
SCREW WPL 7101P20960 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
9
GLIDE WPL 74001663 Contact Us For Availability
9
SCREW WPL 7101P31860 Contact Us For Availability
9
END CAP (RT-WHT) WPL 7726P07760 Contact Us For Availability
9
END CAP (LT-WHT) WPL 7726P07860 Contact Us For Availability
9
END CAP (RT-WHT) WPL 7726P08960 Contact Us For Availability
9
END CAP (LT-WHT) WPL 7726P09060 Contact Us For Availability
9
SUPPORT, OUTER GLASS WPL 74002462 Contact Us For Availability
9
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
10
WINDOW ASY. WPL 7907P01760 Contact Us For Availability
10
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
10
GLASS, DOOR (OUTER-WHT) WPL 74002464 Contact Us For Availability
10
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
10
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
11
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
11
LINING ASSY WPL 2402W19319 Contact Us For Availability
11
LINING, DOOR WPL 74002460 Contact Us For Availability
11
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
11
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
12
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
12
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
13
BUTTON, SLIDE (WHT)----NA WPL 7711P47260 Contact Us For Availability
13
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
13
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
14
SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
14
SCREW WPL 7101P11560 Contact Us For Availability
14
SWITCH, ROCKER (WHT) WPL 7403P31460 Contact Us For Availability
14
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
14
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
14
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
15
NUT, LOCK WPL 7103P08560 Contact Us For Availability
15
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
15
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
15
NUT WPL 7103P08260 Contact Us For Availability
15
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
15
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
15
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
16
BUTTON, SET (WHT) WPL 7711P47360 Contact Us For Availability
16
BULB, OVEN WPL 7407P09560 Contact Us For Availability
16
CORD, POWER WPL 7402P05060 Contact Us For Availability
17
SCREW WPL 7101P29160 Contact Us For Availability
17
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
17
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
17
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
17
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
17
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
17
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
18
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
18
NUT, SPEED WPL 7103P04460 Contact Us For Availability
18
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
18
COVER VENT WPL 4005F35045 Contact Us For Availability
19
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
21
SCREW WPL 7101P07260 Contact Us For Availability
21
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
22
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
23
SCREW WPL 7101P33760 Contact Us For Availability
NI
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
NI
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D14560 Contact Us For Availability
NI
HARNESS, CONTROL/TOP WPL 74001013 Contact Us For Availability
NI
MANUAL, USE & CARE (FRENCH) WPL 8113P05260 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001724 Contact Us For Availability
× ![]()
