Model LG C30W47 – Common Parts & Diagrams

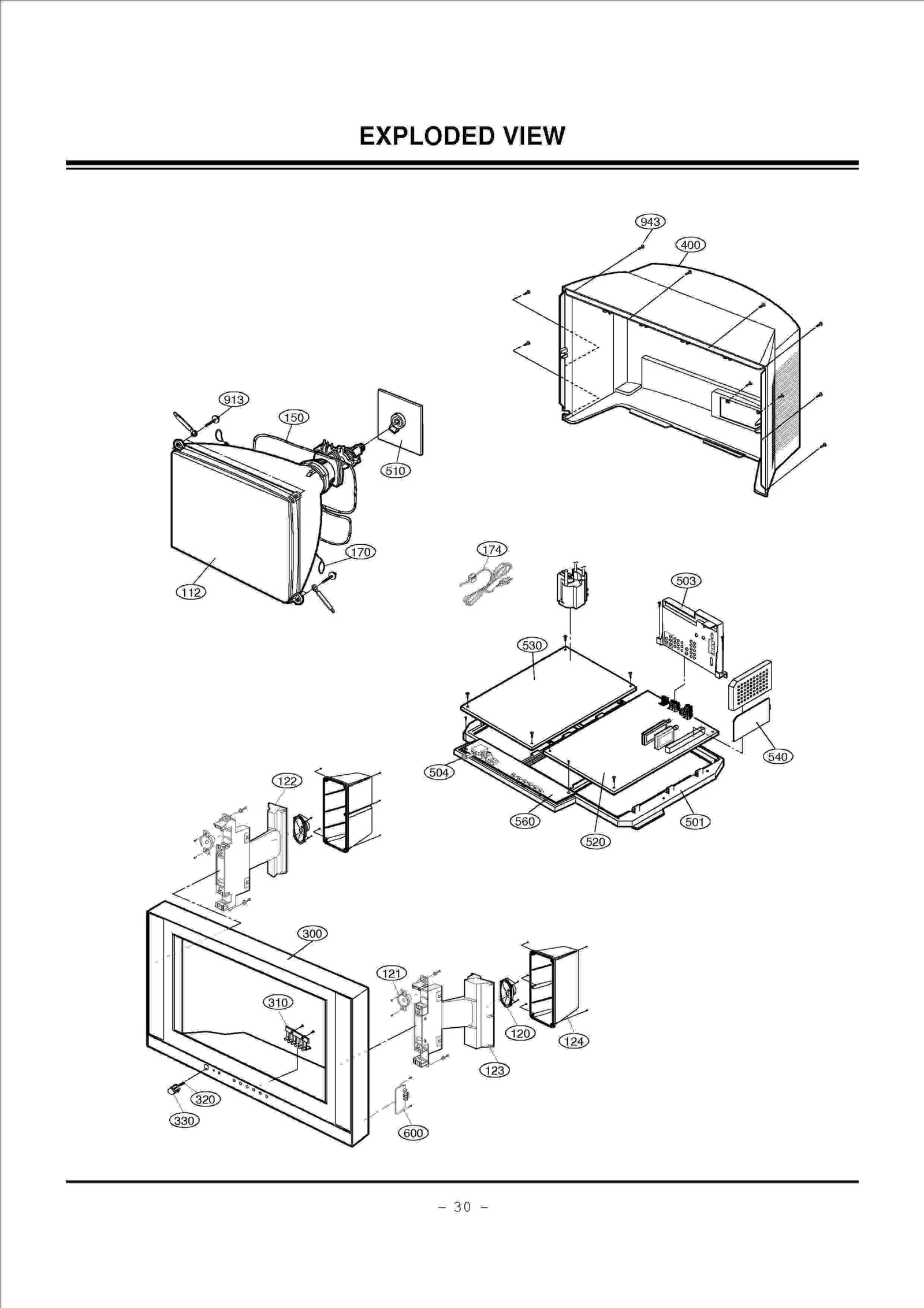

Diagram 0
Diagram 1
Common parts from model LG C30W47
112
WVT SET LGE 2440VCG0012 Contact Us For Availability
120
SPEAKER,MID-RANGE LGE 120-D38C Contact Us For Availability
121
LGE 6400VG0002A LGE 6400VG0002A Contact Us For Availability
122
LGE 4810V00165B LGE 4810V00165B Contact Us For Availability
123
LGE 4810V00165A LGE 4810V00165A Contact Us For Availability
150
LGE 6140VC2006H LGE 6140VC2006H Contact Us For Availability
170
CPT EARTH LGE 170-797X Contact Us For Availability
174
POWER CORD LGE 6410VUH004A Contact Us For Availability
300
CABINET ASSEMBLY LGE 3091V00554E Contact Us For Availability
310
BUTTON LGE 5020V00505A Contact Us For Availability
320
LGE 320-062G LGE 320-062G Contact Us For Availability
330
BUTTON LGE 5020V00506A Contact Us For Availability
400
BACK COVER ASSEMBLY LGE 3809V00256Y Contact Us For Availability
501
LGE 4810V00311F LGE 4810V00311F Contact Us For Availability
503
BRACKET LGE 4810V00842A Contact Us For Availability
504
LGE 351-008A LGE 351-008A Contact Us For Availability
510
PWB(PCB) ASSEMBLY,SU LGE 6871VSMQ28B Contact Us For Availability
520
PWB(PCB) ASSEMBLY,MA LGE 6871VMM777J Contact Us For Availability
530
PWB(PCB) ASSEMBLY,PO LGE 6871VDM898E Contact Us For Availability
540
PWB(PCB) ASSEMBLY,SU LGE 6871VSMZ51C Contact Us For Availability
560
PWB(PCB) ASSEMBLY,SU LGE 6871VSMZ66A Contact Us For Availability
943
LGE 1PTF0403116 LGE 1PTF0403116 Contact Us For Availability
A1
MANUAL,OWNERS LGE 3828VA0395D Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710V00102M Contact Us For Availability
AR101
Resistor,Array LGE 0RRZVTA001C Contact Us For Availability
AR302
RESISTOR,ARRAY LGE 0RRZVTA001D Contact Us For Availability
B200
INDUCTOR,CHIP LGE 0LCML00002B Contact Us For Availability
B306
FILTER(CIRC),EMC LGE 0LCML00002A Contact Us For Availability
C001
CAPACITOR TUBULAR (HIGH DIELEC LGE 0CN1030F679 Contact Us For Availability
C007
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C22
CAPACITOR ELECTROLYTIC 470UF S LGE 0CE477DF618 Contact Us For Availability
C43
Capacitor,AL,Radial LGE 0CE477DD618 Contact Us For Availability
C52
CAPACITOR ELECTROLYTIC 100UF S LGE 0CE107DD618 Contact Us For Availability
C53
CAPACITOR,ELECTROLYT LGE 0CE107BF618 Contact Us For Availability
C54
CAPACITOR 100UF STD 25V M FL T LGE 0CE107DH618 Contact Us For Availability
C108
LGE 0CE226DD618 LGE 0CE226DD618 Contact Us For Availability
C115
CAPACITOR 47UF STD 10V M FL TP LGE 0CE476DD618 Contact Us For Availability
C131
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C135
Capacitor,AL,Radial LGE 0CE108DD618 Contact Us For Availability
C241
CAPACITOR ELECTROLYTIC 4.7UF S LGE 0CE475DK618 Contact Us For Availability
C249
C ELECTROLYTIC 10UF STD 16V M LGE 0CE106DF618 Contact Us For Availability
C339
CAPACITOR,FIXED CERA LGE 0CK823DK56A Contact Us For Availability
C340
Capacitor,Ceramic,Chip LGE 0CH2822K516 Contact Us For Availability
C386
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C400
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
C407
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C422
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C505
Capacitor,AL,Radial LGE 181-064P Contact Us For Availability
C519
C ELECTROLYTIC 1UF STD 50V M F LGE 0CE105DK618 Contact Us For Availability
C526
LGE 181-007J LGE 181-007J Contact Us For Availability
C528
CAPACITOR LGE 181-007H Contact Us For Availability
C530
LGE 0CQ1041N455 LGE 0CQ1041N455 Contact Us For Availability
C536
CAPACITOR ELECTROLYTIC 22UF ST LGE 0CE226DF618 Contact Us For Availability
C541
LGE 0CE474DK618 LGE 0CE474DK618 Contact Us For Availability
C544
CAPACITOR 100UF STD 35V M FL T LGE 0CE107DJ618 Contact Us For Availability
C553
Capacitor,AL,Radial LGE 0CE476DK618 Contact Us For Availability
C556
LGE 0CQ1032K439 LGE 0CQ1032K439 Contact Us For Availability
C612
CAPACITOR ELECTROLYTIC 3.3UF S LGE 0CE335DK618 Contact Us For Availability
C688
Capacitor,Ceramic,Chip LGE 0CH2103K516 Contact Us For Availability
C689
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C801
CAPACITOR POLYESTER LGE 0CQZVBK002C Contact Us For Availability
C802
LGE 0CE228DF618 LGE 0CE228DF618 Contact Us For Availability
C806
LGE 0CQZVBK002A LGE 0CQZVBK002A Contact Us For Availability
C807
LGE 181-120N LGE 181-120N Contact Us For Availability
C809
LGE 0CE337DD618 LGE 0CE337DD618 Contact Us For Availability
C810
LGE 181-091P LGE 181-091P Contact Us For Availability
C811
Capacitor,AL,Radial LGE 0CE106DH618 Contact Us For Availability
C812
LGE 181-001B LGE 181-001B Contact Us For Availability
C814
LGE 0CQ2242K439 LGE 0CQ2242K439 Contact Us For Availability
C816
LGE 181-014A LGE 181-014A Contact Us For Availability
C818
LGE 0CE478BH650 LGE 0CE478BH650 Contact Us For Availability
C820
Capacitor,AL,Radial LGE 0CE108BF618 Contact Us For Availability
C821
LGE 0CE337BH618 LGE 0CE337BH618 Contact Us For Availability
C823
Capacitor,AL,Radial LGE 0CE228DK650 Contact Us For Availability
C824
LGE 0CE227BJ618 LGE 0CE227BJ618 Contact Us For Availability
C826
CAPACITOR CERAMIC(HIGH DIELE) LGE 0CK4710W515 Contact Us For Availability
C830
LGE 0CK47101515 LGE 0CK47101515 Contact Us For Availability
C831
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK10201515 Contact Us For Availability
C834
CAPACITOR 1000UF STD 25V M FL LGE 0CE108DH618 Contact Us For Availability
C837
LGE 181-120K LGE 181-120K Contact Us For Availability
C838
CAPACITOR LGE 181-091Q Contact Us For Availability
C840
LGE 181-091R LGE 181-091R Contact Us For Availability
C845
LGE 0CE477RU640 LGE 0CE477RU640 Contact Us For Availability
C846
LGE 0CQZVBK002D LGE 0CQZVBK002D Contact Us For Availability
C849
CAPACITOR ELECTROLYTIC 1000UF LGE 0CE108DF618 Contact Us For Availability
C851
LGE 0CE337DH618 LGE 0CE337DH618 Contact Us For Availability
C855
LGE 0CK1020W515 LGE 0CK1020W515 Contact Us For Availability
C903
LGE 0CE106BK618 LGE 0CE106BK618 Contact Us For Availability
C908
LGE 0CE336DK618 LGE 0CE336DK618 Contact Us For Availability
C939
LGE 0CE337DK618 LGE 0CE337DK618 Contact Us For Availability
C976
LGE 0CE336DP618 LGE 0CE336DP618 Contact Us For Availability
C977
LGE 0CE107DN618 LGE 0CE107DN618 Contact Us For Availability
C978
LGE 0CQ1031N509 LGE 0CQ1031N509 Contact Us For Availability
C1011
CAPACITOR ELECTROLYTIC 47UF ST LGE 0CE476DF618 Contact Us For Availability
C1412
LGE 181-013Z LGE 181-013Z Contact Us For Availability
C1413
LGE 0CK2220W515 LGE 0CK2220W515 Contact Us For Availability
C1418
LGE 181-010E LGE 181-010E Contact Us For Availability
C1418
LGE 181-013U LGE 181-013U Contact Us For Availability
C1420
LGE 0CQ3341N401 LGE 0CQ3341N401 Contact Us For Availability
C1423
CAPACITOR CERAMIC(HIGH DIELE) LGE 0CK1020K515 Contact Us For Availability
C1425
LGE 181-014V LGE 181-014V Contact Us For Availability
C1427
C CERAMIC(HIGH DIELEC) LGE 0CK10102515 Contact Us For Availability
C1428
LGE 0CC3300K415 LGE 0CC3300K415 Contact Us For Availability
C1431
CAPACITOR ELECTROLYTIC 10UF ST LGE 0CE106DK618 Contact Us For Availability
C1432
LGE 0CE226CR618 LGE 0CE226CR618 Contact Us For Availability
C1435
CAPACITOR LGE 181-091W Contact Us For Availability
C1436
LGE 0CQ5621N419 LGE 0CQ5621N419 Contact Us For Availability
C1437
LGE 181-009D LGE 181-009D Contact Us For Availability
C1438
LGE 181-015M LGE 181-015M Contact Us For Availability
C1439
LGE 181-014S LGE 181-014S Contact Us For Availability
C1440
LGE 0CK2210W515 LGE 0CK2210W515 Contact Us For Availability
C1442
LGE 181-010J LGE 181-010J Contact Us For Availability
C1443
LGE 181-0641 LGE 181-0641 Contact Us For Availability
C1445
LGE 0CE106BP618 LGE 0CE106BP618 Contact Us For Availability
C1449
LGE 0CE335CK636 LGE 0CE335CK636 Contact Us For Availability
C1501
LGE 0CE476DH618 LGE 0CE476DH618 Contact Us For Availability
C1505
Capacitor,AL,Radial LGE 0CE104DK618 Contact Us For Availability
C1517
LGE 0CE226DK618 LGE 0CE226DK618 Contact Us For Availability
C1616
LGE 0CC5610K405 LGE 0CC5610K405 Contact Us For Availability
C1628
C ELECTROLYTIC 100UF STD 16V M LGE 0CE107DF618 Contact Us For Availability
C1631
CAPACITOR 1000UF STD 50V M FL LGE 0CE108DK61A Contact Us For Availability
C1636
LGE 0CQ1041N509 LGE 0CQ1041N509 Contact Us For Availability
C1639
Capacitor,AL,Radial LGE 0CE228DJ650 Contact Us For Availability
C1651
Capacitor,AL,Radial LGE 0CE105CK636 Contact Us For Availability
C1911
LGE 0CK47202510 LGE 0CK47202510 Contact Us For Availability
C1912
LGE 0CK47102515 LGE 0CK47102515 Contact Us For Availability
C1923
CAPACITOR 10 UF STD 250V M TP5 LGE 0CE106DR618 Contact Us For Availability
C1925
LGE 0CQ1044R539 LGE 0CQ1044R539 Contact Us For Availability
C1930
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK1040K945 Contact Us For Availability
D602
Diode,TVS LGE 0DRSE00018A Contact Us For Availability
D808
IC,SANKEN LGE 0ISK100300A Contact Us For Availability
D813
DIODE EU1ZV, TP (52MM), SANKE LGE 0DD100009AM Contact Us For Availability
D816
DIODE 1N4005 GP TA FML-G12S LGE 0DD120000BB Contact Us For Availability
D819
DIODE RBV606 SANKEN LGE 0DD606000AA Contact Us For Availability
D822
Diode,Rectifier LGE 0DD200009AF Contact Us For Availability
D835
LGE 0RD6202F609 LGE 0RD6202F609 Contact Us For Availability
D908
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
D972
DIODE TVR06J 0.6A/600V 250NS T LGE 0DD060009AC Contact Us For Availability
D1401
DIODE GP15J TP (1.5A/600V) AP LGE 0DD150009CE Contact Us For Availability
D1409
LGE 0DD100009AE LGE 0DD100009AE Contact Us For Availability
D1412
DIODE,ZENER LGE 0DZ750009AG Contact Us For Availability
D1414
DIODE LGE 0DD100009AQ Contact Us For Availability
D1417
Diode,Zener LGE 0DZ510009AK Contact Us For Availability
D1419
DIODE,RECTIFIERS LGE 0DR500000CA Contact Us For Availability
D1420
DIODE,RECTIFIER LGE 0DR360000AA Contact Us For Availability
D1425
DIODE,ZENER LGE 0DZ240009CG Contact Us For Availability
D1428
DIODE (DS4148) TA: KCMT-9072X LGE 0DD414809ED Contact Us For Availability
D1429
DIODE 1N4005 RECT, KEC (06200 LGE 0DD400509AA Contact Us For Availability
D1430
DIODE,ZENERS LGE 0DZ120009BG Contact Us For Availability
D1605
DIODE,SWITCHING LGE 0DS113379BA Contact Us For Availability
D1909
LGE 0DZ100009AE LGE 0DZ100009AE Contact Us For Availability
F801
FUSE,SLOW BLOW LGE 0FS5001A51B Contact Us For Availability
FB02
CORE FERRITE BFD3565R2F(TAPIN LGE 125-123A Contact Us For Availability
IC12
IC,KEC LGE 0IKE780500Q Contact Us For Availability
IC15
LGE 0IZZVA0012Y LGE 0IZZVA0012Y Contact Us For Availability
IC17
IC,FAIRCHILD LGE 0IFA753307A Contact Us For Availability
IC18
IC,FAIRCHILD LGE 0IFA754207A Contact Us For Availability
IC19
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC100
IC,Microprocessors LGE 0IMCRSS016A Contact Us For Availability
IC101
LGE 0ISH323422A LGE 0ISH323422A Contact Us For Availability
IC102
LGE 0IMMRAL016A LGE 0IMMRAL016A Contact Us For Availability
IC103
LGE 0ISJ156612A LGE 0ISJ156612A Contact Us For Availability
IC104
LGE 0IMMRHY001F LGE 0IMMRHY001F Contact Us For Availability
IC105
LGE 0IMCRKE005A LGE 0IMCRKE005A Contact Us For Availability
IC106
IC LGE 0IPH741400E Contact Us For Availability
IC107
IC,ATMEL LGE 0IAL242561B Contact Us For Availability
IC109
IC,Hub LGE 0IMCRPH026A Contact Us For Availability
IC200
IC,CUSTOMIZED LGE 0ICTMLG009A Contact Us For Availability
IC201
LGE 0IMCRSO008A LGE 0IMCRSO008A Contact Us For Availability
IC202
LGE 0INA562300A LGE 0INA562300A Contact Us For Availability
IC202
IC,MEMORIES LGE 0IMMRHY033A Contact Us For Availability
IC300
IC,LINEAR LGE 0ILNRMN005A Contact Us For Availability
IC301
IC,MICRO CONTROLLER LGE 0IMCRAD002A Contact Us For Availability
IC312
OSCILLATOR LGE 6204B60001B Contact Us For Availability
IC314
IC,FPGA LGE 0IMCRXL004A Contact Us For Availability
IC315
IC,CUSTOMIZED LGE 0ICTMLG013A Contact Us For Availability
IC316
IC,Buffer LGE 0IMCRCY002A Contact Us For Availability
IC318
FILTER(CIRC),BAND PA LGE 6200VKR002A Contact Us For Availability
IC400
IC,MICRO CONTROLLER LGE 0IMCRSJ001A Contact Us For Availability
IC500
IC,Receiver LGE 0ICB841500D Contact Us For Availability
IC501
JACK TOTX179 TOSHIBA OPT LGE 6612BBBHN4A Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCRSO007A Contact Us For Availability
IC503
IC,Multiplexer LGE 0ITO741570C Contact Us For Availability
IC504
IC,Inverter LGE 0IMCRFA014A Contact Us For Availability
IC504
LGE 0IKE782400C LGE 0IKE782400C Contact Us For Availability
IC505
JACK,DIN LGE 6612BBBHN4B Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMRAL014B Contact Us For Availability
IC601
IC KEC KIA78L05BP(TA)3 KCN20A8 LGE 0IKE780500P Contact Us For Availability
IC602
IC,MICRO CONTROLLER LGE 0IMCRMN012A Contact Us For Availability
IC602
IC,PHILIPS LGE 0IPH827150A Contact Us For Availability
IC603
IC,MICRO CONTROLLER LGE 0IMCRS5003A Contact Us For Availability
IC607
IC,Receiver LGE 0ICTMLG014A Contact Us For Availability
IC802
IC SHARP PC817XF3 4D PHOTO COU LGE 0ISH817300B Contact Us For Availability
IC803
IC SANKEN SE130N 3P 130V ERROR LGE 0ISK130000A Contact Us For Availability
IC805
IC,SHARP LGE 0ISH092100B Contact Us For Availability
IC806
IC,SHARP LGE 0ISH122100B Contact Us For Availability
IC807
IC,SANKEN LGE 0ISK665813A Contact Us For Availability
IC901
IC,PHILIPS LGE 0IPH612000B Contact Us For Availability
IC1001
IC,SGS-THOMSON LGE 0ISG111733B Contact Us For Availability
IC1002
IC,Video Processors LGE 0IMMRNE002A Contact Us For Availability
IC1201
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC1401
IC, SANYO LGE 0ISA784500A Contact Us For Availability
IC1501
IC,MICRO CONTROLLER LGE 0IMCRFA003A Contact Us For Availability
IC1502
LGE 0ISO172630A LGE 0ISO172630A Contact Us For Availability
IC1503
LGE 0IMCRJR001A LGE 0IMCRJR001A Contact Us For Availability
IC1505
LGE 0ISO187500A LGE 0ISO187500A Contact Us For Availability
IC1506
LGE 0ISA164500B LGE 0ISA164500B Contact Us For Availability
IC1601
IC,SAMSUNG ELECTRONICS LGE 0ISS455880A Contact Us For Availability
IC1602
IC SANYO LA4282(AUDIO-AMP) LGE 0ISA428200A Contact Us For Availability
JA201
JACK ASSY LGE 6613V00010B Contact Us For Availability
JA203
JACK,RCA LGE 6612VJH022B Contact Us For Availability
JA1201
LGE 6613V00013F LGE 6613V00013F Contact Us For Availability
JA1202
JACK,DIN LGE 6612VBH001B Contact Us For Availability
JA1203
JACK,RCA LGE 380-392G Contact Us For Availability
JW801
LGE 387-907J LGE 387-907J Contact Us For Availability
L001
INDUCTOR AXIAL LEAD LGE 0LA1000K119 Contact Us For Availability
L503
INDUCTOR AXIAL LEAD LGE 0LA0332K119 Contact Us For Availability
L801
FILTER(CIRC),EMC LGE 150-F06T Contact Us For Availability
L803
LGE 125-022K LGE 125-022K Contact Us For Availability
L804
FILTER(CIRC),LINE LGE 150-F06Z Contact Us For Availability
L806
TRANSFORMER LGE 6170VZ0005A Contact Us For Availability
L1003
Filter,Bead LGE 6210VC0006A Contact Us For Availability
L1011
LGE 0LA0561K119 LGE 0LA0561K119 Contact Us For Availability
L1401
COIL,LINEARITY LGE 6140VE0001T Contact Us For Availability
L1402
LGE 0LA1001K139 LGE 0LA1001K139 Contact Us For Availability
L1413
COIL WIDTH 24UH LGE 150-W01A Contact Us For Availability
L1901
INDUCTOR AXIAL LEAD KCN20A82G LGE 0LA0102K119 Contact Us For Availability
LD1
LGE 162-002B LGE 162-002B Contact Us For Availability
LED600
LED LGE 0DL233309AC Contact Us For Availability
P005
LGE 6932V25004A LGE 6932V25004A Contact Us For Availability
P008
LGE 387-A03C LGE 387-A03C Contact Us For Availability
P104
CONNECTOR (CIRC),D-S LGE 6630VGA004B Contact Us For Availability
P403B
CONNECTOR ASSEMBLY LGE 6631V25A04A Contact Us For Availability
P405B
LGE 387-A15A LGE 387-A15A Contact Us For Availability
P604B
CONNECTOR ASSY LGE 387-A05A Contact Us For Availability
P801AB
LGE 6631V23001N LGE 6631V23001N Contact Us For Availability
P803B
LGE 387-A10C LGE 387-A10C Contact Us For Availability
P804B
LGE 387-A10A LGE 387-A10A Contact Us For Availability
P901
LGE 387-J12J LGE 387-J12J Contact Us For Availability
P905
LGE 387-A10G LGE 387-A10G Contact Us For Availability
PA001
LGE 387-A08C LGE 387-A08C Contact Us For Availability
PA1
REMOTE CONTROLLER RE LGE 6712R1538GG Contact Us For Availability
Q001
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q600
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q802
LGE 0TR421009CB LGE 0TR421009CB Contact Us For Availability
Q804
TRANSISTOR KRC102M,TP (KRC120 LGE 0TR102009AB Contact Us For Availability
Q905
TRANSISTOR LGE 0TR127409AB Contact Us For Availability
Q971
TRANSISTOR KCN20A82G AXJMJ7 LGE 0TR322709AA Contact Us For Availability
Q972
TRANSISTOR LGE 0TR394400AA Contact Us For Availability
Q973
TRANSISTOR LGE 0TR153500AA Contact Us For Availability
Q1202
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q1402
TRANSISTOR,FETS LGE 0TFIR10003A Contact Us For Availability
Q1403
TRANSISTOR LGE 0TR471000AA Contact Us For Availability
Q1408
TRANSISTOR,BIPOLARS LGE 0TR544600AA Contact Us For Availability
Q1409
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q1410
TRANSISTOR LGE 0TR205900AB Contact Us For Availability
Q1610
TRANSISTOR LGE 0TR102008AA Contact Us For Availability
Q1920
LGE 0TR322800AB LGE 0TR322800AB Contact Us For Availability
R003
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R007
RESISTOR FIXED CARBON FILM SKN LGE 0RD2001F609 Contact Us For Availability
R008
Resistor,Carbon Film LGE 0RD6201F609 Contact Us For Availability
R011
LGE 0RD1301F609 LGE 0RD1301F609 Contact Us For Availability
R107
LGE 0RS0202K607 LGE 0RS0202K607 Contact Us For Availability
R506
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R801
LGE 0RKZVTA001K LGE 0RKZVTA001K Contact Us For Availability
R802
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R805
LGE 0RD2702H609 LGE 0RD2702H609 Contact Us For Availability
R806
LGE 0RS1002J607 LGE 0RS1002J607 Contact Us For Availability
R809
RESISTOR FIXED CARBON FILM LGE 0RD4300F609 Contact Us For Availability
R810
LGE 180-822M LGE 180-822M Contact Us For Availability
R811
LGE 180-C02B LGE 180-C02B Contact Us For Availability
R812
LGE 0RD7502H609 LGE 0RD7502H609 Contact Us For Availability
R818
LGE 0RS0822H609 LGE 0RS0822H609 Contact Us For Availability
R819
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R820
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R822
RESISTOR,DRAWING LGE 180-A01Q Contact Us For Availability
R830
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
R837
LGE 0RS2202K607 LGE 0RS2202K607 Contact Us For Availability
R838
LGE 0RD2403F609 LGE 0RD2403F609 Contact Us For Availability
R841
Resistor,Metal Film LGE 0RN1801F409 Contact Us For Availability
R861
RESISTOR,FIXED PRECI LGE 0RP0050H709 Contact Us For Availability
R866
RESISTOR,FIXED PRECI LGE 0RP0020J809 Contact Us For Availability
R911
Resistor,Carbon Film LGE 0RD3900F609 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R925
LGE 0RF0102H609 LGE 0RF0102H609 Contact Us For Availability
R971
LGE 0RD1801H609 LGE 0RD1801H609 Contact Us For Availability
R973
Resistor,Carbon Film LGE 0RD0102H609 Contact Us For Availability
R974
LGE 0RD0271H609 LGE 0RD0271H609 Contact Us For Availability
R978
LGE 0RD1000H609 LGE 0RD1000H609 Contact Us For Availability
R980
LGE 0RD3902H609 LGE 0RD3902H609 Contact Us For Availability
R983
LGE 0RS1800J607 LGE 0RS1800J607 Contact Us For Availability
R987
LGE 0RS3001K619 LGE 0RS3001K619 Contact Us For Availability
R1403
LGE 0RS2200J607 LGE 0RS2200J607 Contact Us For Availability
R1404
Resistor,Carbon Film LGE 0RD0332H609 Contact Us For Availability
R1406
LGE 0RS3300J607 LGE 0RS3300J607 Contact Us For Availability
R1407
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R1408
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R1409
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R1411
RESISTOR FIX METAL FILM LGE 0RN0680H609 Contact Us For Availability
R1414
LGE 0RS4702J607 LGE 0RS4702J607 Contact Us For Availability
R1416
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R1420
LGE 0RS2403J607 LGE 0RS2403J607 Contact Us For Availability
R1424
RESISTOR FIXED CARBON FILM SKN LGE 0RD6801F609 Contact Us For Availability
R1428
LGE 180-C02M LGE 180-C02M Contact Us For Availability
R1431
RESISTOR FUSIBLE SKN14V20 APGM LGE 0RF0470H609 Contact Us For Availability
R1432
LGE 0RS2203J607 LGE 0RS2203J607 Contact Us For Availability
R1433
LGE 0RD1001H609 LGE 0RD1001H609 Contact Us For Availability
R1436
LGE 0RS2701J607 LGE 0RS2701J607 Contact Us For Availability
R1437
LGE 0RD2204H609 LGE 0RD2204H609 Contact Us For Availability
R1438
Resistor,Carbon Film LGE 0RD8201F609 Contact Us For Availability
R1440
RESISTOR RW ROUND G 2W 0.27 J LGE 180-A01H Contact Us For Availability
R1441
LGE 0RD2701H609 LGE 0RD2701H609 Contact Us For Availability
R1443
RESISTOR FIX METAL FILM OXIDE LGE 0RS0391K607 Contact Us For Availability
R1444
LGE 0RD1301H609 LGE 0RD1301H609 Contact Us For Availability
R1445
LGE 0RD3901H609 LGE 0RD3901H609 Contact Us For Availability
R1448
Resistor,Carbon Film LGE 0RD2400F609 Contact Us For Availability
R1449
LGE 0RS0562K607 LGE 0RS0562K607 Contact Us For Availability
R1452
LGE 0RD2202H609 LGE 0RD2202H609 Contact Us For Availability
R1457
LGE 0RD2401H609 LGE 0RD2401H609 Contact Us For Availability
R1458
LGE 0RS0221K607 LGE 0RS0221K607 Contact Us For Availability
R1459
LGE 0RS2701K607 LGE 0RS2701K607 Contact Us For Availability
R1460
LGE 0RD4701H609 LGE 0RD4701H609 Contact Us For Availability
R1462
RESISTOR FUSIBLE 1.0 1/2W 5 TA LGE 0RF0101H609 Contact Us For Availability
R1464
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R1466
LGE 0RF0151J607 LGE 0RF0151J607 Contact Us For Availability
R1470
LGE 0RF0680H609 LGE 0RF0680H609 Contact Us For Availability
R1471
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R1472
Resistor,Carbon Film LGE 0RD9101F609 Contact Us For Availability
R1492
LGE 0RS1201K607 LGE 0RS1201K607 Contact Us For Availability
R1494
LGE 0RD4301F609 LGE 0RD4301F609 Contact Us For Availability
R1497
LGE 0RS4701K607 LGE 0RS4701K607 Contact Us For Availability
R1500
LGE 0RS0222J607 LGE 0RS0222J607 Contact Us For Availability
R1509
LGE 0RS0472H609 LGE 0RS0472H609 Contact Us For Availability
R1555
RESISTOR,FIXED METAL OXIDE FIL LGE 0RS6801K607 Contact Us For Availability
R1647
LGE 0RF0561H609 LGE 0RF0561H609 Contact Us For Availability
R1901
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R1967
Resistor,Carbon Film LGE 0RD2702F609 Contact Us For Availability
R1972
LGE 0RC2200H609 LGE 0RC2200H609 Contact Us For Availability
R1975
LGE 0RC0512H609 LGE 0RC0512H609 Contact Us For Availability
R1976
LGE 0RKZVTA001A LGE 0RKZVTA001A Contact Us For Availability
R1998
LGE 0RX2402L607 LGE 0RX2402L607 Contact Us For Availability
SG1403
LGE 165-004A LGE 165-004A Contact Us For Availability
SG1901
LGE 6918VAX002H LGE 6918VAX002H Contact Us For Availability
SG1903
SPARK GAP,AXIAL LGE 6918VAX002E Contact Us For Availability
SK901
SOCKET (CIRC),CPT LGE 6620VBD001A Contact Us For Availability
SW6
SWITCH TACT 4LEAD 160G H4.7 LGE 140-315A Contact Us For Availability
SW801
SWITCH,PUSH LGE 140-275E Contact Us For Availability
T411
FILTER(CIRC),EMI LGE 6200VJT006A Contact Us For Availability
T803
TRANSFORMER,STAND-BY LGE 6170VS0001D Contact Us For Availability
T1002
FILTER(CIRC),BAND PA LGE 6200C000010 Contact Us For Availability
T1004
FILTER(CIRC),BAND PA LGE 6200C000009 Contact Us For Availability
T1401
FBT (FLY BACK TRANSF LGE 6174V-6004Q Contact Us For Availability
T1402
TRANSFORMER,HORIZONT LGE 6170VC0002A Contact Us For Availability
TU101
TUNER LGE 6700NFNS04B Contact Us For Availability
TU102
TUNER LGE 6700NFNS06B Contact Us For Availability
VA801
VARISTOR LGE 164-003K Contact Us For Availability
X11
CRYSTAL 8.000000 16PF 40 OHM B LGE 156-A01P Contact Us For Availability
X201
CRYSTAL 4.000000 15PF 90 OHM B LGE 156-A01E Contact Us For Availability
X301
CRYSTAL,STANDARD LGE 6202VDT002E Contact Us For Availability
X501
LGE 6212BA2002C LGE 6212BA2002C Contact Us For Availability
X601
CRYSTAL,STANDARD LGE 156-A02R Contact Us For Availability
X1001
LGE 156-A02Z LGE 156-A02Z Contact Us For Availability
ZD11
LGE 0DZ620009AK LGE 0DZ620009AK Contact Us For Availability
ZD101
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
ZD501
Diode,Zener LGE 0DZ120009AF Contact Us For Availability
ZD502
Diode,Zener LGE 0DZ560009AH Contact Us For Availability
ZD601
LGE 0DZ820009BF LGE 0DZ820009BF Contact Us For Availability
ZD1503
DIODE ZENER HZT33 TP-02TE 1U LGE 0DZ330009BA Contact Us For Availability
× ![]()
Login and Registration Form
