Model Whirlpool C236W ELECTRIC COOK-TOP – Common Parts & Diagrams
02 - BURNER BOX (C236W,W-C,NGW)

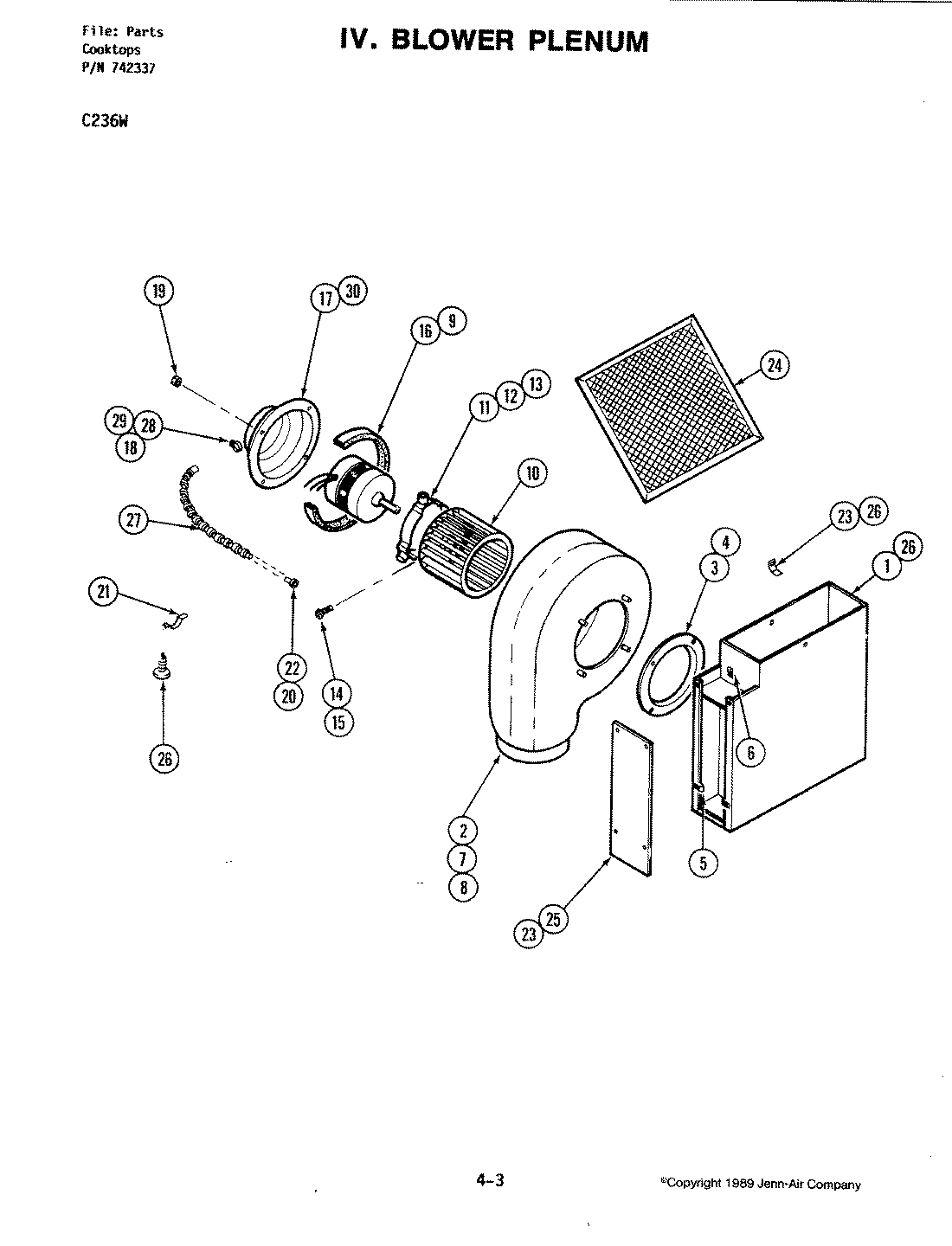

01 - BLOWER PLENUM (C236W,W-C,NGW)

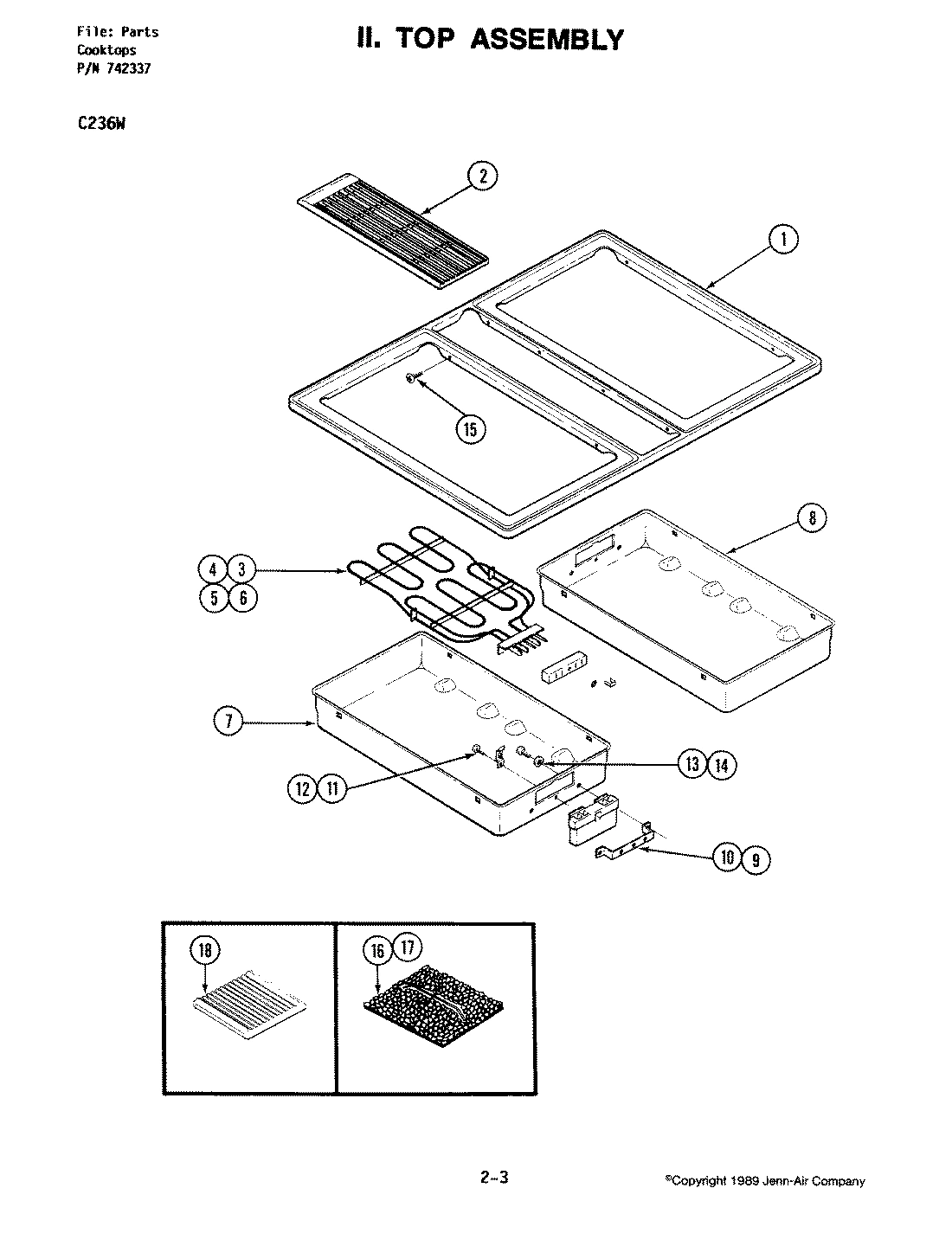

04 - TOP ASSEMBLY (C236W,W-C,NGW)

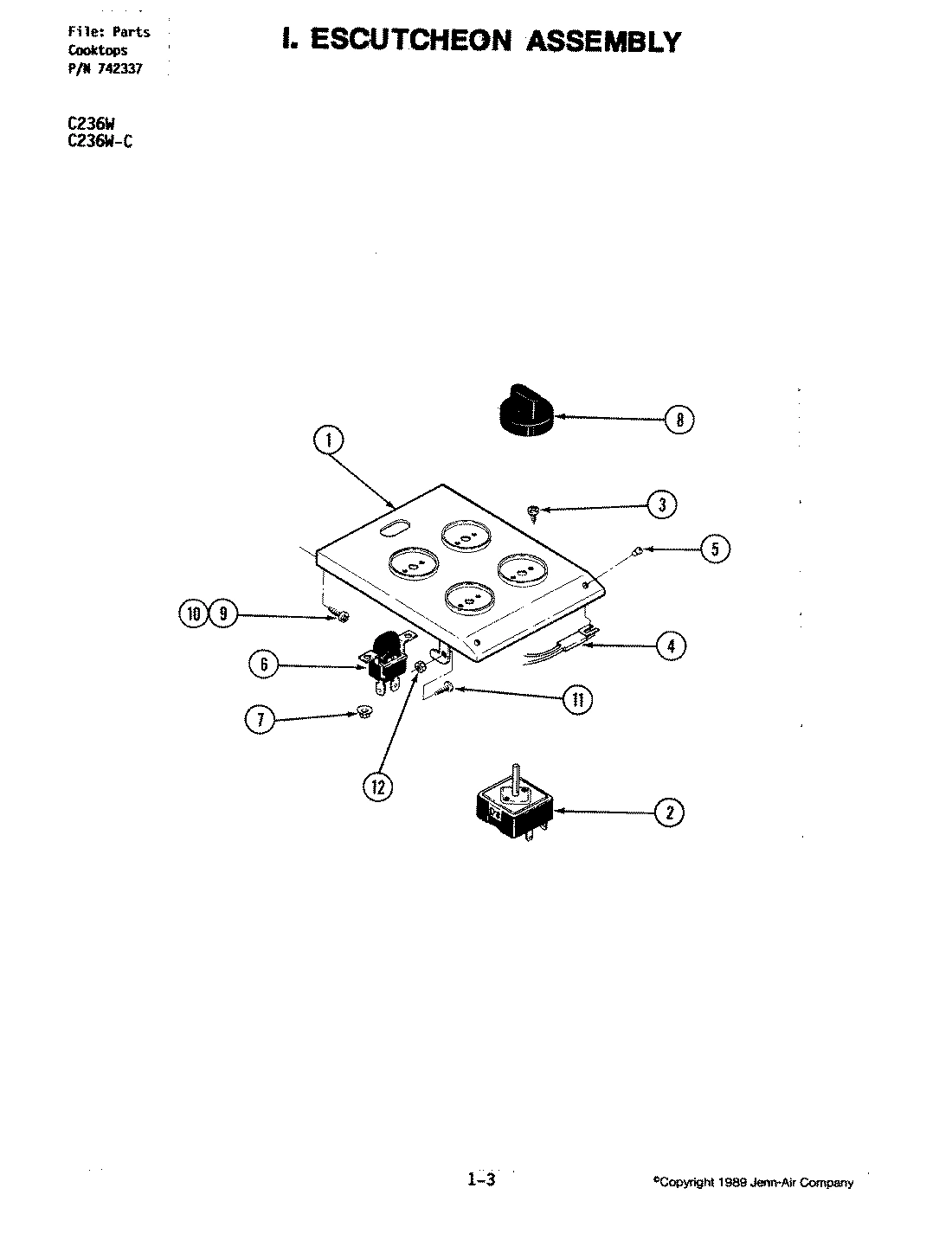

03 - ESCUTCHEON ASSEMBLY (C236W,W-C,NGW)
Common parts from model Whirlpool C236W ELECTRIC COOK-TOP
1
PLENUM WPL 712434 Contact Us For Availability
1
TOP, MAIN (FR. WHT) WPL Y04100716 Contact Us For Availability
1
TOP WPL Y704985 Contact Us For Availability
1
ESCUTCHEON (LT/WHT) WPL 704444 Contact Us For Availability
2
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
2
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
2
GRILL, AIR (WHT) WPL Y704603 Contact Us For Availability
3
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
3
RING, INLET WPL Y704758 Contact Us For Availability
3
SCREW WPL Y704864 Contact Us For Availability
4
CLAMP, CABLE WPL 715780 Contact Us For Availability
4
CLIP WPL Y707335 Contact Us For Availability
4
CONDUIT WPL Y707758 Contact Us For Availability
4
LIGHT, PILOT WPL 704209 Contact Us For Availability
5
LID, JAR WPL Y707870 Contact Us For Availability
5
CLIP WPL Y707831 Contact Us For Availability
5
LENS WPL Y704607 Contact Us For Availability
6
CLIP, SHUNT WPL Y700450 Contact Us For Availability
6
SWITCH, FAN WPL Y704605 Contact Us For Availability
7
BUSHING WPL Y707695 Contact Us For Availability
7
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
7
WIRE, BLUE WPL Y712030 Contact Us For Availability
7
WIRE, BROWN WPL Y712197 Contact Us For Availability
7
WIRE, YELLOW WPL Y712200 Contact Us For Availability
7
WIRE, VIOLET WPL Y712203 Contact Us For Availability
7
KIT, WIRE WPL Y712431 Contact Us For Availability
8
KIT, WIRE WPL Y712438 Contact Us For Availability
8
PLATE, COVER WPL Y700464 Contact Us For Availability
8
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
8
WIRE, BROWN WPL Y712199 Contact Us For Availability
9
CLIP WPL Y700834 Contact Us For Availability
9
MOTOR, BLOWER WPL Y705032 Contact Us For Availability
10
CLIP, RETAINER WPL Y700503 Contact Us For Availability
10
BRACKET WPL Y702698 Contact Us For Availability
11
BAND, MOTOR WPL Y707393 Contact Us For Availability
11
KIT, ESTUTCHEON WIRE (LEFT) WPL 712528 Contact Us For Availability
12
SCREW WPL 707407 Contact Us For Availability
13
WASHER WPL Y707664 Contact Us For Availability
14
NUT WPL 707161 Contact Us For Availability
14
SCREW WPL Y707402 Contact Us For Availability
15
RETAINER, FILTER WPL Y707688 Contact Us For Availability
16
FOAM, URETHANE WPL Y715957 Contact Us For Availability
16
PLATE, ROCK WPL 708929 Contact Us For Availability
17
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
17
COVER, MOTOR WPL Y704968 Contact Us For Availability
17
MOTOR COVER ASSY WPL Y712550 Contact Us For Availability
18
CONNECTOR WPL 707766 Contact Us For Availability
18
GRATE, GRILL WPL 703905 Contact Us For Availability
20
BUSHING WPL 712311 Contact Us For Availability
21
TINNERMAN WPL 712310 Contact Us For Availability
× ![]()
