  • Whirlpool C228 Parts List

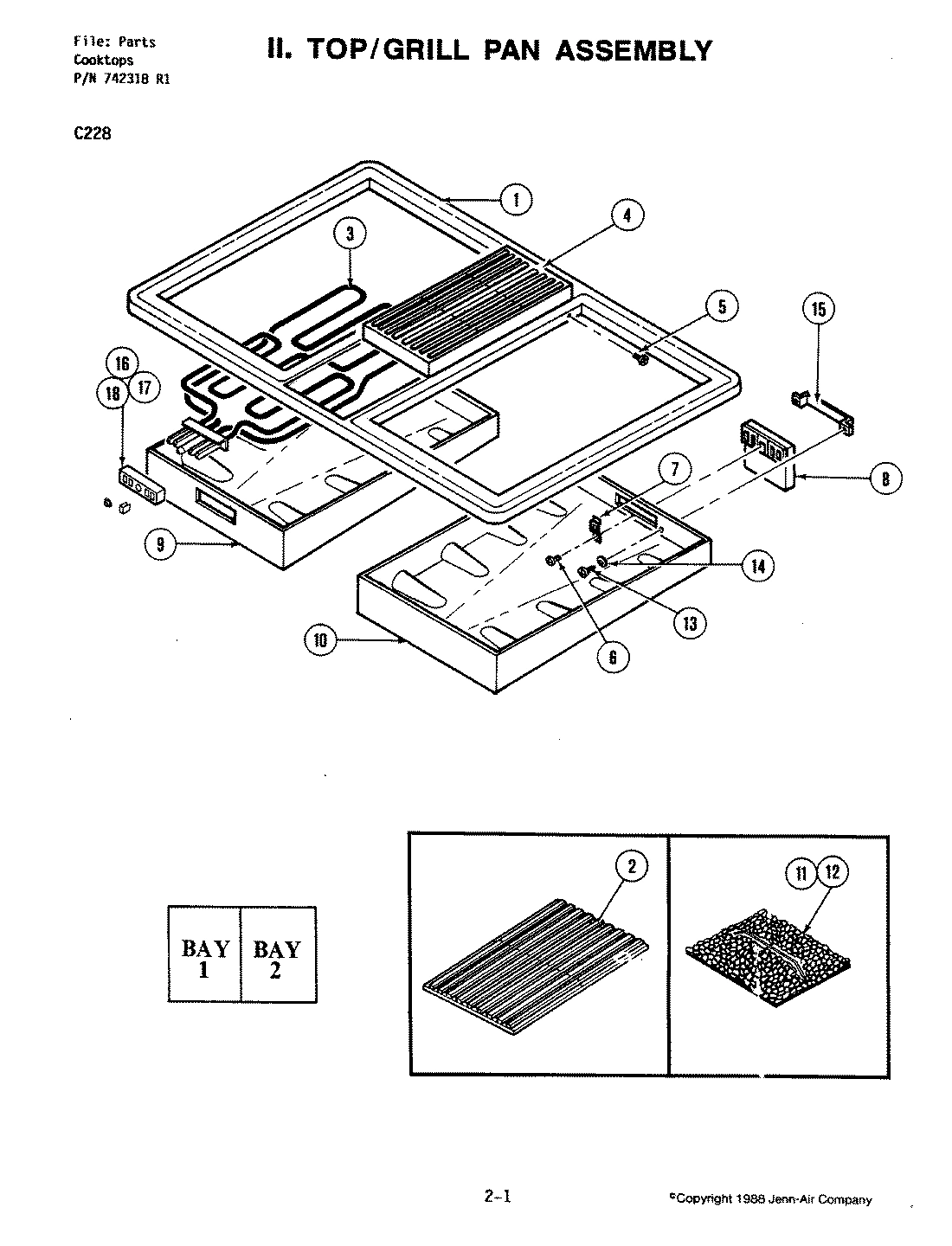

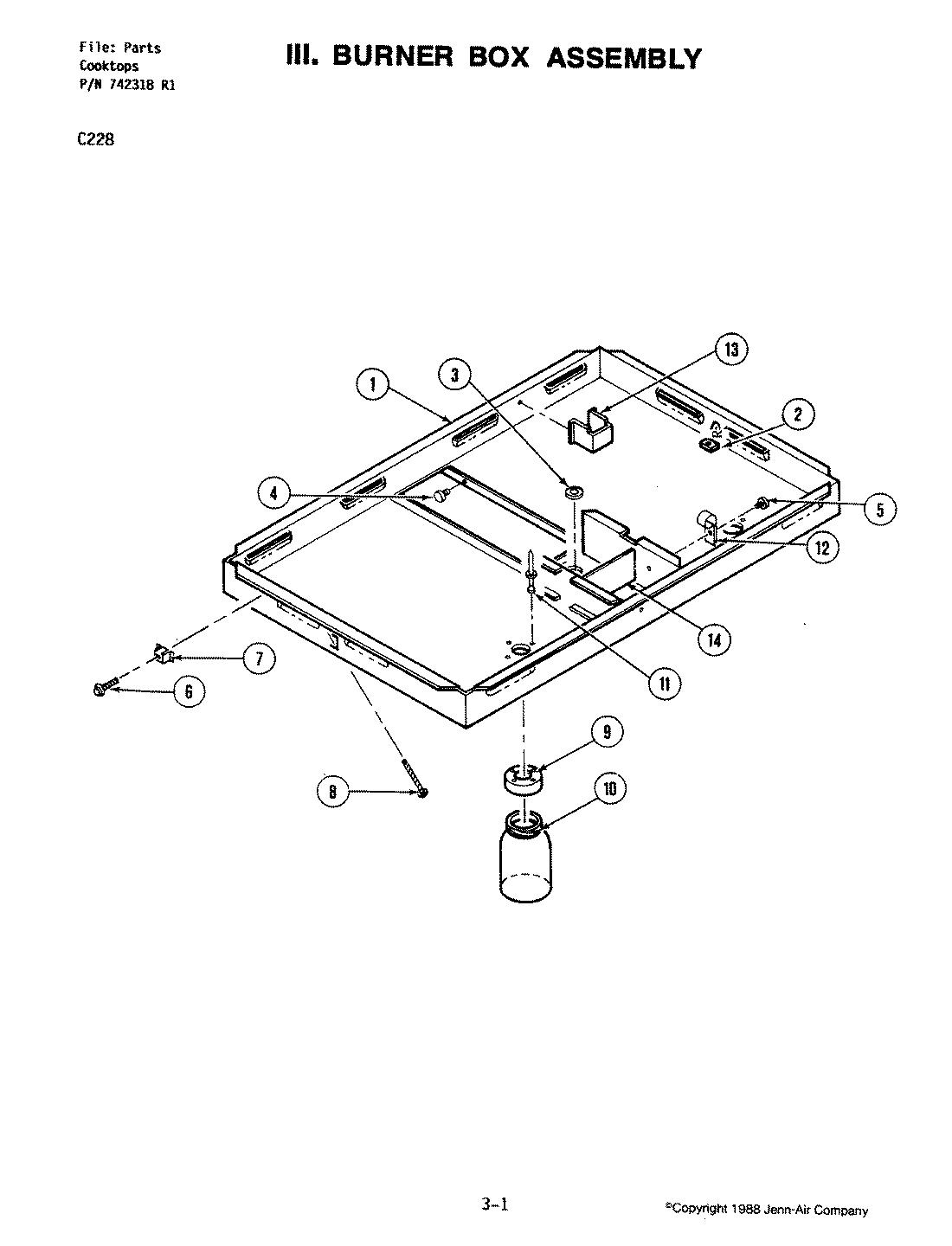

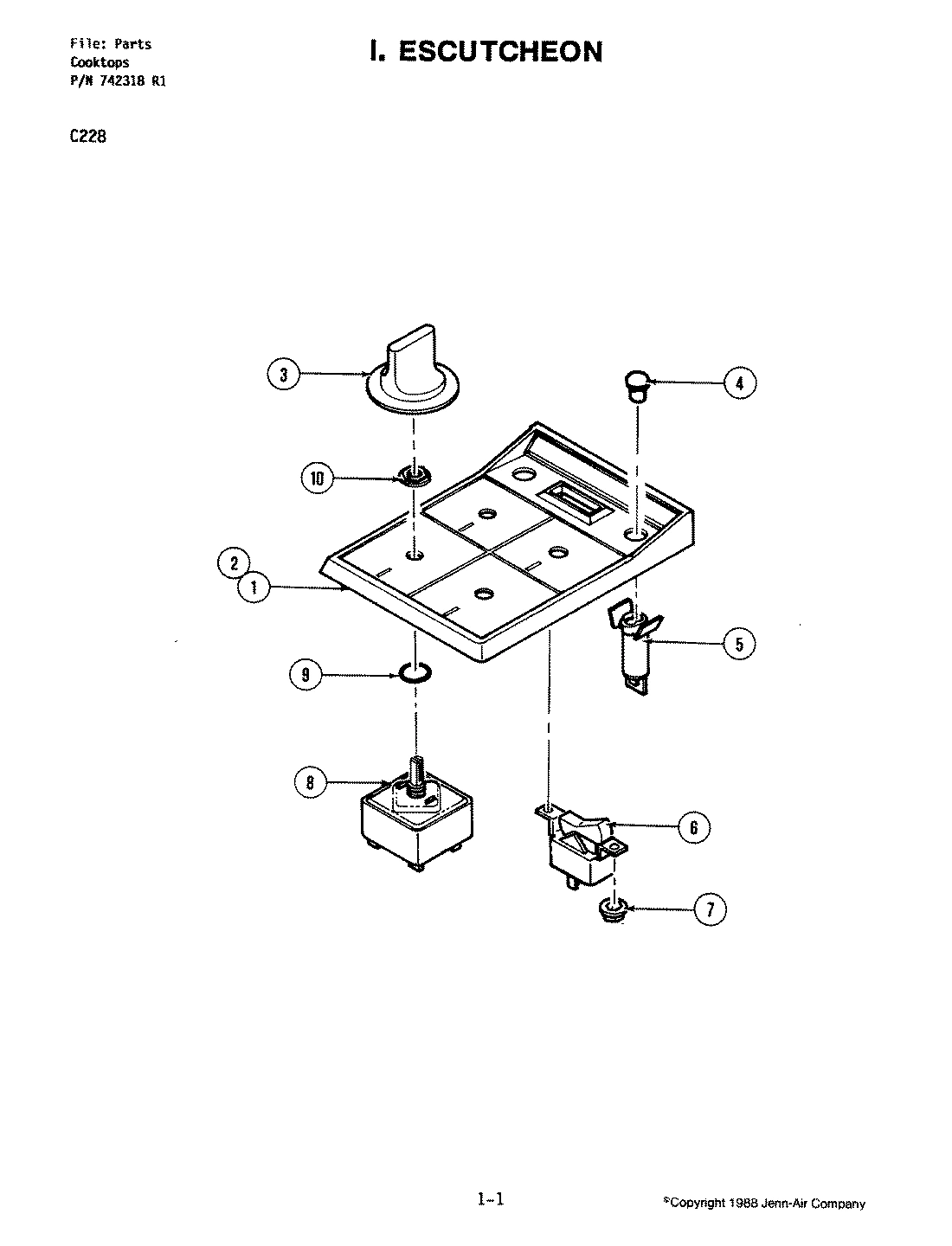

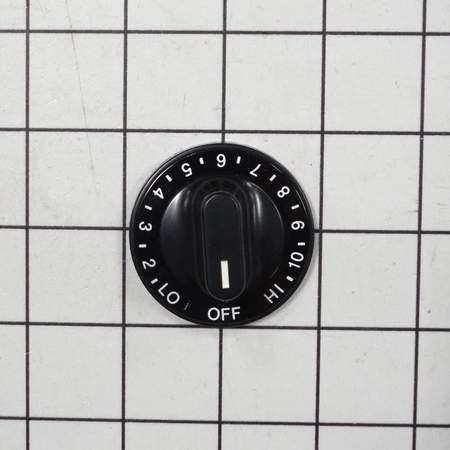

Model Whirlpool C228 ELECTRIC COOK-TOP – Common Parts & Diagrams

1
ESCUTCHEON
ESCUTCHEON WPL 712242 Contact Us For Availability
View on Model
1
BOX, BURNER
BOX, BURNER WPL 701992 Contact Us For Availability
View on Model
1
TOP, RANGE (BLK)
TOP, RANGE (BLK) WPL 703748 Contact Us For Availability
View on Model
1
TOP, RANGE (BLK)
TOP, RANGE (BLK) WPL Y704984 Contact Us For Availability
View on Model
2
INLAY
INLAY WPL 703656 Contact Us For Availability
View on Model
2
GRATES, GRILL (2)
GRATES, GRILL (2) WPL Y703746 Contact Us For Availability
View on Model
3
BUSHING
BUSHING WPL Y707695 Contact Us For Availability
View on Model
3
ELEMENT,GRILL ASSEMBLY
ELEMENT,GRILL ASSEMBLY WPL Y700457 Contact Us For Availability
View on Model
4
LENS, PILOT LIGHT
LENS, PILOT LIGHT WPL Y703849 Contact Us For Availability
View on Model
4
GRILL, AIR
GRILL, AIR WPL Y703658 Contact Us For Availability
View on Model
5
CLAMP, CABLE
CLAMP, CABLE WPL 715780 Contact Us For Availability
View on Model
6
CLIP
CLIP WPL Y707335 Contact Us For Availability
View on Model
6
SWITCH, FAN
SWITCH, FAN WPL 703664 Contact Us For Availability
View on Model
7
LOCKNUT CAP, W/NYLON INSERT
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
View on Model
7
CLIP, RETAINER
CLIP, RETAINER WPL Y700503 Contact Us For Availability
View on Model
8
NUT
NUT WPL 707161 Contact Us For Availability
View on Model
8
SCREW
SCREW WPL Y707121 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL Y707402 Contact Us For Availability
View on Model
9
KIT, WIRE (LEFT)
KIT, WIRE (LEFT) WPL 702023 Contact Us For Availability
View on Model
9
O RING
O RING WPL Y700833 Contact Us For Availability
View on Model
9
LID, JAR
LID, JAR WPL Y707870 Contact Us For Availability
View on Model
9
PAN, GRILL (LT)
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
View on Model
9
WIRE, YELLOW
WIRE, YELLOW WPL Y712014 Contact Us For Availability
View on Model
9
WIRE, RED
WIRE, RED WPL Y712015 Contact Us For Availability
View on Model
9
WIRE, BLUE
WIRE, BLUE WPL Y712030 Contact Us For Availability
View on Model
9
WIRE, BROWN
WIRE, BROWN WPL Y712197 Contact Us For Availability
View on Model
9
WIRE, YELLOW
WIRE, YELLOW WPL Y712200 Contact Us For Availability
View on Model
9
WIRE, VIOLET
WIRE, VIOLET WPL Y712203 Contact Us For Availability
View on Model
10
KIT, WIRE
KIT, WIRE WPL Y712438 Contact Us For Availability
View on Model
10
PALNUT
PALNUT WPL Y712255 Contact Us For Availability
View on Model
10
PAN, GRILL (RT)
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
View on Model
10
WIRE, BROWN
WIRE, BROWN WPL Y712199 Contact Us For Availability
View on Model
11
SCREW
SCREW WPL 707407 Contact Us For Availability
View on Model
11
PLATE, ROCK
PLATE, ROCK WPL 708929 Contact Us For Availability
View on Model
12
SUPPORT, ROCK PLATE
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
View on Model
12
BAND, MOTOR
BAND, MOTOR WPL Y707393 Contact Us For Availability
View on Model
12
CLAMP, CABLE
CLAMP, CABLE WPL 712254 Contact Us For Availability
View on Model
13
BRACKET, TOP SUPPORT
BRACKET, TOP SUPPORT WPL 703008 Contact Us For Availability
View on Model
14
FOAM, URETHANE
FOAM, URETHANE WPL Y715957 Contact Us For Availability
View on Model
14
INSULATOR
INSULATOR WPL 707746 Contact Us For Availability
View on Model
14
WASHER
WASHER WPL Y707664 Contact Us For Availability
View on Model
15
BRACKET
BRACKET WPL Y702698 Contact Us For Availability
View on Model
16
BUSHING
BUSHING WPL 708185 Contact Us For Availability
View on Model
17
RING, INLET
RING, INLET WPL Y702295 Contact Us For Availability
View on Model
17
CLIP, SHUNT
CLIP, SHUNT WPL Y700450 Contact Us For Availability
View on Model
18
SCROLL, BLOWER ASSY.
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
View on Model
19
RETAINER, FILTER
RETAINER, FILTER WPL Y707688 Contact Us For Availability
View on Model
20
PLENUM
PLENUM WPL Y701840 Contact Us For Availability
View on Model
21
CLIP, TINNERMAN
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
View on Model
22
PLATE, COVER
PLATE, COVER WPL Y700464 Contact Us For Availability
View on Model
24
CLIP
CLIP WPL Y707831 Contact Us For Availability
View on Model
NI
MANUAL, SERVICE-NO REFUND
MANUAL, SERVICE-NO REFUND WPL 16000448 Contact Us For Availability
