Model Whirlpool C106 ELECTRIC COOK-TOP – Common Parts & Diagrams
02 - BURNER BOX

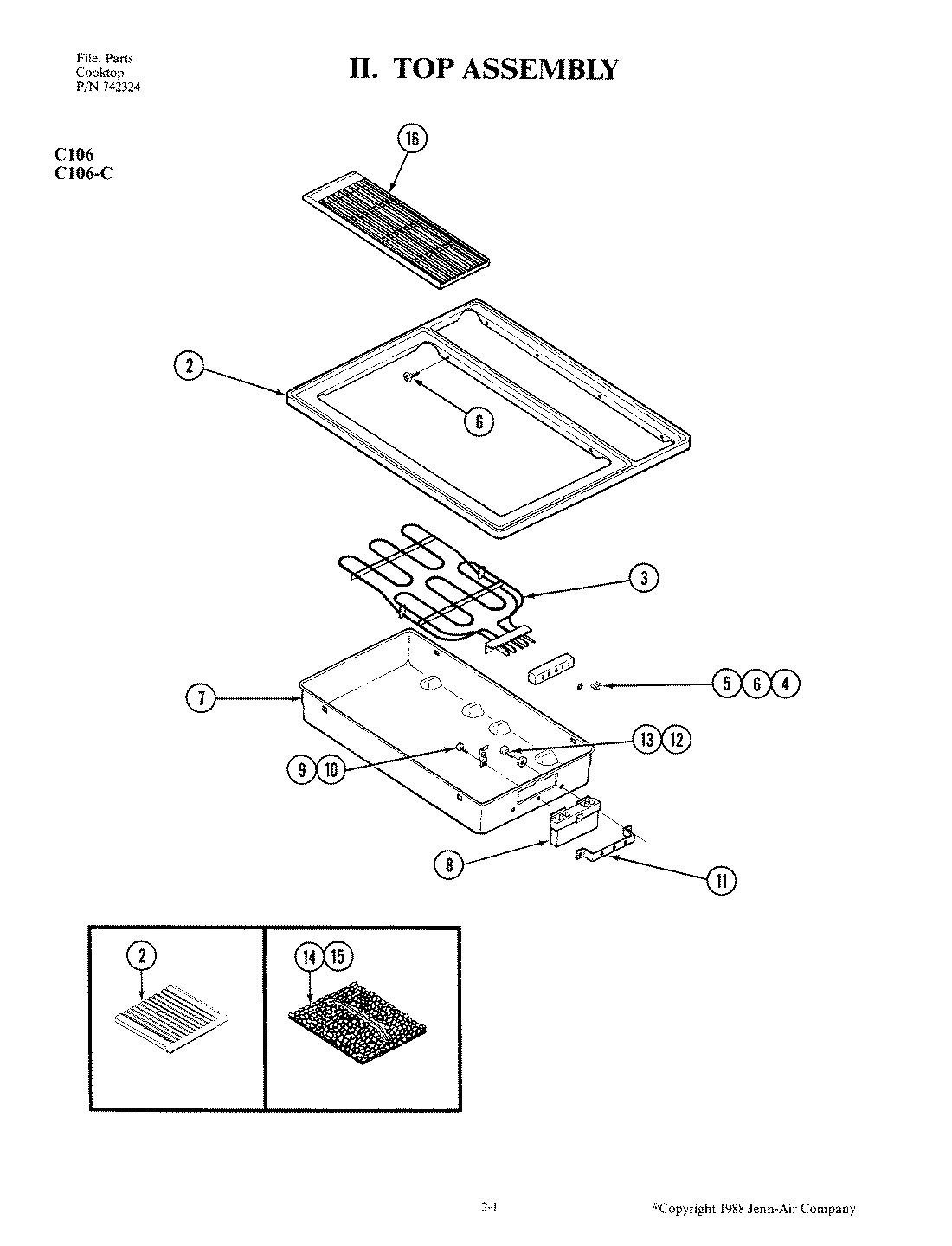

04 - TOP ASSEMBLY

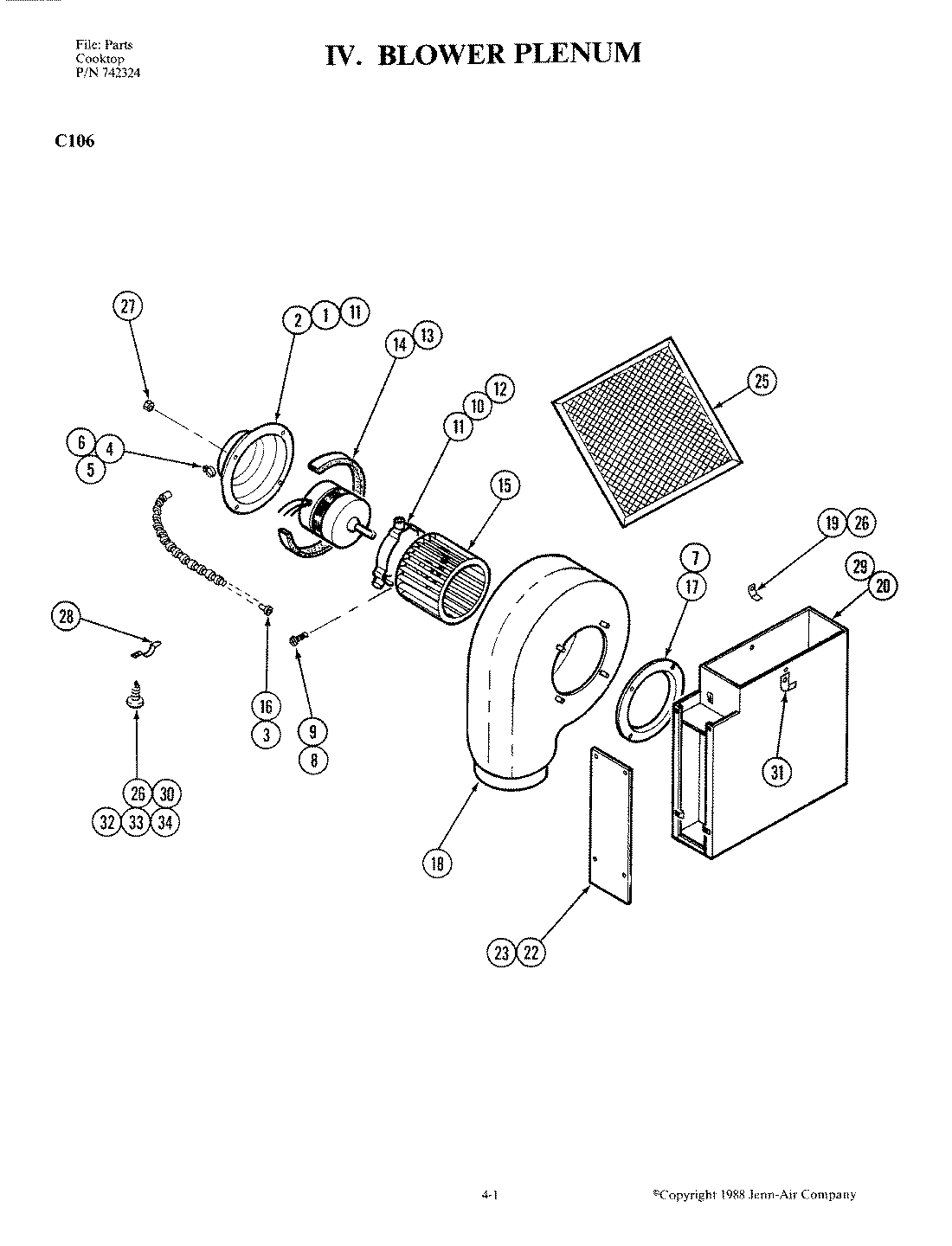

01 - BLOWER PLENUM (C106)

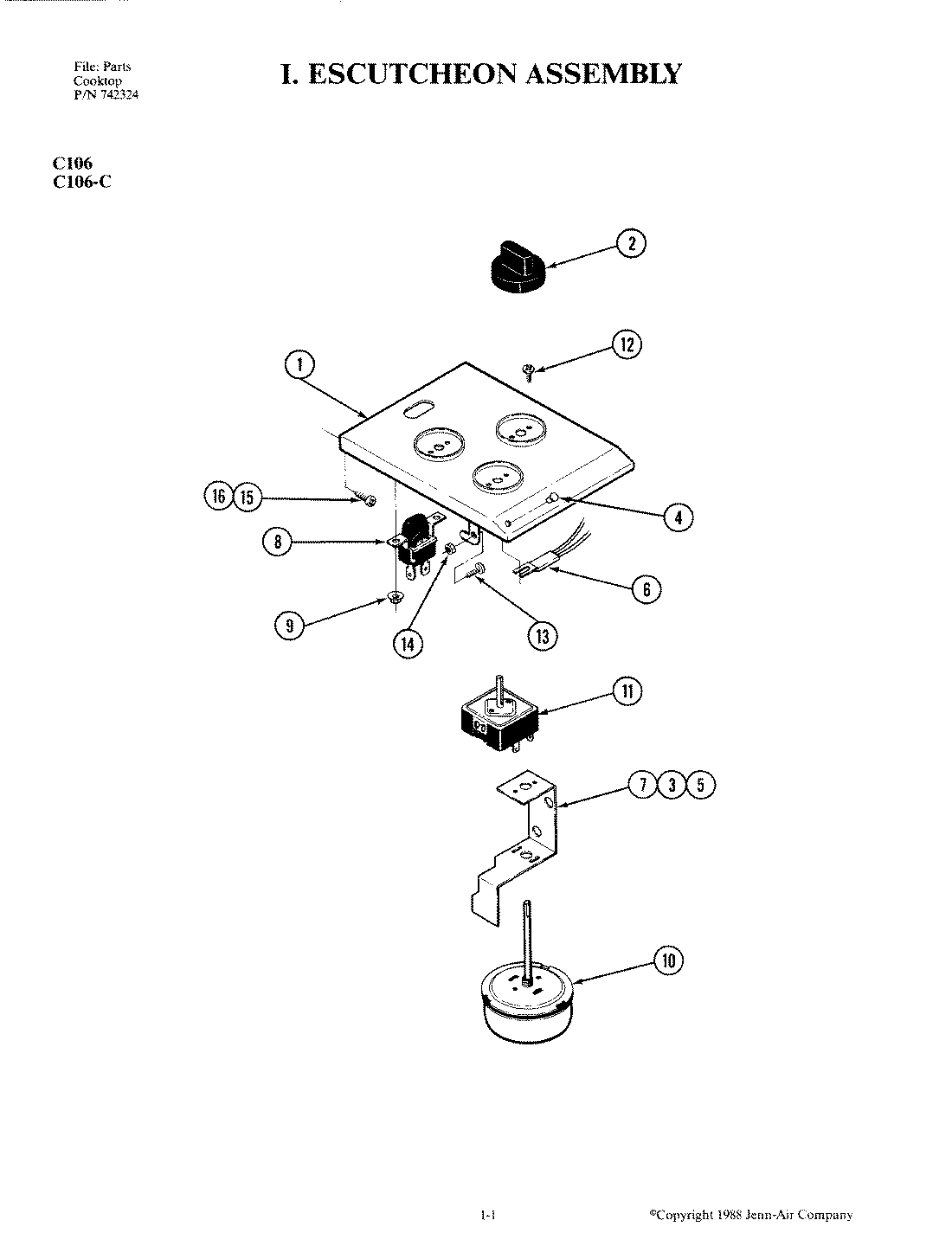

03 - ESCUTCHEON
Common parts from model Whirlpool C106 ELECTRIC COOK-TOP
1
MOTOR COVER ASSEMBLY WPL 700027 Contact Us For Availability
1
ESCUTCHEON WPL 704211 Contact Us For Availability
2
GRATE, GRILL WPL 703905 Contact Us For Availability
2
COVER,MOTOR WPL 708863 Contact Us For Availability
3
CONDUIT WPL Y707758 Contact Us For Availability
4
INSULATOR WPL 707746 Contact Us For Availability
4
CONNECTOR WPL 707766 Contact Us For Availability
4
LENS WPL 703927 Contact Us For Availability
5
CLIP, SHUNT WPL Y700450 Contact Us For Availability
5
CLAMP, CABLE WPL 715780 Contact Us For Availability
6
CLIP WPL Y707335 Contact Us For Availability
6
LIGHT, PILOT WPL 704209 Contact Us For Availability
7
LID, JAR WPL Y707870 Contact Us For Availability
7
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
7
WIRE, BLUE WPL Y712030 Contact Us For Availability
7
WIRE, BROWN WPL Y712197 Contact Us For Availability
7
WIRE, YELLOW WPL Y712200 Contact Us For Availability
7
WIRE, VIOLET WPL Y712203 Contact Us For Availability
7
KIT, WIRE WPL Y712431 Contact Us For Availability
7
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
7
BRACKET, TIMER (RT) WPL 704333 Contact Us For Availability
8
BUSHING WPL Y707695 Contact Us For Availability
8
NUT WPL 707161 Contact Us For Availability
8
SWITCH, FAN (BLK) WPL Y704573 Contact Us For Availability
9
SCREW WPL Y707402 Contact Us For Availability
10
TIMER WPL 707732 Contact Us For Availability
11
BRACKET WPL Y702698 Contact Us For Availability
11
SCREW WPL 707407 Contact Us For Availability
11
KIT, WIRE ESCUTCHEON WPL 712433 Contact Us For Availability
12
WASHER WPL Y707664 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
12
SCREW WPL Y703935 Contact Us For Availability
14
PLATE, ROCK WPL 708929 Contact Us For Availability
14
FOAM, URETHANE WPL Y715957 Contact Us For Availability
15
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
16
GRILL, AIR (BLK) WPL 703926 Contact Us For Availability
16
BUSHING WPL 708185 Contact Us For Availability
16
CLIP WPL Y700834 Contact Us For Availability
17
RING, INLET WPL Y702295 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
19
RETAINER, FILTER WPL Y707688 Contact Us For Availability
20
PLENUM WPL 712434 Contact Us For Availability
22
PLATE, COVER WPL Y700464 Contact Us For Availability
28
TINNERMAN WPL 712310 Contact Us For Availability
31
CLAMP, CABLE WPL 712254 Contact Us For Availability
NI
TOP WPL 701850 Contact Us For Availability
NI
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
NI
CLIP WPL Y707831 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16000448 Contact Us For Availability
× ![]()
