Model Whirlpool BUDH2500AS0 DEHUMIDIFIER – Common Parts & Diagrams

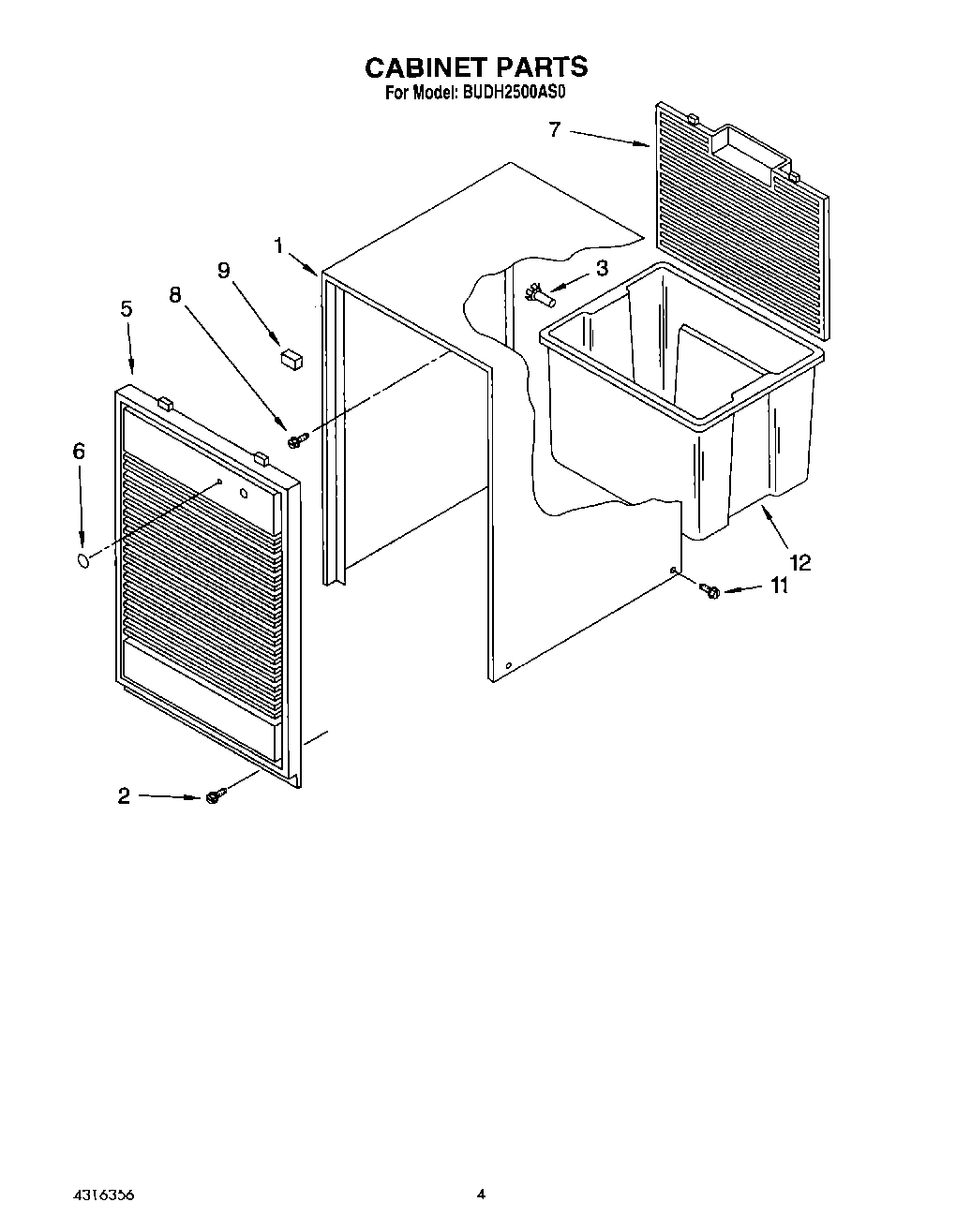

1
Cabinet
Cabinet WPL 998821 Contact Us For Availability
View on Model

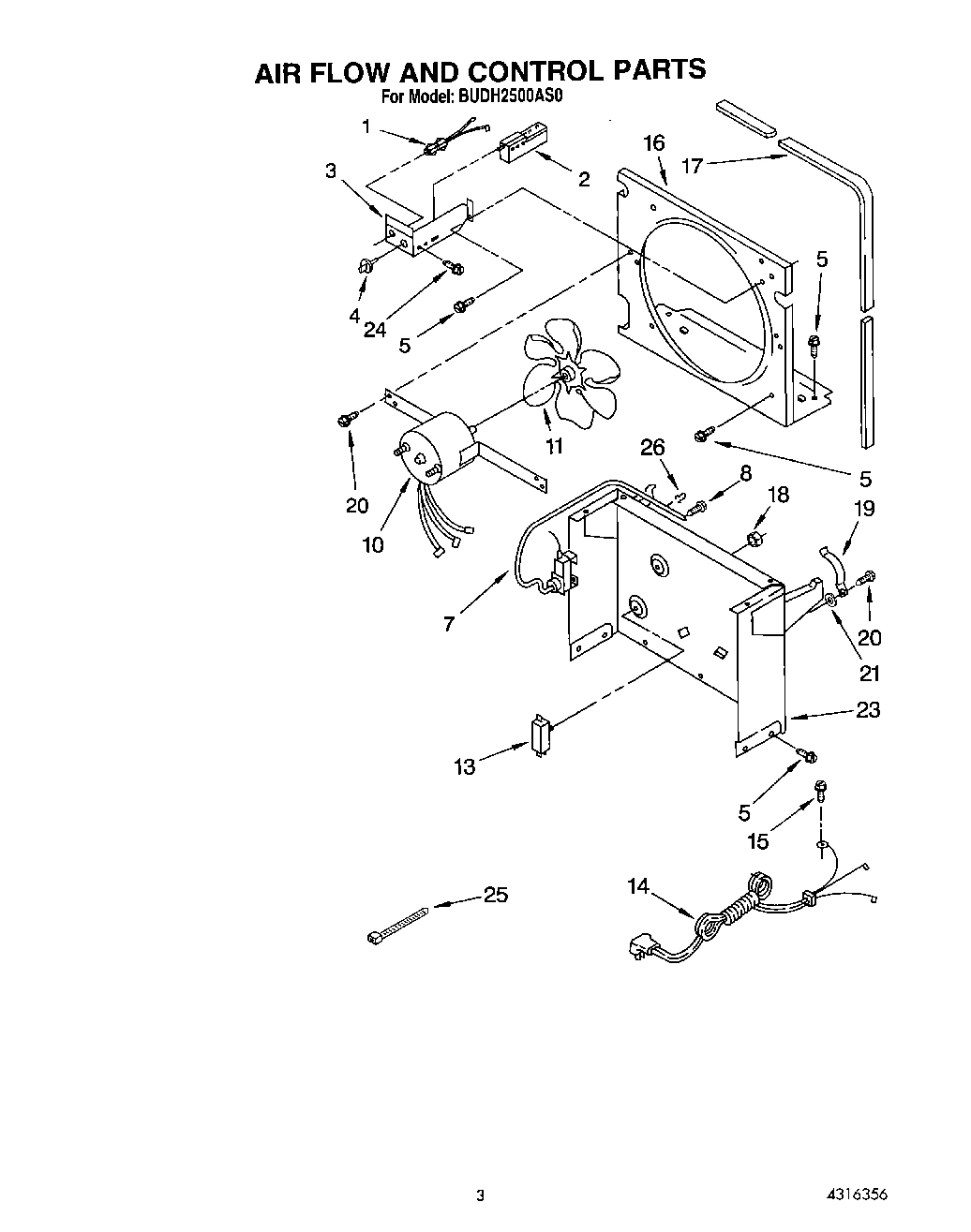

1
Light, Indicator
Light, Indicator WPL 1158419 Contact Us For Availability
View on Model
2
Humidistat, Control
Humidistat, Control WPL 1162578 Contact Us For Availability
View on Model
3
Retainer, Pin (2) (Rear Grille)
Retainer, Pin (2) (Rear Grille) WPL 998813 Contact Us For Availability
View on Model
3
Bracket, Control
Bracket, Control WPL 951284 Contact Us For Availability
View on Model
4
Knob, Control
Knob, Control WPL 1162670 Contact Us For Availability
View on Model
5
Grille, Front Assembly
Grille, Front Assembly WPL 1162668 Contact Us For Availability
View on Model
6
Roll Pin-2.0 LG
Roll Pin-2.0 LG WPL 489015 Contact Us For Availability
View on Model
6
Lens, Light
Lens, Light WPL 998846 Contact Us For Availability
View on Model
7
Grille, Rear
Grille, Rear WPL 998832 Contact Us For Availability
View on Model
7
Thermostat, De-Icer
Thermostat, De-Icer WPL 1155109 Contact Us For Availability
View on Model
9
Spacer, Grille
Spacer, Grille WPL 948584 Contact Us For Availability
View on Model
10
Motor, Fan
Motor, Fan WPL 1162030 Contact Us For Availability
View on Model
11
Screw
Screw WPL 1158781 Contact Us For Availability
View on Model
11
Blade, Fan
Blade, Fan WPL 949645 Contact Us For Availability
View on Model
12
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
12
Tape, No Drip (30`) Valve, Access
Tape, No Drip (30`) Valve, Access WPL 505168 Contact Us For Availability
View on Model
12
Lacquer, Starlight Gray (1/2 Pt. Uncut)
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
View on Model
12
Cap, Condensate Pan
Cap, Condensate Pan WPL 646753 Contact Us For Availability
View on Model
12
Epoxy, Tube (Aluminum Repair)
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
View on Model
12
Pan, Condensate
Pan, Condensate WPL 951901 Contact Us For Availability
View on Model
12
1/2`` Tube O.D.
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
View on Model
12
Seal, Ring (Access Valve) (20 - Pack)
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
View on Model
13
Switch, Water Level Control
Switch, Water Level Control WPL 999747 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 1162153 Contact Us For Availability
View on Model
14
Cord, Appliance
Cord, Appliance WPL 1155670 Contact Us For Availability
View on Model
15
Screw, 8 x 3/8 (4)
Screw, 8 x 3/8 (4) WPL 488624 Contact Us For Availability
View on Model
16
Seal
Seal WPL 1162372 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 998779 Contact Us For Availability
View on Model
17
Seal
Seal WPL 1162704 Contact Us For Availability
View on Model
18
Screw, 1/4-28 x 1`` (3)
Screw, 1/4-28 x 1`` (3) WPL 488400 Contact Us For Availability
View on Model
18
Palnut, 3/8-32
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
View on Model
19
Harness, Wire
Harness, Wire WPL 484136 Contact Us For Availability
View on Model
19
Spring, Water Level
Spring, Water Level WPL 1161718 Contact Us For Availability
View on Model
20
Grommet (4)
Grommet (4) WPL 1156748 Contact Us For Availability
View on Model
21
Base
Base WPL 1157584 Contact Us For Availability
View on Model
21
Washer (Repair) (.062 Thickness)
Washer (Repair) (.062 Thickness) WPL 489029 Contact Us For Availability
View on Model
21
Washer, Repair (.030 Thickness)
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
View on Model
23
Support
Support WPL 998744 Contact Us For Availability
View on Model
24
Caster (2)
Caster (2) WPL 998726 Contact Us For Availability
View on Model
25
Compressor, Service (Complete Assembly)
Compressor, Service (Complete Assembly) WPL 4317832 Contact Us For Availability
View on Model
26
Retainer, Cover
Retainer, Cover WPL 938384 Contact Us For Availability
View on Model
26
Clamp, Tube To Evaporator (2)
Clamp, Tube To Evaporator (2) WPL 471363 Contact Us For Availability
View on Model
27
Cover, Terminal
Cover, Terminal WPL 1157582 Contact Us For Availability
View on Model
28
Overload
Overload WPL 1158790 Contact Us For Availability
View on Model
29
Spring, Overload
Spring, Overload WPL 549086 Contact Us For Availability
View on Model
30
Relay, Start
Relay, Start WPL 1158608 Contact Us For Availability
View on Model
31
Bend, Return
Bend, Return WPL 855199 Contact Us For Availability
View on Model
32
Bend, Return
Bend, Return WPL 854624 Contact Us For Availability
View on Model
33
Seal, Evaporator Top
Seal, Evaporator Top WPL 1162348 Contact Us For Availability
View on Model
