Model Whirlpool BT22RS-4TX RV GAS RANGE – Common Parts & Diagrams

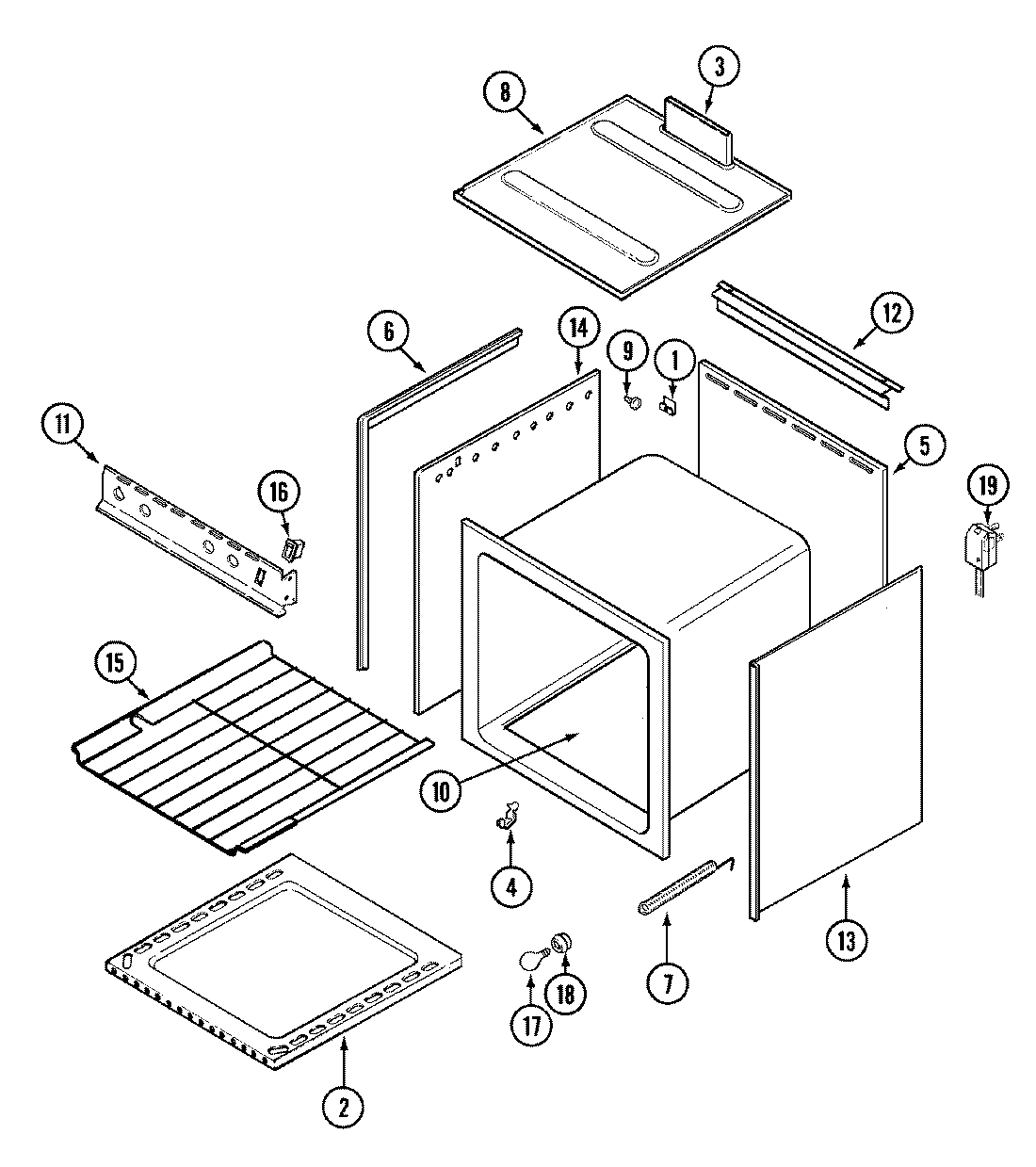

02 - OVEN

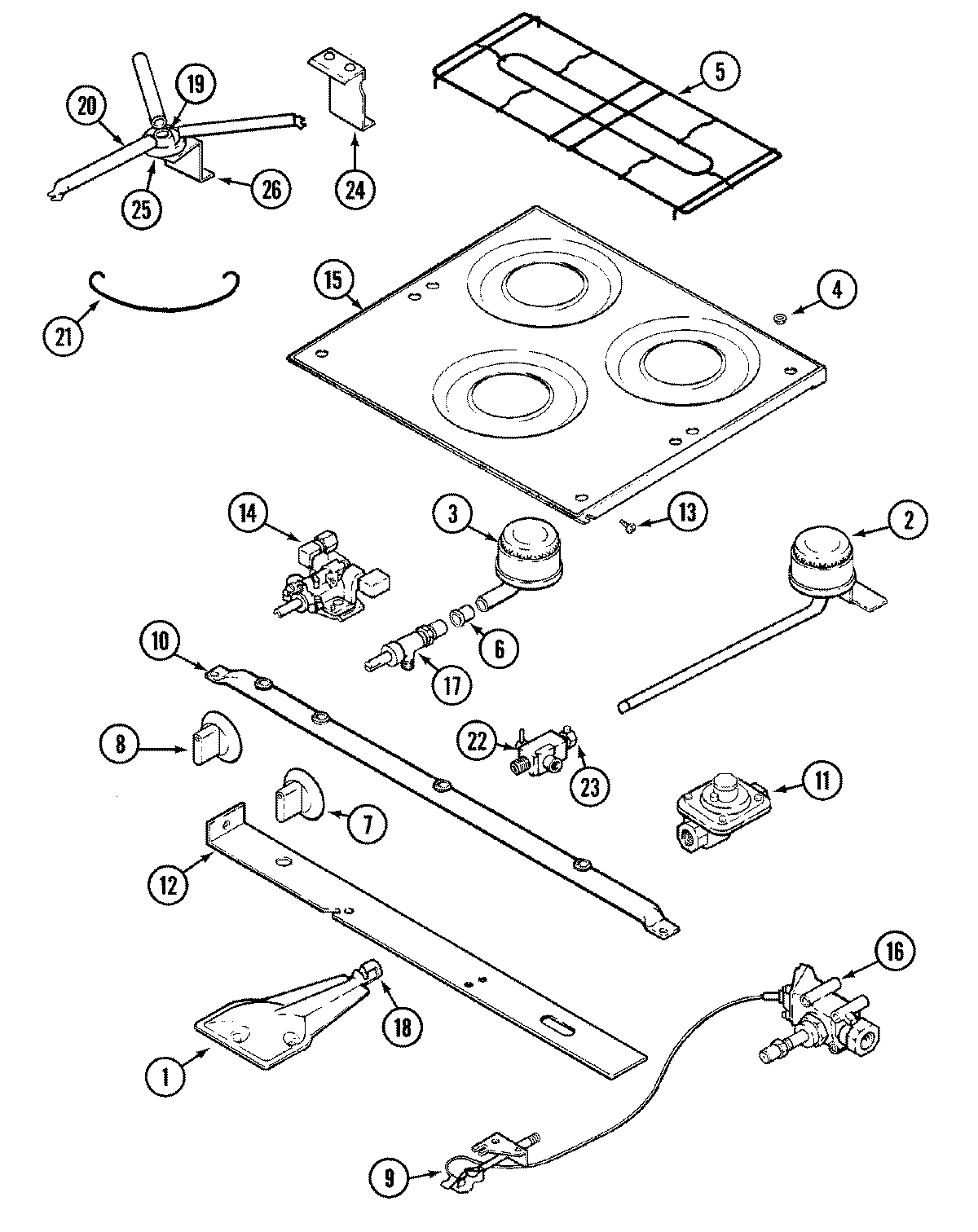

03 - TOP & GAS CONTROLS

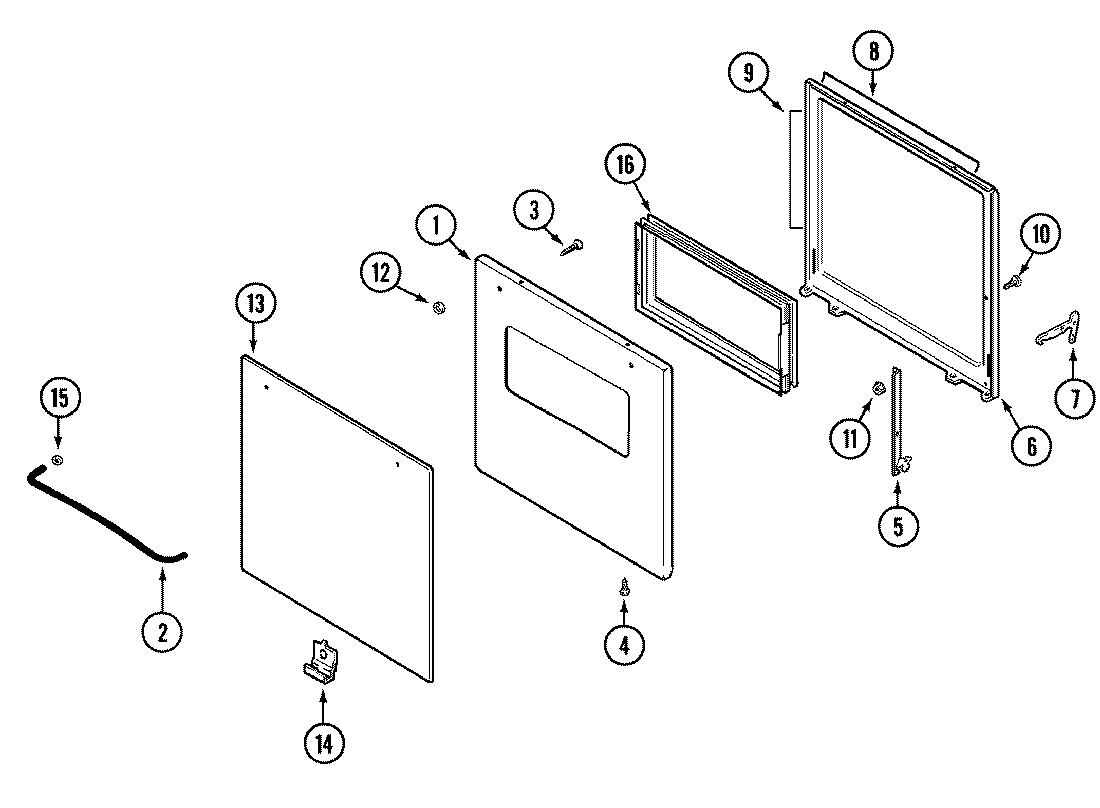

01 - DOOR
Common parts from model Whirlpool BT22RS-4TX RV GAS RANGE
1
BURNER, ASSEMBLY OVEN WPL 3403W00345 Contact Us For Availability
1
OVEN BURNER ASSY. WPL 3403W02545 Contact Us For Availability
1
PANEL, DOOR (BLK) WPL 2401F12870 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F01619 Contact Us For Availability
2
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
2
BURNER, ASSY R.R. WPL 7505P15360 Contact Us For Availability
2
BURNER, ASSY L.R. WPL 7505P15460 Contact Us For Availability
2
HANDLE, DOOR WPL 7701P09260 Contact Us For Availability
3
SCREW WPL 7101P06460 Contact Us For Availability
3
FLUE BOX ASSY WPL 4006W07580 Contact Us For Availability
3
BURNER, ASSY R.F. WPL 7505P15160 Contact Us For Availability
3
BURNER, ASSY L.F. WPL 7505P15260 Contact Us For Availability
3
SCREW WPL 7101P35660 Contact Us For Availability
4
CLIP, CAPILLARY WPL 7112P05360 Contact Us For Availability
4
GROMMET WPL Y8007P02060 Contact Us For Availability
4
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
5
BACK, MAIN WPL 4002F15051 Contact Us For Availability
5
BOLT, MAIN BACK WPL 7101P22760 Contact Us For Availability
5
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
5
NUT WPL 7103P08260 Contact Us For Availability
5
GRATE, TOP WPL 7518P01260 Contact Us For Availability
5
HINGE KIT (LT) WPL 12400028 Contact Us For Availability
5
HINGE KIT (RT) WPL 12400029 Contact Us For Availability
6
TRIM, SIDE (LT) WPL 3608W03370 Contact Us For Availability
6
TRIM, SIDE (RT) WPL 3608W03470 Contact Us For Availability
6
INSERT, BURNER WPL 7214P01560 Contact Us For Availability
6
LINING ASSY, OV DR WPL 2402W12423 Contact Us For Availability
7
SPRING, OVEN DOOR----NA WPL 7803P05360 Contact Us For Availability
7
KNOB, BURNER WPL 7733P04460 Contact Us For Availability
7
ARM, SPRING WPL 3423F00134 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL 4011F15351 Contact Us For Availability
8
KNOB, THERMOSTAT (BT16) WPL 7731P04260 Contact Us For Availability
8
KNOB, THERMOSTAT WPL 7731P04860 Contact Us For Availability
8
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
9
SCREW No.6 X 1/2 WPL 7101P30160 Contact Us For Availability
9
PILOT BURNER WPL 7505P20260 Contact Us For Availability
9
PILOT, OVEN WPL 968143 Contact Us For Availability
9
SEAL, DOOR (SIDES) WPL 7212P03960 Contact Us For Availability
10
BOTTOM, MAIN WPL 4011F12551 Contact Us For Availability
10
PIPE MANIFOLD WPL 7513P09560 Contact Us For Availability
10
SCREW, No.10-16AB WPL 7101P22160 Contact Us For Availability
11
PANEL, MANIFOLD WPL 2616F09070 Contact Us For Availability
11
FITTING, HALF UNION WPL 7507P08360 Contact Us For Availability
11
PRESSURE REGULATOR WPL 7510P03360 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P04360 Contact Us For Availability
11
NUT WPL 7103P03460 Contact Us For Availability
12
SHIELD, DEFLECTOR FLUE WPL 3604F12870 Contact Us For Availability
12
SUPPORT, OVEN BURNER WPL 3807F32045 Contact Us For Availability
12
SPACER, NYLON WPL 8010P04660 Contact Us For Availability
13
SIDE, BODY (RT) WPL 4016F03851 Contact Us For Availability
13
BUMPER WPL 8003P00860 Contact Us For Availability
13
GLASS, OUTER WPL 7902P26860 Contact Us For Availability
14
SIDE, BODY (LT) WPL 4016F03751 Contact Us For Availability
14
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
14
NUT & FERRULE 1/4`` KIT WPL 1555280K Contact Us For Availability
14
TUBING (1/4``) WPL 3414F07844 Contact Us For Availability
14
TUBING (3/16 X 42``) WPL 3414F08044 Contact Us For Availability
14
THERMOSTAT WPL 7515P02460 Contact Us For Availability
14
THERMOSTAT WPL 7515P02960 Contact Us For Availability
14
THERMOSTAT WPL 7515P03160 Contact Us For Availability
14
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
15
RACK WPL 7801P02760 Contact Us For Availability
15
TOP, MAIN (BRUSHED CHROME) WPL 2001F08450 Contact Us For Availability
15
SPACER, HANDLE WPL 8010P07360 Contact Us For Availability
16
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
16
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
16
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
16
VALVE ASSY. WPL 74001018 Contact Us For Availability
16
VALVE, OVEN WPL 7501P05660 Contact Us For Availability
16
WINDOW ASSY. WPL 5700A20580 Contact Us For Availability
17
VALVE, TOP BURNER (5200) WPL 7502P18160 Contact Us For Availability
18
RECEPTACLE, BULB WPL 7408P03760 Contact Us For Availability
18
MIXER, AIR WPL 3411F00334 Contact Us For Availability
19
KIT, LINE CORD WPL 12400044 Contact Us For Availability
19
CONE, LIGHTER CUP WPL 8030P00260 Contact Us For Availability
20
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
20
FLASH TUBE WPL 7506P06760 Contact Us For Availability
21
CLIP WPL 7112P06860 Contact Us For Availability
22
VALVE, SHUT OFF WPL 7506P09660 Contact Us For Availability
23
FILTER, PILOT (R.V. PART) WPL 7507P04660 Contact Us For Availability
24
SHIELD, TOP PILOT WPL 3604F12744 Contact Us For Availability
25
PILOT, BURNER (W/TUBING) WPL 7505P17960 Contact Us For Availability
25
LIGHTER CUP WPL 7506P06660 Contact Us For Availability
26
SUPPORT, TOP PILOT WPL 3807F32280 Contact Us For Availability
27
MANUAL, USE & CARE WPL 8112P10760 Contact Us For Availability
× ![]()
