Model Whirlpool BT16RS-3 RV GAS RANGE – Common Parts & Diagrams

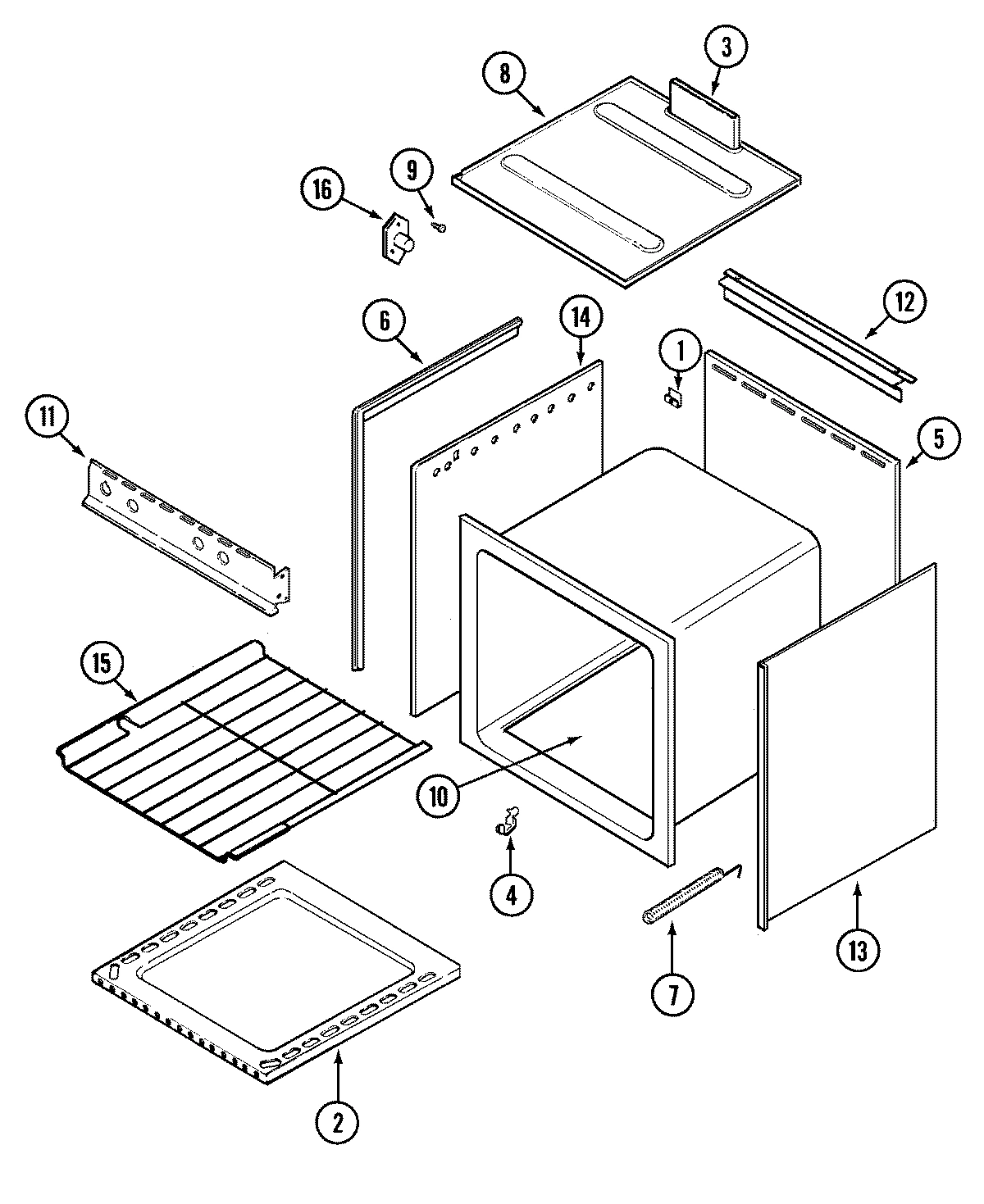

02 - OVEN
01 - DOOR
03 - TOP & GAS CONTROLS
Common parts from model Whirlpool BT16RS-3 RV GAS RANGE
1
CLIP, MAIN TOP REAR WPL 7112P07160 Contact Us For Availability
1
PANEL OVEN DOOR WPL 2401F07732 Contact Us For Availability
1
BURNER, ASSEMBLY OVEN WPL 3403W00345 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F01619 Contact Us For Availability
2
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
2
HANDLE, DOOR WPL 7701P09260 Contact Us For Availability
2
BURNER, TOP ASSY. (REAR) WPL 7505P18160 Contact Us For Availability
3
FLUE BOX ASSY WPL 4006W07580 Contact Us For Availability
3
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
3
BURNER, ASSY FRONT WPL 7505P14260 Contact Us For Availability
4
CLIP, CAPILLARY WPL 7112P05360 Contact Us For Availability
4
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
4
BUMPER, GRATE WPL 8007P01560 Contact Us For Availability
4
GROMMET WPL 8007P01860 Contact Us For Availability
5
BACK, MAIN WPL 4002F10951 Contact Us For Availability
5
SCREW WPL 7101P35660 Contact Us For Availability
5
SCREW WPL 74001747 Contact Us For Availability
5
HINGE, OVEN DOOR (LEFT) WPL 3418D09134 Contact Us For Availability
5
HINGE, OVEN DOOR (RIGHT) WPL 3418D09234 Contact Us For Availability
5
GRATE, TOP WPL 7518P01260 Contact Us For Availability
6
TRIM, LEFT BLACK WPL 3608F01170 Contact Us For Availability
6
TRIM, RT BLACK WPL 3608F01270 Contact Us For Availability
6
LINING DOOR WPL 2402F12119 Contact Us For Availability
6
INSERT, BURNER WPL 7214P01560 Contact Us For Availability
7
SPRING, OVEN DOOR WPL 7803P05160 Contact Us For Availability
7
ARM, SPRING WPL 3423F00134 Contact Us For Availability
7
KNOB, VALVE WPL 7733P03960 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL 4011F15351 Contact Us For Availability
8
STRAP, SEAL-TOP WPL 2207F01550 Contact Us For Availability
8
SEAL, DOOR TOP WPL 2418F00460 Contact Us For Availability
8
KNOB, THERMOSTAT WPL 7731P03560 Contact Us For Availability
9
SCREW No.6 X 1/2 WPL 7101P30160 Contact Us For Availability
9
STRAP, SEAL-SIDE WPL 2207F01450 Contact Us For Availability
9
SEAL, DOOR (SIDES) WPL 7212P03860 Contact Us For Availability
9
PILOT, OVEN WPL 968143 Contact Us For Availability
10
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
10
BOTTOM, MAIN WPL 4011F12551 Contact Us For Availability
10
SCREW WPL 7101P06460 Contact Us For Availability
10
PIPE MANIFOLD WPL 7513P09760 Contact Us For Availability
11
PANEL, MANIFOLD WPL 2616F09170 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P03160 Contact Us For Availability
12
SHIELD, DEFLECTOR FLUE WPL 3604F12570 Contact Us For Availability
12
SUPPORT, OVEN BURNER WPL 3807F32045 Contact Us For Availability
13
SIDE BODY RT WPL 4016F03451 Contact Us For Availability
13
BUMPER WPL 8003P00860 Contact Us For Availability
14
SIDE BODY LF WPL 4016F03351 Contact Us For Availability
14
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
14
NUT & FERRULE 1/4`` KIT WPL 1555280K Contact Us For Availability
14
TUBING, 3/16 X 41.5`` WPL 3414F07744 Contact Us For Availability
14
TUBING, 1/4``- ODX42 1/2 WPL 3414F07944 Contact Us For Availability
14
FLANGE, T STAT WPL 7507P04960 Contact Us For Availability
14
THERMOSTAT WPL 7515P02460 Contact Us For Availability
14
THERMOSTAT WPL 7515P02960 Contact Us For Availability
15
RACK WPL 7801P02760 Contact Us For Availability
15
TOP, MAIN STAINLESS STEEL WPL 2001F08250 Contact Us For Availability
16
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
16
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
16
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
16
VALVE, OVEN WPL 7501P05660 Contact Us For Availability
17
VALVE WPL 7502P09560 Contact Us For Availability
18
MIXER, AIR WPL 3411F00434 Contact Us For Availability
× ![]()
