Model Whirlpool BT16PK-3 RV GAS RANGE – Common Parts & Diagrams

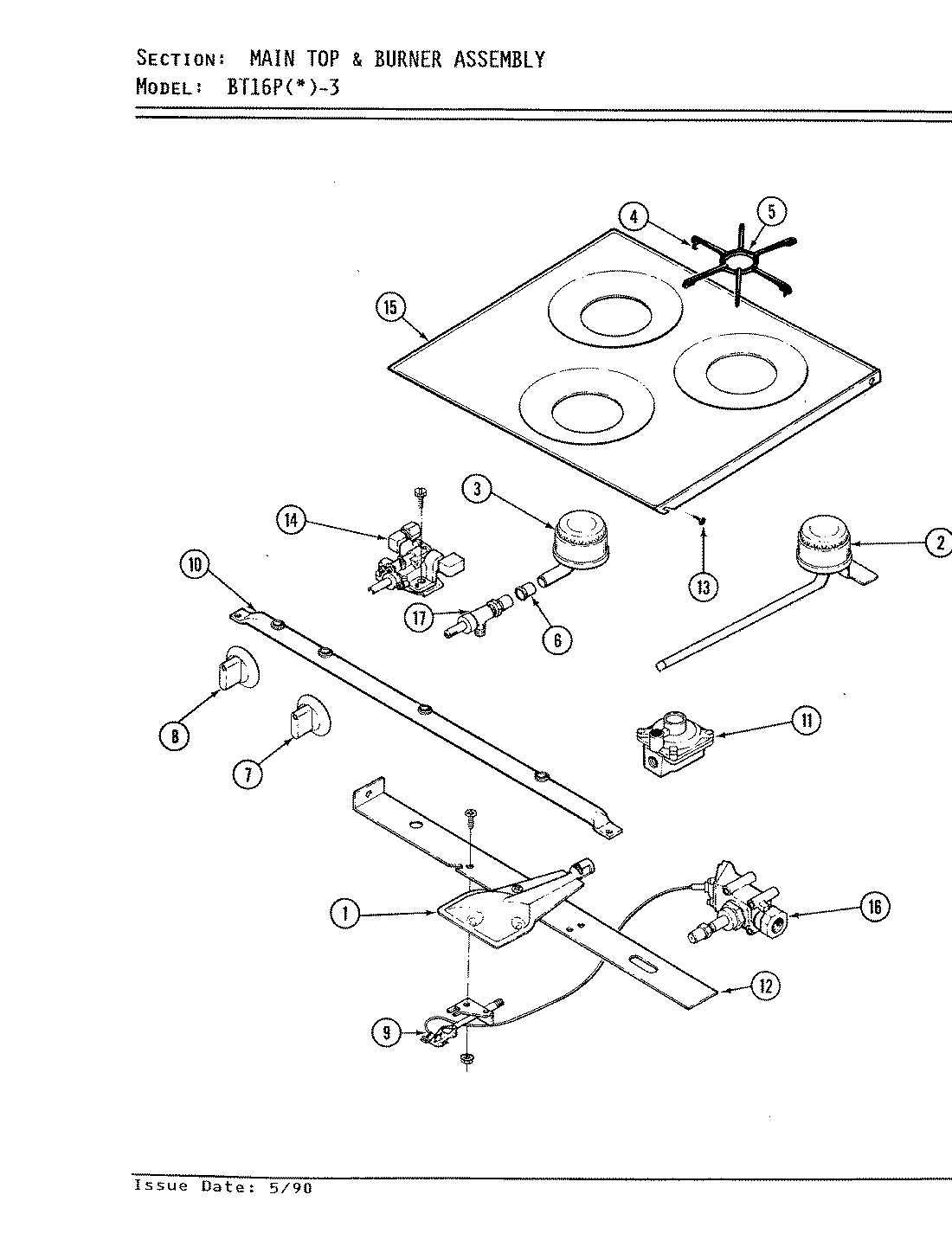

02 - MAIN TOP & BURNER ASSEMBLY
01 - CAVITY & DOOR
Common parts from model Whirlpool BT16PK-3 RV GAS RANGE
1
BURNER, ASSEMBLY OVEN WPL 3403W00345 Contact Us For Availability
1
ARM, SPRING WPL 3423F00134 Contact Us For Availability
2
BURNER, ASSY L.R. WPL 7505P14360 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F01623 Contact Us For Availability
2
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
3
BURNER, ASSY FRONT WPL 7505P14260 Contact Us For Availability
3
FLUE BOX ASSY WPL 4006W07580 Contact Us For Availability
4
CLIP, GRATE WPL 7112P06660 Contact Us For Availability
4
STRAP, SEAL-TOP WPL 2207F01550 Contact Us For Availability
4
SEAL, DOOR TOP WPL 2418F00460 Contact Us For Availability
5
GRATE TOP WPL 2003F00400 Contact Us For Availability
5
HANDLE, DOOR WPL 7701P17060 Contact Us For Availability
6
INSERT, BURNER WPL 7214P01560 Contact Us For Availability
6
HINGE, DOOR (RT) WPL 3418A05834 Contact Us For Availability
6
HINGE, DOOR (LT) WPL 3418A05934 Contact Us For Availability
7
KNOB, VALVE WPL 7733P03960 Contact Us For Availability
7
STRAP, SEAL-SIDE WPL 2207F01450 Contact Us For Availability
7
SEAL, DOOR-SIDE WPL 2418F00160 Contact Us For Availability
8
KNOB, THERMOSTAT WPL 7731P03560 Contact Us For Availability
8
LINING, DOOR WPL 2402F12123 Contact Us For Availability
9
PILOT, OVEN WPL 968143 Contact Us For Availability
9
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
10
PIPE MANIFOLD WPL 7513P09760 Contact Us For Availability
11
HALF UNION WPL 7507P04560 Contact Us For Availability
11
PLUG, PIPE WPL 7507P04760 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P03160 Contact Us For Availability
11
PANEL, MANIFOLD WPL 2616F05370 Contact Us For Availability
12
SUPPORT, OVEN BURNER WPL 3807F32045 Contact Us For Availability
12
PANEL, DOOR WHITE WPL 2401F07971 Contact Us For Availability
12
PANEL, DOOR ALMOND WPL 2401F07974 Contact Us For Availability
13
BUMPER WPL 8003P00860 Contact Us For Availability
13
RACK WPL 7801P02760 Contact Us For Availability
14
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
14
NUT & FERRULE 1/4`` KIT WPL 1555280K Contact Us For Availability
14
TUBE, 3/16 O.D. X 46 WPL 7506P04360 Contact Us For Availability
14
TUBE, 1/4 X 41 WPL 7506P07360 Contact Us For Availability
14
FLANGE, T STAT WPL 7507P04960 Contact Us For Availability
14
THERMOSTAT WPL 7515P02460 Contact Us For Availability
14
SCREW WPL 7101P23160 Contact Us For Availability
15
TOP, MAIN (WHITE) WPL 2001F05681 Contact Us For Availability
15
TOP, MAIN (ALMOND) WPL 2001F05684 Contact Us For Availability
15
SIDE BODY - L WPL 4016F02551 Contact Us For Availability
16
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
16
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
16
VALVE, OVEN WPL 7501P05660 Contact Us For Availability
16
SCREW WPL 7101P06460 Contact Us For Availability
16
SIDE BODY - WPL 4016F02451 Contact Us For Availability
17
VALVE WPL 7502P09560 Contact Us For Availability
17
SHIELD, DEFLECTOR FLUE WPL 3604F12570 Contact Us For Availability
18
SHIELD, SIDE HEAT WPL 3604F12651 Contact Us For Availability
19
BOTTOM, MAIN WPL 4011F12551 Contact Us For Availability
20
SPRING, OVEN DOOR WPL 7803P05160 Contact Us For Availability
21
TRIM, LEFT BLACK WPL 3608F01170 Contact Us For Availability
21
TRIM, RT BLACK WPL 3608F01270 Contact Us For Availability
22
SCREW WPL 7101P06160 Contact Us For Availability
22
BACK, MAIN WPL 4002F10951 Contact Us For Availability
23
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
24
SCREW, DOOR PANEL WPL 7101P11060 Contact Us For Availability
25
SCREW, No.10-16AB WPL 7101P22160 Contact Us For Availability
26
CLIP, CAPILLARY WPL 7112P05360 Contact Us For Availability
27
CLIP, MAIN TOP REAR WPL 7112P07160 Contact Us For Availability
× ![]()
