Model LG BHD-652 – Common Parts & Diagrams

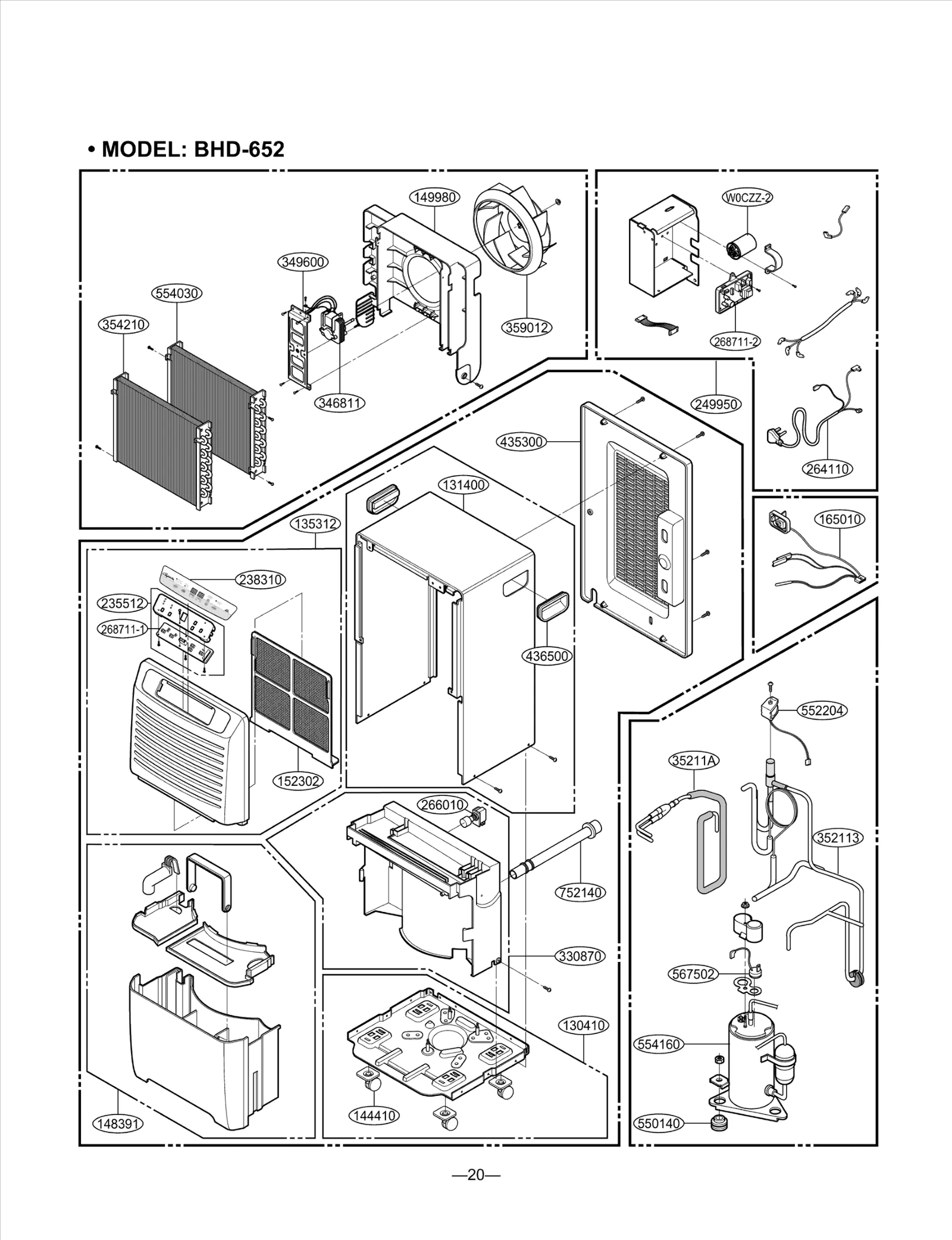

Diagram 0
Common parts from model LG BHD-652
148391
TANK ASSEMBLY,BUCKET LGE 4839A10002A Contact Us For Availability
149980
SHROUD LGE 4998A10034B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20040A Contact Us For Availability
165010
SENSOR ASSEMBLY LGE 6877A30013L Contact Us For Availability
235512
COVER ASSEMBLY,DISPLAY LGE 3551A20109C Contact Us For Availability
238310
Escutcheon LGE MDD30271501 Contact Us For Availability
249950
Case Assembly,Control LGE 4995A20622M Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20044B Contact Us For Availability
266010
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
268711-1
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20600B Contact Us For Availability
268711-2
PCB Assembly,Main LGE 6871A20888E Contact Us For Availability
330870
DRAIN PAN ASSEMBLY LGE 3087A10019C Contact Us For Availability
346811
AC Motor LGE 4681A20040L Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20009B Contact Us For Availability
352113
Tube Assembly,Discharge LGE 5211A11069A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10009N Contact Us For Availability
435300
GRILLE,REAR LGE 3530A10193B Contact Us For Availability
550140
BUSHING LGE 4830A30005A Contact Us For Availability
552204
COIL ASSEMBLY,SOLENOID LGE 6421A90001H Contact Us For Availability
554030
CONDENSER ASSY,FIRST LGE 5403A10008A Contact Us For Availability
554160
Compressor Set,China LGE TBZ30503801 Contact Us For Availability
567502
Overload Protect LGE 6750U-L047A Contact Us For Availability
752140
HOSE,CONNECTOR LGE 5214A20027B Contact Us For Availability
× ![]()
