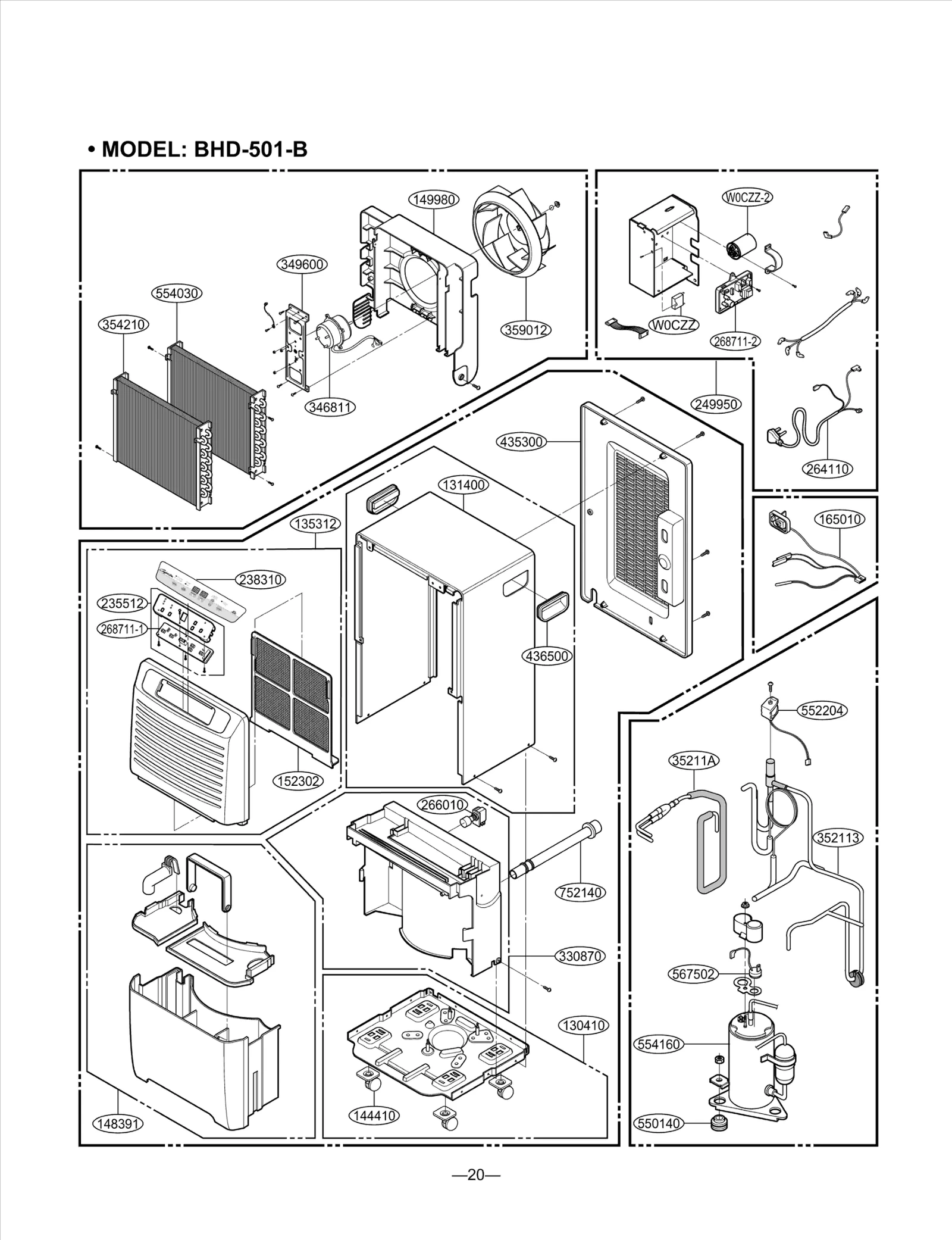

Model LG BHD-501-B – Common Parts & Diagrams

148391
TANK ASSEMBLY,BUCKET
TANK ASSEMBLY,BUCKET LGE 4839A10002A Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998A10034B Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5230A20040A Contact Us For Availability
View on Model
165010
SENSOR ASSEMBLY
SENSOR ASSEMBLY LGE 6877A30013L Contact Us For Availability
View on Model
235512
COVER ASSEMBLY,DISPLAY
COVER ASSEMBLY,DISPLAY LGE 3551A20109C Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A20079C Contact Us For Availability
View on Model
249950
Case Assembly,Control
Case Assembly,Control LGE 4995A20622Y Contact Us For Availability
View on Model
264110
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20001Z Contact Us For Availability
View on Model
266010
SWITCH ASSY,MICRO
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
View on Model
268711-1
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20600B Contact Us For Availability
View on Model
268711-2
PWB(PCB) ASSEMBLY,MAIN
PWB(PCB) ASSEMBLY,MAIN LGE 6871A20888C Contact Us For Availability
View on Model
330870
DRAIN PAN ASSEMBLY
DRAIN PAN ASSEMBLY LGE 3087A10019C Contact Us For Availability
View on Model
346811
Motor Assembly,AC
Motor Assembly,AC LGE EAU32357501 Contact Us For Availability
View on Model
349600
Bracket,Motor
Bracket,Motor LGE 4960A20009D Contact Us For Availability
View on Model
352113
Tube Assembly,Discharge
Tube Assembly,Discharge LGE 5211A11058E Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10009Q Contact Us For Availability
View on Model
435300
GRILLE,REAR
GRILLE,REAR LGE 3530A10193B Contact Us For Availability
View on Model
550140
BUSHING
BUSHING LGE 4830A30005A Contact Us For Availability
View on Model
552204
COIL ASSEMBLY,SOLENOID
COIL ASSEMBLY,SOLENOID LGE 6421A20003K Contact Us For Availability
View on Model
554030
CONDENSER ASSY,FIRST
CONDENSER ASSY,FIRST LGE 5403A10008A Contact Us For Availability
View on Model
554160
COMPRESSOR SET,CHINA
COMPRESSOR SET,CHINA LGE 2520UCBA010 Contact Us For Availability
View on Model
567502
O.L.P
O.L.P LGE 6750U3L001A Contact Us For Availability
View on Model
752140
HOSE,CONNECTOR
HOSE,CONNECTOR LGE 5214A20027B Contact Us For Availability
View on Model
W0CZZ
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 3H00660V Contact Us For Availability
View on Model
W0CZZ-2
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 0CZZA20005J Contact Us For Availability
View on Model
