Model LG BHD-501 – Common Parts & Diagrams

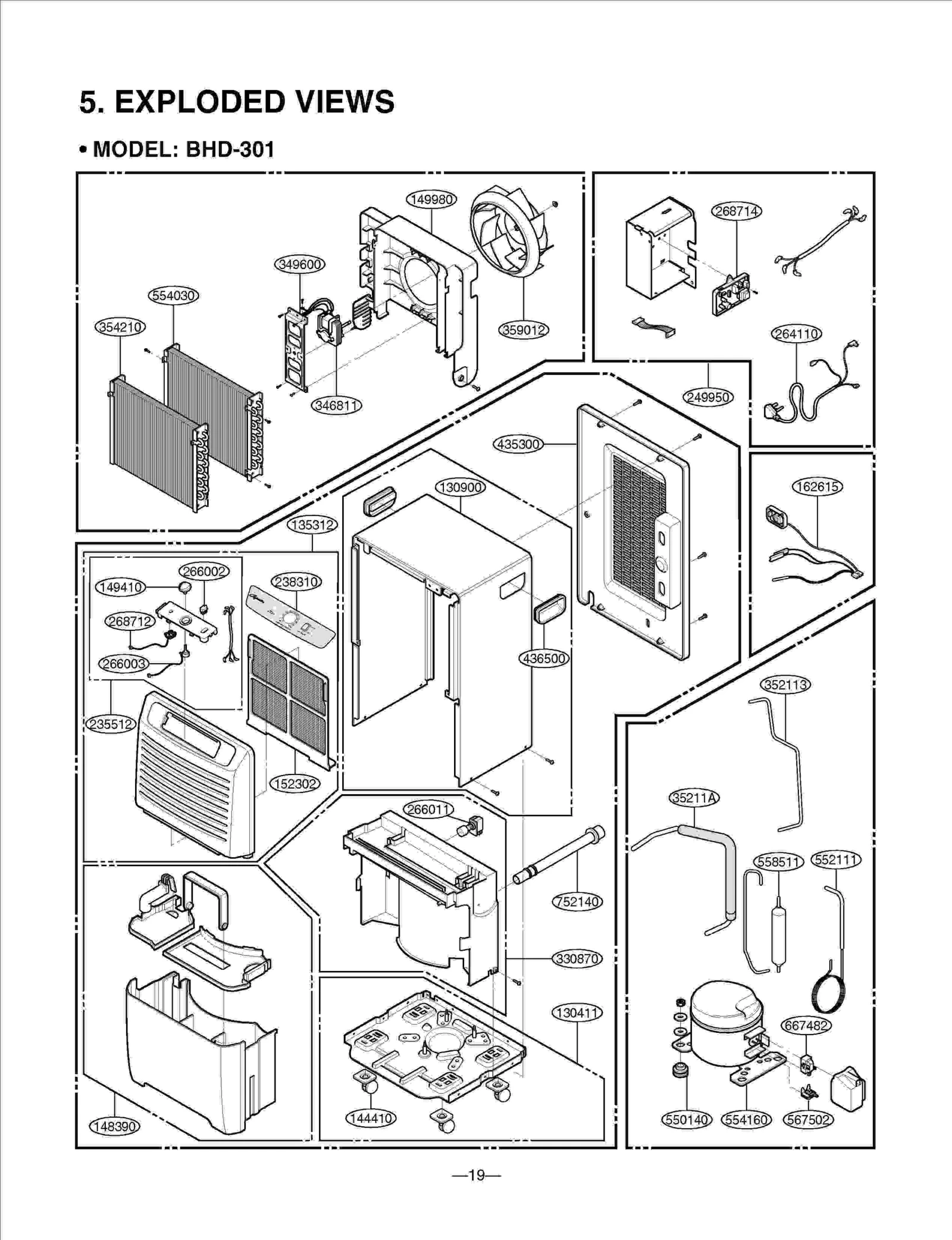

Diagram 0

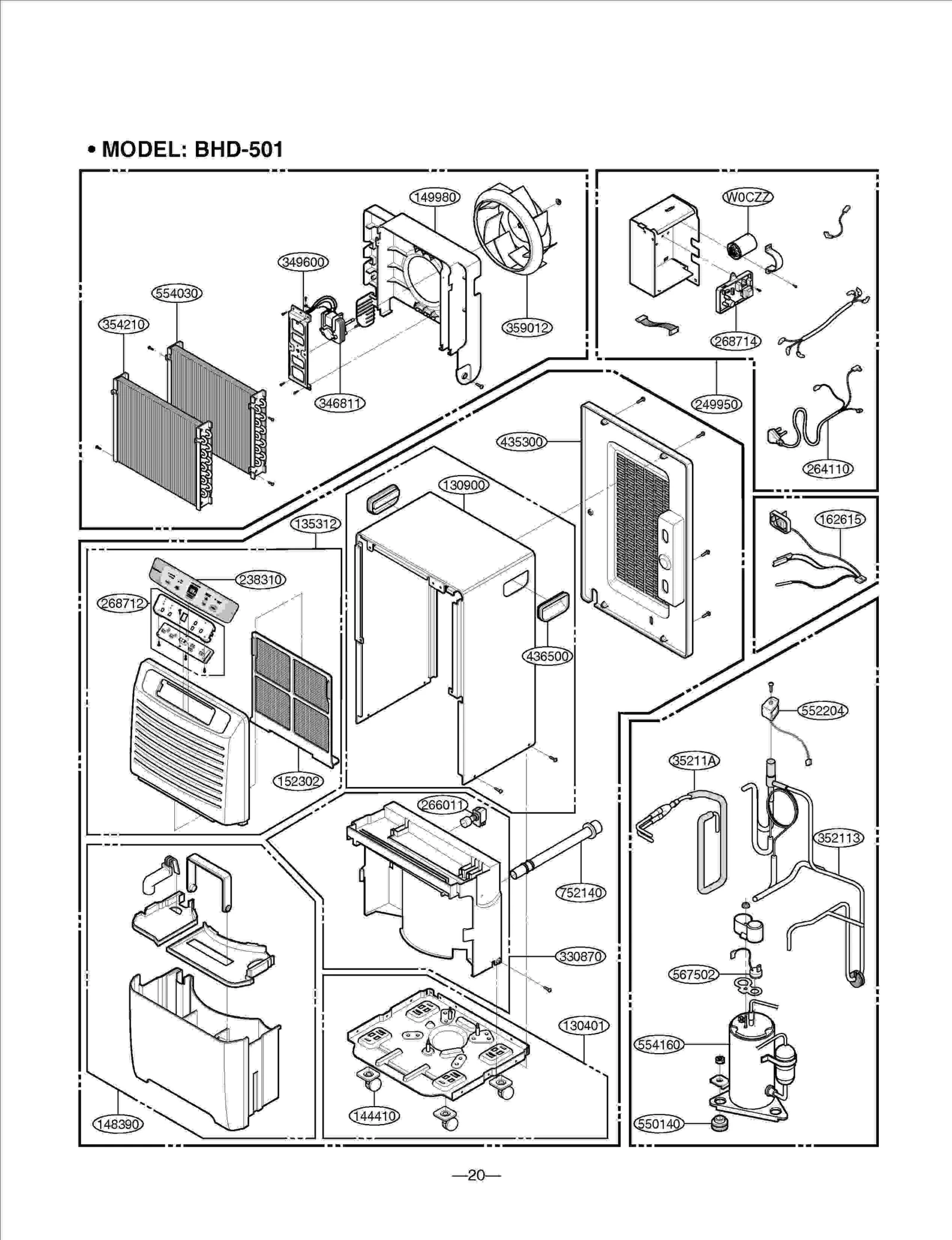

Diagram 1

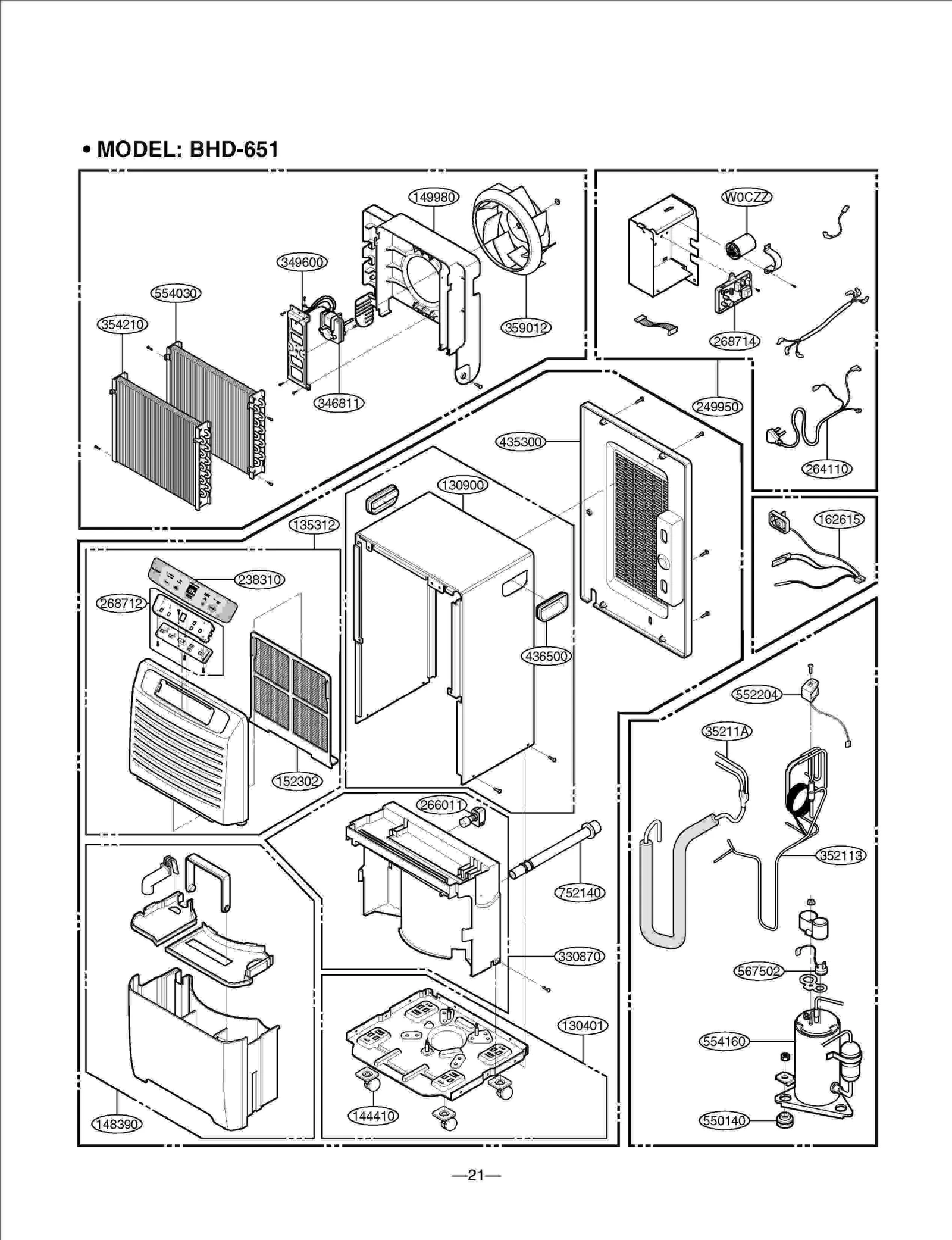

Diagram 2
Diagram 3
Common parts from model LG BHD-501
35211A
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A10428A Contact Us For Availability
130910
CABINET LGE 3090A10042A Contact Us For Availability
135312
GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A10254C Contact Us For Availability
148380
TANK ASSEMBLY,BUCKET LGE 4839A10002A Contact Us For Availability
149980
SHROUD LGE 4998A10034A Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20040A Contact Us For Availability
162615
SENSOR ASSEMBLY LGE 6877A30013L Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20079C Contact Us For Availability
249950
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20359E Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20001Z Contact Us For Availability
266011
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
268714
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10141C Contact Us For Availability
330870
DRAIN PAN ASSEMBLY LGE 3087A10019A Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20040J Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20009B Contact Us For Availability
352111
BUSHING LGE 4830A30005A Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A11016A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10009J Contact Us For Availability
359012
FAN,TURBO LGE 5900A20007A Contact Us For Availability
435300
GRILLE,REAR LGE 3530A10193A Contact Us For Availability
552204
COIL ASSEMBLY,SOLENOID LGE 6421A20003K Contact Us For Availability
554030
CONDENSER ASSY,FIRST LGE 5403A10008A Contact Us For Availability
554160
COMPRESSOR SET,CHINA LGE 2520UCAA014 Contact Us For Availability
752140
HOSE,CONNECTOR LGE 5214A20027A Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 0CZZA20001R Contact Us For Availability
× ![]()
