Model Whirlpool BHAC1000FS0 ROOM AIR CONDITIONER – Common Parts & Diagrams

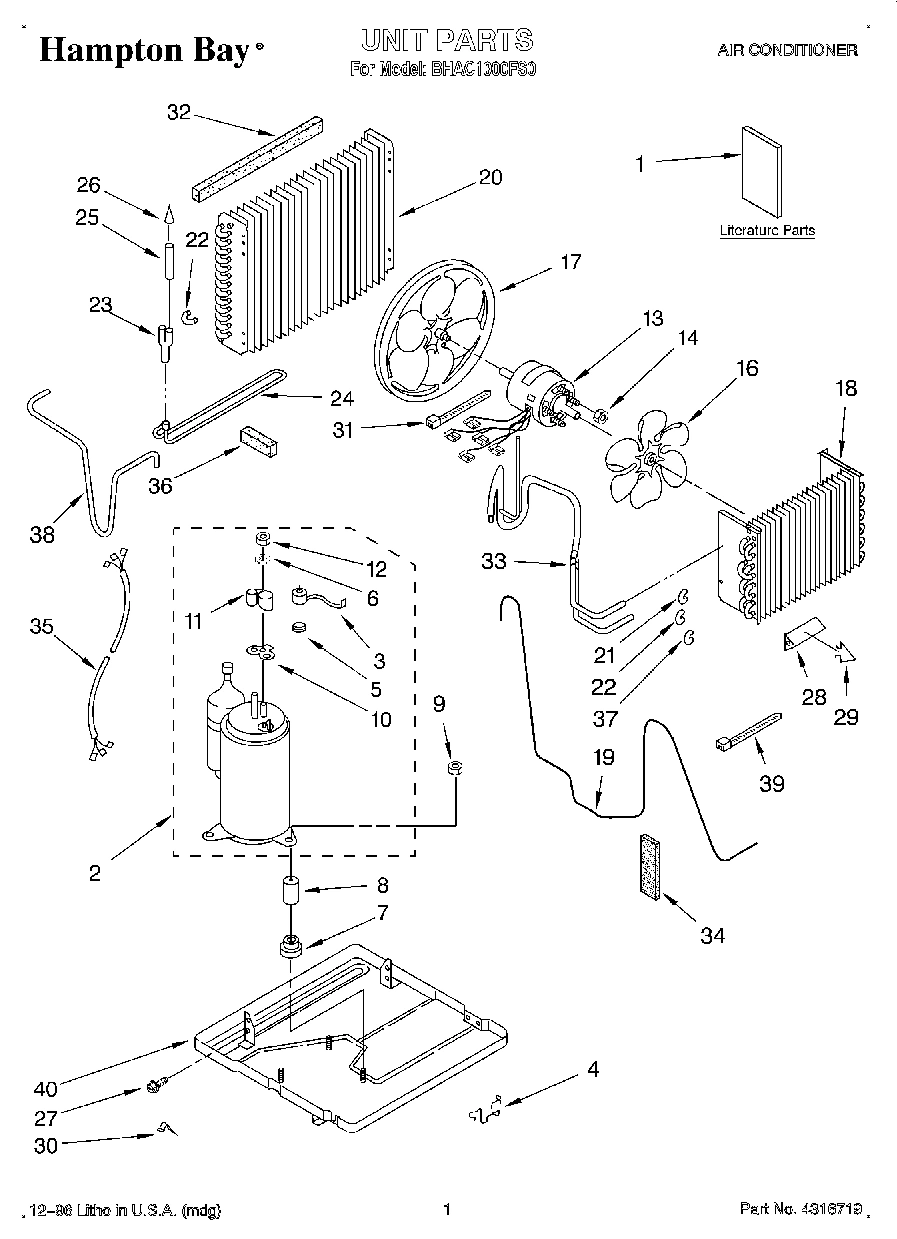

01 - UNIT, LITERATURE

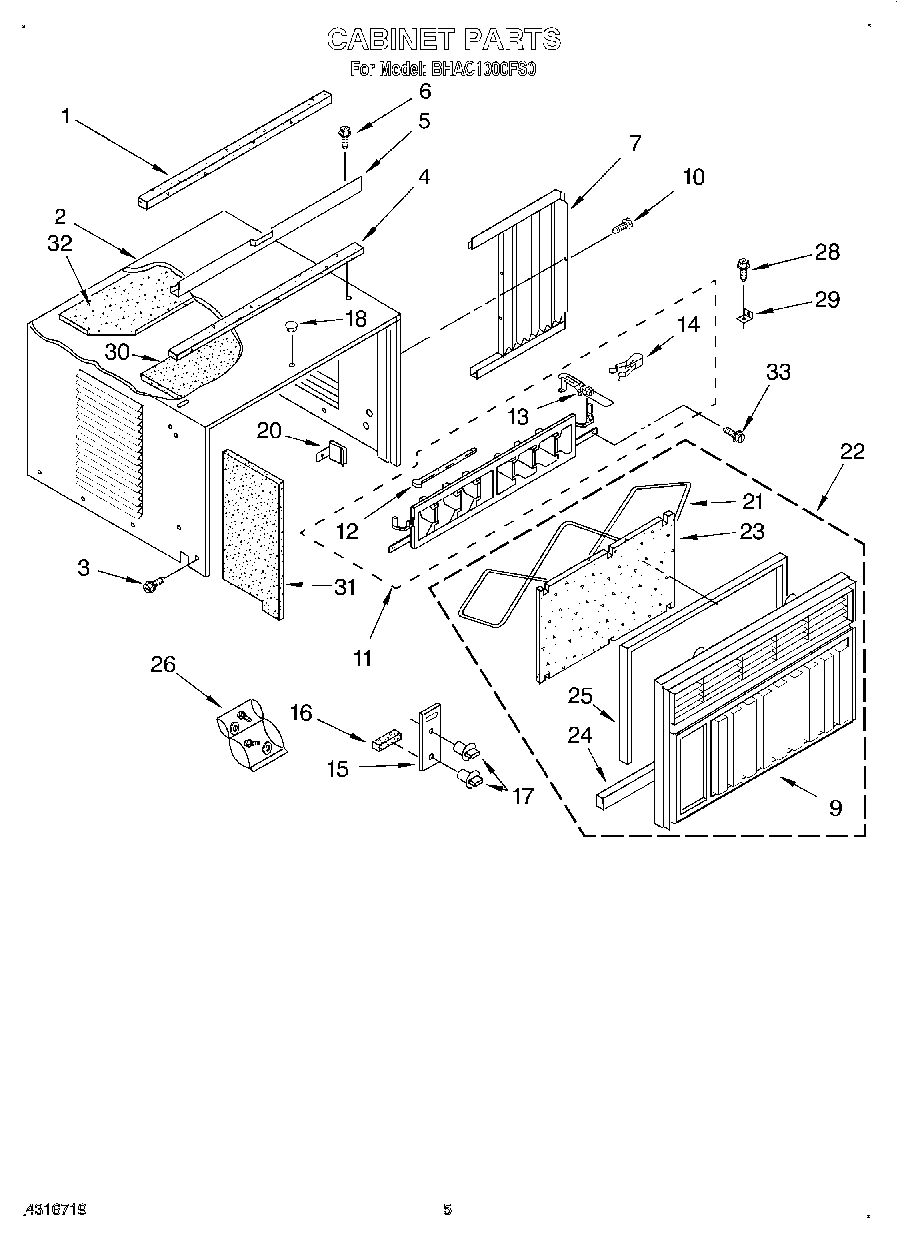

03 - CABINET

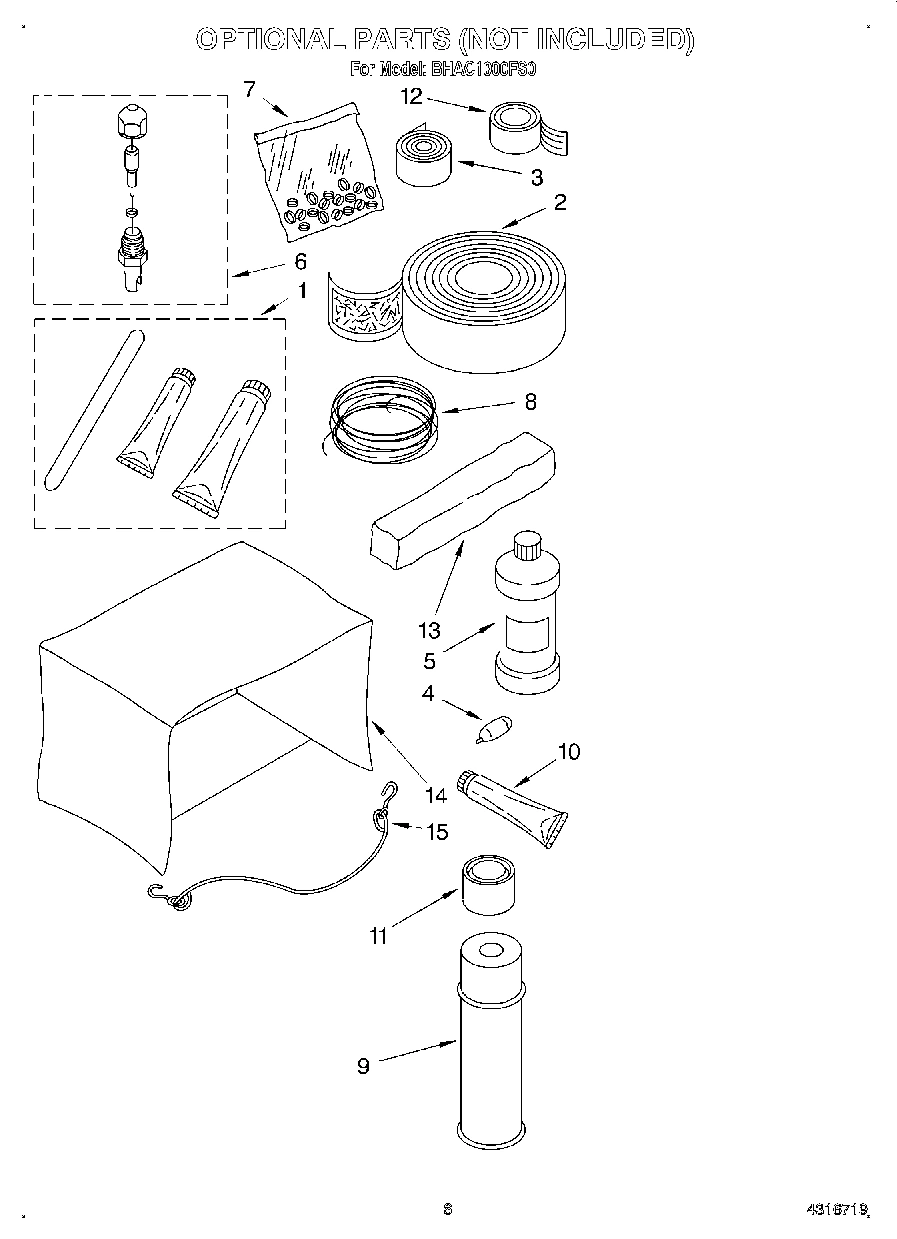

04 - OPTIONAL

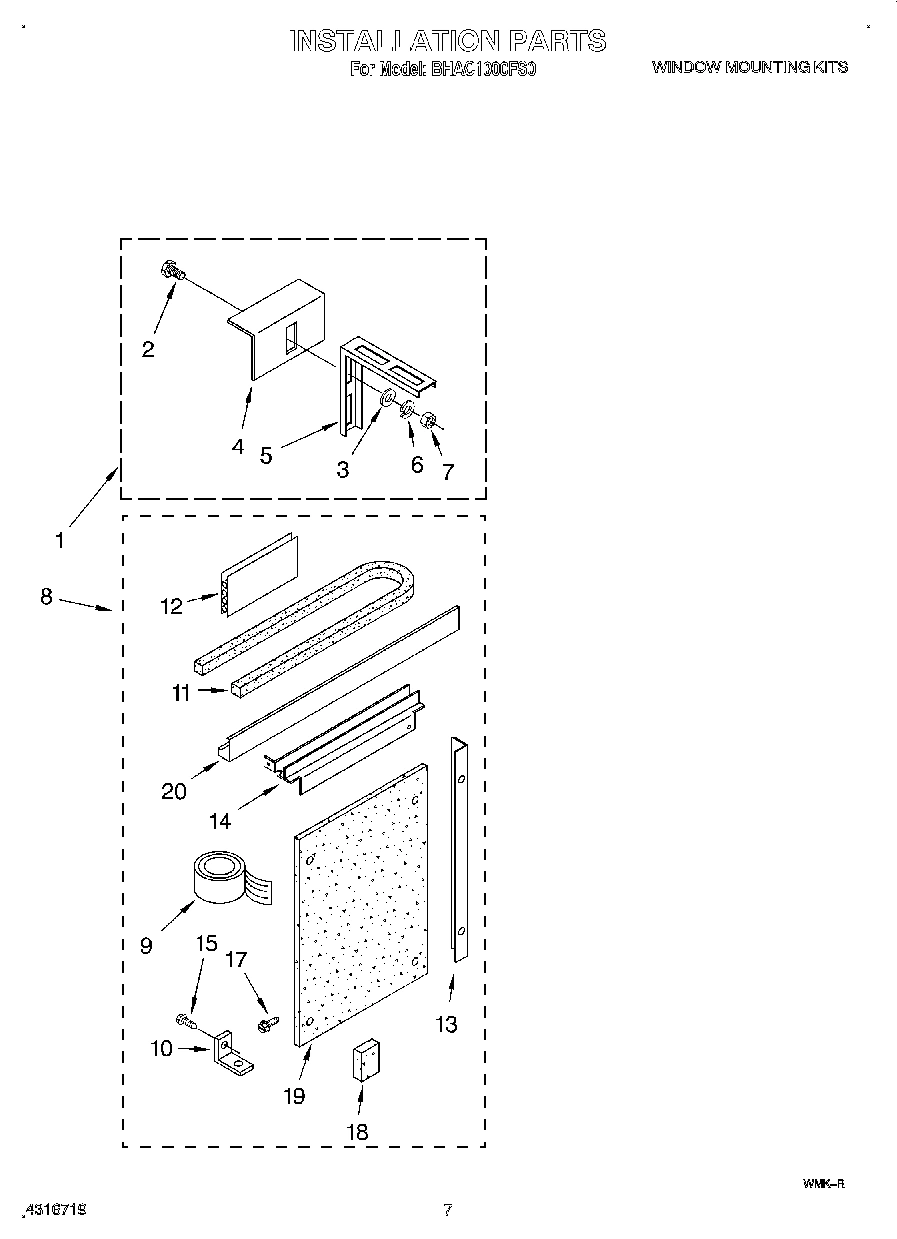

05 - INSTALLATION

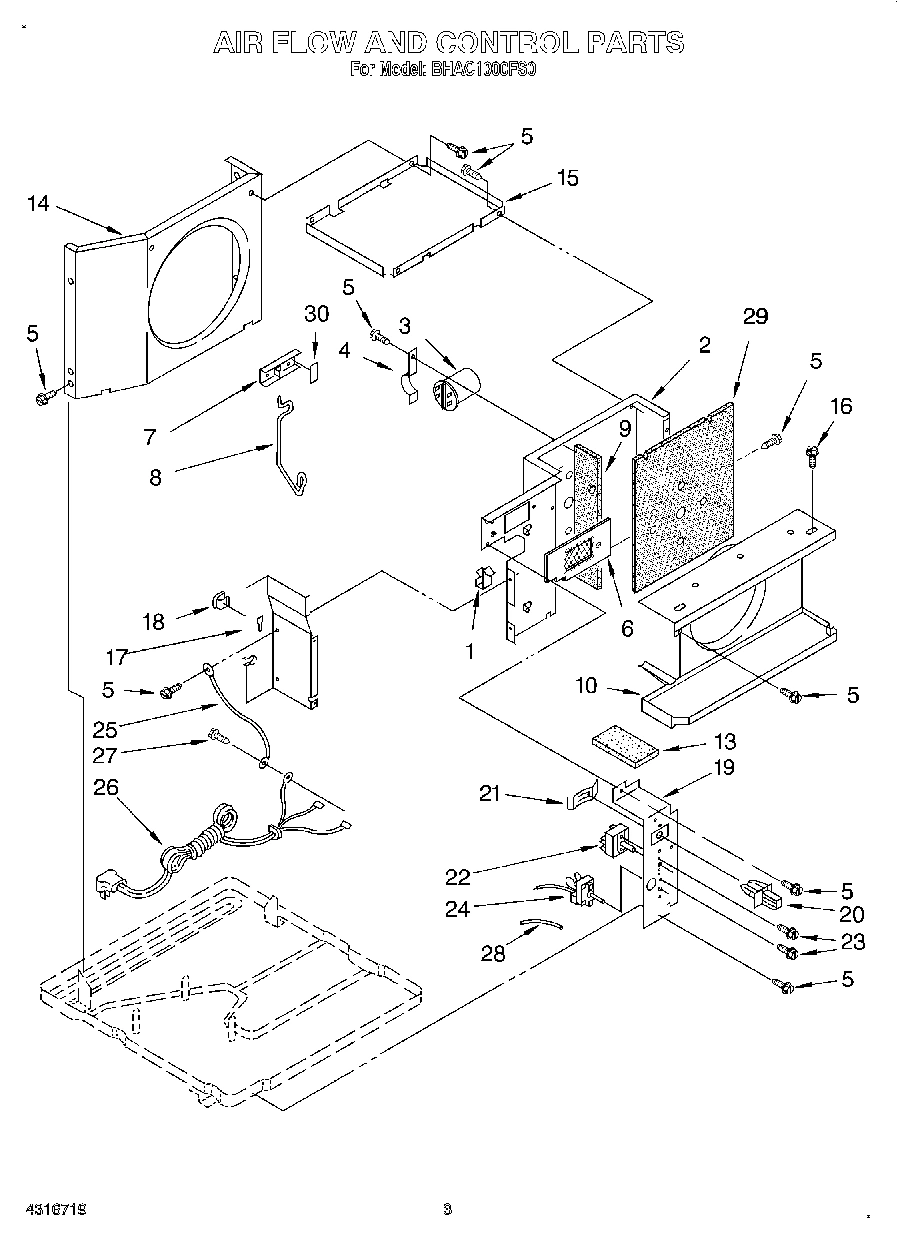

02 - AIRFLOW & CONTROL
Common parts from model Whirlpool BHAC1000FS0 ROOM AIR CONDITIONER
Instructions Installation (Economy Mounting K WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Seal, Meeting Rail WPL 469877 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Clamp, Cable WPL 852451 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Cabinet WPL 1163513 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Wall, Dividing WPL 1167154 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 1162594 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Bracket, Running Capacitor WPL 1167611 Contact Us For Availability
5
Channel, Top Mounting WPL 1169001 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Screen, Insulation Assembly WPL 1162926 Contact Us For Availability
7
Housing, Curtain L.S. (Includes No.8) WPL 1164154 Contact Us For Availability
7
Housing, Curtain R.S.(Includes No.8) WPL 1164155 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 487541 Contact Us For Availability
7
Door, Exhaust WPL 644206 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
8
Arm, Exhaust Door WPL 856042 Contact Us For Availability
9
Frame, Front WPL 1169206 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Seal, Strip WPL 855265 Contact Us For Availability
9
Insulation (Side, Dividing Wall) WPL 1166339 Contact Us For Availability
10
Screw 3/8 SG WPL 1161561 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
10
Shroud, Evaporator WPL 856039 Contact Us For Availability
11
Seal, Meeting Rail WPL 855841 Contact Us For Availability
11
Louver, Assembly WPL 1166081 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Link, Vertical Louver (2) WPL 855158 Contact Us For Availability
13
Handle, Vertical Louver (2) WPL 1161636 Contact Us For Availability
13
Angle, Side (2) WPL 646233 Contact Us For Availability
13
Insulation, Control Panel (Top) WPL 1158576 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Spring, Detent (2) WPL 644006 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
15
Plate, Escutcheon WPL 1169595 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Screw, Wood WPL 47435 Contact Us For Availability
15
Support, Unit (2) WPL 1156536 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
Knob, Control (2) WPL 1167618 Contact Us For Availability
17
Extension, Dividing Wall WPL 994561 Contact Us For Availability
18
Evaporator WPL 1164692 Contact Us For Availability
18
Cover, Hole WPL 1157126 Contact Us For Availability
18
Spacer, Block (2) WPL 995274 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
19
Tube, Restrictor WPL 1164700 Contact Us For Availability
19
Board, Filler WPL 876826 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
20
Condenser WPL 1160065 Contact Us For Availability
20
Clip, Vertical Louver (2) WPL 1158294 Contact Us For Availability
20
Wide Window Kit (Use with 1155851 for windows WPL 485676 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
20
Actuator, Door WPL 1167161 Contact Us For Availability
21
Bend, Return Evaporator (6) WPL 708531 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
21
Spring, Detent WPL 858765 Contact Us For Availability
22
Bend, Return Condenser (13) Evaporator (1) WPL 708532 Contact Us For Availability
22
Front, Cabinet (Complete) WPL 1169207 Contact Us For Availability
22
Switch, Rotary WPL 1165243 Contact Us For Availability
23
Tube, Flow Divider WPL 1162071 Contact Us For Availability
23
Filter, Air WPL 855246 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
24
Tube, Wet Loop WPL 1168421 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
24
Control, Temperature WPL 1166758 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 1155460 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
26
Cable, Appliance WPL 1165241 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
28
Insulator, Sleeve WPL 475841 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
29
Insulation (Back, Dividing Wall) WPL 1166338 Contact Us For Availability
30
Clamp, Tube WPL 642684 Contact Us For Availability
30
Insul. Cabinet Top WPL 1163429 Contact Us For Availability
30
Spacer WPL 1159175 Contact Us For Availability
31
Cabinet Insulation (Right Side) WPL 1163430 Contact Us For Availability
31
Cabinet Insulation (Left Side) WPL 1163431 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
32
Insul. Cabinet WPL 1158501 Contact Us For Availability
33
Tube, Suction WPL 1164706 Contact Us For Availability
33
Screw WPL 1159222 Contact Us For Availability
34
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
37
Bend, Return (1) WPL 1158407 Contact Us For Availability
38
Tube, Discharge WPL 1161574 Contact Us For Availability
40
Base WPL 950019 Contact Us For Availability
× ![]()
