Model GE BA2410 General Electric Model BA2410 – Common Parts & Diagrams
Agitator and Post (Long Post Models)
Agitator, Drive Bell and Seal Seat (Short Post Models)
Bearing Housing, Brake, Pulley and Pivot Dome
Cabinet Top, Loading Door and Control Hood
Components for 30946P Transmission Assembly (Long Post Models)

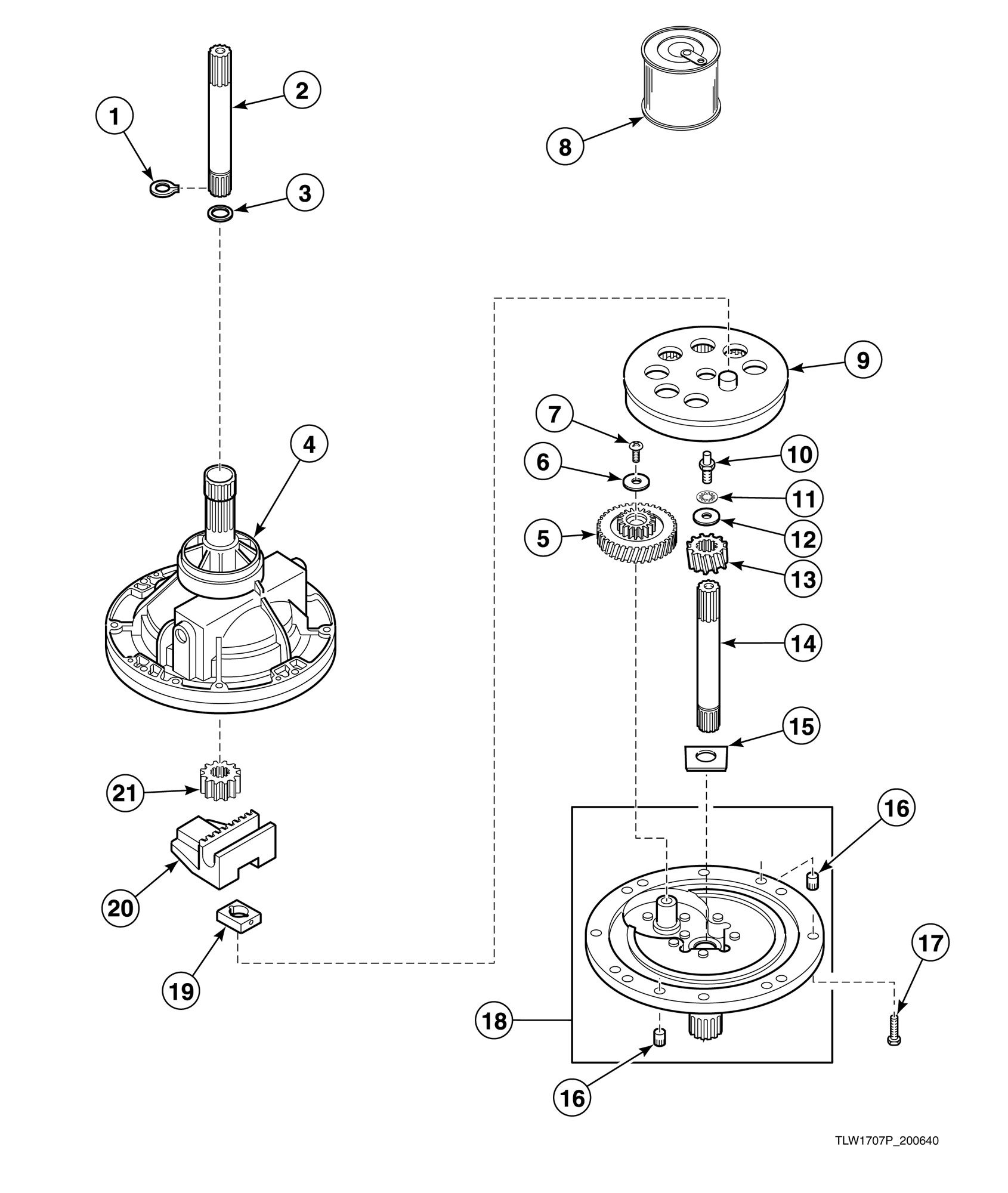

Components for 33227P Transmission Assembly (Short Post Models)

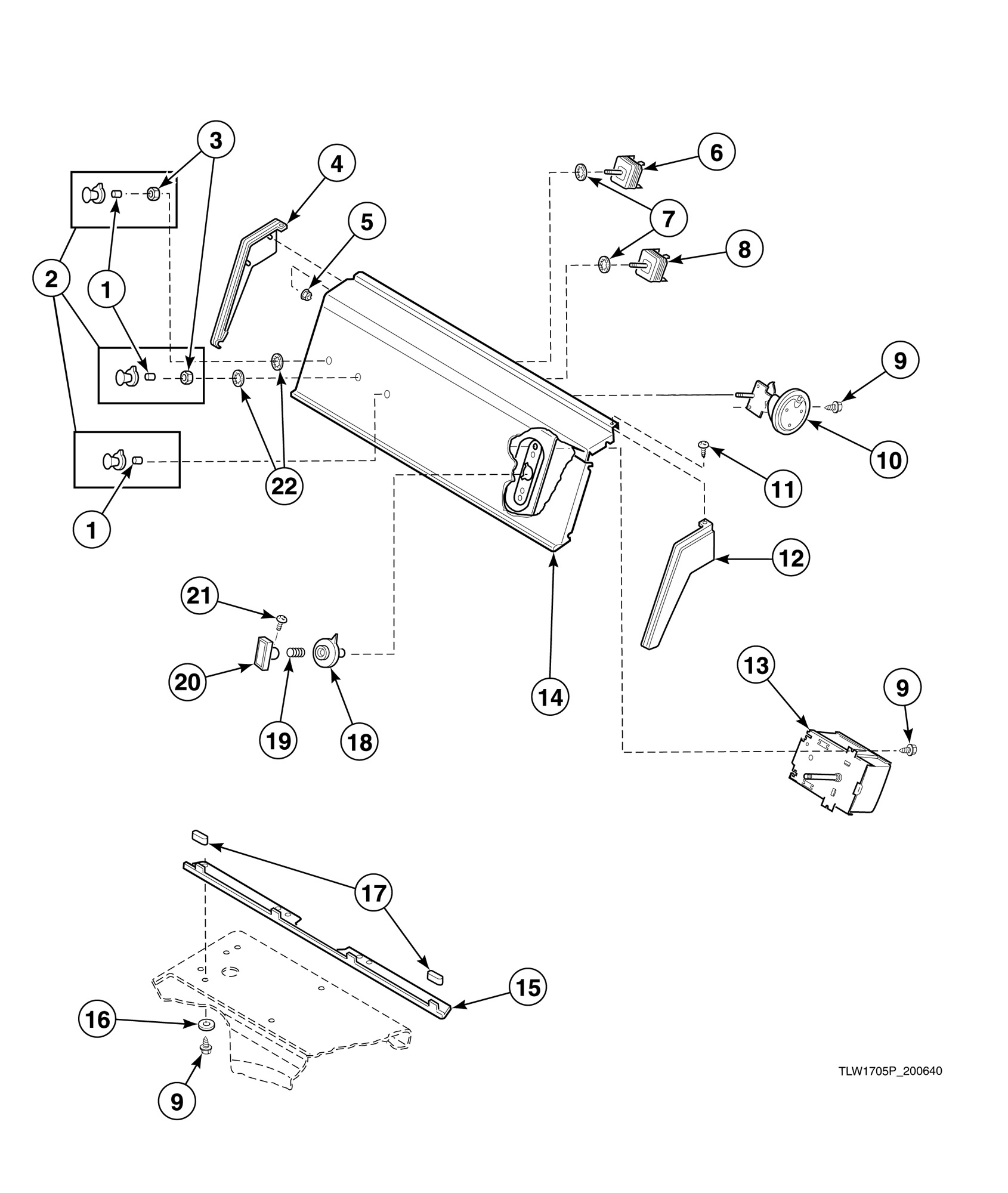

Control Panel and Controls

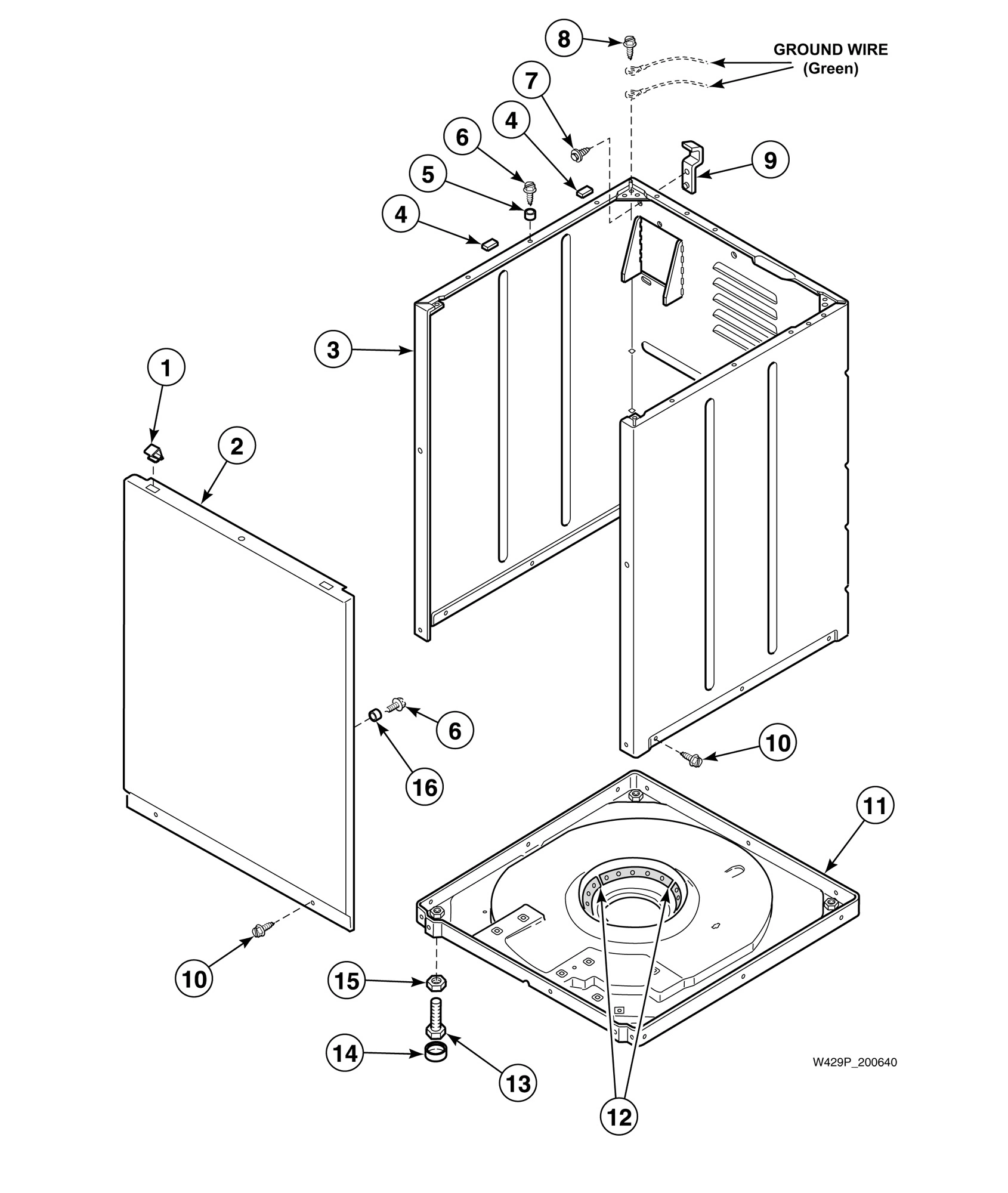

Front Panel, Cabinet and Base

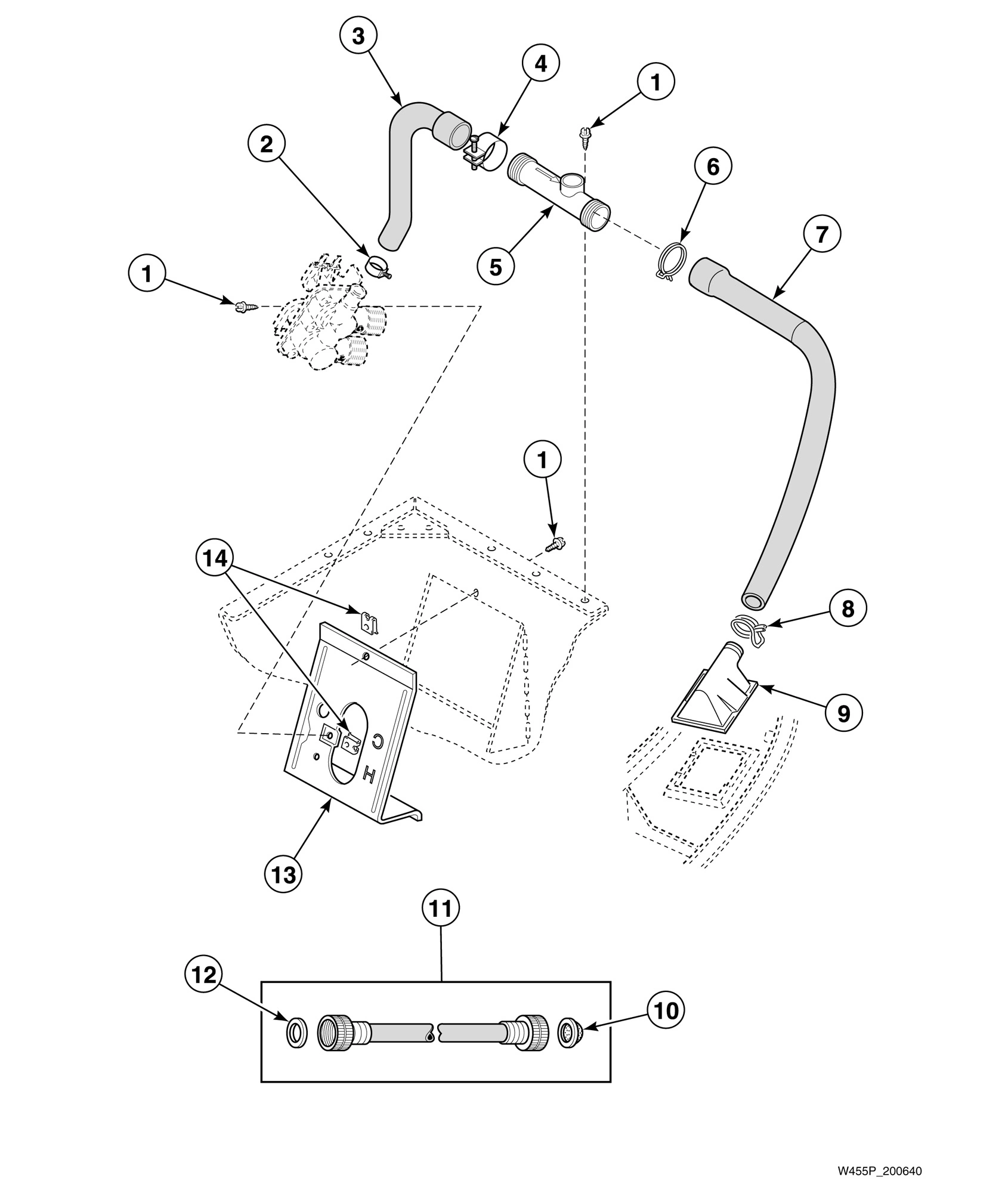

Inlet Hose, Filler Hose, Back Flow Preventer and Mixing Valve Mounting Bracket (Drawing 2 of 2)

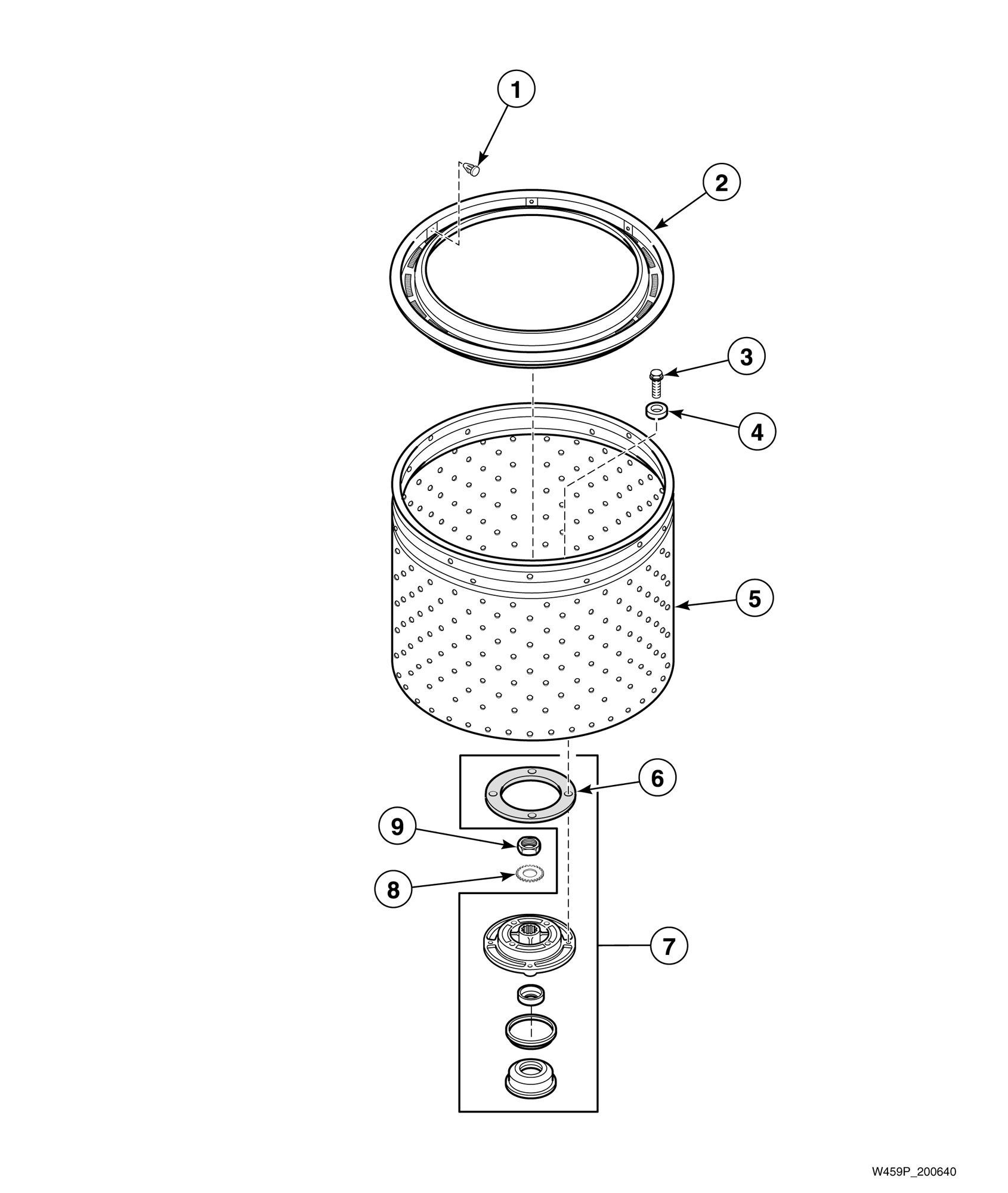

Lint Filter, Washtub and Hub (Drawing 2 of 2)
Mixing Valve Assembly

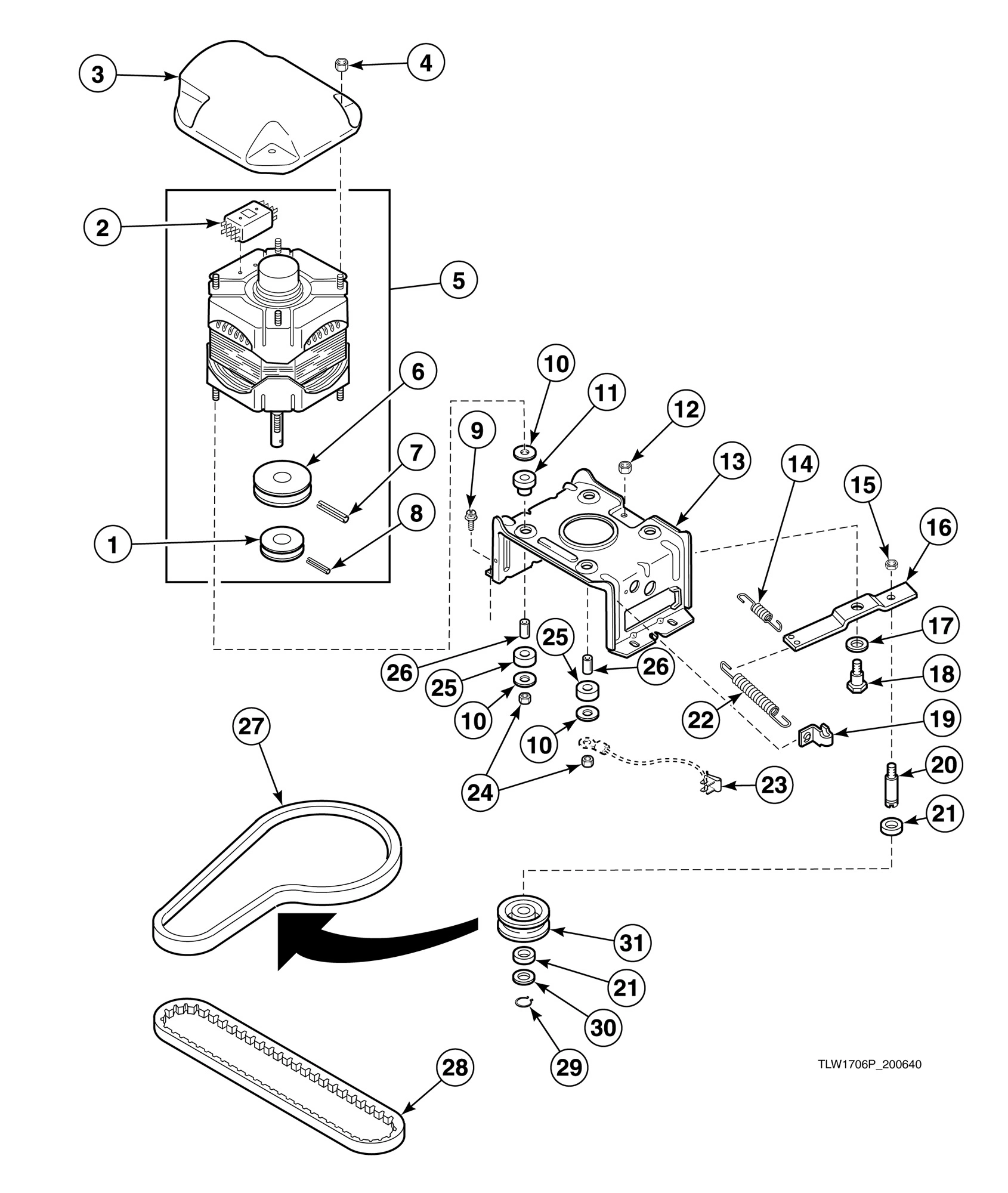

Motor, Mounting Bracket, Belts and Idler Assembly

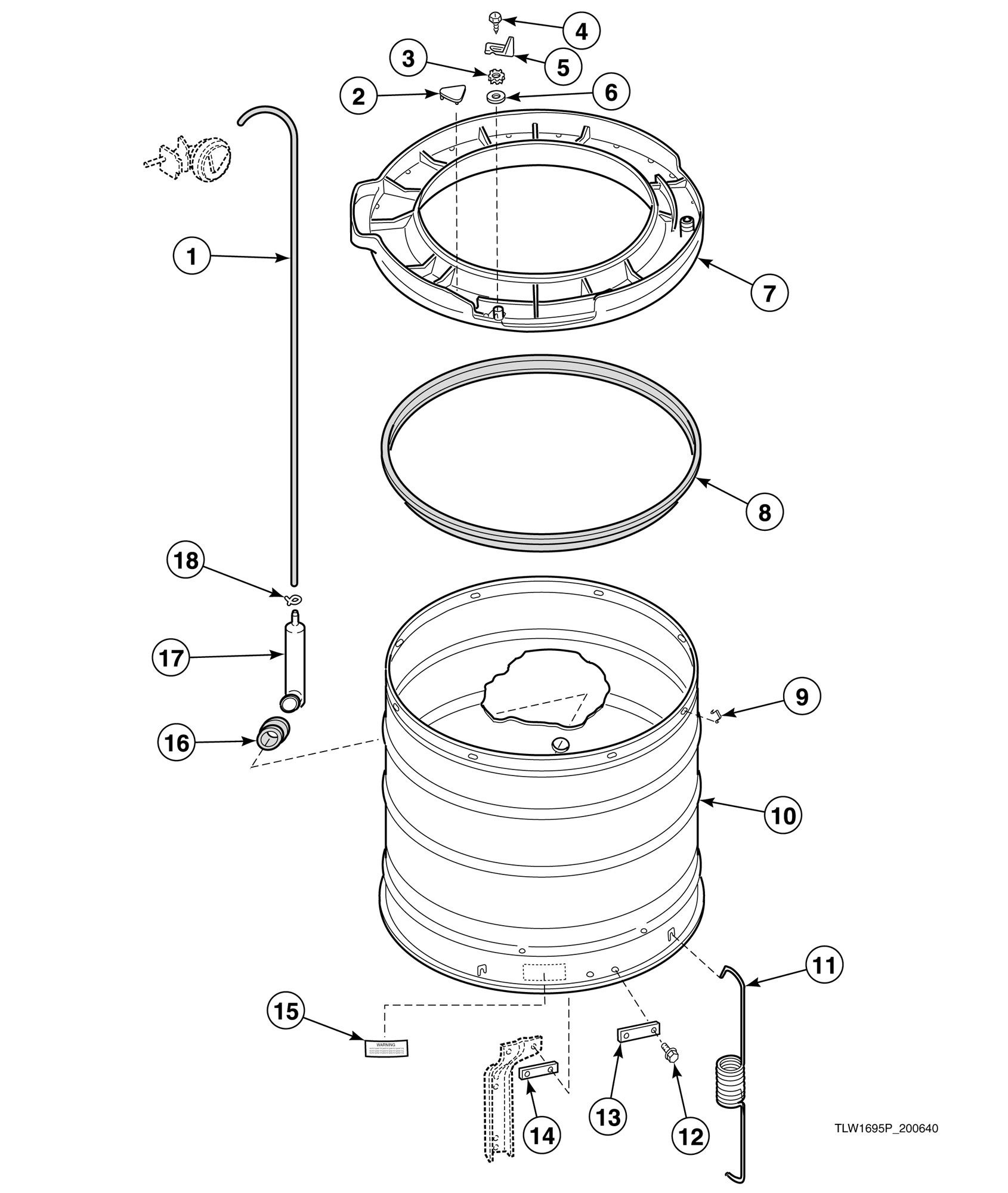

Outer Tub, Cover and Pressure Hose

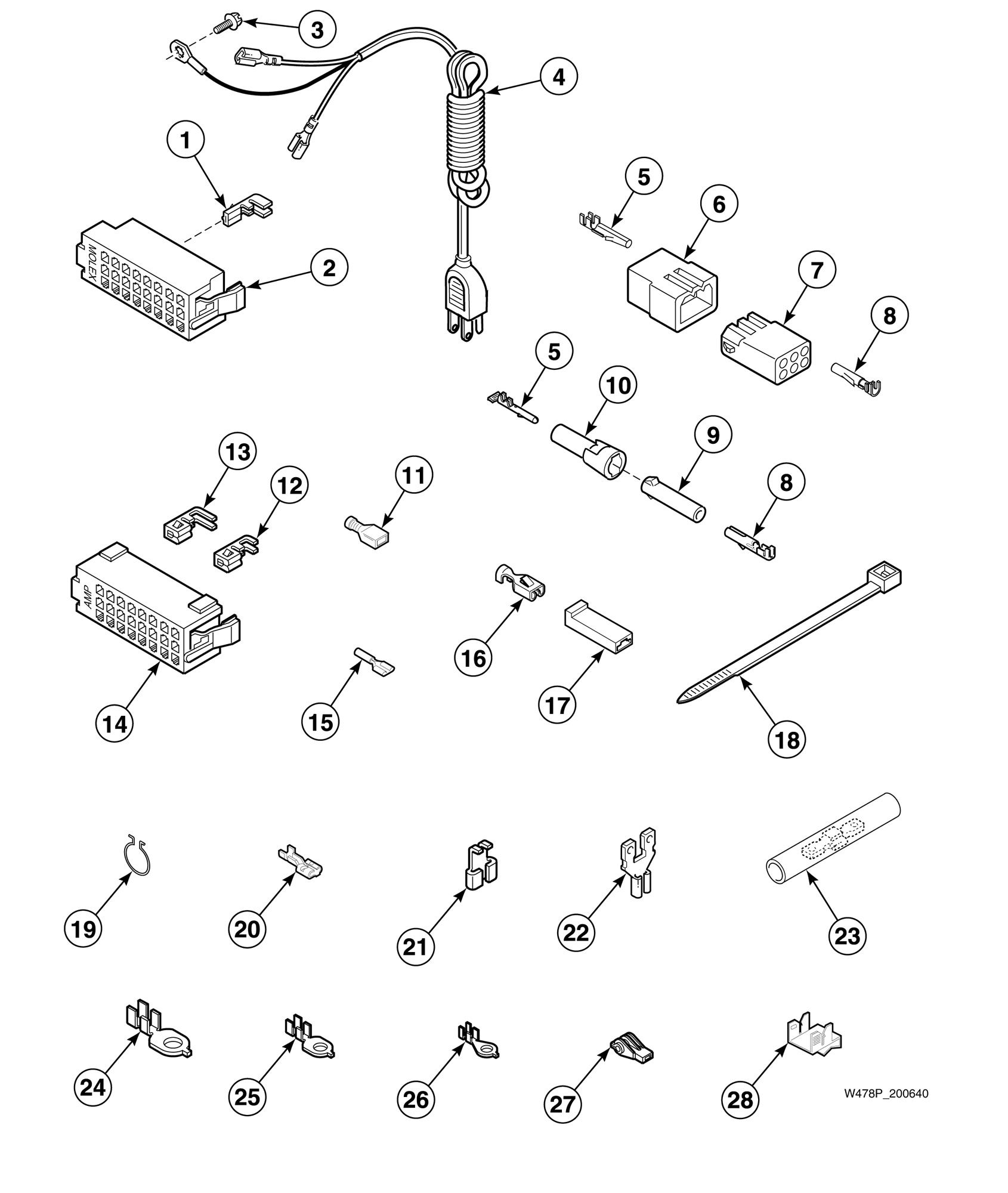

Power Cord and Wire Terminals

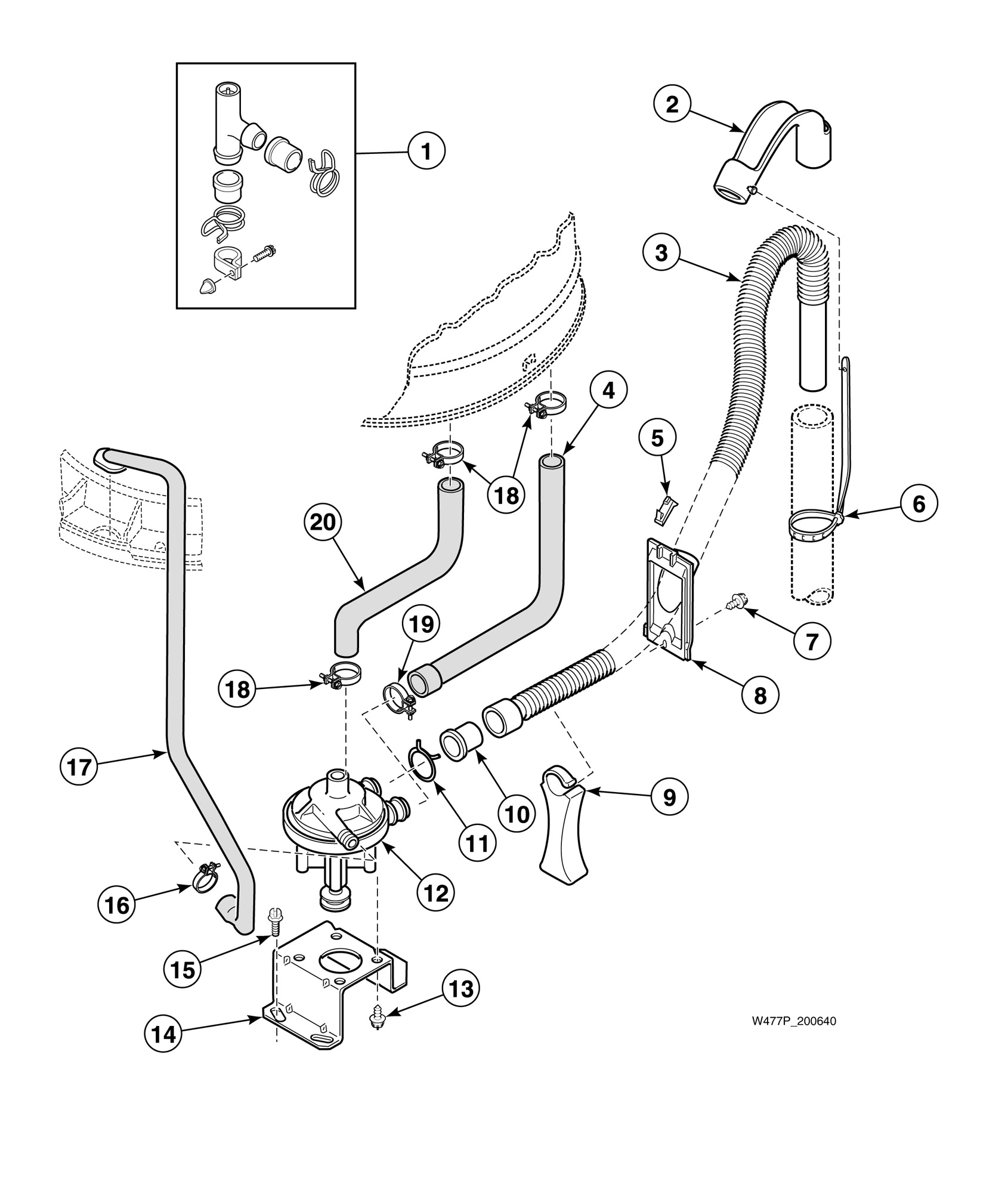

Pump Assembly, Bracket, Hoses and Siphon Break Kit

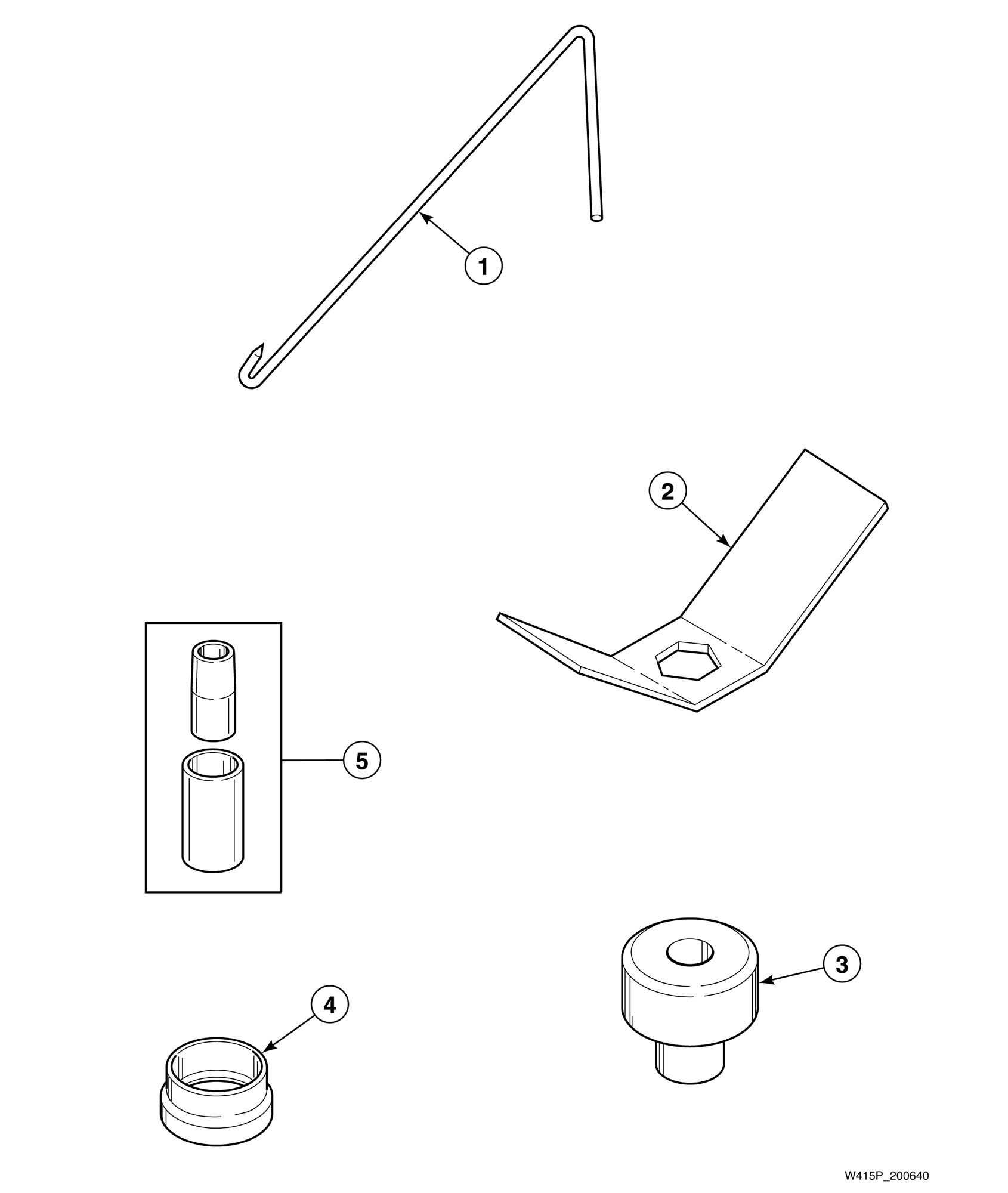

Special Tools

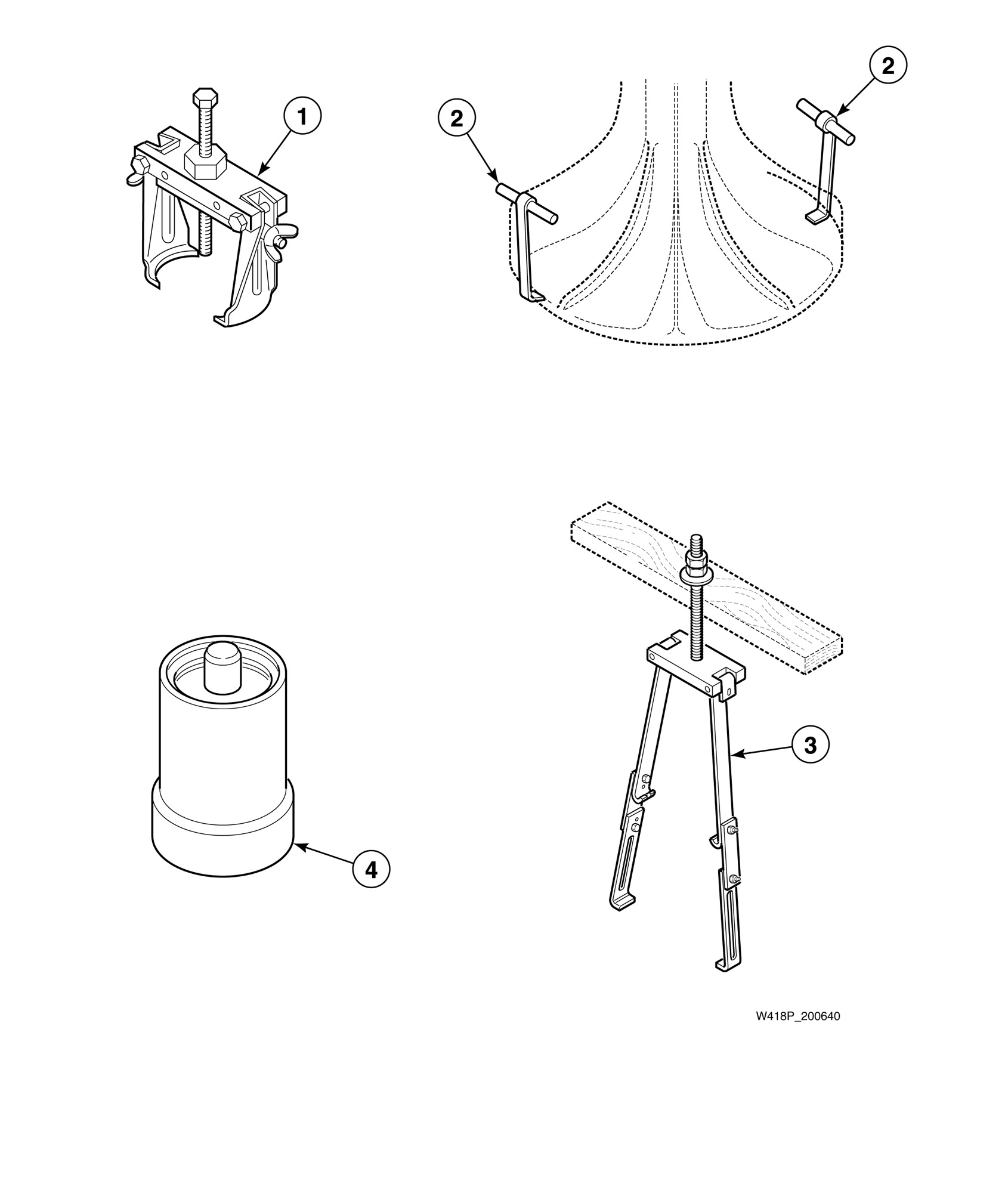

Special Tools - Short Post Models

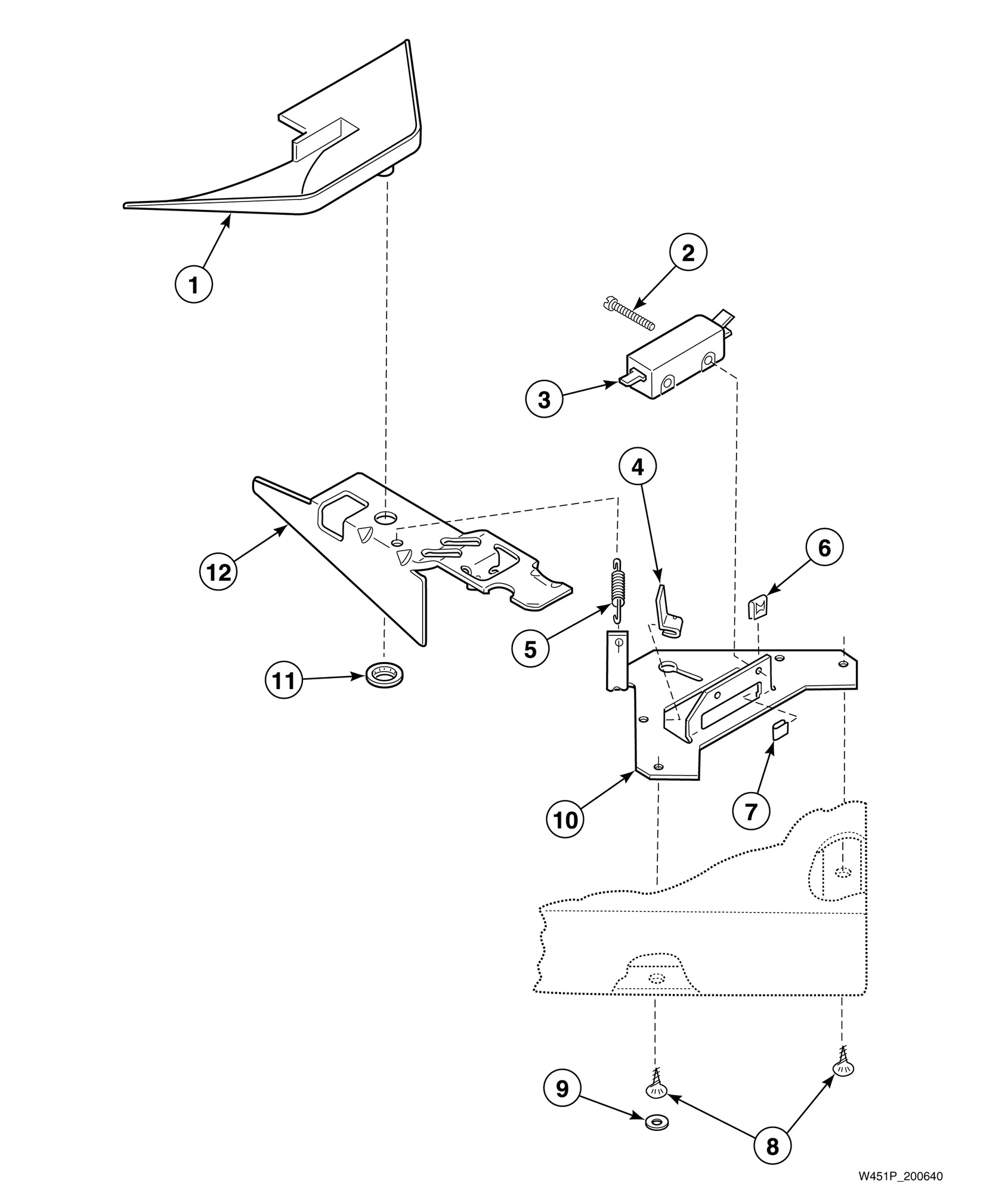

Switch and Bracket Assembly

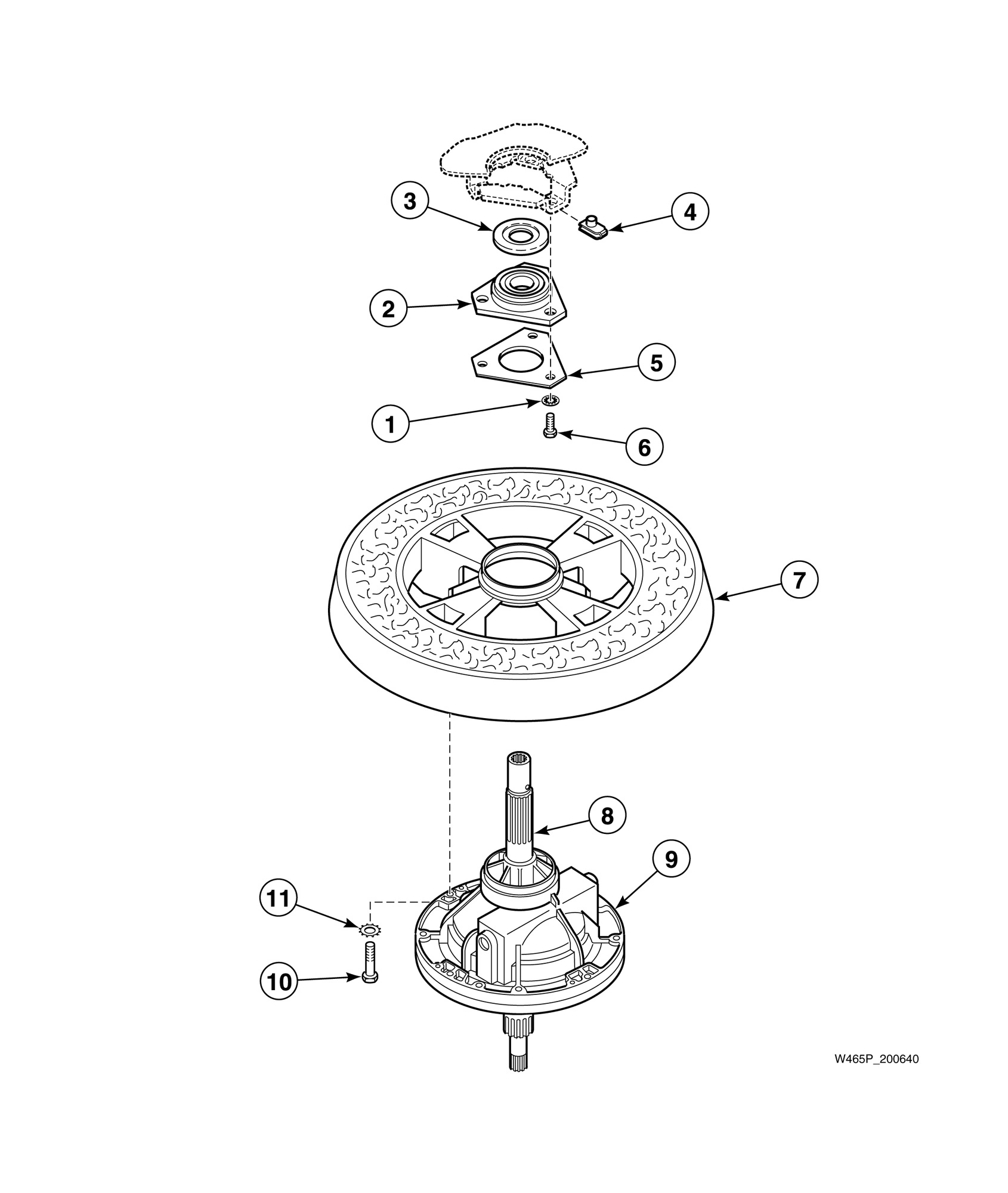

Transmission Assembly and Balance Ring - Long Post Models
Transmission Assembly and Balance Ring - Short Post Models
Common parts from model GE BA2410 General Electric Model BA2410
1
Dispenser Assembly (Comment: Optional on some GEN 27707 Contact Us For Availability
1
Retaining Ring GEN 27197 Contact Us For Availability
1
Fabric Softener Dispenser Assembly (Comment: GEN 33510 Contact Us For Availability
1
Bearing Housing Assembly GEN 35746 Contact Us For Availability
1
Bumper GEN 21685 Contact Us For Availability
1
Screw GEN 23962 Contact Us For Availability
1
Retainer GEN 10519 Contact Us For Availability
1
Speed Clip GEN 28835 Contact Us For Availability
1
Lint Filter Fastener GEN 29474 Contact Us For Availability
1
Sleeve (Comment: Long) GEN 24128 Contact Us For Availability
1
Motor Pulley (Comment: Pump) GEN 27104 Contact Us For Availability
1
Tubing GEN 202700 Contact Us For Availability
1
Female Terminal (Comment: Used for 1 or 2 wir GEN 00188 Contact Us For Availability
1
Siphon Break Kit (Comment: Must be installed GEN 562P3 Contact Us For Availability
1
Spring Hook Tool (Comment: Use to remove 5 ce GEN 321P4 Contact Us For Availability
1
Agitator Drive Bell Puller (Comment: Use to r GEN 294P4 Contact Us For Availability
1
Lid Switch Shield GEN 29042 Contact Us For Availability
1
Nut GEN 27222 Contact Us For Availability
2
Agitator Cap Assembly GEN 27138 Contact Us For Availability
2
Agitator GEN 33514 Contact Us For Availability
2
Lower Bearing GEN 28944RP Contact Us For Availability
2
Loading Door GEN 27665W Contact Us For Availability
2
Coupling and Shaft Kit GEN 368P3 Contact Us For Availability
2
Output Shaft GEN 36570P Contact Us For Availability
2
Switch Knob Assembly GEN 28124 Contact Us For Availability
2
Front Panel (Comment: Almond) GEN 32708LP Contact Us For Availability
2
Front Panel (Comment: White) GEN 32708WP Contact Us For Availability
2
Hose Clamp GEN 36801 Contact Us For Availability
2
Lint Filter GEN 33521 Contact Us For Availability
2
Screw GEN 25817C Contact Us For Availability
2
Motor Switch (Comment: Used with 30895 Emerso GEN 24139 Contact Us For Availability
2
Motor Switch (Comment: Used with 30897 Emerso GEN 24140 Contact Us For Availability
2
Motor Switch (Comment: Used with 30895 Genera GEN 30895A Contact Us For Availability
2
Motor Switch (Comment: Used with 30897 Genera GEN 30897AP Contact Us For Availability
2
Plug GEN 29901 Contact Us For Availability
2
24 Position Housing GEN 32746 Contact Us For Availability
2
Drain Hose Sleeve GEN 29144 Contact Us For Availability
2
Hex Wrench Tool (Comment: Use to remove hex l GEN 306P4 Contact Us For Availability
2
Agitator Hook (Comment: Set of 2, Use to remo GEN 254P4P Contact Us For Availability
2
Screw GEN Q6516 Contact Us For Availability
2
Screw GEN M400057 Contact Us For Availability
3
Washer GEN 27189 Contact Us For Availability
3
Screw GEN 27202 Contact Us For Availability
3
Screw GEN 30852 Contact Us For Availability
3
Spacer GEN 27176 Contact Us For Availability
3
Hinge GEN 27626 Contact Us For Availability
3
Washer GEN 03815 Contact Us For Availability
3
Washer GEN 20212 Contact Us For Availability
3
Nut GEN 57584 Contact Us For Availability
3
Service Cabinet Kit (Comment: Almond) GEN 38612LP Contact Us For Availability
3
Service Cabinet Kit (Comment: White) GEN 38612WP Contact Us For Availability
3
Mixing Valve Hose GEN 27183 Contact Us For Availability
3
Mixing Valve GEN 33930P Contact Us For Availability
3
Motor Shield GEN 27136 Contact Us For Availability
3
Screw GEN 52909 Contact Us For Availability
3
Drain Hose GEN 39952 Contact Us For Availability
3
Guide Spindle (Comment: Use to remove hub fro GEN 230P4 Contact Us For Availability
3
Agitator Puller Assembly (Comment: Use to rem GEN 256P4P Contact Us For Availability
3
Switch GEN 27249 Contact Us For Availability
3
Anti-Seize Compound (Comment: Apply to upper GEN 27604P Contact Us For Availability
4
Agitator Assembly GEN 27120 Contact Us For Availability
4
Seal GEN 30853 Contact Us For Availability
4
Spring GEN 33435 Contact Us For Availability
4
Nut (Comment: Nylon) GEN 21752 Contact Us For Availability
4
Transmission Case Assembly GEN 33223P Contact Us For Availability
4
End Casting (Comment: Left) GEN 25124 Contact Us For Availability
4
Bumper Pad GEN 56128 Contact Us For Availability
4
Washer GEN 28094 Contact Us For Availability
4
Mounting Bracket GEN 24158 Contact Us For Availability
4
Nut GEN 27201 Contact Us For Availability
4
Lead-In Cord GEN 34458 Contact Us For Availability
4
Drain Tub-to-Pump Hose GEN 27160 Contact Us For Availability
4
Seal Installer (Comment: Use to install 356P3 GEN 241P4 Contact Us For Availability
4
Seal Tool (Comment: Use to install the seal s GEN 255P4 Contact Us For Availability
4
U-Clip GEN 27837 Contact Us For Availability
4
Transmission Assembly GEN 33227P Contact Us For Availability
5
Taper Pin GEN 20243 Contact Us For Availability
5
Drive Bell and Seal Kit GEN 39508P Contact Us For Availability
5
Support Leg GEN 27090 Contact Us For Availability
5
Lid Switch Catch GEN 27149 Contact Us For Availability
5
Seal GEN 28114 Contact Us For Availability
5
Reduction Gear GEN 29161P Contact Us For Availability
5
Nut GEN 25126 Contact Us For Availability
5
Panel Locator GEN 56079 Contact Us For Availability
5
Backflow Preventer Assembly GEN 34280 Contact Us For Availability
5
Tub Assembly (Comment: Porcelain) GEN 39252P Contact Us For Availability
5
Tub Assembly (Comment: Stainless steel) GEN 39387P Contact Us For Availability
5
Armature Guide GEN 24130 Contact Us For Availability
5
Motor Kit (Comment: 2 speed, 120 Volt/60 Hert GEN 27179P Contact Us For Availability
5
Out-of-Balance Switch Trigger GEN 27247 Contact Us For Availability
5
Male Pin Terminal GEN 00116 Contact Us For Availability
5
Hose Retainer Clip GEN 29936 Contact Us For Availability
5
Spring Installer (Comment: Use to install bra GEN 242P4 Contact Us For Availability
5
Switch Lever Spring GEN 27603 Contact Us For Availability
5
Washer GEN 27166 Contact Us For Availability
5
Screw GEN 27200 Contact Us For Availability
6
Agitator Shaft Assembly GEN 28091 Contact Us For Availability
6
Seat Seal Assembly GEN 30021 Contact Us For Availability
6
Screw and Washer Assembly GEN 27203 Contact Us For Availability
6
Washer GEN 23425 Contact Us For Availability
6
Washer GEN 29260 Contact Us For Availability
6
Washer GEN 02431 Contact Us For Availability
6
Temperature Switch GEN 21300 Contact Us For Availability
6
Screw GEN 39733 Contact Us For Availability
6
Hose Clamp (Comment: Green) GEN 35370 Contact Us For Availability
6
Washtub Gasket GEN 39122 Contact Us For Availability
6
Armature GEN 24132 Contact Us For Availability
6
Motor Pulley GEN 27171 Contact Us For Availability
6
6 Circuit Plug GEN 23041 Contact Us For Availability
6
Standpipe Strap GEN 33489 Contact Us For Availability
6
Nut GEN 27248 Contact Us For Availability
7
Washer (Comment: Stainless steel) GEN 04704 Contact Us For Availability
7
Nut GEN 03673 Contact Us For Availability
7
Screw GEN 29273 Contact Us For Availability
7
Screw GEN 51780 Contact Us For Availability
7
Screw GEN 27196 Contact Us For Availability
7
Water Inlet Hose GEN 29182 Contact Us For Availability
7
Seal Kit (Comment: Includes 27184 Cover Gaske GEN 356P3 Contact Us For Availability
7
Strainer GEN F270200 Contact Us For Availability
7
Roll Pin GEN 23750 Contact Us For Availability
7
Outer Tub Cover (Comment: Includes item 2) GEN 31153 Contact Us For Availability
7
6 Circuit Receptacle GEN 26708 Contact Us For Availability
7
U-Clip GEN 27610 Contact Us For Availability
7
Balance Ring Assembly GEN 34731 Contact Us For Availability
8
Washer GEN 202010 Contact Us For Availability
8
Pivot Dome GEN 27124 Contact Us For Availability
8
Transmission Oil (Comment: 1 fill) GEN 27243P Contact Us For Availability
8
Temperature Switch GEN 21302 Contact Us For Availability
8
Hose Clamp (Comment: Red) GEN 29210 Contact Us For Availability
8
Washer GEN 27163 Contact Us For Availability
8
Valve Body GEN 24159 Contact Us For Availability
8
Roll Pin GEN 10416 Contact Us For Availability
8
Tub Cover Gasket (Comment: Included with 356P GEN 27184 Contact Us For Availability
8
Female Pin Terminal GEN 00117 Contact Us For Availability
8
Hose Retainer GEN 29131 Contact Us For Availability
8
Screw GEN 28193 Contact Us For Availability
9
Washer GEN 10429 Contact Us For Availability
9
Screw GEN 27220 Contact Us For Availability
9
Screw GEN 20267 Contact Us For Availability
9
Gear and Stud Assembly GEN 26577 Contact Us For Availability
9
Hold-Down Lug Hinge GEN 27103 Contact Us For Availability
9
Water Inlet Head GEN 29154 Contact Us For Availability
9
Nut GEN 29220 Contact Us For Availability
9
Diaphragm GEN 24134 Contact Us For Availability
9
Spring Clip GEN 27017 Contact Us For Availability
9
1 Circuit Plug GEN 26302 Contact Us For Availability
9
Hose Support (Comment: Mounts to washer base) GEN 29284 Contact Us For Availability
9
Washer GEN N/A Contact Us For Availability
9
Bearing Housing Assembly (Comment: Upper) GEN 27182 Contact Us For Availability
9
Transmission Assembly GEN 30946P Contact Us For Availability
10
Gasket (Comment: Use with 28933 or 28934 Cent GEN 27020 Contact Us For Availability
10
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
10
Screw GEN 27030 Contact Us For Availability
10
Pressure Switch GEN 27778 Contact Us For Availability
10
Washer (Comment: Filter) GEN 803615 Contact Us For Availability
10
Spring GEN 24131 Contact Us For Availability
10
Washer GEN 03888 Contact Us For Availability
10
Outer Tub GEN 30508 Contact Us For Availability
10
1 Circuit Receptacle GEN 26301 Contact Us For Availability
10
Hose Adapter GEN 29143 Contact Us For Availability
10
Out-of-Balance Switch Bracket GEN 27250 Contact Us For Availability
10
Flinger GEN 27187 Contact Us For Availability
11
Helix GEN 38008 Contact Us For Availability
11
Nut GEN 24522 Contact Us For Availability
11
Washer GEN 21456 Contact Us For Availability
11
Screw GEN 25232 Contact Us For Availability
11
Base Assembly (Comment: Includes snubber pads GEN 31653P Contact Us For Availability
11
Water Hose (Comment: Includes items 10 and 12 GEN F200116 Contact Us For Availability
11
Sleeve (Comment: Short) GEN 24129 Contact Us For Availability
11
Rubber Motor Mount (Comment: Upper) GEN 01952A Contact Us For Availability
11
Leg Spring GEN 27239 Contact Us For Availability
11
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
11
Insulated Female Spade Terminal (Comment: 1/4 GEN 00359 Contact Us For Availability
11
Hose Clamp GEN 29172 Contact Us For Availability
11
Nut GEN 29043 Contact Us For Availability
12
Washer GEN 27164 Contact Us For Availability
12
Screw GEN 35369 Contact Us For Availability
12
Washer GEN 26509 Contact Us For Availability
12
Pulley and Washers Kit GEN 34232P Contact Us For Availability
12
Control Hood GEN 29551W Contact Us For Availability
12
End Casting (Comment: Right) GEN 25123 Contact Us For Availability
12
Snubber Pad Kit (Comment: Includes 4 pads) GEN 434P3 Contact Us For Availability
12
Washer GEN 20290 Contact Us For Availability
12
Solenoid GEN 24126 Contact Us For Availability
12
Nut GEN 52566 Contact Us For Availability
12
Female Terminal (Comment: 1 wire) GEN 00180 Contact Us For Availability
12
Pump Assembly GEN 31968 Contact Us For Availability
12
Out-of-Balance Switch Lever GEN 27602 Contact Us For Availability
13
Center Column Assembly GEN 28933 Contact Us For Availability
13
Washer GEN 27015 Contact Us For Availability
13
Gasket GEN 23028 Contact Us For Availability
13
Drive Pinion GEN 36562P Contact Us For Availability
13
Timer GEN 28918P Contact Us For Availability
13
Leveling Leg GEN 34319 Contact Us For Availability
13
Mixing Valve Mounting Bracket GEN 39407 Contact Us For Availability
13
Motor Mounting Bracket GEN 28791 Contact Us For Availability
13
Leg Plate (Comment: .063 inch thick) GEN 27926 Contact Us For Availability
13
Female Terminal (Comment: 2 wire) GEN 00183 Contact Us For Availability
13
Screw GEN 31098 Contact Us For Availability
14
Center Column Assembly GEN 28934 Contact Us For Availability
14
Brake Kit GEN 38505P Contact Us For Availability
14
Strain Relief GEN 38384 Contact Us For Availability
14
Input Shaft GEN 27081P Contact Us For Availability
14
Control Panel Assembly GEN 28999 Contact Us For Availability
14
Rubber Foot GEN 21749 Contact Us For Availability
14
Nut GEN 54038 Contact Us For Availability
14
Idler Lever Helper Spring GEN 30620 Contact Us For Availability
14
Leg Plate (Comment: .032 inch thick) GEN 27927 Contact Us For Availability
14
24 Position Housing GEN 28856 Contact Us For Availability
14
Pump Mounting Bracket GEN 27105 Contact Us For Availability
15
Washer GEN 20057 Contact Us For Availability
15
Screw GEN 26547 Contact Us For Availability
15
Washer GEN 27016 Contact Us For Availability
15
Panel Support Bracket GEN 23360 Contact Us For Availability
15
Nut GEN 21899 Contact Us For Availability
15
Screw GEN D503661 Contact Us For Availability
15
Nut GEN 28803 Contact Us For Availability
15
Warning Sticker GEN 27195 Contact Us For Availability
15
Pre-Insulated Spade Terminal (Comment: 18 gau GEN 00214 Contact Us For Availability
15
Pre-Insulated Spade Terminal (Comment: 12 gau GEN 00215 Contact Us For Availability
16
Anti-Rotation Sleeve GEN 29993 Contact Us For Availability
16
Washer GEN 20493 Contact Us For Availability
16
Dowel Pin GEN 27172 Contact Us For Availability
16
Panel Locator GEN 28102 Contact Us For Availability
16
Idler Lever GEN 31054 Contact Us For Availability
16
Grommet GEN 29175 Contact Us For Availability
16
Female Spade Terminal GEN 00115 Contact Us For Availability
16
Hose Clamp GEN 27644 Contact Us For Availability
17
Brake Pad Kit (Comment: Includes 3 pads and s GEN 548P3 Contact Us For Availability
17
Clutch and Bearing Assembly GEN 30893 Contact Us For Availability
17
Screw GEN 31709 Contact Us For Availability
17
Support Angle Sleeve GEN 24859 Contact Us For Availability
17
Washer GEN 81392 Contact Us For Availability
17
Pressure Bulb GEN 30907 Contact Us For Availability
17
Receptacle Housing GEN 90789 Contact Us For Availability
17
Recirculating Hose GEN 27232 Contact Us For Availability
18
Top Assembly GEN 27662W Contact Us For Availability
18
Transmission Cover Assembly GEN 38287P Contact Us For Availability
18
Timer Knob Assembly GEN 28287 Contact Us For Availability
18
Screw GEN 27229 Contact Us For Availability
18
Hose Clamp GEN 39282 Contact Us For Availability
18
Harness Strap GEN 55881 Contact Us For Availability
18
Hose Clamp GEN 20391 Contact Us For Availability
19
Support Barrel GEN 56534 Contact Us For Availability
19
Slide GEN 26493 Contact Us For Availability
19
Spring GEN 26319 Contact Us For Availability
19
Hose Clamp GEN 20211 Contact Us For Availability
19
Spring Clip GEN 28849 Contact Us For Availability
19
Wire Clip GEN 51291 Contact Us For Availability
20
Screw GEN 23008 Contact Us For Availability
20
Screw GEN 20253 Contact Us For Availability
20
Rack GEN 201664 Contact Us For Availability
20
Timer Knob Assembly GEN 27382 Contact Us For Availability
20
Idler Shaft GEN 28802P Contact Us For Availability
20
Female Spade Terminal (Comment: (2) 18 gauge GEN 00121 Contact Us For Availability
20
Female Spade Terminal (Comment: (1) 18 gauge GEN 00223 Contact Us For Availability
20
Tub-to-Pump Hose GEN 27159 Contact Us For Availability
21
Nut GEN 36020 Contact Us For Availability
21
Agitator Pinion GEN 27003 Contact Us For Availability
21
Screw GEN 26318 Contact Us For Availability
21
Washer (Comment: Felt) GEN 29443 Contact Us For Availability
21
Female Flag Terminal GEN 00120 Contact Us For Availability
22
Bleach Dispenser GEN 34776 Contact Us For Availability
22
Bearing GEN 27022 Contact Us For Availability
22
Washer GEN 91176 Contact Us For Availability
22
Idler Lever Spring GEN 39666 Contact Us For Availability
22
Terminal Adapter GEN 29673 Contact Us For Availability
23
Bushing GEN 27625 Contact Us For Availability
23
Connector GEN 21091 Contact Us For Availability
24
Nut GEN 23604 Contact Us For Availability
24
Ring Terminal (Comment: 1/4 inch ring) GEN 00113 Contact Us For Availability
25
Rubber Motor Mount (Comment: Lower) GEN 01953 Contact Us For Availability
25
Ring Terminal (Comment: Large shank, (2) 18 g GEN 00111 Contact Us For Availability
26
Bearing GEN 36107P Contact Us For Availability
26
Motor Spacer GEN 27181 Contact Us For Availability
26
Ring Terminal (Comment: Small shank, (1) 18 g GEN 00110 Contact Us For Availability
27
Belt (Comment: Agitate and spin) GEN 28808 Contact Us For Availability
27
Insulator GEN 70210 Contact Us For Availability
28
Grounding Clip GEN 00161 Contact Us For Availability
28
Pump Belt GEN 27155 Contact Us For Availability
29
Retaining Ring GEN 23748 Contact Us For Availability
30
Washer (Comment: Nylatron) GEN 52549 Contact Us For Availability
31
Idler Pulley GEN 28800P Contact Us For Availability
NA
Transmission Sealant (Comment: Use as a seala GEN 37577P Contact Us For Availability
NA
Silicone Grease (Comment: For pads in base) GEN 26594P Contact Us For Availability
NA
Hi-Temp Lube (Comment: Use on idler shaft) GEN 20605 Contact Us For Availability
NA
Capacitor Kit (Comment: For areas where low v GEN 258P3 Contact Us For Availability
NA
Drain Extension Kit GEN 451P3 Contact Us For Availability
× ![]()
