Model Whirlpool B35HA-92X-DGI ELECTRIC RANGE – Common Parts & Diagrams

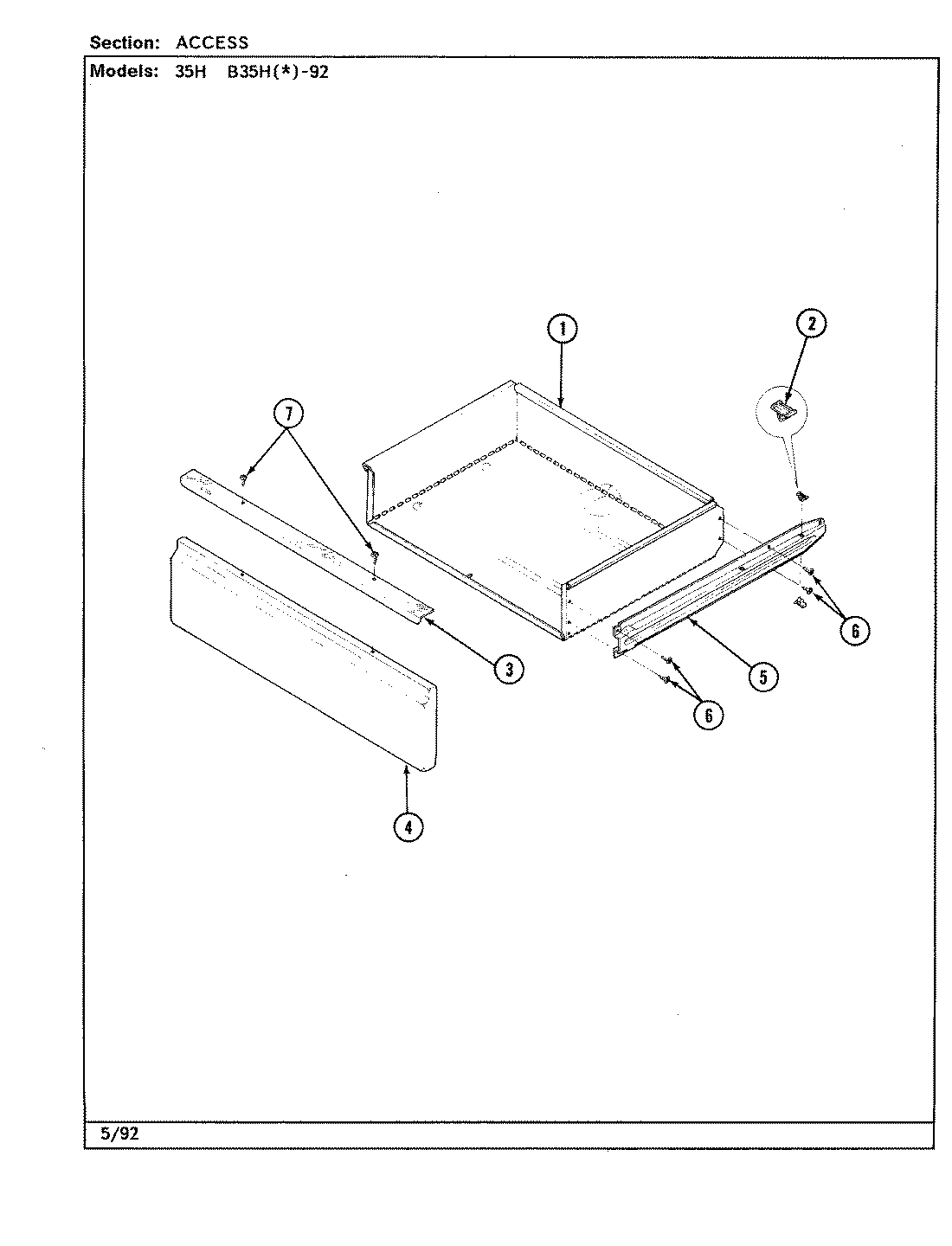

01 - ACCESS

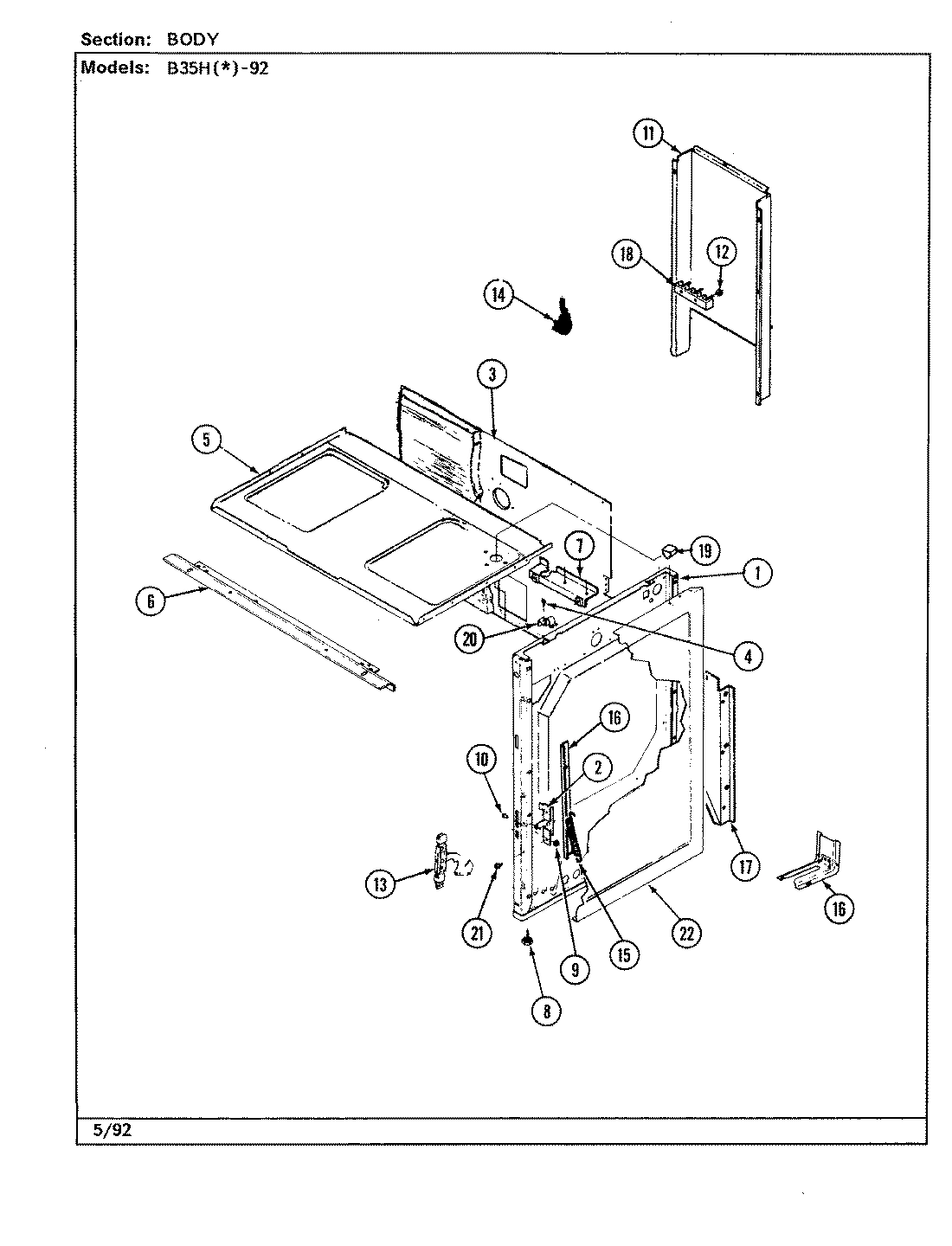

02 - BODY

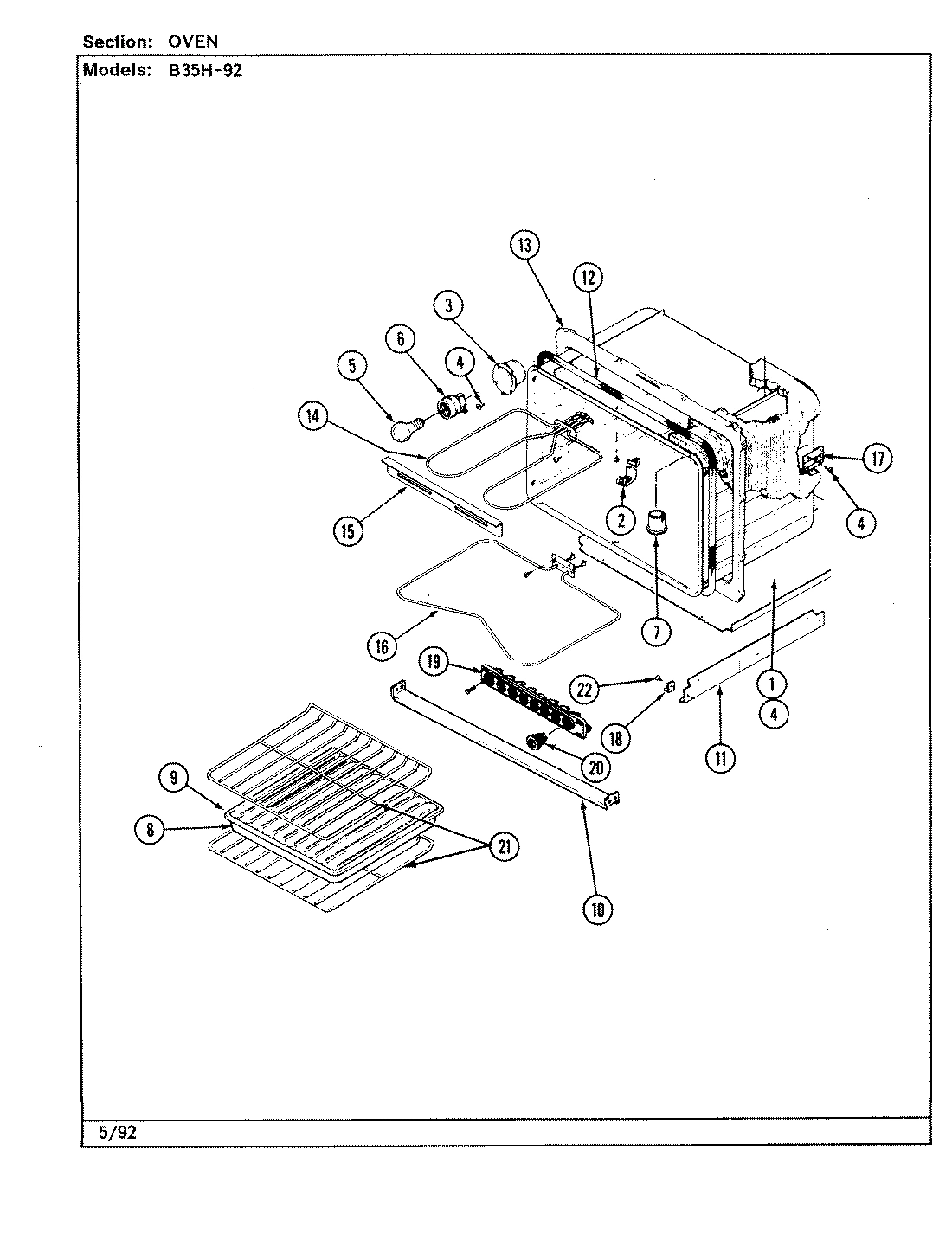

04 - OVEN

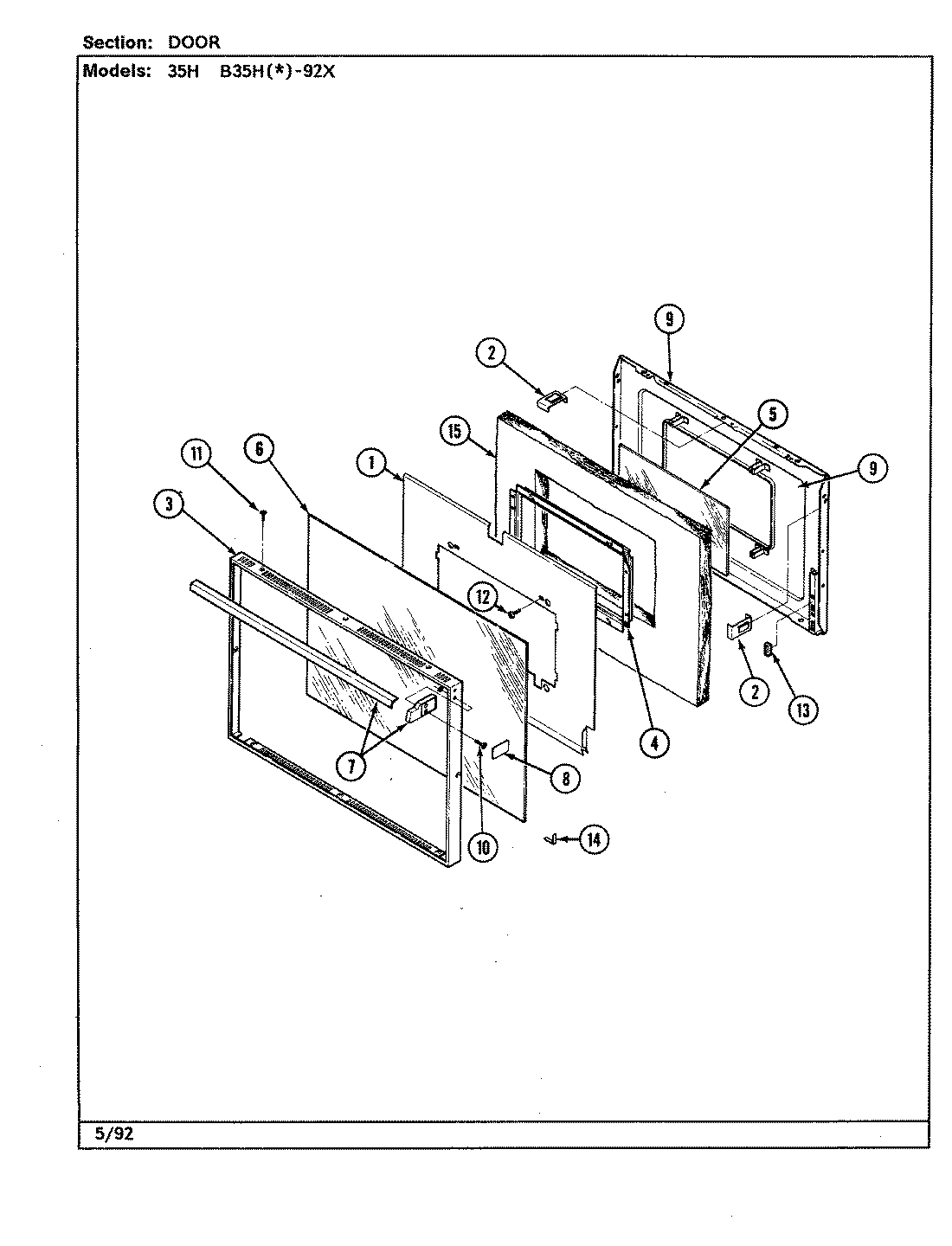

03 - DOOR

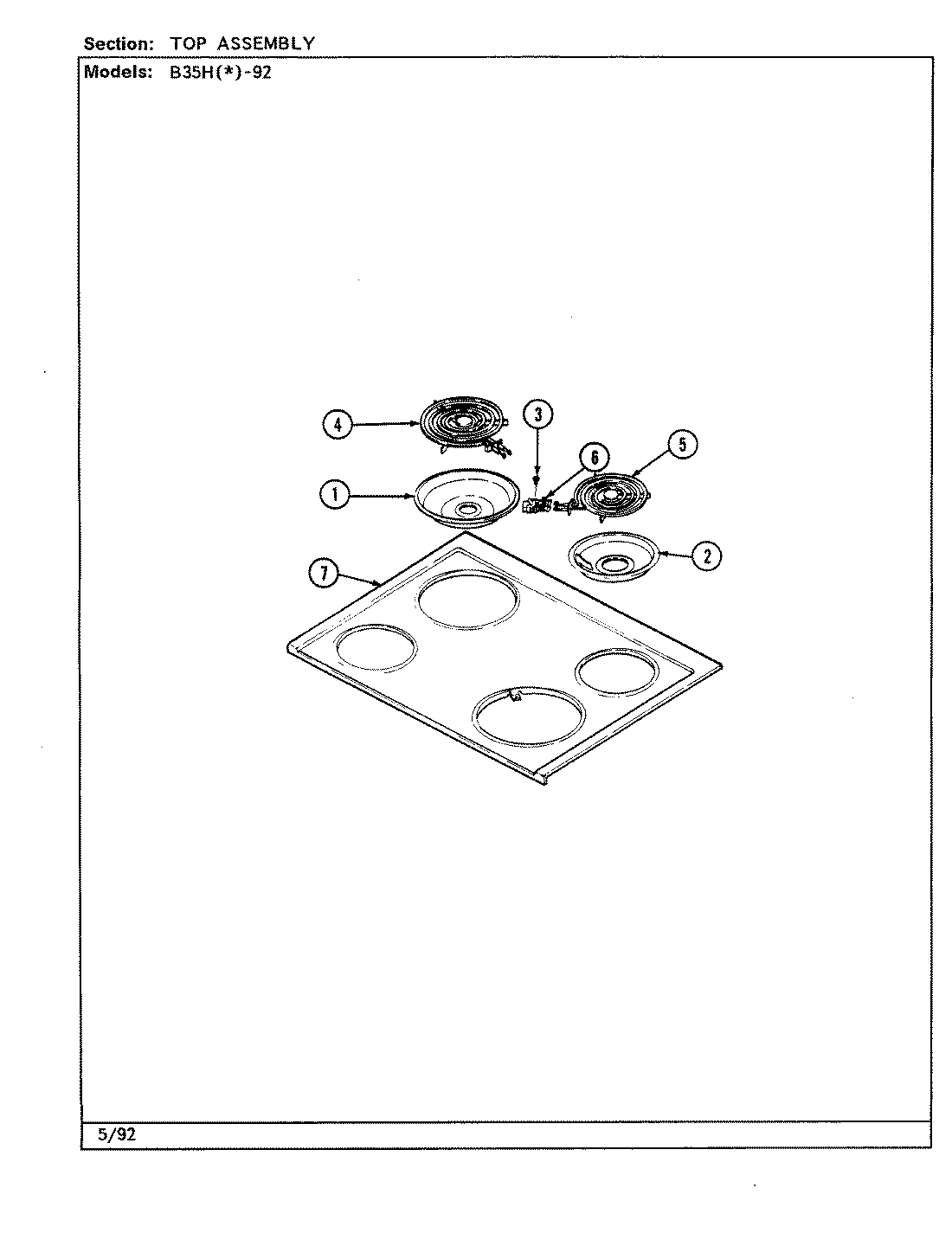

05 - TOP ASSY.
Common parts from model Whirlpool B35HA-92X-DGI ELECTRIC RANGE
1
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
1
INNER SIDE LINING ASSY WPL 4009W05480 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
1
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BOWL, DRIP (8``) (CHR) WPL 7725P01960 Contact Us For Availability
1
RING, TRIM (8``) WPL 7744P05460 Contact Us For Availability
2
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
2
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
2
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
2
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
2
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BOWL, DRIP (6``) (CHR) WPL 7725P01860 Contact Us For Availability
2
RING, TRIM (6``) WPL 7744P05360 Contact Us For Availability
3
HANDLE DOOR ALM WPL 2411F00174 Contact Us For Availability
3
BACK, MAIN WPL 4002F16080 Contact Us For Availability
3
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
4
PANEL, DRWR (ALMOND) WPL 2416F00664 Contact Us For Availability
4
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P01560 Contact Us For Availability
5
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
5
BOTTOM BURNER BOX WPL 4011F18119 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
5
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P01860 Contact Us For Availability
6
FRONT, BURNER BOX BOTTOM WPL 4012F02280 Contact Us For Availability
6
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
7
BRACKET WPL 3801F03151 Contact Us For Availability
7
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
7
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
7
PLATE CONDUIT WPL 3605F16380 Contact Us For Availability
7
TUBE, OVEN VENT WPL 8026P00360 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
7
TOP ASSY, MAIN WPL 2002W02884 Contact Us For Availability
8
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
8
PAN, BROIL WPL 3401F00419 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
LINING, OVEN DOOR WPL 2402W15419 Contact Us For Availability
10
PIN, HINGE WPL 7113P00260 Contact Us For Availability
10
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
10
SCREW WPL 7101P12360 Contact Us For Availability
11
HOUSING, MAIN WIRE WPL 4001F04780 Contact Us For Availability
11
COVER, BACK BURNER BOX WPL 4005F01680 Contact Us For Availability
11
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
11
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
12
SCREW WPL 7101P06160 Contact Us For Availability
12
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
12
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
13
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
13
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
14
CORD, POWER WPL 7402P03660 Contact Us For Availability
14
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
14
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
15
SPRING, OV DR WPL 7803P05560 Contact Us For Availability
15
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
15
INSULATION, DOOR WPL 4804F02160 Contact Us For Availability
16
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
16
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
16
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
16
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
17
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
17
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
17
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
18
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
18
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
19
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
19
BAFFLE, AIR DUCT ASSY WPL 3601F17780 Contact Us For Availability
19
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
19
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
20
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
20
BREAKER CIRCUIT, 20AMP WPL 702006 Contact Us For Availability
20
BREAKER (15 AMP) WPL 702007 Contact Us For Availability
21
SCREW WPL 7101P11260 Contact Us For Availability
21
RACK, OVEN WPL 7801P03060 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
22
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
NI
BRACE WPL 3802F08580 Contact Us For Availability
NI
HARNESS, SURFACE UNIT WPL 5175A04460 Contact Us For Availability
NI
SCREW WPL 7118P00460 Contact Us For Availability
× ![]()
