Model Whirlpool B34HA-5TKXW GAS RANGE – Common Parts & Diagrams

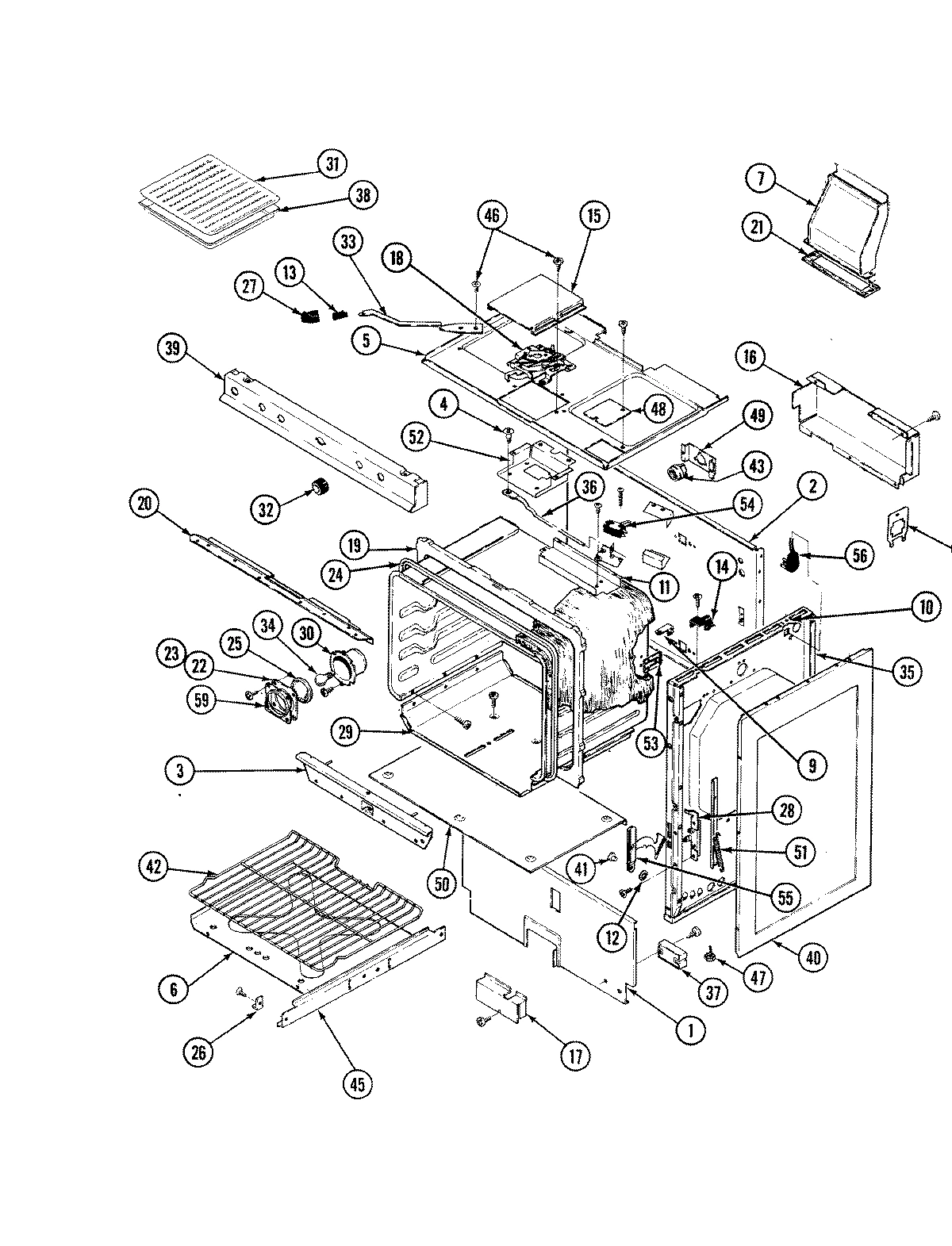

02 - BODY PARTS

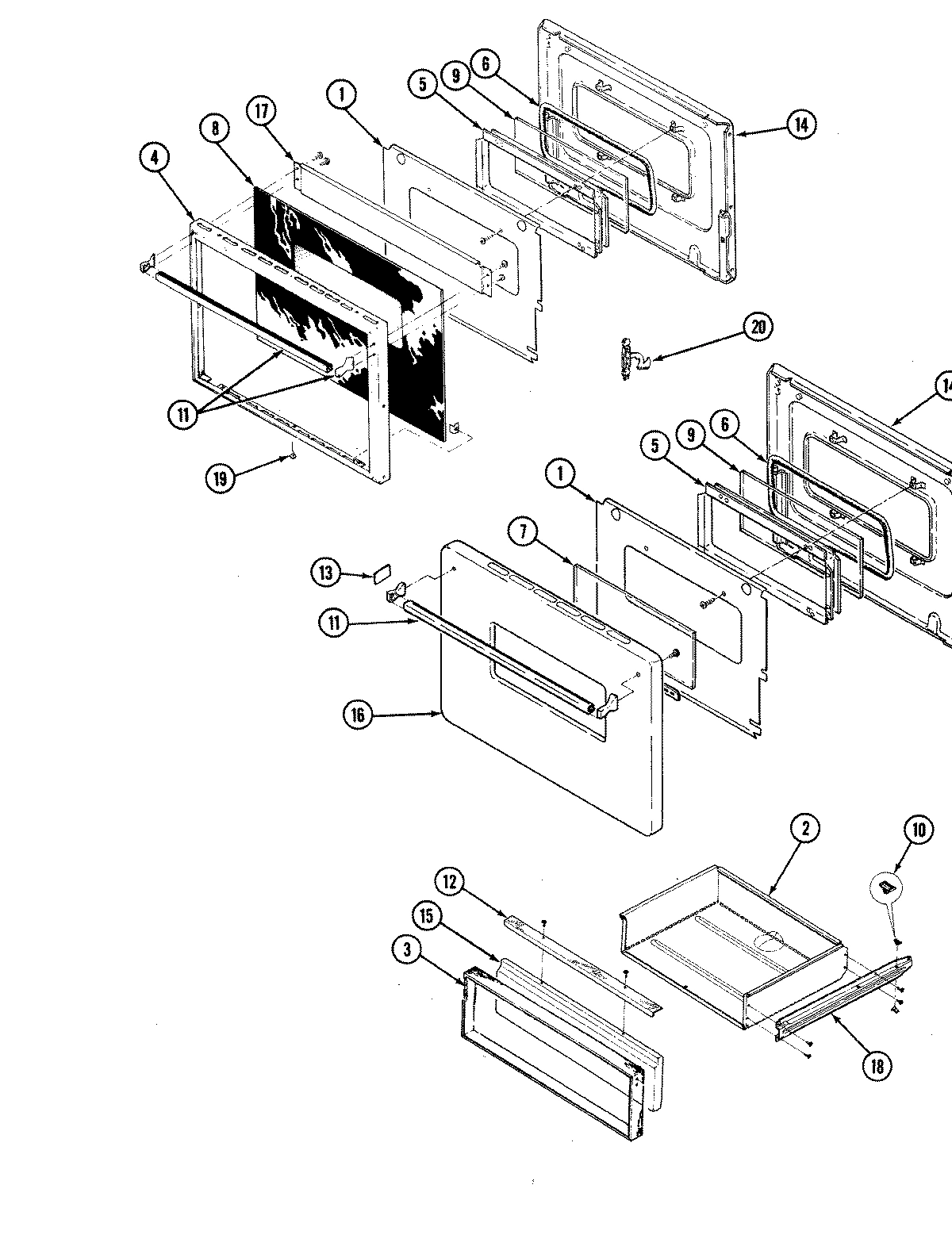

04 - DOOR

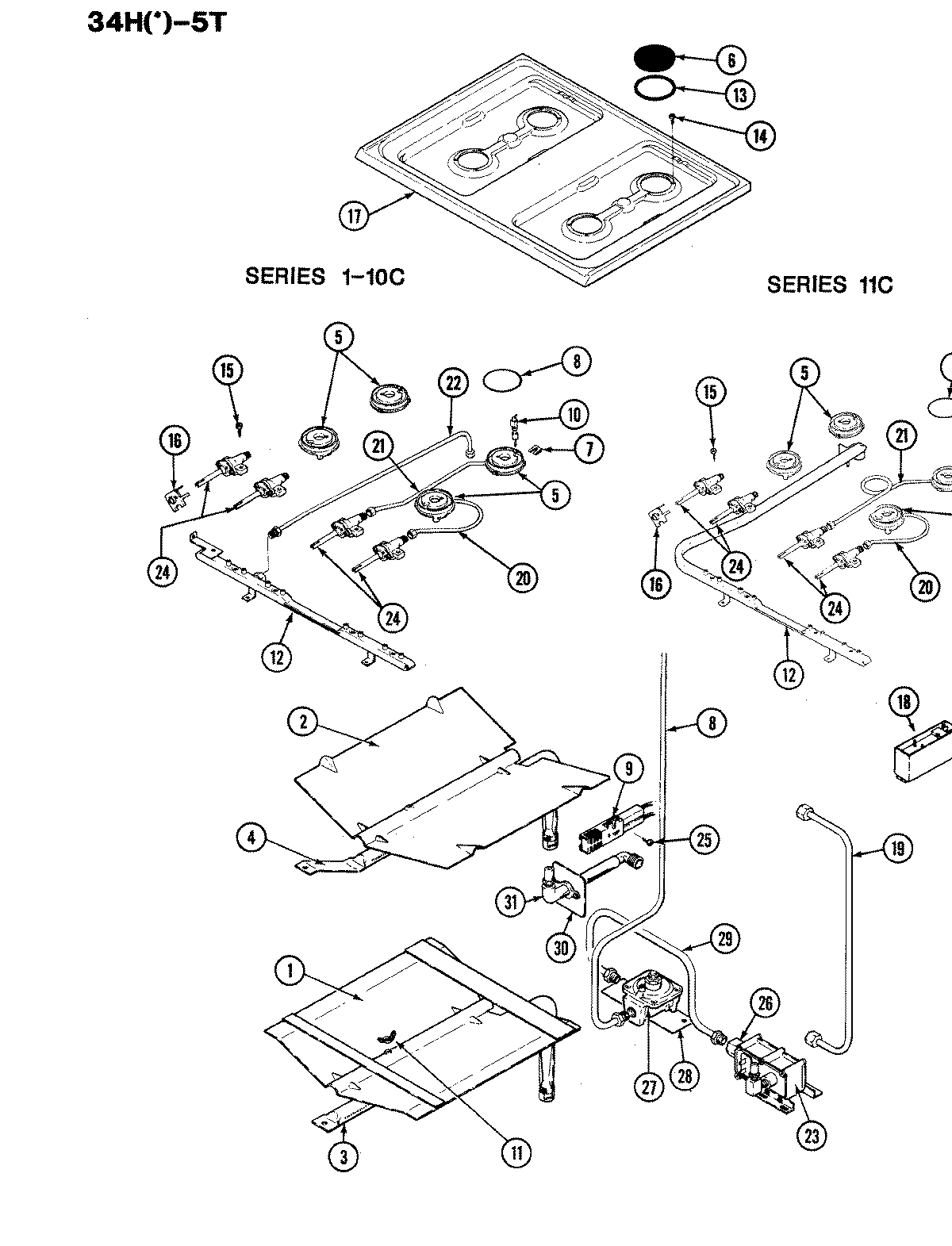

03 - CONTROL PARTS

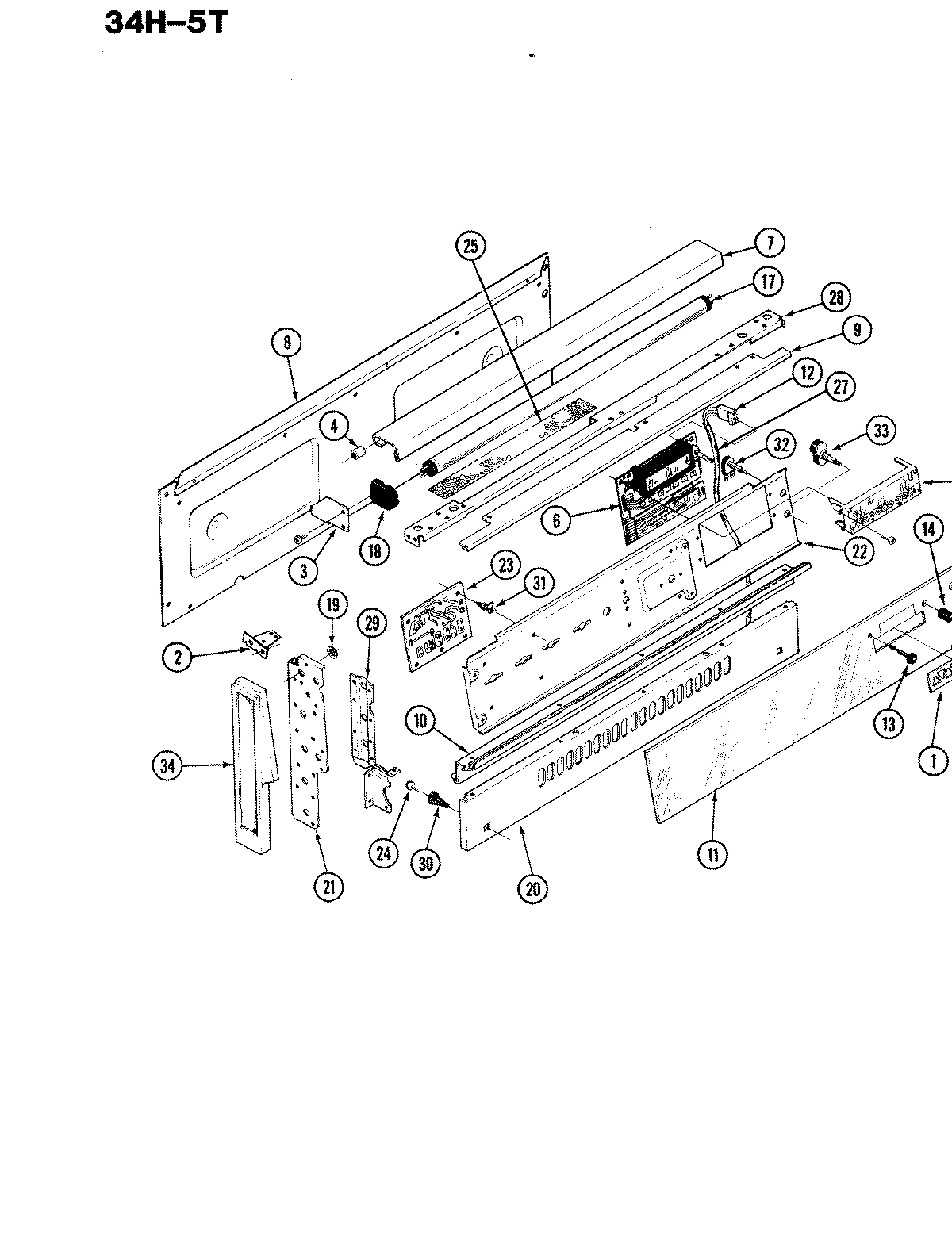

01 - BACKGUARD PARTS
Common parts from model Whirlpool B34HA-5TKXW GAS RANGE
1
BACK, BROILER WPL 4002F09545 Contact Us For Availability
1
BACK, BROIL SECTION WPL 4002F14545 Contact Us For Availability
1
BAFFLE WPL 3601F09351 Contact Us For Availability
1
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BAFFLE, ASSY WPL 3601W12913 Contact Us For Availability
1
BALLAST WPL 7412P00560 Contact Us For Availability
1
TRIM, BEZEL WPL 7720P09160 Contact Us For Availability
1
TRIM, BEZEL WPL 7740P01060 Contact Us For Availability
1
TRIM, BEZEL WPL 7740P01660 Contact Us For Availability
2
BAFFLE WPL 3601F11645 Contact Us For Availability
2
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BACK, MAIN WPL 4002F14480 Contact Us For Availability
2
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
2
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
2
BRACKET (LEFT) WPL 3801F00234 Contact Us For Availability
2
(RIGHT) WPL 3801F10934 Contact Us For Availability
3
BAFFLE, OVN FRONT WPL 3601W12512 Contact Us For Availability
3
BLOCK, DISCONNECT WPL 7401P01160 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
3
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
BRACKET WPL 3801F00634 Contact Us For Availability
4
BOLT WPL 7116P00360 Contact Us For Availability
4
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
BUSHING WPL 1089206 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F15780 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F17823 Contact Us For Availability
5
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
5
BURNER, TOP WPL 7505P18760 Contact Us For Availability
5
BURNER, TOP COMPLETE KIT WPL W10127325 Contact Us For Availability
5
BUTTON, SET WPL 7711P33560 Contact Us For Availability
5
BUTTON, CONTROL SET WPL 7711P44960 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F02015 Contact Us For Availability
6
BOTTOM, OVEN WPL W10124403 Contact Us For Availability
6
COVER, MODULE WPL 4005F17480 Contact Us For Availability
6
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
6
CAP, BURNER WPL 7504P00560 Contact Us For Availability
6
CAP, SURFACE BURNER, BLACK WPL 7504P00760 Contact Us For Availability
6
CLOCK WPL 7601P07160 Contact Us For Availability
6
CLOCK WPL 7601P10160 Contact Us For Availability
6
CLOCK WPL 7601P15560 Contact Us For Availability
6
CLOCK WPL 7601P16360 Contact Us For Availability
6
CLOCK, ELECTRONIC WPL 7601P18160 Contact Us For Availability
7
BRACKET, OVEN BURNER WPL 3801F00745 Contact Us For Availability
7
BRACKET WPL 3801F09351 Contact Us For Availability
7
BRACE WPL 3802F00320 Contact Us For Availability
7
BOX, FLUE WPL 4006W02613 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
CLIP WPL 7112P07260 Contact Us For Availability
7
FITTING, STRAIGHT WPL 7507P05360 Contact Us For Availability
7
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
7
COVER, LAMP WPL 7724P01060 Contact Us For Availability
7
COVER, BKGD LAMP WPL 7724P01760 Contact Us For Availability
8
BRACKET, DISCONNECT WPL 3801F02245 Contact Us For Availability
8
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
8
BRACKET, SPARK MODULE WPL 3801F18045 Contact Us For Availability
8
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
8
BRACKET, SPARK MODULE WPL 3801F22645 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
8
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
8
GRATE WPL 7518P00460 Contact Us For Availability
8
COVER, BKGD WIRE WPL 4005F10080 Contact Us For Availability
8
COVER WPL 4005F36880 Contact Us For Availability
9
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
9
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
9
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
9
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
9
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
9
GLASS, WINDOW INNER WPL 7902P28760 Contact Us For Availability
9
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
9
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
10
RIVET WPL 7107P01760 Contact Us For Availability
10
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
10
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
10
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
10
EXTRUSION WPL 7706P09760 Contact Us For Availability
11
CHANNEL, SWITCH LOCK WPL 3818F027 Contact Us For Availability
11
SCREW WPL 7101P12360 Contact Us For Availability
11
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
11
ORIFICE, LP SEALED WPL 7509P03060 Contact Us For Availability
11
GLASS, BKGD WPL 7902P17460 Contact Us For Availability
11
GLASS, BKGD WPL 7910P07060 Contact Us For Availability
12
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P08660 Contact Us For Availability
12
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
12
HARNESS, SENSOR WPL 5170A00760 Contact Us For Availability
12
HARNESS, RELAY WPL 5170P00660 Contact Us For Availability
13
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
13
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
13
RING, BLACK WPL 2014F00100 Contact Us For Availability
13
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
13
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
14
CLIP WPL 7112P02960 Contact Us For Availability
14
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
14
LINING WPL 2402W12815 Contact Us For Availability
14
PAD WPL 2410A02912 Contact Us For Availability
14
SCREW WPL 7101P25660 Contact Us For Availability
14
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
14
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
15
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
15
DRAWER, SERVICE WPL 5425A02174 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
15
KNOB, LIGHT SWITCH WPL 7711P00860 Contact Us For Availability
16
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
16
LENS, CLOCK WPL 7730P00260 Contact Us For Availability
16
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
17
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
17
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
17
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
17
TOP, MAIN ALMOND WPL 2001F06394 Contact Us For Availability
17
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
18
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
18
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
18
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
18
SCREW WPL 7101P06160 Contact Us For Availability
18
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
18
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
18
RECEPTACLE, LAMP WPL 7408P00560 Contact Us For Availability
19
TRIM, MAIN TOP (LEFT) WPL 7746P02560 Contact Us For Availability
19
TRIM, MAIN TOP (RIGHT) WPL 7746P02660 Contact Us For Availability
19
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
19
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
19
SPRING WPL 7803P00260 Contact Us For Availability
19
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
19
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
19
SEAL WPL 7208P00260 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
TUBING, 3/8 X 20-3/4 WPL 3414F05744 Contact Us For Availability
19
TRIM, MAIN TOP (LEFT) WPL 7720P04660 Contact Us For Availability
19
TRIM, MAIN TOP (RIGHT) WPL 7720P04960 Contact Us For Availability
19
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
20
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
20
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
20
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
20
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
20
TRIM, BACK BOTTOM WPL 7716P01160 Contact Us For Availability
21
GASKET WPL 7201P01360 Contact Us For Availability
21
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
21
PLATE, CONTROL PANEL END (LFT) WPL 3605F00680 Contact Us For Availability
21
PLATE WPL 3605F00880 Contact Us For Availability
22
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
22
PROBE, OVEN SENSOR WPL 7430P00460 Contact Us For Availability
22
TUBE, MANIFOLD FEED WPL 7506P09060 Contact Us For Availability
22
TUBE, MANIFOLD WPL 7506P09260 Contact Us For Availability
22
TUBE, MANIFOLD FEED----NA WPL 7506P10160 Contact Us For Availability
22
PLATE, SWITCH MOUNTING WPL 3605F14480 Contact Us For Availability
22
PLATE, SWITCH MTG. WPL 3605F15280 Contact Us For Availability
22
PLATE SWITCH MTG WPL 3605F17180 Contact Us For Availability
22
OVEN SENSOR WPL 7430P00760 Contact Us For Availability
23
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
23
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
23
RELAY, BOARD ASSY. WPL 7428P00660 Contact Us For Availability
24
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
24
WIRE, IGNITER FRONT WPL 5110P82460 Contact Us For Availability
24
WIRE, IGNITER REAR WPL 5110P82560 Contact Us For Availability
24
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
24
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
25
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
25
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
25
SHIELD, OV LAMP RECPT WPL 3604F07980 Contact Us For Availability
26
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
26
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
26
SLEEVE, SWITCH WPL 7214P00160 Contact Us For Availability
26
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
27
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
27
REGULATOR, PRESSURE WPL 7510P02860 Contact Us For Availability
27
SLEEVE, WIRE PROTECT WPL 7214P00560 Contact Us For Availability
28
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
28
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
28
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
28
SUPPORT, LAMP WPL 3807F21580 Contact Us For Availability
28
SUPPORT BKGD LAMP WPL 3807F39180 Contact Us For Availability
29
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
29
HOUSING, BAKE BURNER WPL 4001F06045 Contact Us For Availability
29
TUBE, REGULATOR----NA WPL 7506P07560 Contact Us For Availability
29
SUPPORT WPL 3807F01080 Contact Us For Availability
29
SUPPORT WPL 3807F01280 Contact Us For Availability
30
HOUSING WPL 4001F02013 Contact Us For Availability
30
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
30
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
31
INSERT WPL 3413F00211 Contact Us For Availability
31
NOT REQUIR WPL W10124350 Contact Us For Availability
31
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
31
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
32
KNOB, VALVE WPL 7733P03860 Contact Us For Availability
32
WPL 7403P00960 WPL 7403P00960 Contact Us For Availability
32
WPL 7403P17960 WPL 7403P17960 Contact Us For Availability
33
LEVER, DOOR LOCK WPL 8009P01060 Contact Us For Availability
33
WPL 7403P01960 WPL 7403P01960 Contact Us For Availability
33
WPL 7403P10460 WPL 7403P10460 Contact Us For Availability
34
BULB, OVEN WPL 7407P02660 Contact Us For Availability
34
WPL 7720P06160 WPL 7720P06160 Contact Us For Availability
34
WPL 7726P00760 WPL 7726P00760 Contact Us For Availability
34
WPL 7726P01860 WPL 7726P01860 Contact Us For Availability
34
WPL 7728P05360 WPL 7728P05360 Contact Us For Availability
35
LINING ASSY, INNER SIDE WPL 4009W03880 Contact Us For Availability
36
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
37
MODULE, SPAR WPL 7431P00660 Contact Us For Availability
37
WPL 7431P01660 WPL 7431P01660 Contact Us For Availability
38
WPL 2614F00880 WPL 2614F00880 Contact Us For Availability
38
WPL 3401F00411 WPL 3401F00411 Contact Us For Availability
39
WPL 7712A05760 WPL 7712A05760 Contact Us For Availability
40
WPL 2618F05274 WPL 2618F05274 Contact Us For Availability
41
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
41
WPL 7430P00260 WPL 7430P00260 Contact Us For Availability
42
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
43
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
44
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
45
WPL 3406F02551 WPL 3406F02551 Contact Us For Availability
45
WPL 3406F02751 WPL 3406F02751 Contact Us For Availability
46
WPL 7101P01860 WPL 7101P01860 Contact Us For Availability
47
WPL 7101P25260 WPL 7101P25260 Contact Us For Availability
48
WPL 3604F01651 WPL 3604F01651 Contact Us For Availability
48
WPL 3604F13251 WPL 3604F13251 Contact Us For Availability
49
WPL 3801F02451 WPL 3801F02451 Contact Us For Availability
50
WPL 3604F08345 WPL 3604F08345 Contact Us For Availability
50
WPL 7214P00460 WPL 7214P00460 Contact Us For Availability
52
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
52
WPL 3807F19545 WPL 3807F19545 Contact Us For Availability
52
WPL 3807F40845 WPL 3807F40845 Contact Us For Availability
52
WPL 3807W20745 WPL 3807W20745 Contact Us For Availability
53
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
53
WPL 3807F32945 WPL 3807F32945 Contact Us For Availability
54
WPL 7403P00460 WPL 7403P00460 Contact Us For Availability
54
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
54
WPL 7403 WPL 7403 Contact Us For Availability
NI
CONVERSION KIT TO LP WPL 5415A01460 Contact Us For Availability
× ![]()
Login and Registration Form
