  • LG B-VMC12SB Parts List

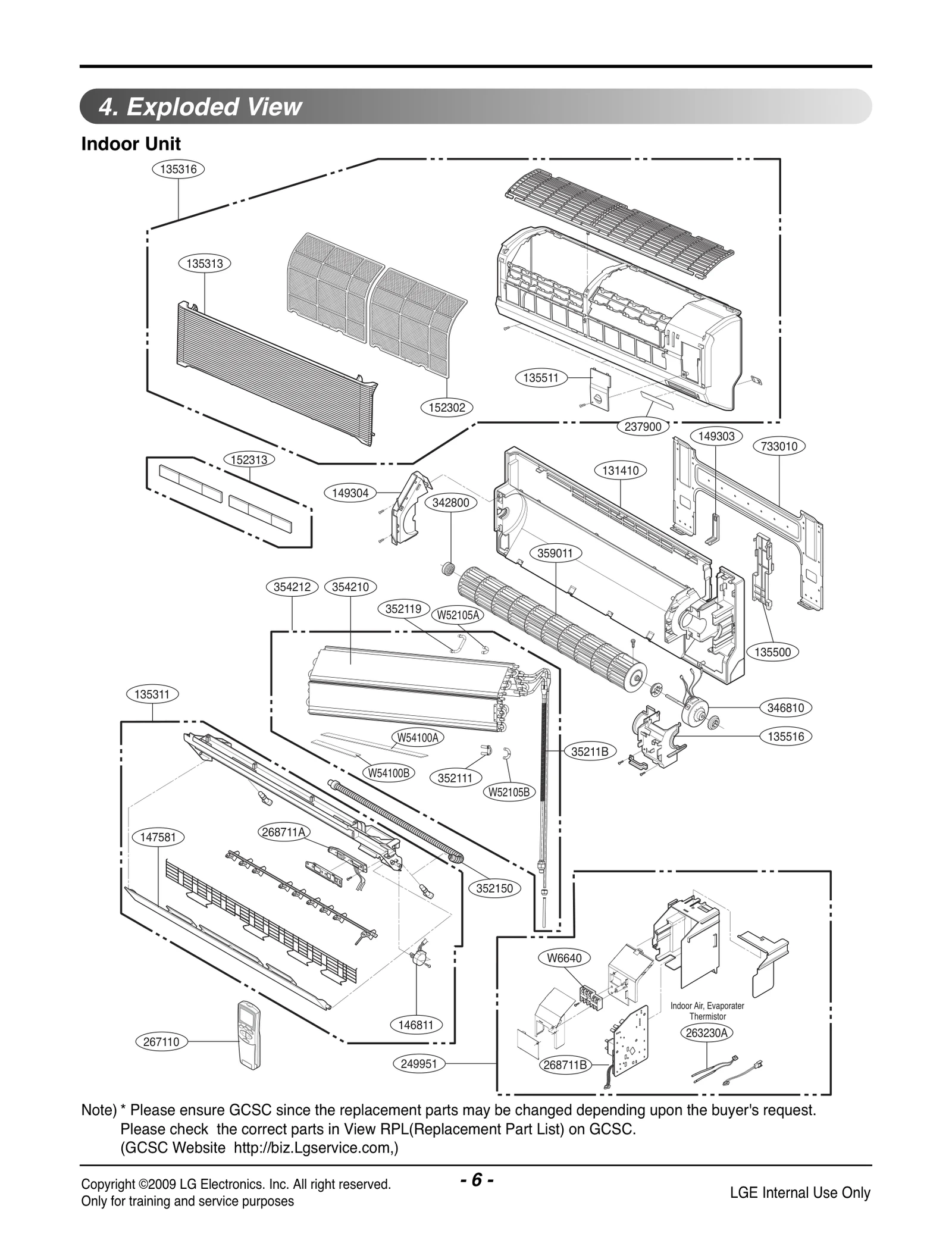

Model LG B-VMC12SB – Common Parts & Diagrams

135316
Grille Assembly,Front(Indoor)
Grille Assembly,Front(Indoor) LGE AEB32857414 Contact Us For Availability
View on Model
135500
Cover
Cover LGE 3550A30315F Contact Us For Availability
View on Model
135511
Cover Assembly,Control(Indoor)
Cover Assembly,Control(Indoor) LGE 3551A20208R Contact Us For Availability
View on Model
135516
Cover Assembly,Motor
Cover Assembly,Motor LGE 3551A20156E Contact Us For Availability
View on Model
146811
MOTOR ASSEMBLY,STEP
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
View on Model
147581
Louver,Horizontal
Louver,Horizontal LGE 5990A20068E Contact Us For Availability
View on Model
149304
Holder,Evaporator
Holder,Evaporator LGE 4930A30070A Contact Us For Availability
View on Model
152313
Filter Assembly,Deodorizer
Filter Assembly,Deodorizer LGE 5231A20040Q Contact Us For Availability
View on Model
237900
Window,Display
Window,Display LGE 3790A20129A Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE ABQ36904610 Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A20128V Contact Us For Availability
View on Model
268711B
PCB Assembly,Main
PCB Assembly,Main LGE EBR44169612 Contact Us For Availability
View on Model
346810
Motor Assembly,DC
Motor Assembly,DC LGE 4681A20091U Contact Us For Availability
View on Model
346810
Motor Assembly,DC
Motor Assembly,DC LGE 4681A20091J Contact Us For Availability
View on Model
346810
Motor, DC Indoor
Motor, DC Indoor LGE EAU37844701 Contact Us For Availability
View on Model
352111
Tube Assembly,Connector
Tube Assembly,Connector LGE 5211A21904A Contact Us For Availability
View on Model
354212
Evaporator Assembly,Final
Evaporator Assembly,Final LGE 5421A20260B Contact Us For Availability
View on Model
