Model LG B-DMH24SB – Common Parts & Diagrams

Common parts from model LG B-DMH24SB

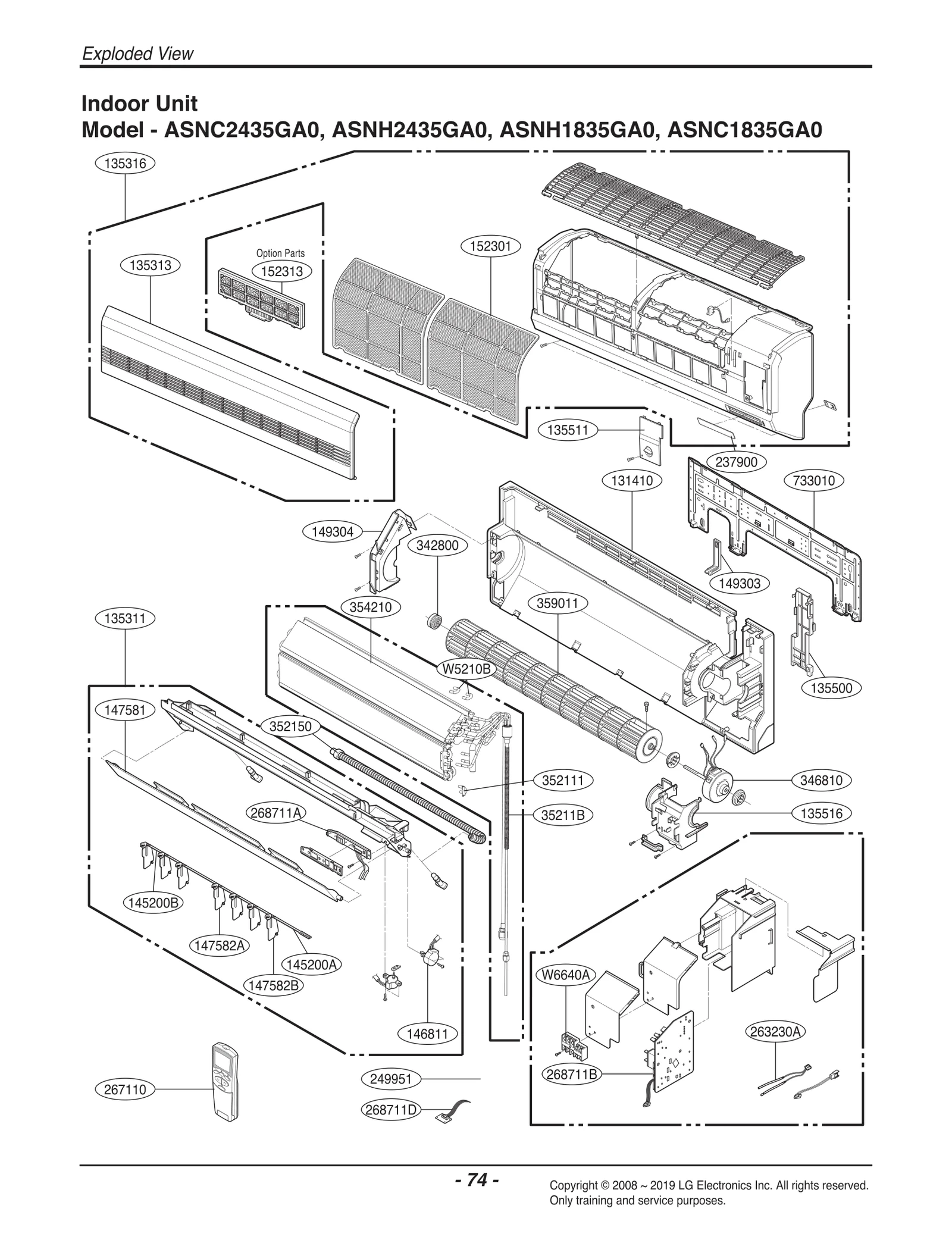

Diagram 0

Print

• This Diagram
• All Diagrams

135516

Cover Assembly,Motor LGE 3551A20154A Contact Us For Availability

View on Model

145200A

Link LGE 4520A20033A Contact Us For Availability

View on Model

145200B

4520A20033B LG Link Backorder LGE 4520A20033B View Details $3.64

View on Model

146811

Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability

View on Model

147581

5990A20071A LG Horizontal Louver Backorder LGE 5990A20071A View Details $23.81

View on Model

147582A

Louver,Vertical LGE 5990A20050A Contact Us For Availability

View on Model

147582B

Louver,Vertical LGE 5990A20050B Contact Us For Availability

View on Model

149303

4930A20022A LG Tubing Holder Backorder LGE 4930A20022A View Details $3.64

View on Model

149304

HOLDER,EVAPORATOR Backorder LGE 4930A20065A View Details $9.60

View on Model

152301

Filter,Deodorizing LGE 5230A20052J Contact Us For Availability

View on Model

152313

Filter Assembly,Deodorizer LGE 5231A20040V Contact Us For Availability

View on Model

237900

Window,Display LGE 3790A20104A Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE 4995A10205E Contact Us For Availability

View on Model

263230A

EBG61107004 LG Air Conditioner NTC Thermistor Backorder LGE EBG61107004 View Details $16.83

View on Model

267110

AKB74375404 LG Air Conditioner Wireless Remot Backorder LGE AKB74375404 View Details $64.89

View on Model

267110

Remote Controller Assembly LGE 6711A20128L Contact Us For Availability

View on Model

268711A

PCB Assembly LGE 6871A20683A Contact Us For Availability

View on Model

268711B

6871A20771D LG Air Conditioner Main PCB Assem Backorder LGE 6871A20771D View Details $106.37

View on Model

268711D

PCB Assembly,Sub LGE 6871A20990D Contact Us For Availability

View on Model

342800

4280A20004M LG Air Conditioner Blower Wheel H In Stock LGE 4280A20004M View Details $6.19

View on Model

346810

Motor Assembly,AC,Indoor LGE 4681AR2295M Contact Us For Availability

View on Model

352111

Tube Assembly,Connector Backorder LGE 5211A20349U View Details $5.63

View on Model

352150

AEM73493402 LG Drain Hose Assembly Backorder LGE AEM73493402 View Details $11.65

View on Model

354210

Evaporator Assembly,First LGE 5421A20220A Contact Us For Availability

View on Model

359011

5901A92441E LG Cross Flow Fan Assembly Backorder LGE 5901A92441E View Details $60.27

View on Model

733010

AGU36472501 LG Plate Assembly Installation Backorder LGE AGU36472501 View Details $42.17

View on Model

W5210B

5210A20851K LG Tube Connector Backorder LGE 5210A20851K View Details $3.64

View on Model

W6640A

6640000041M LG Terminal Block Connector Backorder LGE 6640000041M View Details $16.48

View on Model

×
