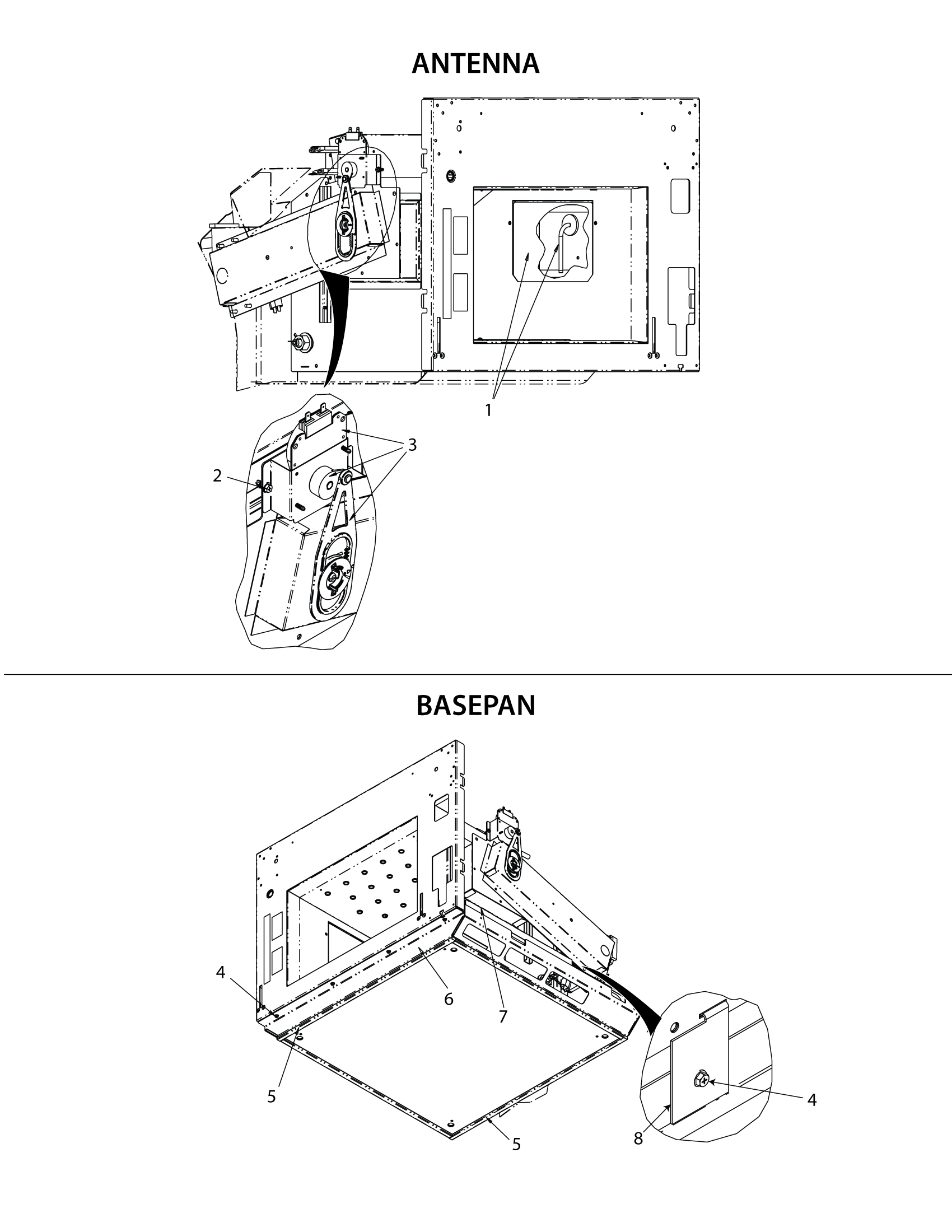

Model Accelerated Cooking Products AXP5223TLT-P2004221M Amana Menumaster AXP5223TLT – Common Parts &amp; Diagrams

1

14114053 Amana Stirrer Cover and Antenna Kit Backorder ACP 14114053 $463.00

1

RETAINER-HTR INSUL ACP 21007301 Contact Us For Availability

1

ESCUTCHEON- TOP ACP 13098505 Contact Us For Availability

1

HARNESS-OVEN ACP 20136301 Contact Us For Availability

2

12991605 Amana Screw TC/HEX ROHS Backorder ACP 12991605 $5.74

2

DUCT-LH ACP 13087603 Contact Us For Availability

2

WIRE, JUMPER - MAG FA TO CAP ACP 13017713 Contact Us For Availability

3

12990529 Amana Hex Screw Backorder ACP 12990529 $5.74

3

13074001 Amana RoHS TORX Pan Head Screw Backorder ACP 13074001 $6.32

3

13087301 Amana Control Board to Filter Board Backorder ACP 13087301 $39.20

3

14169104 Amana Antenna Motor and Gears Kit Backorder ACP 14169104 $68.58

3

59002076 Amana Convection Motor Assembly In Stock ACP 59002076 $1,989.00

3

59002125 Amana Top Convection Element Backorder ACP 59002125 $348.00

4

DUCT-RH ACP 13087102 Contact Us For Availability

4

BOTTOM-PLENUM ACP 21004702 Contact Us For Availability

4

OUTER PANEL, TOP ACP 59002136 Contact Us For Availability

4

CABLE, ETHERNET ACP 59164514 Contact Us For Availability

5

13077702 Amana Plenum Nozzle Gasket Backorder ACP 13077702 $11.20

5

13077902 Amana Plenum Return Gasket Backorder ACP 13077902 $18.50

5

14169110 Amana Control Assembly Kit AXP/MXP Backorder ACP 14169110 $1,840.00

5

R0000413 Amana Base Pan Gasket 90 Inch In Stock ACP R0000413 $48.14

5

OUTER PANEL, LEFT SIDE ACP 59002138 Contact Us For Availability

5

TAPE-DUCT ACP M0275089 Contact Us For Availability

6

59001682 Amana Fuse Block, 3 Pole Backorder ACP 59001682 $22.26

6

PLATE-R PLENUM ACP 21005001 Contact Us For Availability

6

CHOKE FILTER RING ACP 20025101 Contact Us For Availability

7

M0805105 Amana 12 AMP Fuse In Stock ACP M0805105 $4.22

7

PLATE-TOP PLENUM ACP 21004802 Contact Us For Availability

7

TOROID ACP 44780P01 Contact Us For Availability

8

10091101 Amana Fuse Holder Backorder ACP 10091101 $8.20

8

PLATE-L PLENUM ACP 21004901 Contact Us For Availability

8

OC BACK WELD ACP 13081912 Contact Us For Availability

8

24"H CART ACP CA24 Contact Us For Availability

9

M0805201 Amana Fuse In Stock ACP M0805201 $6.32

9

CONVERTER - CATALYTIC ACP 59204723 Contact Us For Availability

9

30"H CART ACP CA30 Contact Us For Availability

12002874 Amana Bottom Element Kit In Stock ACP 12002874 $351.00

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $64.14

OUTER PANEL, RIGHT SIDE ACP 59002137 Contact Us For Availability

XPRESS OVEN SAMPLE CLEANER KIT ACP CK10 Contact Us For Availability

14119054 Amana Left Waveguide Kit Backorder ACP 14119054 $782.00

59154429 Amana Air Filter In Stock ACP 59154429 $90.52

B5677215 Amana Terminal Block Backorder ACP B5677215 $7.50

CL10 Amana Xpress Oven Cleaner (6) 1 Liter Backorder ACP CL10 $93.50

SCREW-TR/ROUND RoHS ACP 13042202 Contact Us For Availability

14119055 Amana Waveguide Kit - RH Backorder ACP 14119055 $782.00

B5677214 Amana Terminal Block Backorder ACP B5677214 $7.18

NUT -#8 KEPS ACP 13045502 Contact Us For Availability

PANINI GRILL FOR XP XPRESS OVENS ACP GR10 Contact Us For Availability

13

59001981 Amana Relay Backorder ACP 59001981 $45.96

13

LG10 Amana Oven Leg Kit for XP Xpress Backorder ACP LG10 $123.76

13

SCREW-MACH/SHLD (RACK SUPPORT) ACP 59224797 Contact Us For Availability

14169111 Amana Inner Door Backorder ACP 14169111 $652.00

20176201 Amana Threaded Spacer Backorder ACP 20176201 $27.26

59002017 Amana Snubber Assembly Backorder ACP 59002017 $42.96

GUARD-L SPLASH ACP 59194639 Contact Us For Availability

13.87" (352 mm) x 13.87" (352 mm) Non-Stick B ACP OB10 Contact Us For Availability

59002133 Amana Electronic Limiter Backorder ACP 59002133 $432.00

59002140 Amana Oven Rack Backorder ACP 59002140 $151.00

PA10 Amana Oven Paddle Backorder ACP PA10 $206.26

SCREW-SM/HEX RoHS ACP 12990512 Contact Us For Availability

16

59004077 Amana Gasket per Foot Backorder ACP 59004077 $1.46

16

59164513 Amana Element Cover Backorder ACP 59164513 $146.00

16

SB10 Amana Inner Bin Backorder ACP SB10 $217.26

17

SH10 Amana Oven Shield 1 Liter Backorder ACP SH10 $112.76

17

TRANSFORMER, HV ACP 59004041 Contact Us For Availability

18

CLIP-CORD ACP M0104106 Contact Us For Availability

18

ALUMINUM PAN FOR XP XPRESS OVENS ACP SQ10 Contact Us For Availability

19

59224798 Amana Primary Switch and Boot Backorder ACP 59224798 $57.02

19

ST10X Amana Pizza Stone Backorder ACP ST10X $335.50

20

TB10 Amana 10" x 12" (254 mm x 305 mm) Backorder ACP TB10 $178.76

21

20241404 Amana Thermal Cutout Switch Backorder ACP 20241404 $9.34

21

SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability

21

SET OF 4 NON-STICK LINERS FOR XP XPRESS OVENS ACP TL10T Contact Us For Availability

59004010 Amana Magnetron In Stock ACP 59004010 $132.00

TL10T2 Amana Non-Stick Liners Backorder ACP TL10T2 $76.46

DUCT-MAGNETRON ACP 21007102 Contact Us For Availability

GASKET, PER FT ACP 59002162 Contact Us For Availability

23

VENT, CAVITY STEAM ACP 13078001 Contact Us For Availability

23

ACP PRODUCT LITERATURE WEBKEY ACP WK10 Contact Us For Availability

24

14189151 Amana Fuse and Switches Kit In Stock ACP 14189151 $310.00

24

XP XPRESS PANINI PRESS ACP PRS10 Contact Us For Availability

25

BOARD, MAIN CONTROL ACP 59004107 Contact Us For Availability

26

POWER CORD ACP 20029001 Contact Us For Availability

27

14149088 Amana Fan Motor Kit In Stock ACP 14149088 $296.00

27

SCREW-SM/HEX RoHS ACP 12990515 Contact Us For Availability

28

59204716 Amana Power Supply Board (24V DC) Backorder ACP 59204716 $237.00

28

SUPPORT ACP 59174558 Contact Us For Availability

29

59002131 Amana Thermocouple Backorder ACP 59002131 $144.00

30

59001709 Amana Temperature Sensor Backorder ACP 59001709 $27.48

31

59154448 Amana Foam Tape (1 Roll) Backorder ACP 59154448 $50.12

32

INSUL RETAINER WELD ACP 20004202Q Contact Us For Availability

34

PLATE-L HINGE PARTITION ACP 21005904 Contact Us For Availability

36

PLATE-R HINGE PARTITION ACP 21006002 Contact Us For Availability

37

59194677 Amana Door Hinge Set of Two Backorder ACP 59194677 $400.00

37

SEAL-HINGE ACP 13087001 Contact Us For Availability

38

59174544 Amana Capacitor Kit - 1.15 & Diode Backorder ACP 59174544 $53.08

38

A4055406 Amana Capacitor Strap Backorder ACP A4055406 $6.06

39

20057401 Amana Diode In Stock ACP 20057401 $8.36

39

SCREW-SM/HEX RoHS ACP 12990524 Contact Us For Availability

40

M0372001 Amana Strain Relief Backorder ACP M0372001 $11.96

42

12992302 Amana RoHS Hex Head Screw Backorder ACP 12992302 $5.74

42

FILTER-LINE ACP 59194669 Contact Us For Availability

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $5.74

14179138 Amana Kit - Studs and Hardware Backorder ACP 14179138 $27.58

BRKT-THERMAL LINK ACP 20004501 Contact Us For Availability

THERMAL CUTOUT, CAVITY ACP B5795317 Contact Us For Availability

45

GUARD-SPLASH ACP 20030001 Contact Us For Availability

46

13045501 Amana Nut #6 KEPS Backorder ACP 13045501 $5.74

46

RELAY ACP 20030701 Contact Us For Availability
