Model GE AWNE9RSN115TW01 General Electric Model AWNE9RSN115TW01 – Common Parts & Diagrams

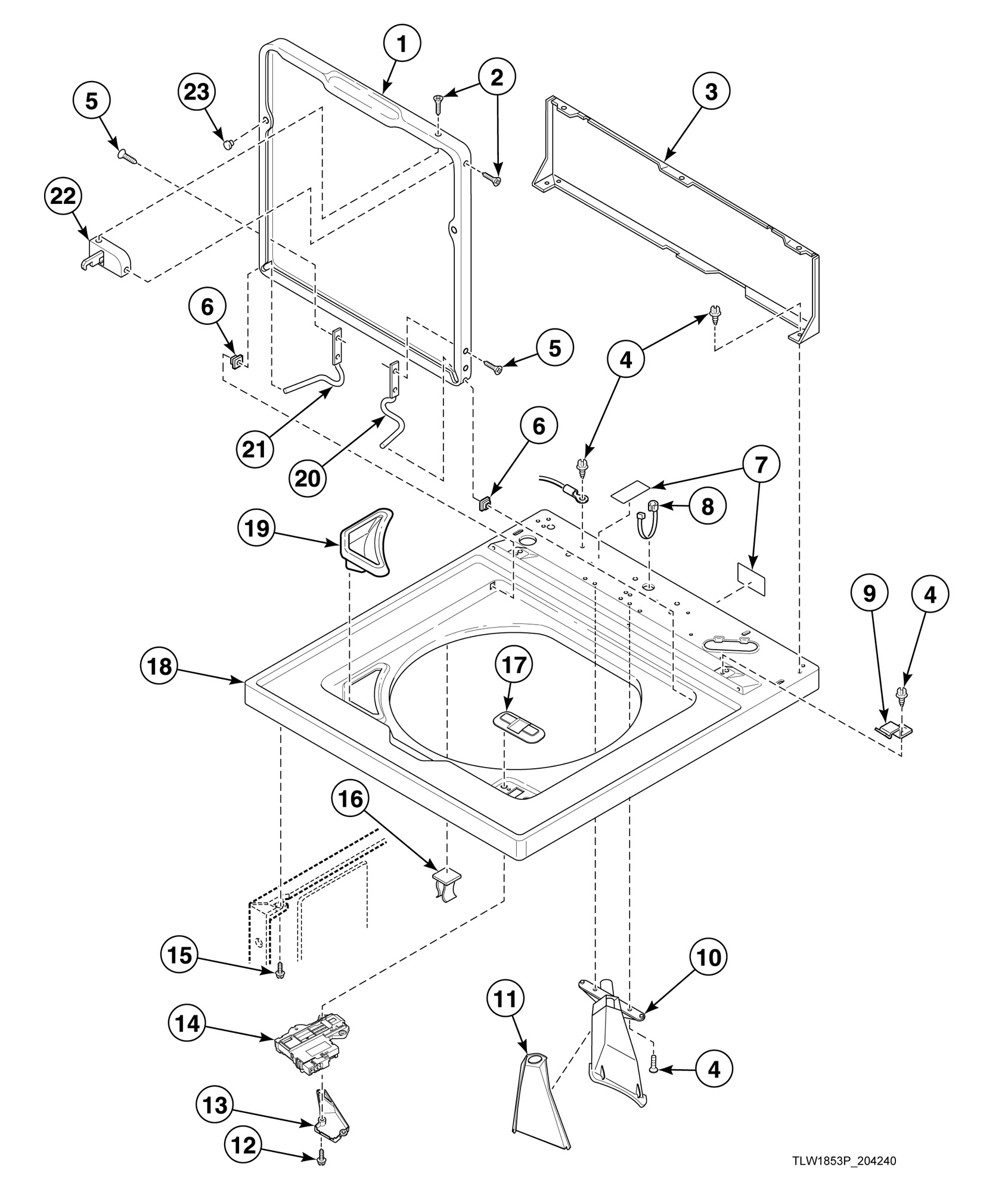

Top, Lid and Hood Back Panel
Weldment and Bearing Assembly, Drive Shaft and Pulley
Common parts from model GE AWNE9RSN115TW01 General Electric Model AWNE9RSN115TW01
1
Drive Shaft GEN 203394 Contact Us For Availability
2
Screw GEN 203755 Contact Us For Availability
2
Lower Bearing GEN 28944RP Contact Us For Availability
3
Hood Back Panel GEN 203733 Contact Us For Availability
3
Weldment and Bearing Assembly GEN 39253 Contact Us For Availability
4
Screw GEN 23962 Contact Us For Availability
4
Drive Pulley GEN 203531 Contact Us For Availability
5
Screw GEN 34337 Contact Us For Availability
5
Spline Insert GEN 29728 Contact Us For Availability
6
Bushing GEN 33446 Contact Us For Availability
6
Nut GEN 29220 Contact Us For Availability
7
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
8
Strain Relief GEN 38384 Contact Us For Availability
9
Hold-Down Clip GEN 35358 Contact Us For Availability
18
Top Panel GEN 203632W Contact Us For Availability
19
Bleach Dispenser GEN 202996 Contact Us For Availability
20
Lid Hinge (Comment: Right) GEN 36437 Contact Us For Availability
21
Lid Hinge (Comment: Left) GEN 36513 Contact Us For Availability
22
Lid Lock Catch GEN 203573 Contact Us For Availability
23
Bumper GEN 21685 Contact Us For Availability
× ![]()
