Model Whirlpool AT19M8V REFRIGERATOR – Common Parts & Diagrams
02 - FRESH FOOD COMPARTMENT

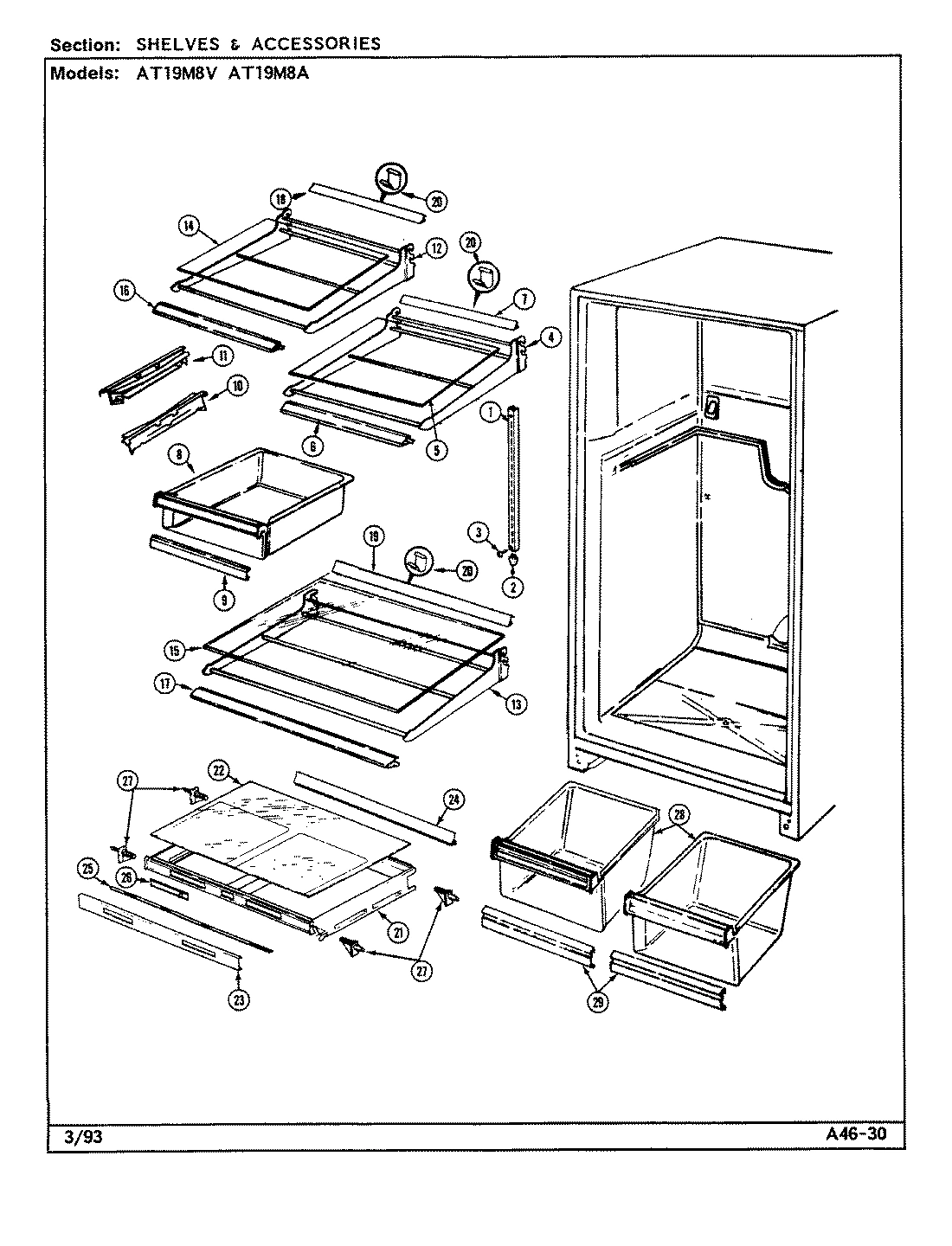

04 - SHELVES & ACCESSORIES

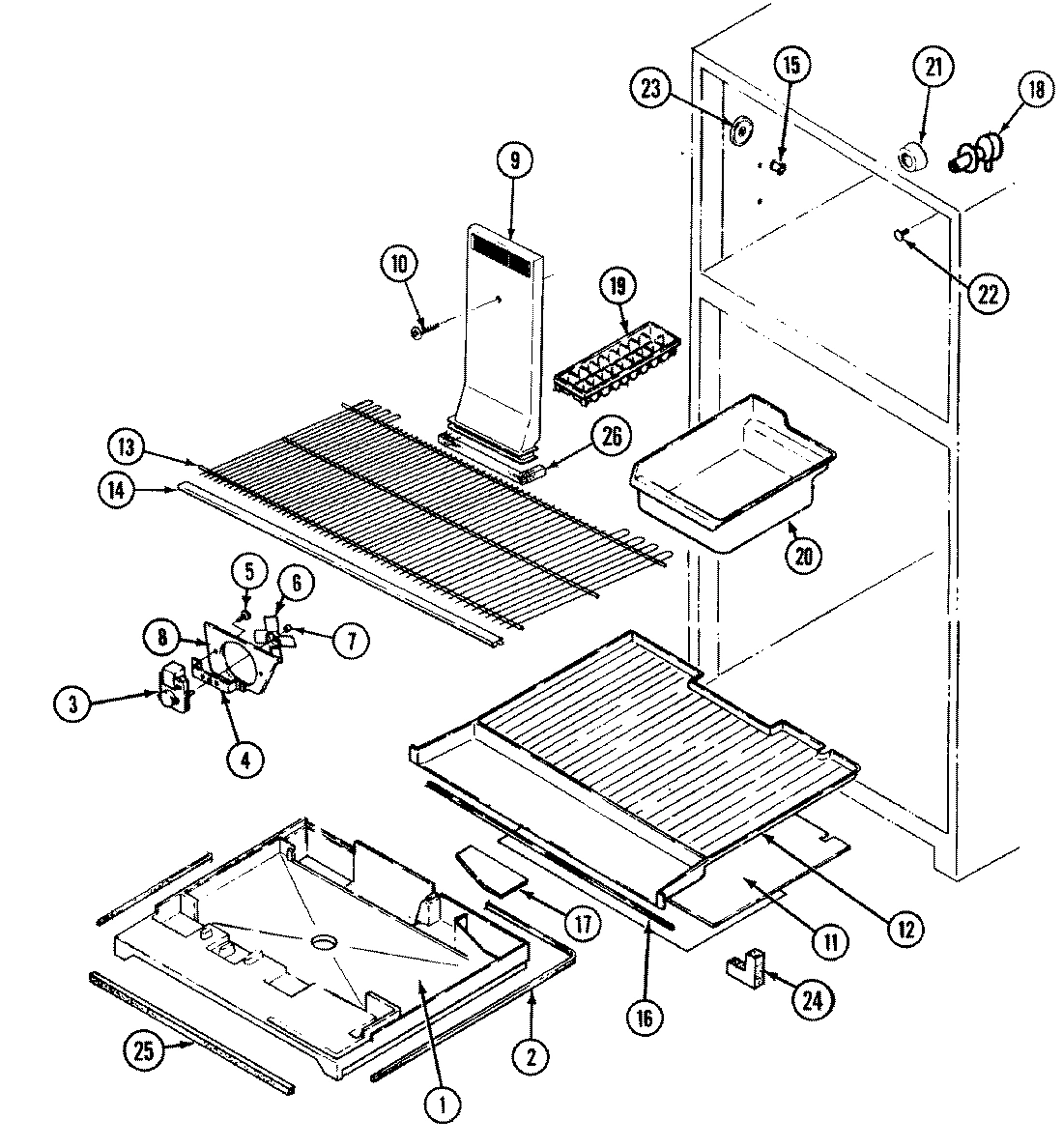

01 - FREEZER COMPARTMENT

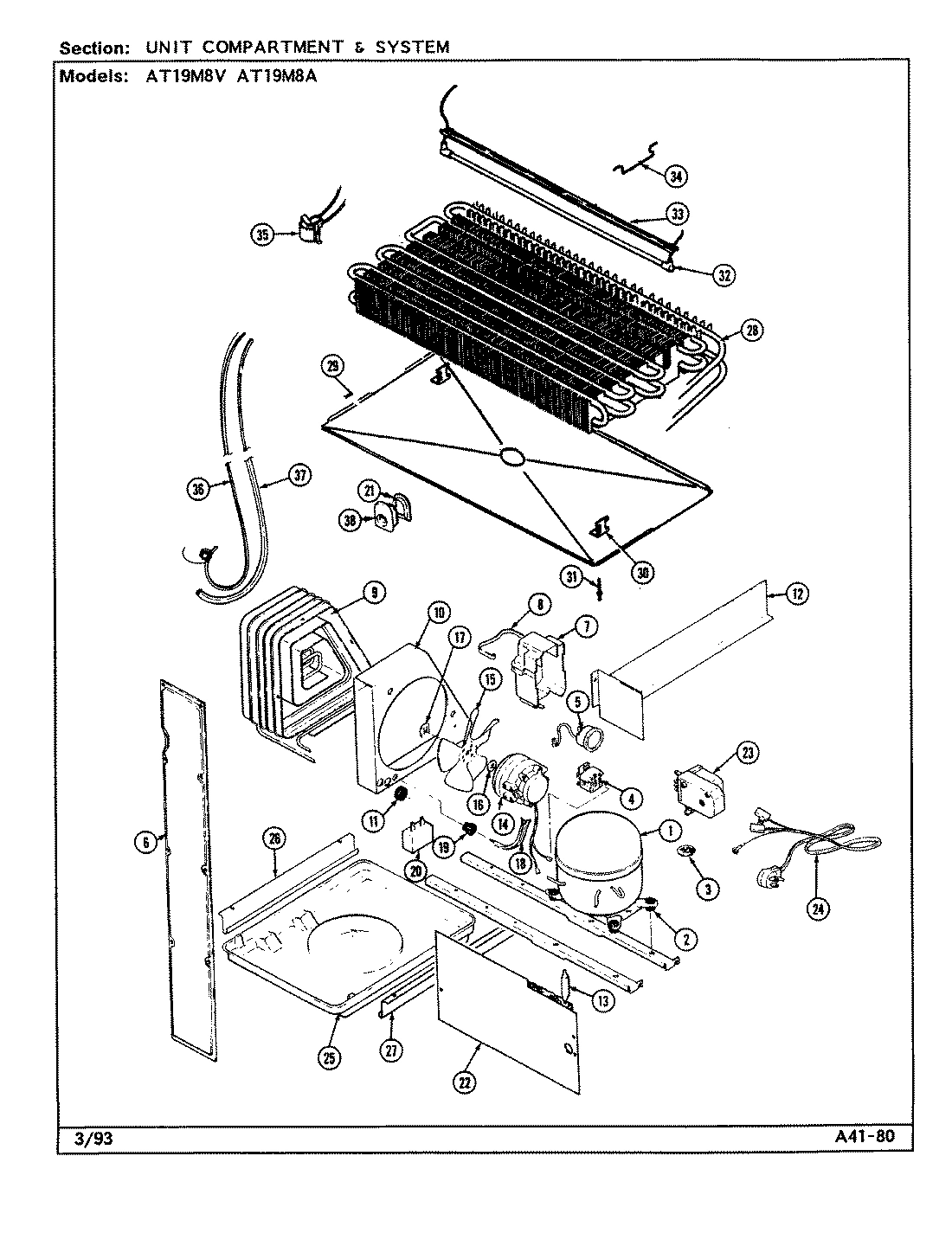

05 - UNIT COMPARTMENT & SYSTEM

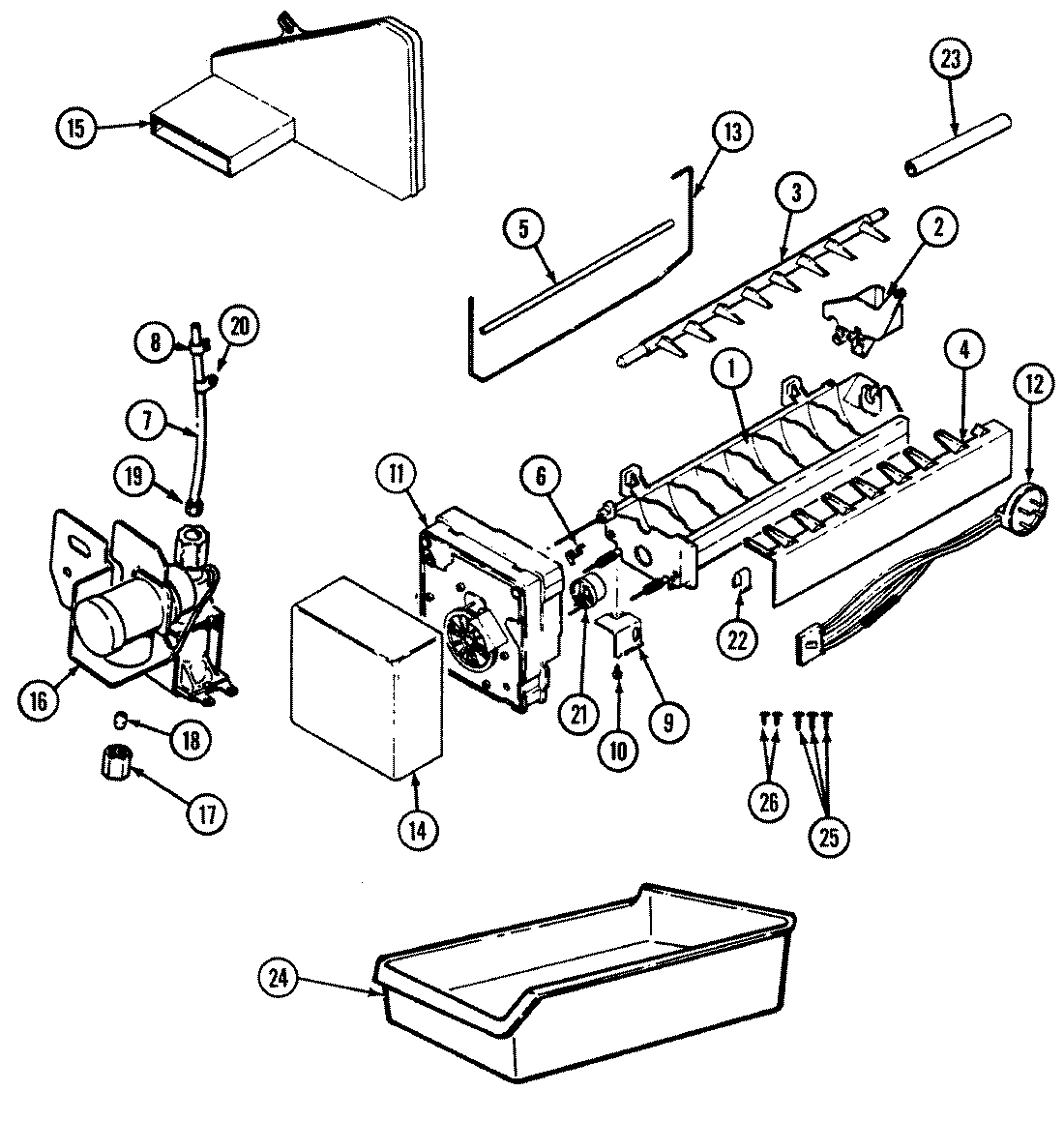

03 - OPTIONAL ICE MAKER KIT
Common parts from model Whirlpool AT19M8V REFRIGERATOR
1
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694031 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
2
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
WHEEL WPL 698121 Contact Us For Availability
3
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
3
SCREW WPL 40003728 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
5
SHELF WPL 6660430 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
5
OVERLOAD WPL 6910510 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
6
SCREW WPL 40002636 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 686015 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
PIN, WHEEL WPL 298352 Contact Us For Availability
7
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 694212 Contact Us For Availability
8
PAN, MEAT WPL 6663637 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
CLAMP, SPRING WPL 603334 Contact Us For Availability
9
SCREW WPL 6527554 Contact Us For Availability
9
HANDLE, MEAT KEEPER WPL 60132102 Contact Us For Availability
9
TUNNEL, AIR WPL 685923 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
10
KNOB, TEMPERATURE CONTROL WPL 694177 Contact Us For Availability
10
RAIL, MEAT PAN (RT) WPL 668141 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
11
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
11
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
11
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
12
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
12
FRAME, SHELF WPL 6057036 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693971 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
13
KNOB, FRZ. CONTROL WPL 694178 Contact Us For Availability
13
FRAME, SHELF WPL 6057045 Contact Us For Availability
13
SHELF WPL 6043832 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
COVER, CRANK WPL 674931 Contact Us For Availability
14
GLASS, CANTILEVER SPLIT SHELF WPL 6660423 Contact Us For Availability
14
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
15
ORIFICE ASSY., DAMPER WPL 698114 Contact Us For Availability
15
GLASS, CANTILEVER SHELF WPL 6660422 Contact Us For Availability
15
CUP, SHELF WPL 603131 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
15
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
15
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
TRIM, MEAT SHELF (FRONT) WPL 605246 Contact Us For Availability
16
MAGNET WPL 694131 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
17
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
17
TRIM,SHELF (FULL FRONT) WPL 6052428 Contact Us For Availability
17
COVER, PLENUM WPL 664804 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
18
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
18
TRIM WPL 652763 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
19
TRIM, SHELF (FULL REAR) WPL 6527621 Contact Us For Availability
19
TRAY, ICE WPL 592812 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
20
MAGNET WPL 694132 Contact Us For Availability
20
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
20
HANDLE, ICE CUBE PAN WPL 60132101 Contact Us For Availability
20
PAN, ICE WPL 606531 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
21
SCREW WPL 405016103 Contact Us For Availability
21
SHELF, CRISPER WPL 687351 Contact Us For Availability
21
CAP, GROMMET WPL 683871 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
22
DISC, CRANK COVER WPL 690371 Contact Us For Availability
22
SHELF, CRISPER WPL 6874313 Contact Us For Availability
22
PLUG BUTTON WPL 701462 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
23
SWITCH, LIGHT WPL 669871 Contact Us For Availability
23
TRIM WPL 687442 Contact Us For Availability
23
CAP, CONNECTOR WPL 681871 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682332 Contact Us For Availability
23
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
TRIM, CRISPER SHELF (REAR) WPL 687981 Contact Us For Availability
24
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
PAN, ICE WPL 683271 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
SEAL WPL 687971 Contact Us For Availability
25
SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
26
KICKPLATE ASSY. W/CLIPS (WHT) WPL 701286 Contact Us For Availability
26
SLIDE, CONTROL WPL 687421 Contact Us For Availability
26
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
27
STUD, CRISPER SUPPORT WPL 688361 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
28
PAN, CRISPER WPL 68222136 Contact Us For Availability
28
EVAPORATOR WPL 698227 Contact Us For Availability
29
SWITCH, HEATER WPL 692831 Contact Us For Availability
29
HANDLE WPL 60132106 Contact Us For Availability
29
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
30
SCREW WPL 6527578 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
31
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
31
SCREW WPL 6527513 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
36
HEAT EXCHANGER WPL 650134 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
38
WIRE HARNESS, MAIN WPL 701621 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1083401 Contact Us For Availability
× ![]()
