Model Whirlpool AT18PC2 WASHER – Common Parts &amp; Diagrams

COIN ACCEPTOR (US QUARTER) WPL 24001615 Contact Us For Availability

COIN METER (110V/50-60HZ) WPL 24001754 Contact Us For Availability

COIN METER (110V/50-60HZ) WPL 24001755 Contact Us For Availability

PANEL KIT, VALVE WPL 24001169 Contact Us For Availability

DOOR LOCK COMPLETE (MC 110V) WPL 24001640 Contact Us For Availability

DOOR LOCK COMPLETE (PC 110V) WPL 24001641 Contact Us For Availability

SCREW, S.S. (1/4-20 X 1 1/2``) WPL 24001642 Contact Us For Availability

DISPENSER, SUPPLY (COIN) WPL 24001627 Contact Us For Availability

VALVE (3WAY 110-127V/50-60HZ) WPL 24001118 Contact Us For Availability

VALVE, WATER (2 WAY) WPL 24001776 Contact Us For Availability

DOOR ASSY. (COIN) WPL 24001638 Contact Us For Availability

KIT ASSY., FRAME (2 SPEED) WPL 24001369 Contact Us For Availability

VALVE, DRAIN (2`` 110V,60HZ) WPL 24001116 Contact Us For Availability

CONTACTOR (120V) WPL 24001105 Contact Us For Availability

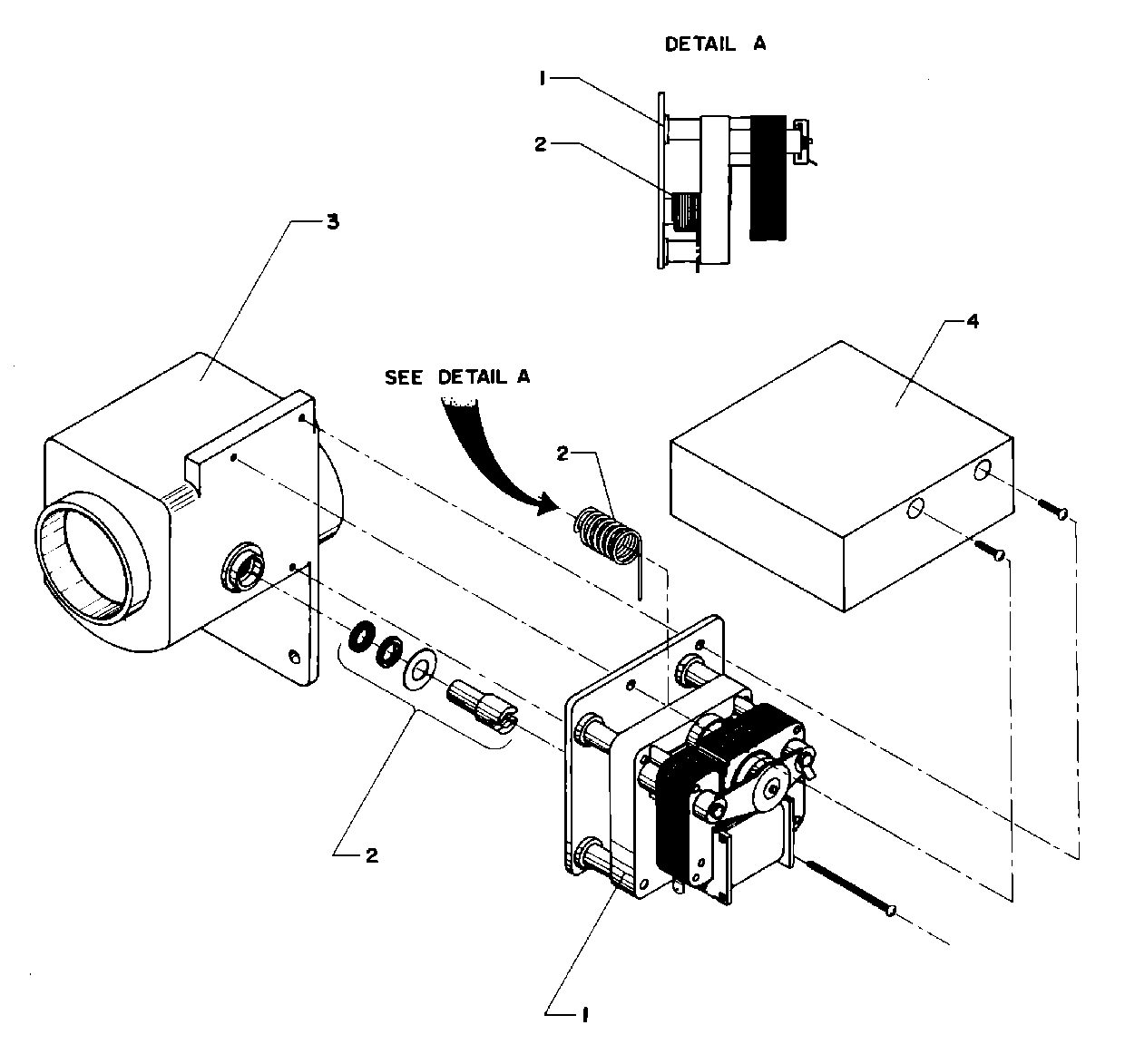

VALVE, MOTOR DRAIN (110V 60HZ) WPL 24001530 Contact Us For Availability

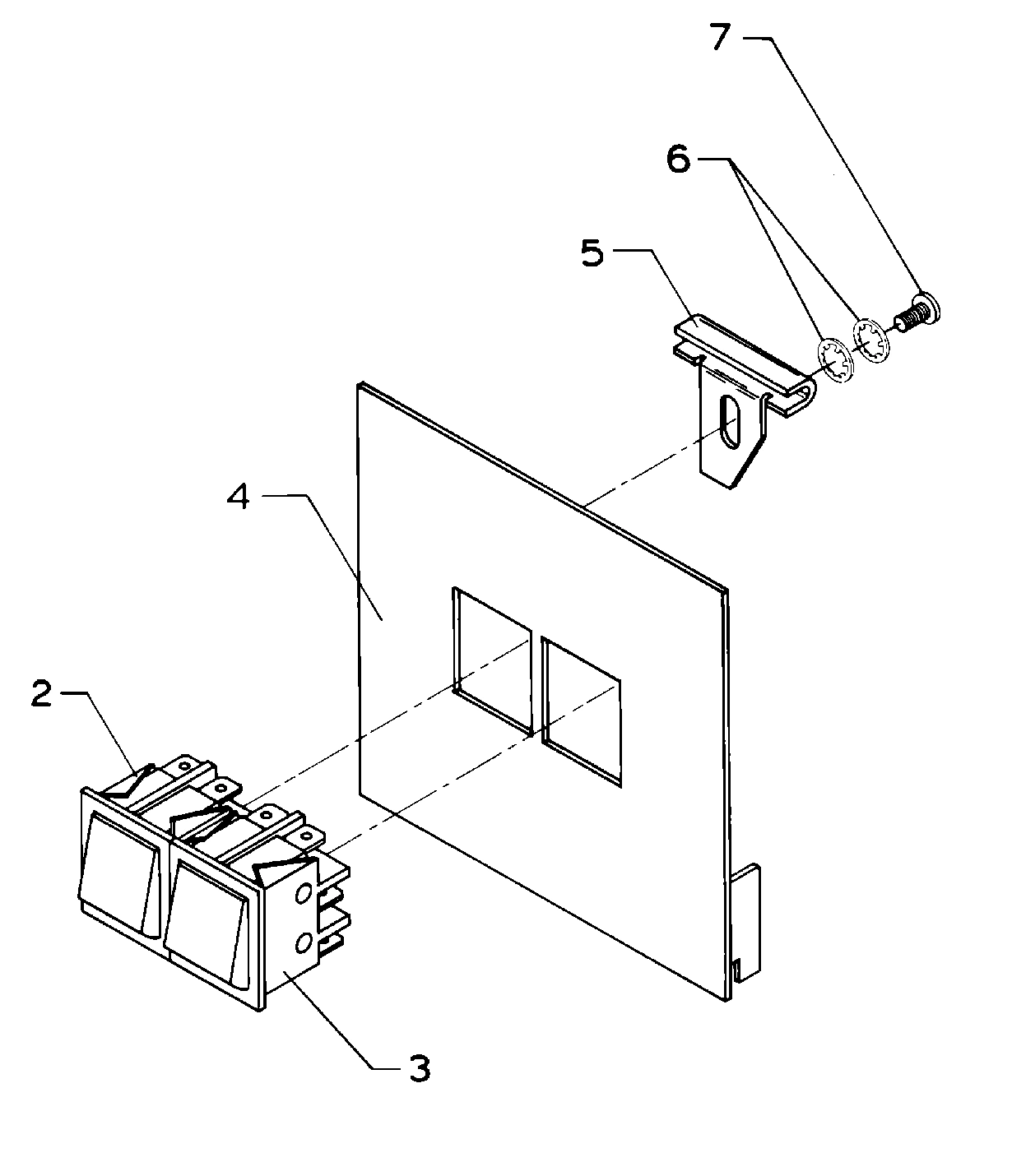

SWITCH, ROCKER (RED) WPL 24001251 Contact Us For Availability

HINGE, TOP COVER WPL 24001676 Contact Us For Availability

HINGE (TAKE APART) WPL Y24001300 Contact Us For Availability

CATCH, DOOR LOCK WPL 24001483 Contact Us For Availability

BEARING, 6204-2RS WPL 24001018 Contact Us For Availability

BREAKER, VAC. (TOP) WPL 24001031 Contact Us For Availability

KIT, VALVE REPAIR (10MM) WPL 24001121 Contact Us For Availability

GASKET, DOOR WPL 24001075 Contact Us For Availability

WASHER, HARDENED (PLTD. 5/8) WPL 24001511 Contact Us For Availability

INTERLOCK, MECH,CONTACTOR WPL 24001108 Contact Us For Availability

MAIN DRIVE SHAFT AND SEAL KIT WPL 24001528 Contact Us For Availability

COUNTER BOARD, COIN WPL 24001617 Contact Us For Availability

SWITCH, MOMENTARY WPL 24001252 Contact Us For Availability

SCREW (1/4-20 X 1/2``) WPL 24001323 Contact Us For Availability

BREAKER, VAC. (BTM) WPL 24001032 Contact Us For Availability

VALVE, MIXING (3 WAY) WPL 24001226 Contact Us For Availability

GLASS, DOOR WPL 24001098 Contact Us For Availability

PIN, COTTER PLTD. (1/8X1 1/2) WPL 24001512 Contact Us For Availability

TERMINAL STRIP WPL 24001412 Contact Us For Availability

VALVE BODY WPL 24001570 Contact Us For Availability

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

COIN BLOCKING SOLENOID (110V) WPL 24001618 Contact Us For Availability

SOLENOID, COIN BLOCKING WPL 24001756 Contact Us For Availability

COVER, DOOR LOCK PLATE WPL 24001484 Contact Us For Availability

VALVE (2WAY 110-127V/50-60HZ) WPL 24001117 Contact Us For Availability

SCREEN, VALVE WPL 24001634 Contact Us For Availability

HINGE, DOOR WPL 24001333 Contact Us For Availability

ROD, MOTOR SUPPORT WPL 24001647 Contact Us For Availability

COVER, DRAIN VALVE MOTOR WPL 24001571 Contact Us For Availability

KIT, PANEL (REAR) WPL Y24001400 Contact Us For Availability

KIT, VALVE REPAIR (13MM) WPL 24001122 Contact Us For Availability

KIT, DIAPHRAM (SHORT) WPL 24001231 Contact Us For Availability

MOUNT, DOOR WPL 24001334 Contact Us For Availability

BUSHING, MOTOR (UC/UW) WPL 24001021 Contact Us For Availability

PANEL KIT, SIDE (RT.)18 WPL 24001162 Contact Us For Availability

MOTOR,2SP (120/60/1/) WPL 24001078 Contact Us For Availability

MOTOR,2SP (208/240/60/3) WPL 24001082 Contact Us For Availability

MANIFOLD, SUPPLY WPL 24001765 Contact Us For Availability

COIL, WATER VALVE WPL 24001232 Contact Us For Availability

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.67

PANEL, FRONT (INR) WPL 24001701 Contact Us For Availability

WASHER, SHOULDER (TEFLON) WPL 24001485 Contact Us For Availability

MANIFOLD, FILL WPL 24001766 Contact Us For Availability

KEY (MOTOR 3/16`` X 1 1/2``) WPL 24001648 Contact Us For Availability

TRIM, PANEL (INR FRT) WPL 24001550 Contact Us For Availability

NUT, FIBERLOCK (1/4) WPL 24001305 Contact Us For Availability

SOLENOID, DOOR REL (110/220V) WPL 24001101 Contact Us For Availability

HOLDER, FUSE WPL 24001433 Contact Us For Availability

CLIP, MOTOR SPRING WPL 24001651 Contact Us For Availability

SCREW, S.S. (6-32 X 3/8 PLTD) WPL 24001411 Contact Us For Availability

WASHER, FLAT (No.10) WPL 24001358 Contact Us For Availability

FUSE, CONTROL (2AMP) WPL 24001225 Contact Us For Availability

SCREW, S.S. (1/4 - 20 X 7/8) WPL 24001467 Contact Us For Availability

SPRING (BELT TENSION) WPL 24001650 Contact Us For Availability

SWITCH, MEMBRANE WPL 24001112 Contact Us For Availability

BUTTON, PUSH (STOP) WPL 24001250 Contact Us For Availability

ROD, PUSH BUTTON WPL 24001103 Contact Us For Availability

PULLEY, MOTOR WPL 24001086 Contact Us For Availability

DECAL,INSUL.TERM STIRP (33-40) WPL 24001030 Contact Us For Availability

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $10.90

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

SWITCH, TRI LEVEL----N WPL NLA Contact Us For Availability

SCREW (8-18 X 3/8``) WPL 24001301 Contact Us For Availability

HANDLE, DOOR WPL 24001336 Contact Us For Availability

RIVET, POP S.S. (1/8`` X 1/4``) WPL 24001533 Contact Us For Availability

WASHER, S.S. (No.6 EXT. TOOTH) WPL 24001415 Contact Us For Availability

WASHER, TEFLON (No.8) WPL 24001480 Contact Us For Availability

BLOCK, INPUT POWER (3 WIRE) WPL 24001629 Contact Us For Availability

PIN, SPRING WPL 24001721 Contact Us For Availability

CONNECTION, TEE-DRAIN WPL 24001826 Contact Us For Availability

COVER, DOOR LOCK ASSY. WPL 24001487 Contact Us For Availability

SCREW, S.S (6-32 X 1) WPL 24001430 Contact Us For Availability

SPRING, DOOR LOCK WPL 24001338 Contact Us For Availability

BELT, V (3V-710) WPL 24001093 Contact Us For Availability

BOARD, COIN COMPUTER WPL 24001010 Contact Us For Availability

BOARD, COMPUTER (OPL RED LED) WPL 24001709 Contact Us For Availability

NUT, FIBERLOCK (No.4-40) WPL 24001476 Contact Us For Availability

COVER, JUNCTION BOX WPL 24001429 Contact Us For Availability

SCREW (5/16-18 X 5/8``) WPL 24001310 Contact Us For Availability

WASHER, S.S. WPL 24001501 Contact Us For Availability

BOARD KIT (FUSE/COIN) WPL 24001181 Contact Us For Availability

FUSE (.500MA) WPL 24001244 Contact Us For Availability

FUSE, (.125 MA) WPL 24001246 Contact Us For Availability

SWITCH, DOOR LOCK WPL 24001229 Contact Us For Availability

GROMMET, BUSHING WPL 24001436 Contact Us For Availability

SPACER, DOOR HANDLE WPL 24001340 Contact Us For Availability

SCREW, S.S. (3/8``-16X1) WPL Y24001500 Contact Us For Availability

CABLE, 16-OIN RIBBON (6 IN.) WPL 24001590 Contact Us For Availability

BRACKET, SOAP DISPENSER WPL 24001539 Contact Us For Availability

SPACER, NYLON (No.6) WPL 24001477 Contact Us For Availability

CONNECTOR, GROUND WPL 24001434 Contact Us For Availability

ARM, LATCH WPL 24001343 Contact Us For Availability

KEY (3/8`` X 1 1/4``) WPL 24001499 Contact Us For Availability

HARNESS, BATTERY BACK-UP WPL 24001410 Contact Us For Availability

017

SCREW, S.S. (6 X 3/16``) WPL 24001643 Contact Us For Availability

017

PULLEY, BASKET WPL 24001085 Contact Us For Availability

017

FLANGE KIT, RELAY (110V) WPL 24001177 Contact Us For Availability

NUT, BRASS (No.6-32) WPL 24001417 Contact Us For Availability

SCREW, S.S. (No.8-32 X 3/16) WPL 24001479 Contact Us For Availability

HOSE WPL 24001767 Contact Us For Availability

PANEL KIT, FRONT COIN WPL 24001133 Contact Us For Availability

OUTER PANEL KIT (COIN ALM) WPL 24001728 Contact Us For Availability

BEARING (6207 2RS C3) WPL 24001015 Contact Us For Availability

019

NAMEPLATE WPL 24001671 Contact Us For Availability

019

HOSE WPL 24001768 Contact Us For Availability

019

SCREW, S.S. (No.8-32 X 3/8 PL) WPL 24001474 Contact Us For Availability

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $4.82

HOSE WPL 24001769 Contact Us For Availability

TRIM, OUTER FRONT PANEL WPL 24001722 Contact Us For Availability

CLAMP, HOSE (No.28) WPL 24001283 Contact Us For Availability

SOLENOID, DOOR LCK (110/220V) WPL 24001102 Contact Us For Availability

HOSE WPL 24001770 Contact Us For Availability

PIN, SPRING (STLS) WPL 24001827 Contact Us For Availability

HOSE, OVERFLOW WPL 24001662 Contact Us For Availability

CAPACITOR, DOOR LOCK WPL 24001247 Contact Us For Availability

COVER, SOAP DSPNSR WPL 24001219 Contact Us For Availability

HOSE WPL 24001771 Contact Us For Availability

SHIM, HINGE (USE AS NEEDED) WPL 24001466 Contact Us For Availability

PC BOARD, DOOR LOCK WPL 24001248 Contact Us For Availability

CLAMP, SOAP DISPENSER WPL 24001542 Contact Us For Availability

SWITCH, DOOR HANDLE WPL 24001255 Contact Us For Availability

HOSE WPL 24001772 Contact Us For Availability

DECAL, PUSH BUTTON RED WPL 24001462 Contact Us For Availability

BEARING (6208 2RS C3) WPL 24001014 Contact Us For Availability

WASHER, S.S. (No.10 LOCK EXT.) WPL 24001579 Contact Us For Availability

COVER ASSY KIT, TOP WPL 24001168 Contact Us For Availability

PIN, LOCKING WPL 24001736 Contact Us For Availability

HOSE WPL 24001773 Contact Us For Availability

DECAL, RED DOT WPL 24001407 Contact Us For Availability

SEAL, SHAFT (SS SPR60X80X10MM) WPL 24001019 Contact Us For Availability

SCREW, S.S. (No.10-32 X 3/8``) WPL 24001580 Contact Us For Availability

LOCK, TOP COVER WPL 24001220 Contact Us For Availability

LEVER, DOOR LOCK WPL 24001230 Contact Us For Availability

AIR TRAP WPL 24001661 Contact Us For Availability

PANEL, ELECTRICAL (4 CYC) WPL 24001587 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

LATCH, TOP COVER WPL 24001221 Contact Us For Availability

SPRING, TORSION WPL 24001293 Contact Us For Availability

BOARD, BATTERY BCKUP WPL 24001243 Contact Us For Availability

LOCKWASHER WPL 24001295 Contact Us For Availability

BRACE, TOP WPL 24001695 Contact Us For Availability

SHIM, DOOR LOCK (USE AS NEEDED) WPL 24001559 Contact Us For Availability

COVER, VACUUM BREAKER WPL 24001426 Contact Us For Availability

SHIM, SHELL WPL 24001803 Contact Us For Availability

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

CAPACITOR (100MF) WPL 24001236 Contact Us For Availability

CAPACITOR (130 MFD) WPL 24001698 Contact Us For Availability

SHIELD, SPLASH (DOOR LOCK) WPL 24001488 Contact Us For Availability

HOSE, VACUUM BREAKER WPL 24001552 Contact Us For Availability

KIT, SHIELD RETRO WPL 24001375 Contact Us For Availability

SCREW (1/4-20 X 1-1/4``) WPL 24001303 Contact Us For Availability

HOSE, SOAP DISPENSER WPL 24001442 Contact Us For Availability

GASKET KIT (FRONT SHELL) WPL 24001184 Contact Us For Availability

RELAY, TIME OFF DELAY WPL 24001176 Contact Us For Availability

030

BRACKET, CAPACITOR WPL 24001692 Contact Us For Availability

030

KIT, BAND SHELL WPL 24001388 Contact Us For Availability

030

RELAY, TIME DELAY (120V 30SEC) WPL 24001418 Contact Us For Availability

031

COVER, ELECTRICAL MODULE WPL 24001545 Contact Us For Availability

031

CLAMP, HOSE (No.48) WPL 24001282 Contact Us For Availability

031

RELAY, TIME DELAY WPL 24001752 Contact Us For Availability

032

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $7.20

032

FILTER, RC-NTWK. WPL 24001109 Contact Us For Availability

033

SCREW WPL 24001357 Contact Us For Availability

033

KIT, BAND FASTENER WPL 24001215 Contact Us For Availability

033

BRIDGE, RECTIFIER (10AMP 600V) WPL 24001753 Contact Us For Availability

034

BASKET (18-2 SPEED) WPL 24001266 Contact Us For Availability

STUD, S.S. (6/32`` X 1/4``) WPL 24001546 Contact Us For Availability

NUT, FIBERLOCK, PLTD (6-32) WPL 24001425 Contact Us For Availability

PART NOT USED WPL W10124350 Contact Us For Availability

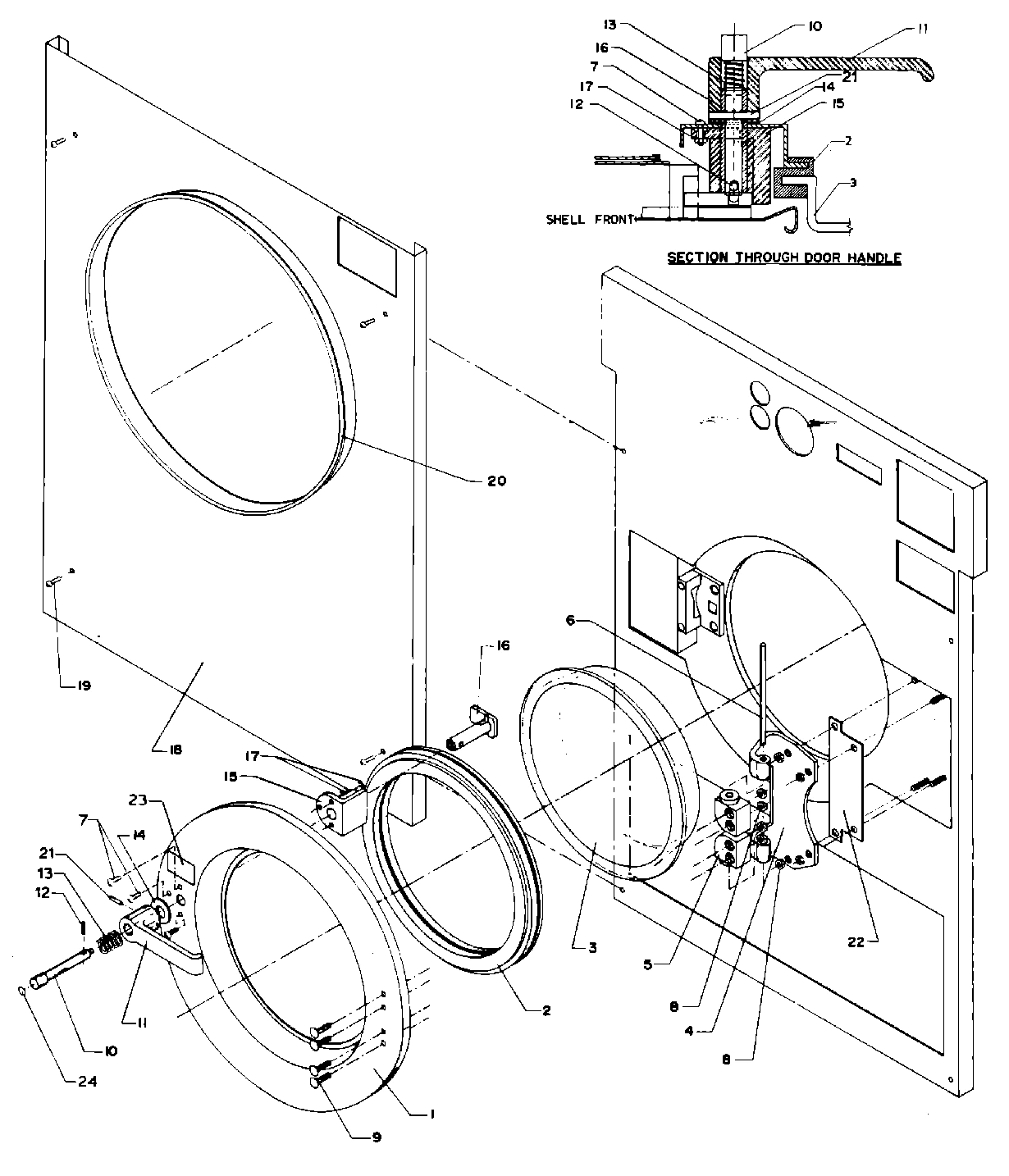

KIT, FRONT SHELL WPL 24001384 Contact Us For Availability

036

RESISTOR (12K OHMS 5 WATT) WPL 24001675 Contact Us For Availability

036

CAP, PLUG (YELLOW) WPL 24001424 Contact Us For Availability

036

BOLT (S.S. 3/8-16 X 1 1/2``) WPL 24001657 Contact Us For Availability

037

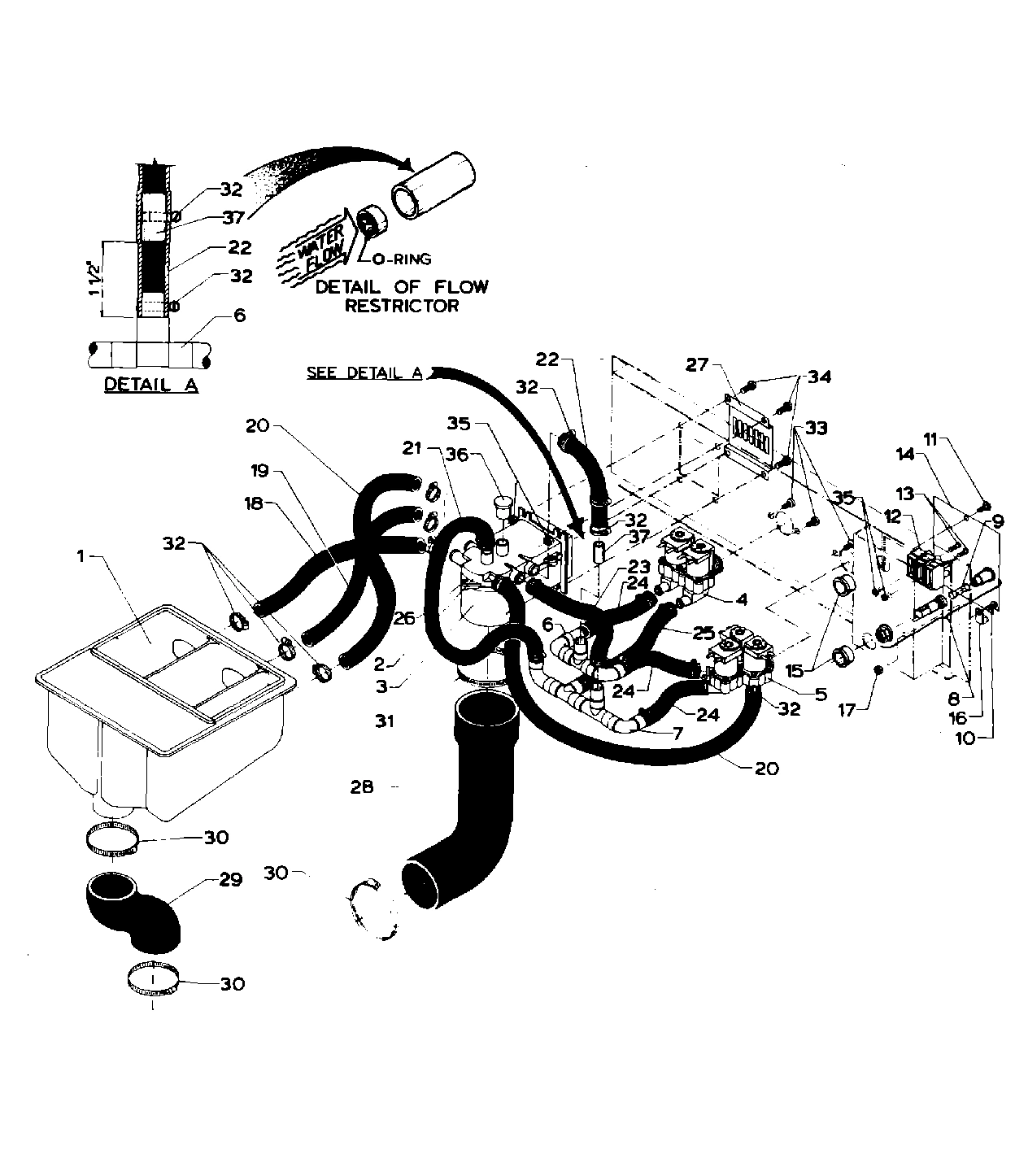

FLOW RESTRICTOR ASSY. WPL 24001775 Contact Us For Availability

037

WASHER, FLAT PLTD. (3/8``) WPL 24001516 Contact Us For Availability

038

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $4.58

039

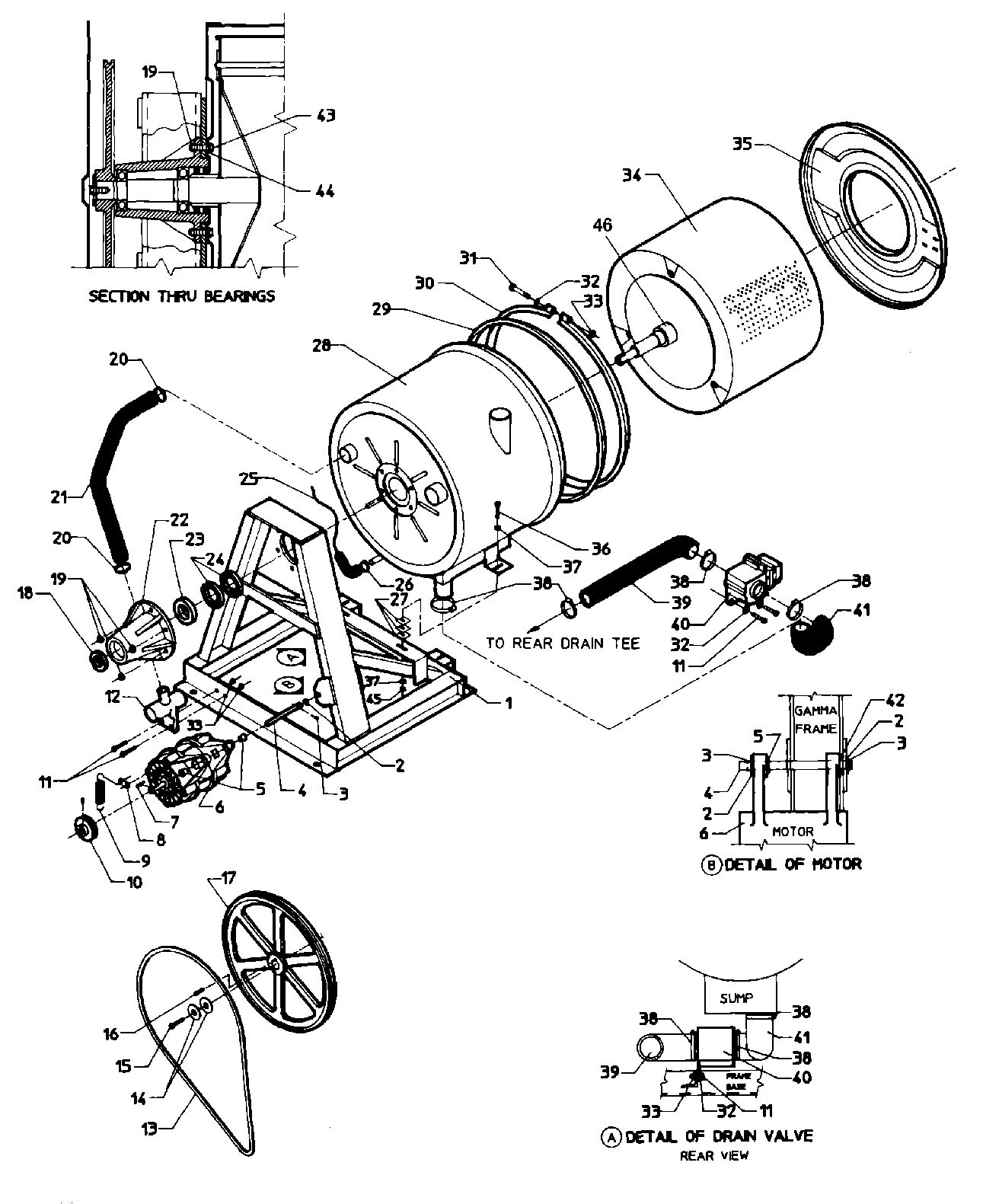

HOSE, DRAIN (REAR) WPL 24001660 Contact Us For Availability

041

HOSE, DRAIN (FRONT) WPL 24001565 Contact Us For Availability

042

TRIM, FRONT PANEL WPL 24001805 Contact Us For Availability

043

BOLT (S.S. 1/2``-13 X2) WPL 24001659 Contact Us For Availability

044

WASHER, S.S. WPL 24001808 Contact Us For Availability

045

NUT, FIBERLOCK PLTD. (3/8-16) WPL 24001515 Contact Us For Availability

045

KIT, TRUNNION (2SP.) WPL 24001258 Contact Us For Availability

046

SLEEVE, SFT (2SP) WPL 24001130 Contact Us For Availability

HARNESS, LED WPL 24002035 Contact Us For Availability

KIT, START/STOP COMPLETE WPL 24001764 Contact Us For Availability
