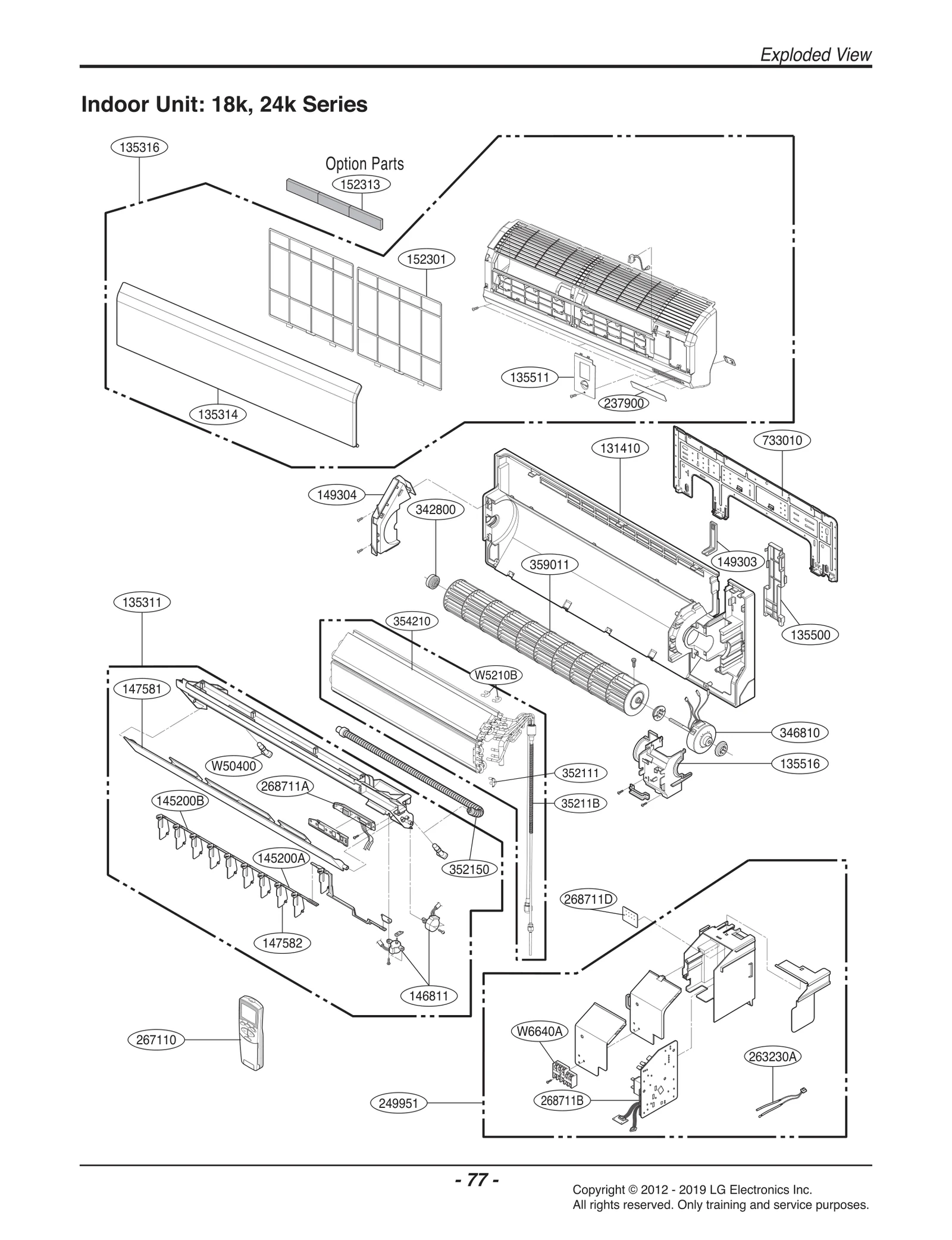

Model LG ASNC2435DB0 – Common Parts & Diagrams

135511
Cover Assembly,Control(Indoor)
Cover Assembly,Control(Indoor) LGE 3551A20155H Contact Us For Availability
View on Model
135516
Cover Assembly,Motor
Cover Assembly,Motor LGE 3551A20154A Contact Us For Availability
View on Model
145200A
Link
Link LGE 4520A20033A Contact Us For Availability
View on Model
146811
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
View on Model
146811
MOTOR ASSEMBLY,STEP
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
View on Model
147582
Louver,Vertical
Louver,Vertical LGE 5990A20050A Contact Us For Availability
View on Model
152301
Filter,Deodorizing
Filter,Deodorizing LGE 5230A20052J Contact Us For Availability
View on Model
152313
Filter Assembly,Deodorizer
Filter Assembly,Deodorizer LGE 5231A20040V Contact Us For Availability
View on Model
152313
Filter Assembly,Deodorizer
Filter Assembly,Deodorizer LGE 5231A20040B Contact Us For Availability
View on Model
237900
Window,Display
Window,Display LGE 3790A20130A Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995A10205E Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A20128A Contact Us For Availability
View on Model
268711A
PCB Assembly,Display
PCB Assembly,Display LGE 6871A20681F Contact Us For Availability
View on Model
268711D
PCB Assembly,Sub
PCB Assembly,Sub LGE 6871A20990E Contact Us For Availability
View on Model
346810
Motor Assembly,AC,Indoor
Motor Assembly,AC,Indoor LGE 4681AR2295M Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20220A Contact Us For Availability
View on Model
