Model Maytag ASI2575FRB00 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS
03 - REFRIGERATOR LINER PARTS

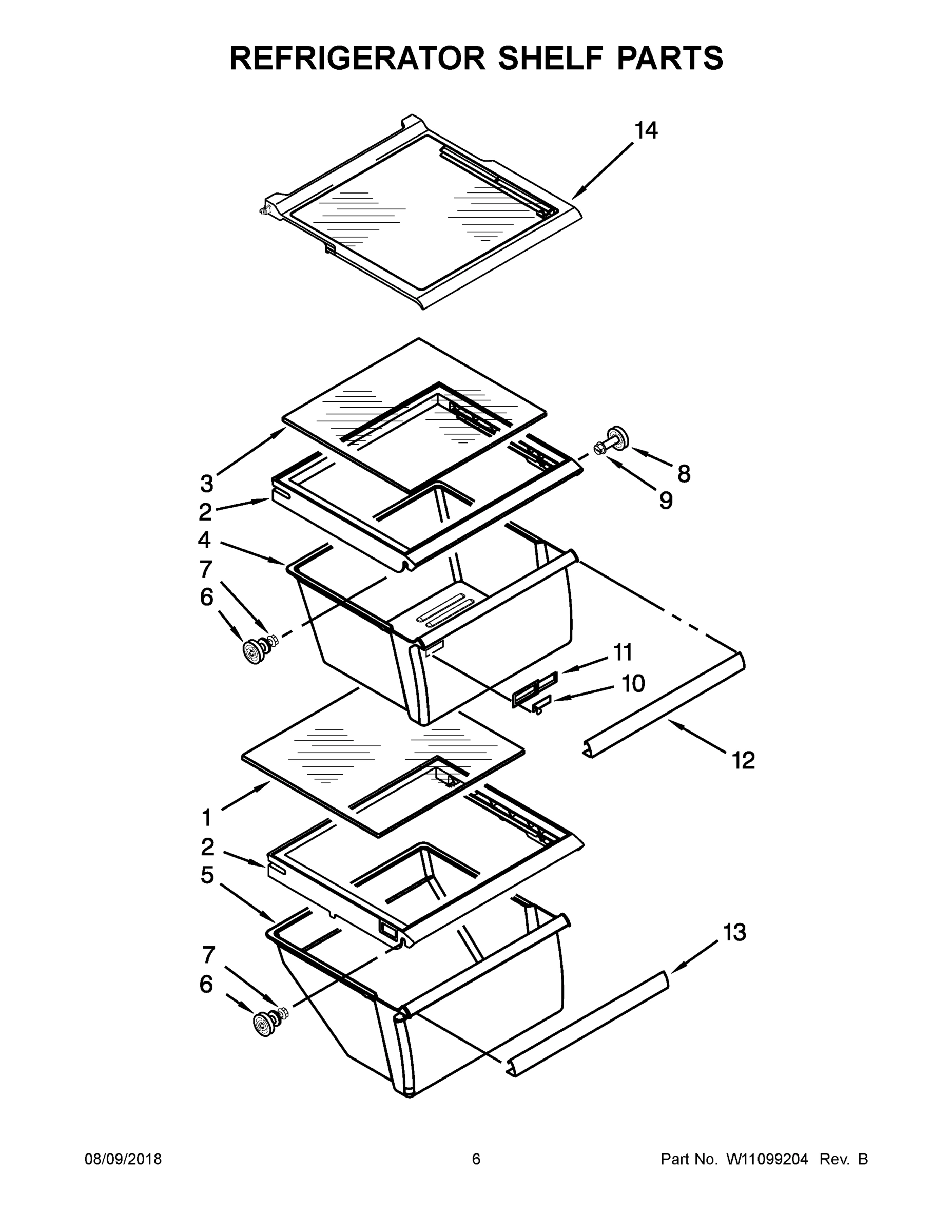

04 - REFRIGERATOR SHELF PARTS

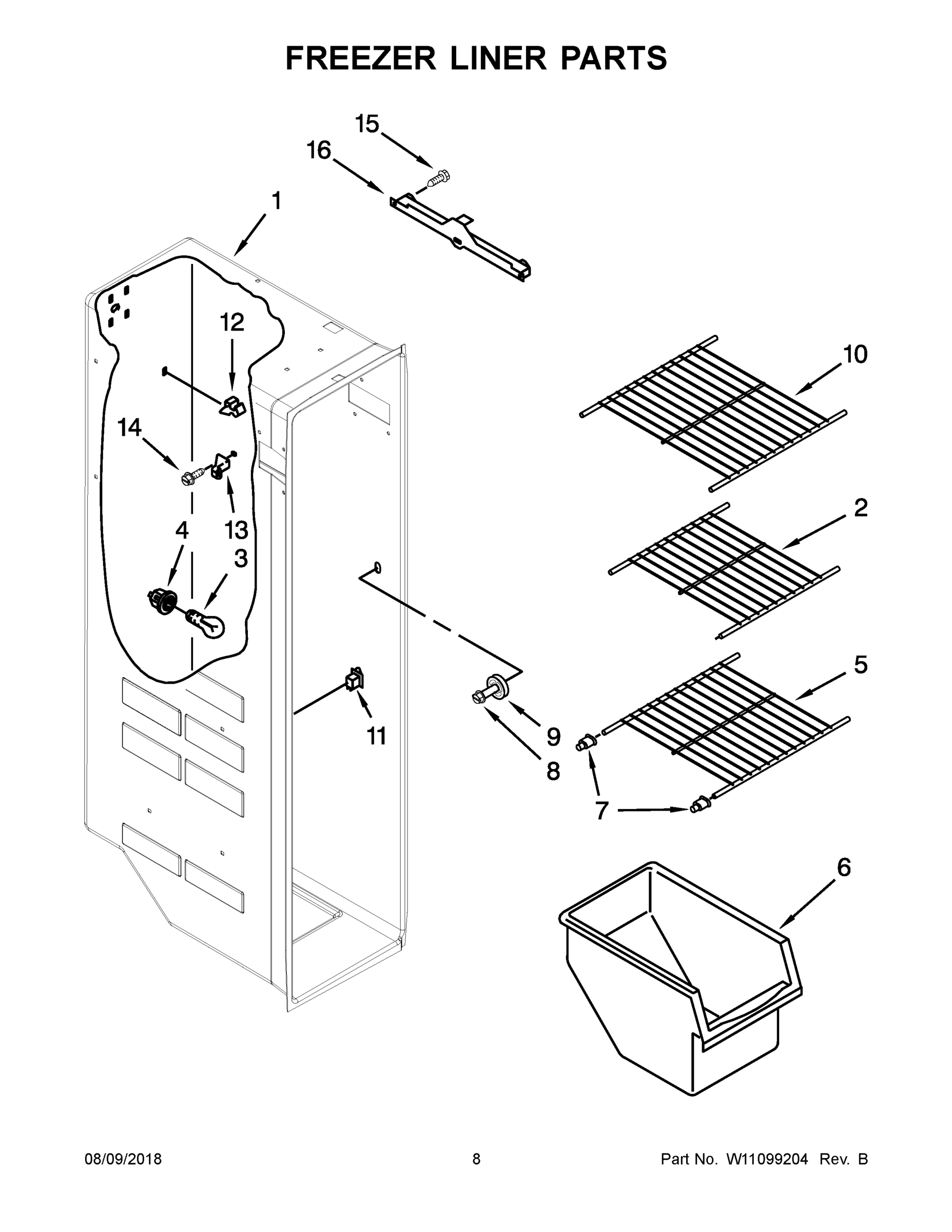

05 - FREEZER LINER PARTS
06 - MOTOR AND ICE CONTAINER PARTS
07 - REFRIGERATOR DOOR PARTS

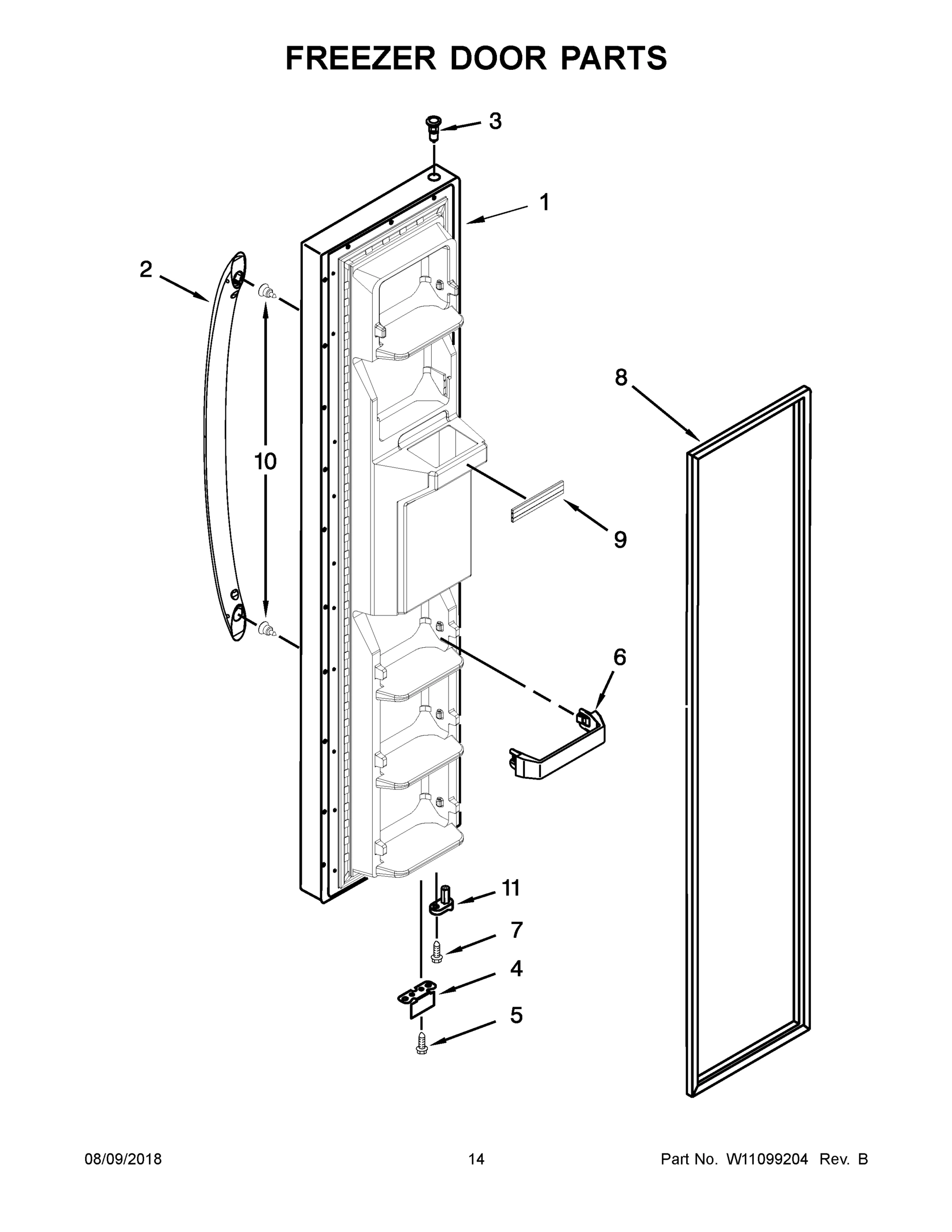

08 - FREEZER DOOR PARTS
09 - DISPENSER PARTS

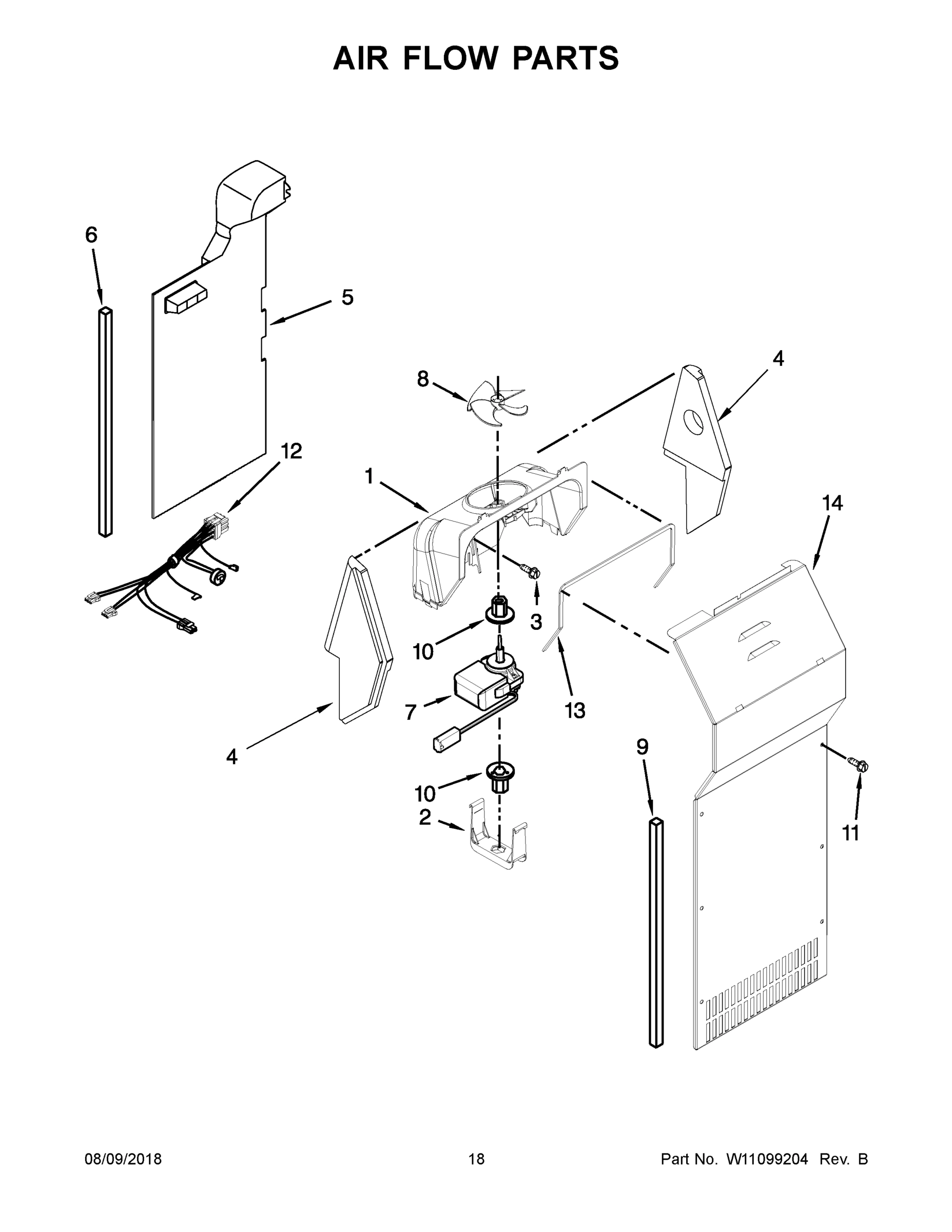

10 - AIR FLOW PARTS

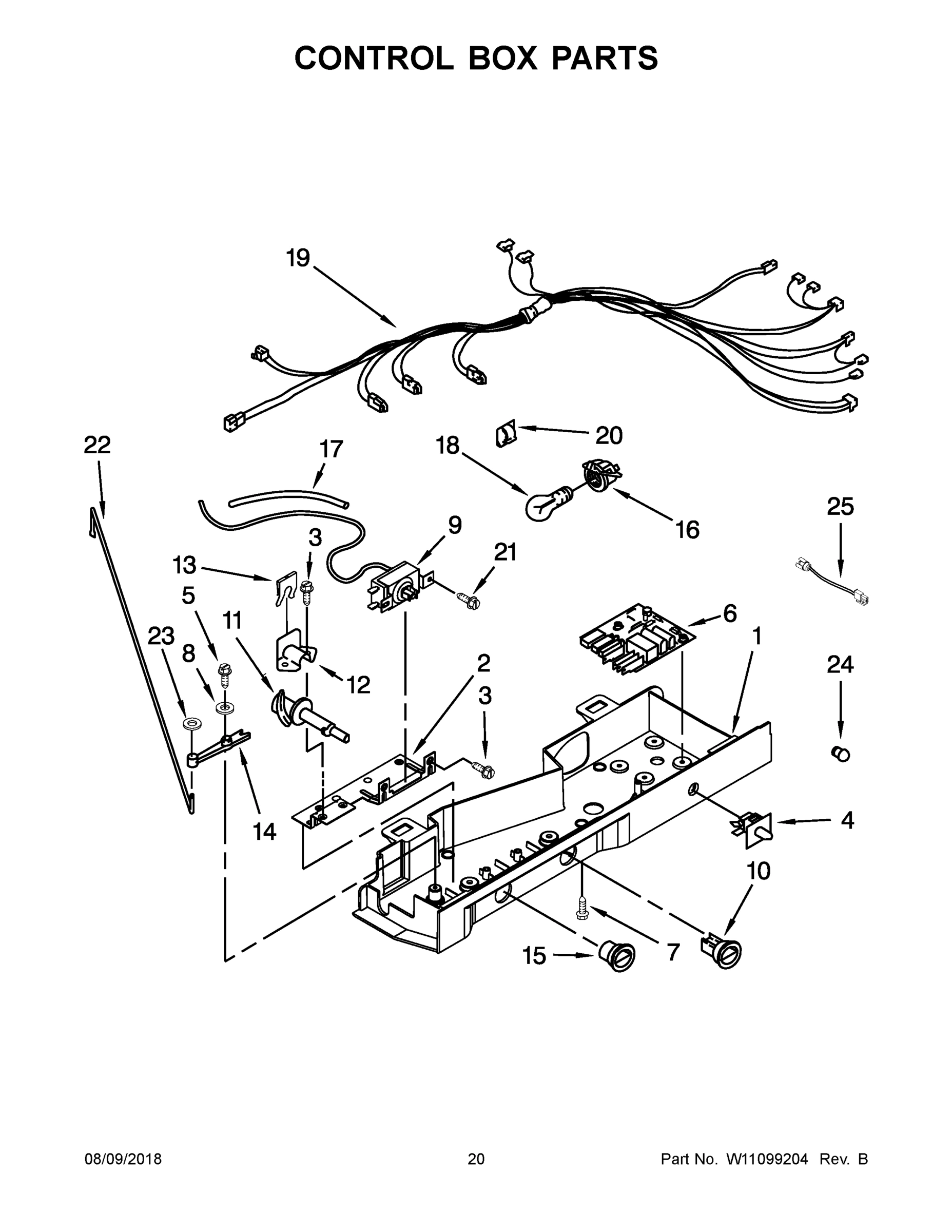

11 - CONTROL BOX PARTS

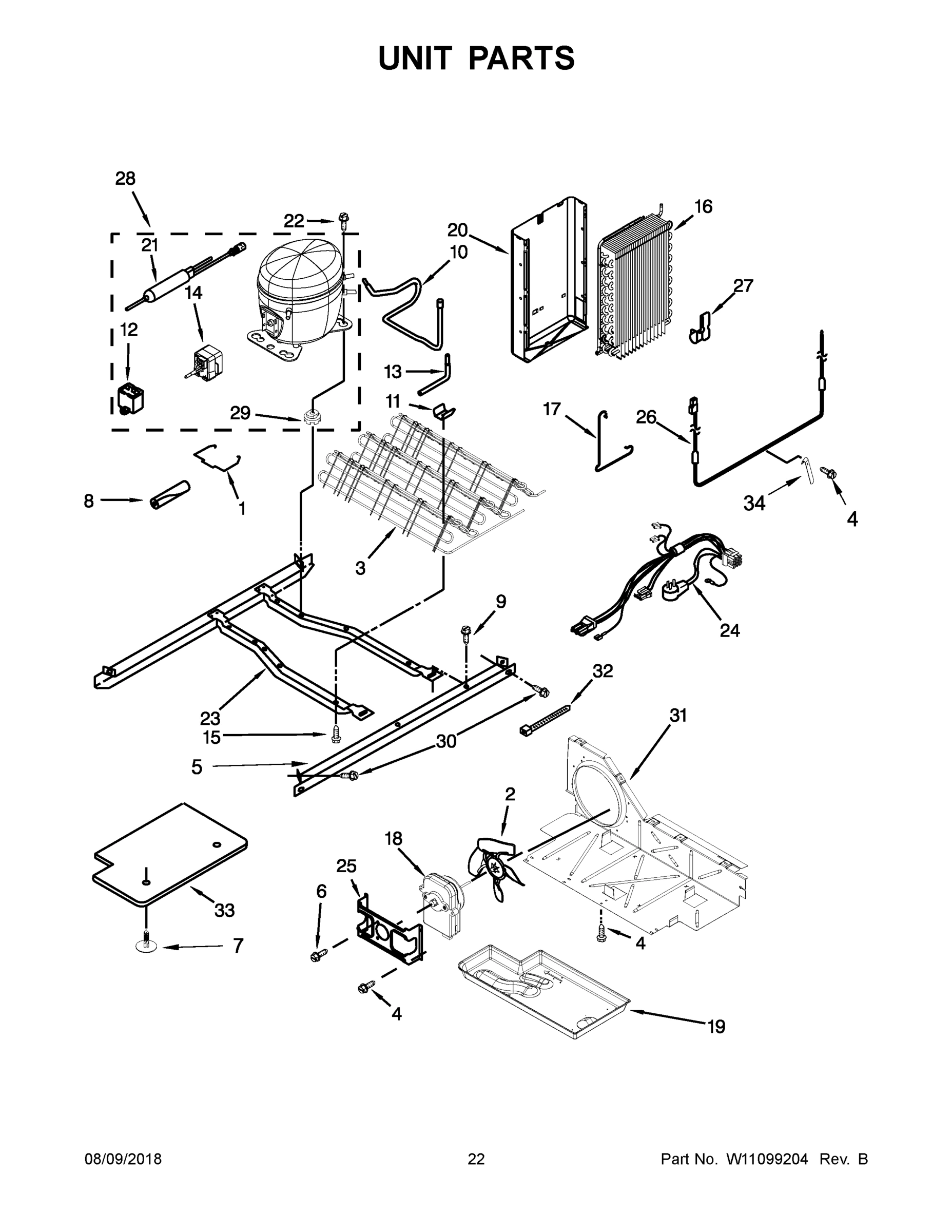

12 - UNIT PARTS
13 - OPTIONAL PARTS
Common parts from model Maytag ASI2575FRB00 REFRIGERATOR, SIDE-BY-SIDE
1
USE & CARE GUIDE MAY W10452514 Contact Us For Availability
1
BRACKET, MOTOR MAY W10304376 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEM 4) (WHITE) MAY W10407713 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F MAY W10878477 Contact Us For Availability
1
SCROLL, FAN MAY 2182120 Contact Us For Availability
1
CONTROL BOX MAY W10482525 Contact Us For Availability
1
STRAP, BALE MAY 2212996 Contact Us For Availability
1A
SERVICE & WIRING SHEET MAY W10568358 Contact Us For Availability
1A
REFRIGERATOR DOOR (INCLUDES ITEM 4) (BLACK) MAY W10750034 Contact Us For Availability
1A
FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F MAY W10878485 Contact Us For Availability
1B
ENERGY GUIDE MAY W10922024 Contact Us For Availability
1B
REFRIGERATOR DOOR (INCLUDES ITEM 4) (STAINLES MAY W10407701 Contact Us For Availability
1B
FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F MAY W10878483 Contact Us For Availability
2
ROLLER ASSEMBLY (LEFT HAND) MAY W10304660 Contact Us For Availability
2
LOUVER MAY W10550195 Contact Us For Availability
2
COVER, CRISPER MAY W10797580 Contact Us For Availability
2
SHELF, WIRE MAY W10318961 Contact Us For Availability
2
MOTOR, DISPENSER MAY W10317991 Contact Us For Availability
2
DOOR, COMPARTMENT MAY 2256101 Contact Us For Availability
2
HANDLE (WHITE) MAY W10210942 Contact Us For Availability
2
RETAINER, FAN MOTOR MAY W10188846 Contact Us For Availability
2
BRACKET, MOUNTING MAY 2311611 Contact Us For Availability
2
BLADE, FAN MAY W10817071 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10210943 Contact Us For Availability
2B
HANDLE (GREY) MAY W10257120 Contact Us For Availability
3
SCREW MAY 2152958 Contact Us For Availability
3
LENS, LIGHT (INCLUDES GASKET) MAY W10166130 Contact Us For Availability
3
GLASS, COVER MAY 2179259 Contact Us For Availability
3
ASSEMBLY, SOLENOID MAY 2152713 Contact Us For Availability
3
DOOR BIN MAY 2187172 Contact Us For Availability
3
THIMBLE MAY 2182181 Contact Us For Availability
3
SCREW MAY 3196537 Contact Us For Availability
3
GRILLE, OVERFLOW (WHITE) MAY W10397392 Contact Us For Availability
3
SCREW MAY 489478 Contact Us For Availability
3
ASSEMBLY, CONDENSER MAY 2324712 Contact Us For Availability
3A
GRILLE, OVERFLOW (BLACK) MAY W10397394 Contact Us For Availability
4
ROLLER MAY 2150304 Contact Us For Availability
4
SCREW MAY 489464 Contact Us For Availability
4
PAN, CRISPER (INCLUDES HUMIDITY CONTROL BODY MAY W10178772 Contact Us For Availability
4
GASKET, DOOR (BEIGE) MAY 2309528 Contact Us For Availability
4
BRACKET, DOOR STOP (SILVER) MAY 2306940 Contact Us For Availability
4
ASSEMBLY, WATER FITTING MAY W10397435 Contact Us For Availability
4
SUPPORT, FAN SCROLL (LEFT HAND) MAY 2203596 Contact Us For Availability
4
SWITCH, LIGHT MAY 2219875 Contact Us For Availability
4A
GASKET, DOOR (BLACK) MAY 2309529 Contact Us For Availability
4A
SUPPORT, FAN SCROLL (RIGHT HAND) MAY 2203595 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
TUBING, WATER RESERVOIR MAY W10276792 Contact Us For Availability
5
PAN, MEAT MAY 2188654 Contact Us For Availability
5
SHELF, WIRE MAY W10318947 Contact Us For Availability
5
SHIELD, WIRING MAY 1129563 Contact Us For Availability
5
SCREW MAY 489420 Contact Us For Availability
5
ASSEMBLY, SEPARATOR (STERLING SILVER) MAY W10845115 Contact Us For Availability
5
DUCT, FREEZER AIR MAY W10177781 Contact Us For Availability
5
SCREW MAY 627068 Contact Us For Availability
5
RAIL, UNIT MOUNTING MAY W10900442 Contact Us For Availability
5A
ASSEMBLY, SEPARATOR (BLACK) MAY W10845114 Contact Us For Availability
6
CLIP, GRILLE MAY 2155013 Contact Us For Availability
6
SCREW MAY 488280 Contact Us For Availability
6
ASSEMBLY, SHELF STUD MAY W10173126 Contact Us For Availability
6
BIN, FREEZER MAY 2309757 Contact Us For Availability
6
WIRE ASSEMBLY, ICE DISPENSER MAY W10298069 Contact Us For Availability
6
TRIVET MAY 2309718 Contact Us For Availability
6
UI ASSEMBLY CONTROL (BLACK) MAY W10869819 Contact Us For Availability
6
GASKET, AIR DUCT MAY W10252477 Contact Us For Availability
6
CONTROL, ADAPTIVE DEFROST MAY W10366605 Contact Us For Availability
6
SCREW MAY 8533993 Contact Us For Availability
7
PLATE, SCREW MAY 2304249 Contact Us For Availability
7
ASSEMBLY, AIR DIFFUSER MAY W10151374 Contact Us For Availability
7
SCREW MAY W10191954 Contact Us For Availability
7
CUP, SHELF MAY W10130299 Contact Us For Availability
7
SCREW MAY 489399 Contact Us For Availability
7
TRIVET MAY 2309941 Contact Us For Availability
7
SCREW MAY 3400012 Contact Us For Availability
7
MOTOR, EVAPORATOR FAN MAY W10312647 Contact Us For Availability
7
SCREW MAY 489398 Contact Us For Availability
7
CLIP MAY 489396 Contact Us For Availability
8
CLIP, ROLLER MAY W11087168 Contact Us For Availability
8
COVER, AIR DIFFUSER MAY 2152019 Contact Us For Availability
8
SCREW MAY W10191952 Contact Us For Availability
8
COUPLING, MOTOR MAY W10169511 Contact Us For Availability
8
THIMBLE, CAM MAY W10846216 Contact Us For Availability
8
GASKET, DOOR (BEIGE) MAY 2309532 Contact Us For Availability
8
BLADE, FAN MAY 2169142 Contact Us For Availability
8
WASHER MAY W10657618 Contact Us For Availability
8
SLEEVE MAY 2161302 Contact Us For Availability
8A
GASKET, DOOR (BLACK) MAY 2309533 Contact Us For Availability
9
HINGE, TOP (WHITE) MAY W10704885 Contact Us For Availability
9
COVER, WIRING MAY W10252495 Contact Us For Availability
9
ASSEMBLY, SHELF STUD MAY W10173127 Contact Us For Availability
9
LENS, LIGHT MAY 2171706 Contact Us For Availability
9
TRIM, DOOR SHELF MAY W10307494 Contact Us For Availability
9
GASKET MAY 2304241 Contact Us For Availability
9
ASSEMBLY, THERMOSTAT MAY W10583800 Contact Us For Availability
9
SCREW MAY 489427 Contact Us For Availability
9A
HINGE, TOP (BLACK) MAY W10704884 Contact Us For Availability
10
SCREW MAY 489500 Contact Us For Availability
10
SCREW MAY 486298 Contact Us For Availability
10
SLIDE, HUMIDITY CONTROL MAY 2179342 Contact Us For Availability
10
SHELF, WIRE MAY W10318948 Contact Us For Availability
10
BRACKET, DOOR STOP (SILVER) MAY W10219801 Contact Us For Availability
10
SCREW MAY W10288153 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
KNOB, THERMOSTAT MAY W10723843 Contact Us For Availability
10
TUBE, SUCTION MAY W10745337 Contact Us For Availability
11
SCREW MAY 488500 Contact Us For Availability
11
BODY, HUMIDITY CONTROL MAY 2179343 Contact Us For Availability
11
SWITCH, ROCKER ARM (FREEZER) MAY 1115373 Contact Us For Availability
11
CONTAINER, ICE MAY W10670845 Contact Us For Availability
11
THIMBLE, CAM MAY W10846219 Contact Us For Availability
11
SCREW MAY W10142292 Contact Us For Availability
11
ASSEMBLY, CAM MAY 2182195 Contact Us For Availability
11
CLIP, CONDENSER MAY 2311725 Contact Us For Availability
12
TUBE, FILTER OUTLET MAY W10350006 Contact Us For Availability
12
CLIP, CONTROL BOX MAY 2311612 Contact Us For Availability
12
MAY W11034699 MAY W11034699 Contact Us For Availability
12
CLIP, AIR DUCT MAY 2315163 Contact Us For Availability
12
SPACER, STEP MAY W11032812 Contact Us For Availability
12
HARNESS, EVAPORATOR FAN (INCLUDES BI-METAL DE MAY W10297482 Contact Us For Availability
12
BODY, BEARING MAY W10891600 Contact Us For Availability
12
CAPACITOR MAY W10350564 Contact Us For Availability
13
ASSEMBLY, BOTTOM HINGE (FREEZER) MAY W10414753 Contact Us For Availability
13
SCREW MAY 3400824 Contact Us For Availability
13
TRIM, PAN MAY W10630548 Contact Us For Availability
13
STUD, SUPPORT MAY 2196206 Contact Us For Availability
13
SPACER, FLAT MAY W11032808 Contact Us For Availability
13
GASKET MAY 2155789 Contact Us For Availability
13
CLIP, DAMPER CONTROL MAY 2196062 Contact Us For Availability
13
TUBE, PROCESS MAY 2325479 Contact Us For Availability
14
SCREW MAY 3400113 Contact Us For Availability
14
SHROUD, LIGHT MAY 2169193 Contact Us For Availability
14
ASSEMBLY, SHELF MAY W10276348 Contact Us For Availability
14
SCREW MAY 3400893 Contact Us For Availability
14
BLADE, ROTARY A MAY W10278731 Contact Us For Availability
14
COVER, EVAPORATOR MAY W10463013 Contact Us For Availability
14
ARM, PIVOT MAY W10891599 Contact Us For Availability
14
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
15
ROLLER ASSEMBLY (RIGHT HAND) MAY W10304659 Contact Us For Availability
15
SCREW MAY 489100 Contact Us For Availability
15
BLADE, ROTARY B MAY W10278732 Contact Us For Availability
15
KNOB, CONTROL MAY W10891408 Contact Us For Availability
15
SCREW MAY 8281232 Contact Us For Availability
16
FILLER, WRAPPER (WHITE) MAY W11189128 Contact Us For Availability
16
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
16
SLIDE, ICE CONTAINER (LEFT) MAY W10845585 Contact Us For Availability
16
BLADE, ROTARY C MAY W10278733 Contact Us For Availability
16
EVAPORATOR MAY 2188823 Contact Us For Availability
16A
FILLER, WRAPPER (BLACK) MAY W11189127 Contact Us For Availability
16A
SLIDE, ICE CONTAINER (RIGHT) MAY W10845583 Contact Us For Availability
17
GRILLE (WHITE) MAY W10348650 Contact Us For Availability
17
TUBE, THERMOSTAT BARRIER MAY 2196001 Contact Us For Availability
17A
GRILLE (BLACK) MAY W10348651 Contact Us For Availability
18
SCREW (WHITE) MAY W10308750 Contact Us For Availability
18
BULB, LIGHT MAY 2311792 Contact Us For Availability
18
BLADE, FIXED MAY W10181990 Contact Us For Availability
18
MOTOR, CONDENSER MAY W11042567 Contact Us For Availability
18A
SCREW (BLACK) MAY W10308751 Contact Us For Availability
19
SCREW MAY 3400103 Contact Us For Availability
19
BLOCK, BLADE MAY W10189708 Contact Us For Availability
19
CONTROL BOX HARNESS MAY W10354806 Contact Us For Availability
19
TRAY, EVAPORATOR MAY W10614158 Contact Us For Availability
20
SCREW MAY 489290 Contact Us For Availability
20
PIN, ROLL MAY 489229 Contact Us For Availability
20
CLIP, WIRE MAY 1115374 Contact Us For Availability
20
ASSEMBLY, HEAT SHIELD AND DRAIN PAN MAY W10194475 Contact Us For Availability
21
AUGER MAY W10295082 Contact Us For Availability
21
SCREW MAY 487869 Contact Us For Availability
21
DRIER MAY W10771114 Contact Us For Availability
22
FITTING, DRAIN MAY 2304888 Contact Us For Availability
22
DRUM MAY W10698642 Contact Us For Availability
22
ROD, CONNECTING MAY W10804348 Contact Us For Availability
22
SCREW MAY W10476309 Contact Us For Availability
23
EXTENSION, DRAIN FITTING MAY W10153550 Contact Us For Availability
23
BAFFLE, FLOATING MAY W10403781 Contact Us For Availability
23
FASTENER, PUSH-ON MAY W10672286 Contact Us For Availability
23
FRAME, UNIT MOUNTING MAY W10900445 Contact Us For Availability
24
COVER, UNIT MAY 2188735 Contact Us For Availability
24
NUT, BEARING MAY 1119018 Contact Us For Availability
24
LENS, LIGHT MAY 2200096 Contact Us For Availability
24
ASSEMBLY, UNIT WIRE (INCLUDES POWER CORD) MAY W10670169 Contact Us For Availability
25
ASSEMBLY, BOTTOM HINGE (REFRIGERATOR) MAY W10846222 Contact Us For Availability
25
ARM, CONTROL MAY W10838981 Contact Us For Availability
25
ASSEMBLY, LED MAY 2213462 Contact Us For Availability
25
BRACKET, FAN MOUNTING MAY 2181929 Contact Us For Availability
26
TUBE, FILTER INLET MAY W10350007 Contact Us For Availability
26
SPRING, RETURN MAY 1119020 Contact Us For Availability
26
HEATER, DEFROST MAY 2188175 Contact Us For Availability
27
FILTER, WATER MAY W10569758 Contact Us For Availability
27
CLIP, RETAINER (DISPENSER ROD) MAY 1119021 Contact Us For Availability
27
CLIP, DEFROST HEATER MAY 2161324 Contact Us For Availability
28
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
28
SCREW MAY 488886 Contact Us For Availability
28
COMPRESSOR (ALSO ORDER 876765 TUBE KIT) MAY W10800725 Contact Us For Availability
29
SCREW MAY 489084 Contact Us For Availability
29
HOUSING, CRUSHER MAY W10185018 Contact Us For Availability
29
GROMMET MAY 10835903 Contact Us For Availability
30
CLOSER, DOOR (FREEZER) MAY W10846218 Contact Us For Availability
30
DEFLECTER, ICE MAY 1119017 Contact Us For Availability
30
BOLT MAY 489340 Contact Us For Availability
31
SCREW MAY W10142234 Contact Us For Availability
31
WASHER, PLAIN UPPER CAM MAY 489234 Contact Us For Availability
31
BAFFLE, AIR MAY W10332806 Contact Us For Availability
32
HOUSING, WATER FILTER (WHITE) MAY W10778316 Contact Us For Availability
32
RING, RETAINER MAY 489236 Contact Us For Availability
32
TIE, WIRE MAY 2263990 Contact Us For Availability
32A
HOUSING, WATER FILTER (BLACK) MAY W10778315 Contact Us For Availability
33
COVER, ICE CONTAINER FRONT MAY W10189191 Contact Us For Availability
33
ASSEMBLY, UNIT COVER (BOTTOM) MAY W10836750 Contact Us For Availability
34
CLAMP, TUBE MAY W10329003 Contact Us For Availability
34
DOOR, ICE MAY W10406980 Contact Us For Availability
34
HEAT PROBE MAY W10895163 Contact Us For Availability
35
INSERT, TUBE MAY 2181939 Contact Us For Availability
35
COUPLING, ICE CONVEYOR MAY W10698668 Contact Us For Availability
36
TUBE, WATER MAY W10357076 Contact Us For Availability
36
ASSEMBLY, ICEMAKER MAY W10300022 Contact Us For Availability
37
ASSEMBLY, FILTER VALVE MAY W10179146 Contact Us For Availability
37
HARNESS, ICEMAKER MAY W10508644 Contact Us For Availability
38
SCREW MAY 488649 Contact Us For Availability
38
ARM, SHUT OFF MAY W10512602 Contact Us For Availability
39
LOCKING RING (1/4) MAY W11175632 Contact Us For Availability
39
COVER, ICEMAKER MAY W10289690 Contact Us For Availability
39A
LOCKING RING (5/16) MAY W11175631 Contact Us For Availability
40
CHUTE, WATER MAY 2209774 Contact Us For Availability
41
CONNECTOR, UNION MAY W10271541 Contact Us For Availability
42
ASSEMBLY, BRACKET MAY W10355758 Contact Us For Availability
100
ICE CONTAINER, COMPLETE MAY W10558423 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP. (1/2OZ.. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
× ![]()
