Model Maytag ASI2175GRB04 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams

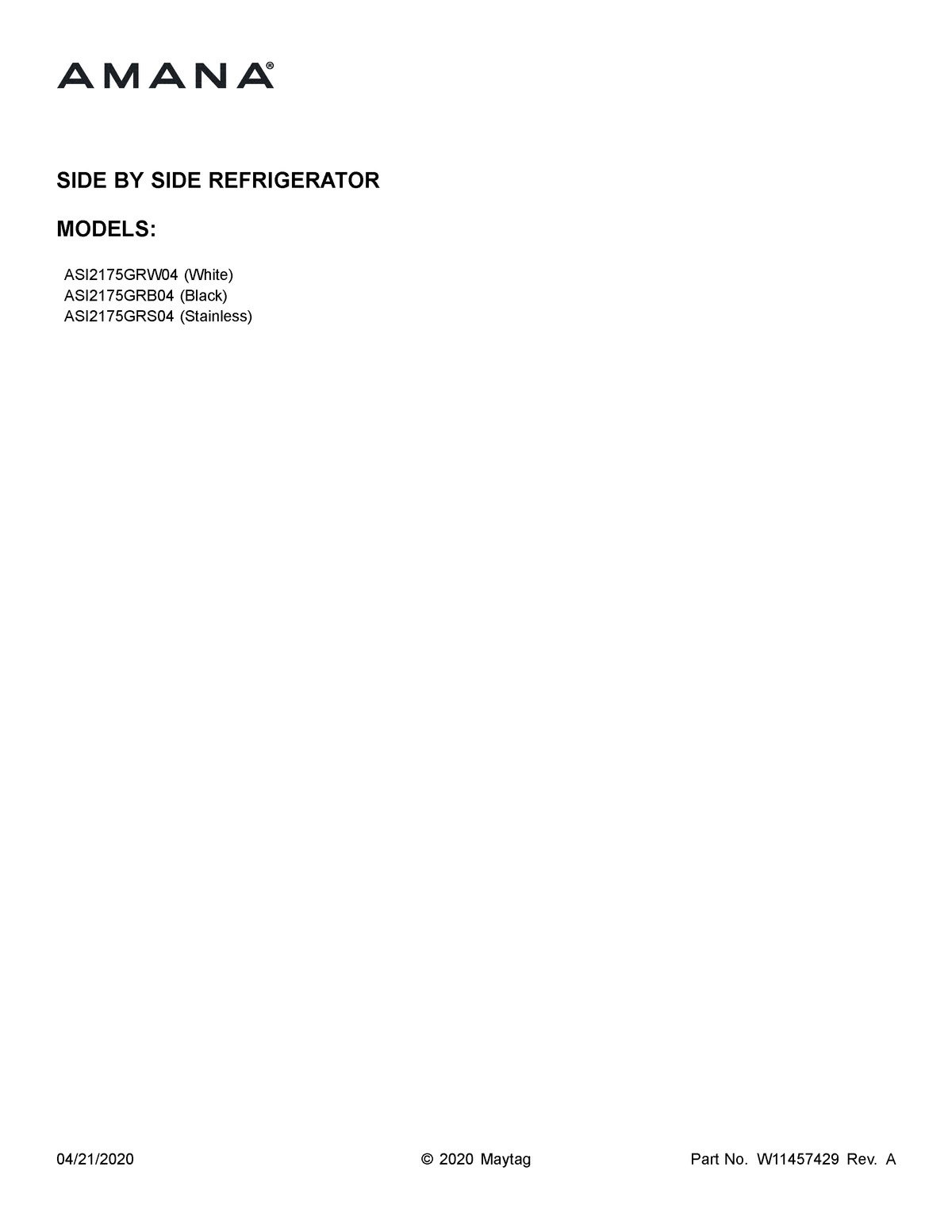

01 - COVER SHEET

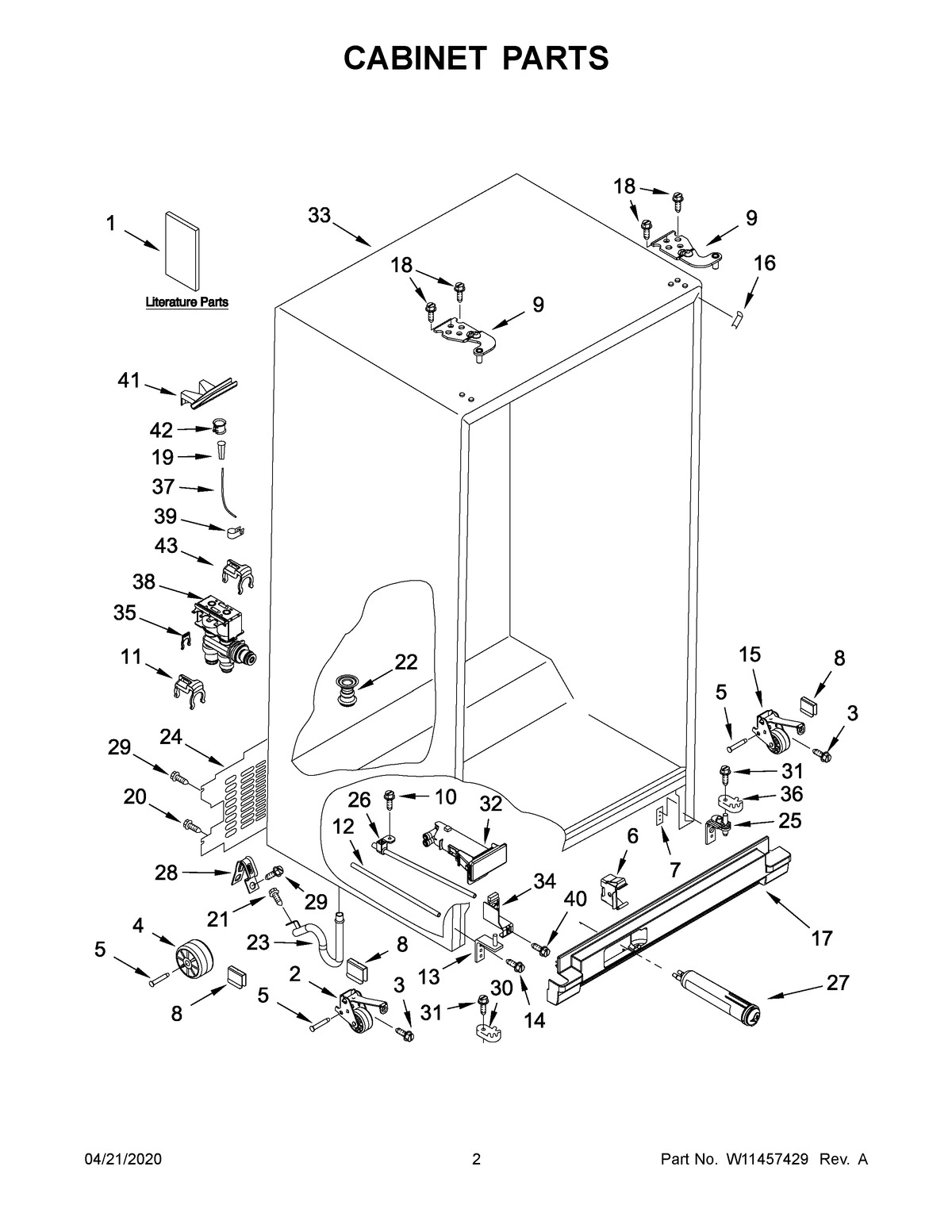

02 - CABINET PARTS

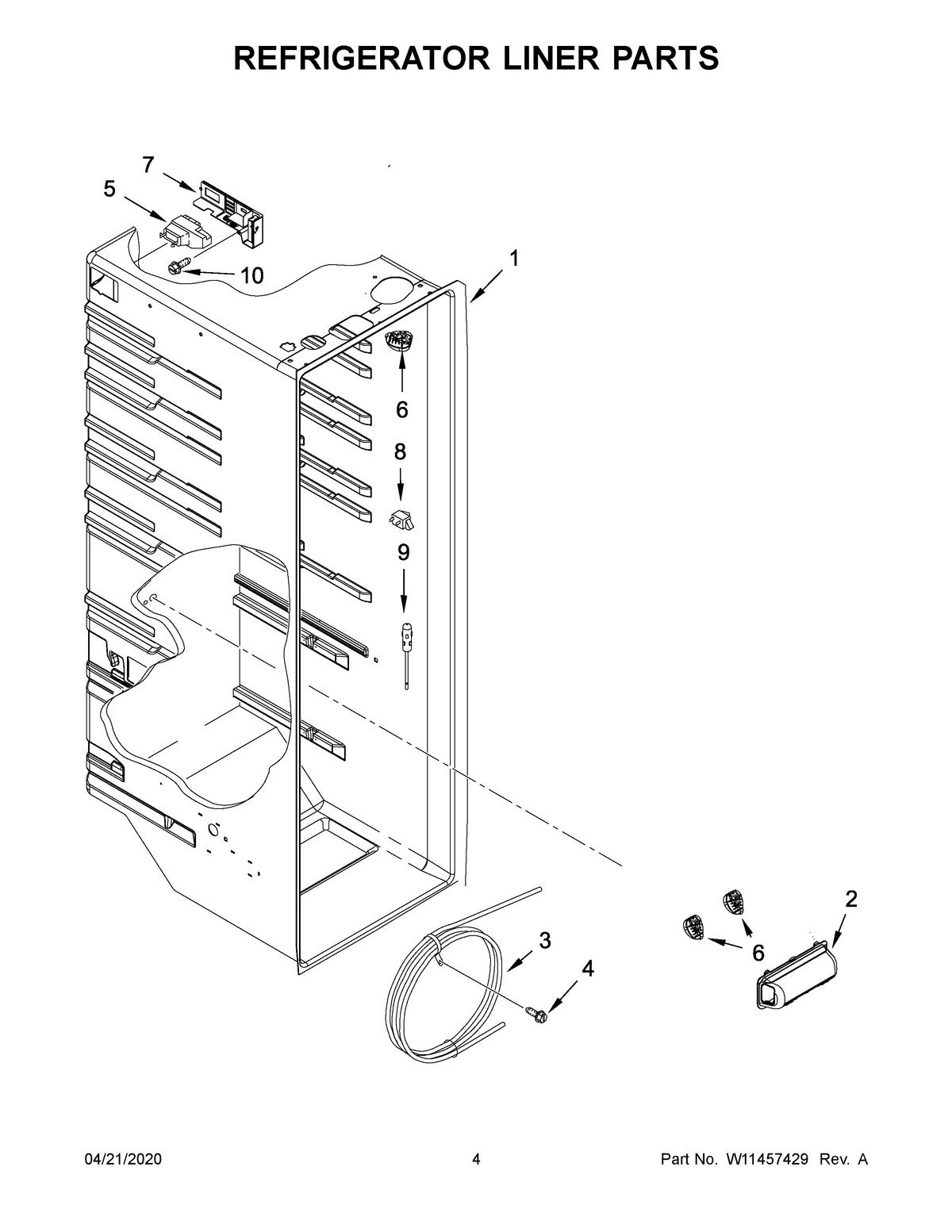

03 - REFRIGERATOR LINER PARTS

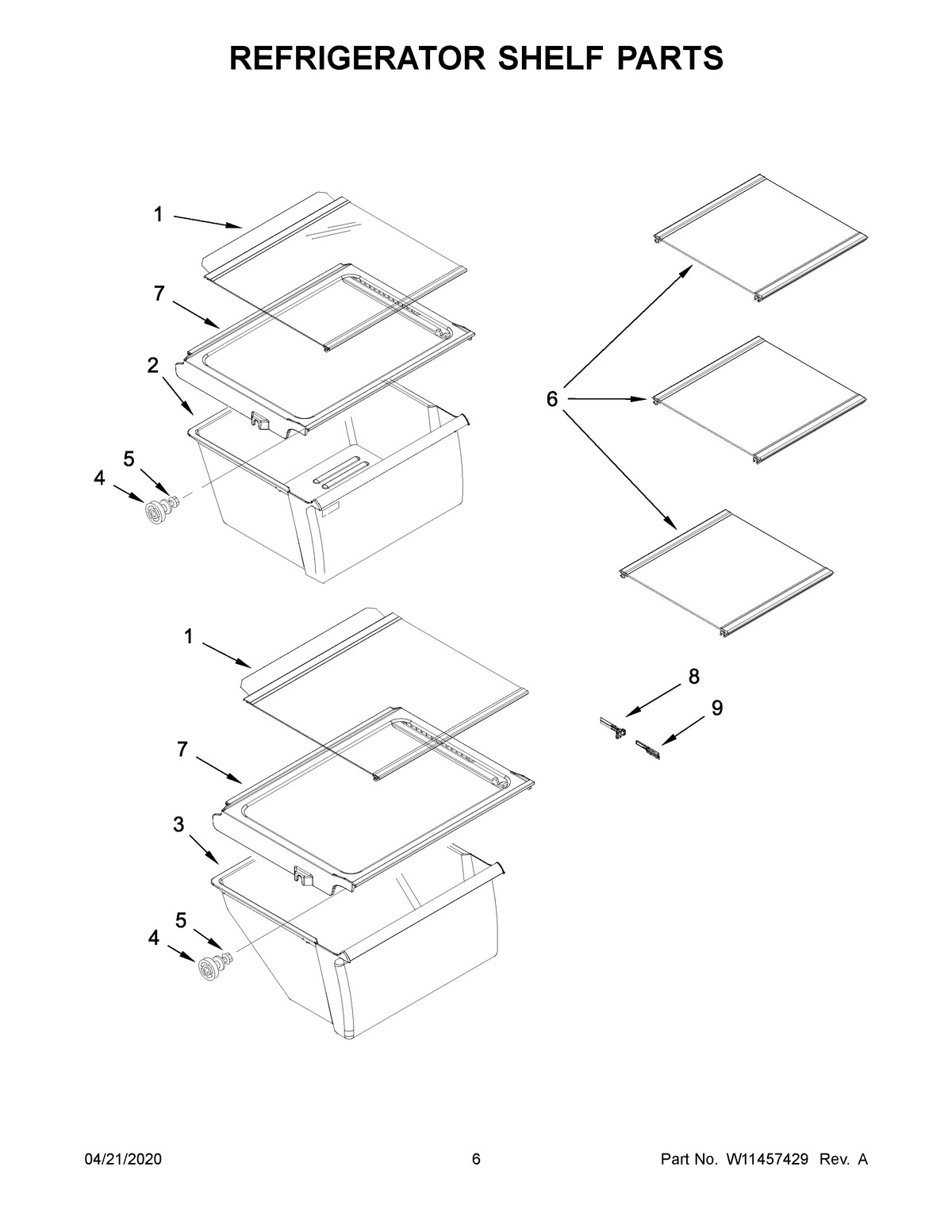

04 - REFRIGERATOR SHELF PARTS

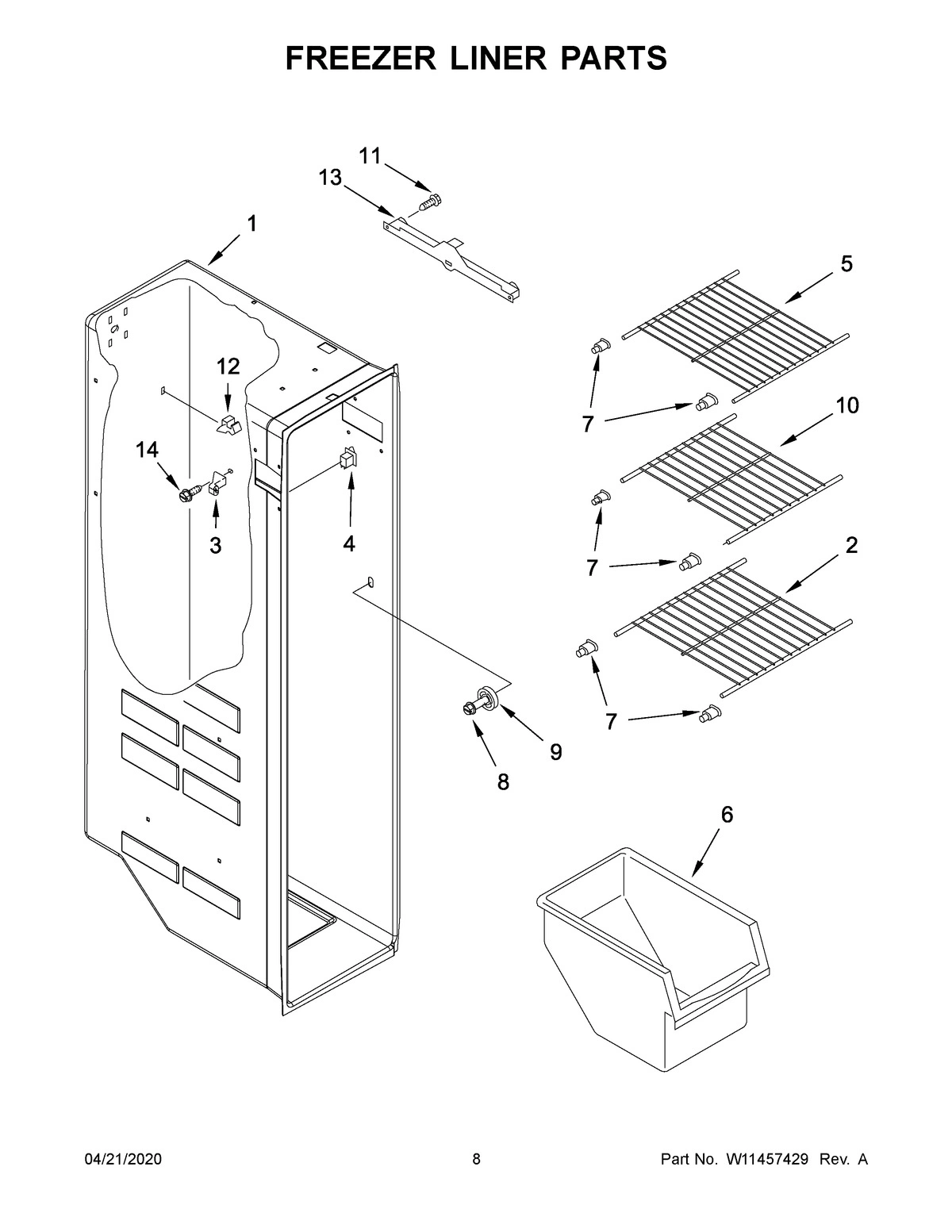

05 - FREEZER LINER PARTS

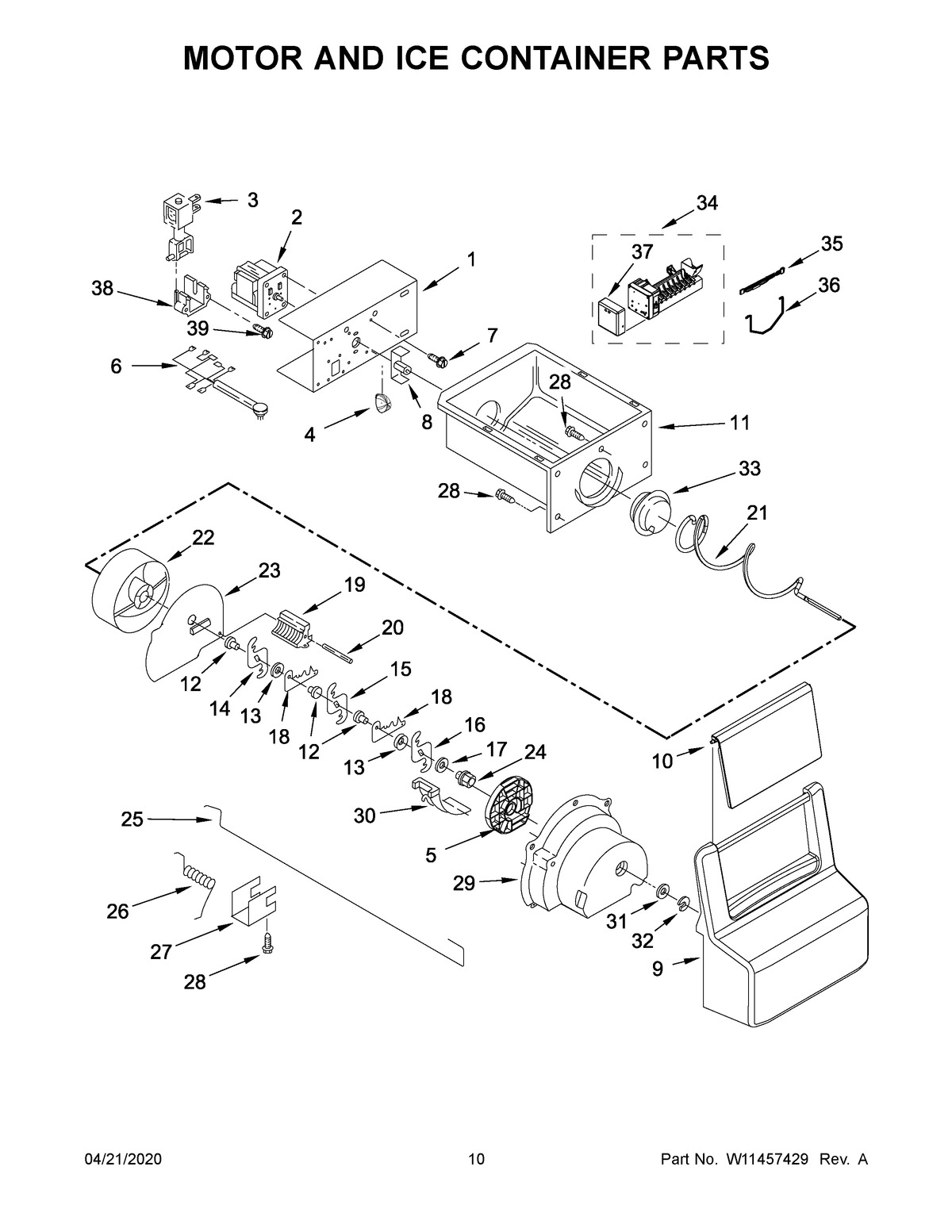

06 - MOTOR AND ICE CONTAINER PARTS

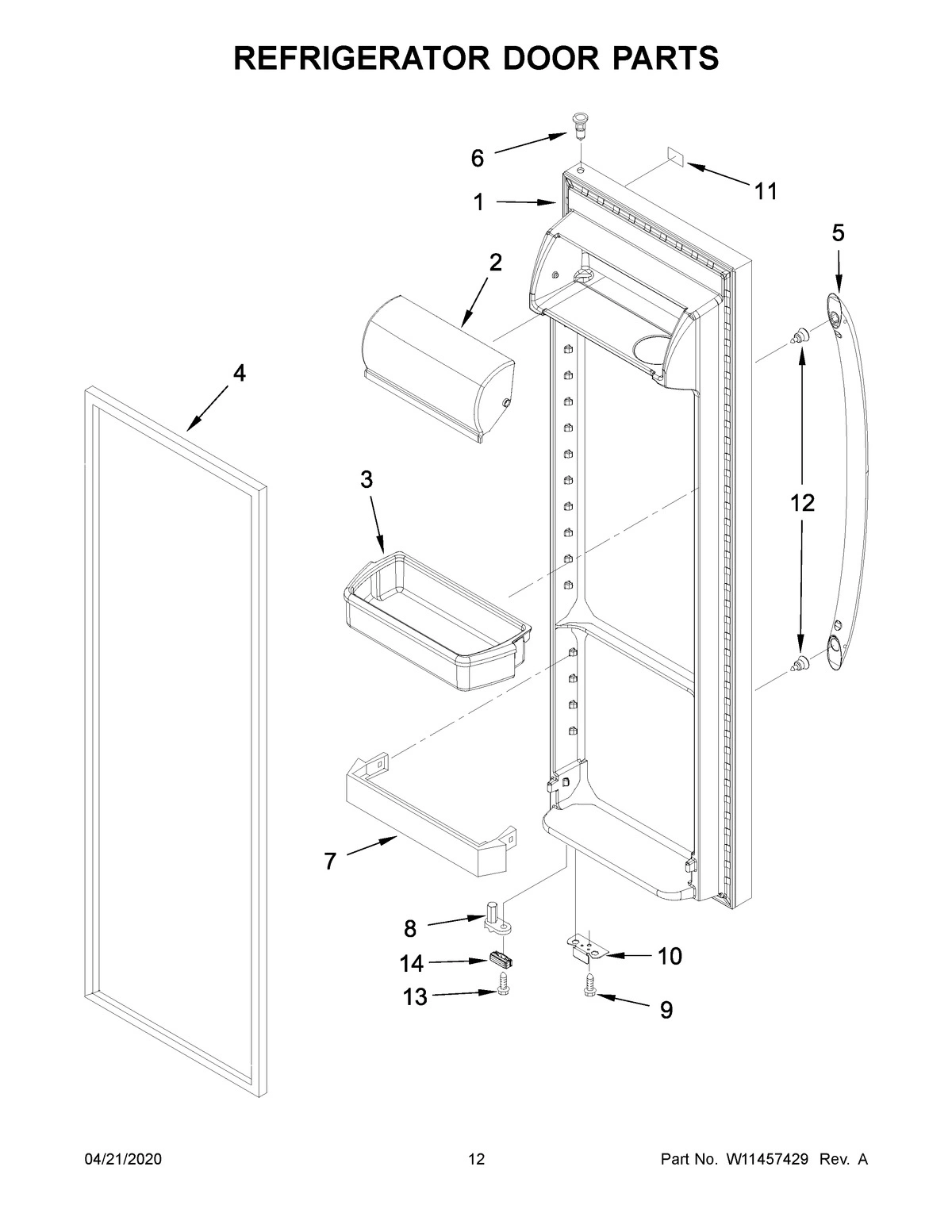

07 - REFRIGERATOR DOOR PARTS

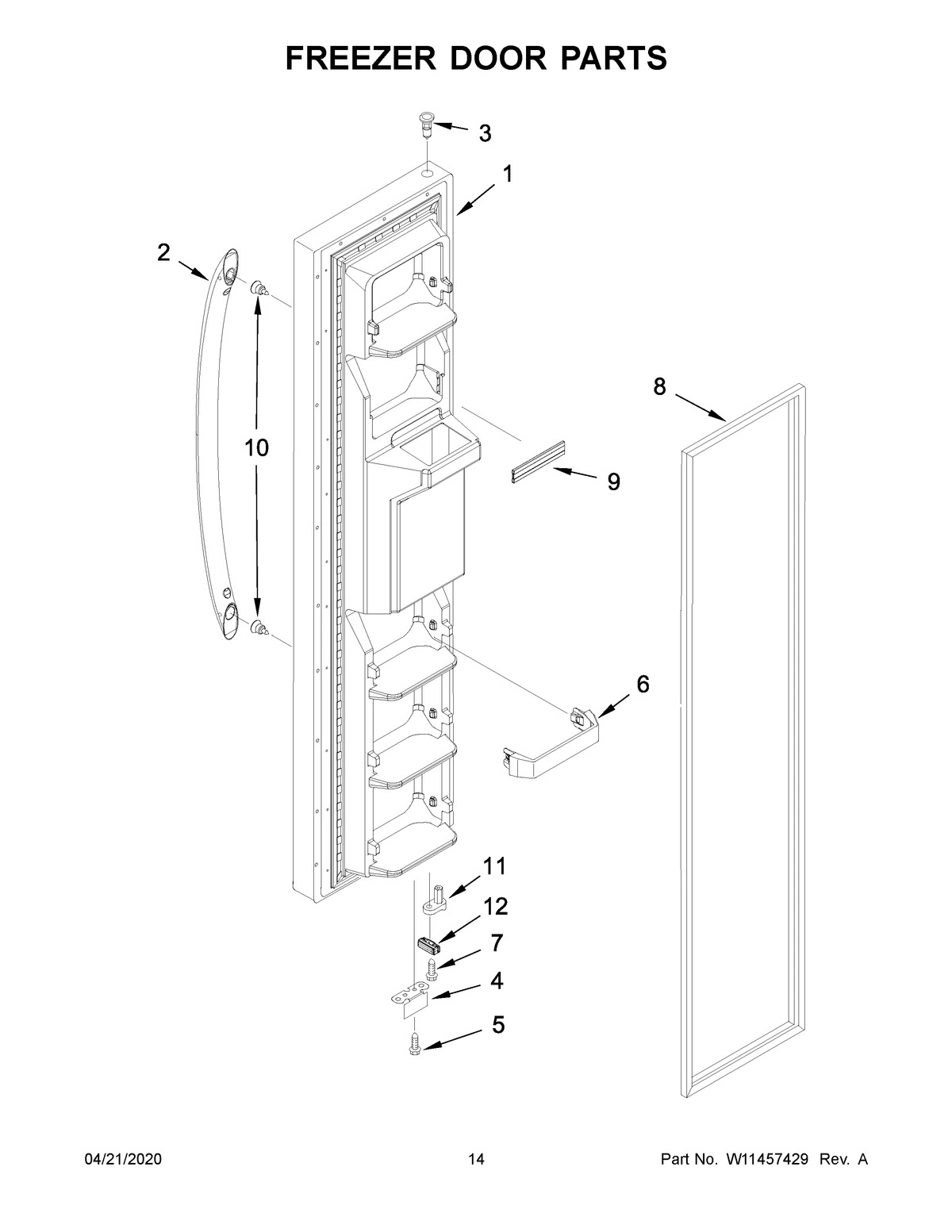

08 - FREEZER DOOR PARTS

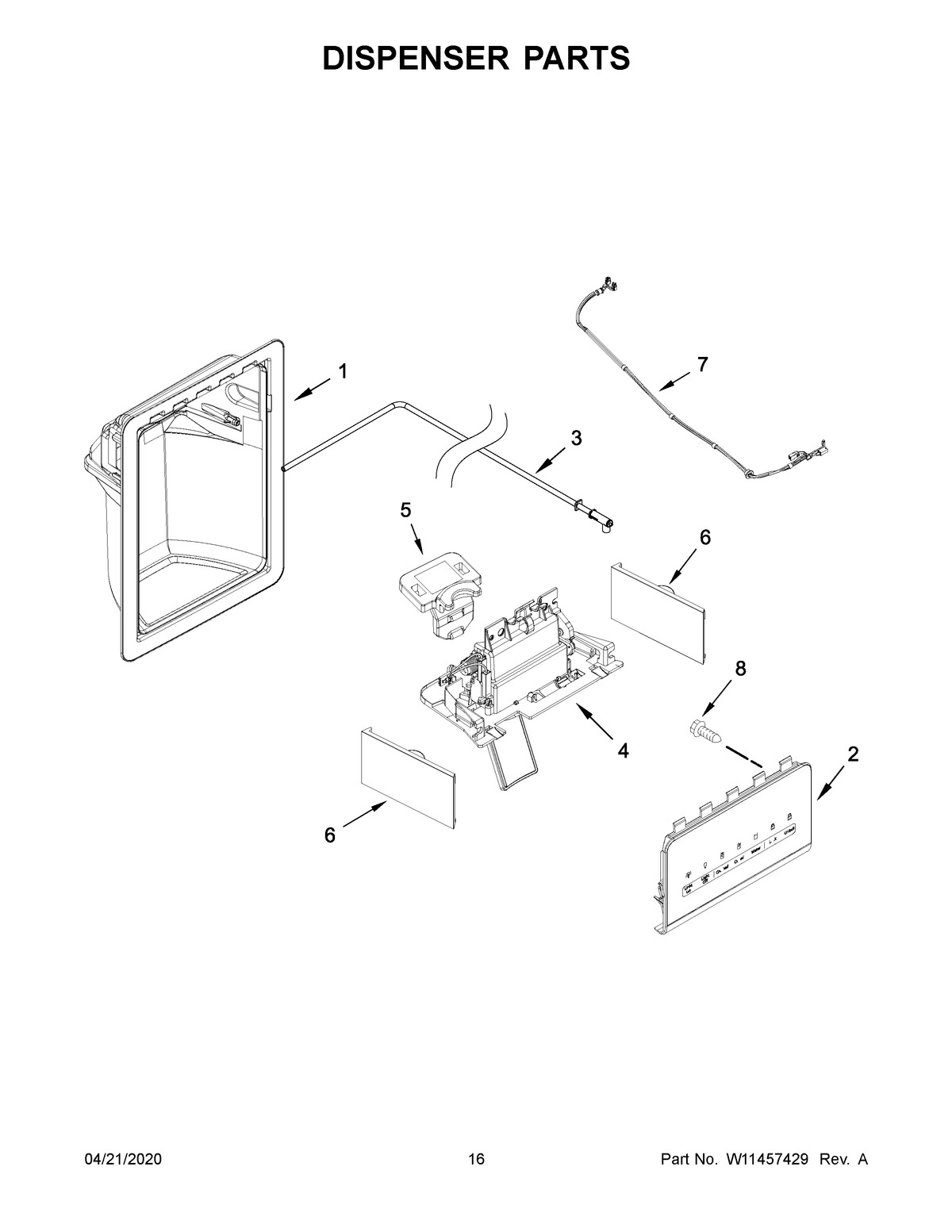

09 - DISPENSER PARTS

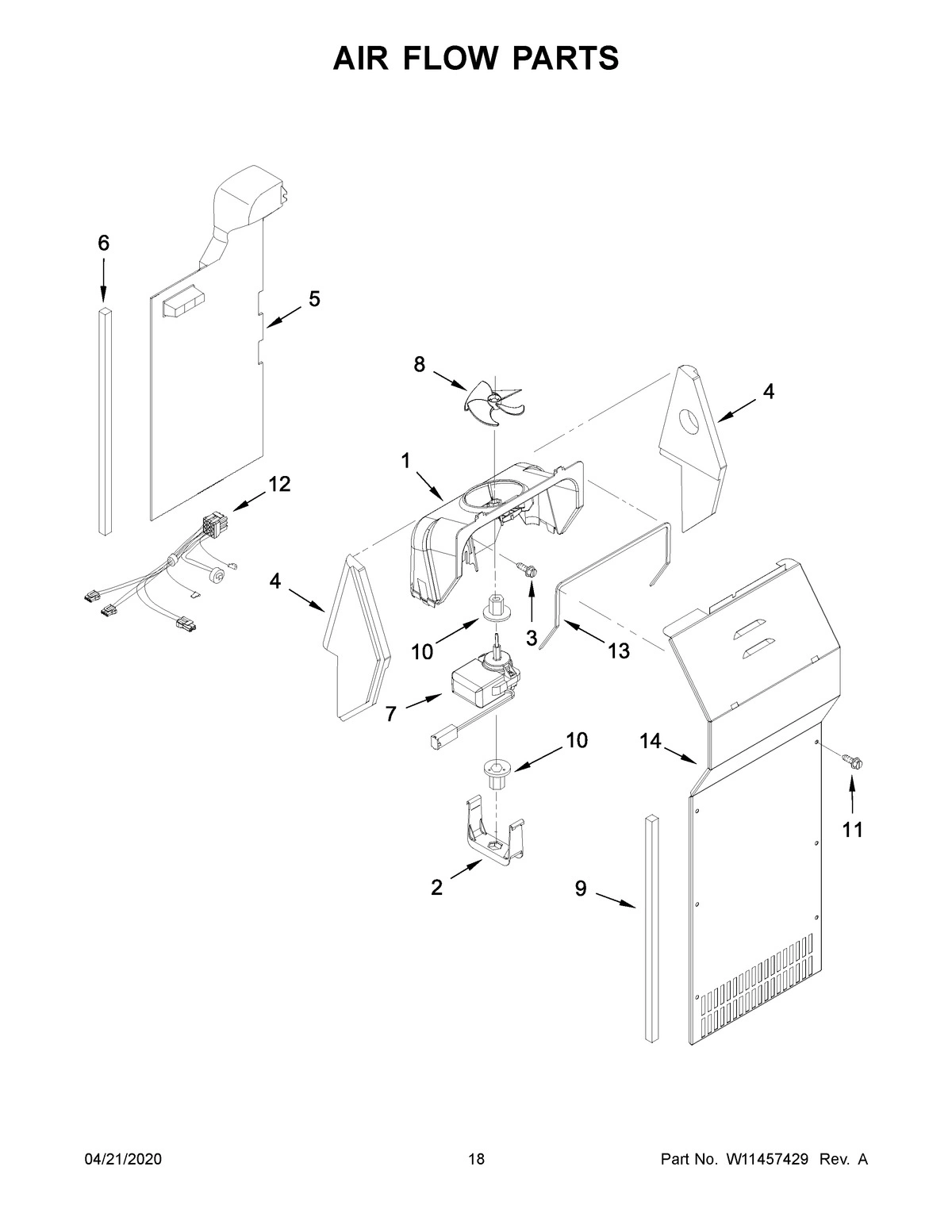

10 - AIR FLOW PARTS

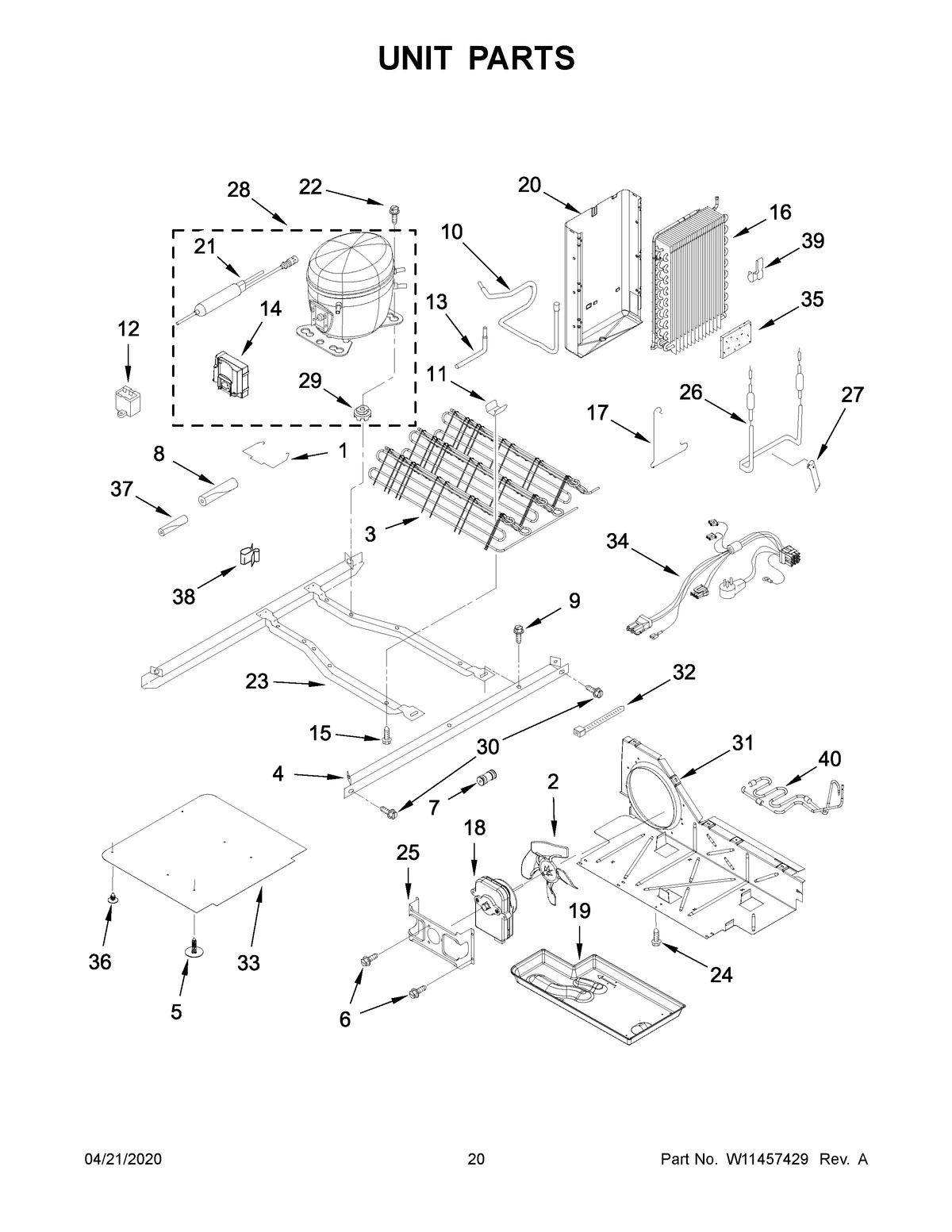

11 - UNIT PARTS
12 - OPTIONAL PARTS
Common parts from model Maytag ASI2175GRB04 REFRIGERATOR, SIDE-BY-SIDE
1
USE & CARE GUIDE MAY W11366709 Contact Us For Availability
1
COVER, CRISPER MAY W11351249 Contact Us For Availability
1
BRACKET, MOTOR MAY W11307588 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (WH MAY W10912366 Contact Us For Availability
1
DOOR, FREEZER (INCLUDES GASKET AND DISPENSER MAY W11032721 Contact Us For Availability
1
SCROLL, FAN MAY W11228728 Contact Us For Availability
1
STRAP, BALE MAY W10174384 Contact Us For Availability
1A
TECH SHEET MAY W11248697 Contact Us For Availability
1A
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BL MAY W10912374 Contact Us For Availability
1A
DOOR, FREEZER (INCLUDES GASKET AND DISPENSER MAY W11032729 Contact Us For Availability
1B
ENERGY GUIDE MAY W11239606 Contact Us For Availability
1B
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (ST MAY W11156544 Contact Us For Availability
1B
DOOR, FREEZER (INCLUDES GASKET AND DISPENSER MAY W11025544 Contact Us For Availability
2
ASSEMBLY, ROLLER (LEFT HAND) MAY W10304660 Contact Us For Availability
2
LENS, LIGHT (INCLUDES GASKET) MAY W10166130 Contact Us For Availability
2
PAN, CRISPER MAY W10902068 Contact Us For Availability
2
SHELF, WIRE MAY W10318952 Contact Us For Availability
2
MOTOR, DISPENSER MAY W10884561 Contact Us For Availability
2
DOOR, COMPARTMENT MAY 2256101 Contact Us For Availability
2
HANDLE (WHITE) MAY W10210942 Contact Us For Availability
2
ASSEMBLY, USER INTERFACE (INCLUDES DISPENSER MAY W10922069 Contact Us For Availability
2
RETAINER, FAN MOTOR MAY W10188846 Contact Us For Availability
2
BLADE, FAN MAY 2225834 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10210943 Contact Us For Availability
2B
HANDLE (GREY) MAY W10257120 Contact Us For Availability
3
SCREW MAY 2152958 Contact Us For Availability
3
TUBING, WATER RESERVOIR MAY W11222027 Contact Us For Availability
3
PAN, MEAT MAY W11035216 Contact Us For Availability
3
STUD, SUPPORT MAY 2196206 Contact Us For Availability
3
ASSEMBLY, SOLENOID MAY 2152713 Contact Us For Availability
3
BIN, DOOR MAY W11034658 Contact Us For Availability
3
THIMBLE MAY 2200087 Contact Us For Availability
3
ASSEMBLY, WATER FITTING MAY W10898317 Contact Us For Availability
3
SCREW MAY 489478 Contact Us For Availability
3
ASSEMBLY, CONDENSER MAY W10904626 Contact Us For Availability
4
ROLLER MAY 2150304 Contact Us For Availability
4
SCREW MAY W10141518 Contact Us For Availability
4
LIGHT MODULE, LED MAY W11251749 Contact Us For Availability
4
ASSEMBLY, SHELF STUD MAY W10173126 Contact Us For Availability
4
SWITCH, ROCKER ARM (FREEZER) MAY 1115373 Contact Us For Availability
4
GASKET, DOOR (BEIGE) MAY W10912372 Contact Us For Availability
4
BRACKET, DOOR STOP (BLACK) MAY W10900531 Contact Us For Availability
4
ASSEMBLY, SEPARATOR (WHITE) MAY W11231390 Contact Us For Availability
4
SUPPORT, FAN SCROLL (LEFT HAND) MAY 2203596 Contact Us For Availability
4
RAIL, UNIT MOUNTING MAY W10905882 Contact Us For Availability
4A
GASKET, DOOR (BLACK) MAY W10912379 Contact Us For Availability
4A
ASSEMBLY, SEPARATOR (BLACK) MAY W11231389 Contact Us For Availability
4A
SUPPORT, FAN SCROLL (RIGHT HAND) MAY 2203595 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
DIFFUSER, AIR MAY W11264792 Contact Us For Availability
5
SHELF, WIRE (SHORT) MAY W10318960 Contact Us For Availability
5
SPACER - CRUSHER HOUSING MAY W10138206 Contact Us For Availability
5
SCREW MAY W10296816 Contact Us For Availability
5
RETAINER, SEPARATOR HOSE MAY W11039857 Contact Us For Availability
5
DUCT, FREEZER AIR MAY W11099844 Contact Us For Availability
5
CLIP MAY 489396 Contact Us For Availability
6
CLIP, GRILLE MAY 2155013 Contact Us For Availability
6
ASSEMBLY, SHELF MAY W11135530 Contact Us For Availability
6
BIN, FREEZER MAY 2309758 Contact Us For Availability
6
ASSEMBLY, ICE DISPENSER WIRING MAY W11218402 Contact Us For Availability
6
TRIM, DOOR MAY 2309717 Contact Us For Availability
6
COVER, FRONT (WHITE (LEFT HAND)) MAY W11183318 Contact Us For Availability
6
GASKET MAY W10252476 Contact Us For Availability
6
SCREW MAY 8533993 Contact Us For Availability
6A
COVER, FRONT (WHITE (RIGHT HAND)) MAY W11183314 Contact Us For Availability
6B
COVER, FRONT (BLACK (LEFT HAND)) MAY W11183317 Contact Us For Availability
6C
COVER, FRONT (BLACK (RIGHT HAND)) MAY W11183313 Contact Us For Availability
7
PLATE, SCREW (REFRIGERATOR) MAY W11036715 Contact Us For Availability
7
ASSEMBLY, CONTROL BOX (INCLUDES ELECTRONIC CO MAY W11026019 Contact Us For Availability
7
HOLDER, PAN MAY W10904001 Contact Us For Availability
7
CUP, SHELF MAY W10130299 Contact Us For Availability
7
SCREW MAY 489399 Contact Us For Availability
7
TRIVET MAY 2309941 Contact Us For Availability
7
SCREW MAY W10296804 Contact Us For Availability
7
HARNESS, WIRE MAY W10898319 Contact Us For Availability
7
MOTOR, FAN MAY 2315549 Contact Us For Availability
7
CONNECTOR, UNION MAY W10271541 Contact Us For Availability
7A
PLATE, SCREW (FREEZER) MAY W10904380 Contact Us For Availability
8
CLIP, ROLLER MAY W11087168 Contact Us For Availability
8
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
8
SCREW MAY W10191954 Contact Us For Availability
8
SLIDE, HUMIDITY MAY W10282883 Contact Us For Availability
8
COUPLING, MOTOR MAY W10169511 Contact Us For Availability
8
THIMBLE, CAM MAY W10900464 Contact Us For Availability
8
GASKET, DOOR (BEIGE) MAY W10911494 Contact Us For Availability
8
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
8
BLADE, FAN MAY 2169142 Contact Us For Availability
8
SLEEVE MAY 2161302 Contact Us For Availability
8A
GASKET, DOOR (BLACK) MAY W10911504 Contact Us For Availability
9
HINGE, TOP (TOP LEFT) MAY W11167022 Contact Us For Availability
9
THERMISTOR MAY W10384183 Contact Us For Availability
9
HOUSING, HUMIDITY MAY W10282880 Contact Us For Availability
9
ASSEMBLY, STUD MAY 2196208 Contact Us For Availability
9
COVER, ICE CONTAINER FRONT MAY W10189274 Contact Us For Availability
9
TRIM, DOOR SHELF MAY W10307492 Contact Us For Availability
9
GASKET MAY 2304241 Contact Us For Availability
9
SCREW MAY 489427 Contact Us For Availability
9A
HINGE, TOP (TOP RIGHT) MAY W11167023 Contact Us For Availability
10
SCREW MAY 489500 Contact Us For Availability
10
SCREW MAY 486298 Contact Us For Availability
10
SHELF, WIRE MAY W10318953 Contact Us For Availability
10
DOOR, ICE MAY W11351745 Contact Us For Availability
10
BRACKET, DOOR STOP (BLACK) MAY W10900463 Contact Us For Availability
10
SCREW MAY W10288153 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
TUBE, SUCTION MAY W11164682 Contact Us For Availability
11
CONNECTOR, DOUBLE LOCK MAY W11091654 Contact Us For Availability
11
SCREW MAY 489100 Contact Us For Availability
11
CONTAINER, ICE MAY W10670844 Contact Us For Availability
11
BADGE (WHITE) MAY W11046244 Contact Us For Availability
11
THIMBLE, CAM MAY W10900532 Contact Us For Availability
11
SCREW MAY W10142292 Contact Us For Availability
11
CLIP, CONDENSER MAY 2311725 Contact Us For Availability
11A
BADGE (BLACK) MAY W11046243 Contact Us For Availability
11B
BADGE (STAINLESS) MAY W11046241 Contact Us For Availability
12
TUBE, FILTER OUTLET MAY W10900447 Contact Us For Availability
12
CLIP, AIR DUCT MAY 2315163 Contact Us For Availability
12
SPACER, STEP MAY W11032812 Contact Us For Availability
12
BUMPER, DOOR (WHITE) MAY W10407175 Contact Us For Availability
12
HARNESS, EVAPORATOR FAN (INCLUDES THERMAL FUS MAY W11342162 Contact Us For Availability
12
CAPACITOR MAY W10350564 Contact Us For Availability
12A
BUMPER, DOOR (BLACK) MAY W10407187 Contact Us For Availability
13
ASSEMBLY, BOTTOM HINGE (FREEZER) MAY W11093938 Contact Us For Availability
13
SLIDE, ICE CONTAINER (LEFT) MAY W10845585 Contact Us For Availability
13
SPACER, FLAT MAY W11032808 Contact Us For Availability
13
SCREW (WHITE) MAY W10142283 Contact Us For Availability
13
GASKET, SCROLL ASSEMBLY MAY 2155788 Contact Us For Availability
13
TUBE, PROCESS MAY W11239207 Contact Us For Availability
13A
SLIDE, ICE CONTAINER (RIGHT) MAY W10845583 Contact Us For Availability
13A
SCREW (BLACK) MAY W10308487 Contact Us For Availability
14
SCREW MAY 3400113 Contact Us For Availability
14
SCREW MAY 3400893 Contact Us For Availability
14
BLADE, ROTARY A MAY W10278731 Contact Us For Availability
14
COVER, EVAPORATOR MAY W10463010 Contact Us For Availability
14
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
15
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10304659 Contact Us For Availability
15
BLADE, ROTARY B MAY W10278732 Contact Us For Availability
15
SCREW MAY 8281232 Contact Us For Availability
16
FILLER, WRAPPER (WHITE) MAY W11219639 Contact Us For Availability
16
BLADE, ROTARY C MAY W10278733 Contact Us For Availability
16
EVAPORATOR MAY 2188822 Contact Us For Availability
16A
FILLER, WRAPPER (BLACK) MAY W11219641 Contact Us For Availability
17
GRILLE (WHITE) MAY W11226346 Contact Us For Availability
17
CLIP, DEFROST HEATER MAY 2161324 Contact Us For Availability
17A
GRILLE (BLACK) MAY W11226347 Contact Us For Availability
18
SCREW, HINGE MAY W10290781 Contact Us For Availability
18
BLADE, FIXED MAY W10181990 Contact Us For Availability
18
MOTOR, CONDENSER FAN MAY W10522629 Contact Us For Availability
19
INSERT, TUBE MAY 2181939 Contact Us For Availability
19
BLOCK, BLADE MAY W10189708 Contact Us For Availability
19
TRAY, EVAPORATOR MAY W10897557 Contact Us For Availability
20
SCREW MAY 489290 Contact Us For Availability
20
PIN, ROLL MAY 489229 Contact Us For Availability
20
ASSEMBLY, HEAT SHIELD AND DRAIN PAN MAY W10194474 Contact Us For Availability
21
AUGER MAY W10295082 Contact Us For Availability
21
DRIER MAY W10771114 Contact Us For Availability
22
FITTING, DRAIN MAY 2304888 Contact Us For Availability
22
DRUM MAY W10698642 Contact Us For Availability
22
SCREW MAY 489473 Contact Us For Availability
23
EXTENSION, DRAIN FITTING MAY W10153550 Contact Us For Availability
23
BAFFLE, FLOATING MAY W10403781 Contact Us For Availability
23
FRAME, UNIT MOUNTING (INCLUDES UNIT MOUNTING MAY W10905880 Contact Us For Availability
24
SCREW MAY 489464 Contact Us For Availability
24
COVER, UNIT MAY W10898351 Contact Us For Availability
24
NUT, BEARING MAY 1119018 Contact Us For Availability
25
ASSEMBLY, BOTTOM HINGE (REFRIGERATOR) MAY W11097327 Contact Us For Availability
25
ARM, CONTROL MAY W10838981 Contact Us For Availability
25
BRACKET, FAN MOUNTING MAY 2181929 Contact Us For Availability
26
TUBE, FILTER INLET MAY W10900449 Contact Us For Availability
26
SPRING, RETURN MAY 1119020 Contact Us For Availability
26
HEATER, DEFROST MAY W10495967 Contact Us For Availability
27
FILTER, WATER MAY W10735398 Contact Us For Availability
27
CLIP, RETAINER (DISPENSER ROD) MAY 1119021 Contact Us For Availability
27
PROBE, HEAT MAY W10895163 Contact Us For Availability
28
CLAMP, POWER CORD MAY W11242280 Contact Us For Availability
28
SCREW MAY 488886 Contact Us For Availability
28
COMPRESSOR MAY W10879296 Contact Us For Availability
29
SCREW MAY W10141645 Contact Us For Availability
29
HOUSING, CRUSHER MAY W10185018 Contact Us For Availability
29
GROMMET MAY 10835903 Contact Us For Availability
30
CLOSER, DOOR (FREEZER) MAY W11095731 Contact Us For Availability
30
DEFLECTER, ICE MAY 1119017 Contact Us For Availability
30
BOLT MAY 489340 Contact Us For Availability
31
SCREW MAY W10142234 Contact Us For Availability
31
WASHER, PLAIN UPPER CAM MAY 489234 Contact Us For Availability
31
BAFFLE, AIR MAY W10897567 Contact Us For Availability
32
HOUSING, WATER FILTER (WHITE) MAY W11036340 Contact Us For Availability
32
RING, RETAINER MAY 489236 Contact Us For Availability
32
CABLE TIE MAY W10155270 Contact Us For Availability
32A
HOUSING, WATER FILTER (BLACK) MAY W11036341 Contact Us For Availability
33
COUPLING, ICE CONVEYOR MAY W10698668 Contact Us For Availability
33
ASSEMBLY, UNIT COVER (BOTTOM) MAY W10905940 Contact Us For Availability
34
ASSEMBLY, BRACKET MAY W10897565 Contact Us For Availability
34
ASSEMBLY, ICEMAKER MAY W10300022 Contact Us For Availability
34
ASSEMBLY, UNIT WIRE (INCLUDES POWER CORD) MAY W11218404 Contact Us For Availability
35
LOCKING RING (1/4) MAY W11175632 Contact Us For Availability
35
HARNESS, ICEMAKER MAY W11348616 Contact Us For Availability
35
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
35A
LOCKING RING (5/16) MAY W11175631 Contact Us For Availability
36
CLOSER, LOWER CAM DOOR (REFRIGERATOR) MAY W10905504 Contact Us For Availability
36
ASSEMBLY, SHUT OFF ARM MAY W11182354 Contact Us For Availability
36
RETAINER, PUSH-IN MAY W10000080 Contact Us For Availability
37
TUBE, WATER MAY W10357069 Contact Us For Availability
37
COVER, ICEMAKER MAY W10289690 Contact Us For Availability
37
SLEEVE MAY 2264838 Contact Us For Availability
38
ASSEMBLY, FILTER VALVE MAY W10179146 Contact Us For Availability
38
GUIDE, SOLENOID MAY 2149100 Contact Us For Availability
38
CLIP, WIRE MAY 2326941 Contact Us For Availability
39
CLAMP, TUBE MAY M0108107 Contact Us For Availability
39
SCREW MAY 489355 Contact Us For Availability
39
CLIP MAY 2304287 Contact Us For Availability
40
SCREW MAY 8281149 Contact Us For Availability
40
ASSEMBLY, PRECOOLER FORMED MAY W11189542 Contact Us For Availability
41
CHUTE, WATER MAY W11414074 Contact Us For Availability
42
CLAMP, TUBE MAY W10329003 Contact Us For Availability
43
DOUBLE LOCK RING (1/4) MAY W11252188 Contact Us For Availability
100
ICE CONTAINER, COMPLETE MAY W10558424 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY) MAY W10134625 Contact Us For Availability
NI
MISCELLANEOUS, KIT, HANDLE INSTALLATION MAY W10300794 Contact Us For Availability
NI
MISCELLANEOUS, ICE MAKER ASSEMBLY (ECKMF95) MAY W10715708 Contact Us For Availability
× ![]()
