Model LG AS330DWR0 – Common Parts & Diagrams

146DNU
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE EAU51135503 Contact Us For Availability
View on Model
2687D
PCB Assembly,Display
PCB Assembly,Display LGE EBR32132204 Contact Us For Availability
View on Model
2687M
PCB Assembly,Main
PCB Assembly,Main LGE EBR85376743 Contact Us For Availability
View on Model
2687P
PCB Assembly,Power
PCB Assembly,Power LGE EBR83338424 Contact Us For Availability
View on Model
130402
Base,Single
Base,Single LGE MAM64464101 Contact Us For Availability
View on Model
130411
Base,Indoor
Base,Indoor LGE MAM64387907 Contact Us For Availability
View on Model
131110A
LGE ABQ75824847
LGE ABQ75824847 LGE ABQ75824847 Contact Us For Availability
View on Model
131110B
Case Assembly,Single
Case Assembly,Single LGE ABQ75824848 Contact Us For Availability
View on Model
135080A
Decor
Decor LGE MCR66667401 Contact Us For Availability
View on Model
135500B
Cover
Cover LGE MCK69412101 Contact Us For Availability
View on Model
135500F
LGE MCK69455604
LGE MCK69455604 LGE MCK69455604 Contact Us For Availability
View on Model
135500N
Cover,LED
Cover,LED LGE MCK69313702 Contact Us For Availability
View on Model
135500P
Cover
Cover LGE MCK69412204 Contact Us For Availability
View on Model
135500R
Cover
Cover LGE MCK69313502 Contact Us For Availability
View on Model
135500S
Cover
Cover LGE MCK69313801 Contact Us For Availability
View on Model
135508
Cover,Sensor
Cover,Sensor LGE MCK69330801 Contact Us For Availability
View on Model
144411
Roller Assembly
Roller Assembly LGE AHJ74150501 Contact Us For Availability
View on Model
144411A
Roller Assembly
Roller Assembly LGE AHJ74150601 Contact Us For Availability
View on Model
144710H
Parts Assembly,Panel
Parts Assembly,Panel LGE AGM75890701 Contact Us For Availability
View on Model
148000
Supporter
Supporter LGE MJH64538703 Contact Us For Availability
View on Model
148000A
Supporter
Supporter LGE MJH64538901 Contact Us For Availability
View on Model
148000C
Supporter
Supporter LGE MJH64538902 Contact Us For Availability
View on Model
165000A
Sensor,Position
Sensor,Position LGE EBD60320509 Contact Us For Availability
View on Model
264110
Power Cord Assembly
Power Cord Assembly LGE EAD64010649 Contact Us For Availability
View on Model
346710
Motor Assembly,DC,Indoor
Motor Assembly,DC,Indoor LGE EAU62243914 Contact Us For Availability
View on Model
352380A
Guide
Guide LGE MEA64673103 Contact Us For Availability
View on Model
352380D
Guide
Guide LGE MEA66374701 Contact Us For Availability
View on Model
352380U
Guide,Air
Guide,Air LGE MEA64673005 Contact Us For Availability
View on Model
359011
Fan,Axial
Fan,Axial LGE MDG63223202 Contact Us For Availability
View on Model
435300
LGE MDX64173904
LGE MDX64173904 LGE MDX64173904 Contact Us For Availability
View on Model
435301B
Grille,Discharge
Grille,Discharge LGE MDX64173705 Contact Us For Availability
View on Model
435301U
Grille,Discharge
Grille,Discharge LGE MDX64174002 Contact Us For Availability
View on Model
436500
Handle
Handle LGE MEB64294207 Contact Us For Availability
View on Model
436500B
Handle
Handle LGE MEB64095101 Contact Us For Availability
View on Model
559015
Fan,Turbo
Fan,Turbo LGE MDG63203102 Contact Us For Availability
View on Model
BA0001
Bearing Assembly
Bearing Assembly LGE AAQ73573701 Contact Us For Availability
View on Model

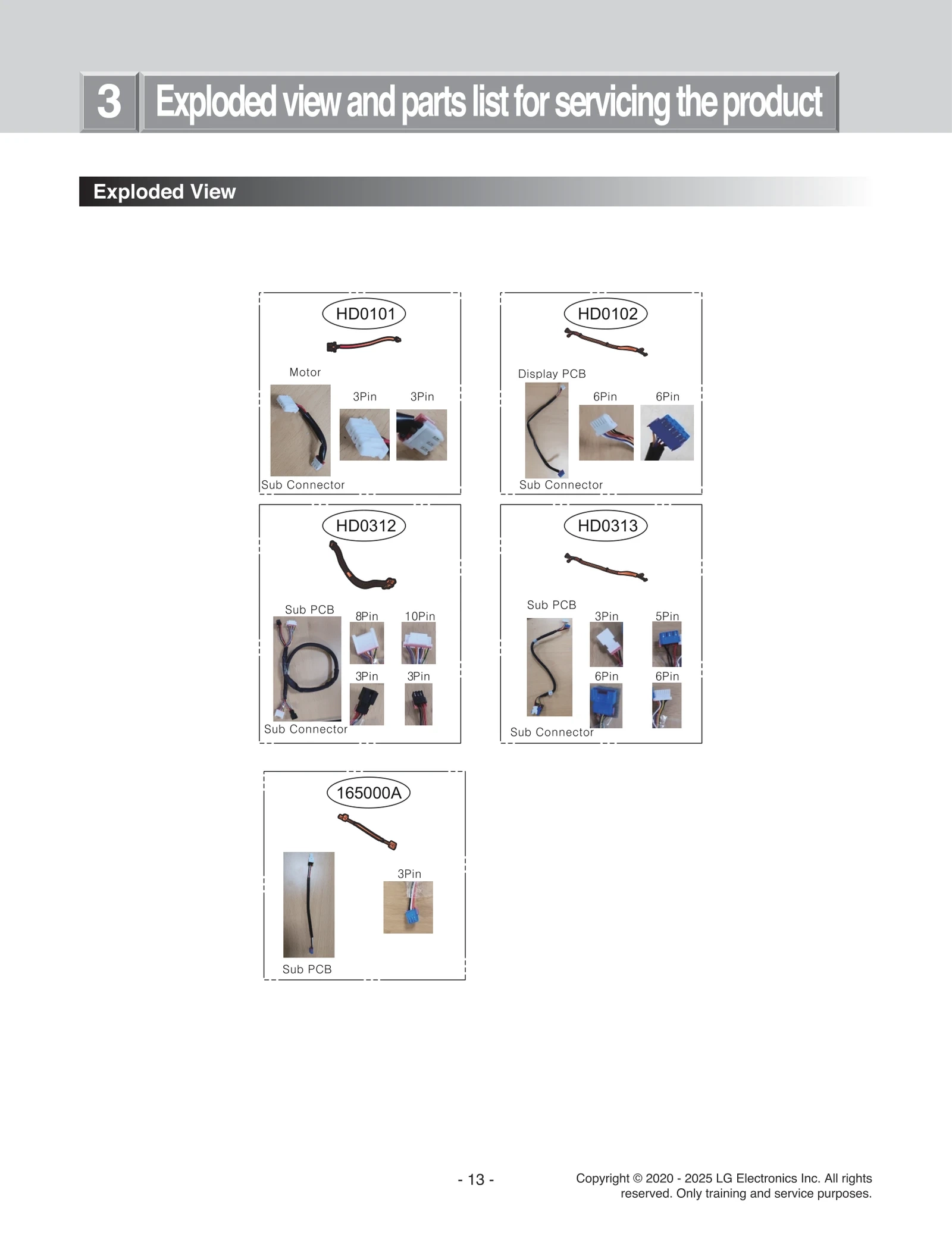

HD0101
LGE EAD63930190
LGE EAD63930190 LGE EAD63930190 Contact Us For Availability
View on Model
HD0102
LGE EAD63930191
LGE EAD63930191 LGE EAD63930191 Contact Us For Availability
View on Model
HD0312
Harness,Multi
Harness,Multi LGE EAD63930360 Contact Us For Availability
View on Model
HD0313
Harness,Multi
Harness,Multi LGE EAD63930361 Contact Us For Availability
View on Model
