Model Whirlpool AS22N8DM REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR

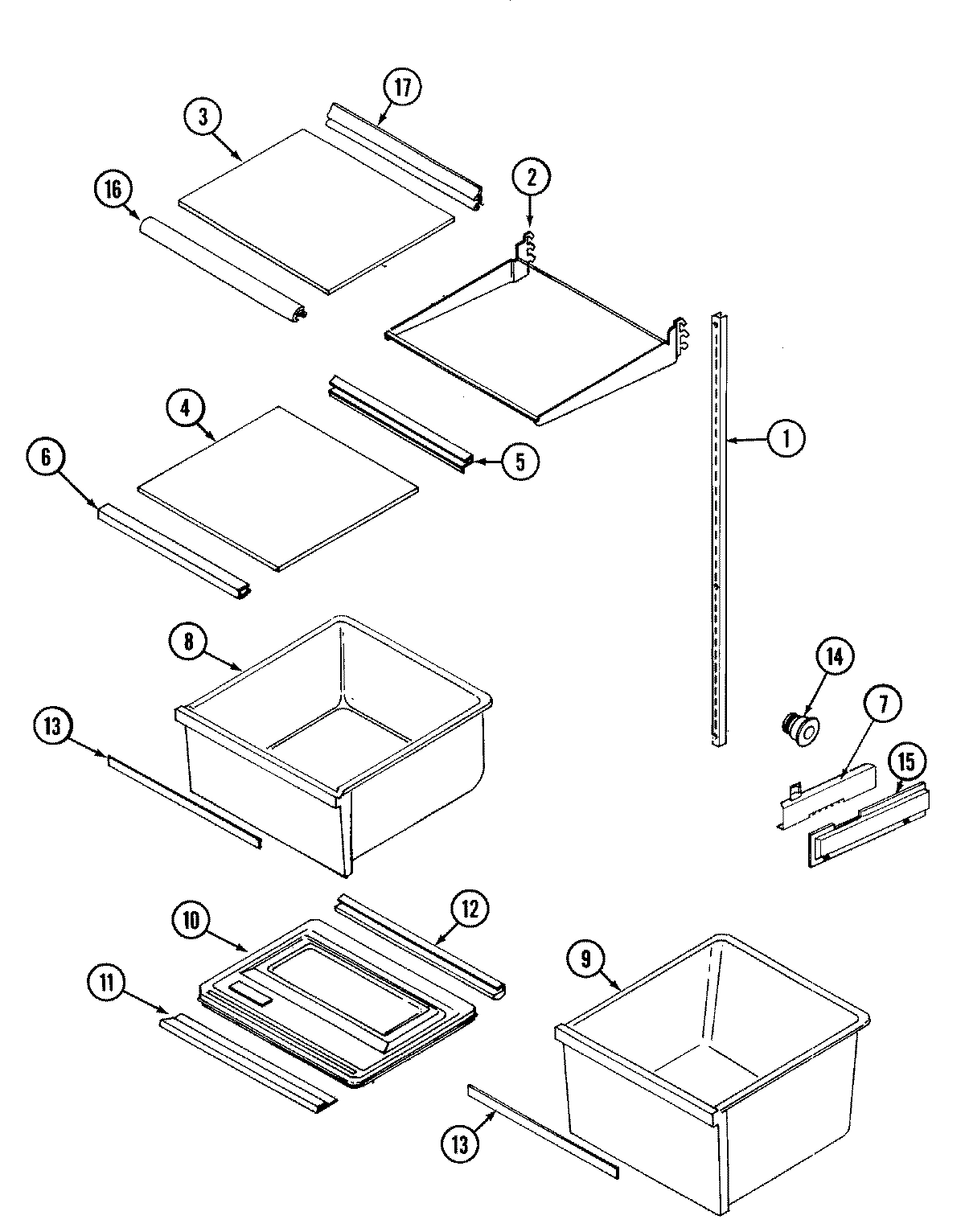

07 - SHELVES & ACCESSORIES

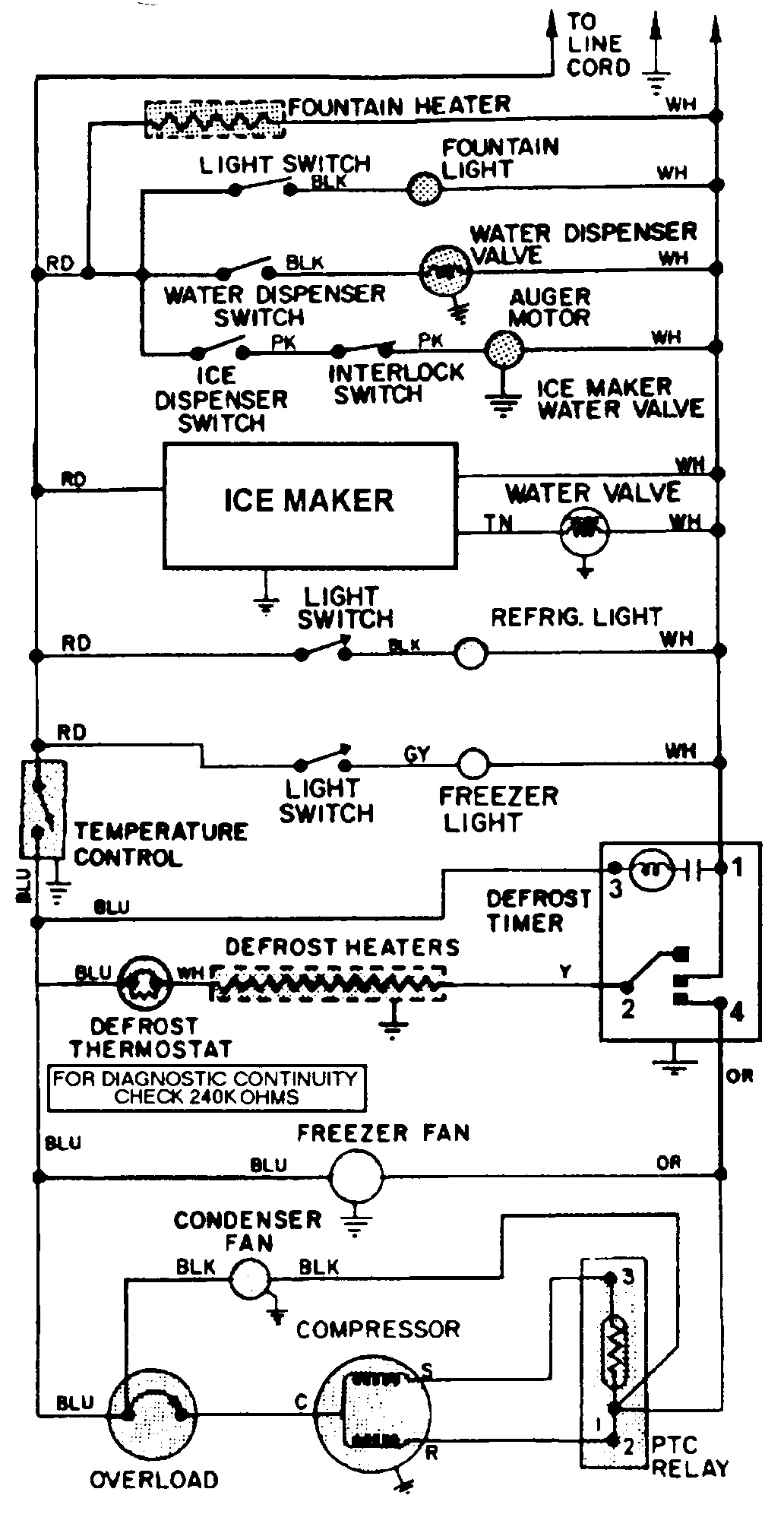

09 - WIRING INFORMATION

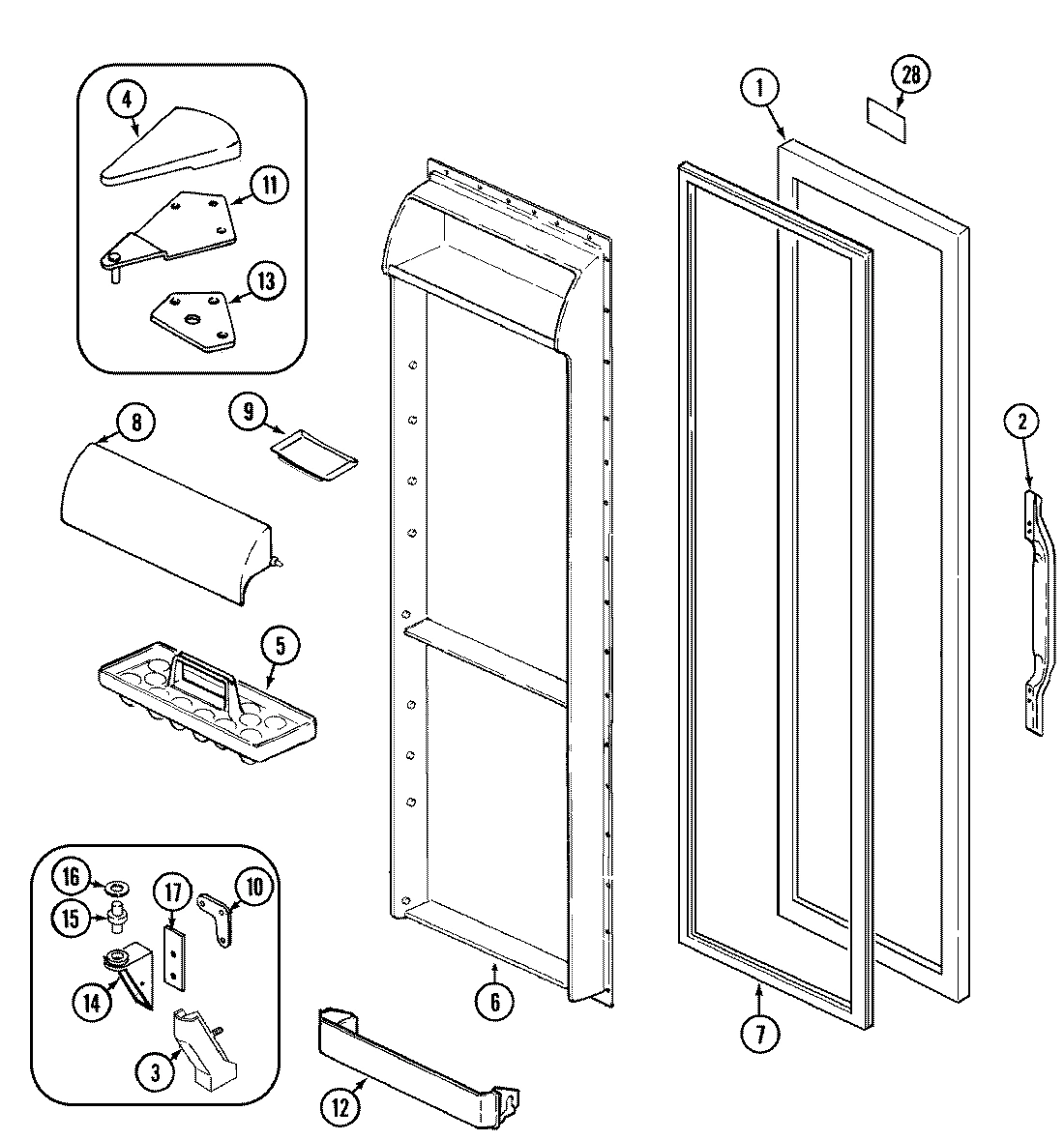

04 - FRESH FOOD DOOR

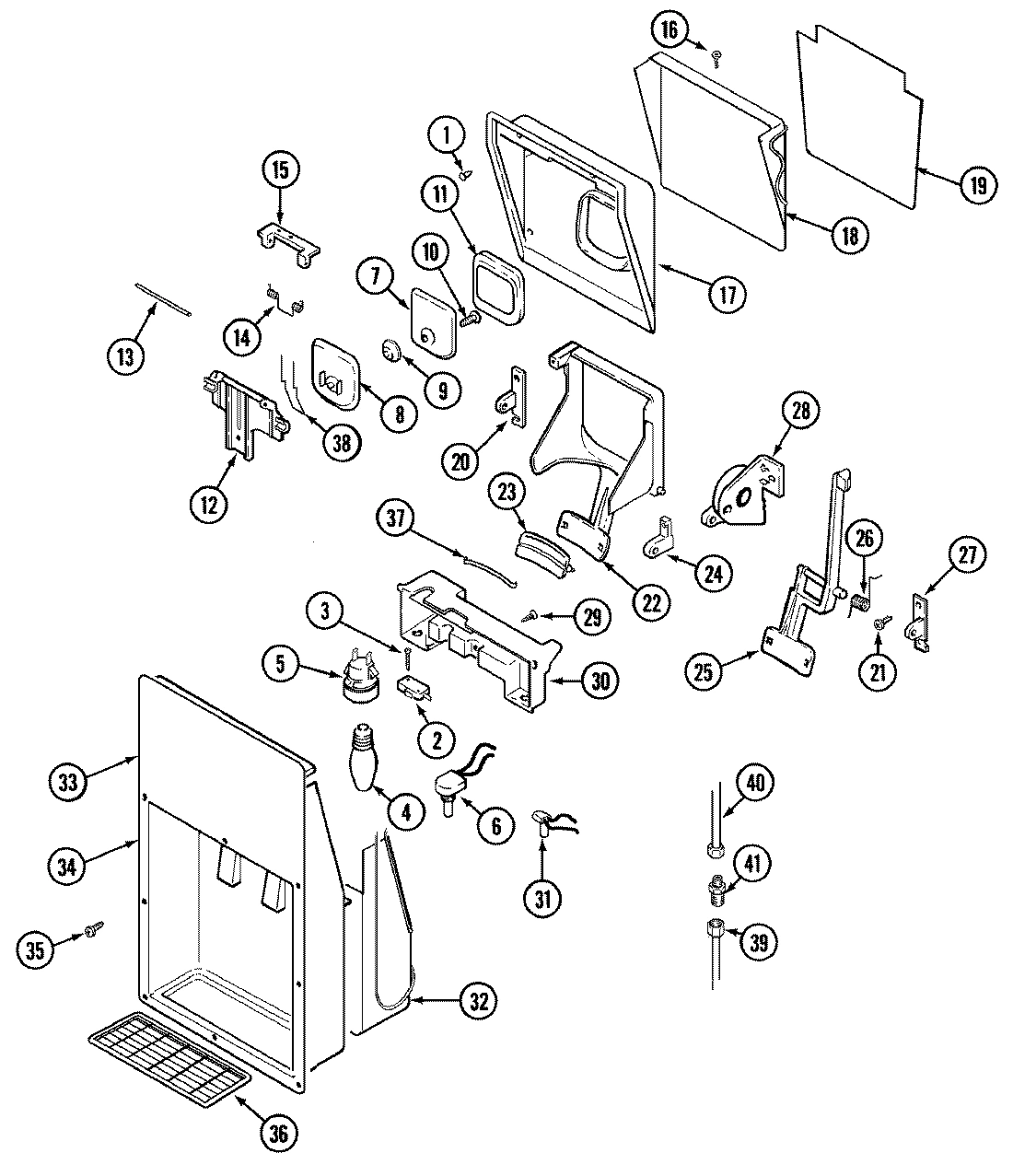

05 - ICE & WATER DISPENSER

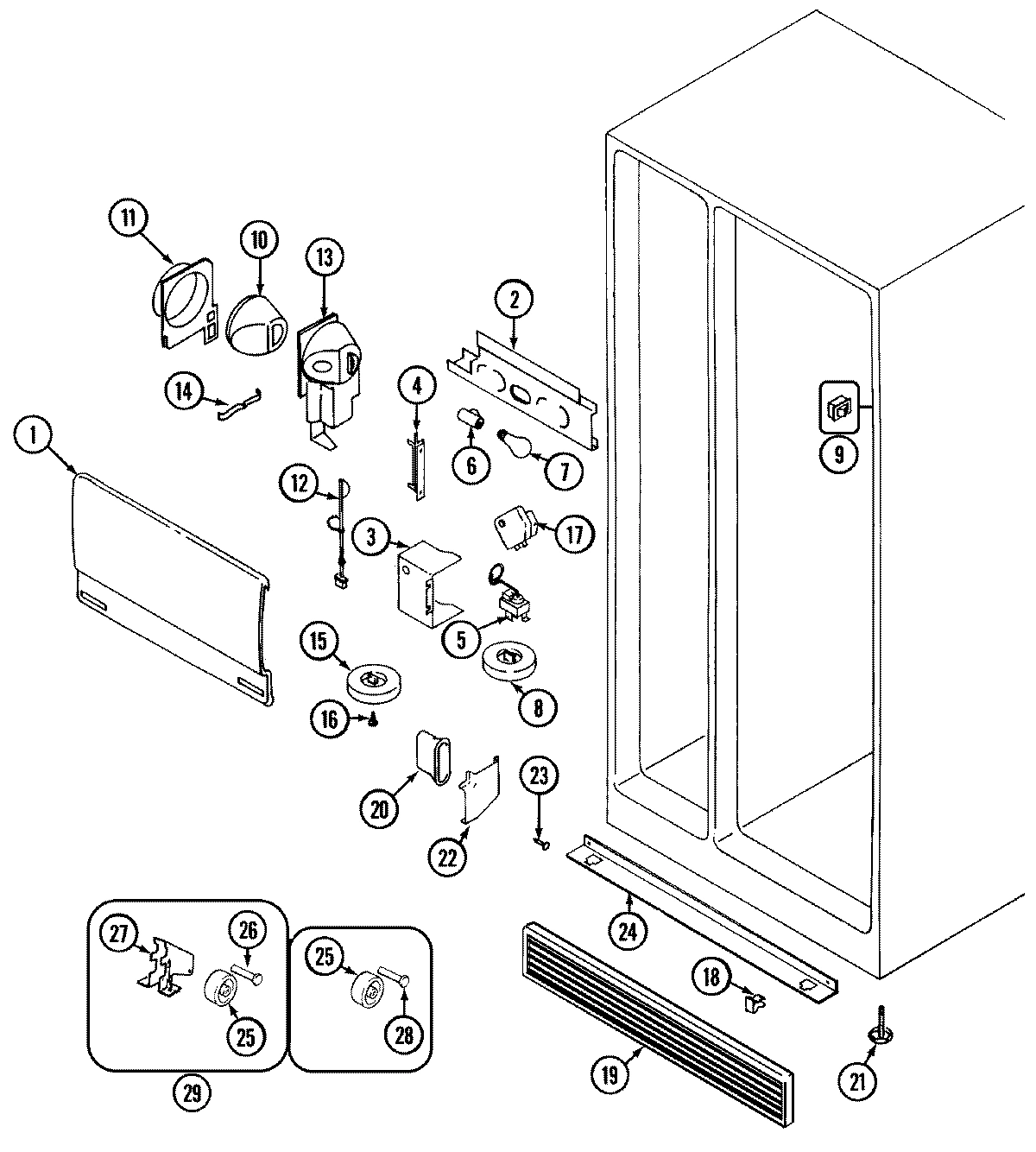

03 - FRESH FOOD COMPARTMENT

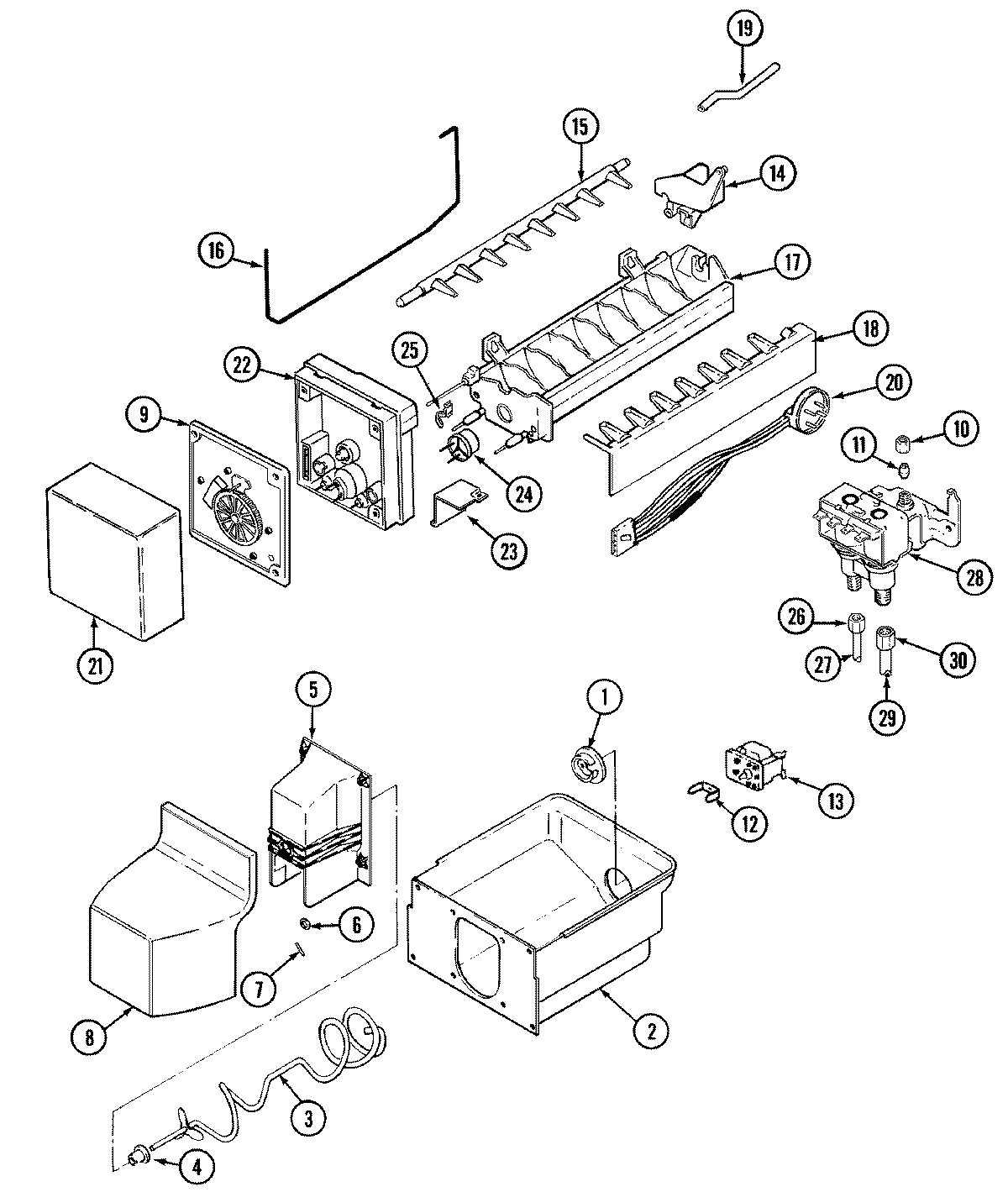

06 - ICE MAKER & BIN

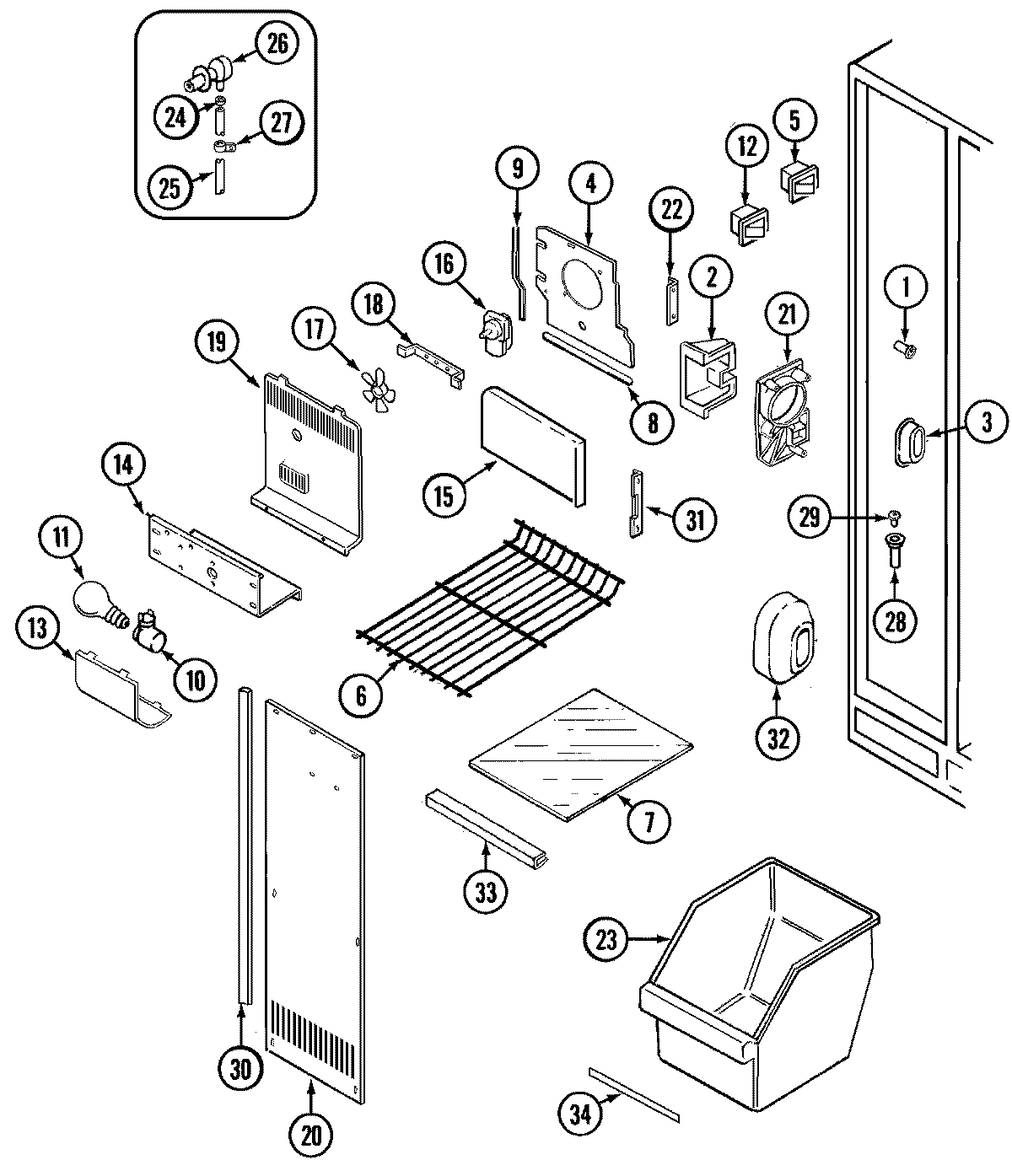

01 - FREEZER COMPARTMENT

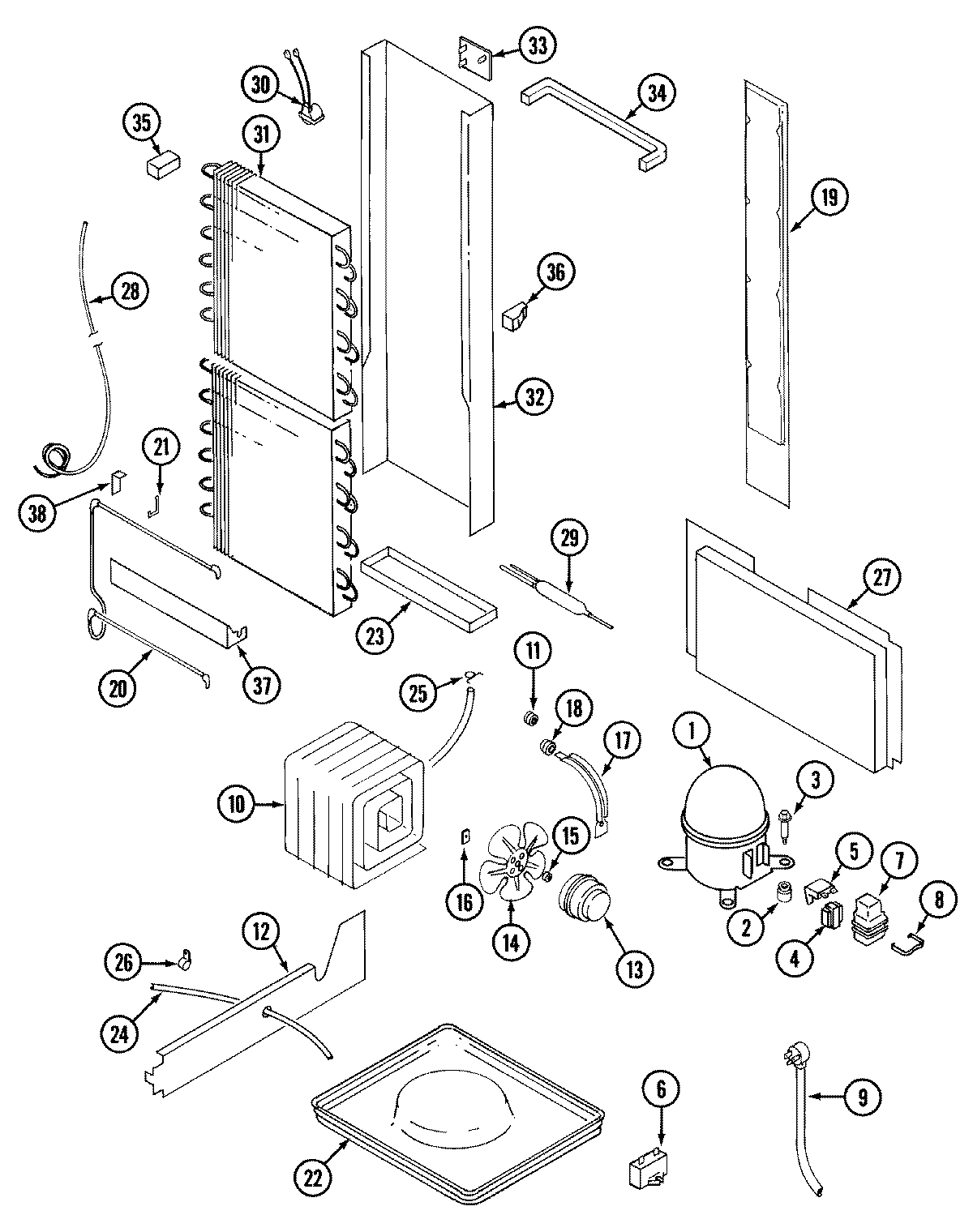

08 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool AS22N8DM REFRIGERATOR
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
1
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 723483AM Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
1
SHIELD, LIGHT REF WPL 691942 Contact Us For Availability
1
RING, DRIVE WPL 700272 Contact Us For Availability
1
CUP, SHELF WPL 603131 Contact Us For Availability
1
CUP, SHELF WPL 674661 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000059 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 688402 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
COMPRESSOR WPL RA1018 Contact Us For Availability
2
GASKET WPL 700241 Contact Us For Availability
2
KIT, HANDLE ASSY. (ALM) WPL 12000052 Contact Us For Availability
2
SCREW WPL 6527580 Contact Us For Availability
2
FRAME, SHELF WPL 701067 Contact Us For Availability
2
KIT, HANDLE ASSY. (WHT) WPL 12000051 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
2
HOUSING, LITE & WIRE WPL 691932 Contact Us For Availability
2
BIN WPL 678261 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
LINER, FRZ. DOOR WPL 692531 Contact Us For Availability
3
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
3
GLASS, CANTILEVER SHELF WPL 6813922 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
4
COVER, UPPER HINGE (ALM) WPL 701213 Contact Us For Availability
4
CRISPER SHELF(GLASS) WPL 6813923 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
5
SEAL, CRISPER PAN (REAR) WPL 681572 Contact Us For Availability
5
TRAY, EGG WPL 600661 Contact Us For Availability
5
RECEPTACLE, BULB WPL 701191 Contact Us For Availability
5
SCREW WPL 4010241 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
5
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
5
OVERLOAD WPL 61001785 Contact Us For Availability
5
OVERLOAD WPL 6329419 Contact Us For Availability
5
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
5
OVERLOAD WPL 691053 Contact Us For Availability
6
SCREW WPL 652755 Contact Us For Availability
6
SEAL, CRISPER PAN (FRONT) WPL 666502 Contact Us For Availability
6
LINER, F.F. DOOR WPL 692421 Contact Us For Availability
6
NUT, WIRE WPL 271165 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
6
SWITCH, LIGHT WPL 698325 Contact Us For Availability
6
WASHER, THRUST WPL 678342 Contact Us For Availability
6
SHELF, DISPENSER WPL 686305 Contact Us For Availability
6
CAPACITOR, RUN WPL 658894 Contact Us For Availability
6
CAPACITOR, RUN WPL 658898 Contact Us For Availability
7
PIN, HINGE WPL 700601 Contact Us For Availability
7
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
7
GASKET, F.F. DOOR (WHT) WPL 700244 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
7
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
SHELF, 2,3 & 4 FREEZER (GLASS) WPL 6813924 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
8
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
8
PAN, CRISPER WPL 66636140 Contact Us For Availability
8
DOOR, DAIRY WPL 6905831 Contact Us For Availability
8
DOOR, ICE WPL 689572 Contact Us For Availability
8
SCREW WPL 41501335 Contact Us For Availability
8
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
8
FRONT, ICE BIN WPL 6987531 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
ESCUTCHEON (W/TAPE) (ALM) WPL 61001887 Contact Us For Availability
9
PAN, CRISPER WPL 66636138 Contact Us For Availability
9
TRAY, BUTTER WPL 299362 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
9
SCREW WPL 4000311 Contact Us For Availability
9
ICEMAKER WPL 951091 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
10
TAPE, ESCUTCHEON WPL 951211 Contact Us For Availability
10
SCREW WPL 6527559 Contact Us For Availability
10
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
10
COVER, MEAT PAN WPL 656086 Contact Us For Availability
10
SCREW WPL 40511635 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
11
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
11
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
11
SEAL WPL 5207726 Contact Us For Availability
11
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
11
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
CHUTE, ICE WPL 692201 Contact Us For Availability
12
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
12
FRONT, PICK-OFF WPL 698718 Contact Us For Availability
12
STRIKE, ICE DOOR WPL 685632 Contact Us For Availability
12
SWITCH, LIGHT WPL 669871 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 676091 Contact Us For Availability
12
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 703621 Contact Us For Availability
13
INSULATION WPL 687681 Contact Us For Availability
13
INSULATION WPL 687721 Contact Us For Availability
13
PANEL, ACCESS WPL 692231 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
13
INSERT, CRISPER HANDLE WPL 6812499 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
13
SCREW WPL 4150171 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
SCREW WPL 406026103 Contact Us For Availability
13
MOTOR, AUGER WPL 651861 Contact Us For Availability
13
WIRE HARNESS, AUGER MOTOR WPL 690481 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684457 Contact Us For Availability
14
STUD WPL 687862 Contact Us For Availability
14
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
14
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
14
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
BOX, AUGER MOTOR WPL 672962 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
15
SCREW WPL 40002135 Contact Us For Availability
15
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
15
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
15
CONTROL HOUSING WPL 657372 Contact Us For Availability
15
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
15
BRACKET, PIVOT WPL 689581 Contact Us For Availability
15
KNOB WPL 2989312 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
FRONT, BIN WPL 698748 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
16
TRIM, SHELF FRONT WPL 701075 Contact Us For Availability
16
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
16
SCREW WPL 40501335 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
17
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
17
TRIM, SHELF (REAR) WPL 701105 Contact Us For Availability
17
SCREW WPL 41501435 Contact Us For Availability
17
BACK, FOUNTAIN (ALM) WPL 685673 Contact Us For Availability
17
SCREW WPL 4050071 Contact Us For Availability
17
TIMER, DEFROST WPL 682333 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
HINGE, LOWER (ZINC) WPL 695163 Contact Us For Availability
18
HEATER, FOUNTAIN BACK WPL 689371 Contact Us For Availability
18
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 6527556 Contact Us For Availability
19
INSULATION, FOIL WPL 687141 Contact Us For Availability
19
KICKPLATE WPL 689815 Contact Us For Availability
19
TUBE, FILL WPL 676761 Contact Us For Availability
19
SHIELD, FAN WPL 672251 Contact Us For Availability
19
COVER WPL 663811 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 702661 Contact Us For Availability
20
FRONT, PICK-OFF WPL 6987015 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
20
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
20
SCREW WPL 40001536 Contact Us For Availability
20
COVER, COIL (LOWER) WPL 673354 Contact Us For Availability
20
HEATER, DEFROST WPL 698481 Contact Us For Availability
21
LEG, LEVELING WPL 686641 Contact Us For Availability
21
COVER, ICE MAKER WPL 683282 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
22
WIRE HARNESS, DOOR WPL 698659 Contact Us For Availability
22
PADDLE, ICE (ALM) WPL 691123 Contact Us For Availability
22
COVER, AIR RETURN WPL 699821 Contact Us For Availability
22
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
22
SCREW WPL 951061 Contact Us For Availability
22
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
23
PAD, PADDLE (ALM) WPL 691743 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
23
SCREW, BRACKET WPL 951081 Contact Us For Availability
23
DRAWER, FRZ. WPL 66636131 Contact Us For Availability
23
TROUGH, DRAIN WPL 535231 Contact Us For Availability
24
SHELF, PICK-OFF WPL 6987313 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
24
RAIL, HORIZONTAL SUPPORT WPL 61001031 Contact Us For Availability
24
SCREW WPL 6527542 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
24
CLAMP, SPRING WPL 603334 Contact Us For Availability
24
HOSE, DRAIN WPL 2691118 Contact Us For Availability
25
FUNNEL-KIT WPL 675792 Contact Us For Availability
25
PADDLE, WATER (ALM) WPL 685583 Contact Us For Availability
25
WHEEL WPL 698121 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
26
PIN, WHEEL WPL 649651 Contact Us For Availability
26
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
27
SCREW WPL 4000621 Contact Us For Availability
27
BRACKET WPL 528461 Contact Us For Availability
27
SCREW WPL 998645 Contact Us For Availability
27
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
27
COVER WPL 663393 Contact Us For Availability
28
MOTOR, INTERIA----NA WPL 692751 Contact Us For Availability
28
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
28
SCREW WPL 4010181 Contact Us For Availability
28
VALVE, WATER (120V) WPL 61001021 Contact Us For Availability
28
TUBE, DRAIN WPL 2652711 Contact Us For Availability
28
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
28
HEAT EXCHANGER WPL 6501325 Contact Us For Availability
29
TUBING WPL 671874 Contact Us For Availability
29
WHEEL ASSY. (FRONT) WPL 720191 Contact Us For Availability
29
GROMMET WPL 525261 Contact Us For Availability
29
DRIER WPL 139001 Contact Us For Availability
30
BRACKET, SWITCH WPL 686262 Contact Us For Availability
30
NUT WPL 701761 Contact Us For Availability
30
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
30
CLIP WPL 693141 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
31
PLUNGER WPL 685682 Contact Us For Availability
31
SCREW WPL 4000161 Contact Us For Availability
31
LATCH WPL 685721 Contact Us For Availability
31
EVAPORATOR WPL 5255121 Contact Us For Availability
32
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
32
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
33
FRONT, FOUNTAIN WPL 689551 Contact Us For Availability
33
TRIM, SHELF WPL 701371 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
34
INSERT, DRAWER HANDLE WPL 6812496 Contact Us For Availability
34
SEAL WPL 6632517 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
GRILL WPL 686311 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
37
SCREW WPL 4000171 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
38
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
40
TUBING, DOOR WPL 671878 Contact Us For Availability
41
UNION, REDUCING (5/16``-5/16``) WPL 689481 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001296 Contact Us For Availability
NI
NAMEPLATE (WHT) WPL 6698229 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1084293 Contact Us For Availability
NI
GUIDE, QU WPL 16002079 Contact Us For Availability
× ![]()
Login and Registration Form
