Model Whirlpool AS22M8DV REFRIGERATOR – Common Parts & Diagrams

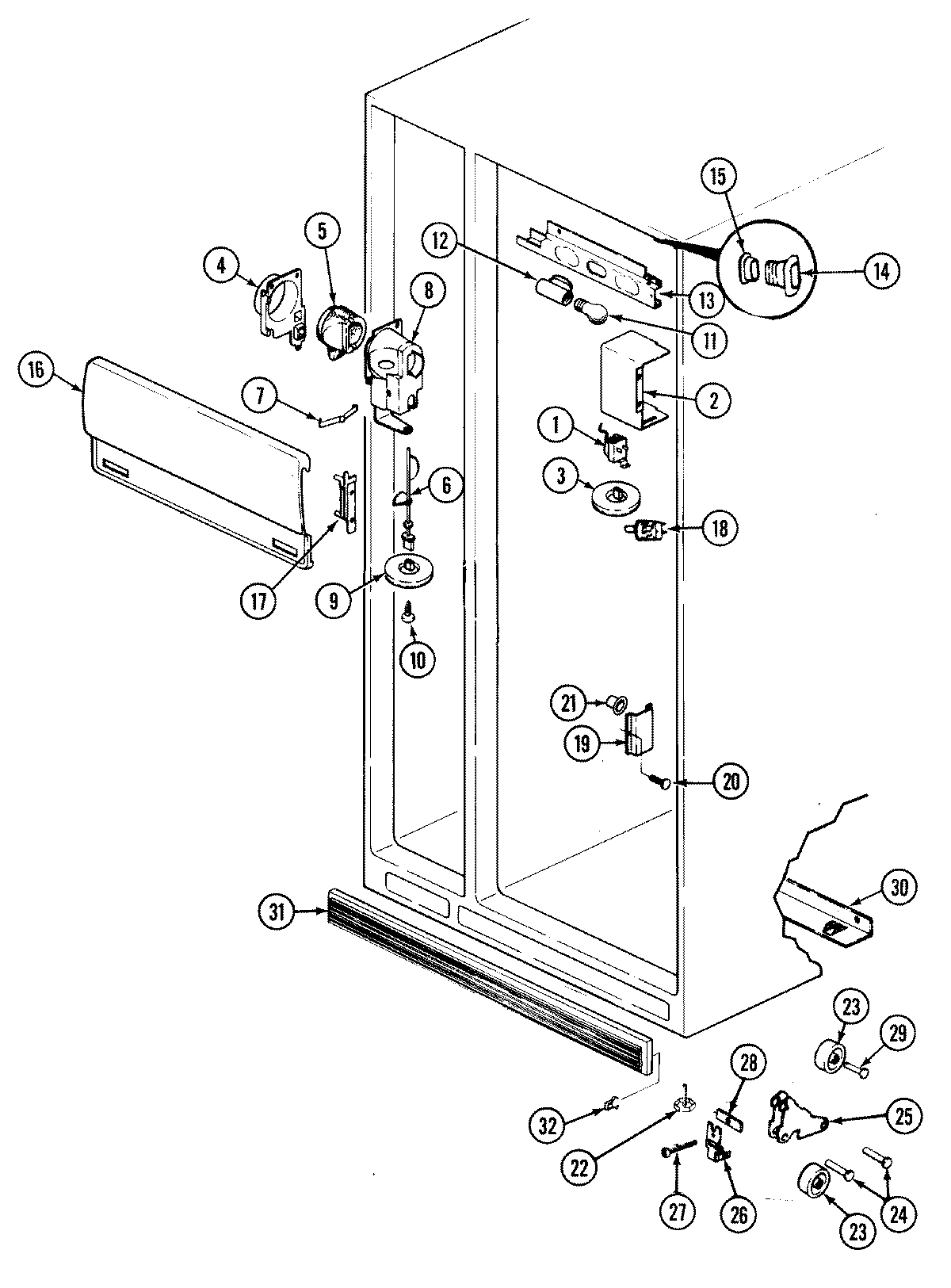

01 - FRESH FOOD COMPARTMENT

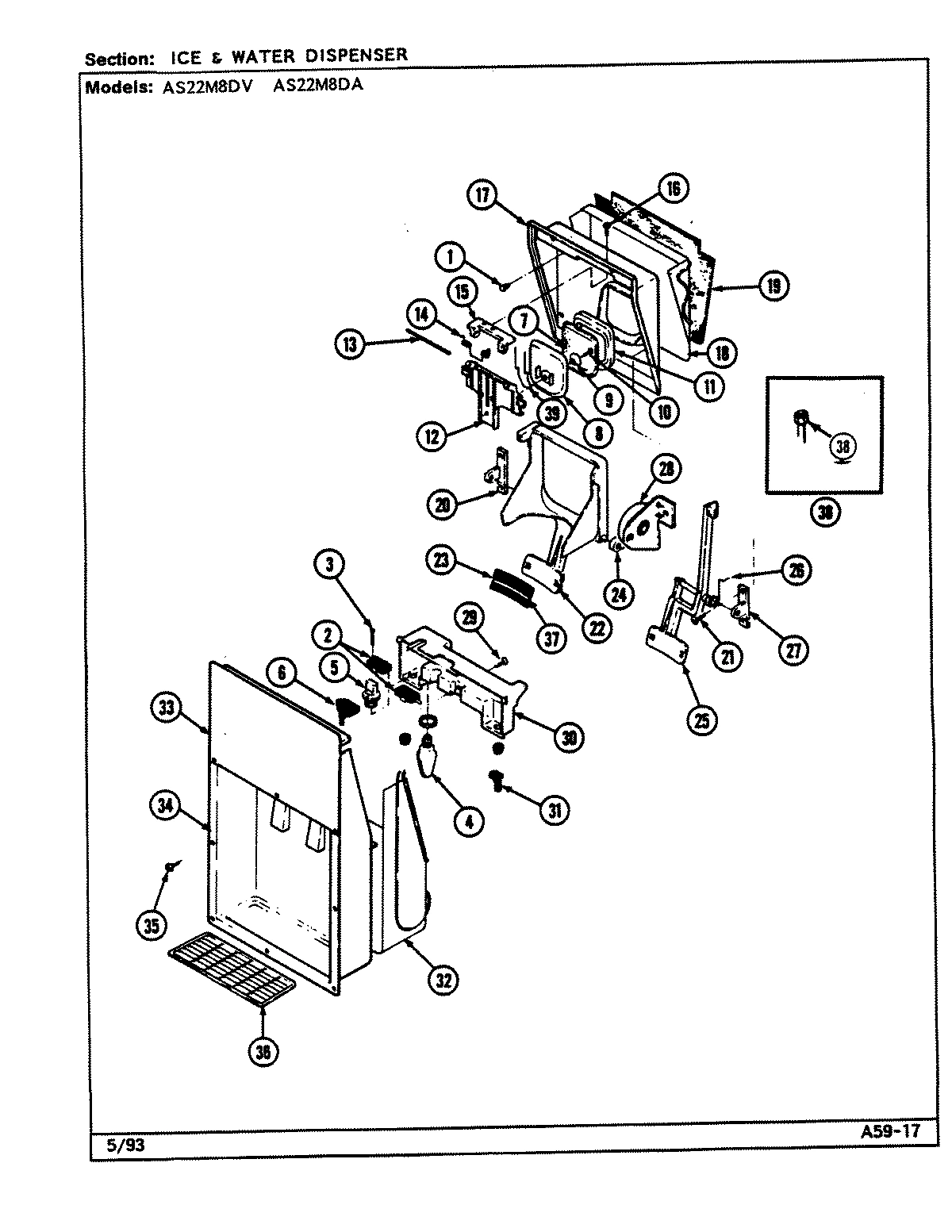

02 - ICE & WATER DISPENSER
Common parts from model Whirlpool AS22M8DV REFRIGERATOR
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
6
BAFFLE WPL 686131 Contact Us For Availability
6
WIRE NUT WPL 271162 Contact Us For Availability
6
SWITCH, PUSH WPL 673401 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
DOOR, ICE WPL 685651 Contact Us For Availability
9
KNOB, FREEZER CONTROL WPL 671454 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
SCREW WPL 405116103 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
SEAL WPL 685602 Contact Us For Availability
12
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
12
STRIKE, DOOR WPL 685631 Contact Us For Availability
13
HOUSING WPL 690812 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
14
TUNNEL WPL 574101 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
15
RETAINER WPL 574111 Contact Us For Availability
15
BRACKET WPL 685621 Contact Us For Availability
16
SHIELD, LIGHT REF WPL 691942 Contact Us For Availability
17
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
17
INSERT, LIGHT SHIELD WPL 698361 Contact Us For Availability
18
SWITCH, LIGHT WPL 669871 Contact Us For Availability
18
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
19
AIR DEFLECTOR WPL 621281 Contact Us For Availability
19
INSULATION, FOIL WPL 687141 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
SCREW WPL 405024103 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
23
WHEEL WPL 298342 Contact Us For Availability
24
PIN, WHEEL WPL 649651 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
25
BRACKET, WHEEL WPL 627941 Contact Us For Availability
26
SCREW WPL 4000171 Contact Us For Availability
26
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
28
SCREW WPL 6527542 Contact Us For Availability
28
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
28
MOTOR, INERTIA WPL 688271 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
30
BRACKET WPL 686261 Contact Us For Availability
31
PLUNGER WPL 685681 Contact Us For Availability
32
HEATER FOUNTAIN WPL 688201 Contact Us For Availability
33
FOUNTAIN FRONT WPL 686251 Contact Us For Availability
35
SCREW WPL 405025103 Contact Us For Availability
36
GRILL WPL 686311 Contact Us For Availability
37
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
39
UNION, REDUCING (5/16``-5/16``) WPL 689481 Contact Us For Availability
39
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
× ![]()
