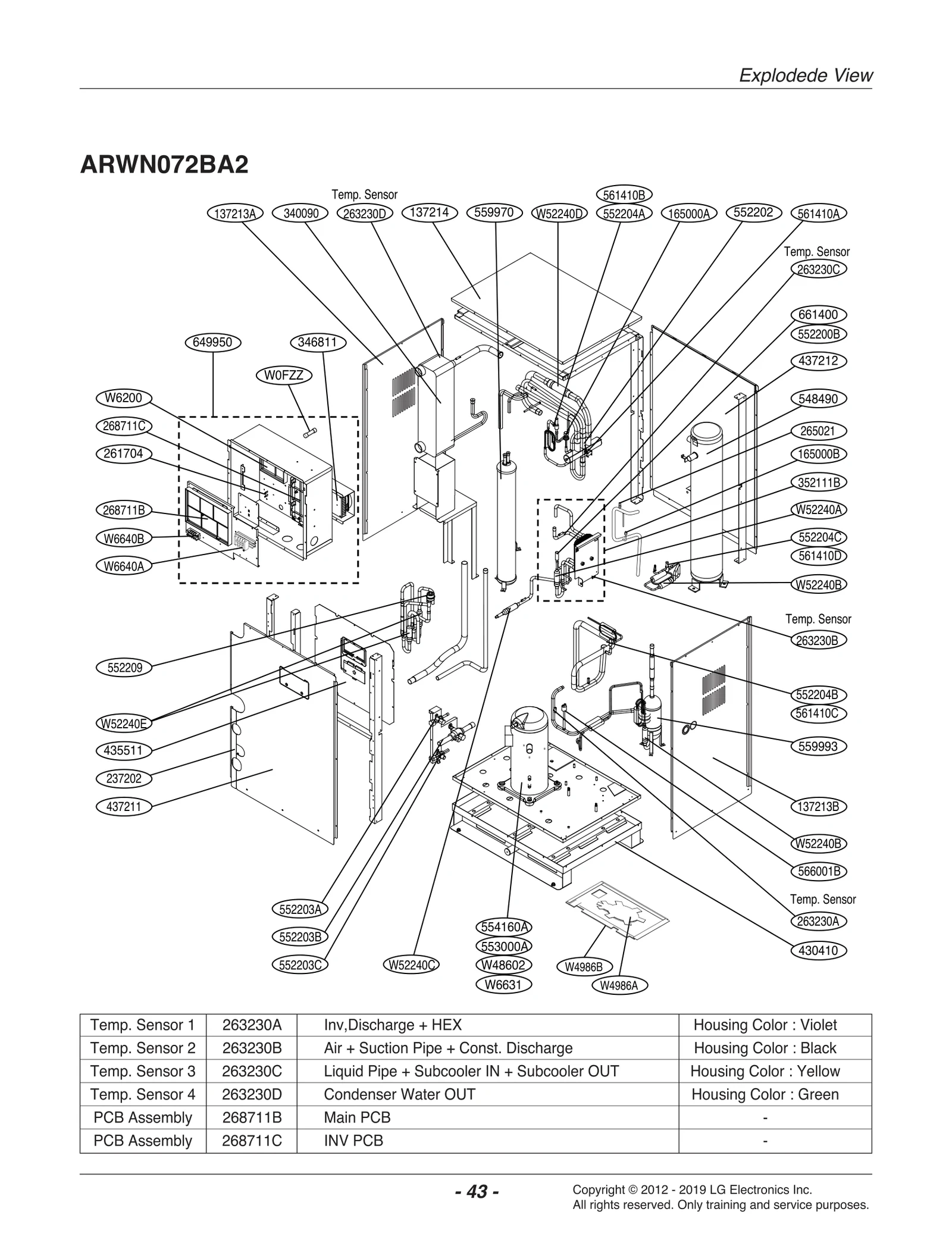

Model LG ARWN072BA2.AWGBLUS Multi V Water – Common Parts & Diagrams

137213A
Panel Assembly,Side
Panel Assembly,Side LGE AGL41634103 Contact Us For Availability
View on Model
137213B
Panel Assembly,Side
Panel Assembly,Side LGE AGL41634203 Contact Us For Availability
View on Model
137214
Panel Assembly,Upper
Panel Assembly,Upper LGE AGL41630701 Contact Us For Availability
View on Model
165000A
Sensor,Pressure
Sensor,Pressure LGE EBD60663824 Contact Us For Availability
View on Model
237202
Panel,Front
Panel,Front LGE MGC47280102 Contact Us For Availability
View on Model
261704
Transformer,Reactor
Transformer,Reactor LGE EBJ36363403 Contact Us For Availability
View on Model
263230A
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61107105 Contact Us For Availability
View on Model
263230A
Thermistor Assembly
Thermistor Assembly LGE 6323A20009R Contact Us For Availability
View on Model
263230B
Drawing,Assembly
Drawing,Assembly LGE 6323A20009G Contact Us For Availability
View on Model
263230C
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG60661901 Contact Us For Availability
View on Model
263230D
Thermistor Assembly
Thermistor Assembly LGE EBG50661201 Contact Us For Availability
View on Model
263230D
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61207101 Contact Us For Availability
View on Model
268711B
PCB Assembly,Main
PCB Assembly,Main LGE EBR44029319 Contact Us For Availability
View on Model
340090
Exchanger Assembly
Exchanger Assembly LGE AJR55754310 Contact Us For Availability
View on Model
346811
Motor Assembly,AC,Cooling
Motor Assembly,AC,Cooling LGE EAU37261501 Contact Us For Availability
View on Model
352111B
Tube Assembly,Connector
Tube Assembly,Connector LGE AJR73802901 Contact Us For Availability
View on Model
430410
Base Assembly,Outdoor
Base Assembly,Outdoor LGE AAN52652501 Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE ACQ57461426 Contact Us For Availability
View on Model
437211
Panel Assembly,Front(Outdoor)
Panel Assembly,Front(Outdoor) LGE AGL41630801 Contact Us For Availability
View on Model
437212
Panel Assembly,Rear(Outdoor)
Panel Assembly,Rear(Outdoor) LGE AGL41633901 Contact Us For Availability
View on Model
548490
Accumulator
Accumulator LGE MAA47064701 Contact Us For Availability
View on Model
552204B
Valve,Solenoid
Valve,Solenoid LGE 5220A90008C Contact Us For Availability
View on Model
552204C
Valve,Solenoid
Valve,Solenoid LGE 5220A90008F Contact Us For Availability
View on Model
553000A
Heater,Sump
Heater,Sump LGE 5300A20008R Contact Us For Availability
View on Model
554160A
Compressor Set,Korea
Compressor Set,Korea LGE TBZ35436001 Contact Us For Availability
View on Model
559970
Pan,Oil
Pan,Oil LGE 4849A10003J Contact Us For Availability
View on Model
561410A
Solenoid
Solenoid LGE 6141A20010Y Contact Us For Availability
View on Model
561410B
Solenoid
Solenoid LGE EBE60658017 Contact Us For Availability
View on Model
561410C
Solenoid
Solenoid LGE EBE61441601 Contact Us For Availability
View on Model
566001B
Switch,Pressure
Switch,Pressure LGE EBF40271405 Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE ABQ72961506 Contact Us For Availability
View on Model
W0FZZ
Fuse,Time Delay
Fuse,Time Delay LGE 6900AQ9028C Contact Us For Availability
View on Model
W4986A
Sound proof
Sound proof LGE 3096AP3476G Contact Us For Availability
View on Model
W4986B
Gasket
Gasket LGE 3096AP3469M Contact Us For Availability
View on Model
W6631
Harness,Multi
Harness,Multi LGE EAD63768910 Contact Us For Availability
View on Model
W6640A
Connector,Terminal Block
Connector,Terminal Block LGE 6640A30004E Contact Us For Availability
View on Model
W52240A
Strainer
Strainer LGE 5224A20005H Contact Us For Availability
View on Model
W52240B
Strainer
Strainer LGE 5224A20005L Contact Us For Availability
View on Model
W52240C
Strainer
Strainer LGE 5224A20005X Contact Us For Availability
View on Model
W52240D
Strainer
Strainer LGE 5224A20002R Contact Us For Availability
View on Model
W52240E
Strainer
Strainer LGE 5224A20005N Contact Us For Availability
View on Model
