Model Whirlpool ART660L ELECTRIC RANGE – Common Parts & Diagrams
01 - BACKGUARD PARTS

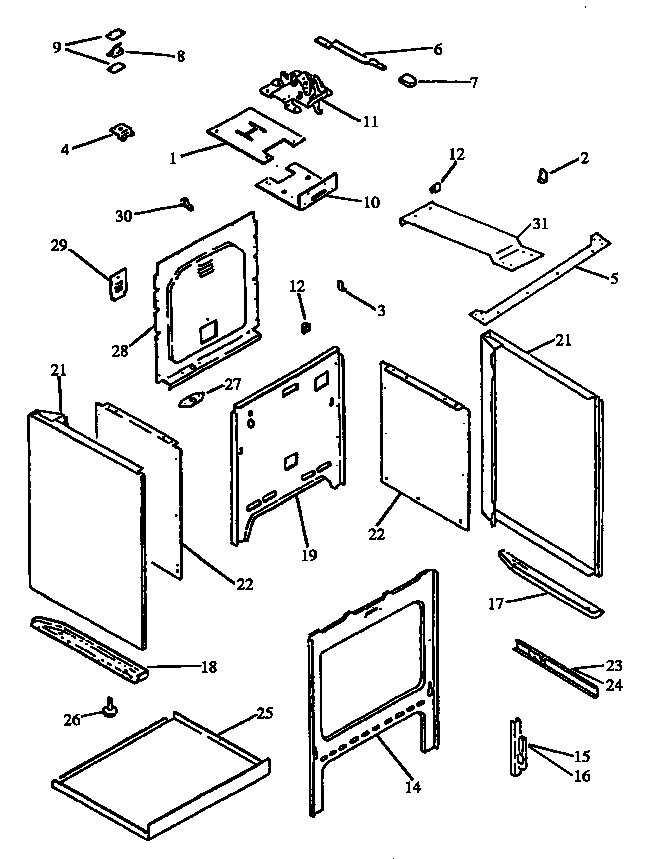

02 - CABINET ASSY

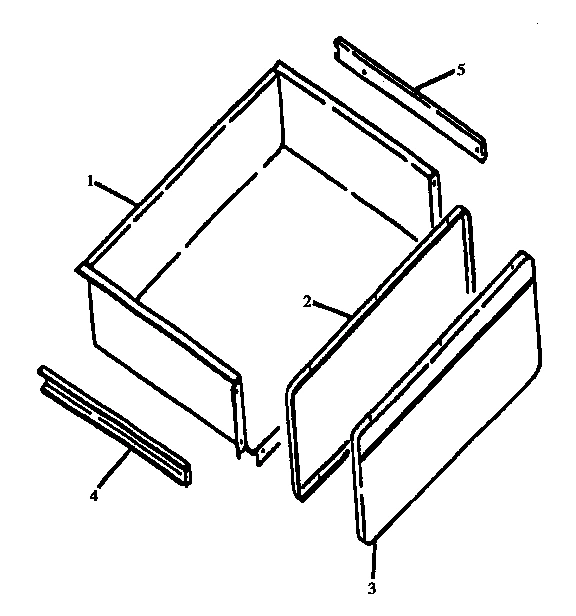

07 - STORAGE DRAWER ASSY

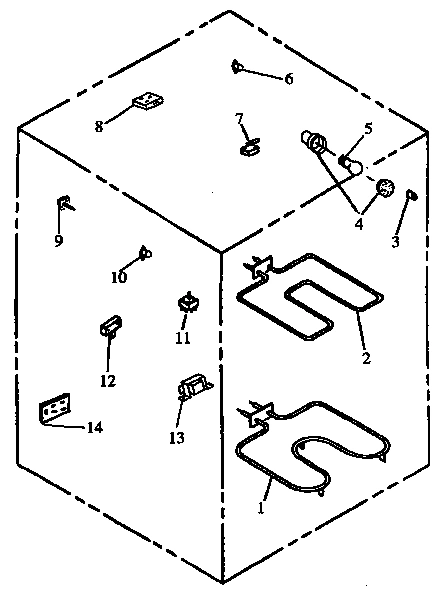

03 - ELECTRICAL COMPONENTS

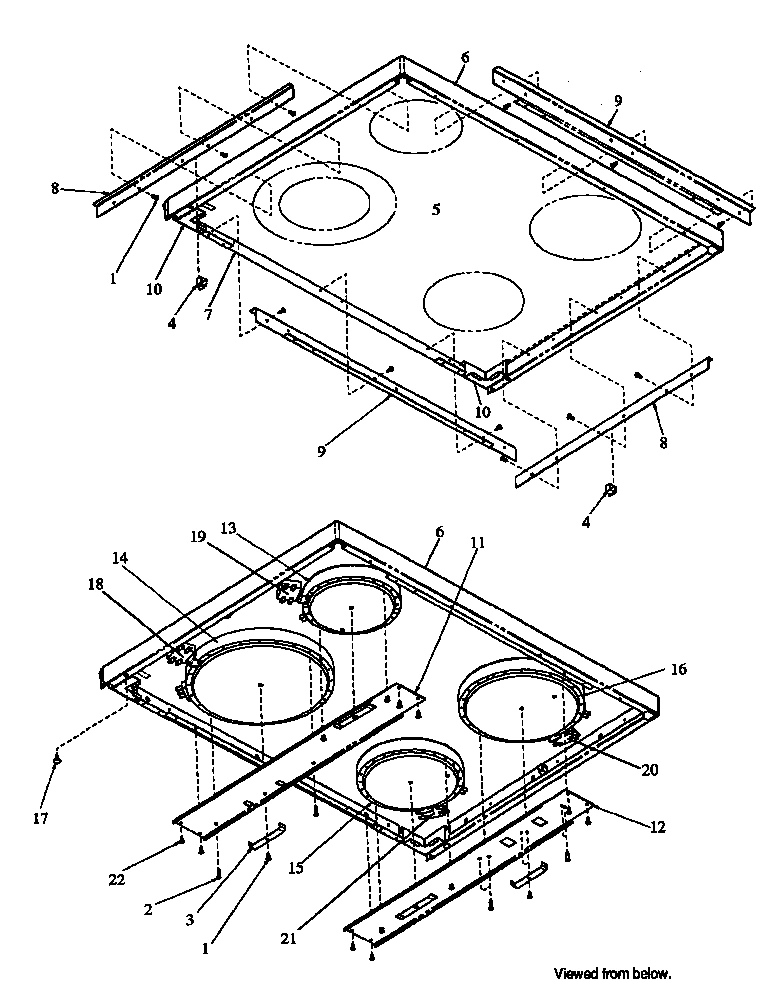

06 - Page 3

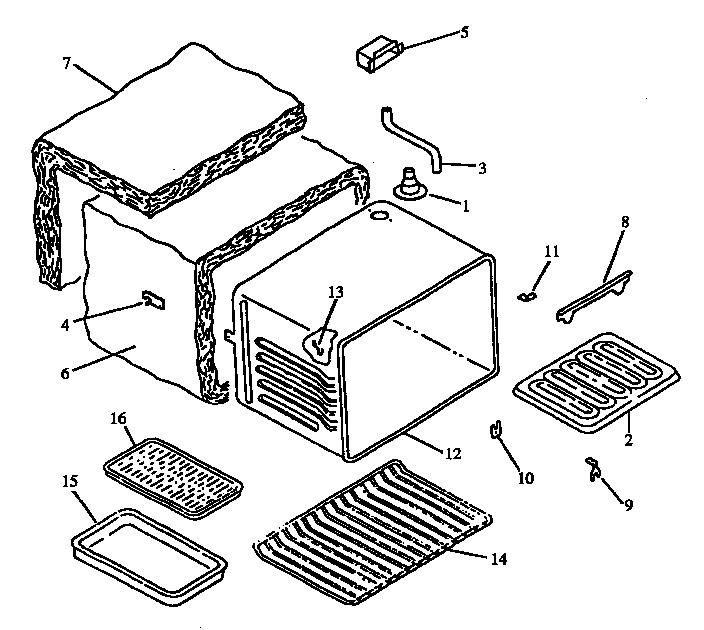

04 - OVEN ASSY

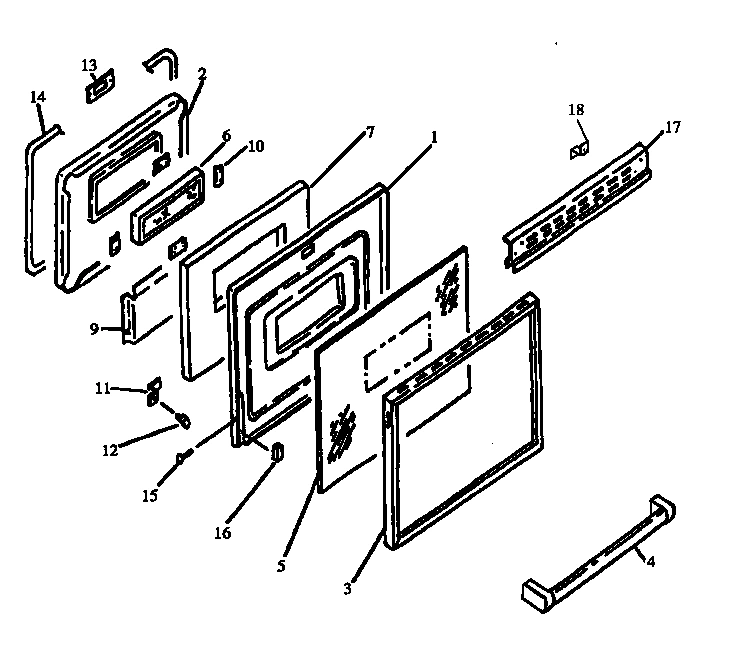

05 - OVEN DOOR
Common parts from model Whirlpool ART660L ELECTRIC RANGE
1
GLASS, BACKGUARD WPL 0306226 Contact Us For Availability
1
RETAINER, OVEN LIGHT WPL Y0063353 Contact Us For Availability
1
WRAPPER, STOR DRAWER WPL 306519E Contact Us For Availability
1
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
1
DOOR BACKER, ELECTRIC (CG) WPL 302723E Contact Us For Availability
2
CHANNEL, GLASS WPL 0063575 Contact Us For Availability
2
LINER, STOR DRAWER WPL 306521B Contact Us For Availability
2
SCREW, SHOULDER WPL 0306212 Contact Us For Availability
2
REFLECTOR, BROIL ELEMENT WPL Y0061781 Contact Us For Availability
2
PAD, OV DR W/WINDOW WPL 58808CG Contact Us For Availability
3
TOP TRIM BACKGUARD WPL 304973B Contact Us For Availability
3
PANEL, DRAWER L WPL 063702L Contact Us For Availability
3
PANEL, DRAWER WHT WPL 063702W Contact Us For Availability
3
DRAWER PANEL BLACK WPL Y063702B Contact Us For Availability
3
SWITCH, OVEN LIGHT WPL Y0091363 Contact Us For Availability
3
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
3
TUBE, VENT WPL 0305799 Contact Us For Availability
3
FRAME, OVEN DOOR (BLACK) WPL 308071B Contact Us For Availability
4
LIGHT DIFFUSER BACKGUARD-CLEAR WPL 0304977 Contact Us For Availability
4
BRACKET, SWITCH WPL Y0302316 Contact Us For Availability
4
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
4
RUNNER STORAGE DWR-LH WPL 0306404 Contact Us For Availability
4
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
4
KIT, DR HNDL/TRIM (BLACK) WPL Y0305519 Contact Us For Availability
5
KNOB, CLOCK WPL 308307B Contact Us For Availability
5
RUNNER STORAGE DWR-RH WPL Y0306405 Contact Us For Availability
5
BULB, LIGHT WPL Y0042175 Contact Us For Availability
5
COOKTOP, GLASS CERAMIC WPL 0306205 Contact Us For Availability
5
FLUE CAP BACKGRD WPL 0304393 Contact Us For Availability
5
GLASS, OVEN DOOR WPL Y0300791 Contact Us For Availability
6
KNOB, SWITCH WPL Y0305509 Contact Us For Availability
6
LATCH ARM WPL 303039B Contact Us For Availability
6
TRIM, FRAME RANGETOP (BLACK) WPL 306193B Contact Us For Availability
6
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
6
WINDOW ASSY WPL 0304831 Contact Us For Availability
7
KNOB,THERMOSTAT (BLK) WPL 0305510 Contact Us For Availability
7
KNOB, LATCH HANDLE (BLK) WPL 0302300 Contact Us For Availability
7
SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability
7
FRAME, REAR WPL 0306194 Contact Us For Availability
7
INSULATION, REAR WPL Y0300974 Contact Us For Availability
7
INSULATION,DOOR-SUB BACKER WPL 0062614 Contact Us For Availability
8
KIT, VENT REWORK-BLK WPL 306198B Contact Us For Availability
8
SUPPORT, GLASS WPL 0306186 Contact Us For Availability
8
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
9
TRIM, BACKSPLASH (BLACK) WPL 306199B Contact Us For Availability
9
INSULATION, ESM WPL Y0091523 Contact Us For Availability
9
SUPPORT, GLASS WPL 0306189 Contact Us For Availability
9
BRACKET, MOUNTING WPL 0061556 Contact Us For Availability
9
BAFFLE, OVEN DOOR (BLACK) WPL 306467B Contact Us For Availability
10
END CAP ASSY. WPL 306202B Contact Us For Availability
10
BRACKET, LATCH MTG. WPL Y0058918 Contact Us For Availability
10
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
10
GUSSET, GLASS SUP WPL 306187B Contact Us For Availability
10
CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability
10
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
11
ASS`Y, END CAP LH (BLACK) WPL 306203B Contact Us For Availability
11
LATCH, OV. DOOR WPL Y0059565 Contact Us For Availability
11
INFINITE SWITCH WPL Y0061389 Contact Us For Availability
11
BRKT., ELEM. L.H. WPL 306192B Contact Us For Availability
11
CHIP COVER WPL 0300278 Contact Us For Availability
11
SUPPORT BRACKET, GLASS WPL Y0062439 Contact Us For Availability
12
KNOB, INFINITE SWITCH (BLK) WPL 0306671 Contact Us For Availability
12
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
12
BRKT, ELEM. R.H. WPL 306191B Contact Us For Availability
12
OVEN SHELL (EL. W/LT) WPL 58788CG Contact Us For Availability
13
KNOB, LIGHT SWITCH (BLK) WPL 306674B Contact Us For Availability
13
HEATER, RADIANT (1200W) WPL Y0306213 Contact Us For Availability
13
CLIP, THERMO CAPILLARY WPL Y0067053 Contact Us For Availability
13
LATCH PLATE WPL Y0052039 Contact Us For Availability
14
CLOCK, ANALOG WPL Y0305503 Contact Us For Availability
14
HEATER, RADIANT (2400W) WPL Y0306214 Contact Us For Availability
14
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
15
SWITCH, SELECTOR WPL Y0063008 Contact Us For Availability
15
KIT, DOOR HINGE(LH-HS) WPL Y0066953 Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
16
THERMOSTAT WPL Y0063416 Contact Us For Availability
16
KIT, DOOR HINGE(RH-SS) WPL Y0067795 Contact Us For Availability
16
BUMPER, RUBBER WPL Y0060247 Contact Us For Availability
17
SWITCH, INFINITE (WHT) WPL Y0306672 Contact Us For Availability
17
BRACE, LEVELING LEG (RH) WPL 303578B Contact Us For Availability
17
FASTENER, CLIP WPL 0306652 Contact Us For Availability
17
KIT, DR HNDL/TRIM (BLACK) WPL Y0305525 Contact Us For Availability
18
SWITCH, OVEN LIGHT, ROTARY WPL Y0306673 Contact Us For Availability
18
BRACE, LEVELING LEG (LT) WPL 303577B Contact Us For Availability
18
LIMITER (600 DEGREE C) WPL 10061021 Contact Us For Availability
18
SUPPORT, DOOR GLASS WPL Y0307910 Contact Us For Availability
19
LIGHT, INDICATOR (RED) WPL Y0305660 Contact Us For Availability
19
RETAINER WPL Y0306513 Contact Us For Availability
19
LIMITER WPL 10061016 Contact Us For Availability
20
PANEL, CONTROL WPL Y0307349 Contact Us For Availability
20
LIMITER WPL 10061018 Contact Us For Availability
21
BRACKET, RETAINER WPL 0305033 Contact Us For Availability
21
PANEL, SIDE (BLK) WPL 306081B Contact Us For Availability
21
PANEL, SIDE (ALM) WPL 306081L Contact Us For Availability
21
PANEL, SIDE (WHT) WPL 306081W Contact Us For Availability
21
LIMITER WPL 10061017 Contact Us For Availability
22
BRACKET, CLOCK WPL Y0306401 Contact Us For Availability
22
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
23
SUPPORT, BKGD (LH) WPL 0306589 Contact Us For Availability
23
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
24
SUPPORT, BKGD (RH) WPL 0306590 Contact Us For Availability
24
TRACK, STORAGE DWR RH WPL 0306403 Contact Us For Availability
25
COVER, BACKGUARD WPL 0058886 Contact Us For Availability
25
RETAINER WPL Y0306548 Contact Us For Availability
26
LEG, LEVELING WPL Y0307594 Contact Us For Availability
27
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
28
COVER, REAR WPL Y0307342 Contact Us For Availability
29
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
30
CLAMP, WIRE-INSULATE WPL Y0068513 Contact Us For Availability
NI
SCREW, No.6-32 X .250 PAN HD PH WPL Y0041785 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PAN HD PH WPL Y0073657 Contact Us For Availability
NI
WASHER FINISHING WPL 0097959 Contact Us For Availability
NI
SCREW 6 32X5/16 PH FH WPL Y0041769 Contact Us For Availability
NI
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
NI
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
NI
SCREW LATCH ARM MOUNTING WPL Y0078780 Contact Us For Availability
NI
SCREW 4-40X1 WPL Y0092365 Contact Us For Availability
NI
BRACKET WPL Y0301028 Contact Us For Availability
NI
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
NI
TAPE, VINYL FOAM, ROLL WPL Y0307330 Contact Us For Availability
NI
RIVET, POP WPL Y0076357 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
SCREW, No.10-24X3/8 (PH TRS HD) WPL Y0079863 Contact Us For Availability
× ![]()
