Model Whirlpool ARR632WW ELECTRIC RANGE – Common Parts & Diagrams

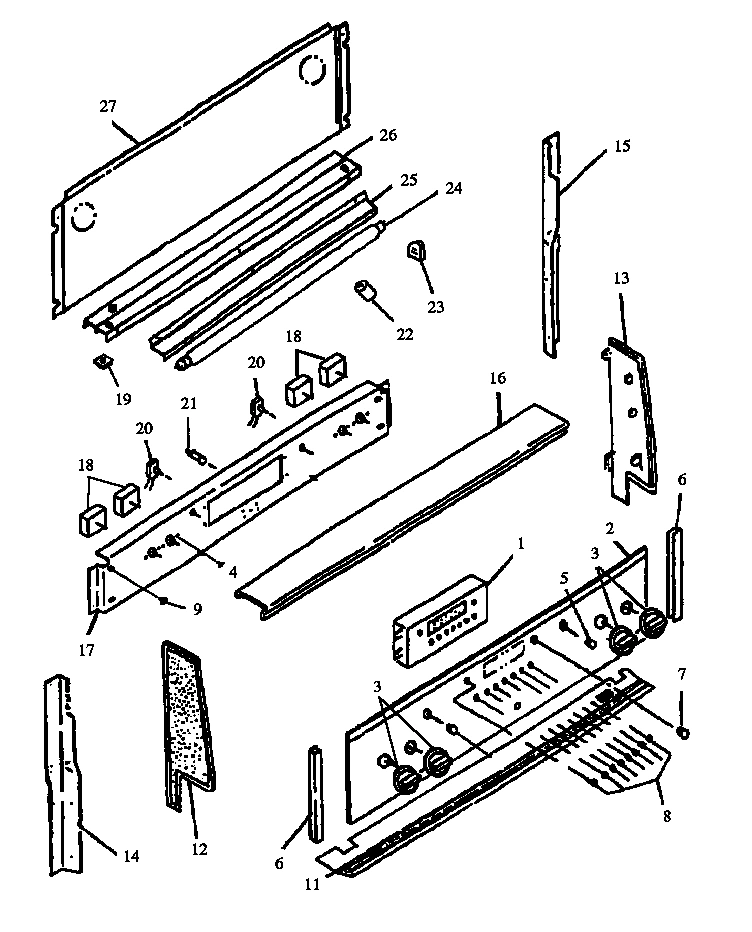

01 - BACKGUARD

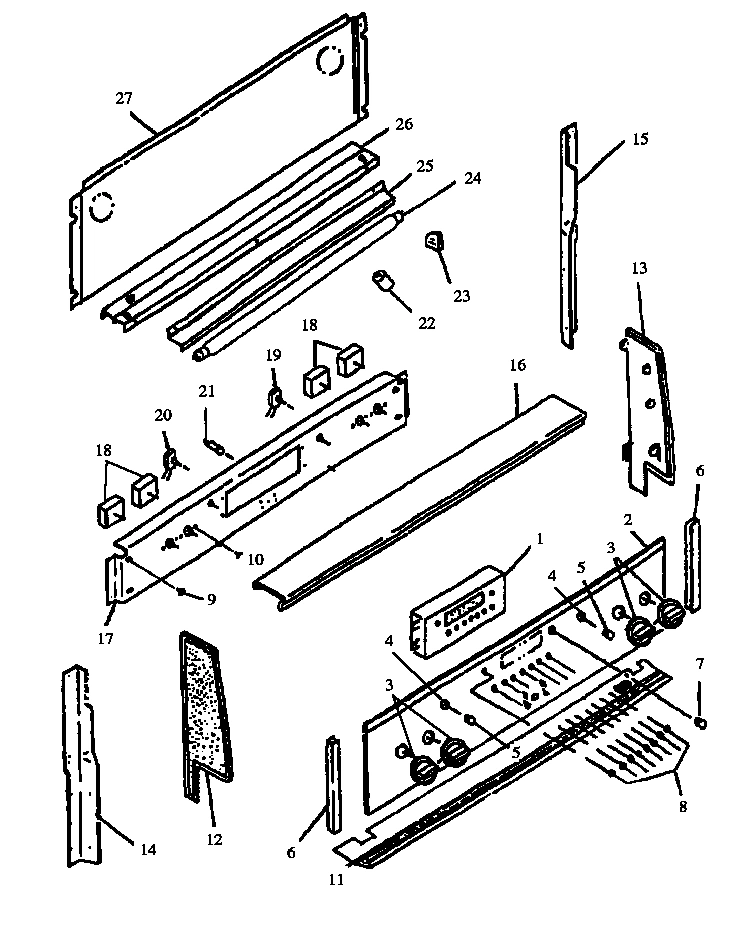

03 - CONTROL PANEL

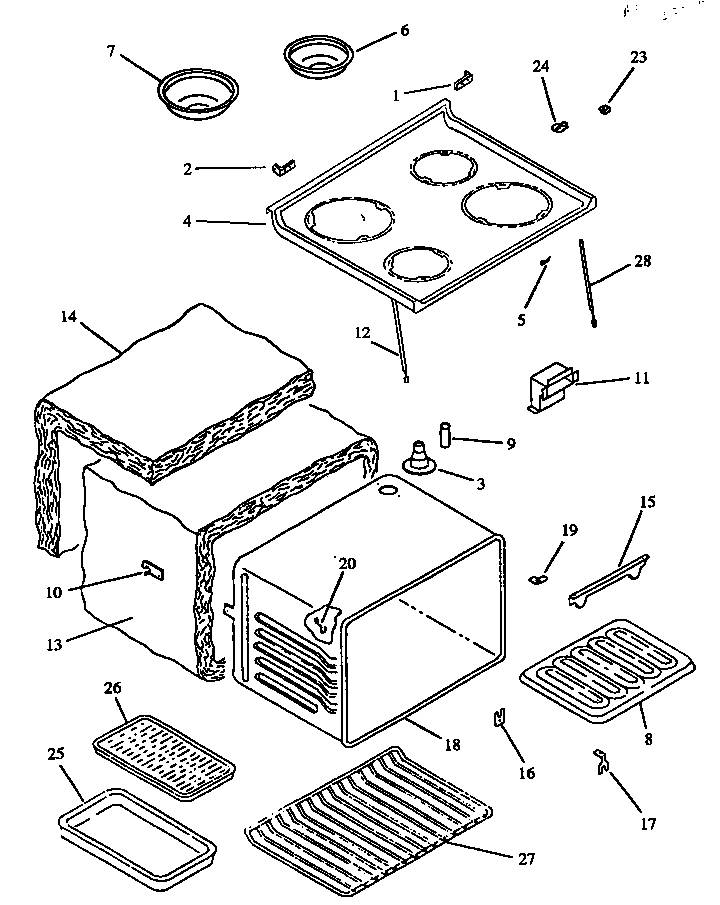

05 - MAIN TOP AND OVEN ASSY

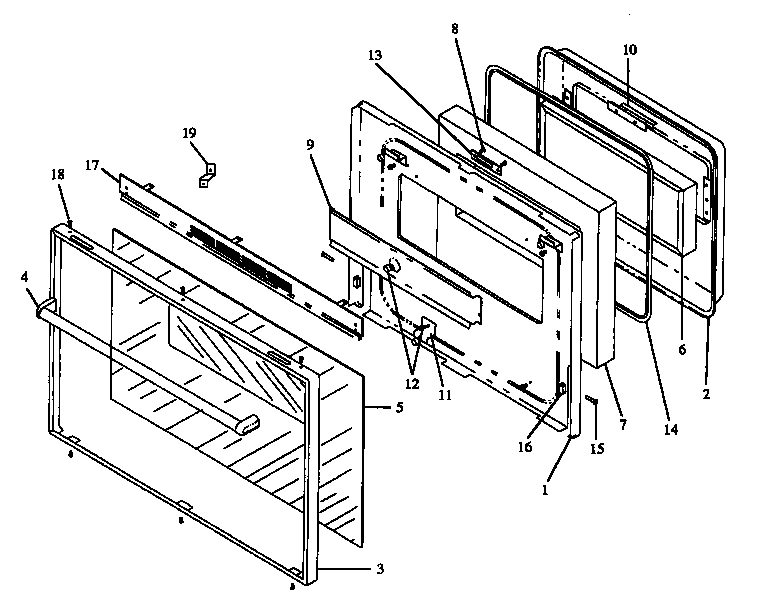

06 - OVEN DOOR

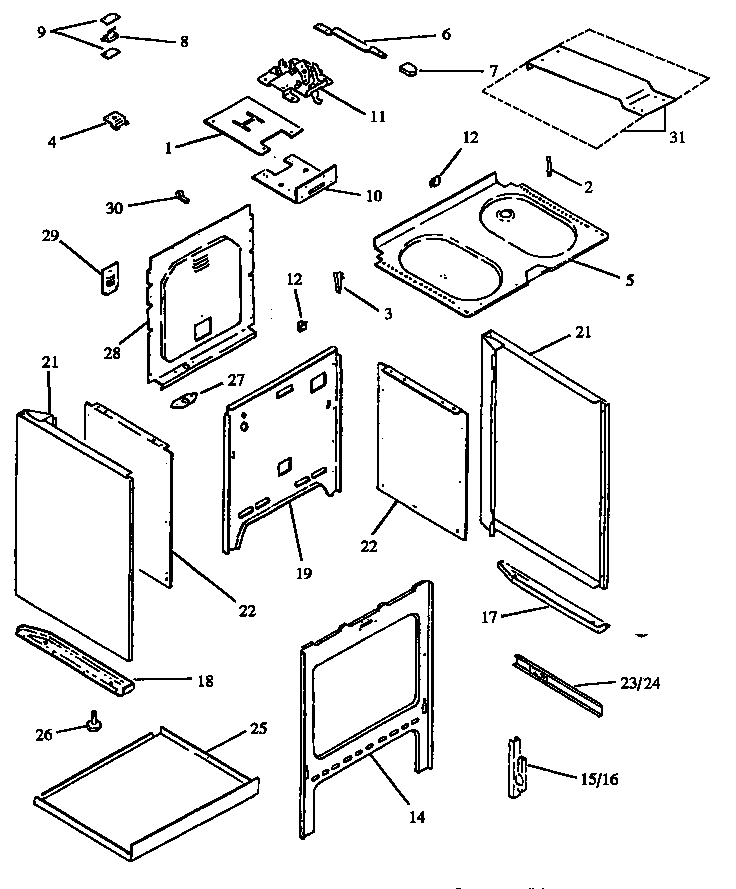

02 - CABINET ASSY

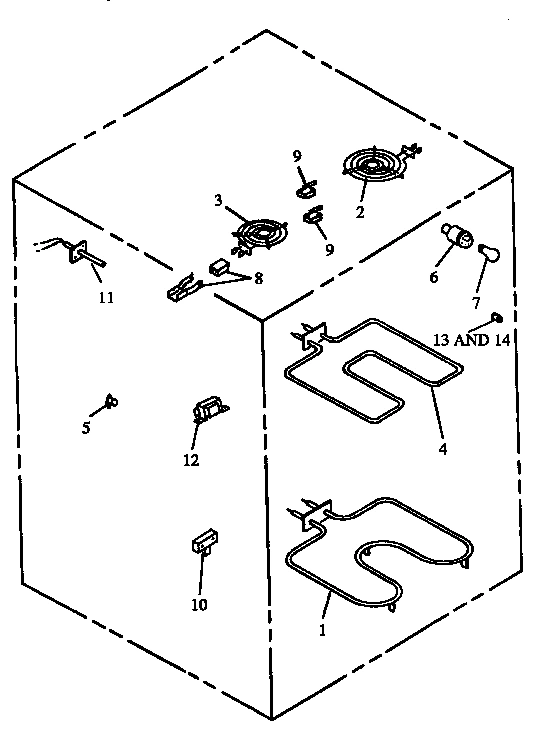

04 - ELECTRICAL COMPONENTS

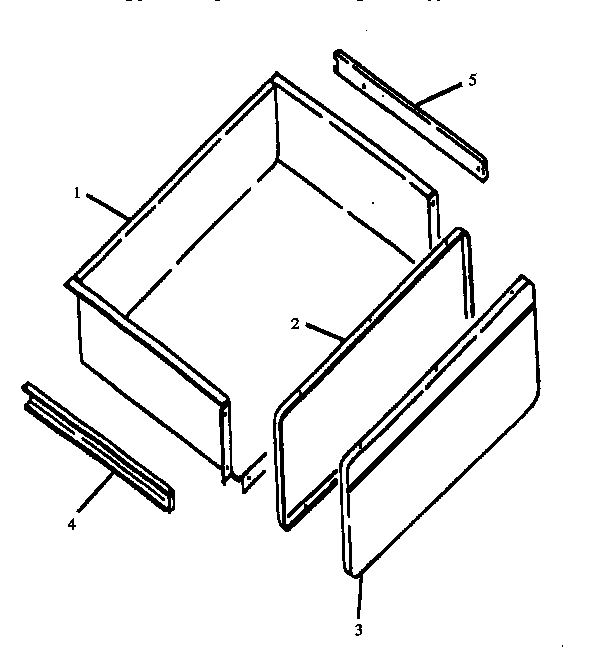

07 - STORAGE DRAWER
Common parts from model Whirlpool ARR632WW ELECTRIC RANGE
1
ERC (ELECTRONIC CLOCK) WPL Y0304555 Contact Us For Availability
1
ERC III (ELEC) WPL Y0307784 Contact Us For Availability
1
DOOR BACKER, ELECTRIC (CG) WPL 302723E Contact Us For Availability
1
RETAINER, OVEN LIGHT WPL Y0063353 Contact Us For Availability
1
WRAPPER, STOR DRAWER WPL 306519E Contact Us For Availability
2
GLASS, CNTRL PNL(WHITE) WPL 0308054 Contact Us For Availability
2
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
2
PAD, OV DR W/WINDOW WPL 58808CG Contact Us For Availability
2
LINER, STOR DRAWER WPL 306521B Contact Us For Availability
3
KNOB, INFINITE SWITCH (WHT) WPL Y0306676 Contact Us For Availability
3
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
3
FRAME, OVEN DOOR (WHITE) WPL 308071W Contact Us For Availability
3
HINGE, STRAP WPL 0304502 Contact Us For Availability
3
PANEL, DRAWER WHT WPL 063702W Contact Us For Availability
3
DRAWER PANEL BLACK WPL Y063702B Contact Us For Availability
4
MAIN TOP-ELECTRIC UPSWEPT WPL 306899W Contact Us For Availability
4
KIT, DR HNDL/TRIM (WHITE) WPL 0305520 Contact Us For Availability
4
BRACKET, SWITCH WPL Y0302316 Contact Us For Availability
4
RUNNER STORAGE DWR-LH WPL 0306404 Contact Us For Availability
4
RUNNER, STORAGE DOOR, L.H. WPL Y0300476 Contact Us For Availability
5
KNOB, LIGHT SWITCH (WHT) WPL 306675W Contact Us For Availability
5
PIN, SUPPORT ROD WPL 0071668 Contact Us For Availability
5
GLASS, OVEN DOOR, WHITE WPL 0302466 Contact Us For Availability
5
BAFFLE, DRIP (ENAMEL) WPL 304194E Contact Us For Availability
5
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
5
RUNNER, STORAGE DOOR R.H. WPL 0300477 Contact Us For Availability
5
RUNNER STORAGE DWR-RH WPL Y0306405 Contact Us For Availability
6
CHANNEL GLASS (WHT) WPL Y0305322 Contact Us For Availability
6
WINDOW ASSY WPL 0304831 Contact Us For Availability
6
LATCH ARM WPL 303039W Contact Us For Availability
7
KNOB, CLOCK (WHITE) WPL 308385W Contact Us For Availability
7
KNOB, CLOCK (WHT) WPL Y0307061 Contact Us For Availability
7
INSULATION,DOOR-SUB BACKER WPL 0062614 Contact Us For Availability
7
KNOB, LATCH HANDLE (WHT) WPL 306830W Contact Us For Availability
7
BULB, LIGHT WPL Y0042175 Contact Us For Availability
8
BUTTON, ERC SET (WHITE) WPL 308386W Contact Us For Availability
8
KNOB, SET BUTTON (WHT) WPL Y0308013 Contact Us For Availability
8
REFLECTOR, BROIL ELEMENT WPL Y0061781 Contact Us For Availability
9
TUBE, VENT EXT. WPL 0063336 Contact Us For Availability
9
BAFFLE, OVEN DOOR (BLACK) WPL 306467W Contact Us For Availability
9
SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability
9
INSULATION, ESM WPL Y0091523 Contact Us For Availability
10
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
10
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
10
BRACKET, LATCH MTG. WPL Y0058918 Contact Us For Availability
10
TERM BLK 1M-MIN WPL 0042185 Contact Us For Availability
11
KIT, VENT REWORK-WHT WPL 306198W Contact Us For Availability
11
TRIM, LOWER WPL 305909W Contact Us For Availability
11
SUPPORT BRACKET, GLASS WPL Y0062439 Contact Us For Availability
11
LATCH, OV. DOOR WPL Y0059565 Contact Us For Availability
11
SENSOR, ERC WPL Y0300769 Contact Us For Availability
12
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
12
END CAP-BKGD LT/RT (WHT) WPL 304927W Contact Us For Availability
12
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
12
BALLAST WPL Y0071869 Contact Us For Availability
13
END CAP-BKGD LT/RT (WHT) WPL 304928W Contact Us For Availability
13
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
13
LATCH PLATE WPL Y0052039 Contact Us For Availability
14
SUPPORT, BKGD (LH) WPL 0306589 Contact Us For Availability
14
INSULATION, REAR WPL Y0300974 Contact Us For Availability
14
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
14
SWITCH, OVEN LIGHT WPL Y0091363 Contact Us For Availability
15
SUPPORT, BKGD (RH) WPL 0306590 Contact Us For Availability
15
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
15
KIT, DOOR HINGE(RH-SS) WPL Y0067795 Contact Us For Availability
16
TRIM, TOP (WHITE) WPL 304973W Contact Us For Availability
16
CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability
16
BUMPER, RUBBER WPL Y0060247 Contact Us For Availability
16
KIT, DOOR HINGE(LH-HS) WPL Y0066953 Contact Us For Availability
17
PANEL, CONTROL WPL Y0307349 Contact Us For Availability
17
BRACKET, ELEMENT MOUNTING WPL Y061556 Contact Us For Availability
17
KIT, DR HNDL/TRIM (WHITE) WPL 0305526 Contact Us For Availability
17
BRACE, LEVELING LEG (RH) WPL 303578B Contact Us For Availability
18
SWITCH, INFINITE (WHT) WPL Y0306672 Contact Us For Availability
18
OVEN SHELL (EL. W/LT) WPL 58788CG Contact Us For Availability
18
BRACE, LEVELING LEG (LT) WPL 303577B Contact Us For Availability
19
START HOLDR-FLOUR.LMP WPL Y0304560 Contact Us For Availability
19
CHIP COVER WPL 0300278 Contact Us For Availability
19
SUPPORT, DOOR GLASS WPL Y0307910 Contact Us For Availability
19
INSULATION RETAINER REAR WPL Y0303364 Contact Us For Availability
20
SWITCH, OVEN LIGHT, ROTARY WPL Y0306673 Contact Us For Availability
21
LIGHT, IND (WHITE) WPL 0307343 Contact Us For Availability
21
PANEL, SIDE (WHT) WPL 303575W Contact Us For Availability
22
STARTER, FLOURESCENT WPL 0071920 Contact Us For Availability
22
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
23
LAMP HOLDER-FLOURES WPL Y0304559 Contact Us For Availability
23
TRACK, STORAGE DRAWER-L.H. WPL Y0300474 Contact Us For Availability
23
TRACK, STORAGE DWR LH WPL Y0306402 Contact Us For Availability
24
WIRE CLAMP WPL Y001203 Contact Us For Availability
24
TRACK, STORAGE DRAWER-R.H. WPL 0300475 Contact Us For Availability
24
TRACK, STORAGE DWR RH WPL 0306403 Contact Us For Availability
25
LIGHT DIFFUSER BACKGUARD-CLEAR WPL 0304977 Contact Us For Availability
25
INS. RETAINER, BOTTOM WPL Y0057531 Contact Us For Availability
26
BRACKET, LIGHT WPL 307211B Contact Us For Availability
26
LEG, LEVELING WPL Y0307594 Contact Us For Availability
27
COVER, BACKGUARD WPL 0058886 Contact Us For Availability
27
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
28
SUPPORT, MAINTOP WPL Y0304115 Contact Us For Availability
28
COVER, REAR WPL Y0058434 Contact Us For Availability
29
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
30
CLAMP, WIRE-INSULATE WPL Y0068513 Contact Us For Availability
31
RETAINER, TOP INSULATION WPL Y0309103 Contact Us For Availability
NI
TAPE, SEAL 1=1FT WPL 0069187 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PAN HD PH WPL Y0073657 Contact Us For Availability
NI
COLLAR, STARTER SOCKET WPL Y0305391 Contact Us For Availability
NI
RIVET, POP WPL Y0097822 Contact Us For Availability
NI
CLIP, ELEMENT RETAINER WPL Y0307930 Contact Us For Availability
NI
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
SCREW No.8 18 X 1/2 BLACK WPL 0302844 Contact Us For Availability
NI
SCREW, No.10-24X3/8 (PH TRS HD) WPL Y0079863 Contact Us For Availability
NI
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
NI
SCREW No.23, No.6X5/16 PH FL. HD. WPL Y0074807 Contact Us For Availability
NI
SCREW LATCH ARM MOUNTING WPL Y0078780 Contact Us For Availability
NI
SCREW 4-40X1 WPL Y0092365 Contact Us For Availability
NI
BRACKET WPL Y0301028 Contact Us For Availability
NI
HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability
× ![]()
