Model Whirlpool ARR630 ELECTRIC RANGE – Common Parts & Diagrams

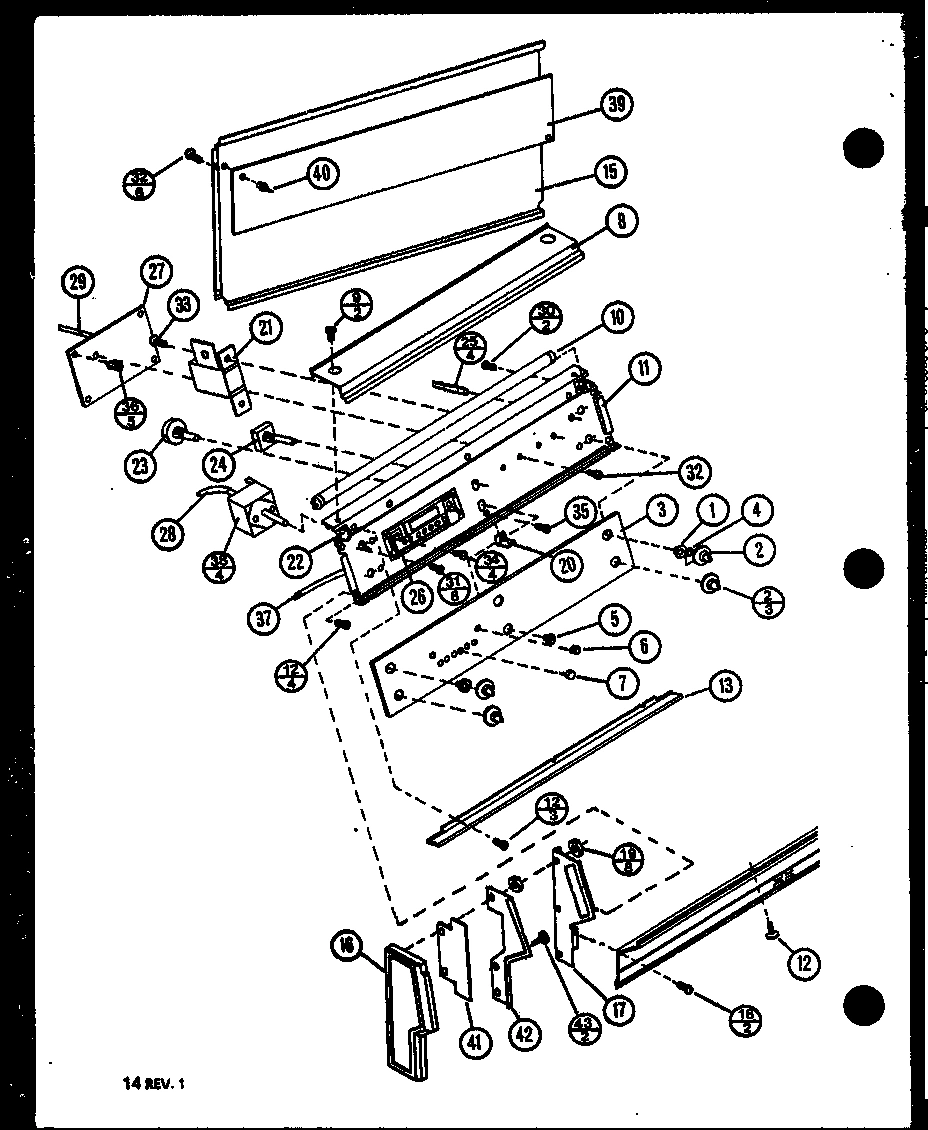

05 - Page 6

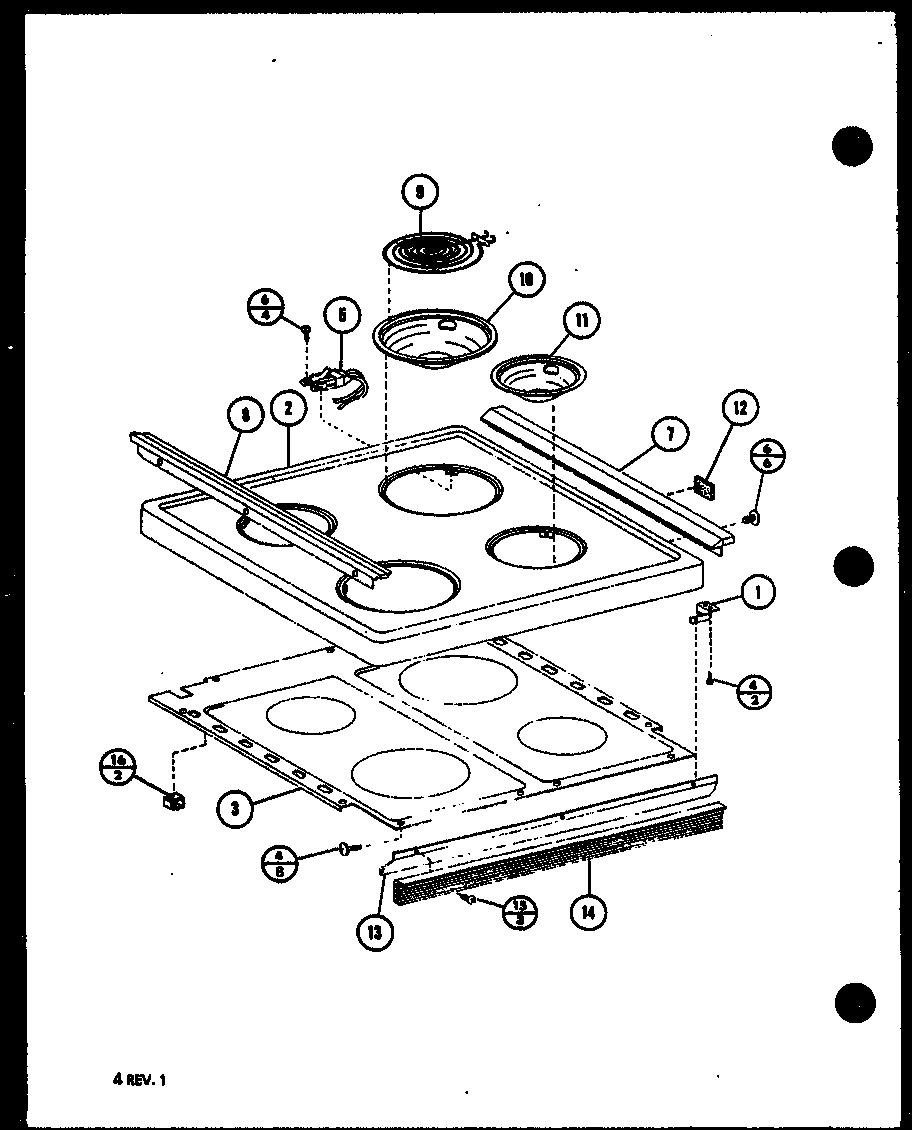

01 - Page 1

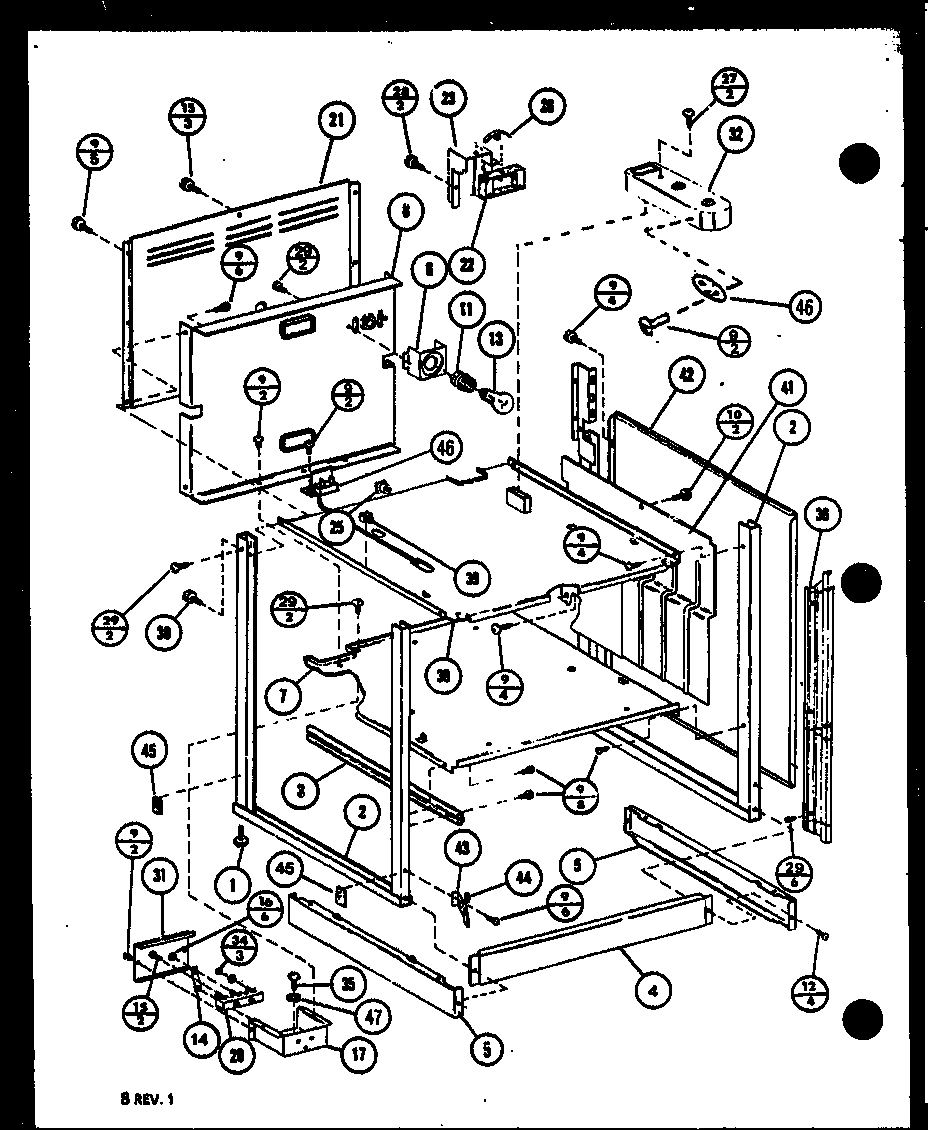

02 - Page 3

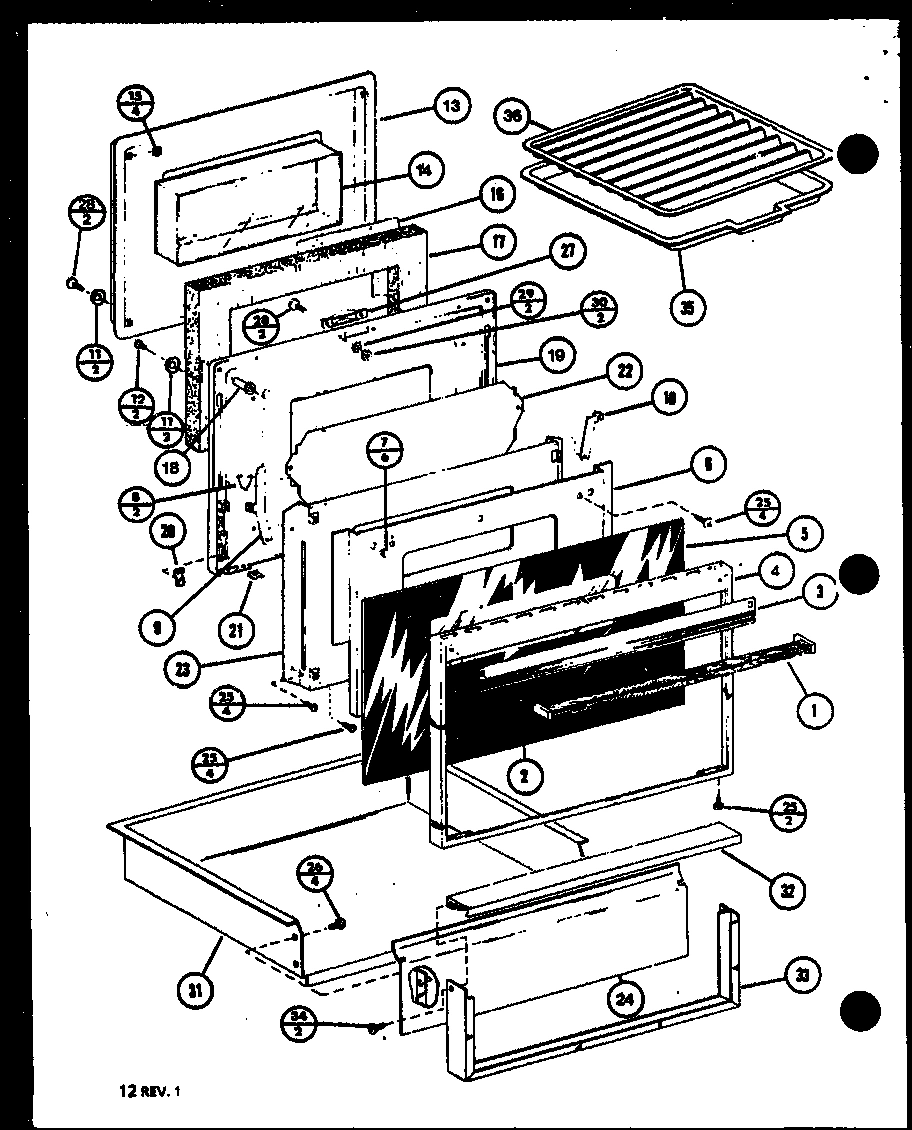

04 - Page 5

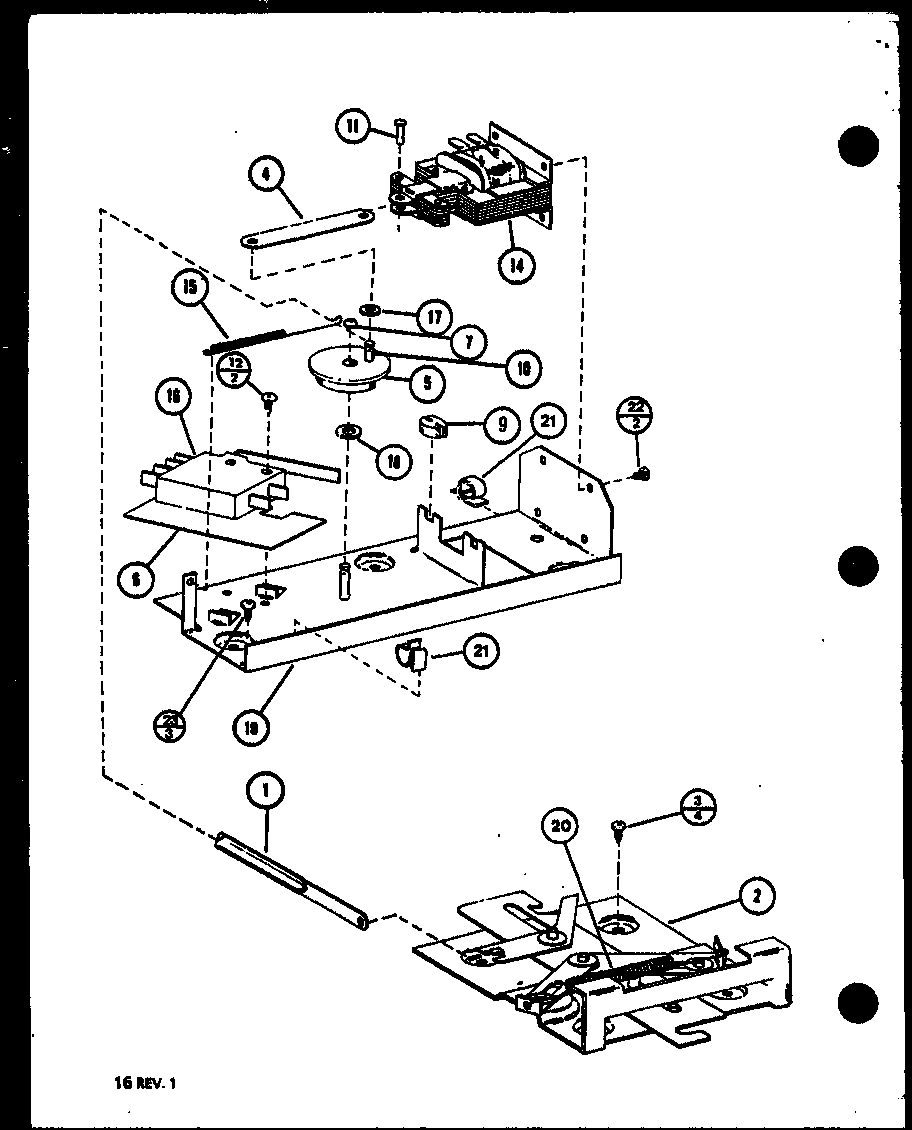

06 - Page 7

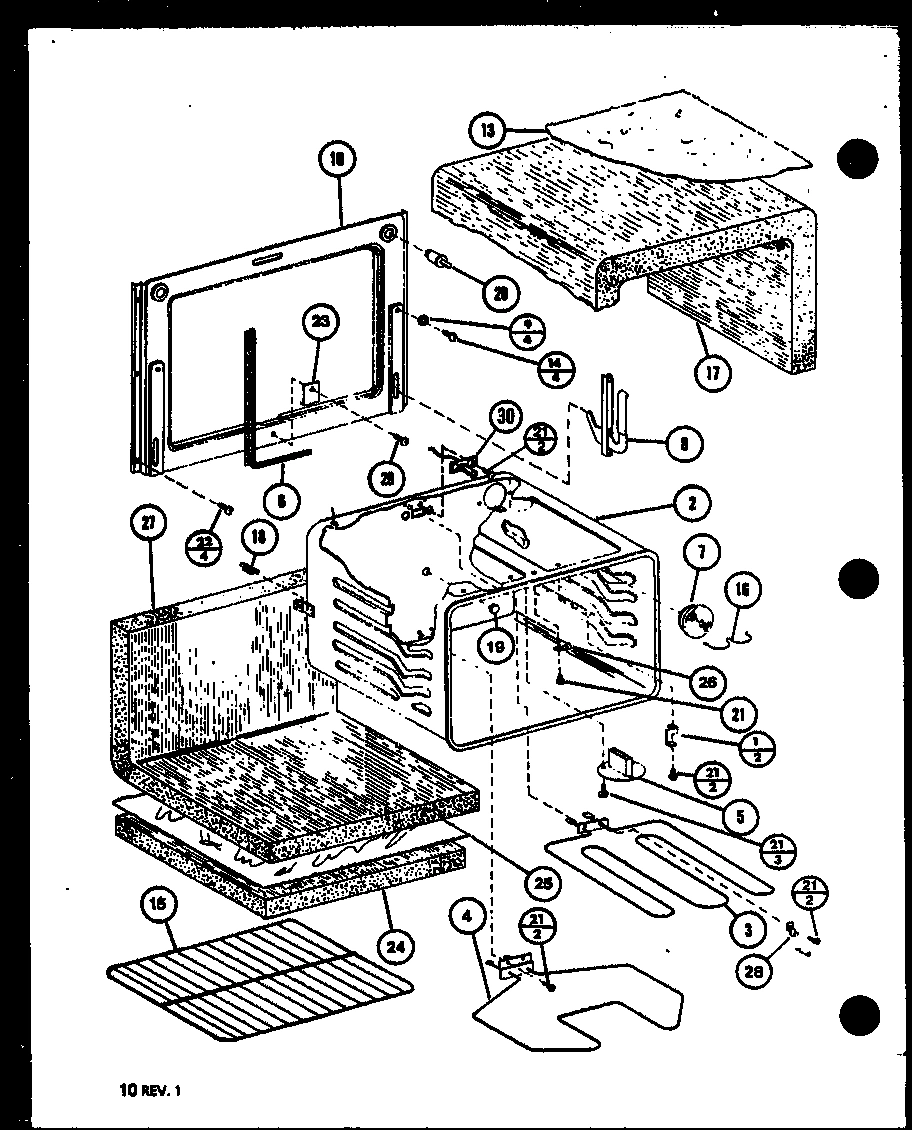

03 - Page 4
Common parts from model Whirlpool ARR630 ELECTRIC RANGE
1
SEAL-CONTROL WPL A4404701 Contact Us For Availability
1
BRKT-FRONT WPL C2709001 Contact Us For Availability
1
BRKT-FRONT LH WPL C2709002 Contact Us For Availability
1
FOOT WPL A4400801 Contact Us For Availability
1
FOOT, LEVEL, REAR WPL A4400802 Contact Us For Availability
1
HANDLE DOOR WPL C8958204 Contact Us For Availability
1
ARM WPL B5004501 Contact Us For Availability
1
HANGER, BROIL ELEMENT WPL B5034601 Contact Us For Availability
2
KNOB, CONTROL WPL D8602703 Contact Us For Availability
2
RANGE TOP (WHT) WPL D8520106 Contact Us For Availability
2
RANGE TOP (ALM) WPL D8520110 Contact Us For Availability
2
SIDE FRAME WELD WPL D8504108 Contact Us For Availability
2
PAD WPL A4406401 Contact Us For Availability
2
ASSY, DOOR LATCH (10442001) WPL D8508301 Contact Us For Availability
2
OVEN CAVITY WPL D8510507 Contact Us For Availability
3
GLASS, CONTROL WPL D8601902 Contact Us For Availability
3
DRIP PAN WPL D8582102 Contact Us For Availability
3
GLIDE WPL C2705301 Contact Us For Availability
3
EXT DOOR TRIM WPL D8565803 Contact Us For Availability
3
ELEMENT,BROIL WPL D8528901 Contact Us For Availability
4
TAG- PUSH TO TURN WPL A4411701 Contact Us For Availability
4
KICK PANEL-BLACK WPL C2706704 Contact Us For Availability
4
FRAME, DOOR WPL D8507702 Contact Us For Availability
4
ARM, ACTUATOR WPL B5034901 Contact Us For Availability
4
BAKE ELEMENT WPL C2734101 Contact Us For Availability
5
CAP, LIGHT SWITCH WPL A4427602 Contact Us For Availability
5
KICK PLATE WPL C2706602 Contact Us For Availability
5
PANEL WPL D8507901 Contact Us For Availability
5
CAM, LOCK SOLENOID WPL B5004201 Contact Us For Availability
5
ASSY, VENT WPL C2704801 Contact Us For Availability
6
KNOB, ELECT. CONT. WPL 10026901 Contact Us For Availability
6
SCREW WPL M0237214 Contact Us For Availability
6
REFLECTOR WPL B5000601 Contact Us For Availability
6
HEAT SHIELD WPL D8507601 Contact Us For Availability
6
INSULATOR-SWITCH WPL A4405601 Contact Us For Availability
6
GASKET WPL B5002602 Contact Us For Availability
7
CONTROL BUTTON ASSY WPL 10023901 Contact Us For Availability
7
TRIM WPL D8532903 Contact Us For Availability
7
RETAINER WPL D8510401 Contact Us For Availability
7
BUMPER GLASS K WPL B8344703 Contact Us For Availability
7
CLIP WPL M0118901 Contact Us For Availability
7
GLOBE-LAMP WPL B5003301 Contact Us For Availability
8
COVER, LIGHT WPL D8575002 Contact Us For Availability
8
TRIM WPL D8532904 Contact Us For Availability
8
RETAINER REAR INSUL WPL D8573202 Contact Us For Availability
8
SPRING-SHUTTER WPL C2705101 Contact Us For Availability
8
DOOR HINGE ASSY WPL D8559004 Contact Us For Availability
9
SCREW, S.M. WPL M0210318 Contact Us For Availability
9
ARM-SHUTTER LH WPL B5003801 Contact Us For Availability
9
WASHER PADDED WPL M0271202 Contact Us For Availability
9
PAD WPL A4405901 Contact Us For Availability
10
ARM-SHUTTER RH WPL B5003901 Contact Us For Availability
10
PIN-GROOVED WPL A4405701 Contact Us For Availability
10
PANEL, FRONT CAV. WPL D8579004 Contact Us For Availability
11
CONTROL PANEL WPL D8606502 Contact Us For Availability
11
SOCKET, OVEN LIGHT WPL A4400701 Contact Us For Availability
11
POP RIVET WPL M0010212 Contact Us For Availability
12
SCREW WPL M0217204 Contact Us For Availability
12
SCREW WPL M0218625 Contact Us For Availability
12
SCREW WPL M0203052 Contact Us For Availability
12
SCREW WPL M0227520 Contact Us For Availability
13
LENS LIGHT WPL B5031401 Contact Us For Availability
13
GUARD WPL C2706101 Contact Us For Availability
13
LAMP 41W WPL A0282805 Contact Us For Availability
13
DOOR PLUG WPL D8507103 Contact Us For Availability
13
FOIL-ALUM WPL A4400603 Contact Us For Availability
14
PLATE, BOTTOM WPL D8564002 Contact Us For Availability
14
GRILLE, FRONT WPL D8509401 Contact Us For Availability
14
STRAP-GRD WPL A4406901 Contact Us For Availability
14
WINDOW WPL D8573401 Contact Us For Availability
14
SCREW WPL M0205218 Contact Us For Availability
14
SOLENOID, LOCK WPL C2711701 Contact Us For Availability
15
UPPER LEAD COVER WPL D8564202 Contact Us For Availability
15
SCREW WPL M0254518 Contact Us For Availability
15
SCREW WPL M0213145 Contact Us For Availability
15
SPEED NUT WPL A4407601 Contact Us For Availability
15
SPRING, SOLENOID WPL A4405501 Contact Us For Availability
15
RACK 15 11/32`` W X 22 29/32`` L WPL D8510001 Contact Us For Availability
16
CAP-END WPL 10019301 Contact Us For Availability
16
USR 0041847 WPL M0282402 Contact Us For Availability
16
FOIL-DOOR PLUG WPL A4406601 Contact Us For Availability
16
SWITCH, LIMIT WPL B5004402 Contact Us For Availability
16
RETAINER-LAMP WPL A4407001 Contact Us For Availability
17
SUPPORT CONT PANEL RH WPL D8570803 Contact Us For Availability
17
SUPPORT CONT/PANEL LH WPL D8570804 Contact Us For Availability
17
BRKT TERM BLOCK WPL C2705002 Contact Us For Availability
17
INSULATION WPL B5001102 Contact Us For Availability
17
WASHER WPL M0270501 Contact Us For Availability
17
INSULATION WPL B5003003 Contact Us For Availability
18
SCREW WPL M0230727 Contact Us For Availability
18
SPACER WPL A4406301 Contact Us For Availability
18
WASHER WPL M0270515 Contact Us For Availability
18
SPRING WPL A4407101 Contact Us For Availability
19
NUT WPL M0288806 Contact Us For Availability
19
INNER DOOR WELD WPL D8506907 Contact Us For Availability
19
ASSY, LATCH SOLENOID WPL C2705402 Contact Us For Availability
20
BRACKET-CONTROL WPL A4427701 Contact Us For Availability
20
SPRING WPL A4407701 Contact Us For Availability
20
SPRING, DOOR LATCH WPL A4406002 Contact Us For Availability
20
SWITCH, OVEN DR WPL C2706501 Contact Us For Availability
21
BALLAST WPL B5005903 Contact Us For Availability
21
CLIP WPL M0110503 Contact Us For Availability
21
COVER LOWER LEAD WPL D8509507 Contact Us For Availability
21
CLIP-SPEED NUT WPL M0119601 Contact Us For Availability
21
SCREW WPL M0237117 Contact Us For Availability
22
SOCKET, FLOR-RH WPL C2722706 Contact Us For Availability
22
SOCKET, FLUOR WPL C2722713 Contact Us For Availability
22
GASKET, VENT WPL B5027401 Contact Us For Availability
22
SHUTTER WPL D8507501 Contact Us For Availability
22
SCREW WPL M0237442 Contact Us For Availability
23
SWITCH, OVEN LIGHT WPL C2731902 Contact Us For Availability
23
SCREW WPL M0217224 Contact Us For Availability
23
OVEN VENT PTND WPL C2731602 Contact Us For Availability
23
HEAT SHIELD WPL D8507401 Contact Us For Availability
23
RETAINER-GASKET K WPL A4427901 Contact Us For Availability
24
SWITCH, FLUORESCENT LIGHT WPL C2732302 Contact Us For Availability
24
DRAWER WLD BLK K WPL C2713804 Contact Us For Availability
24
INSULATION WPL B5002302 Contact Us For Availability
25
LIGHT, INDICATOR (RED) WPL C2737101 Contact Us For Availability
25
GROMMET WPL M0580005 Contact Us For Availability
25
FOIL ALUMINUM K WPL A4400601 Contact Us For Availability
26
CONTROL ERC WPL D8604202 Contact Us For Availability
26
CLIP, DART WPL M0111202 Contact Us For Availability
26
SCREW WPL M0213129 Contact Us For Availability
26
CLIP-OVEN CAVITY WPL B5003201 Contact Us For Availability
27
PC BOARD WPL D8604901 Contact Us For Availability
27
SCREW WPL M0211025 Contact Us For Availability
27
LATCH PLATE ASSY WPL B5003601 Contact Us For Availability
27
INSULATION WPL B5002403 Contact Us For Availability
28
SCREW A K WPL M0211516 Contact Us For Availability
28
CLIP WPL A1060501 Contact Us For Availability
29
HARNESS, WIRING WPL D8605901 Contact Us For Availability
29
LOCK WASHER WPL M0272803 Contact Us For Availability
30
SCREW WPL M0201414 Contact Us For Availability
30
SCREW WPL M0211543 Contact Us For Availability
30
THERMOSTAT WPL C2741101 Contact Us For Availability
31
SCREW WPL M0209514 Contact Us For Availability
31
COVER WPL B5003501 Contact Us For Availability
31
DRAWER PAN PNTD K WPL C2713903 Contact Us For Availability
32
DUCT HORIZ. WPL C2706404 Contact Us For Availability
32
EXT. DRAWER HANDLE WPL D8526502 Contact Us For Availability
33
SCREW WPL M0216627 Contact Us For Availability
33
DRAWER HANDLE WPL D8548102 Contact Us For Availability
34
SCREW WPL M0230015 Contact Us For Availability
34
SCREW WPL M0237730 Contact Us For Availability
35
SCREW WPL M0232702 Contact Us For Availability
35
SCREW WPL M0227817 Contact Us For Availability
36
SUPPORT P-C BD A WPL M0590602 Contact Us For Availability
36
TRIM-SIDE LH WPL D8509202 Contact Us For Availability
36
TRIM WPL D8509302 Contact Us For Availability
37
HARNESS, WIRING WPL 10014501 Contact Us For Availability
38
SWITCH, INFINITE (WHT) WPL 10027904 Contact Us For Availability
38
RETAINER, TOP INSUL. WPL D8506204 Contact Us For Availability
41
SUPPORT PLATE WPL 10117901 Contact Us For Availability
41
RETAINER-INSUL R WPL D8506701 Contact Us For Availability
41
RETAINER-INSUL L WPL D8506801 Contact Us For Availability
42
INSERT END PLUG WPL 10019401 Contact Us For Availability
42
INSERT END CAP WPL 10019402 Contact Us For Availability
42
SIDE PANEL -W WPL D8501112 Contact Us For Availability
42
SIDE PANEL L WPL D8501116 Contact Us For Availability
43
SCREW WPL M0234114 Contact Us For Availability
43
BRKT-SIDE PNL RH WPL B5010201 Contact Us For Availability
43
BRKT-SIDE PNL LH WPL B5010202 Contact Us For Availability
44
BUMPER WPL B5034701 Contact Us For Availability
45
GASKET WPL B5718912 Contact Us For Availability
46
THERMAL CUTOUT WPL B5684114 Contact Us For Availability
47
WASHER WPL M0270001 Contact Us For Availability
NI
HI TEMP LUBE WPL R0195023 Contact Us For Availability
× ![]()
