Model Whirlpool ARR624W ELECTRIC RANGE – Common Parts & Diagrams

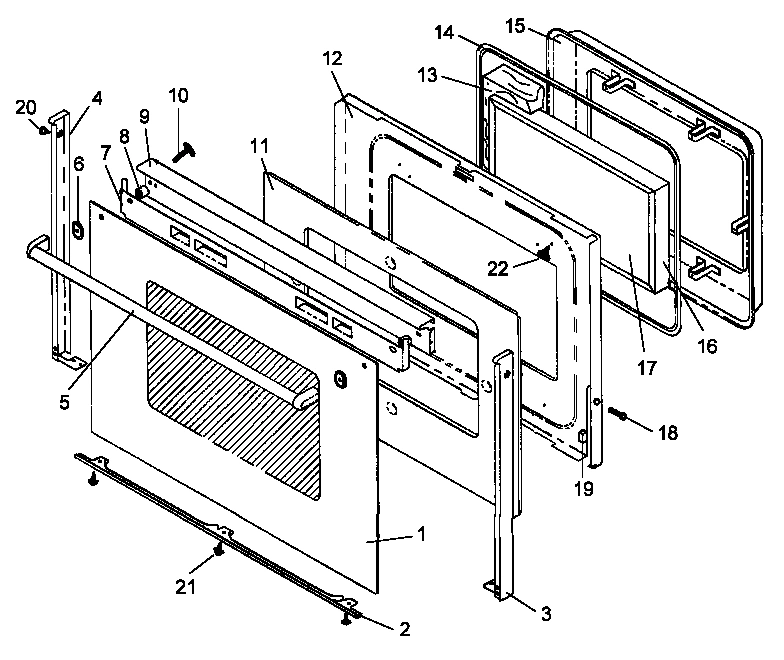

05 - OVEN DOOR ASSY

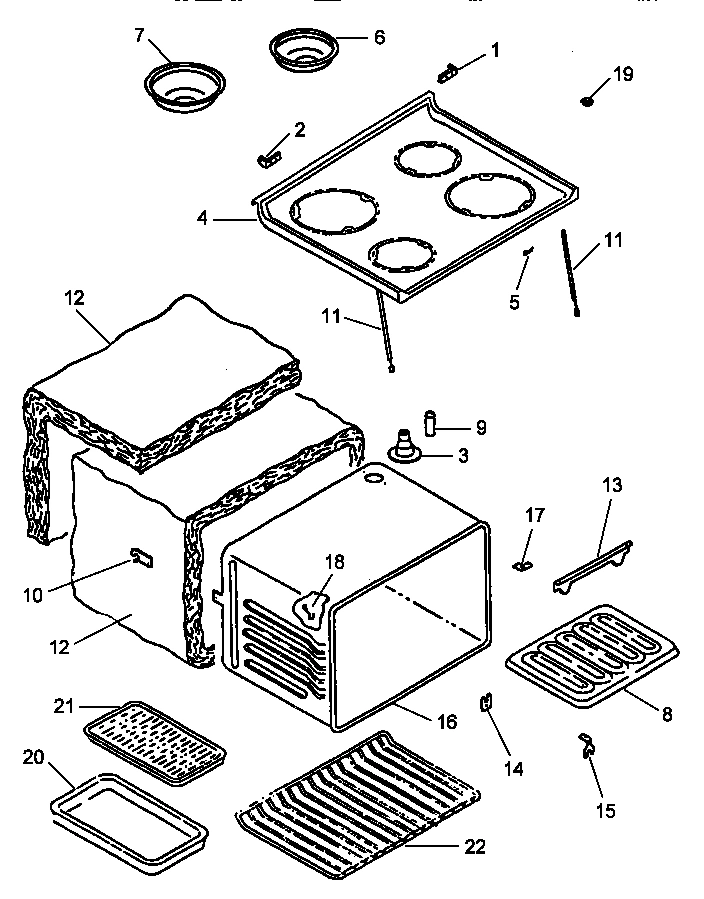

04 - MAIN TOP AND OVEN ASSY

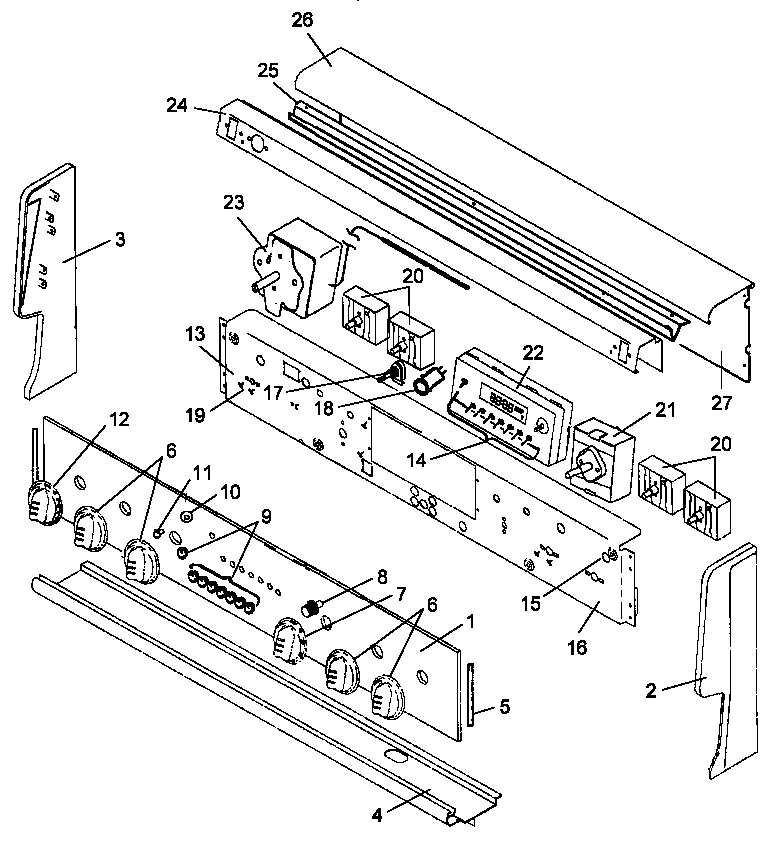

01 - BACKGUARD ASSY

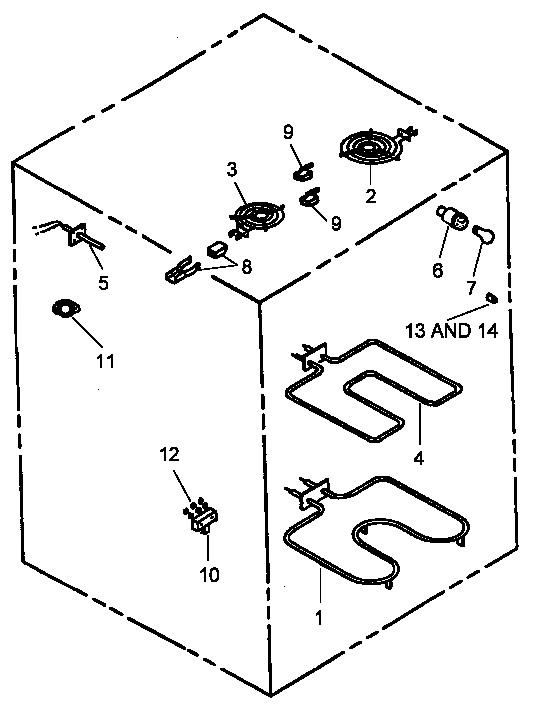

03 - ELECTRICAL COMPONENTS

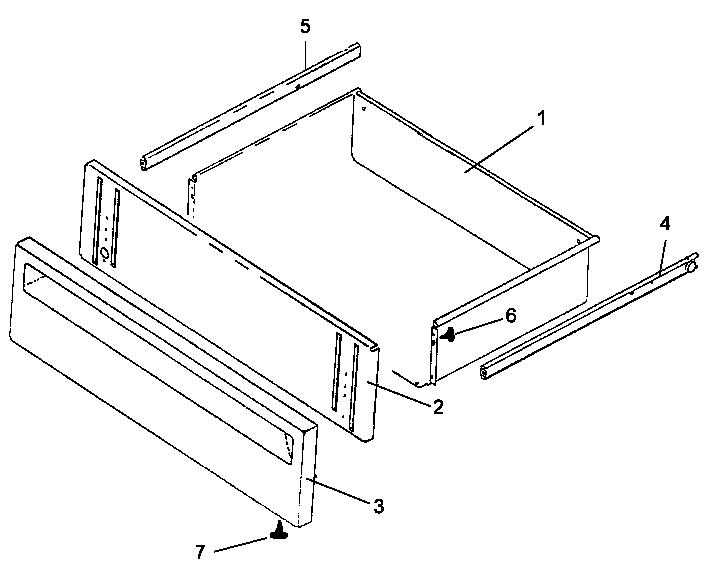

06 - STORAGE DRAWER ASSY

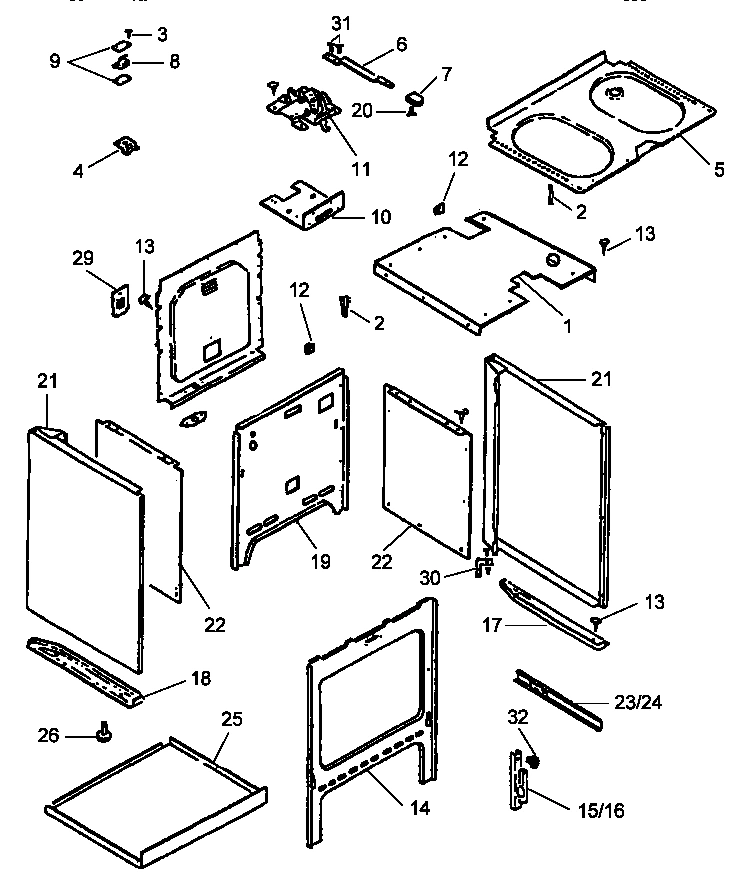

02 - CABINET ASSY
Common parts from model Whirlpool ARR624W ELECTRIC RANGE
1
GLASS, OUTER DOOR (BLK) WPL 309462B Contact Us For Availability
1
GLASS, BACKGUARD (BLK) WPL 309459B Contact Us For Availability
1
DRAWER, STORAGE (WHT) WPL 309622W Contact Us For Availability
1
RETAINER, TOP INSULATION WPL Y0309773 Contact Us For Availability
2
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
2
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
2
END CAP, R.H. WPL 304932B Contact Us For Availability
2
LINER, DRAWER PANEL (WHT) WPL 309179W Contact Us For Availability
2
HINGE, STRAP WPL 0304502 Contact Us For Availability
3
END CAP, RT (BLK) WPL 309457B Contact Us For Availability
3
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
3
END CAP, L.H. WPL 304931B Contact Us For Availability
3
PANEL, DRAWER (BLK) WPL 309177B Contact Us For Availability
3
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
4
END CAP, LT (BLK) WPL 309458B Contact Us For Availability
4
MAINTOP & BRKT KIT WPL R0710286 Contact Us For Availability
4
MAINTOP & BRKT KIT WPL R0710287 Contact Us For Availability
4
TRIM,LWR BACKGUARD WPL 306286B Contact Us For Availability
4
RUNNER STORAGE DWR-RH WPL Y0306405 Contact Us For Availability
4
BRACKET, SWITCH WPL Y0302316 Contact Us For Availability
5
HANDLE, OVEN DOOR (BLK) WPL 309624B Contact Us For Availability
5
PIN, SUPPORT ROD WPL 0071668 Contact Us For Availability
5
CHANNEL, GLASS (BLACK) WPL 0059768 Contact Us For Availability
5
RUNNER STORAGE DWR-LH WPL 0306404 Contact Us For Availability
5
BAFFLE, DRIP (ENAMEL) WPL 309429CG Contact Us For Availability
6
SPACER, HANDLE (BLK) WPL 307892B Contact Us For Availability
6
KNOB, INFIN. SWITCH WPL 309921B Contact Us For Availability
6
LATCH ARM WPL 303039B Contact Us For Availability
7
ASSY, GLASS HEAT SHIELD (BLK) WPL 309642B Contact Us For Availability
7
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
7
KNOB, SELECTOR WPL 309922B Contact Us For Availability
7
BULB, LIGHT WPL Y0042175 Contact Us For Availability
7
KNOB, LATCH HANDLE (BLK) WPL 0302300 Contact Us For Availability
8
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
8
KNOB, CLOCK WPL 308955B Contact Us For Availability
8
SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability
9
TRIM, UPPER DOOR WPL 309456B Contact Us For Availability
9
TUBE, VENT EXT. WPL 0063336 Contact Us For Availability
9
INSULATION, ESM WPL Y0091523 Contact Us For Availability
10
SCREW, No.10-24X11/4 (TRS PH HD) WPL Y0309973 Contact Us For Availability
10
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
10
BRACKET, LATCH MTG. WPL 0314084 Contact Us For Availability
11
SUPPORT, MAINTOP WPL Y0304115 Contact Us For Availability
11
LATCH, OVEN DOOR (ELEC) WPL Y0314079 Contact Us For Availability
12
LINER, OVEN DOOR (ELEC) WPL 309070CG Contact Us For Availability
12
INSULATION,WRAPPER WPL Y0041966 Contact Us For Availability
12
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
12
KNOB, THERMOSTAT - BLACK WPL 309923B Contact Us For Availability
12
USR 0041847 WPL M0282402 Contact Us For Availability
13
PANEL, CONT.BKGD WPL Y0306546 Contact Us For Availability
13
SWITCH, OVEN LIGHT WPL Y0091363 Contact Us For Availability
14
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
14
CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability
14
SEE NOTE FRONT FRAME -- (NOT FIELD REPLACEABL WPL Y00000000 Contact Us For Availability
15
OVEN DOOR PAD W/O WINDOW WPL 58875CG Contact Us For Availability
15
KIT, DOOR HINGE (RH-SS) WPL Y0066954 Contact Us For Availability
16
OVEN SHELL (EL. W/LT) WPL 58788CG Contact Us For Availability
16
KIT, DOOR HINGE(LH-HS) WPL Y0066953 Contact Us For Availability
17
COVER, CHIP WPL Y0307380 Contact Us For Availability
17
BRACE, LEVELING LEG (RT) WPL Y0314192 Contact Us For Availability
18
RIVET, POP WPL Y0302648 Contact Us For Availability
18
CLIP, THERMO CAPILLARY WPL Y0067053 Contact Us For Availability
18
INDICATOR LIGHT WPL Y0071820 Contact Us For Availability
18
BRACE, LEVELING LEG (LT) WPL Y0314191 Contact Us For Availability
19
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
19
SCREW 6-32X3/16 SLO COOK SW WPL Y0041778 Contact Us For Availability
19
RETAINER, REAR INSUL. WPL 0309081 Contact Us For Availability
20
SCREW No.8 18 X 1/2 BLACK WPL 0302844 Contact Us For Availability
20
SCREW, TT AB No.8 X 3/8`` WPL Y0071914 Contact Us For Availability
21
SWITCH, SELECTOR 5 POS. WPL Y0306937 Contact Us For Availability
21
PANEL, SIDE (WHT) WPL 306081W Contact Us For Availability
22
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
22
CLOCK, ANALOG (BLK) WPL 0306288 Contact Us For Availability
22
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
23
THERMOSTAT WPL Y0063416 Contact Us For Availability
23
TRACK, STORAGE DWR RH WPL 0306403 Contact Us For Availability
24
TRACK, STORAGE DWR LH WPL Y0306402 Contact Us For Availability
25
RETAINER, INSULATION (BOTTOM) WPL Y0308662 Contact Us For Availability
26
TOP TRIM BACKGUARD WPL 305007B Contact Us For Availability
26
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
27
COVER,BACKGUARD WPL 0305447 Contact Us For Availability
29
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
30
ANTI-TIP PACK WPL Y0307160 Contact Us For Availability
31
SCREW LATCH ARM MOUNTING WPL Y0078780 Contact Us For Availability
32
SCREW No.10-32 X .375 WPL Y0300830 Contact Us For Availability
NI
CORK BUMPER WPL 0042014 Contact Us For Availability
NI
SUPPORT, BKGD (LH) WPL 0306589 Contact Us For Availability
NI
SUPPORT, BKGD (RH) WPL 0306590 Contact Us For Availability
NI
CONNECTOR, WIRE WPL Y0072808 Contact Us For Availability
NI
BRACKET,BACKGRD ENDCAP WPL Y0305443 Contact Us For Availability
NI
RIVET, POP WPL Y0076357 Contact Us For Availability
NI
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
NI
COVER, REAR WPL Y0307342 Contact Us For Availability
× ![]()
