  • LG ARNU243CFA2 Parts List

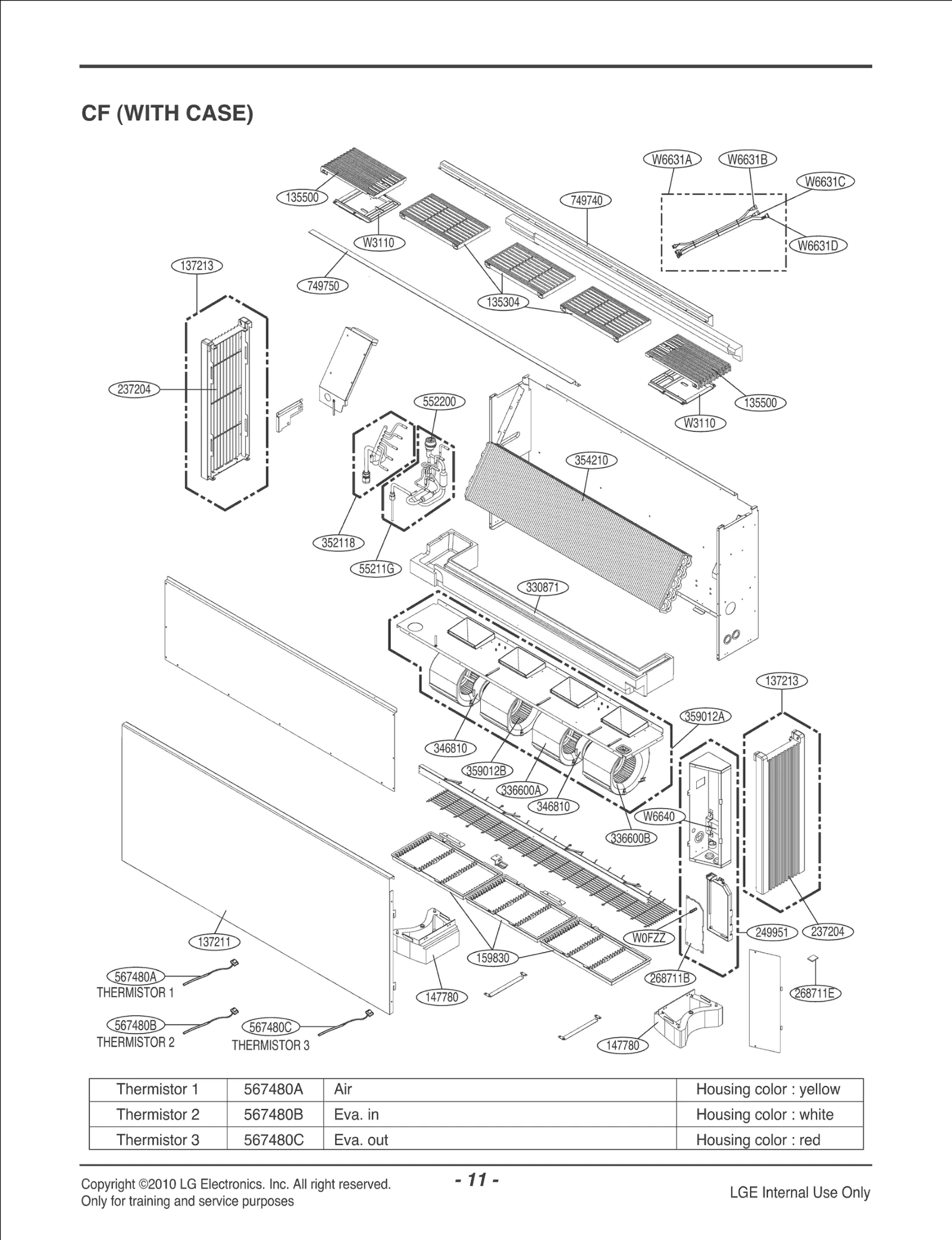

Model LG ARNU243CFA2 MV_F/Stand_W/Case – Common Parts & Diagrams

137211
Panel Assembly,Front(Indoor)
Panel Assembly,Front(Indoor) LGE AGL30619002 Contact Us For Availability
View on Model
137213
Panel Assembly,Side
Panel Assembly,Side LGE AGL30313401 Contact Us For Availability
View on Model
147780
Leg
Leg LGE 4778A20018A Contact Us For Availability
View on Model
237204
Panel,Side
Panel,Side LGE 3720A20723A Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE ABQ59261502 Contact Us For Availability
View on Model
268711E
PCB Assembly,Option
PCB Assembly,Option LGE EBR57726718 Contact Us For Availability
View on Model
330871
Pan Assembly,Drain
Pan Assembly,Drain LGE AGK30348202 Contact Us For Availability
View on Model
336600A
Housing,Wrapper
Housing,Wrapper LGE 3660A20059A Contact Us For Availability
View on Model
336600B
Housing,Wrapper
Housing,Wrapper LGE 3660A20060A Contact Us For Availability
View on Model
346810
Motor,DC
Motor,DC LGE EAU31898301 Contact Us For Availability
View on Model
346810
Motor Assembly,DC,Indoor
Motor Assembly,DC,Indoor LGE 4681A20198A Contact Us For Availability
View on Model
352118
Tube Assembly,Menifold(Indoor)
Tube Assembly,Menifold(Indoor) LGE AJR30072402 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20280C Contact Us For Availability
View on Model
359012A
Fan Assembly,Blower
Fan Assembly,Blower LGE 5901A20057C Contact Us For Availability
View on Model
359012B
Fan Assembly,Blower
Fan Assembly,Blower LGE 5901A20049A Contact Us For Availability
View on Model
552200
Valve Assembly
Valve Assembly LGE 5221A20004S Contact Us For Availability
View on Model
567480A
Thermistor,NTC
Thermistor,NTC LGE 6323A30004P Contact Us For Availability
View on Model
567480B
Thermistor Assembly
Thermistor Assembly LGE EBG58712401 Contact Us For Availability
View on Model
749740
Guide
Guide LGE MEA30239904 Contact Us For Availability
View on Model
749750
Guide Assembly
Guide Assembly LGE AEC30753508 Contact Us For Availability
View on Model
W3110
Case
Case LGE 3110A20172A Contact Us For Availability
View on Model
W6631A
Harness,Single
Harness,Single LGE 6631A20249F Contact Us For Availability
View on Model
W6631B
Harness,Single
Harness,Single LGE 6631A30122N Contact Us For Availability
View on Model
W6631C
Harness,Single
Harness,Single LGE 6631A30122Q Contact Us For Availability
View on Model
W6631D
Harness,Single
Harness,Single LGE 6631A30122R Contact Us For Availability
View on Model
