Model LG ARND063DER4 Airside_DX AHU_DOAS – Common Parts & Diagrams
Diagram 0

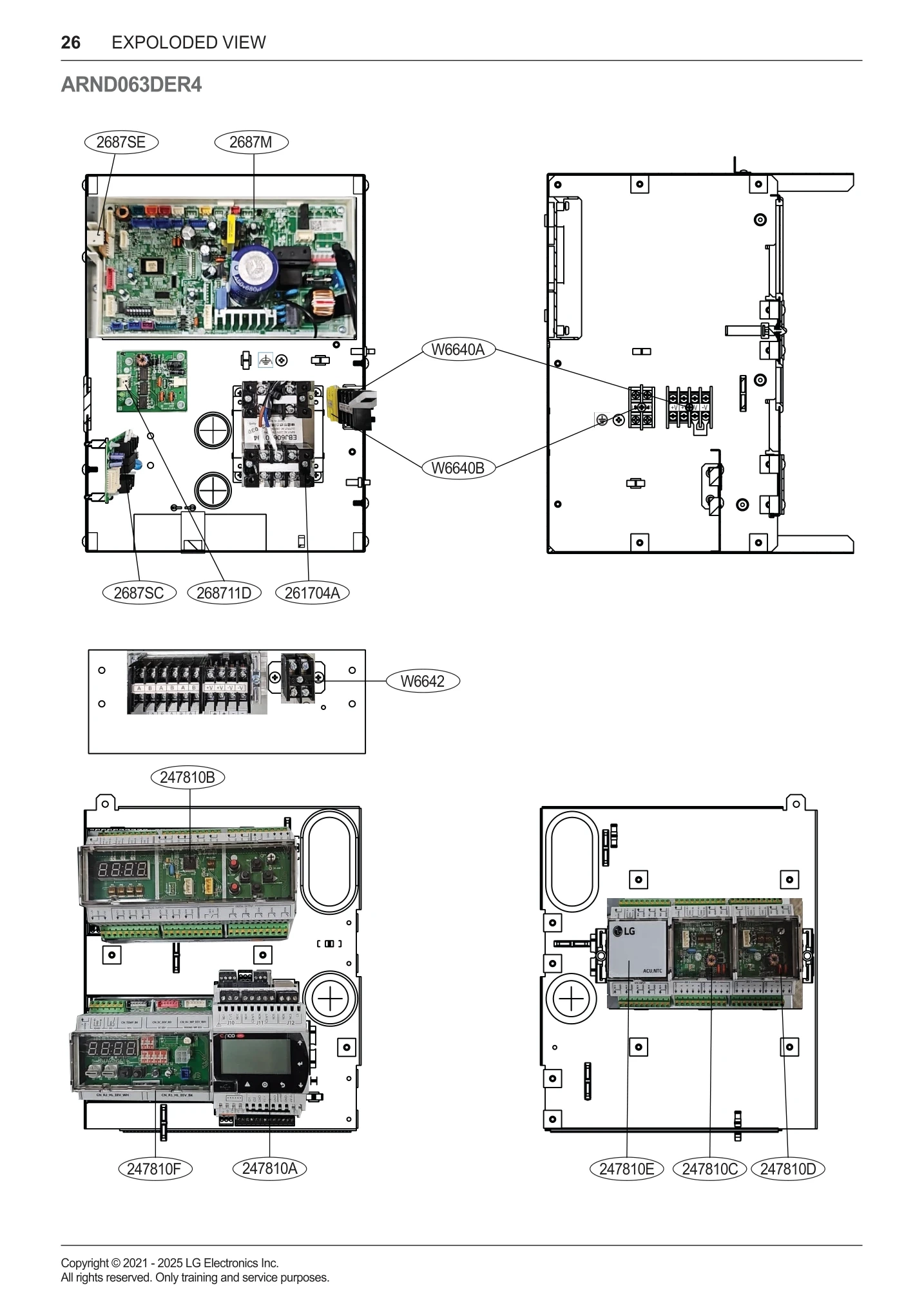

Diagram 1
Common parts from model LG ARND063DER4 Airside_DX AHU_DOAS
2687M
PCB Assembly,Main LGE EBR81117142 Contact Us For Availability
2687SC
PCB Assembly,Sub LGE 6871A20554D Contact Us For Availability
55211GA
Tube Assembly,Expansion LGE AJR30106101 Contact Us For Availability
55211GB
Tube Assembly,Expansion LGE AJR30079201 Contact Us For Availability
73920A
Packing,Right LGE MFZ63776902 Contact Us For Availability
137211
Panel Assembly,Front(Indoor) LGE AGL74234912 Contact Us For Availability
137213
Panel Assembly,Side LGE AGL74256853 Contact Us For Availability
137214
Panel Assembly,Upper LGE AGL74236415 Contact Us For Availability
147901
Barrier,Indoor LGE MAL62683917 Contact Us For Availability
147910A
Barrier Assembly,Single LGE AAM75404301 Contact Us For Availability
147910B
Barrier Assembly,Single LGE AAM75404302 Contact Us For Availability
158591
Pump Assembly,Water(DC) LGE AHA76475204 Contact Us For Availability
165010
Sensor Assembly LGE EBD64126204 Contact Us For Availability
237202
Panel,Front LGE MGC63182103 Contact Us For Availability
237213
Panel,Side LGE MGC63184504 Contact Us For Availability
247810D
Controller Assembly LGE ACM75338802 Contact Us For Availability
247810E
Controller Assembly LGE ACM75338903 Contact Us For Availability
249310B
Holder Assembly LGE AEJ76323002 Contact Us For Availability
261704A
Transformer,power LGE EBJ60670104 Contact Us For Availability
330871
Pan Assembly,Drain LGE AGK73510518 Contact Us For Availability
336600A
Housing,Wrapper LGE MEK62786903 Contact Us For Availability
336600B
Housing,Wrapper LGE MEK62786803 Contact Us For Availability
352118A
Tube Assembly,Manifold(Indoor) LGE AJR30079301 Contact Us For Availability
354210A
Evaporator Assembly,First LGE ADL76766401 Contact Us For Availability
354210B
Evaporator Assembly,First LGE ADL76731101 Contact Us For Availability
437213
Panel Assembly,Rear(Indoor) LGE AGL74235013 Contact Us For Availability
552120
Tube Assembly LGE AJR30105801 Contact Us For Availability
552200B
Valve,Expansion Body LGE MJX63032201 Contact Us For Availability
552204
Valve,Solenoid LGE 5220A90008T Contact Us For Availability
552209A
Valve Assembly LGE AJU36719731 Contact Us For Availability
552209B
Valve Assembly,Gear Expansion LGE AJU75837302 Contact Us For Availability
552209C
Coil Assembly,Expansion LGE EAP64267614 Contact Us For Availability
561410A
Solenoid LGE 6141A90002Q Contact Us For Availability
561410B
Coil Module,Solenoid LGE EAP65270911 Contact Us For Availability
661400
Coil Module,Expansion LGE EAP65270708 Contact Us For Availability
739209
Packing,Left LGE MFZ63777002 Contact Us For Availability
EBG13BK
Thermistor Assembly,NTC LGE EBG63929515 Contact Us For Availability
EBG13GN
Thermistor Assembly,NTC LGE EBG63929513 Contact Us For Availability
EBG13RD
Thermistor Assembly,NTC LGE EBG63929517 Contact Us For Availability
EBG13WH
Thermistor Assembly,NTC LGE EBG63929514 Contact Us For Availability
EBG13YL
Thermistor Assembly,NTC LGE EBG63929516 Contact Us For Availability
EBG24RD
Thermistor Assembly,NTC LGE EBG61106940 Contact Us For Availability
EBG24YL
Thermistor Assembly,NTC LGE EBG61110732 Contact Us For Availability
W4030A
Flange LGE MDM61941201 Contact Us For Availability
W4030B
Flange LGE MDM61941301 Contact Us For Availability
W4810A
Bracket LGE MAZ64043902 Contact Us For Availability
W4811B
Bracket Assembly LGE ABA30096302 Contact Us For Availability
× ![]()
