Model Whirlpool ARC-506 ELECTRIC RANGE – Common Parts & Diagrams

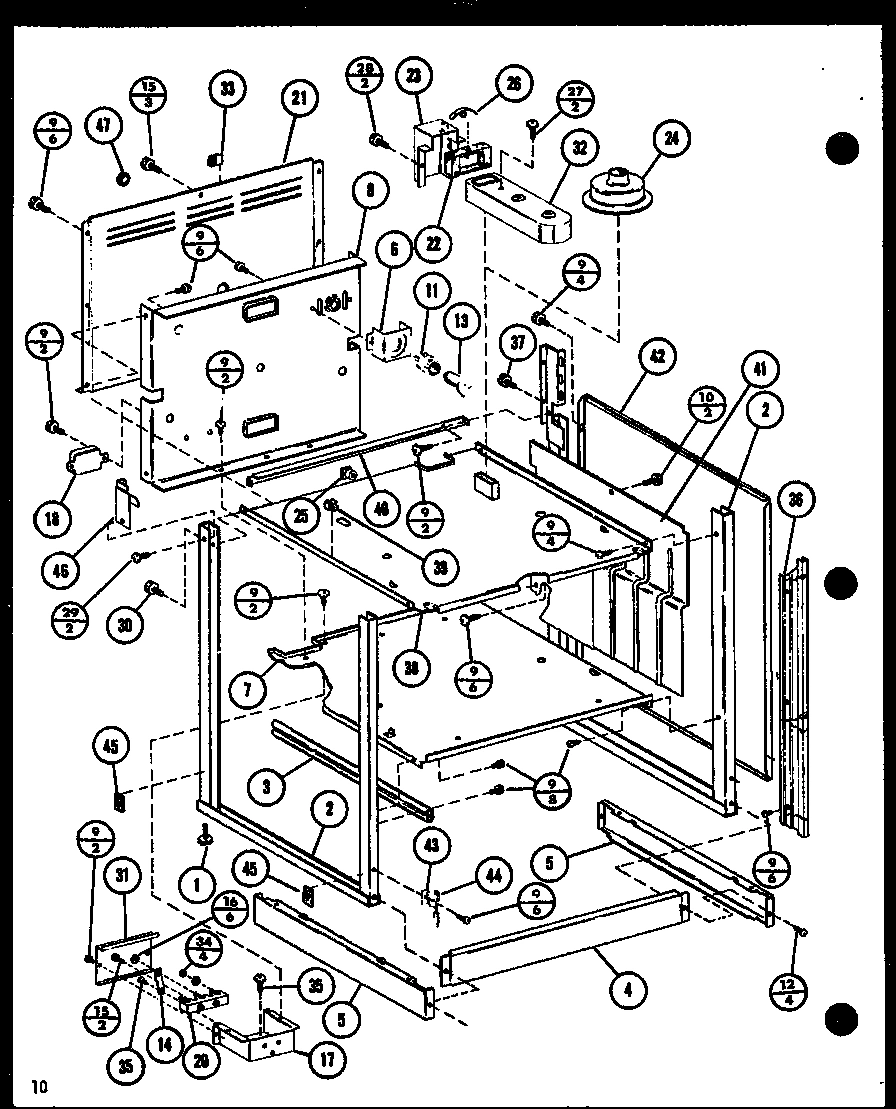

04 - Page 3

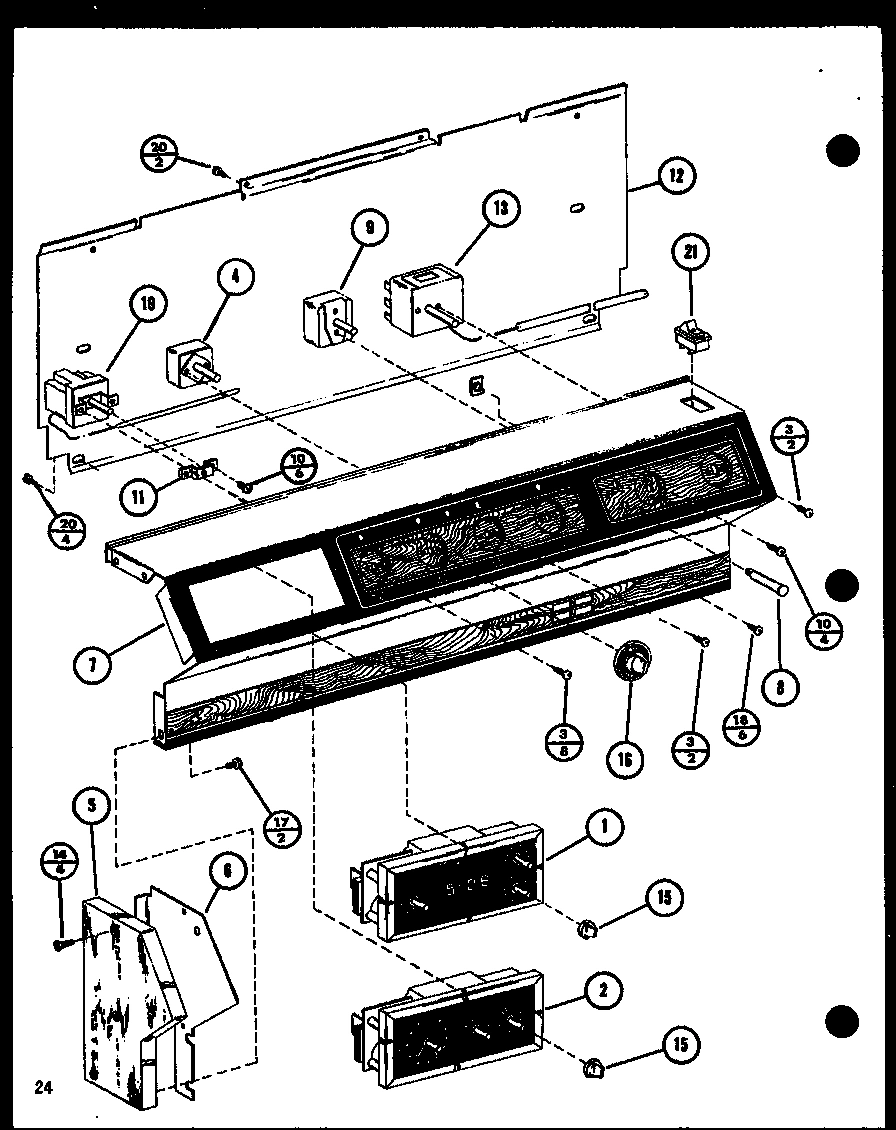

01 - Page 10

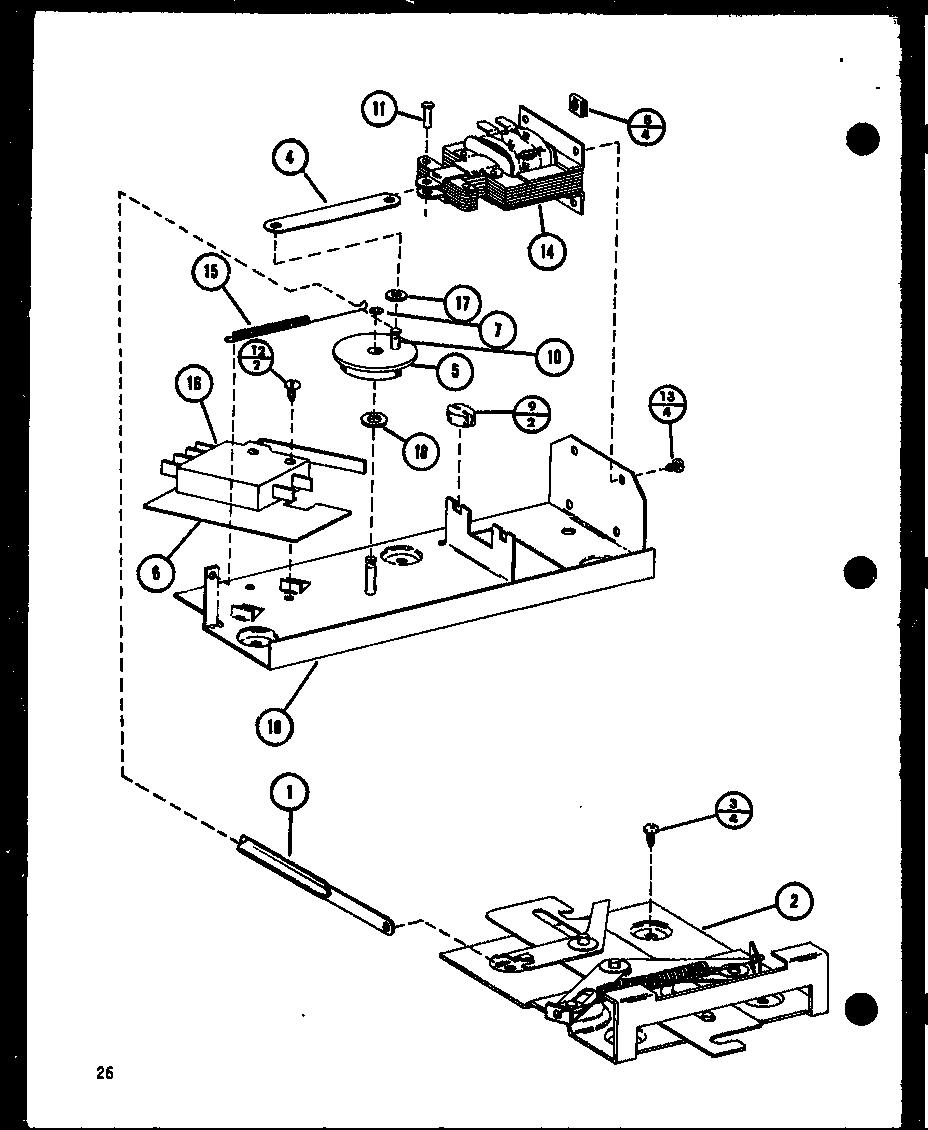

02 - Page 11

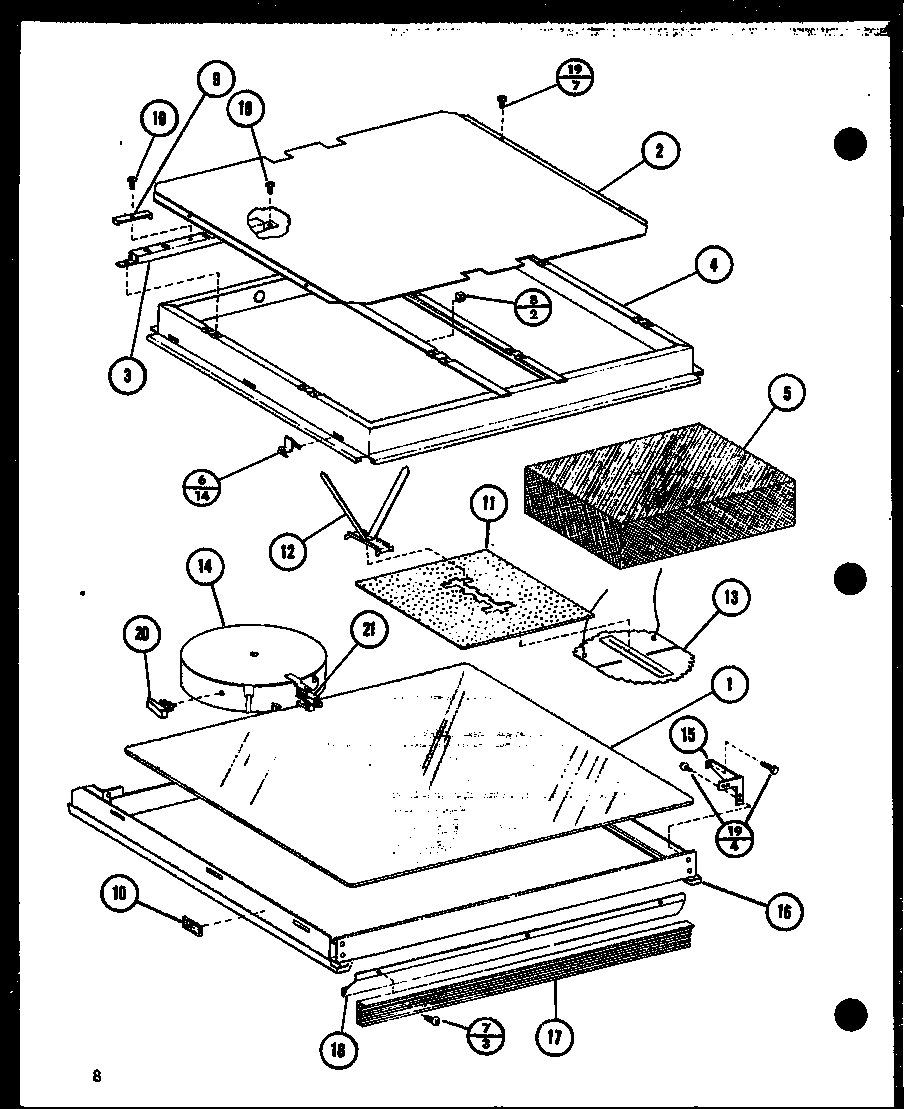

03 - Page 2

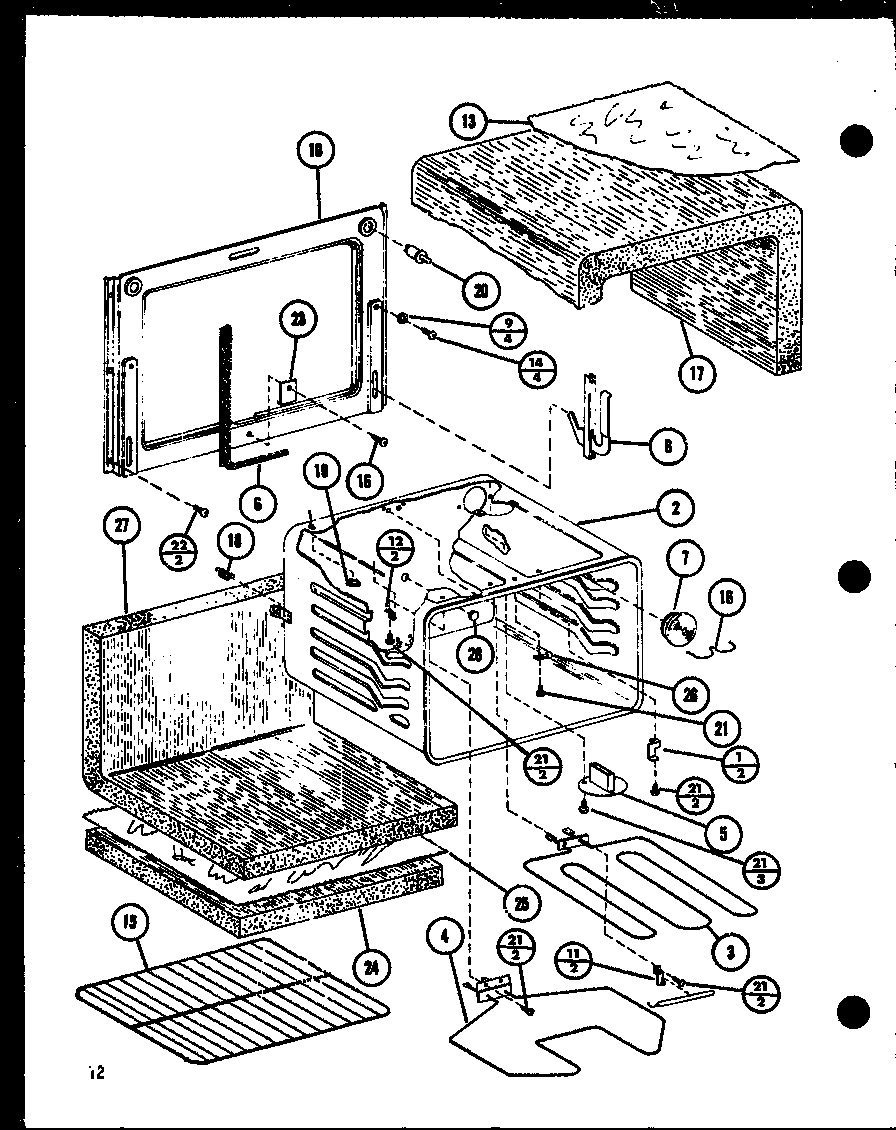

05 - Page 4

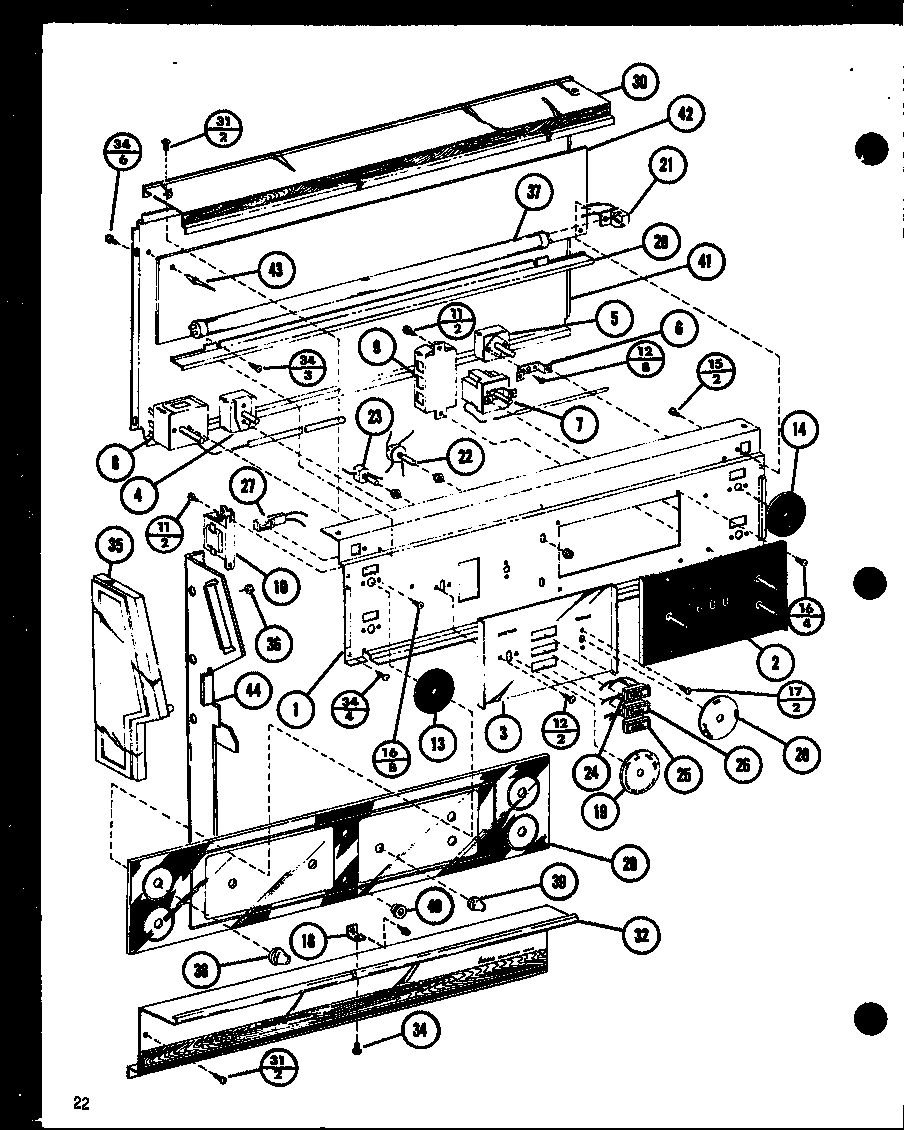

07 - Page 9

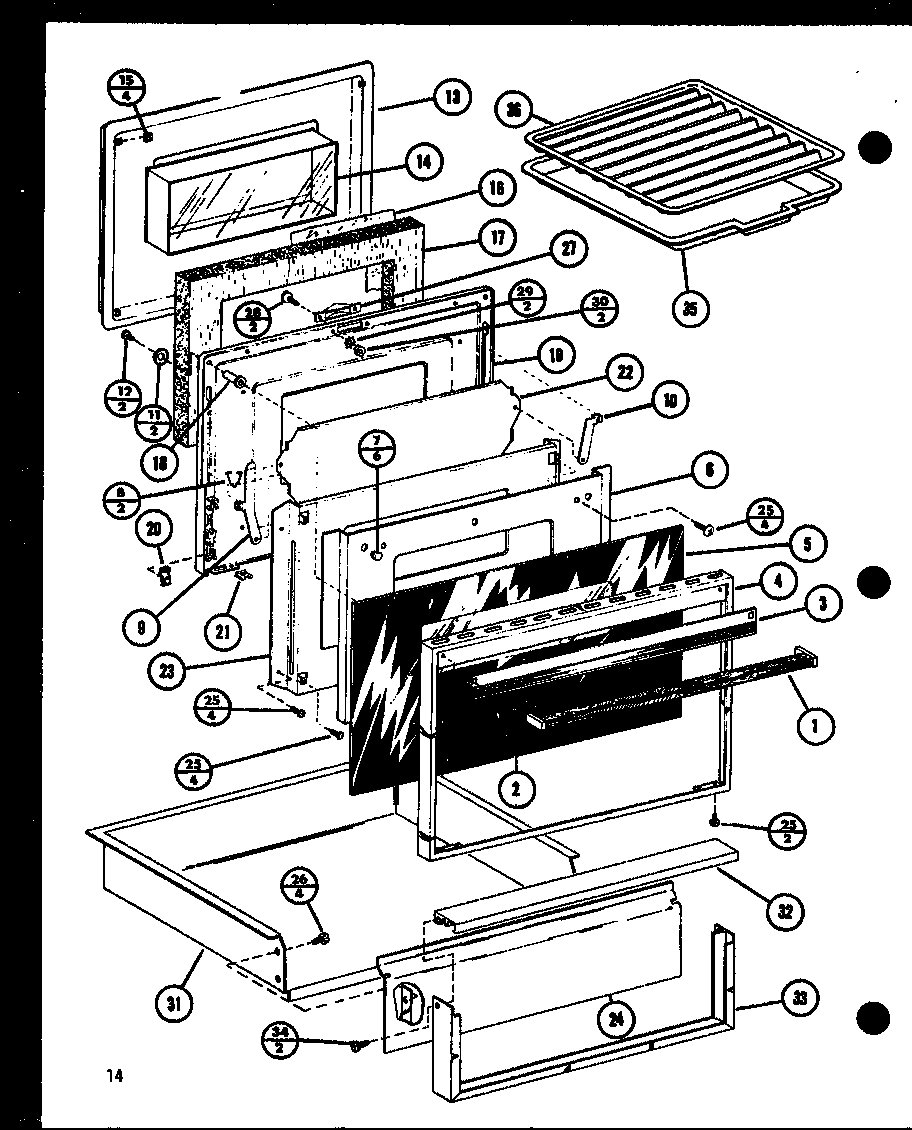

06 - Page 5
Common parts from model Whirlpool ARC-506 ELECTRIC RANGE
1
FOOT WPL A4400801 Contact Us For Availability
1
FOOT, LEVEL, REAR WPL A4400802 Contact Us For Availability
1
ARM WPL B5004501 Contact Us For Availability
1
HEATER PANEL, GLASS TOP, R1992 WPL D8556301 Contact Us For Availability
1
SUPT-BROILER EL WPL A4416501 Contact Us For Availability
1
CONTROL PANEL WPL D8563102 Contact Us For Availability
1
HANDLE WPL D8535902 Contact Us For Availability
2
SIDE FRAME WELD WPL D8504105 Contact Us For Availability
2
ASSY, DOOR LATCH (10442001) WPL D8508301 Contact Us For Availability
2
COVER-HTR BOX WPL C2704201 Contact Us For Availability
2
OVEN CAVITY WPL D8510503 Contact Us For Availability
2
TIMER, DIGITAL WPL D8563301 Contact Us For Availability
2
PAD, HANDLE WPL A4406402 Contact Us For Availability
3
GLIDE WPL C2705301 Contact Us For Availability
3
BAR-HOLD DOWN WPL C2705701 Contact Us For Availability
3
ELEMENT,BROIL WPL D8528901 Contact Us For Availability
3
PANEL- DECORATION WPL D8563501 Contact Us For Availability
3
EXT DOOR TRIM WPL D8507802 Contact Us For Availability
4
KICK PANEL-BLACK WPL C2706704 Contact Us For Availability
4
ARM-ACTUATOR WPL A4405801 Contact Us For Availability
4
HTR BOX ASSY WPL D8508501 Contact Us For Availability
4
BAKE ELEMENT WPL C2734101 Contact Us For Availability
4
SWITCH, SELECTOR, SPLIT SHAFT WPL C2731701 Contact Us For Availability
4
SWITCH WPL C2731704 Contact Us For Availability
4
DOOR FRAME (CHROME) WPL D8507701 Contact Us For Availability
5
KICK PLATE WPL C2706602 Contact Us For Availability
5
CAM, LOCK SOLENOID WPL B5004201 Contact Us For Availability
5
INSULATION, FIBERGLASS ASSEMBL WPL C2702201 Contact Us For Availability
5
INSULATION, FIBERGLAS WPL C2702202 Contact Us For Availability
5
INSULATION, FIBERGLAS WPL C2710701 Contact Us For Availability
5
INSULATION WPL C2710702 Contact Us For Availability
5
INSULATION, FIBERGLASS WPL C2710801 Contact Us For Availability
5
INSULATION, FIBERGLAS WPL C2710802 Contact Us For Availability
5
ASSY, VENT WPL C2704801 Contact Us For Availability
5
SWITCH, INFINITE WPL C2702705 Contact Us For Availability
5
SWITCH, INFINITE WPL C2702712 Contact Us For Availability
5
GLASS PANEL KIT WPL D8507902 Contact Us For Availability
6
REFLECTOR WPL B5000601 Contact Us For Availability
6
INSULATOR-SWITCH WPL A4405601 Contact Us For Availability
6
CLIP WPL B5001502 Contact Us For Availability
6
GASKET WPL B5002602 Contact Us For Availability
6
BRKT-MTG WPL A4404801 Contact Us For Availability
6
HEAT SHIELD WPL D8507601 Contact Us For Availability
7
RETAINER WPL D8510401 Contact Us For Availability
7
SPEED NUT A- K WPL M0287901 Contact Us For Availability
7
SCREW WPL M0254518 Contact Us For Availability
7
GLOBE-LAMP WPL B5003301 Contact Us For Availability
7
THERMOSTAT, SURFACE, SPLIT SHA WPL D8503904 Contact Us For Availability
7
THERMOSTAT WPL D8503906 Contact Us For Availability
7
BUMPER-GLASS WPL A4406501 Contact Us For Availability
8
RETAINER- REAR INSUL WPL D8506303 Contact Us For Availability
8
CLIP WPL M0110503 Contact Us For Availability
8
CLIP WPL M0119701 Contact Us For Availability
8
DOOR HINGE ASSY WPL D8559001 Contact Us For Availability
8
THERMOSTAT, OVEN, SPLIT SHAFT WPL D8557502 Contact Us For Availability
8
THERMOSTAT, OVEN, SOLID SHAFT WPL D8557504 Contact Us For Availability
8
SPRING-SHUTTER WPL C2705101 Contact Us For Availability
9
PAD WPL A4405901 Contact Us For Availability
9
SPRING WPL B5001201 Contact Us For Availability
9
RELAY, OVEN WPL C2717101 Contact Us For Availability
9
ARM-SHUTTER LH WPL B5003801 Contact Us For Availability
10
SCREW WPL M0213129 Contact Us For Availability
10
GASKET WPL B5718912 Contact Us For Availability
10
PIN-GROOVED WPL A4405701 Contact Us For Availability
10
PANEL FRONT CAVITY WPL D8509807 Contact Us For Availability
10
BALLAST WPL B5005901 Contact Us For Availability
10
ARM-SHUTTER RH WPL B5003901 Contact Us For Availability
11
SOCKET, OVEN LIGHT WPL A4400701 Contact Us For Availability
11
BRACKET WPL B5029801 Contact Us For Availability
11
POP RIVET WPL M0010212 Contact Us For Availability
11
INSUL-LO-CON K WPL C2702001 Contact Us For Availability
11
INSULATION LO-CON K WPL C2702002 Contact Us For Availability
11
WASHER PADDED WPL M0271202 Contact Us For Availability
12
SCREW WPL M0232723 Contact Us For Availability
12
SCREW WPL M0227520 Contact Us For Availability
12
HLD DOWN ASSY WPL C2701701 Contact Us For Availability
12
RETAINER-THERMO WPL A4407801 Contact Us For Availability
12
SCREW WPL M0203052 Contact Us For Availability
13
ELEMENT KIT, SMALL WPL R0157501 Contact Us For Availability
13
ELEMENT KIT, LARGE WPL R0157502 Contact Us For Availability
13
FOIL-ALUM WPL A4400603 Contact Us For Availability
13
CONTROL, DISC ASSEMBLY, TEMP A WPL C2732508 Contact Us For Availability
13
DOOR PLUG WELD WPL D8507101 Contact Us For Availability
14
STRAP-GRD WPL A4406901 Contact Us For Availability
14
SOLENOID, LOCK WPL C2711701 Contact Us For Availability
14
SEE SVC LTR CBA-136 WPL D8527201 Contact Us For Availability
14
SCREW WPL M0203342 Contact Us For Availability
14
CONTROL, DISC ASSEMBLY, PROPOR WPL C2732502 Contact Us For Availability
14
WINDOW WPL D8507301 Contact Us For Availability
15
SCREW WPL M0213145 Contact Us For Availability
15
SPRING, SOLENOID WPL A4405501 Contact Us For Availability
15
BRKT-FRONT L WPL B5005801 Contact Us For Availability
15
BRKT-FRONT R WPL B5005802 Contact Us For Availability
15
RACK 15 11/32`` W X 22 29/32`` L WPL D8510001 Contact Us For Availability
15
SCREW WPL M0201414 Contact Us For Availability
15
SPEED NUT WPL A4407601 Contact Us For Availability
16
USR 0041847 WPL M0282402 Contact Us For Availability
16
SWITCH, LIMIT WPL B5004402 Contact Us For Availability
16
RING TOP FRAME WPL D8533002 Contact Us For Availability
16
RETAINER-LAMP WPL A4407001 Contact Us For Availability
16
SCREW WPL M0232702 Contact Us For Availability
16
FOIL-DOOR PLUG WPL A4406601 Contact Us For Availability
17
BRKT-TERM BLOCK WPL C2705001 Contact Us For Availability
17
WASHER WPL M0270501 Contact Us For Availability
17
GRILLE WPL D8509402 Contact Us For Availability
17
INSULATION, TOP AND SIDES WPL B5003002 Contact Us For Availability
17
SCREW WPL M0200414 Contact Us For Availability
17
INSULATION, DOOR PLUG WPL B5001101 Contact Us For Availability
18
WASHER WPL M0270515 Contact Us For Availability
18
GUARD WPL C2706101 Contact Us For Availability
18
SPRING WPL A4407101 Contact Us For Availability
18
BRACKET-CONTROL WPL A4427701 Contact Us For Availability
18
SPACER WPL A4406301 Contact Us For Availability
19
ASSY, LATCH SOLENOID WPL C2705401 Contact Us For Availability
19
PLUG BUTTON WPL M0311101 Contact Us For Availability
19
DISC- CONTROL WPL C2733901 Contact Us For Availability
19
INNER DOOR WELD WPL D8506903 Contact Us For Availability
20
SEE SERV LTR CBA-136 WPL C2702401 Contact Us For Availability
20
SWITCH, OVEN DR WPL C2706501 Contact Us For Availability
20
DISC-CONTROL WPL C2733902 Contact Us For Availability
20
SPRING WPL A4407701 Contact Us For Availability
21
COVER-LOWER LEAD WPL D8509502 Contact Us For Availability
21
SWITCH WPL C2712101 Contact Us For Availability
21
SCREW WPL M0217824 Contact Us For Availability
21
SOCKET FLOR-LH WPL C2722705 Contact Us For Availability
21
SOCKET, FLOR-RH WPL C2722706 Contact Us For Availability
21
CLIP-SPEED NUT WPL M0119601 Contact Us For Availability
22
GASKET, VENT WPL B5027401 Contact Us For Availability
22
SWITCH, FLUORESCENT LIGHT WPL C2732301 Contact Us For Availability
22
SHUTTER WPL D8507501 Contact Us For Availability
23
OVEN VENT PTND WPL C2731602 Contact Us For Availability
23
RETAINER-GASKET K WPL A4427901 Contact Us For Availability
23
SWITCH WPL C2731901 Contact Us For Availability
23
HEAT SHIELD WPL D8507401 Contact Us For Availability
24
INSULATION K WPL B5002301 Contact Us For Availability
24
INDICATOR LIGHT WPL C2732001 Contact Us For Availability
24
DRAWER WLD BRN K WPL C2713803 Contact Us For Availability
25
GROMMET WPL M0580005 Contact Us For Availability
25
INDICATOR LIGHT WPL C2732002 Contact Us For Availability
26
SCREW WPL M0217224 Contact Us For Availability
26
CLIP, DART WPL M0111202 Contact Us For Availability
26
CLIP-OVEN CAVITY WPL B5003201 Contact Us For Availability
26
INDICATOR LIGHT WPL C2732003 Contact Us For Availability
27
SCREW WPL M0211025 Contact Us For Availability
27
INSULATION K WPL B5002401 Contact Us For Availability
27
LIGHT IND KIT WPL R0157517 Contact Us For Availability
27
LATCH PLATE ASSY WPL B5003601 Contact Us For Availability
28
SCREW A K WPL M0211516 Contact Us For Availability
28
PLUG WPL M0311102 Contact Us For Availability
28
LENS-LIGHT WPL B5026601 Contact Us For Availability
28
SCREW WPL M0203218 Contact Us For Availability
29
GLASS-CONTROL WPL D8563801 Contact Us For Availability
29
LOCK WASHER WPL M0272803 Contact Us For Availability
30
SCREW WPL M0211543 Contact Us For Availability
30
EXTRUSION, TOP WPL D8563601 Contact Us For Availability
31
COVER WPL B5003501 Contact Us For Availability
31
SCREW WPL M0253217 Contact Us For Availability
31
DRAWER PAN PNTD K WPL C2713903 Contact Us For Availability
32
DUCT- HOIZ. VENT WPL C2706402 Contact Us For Availability
32
CNTR RANGE PLATE WPL D8564101 Contact Us For Availability
32
EXTRUSION HDL K WPL D8526501 Contact Us For Availability
33
EXT DRAWER FT K WPL D8548101 Contact Us For Availability
34
WASHER WPL M0270001 Contact Us For Availability
34
SCREW WPL M0217204 Contact Us For Availability
34
SCREW WPL M0230630 Contact Us For Availability
35
SCREW WPL M0227804 Contact Us For Availability
35
CAP, END, R.H. WPL D8564301 Contact Us For Availability
35
CAP, END, L.H. WPL D8564302 Contact Us For Availability
35
BROILER PAN SET WPL D8567101 Contact Us For Availability
36
TRIM-SIDE LH WPL D8509202 Contact Us For Availability
36
TRIM WPL D8509302 Contact Us For Availability
36
NUT WPL M0288804 Contact Us For Availability
36
BROILER PAN SET WPL D8567001 Contact Us For Availability
38
RETAINER-TOP INSUL WPL D8506203 Contact Us For Availability
38
KNOB K WPL C2734701 Contact Us For Availability
39
KNOB, DUAL TIMER WPL B5005101 Contact Us For Availability
40
CAP-LIGHT SWITCH WPL A4427601 Contact Us For Availability
41
RETAINER-INSUL R WPL D8506701 Contact Us For Availability
41
RETAINER-INSUL L WPL D8506801 Contact Us For Availability
41
COVER, UPPER LEAD WPL D8564201 Contact Us For Availability
42
SIDE PANEL C WPL D8501106 Contact Us For Availability
42
SIDE PANEL-A WPL D8501107 Contact Us For Availability
42
SIDE PNL G WPL D8501108 Contact Us For Availability
42
SIDE PANEL-AL WPL D8501109 Contact Us For Availability
42
SIDE PANEL W K WPL D8501110 Contact Us For Availability
42
INSULATION WPL B5027201 Contact Us For Availability
43
BRKT-SIDE PNL RH WPL B5010201 Contact Us For Availability
43
BRKT-SIDE PNL LH WPL B5010202 Contact Us For Availability
43
POP RIVET WPL A4539601 Contact Us For Availability
44
BUMPER WPL A4401502 Contact Us For Availability
44
SUPPORT WPL D8570801 Contact Us For Availability
44
SUPPORT WPL D8570802 Contact Us For Availability
47
PLUG K WPL M0311103 Contact Us For Availability
NI
GREASE WPL R0195010 Contact Us For Availability
× ![]()
Login and Registration Form
