Model Maytag AQF1201TRW03 FREEZER, VERTICAL – Common Parts & Diagrams

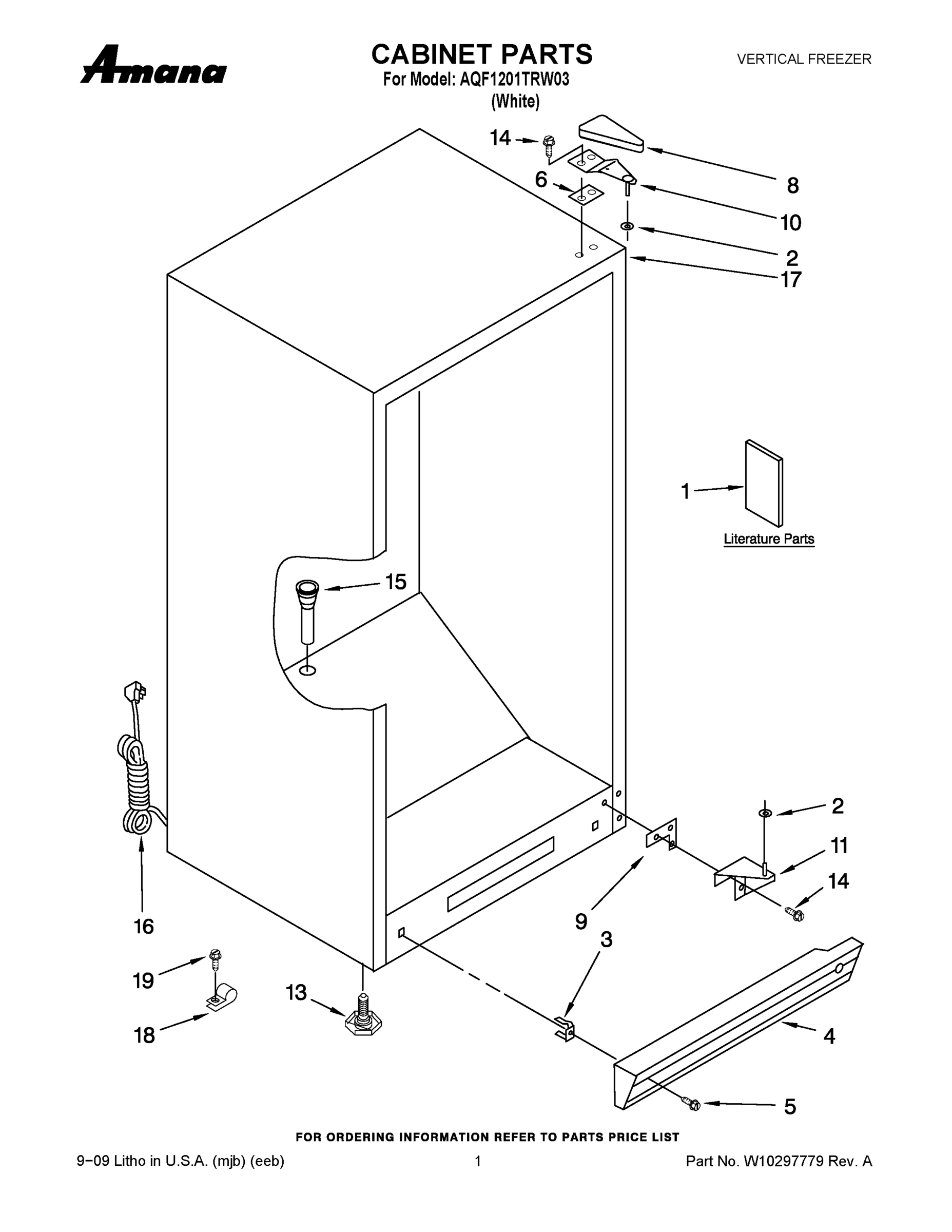

02 - CABINET PARTS

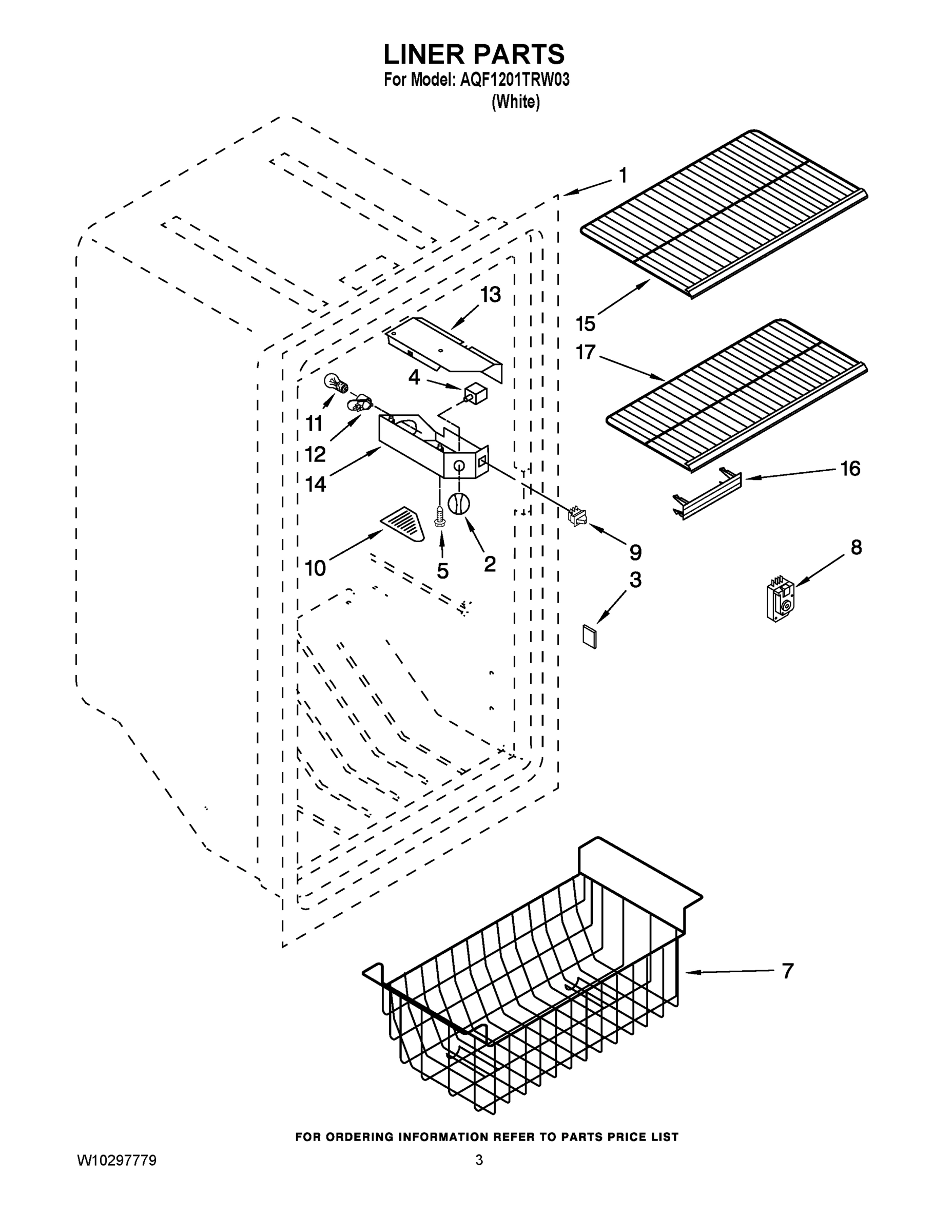

03 - LINER PARTS

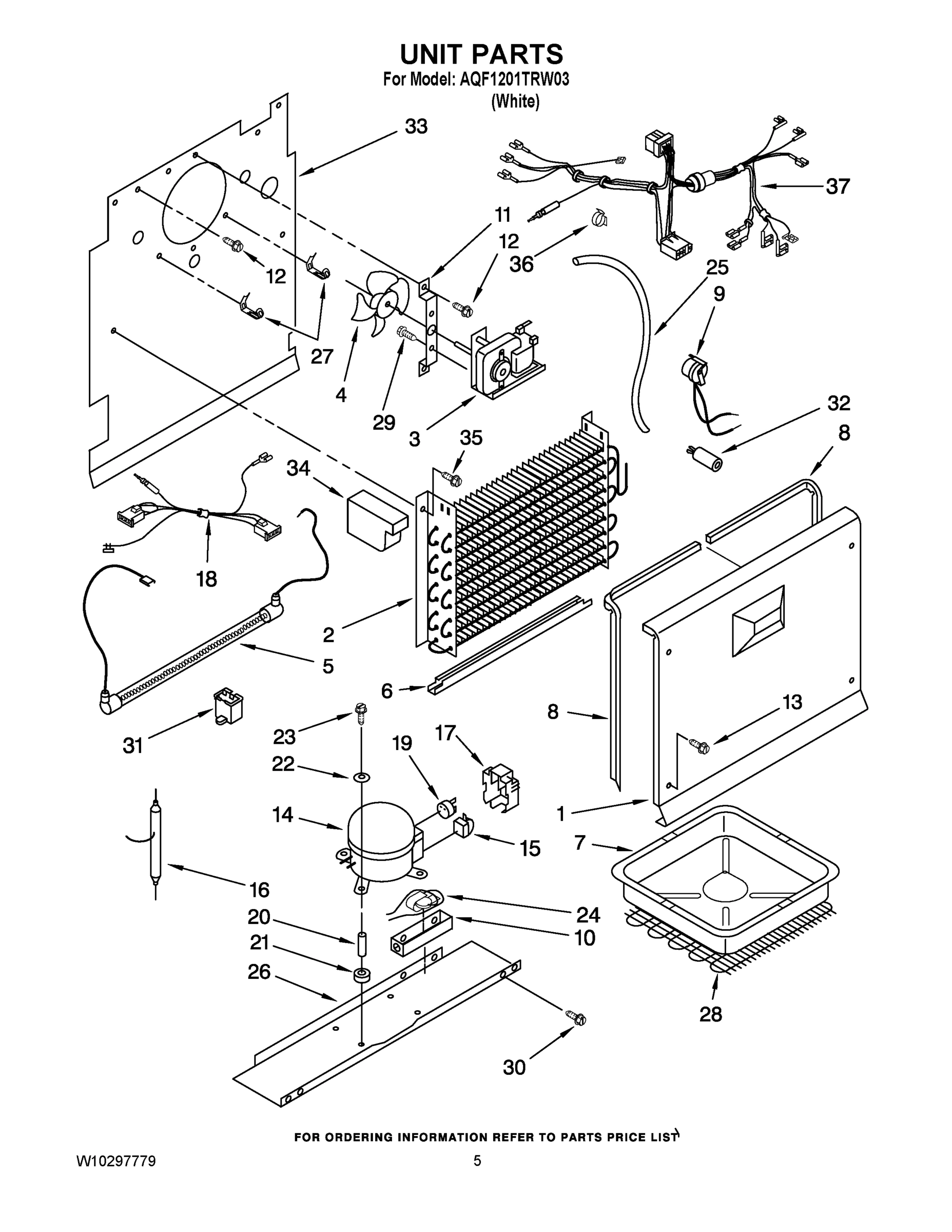

04 - UNIT PARTS

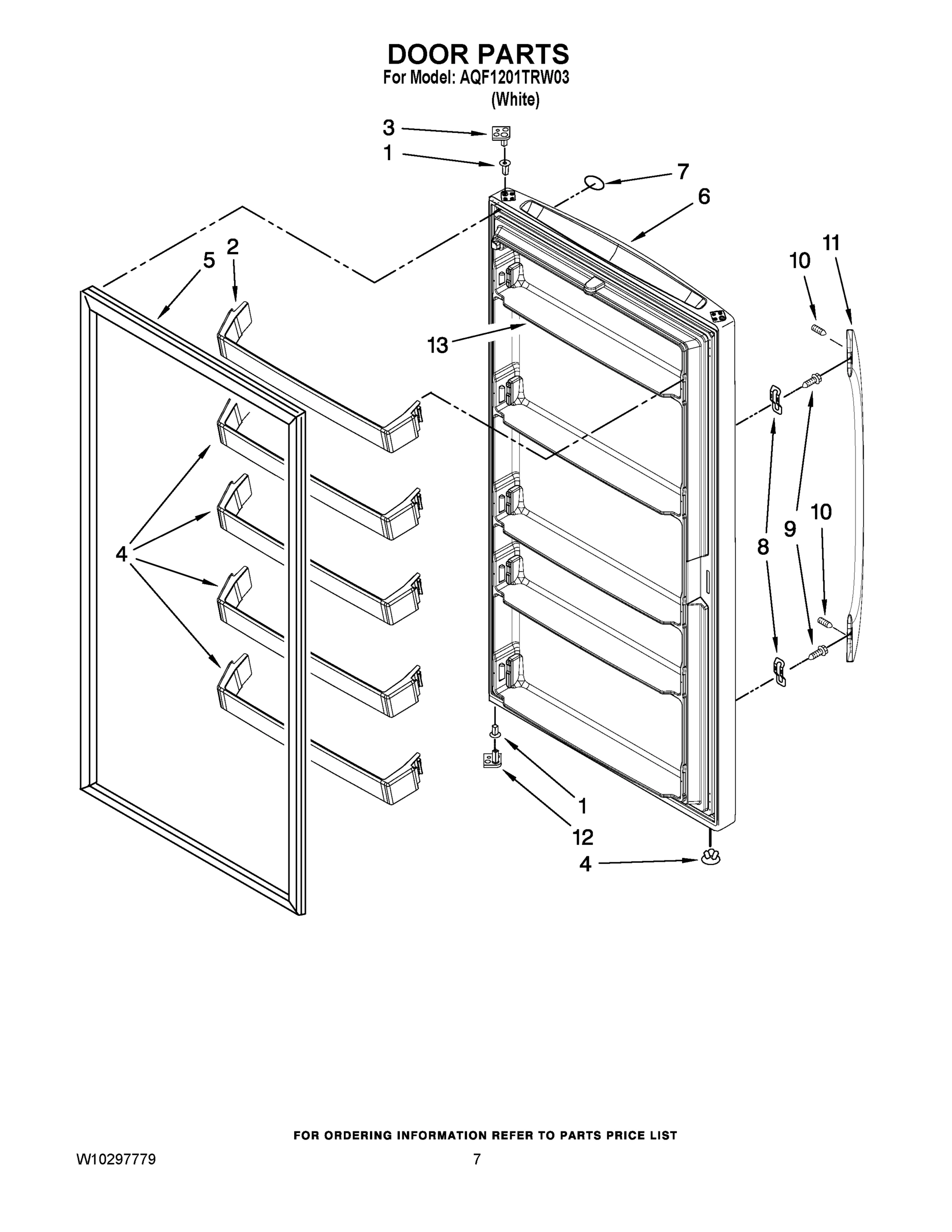

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AQF1201TRW03 FREEZER, VERTICAL
1
OWNERS MANUAL MAY W10279026 Contact Us For Availability
1
COVER, EVAPORATOR MAY 4390662 Contact Us For Availability
1
BUSHING, HINGE MAY 4390731 Contact Us For Availability
1A
ENERGY LABEL/TAG MAY W10270477 Contact Us For Availability
2
WASHER, DOOR SPACER MAY 4390520 Contact Us For Availability
2
KNOB, CONTROL MAY 8210348 Contact Us For Availability
2
EVAPORATOR MAY 8210391 Contact Us For Availability
2
RAIL, DOOR (5) MAY 4390606 Contact Us For Availability
3
CLIP, GRILLE MAY 4356803 Contact Us For Availability
3
SEAL, BLOCK MAY 4390852 Contact Us For Availability
3
MOTOR, FAN MAY 4357004 Contact Us For Availability
3
STOP, DOOR (UPPER) MAY 8210401 Contact Us For Availability
4
GRILLE MAY W10297774 Contact Us For Availability
4
THERMOSTAT MAY 8210344 Contact Us For Availability
4
BLADE, FAN MAY 4356920 Contact Us For Availability
4
VENT PLUG MAY 4357067 Contact Us For Availability
5
SCREW MAY 4390798 Contact Us For Availability
5
HEATER, DEFROST MAY 8210389 Contact Us For Availability
5
GASKET, DOOR MAY 4357136 Contact Us For Availability
6
SHIELD, HEATER MAY W10164624 Contact Us For Availability
6
DOOR ASSEMBLY MAY 8210365 Contact Us For Availability
7
BASKET, WIRE MAY 4390621 Contact Us For Availability
7
PAN, DRAIN MAY W10164623 Contact Us For Availability
7
NAMEPLATE MAY 68001748 Contact Us For Availability
8
COVER, HINGE MAY 4357279 Contact Us For Availability
8
TIMER, DEFROST MAY 4357124 Contact Us For Availability
8
GASKET, COVER EVAPORATOR (RIGHT) MAY 4390663 Contact Us For Availability
8
CLIP MAY 2255411 Contact Us For Availability
8A
GASKET, COVER EVAPORATOR (LEFT) MAY 4390664 Contact Us For Availability
9
SHIM, BOTTOM MAY 4390489 Contact Us For Availability
9
SWITCH, LIGHT MAY 4390513 Contact Us For Availability
9
BI-METAL DEFROST MAY 8210253 Contact Us For Availability
9
SCREW MAY 489491 Contact Us For Availability
10
HINGE, TOP MAY 8210222 Contact Us For Availability
10
LENS, LIGHT MAY 8210349 Contact Us For Availability
10
BOX, CONTROL MAY 4390708 Contact Us For Availability
10
SCREW MAY 8533920 Contact Us For Availability
11
HINGE, BOTTOM MAY 8210223 Contact Us For Availability
11
BULB, LIGHT MAY 4390465 Contact Us For Availability
11
BRACKET, MOTOR MAY 4357129 Contact Us For Availability
11
HANDLE MAY 4390667 Contact Us For Availability
12
SOCKET, LIGHT MAY 8210350 Contact Us For Availability
12
SCREW, MOTOR MAY 4356943 Contact Us For Availability
12
STOP, DOOR (LOWER) MAY 8210400 Contact Us For Availability
13
SCREW (4) MAY 4357243 Contact Us For Availability
13
LEG, LEVELER MAY W10177675 Contact Us For Availability
13
SHIELD, LIGHT MAY 8210351 Contact Us For Availability
13
LINER MAY 8210393 Contact Us For Availability
14
SCREW MAY 4356830 Contact Us For Availability
14
BOX, CONTROL MAY 8210406 Contact Us For Availability
14
COMPRESSOR (INCLUDES ITEMS 15,16,17,19 & 21) MAY 4390734 Contact Us For Availability
15
GROMMET, DRAIN MAY W10164544 Contact Us For Availability
15
SHELF, UPPER WIRE MAY W10297772 Contact Us For Availability
15
RELAY MAY 4356738 Contact Us For Availability
16
CORD, POWER MAY 8210403 Contact Us For Availability
16
VENT PLUG (4) MAY 4357295 Contact Us For Availability
16
DRIER MAY 4357299 Contact Us For Availability
17
SHELF, LOWER WIRE MAY W10297773 Contact Us For Availability
17
COVER MAY 4356777 Contact Us For Availability
18
CLAMP, TUBE MAY 4357159 Contact Us For Availability
18
HARNESS, FAN MAY 8210376 Contact Us For Availability
19
SCREW MAY 4356583 Contact Us For Availability
19
OVERLOAD MAY 4390896 Contact Us For Availability
20
SLEEVE MAY 4356846 Contact Us For Availability
21
COMPRESSOR, GROMMET MAY 4356335 Contact Us For Availability
22
WASHER MAY 4356847 Contact Us For Availability
23
BOLT, COMPRESSOR MAY 8210220 Contact Us For Availability
24
ALARM (BUZZER) MAY W10164514 Contact Us For Availability
25
EXCHANGER, HEAT MAY W10297775 Contact Us For Availability
26
PAN, COMPRESSOR MAY W10297776 Contact Us For Availability
27
CLIP, THERMOSTAT MAY 4356952 Contact Us For Availability
28
CONDENSER MAY 8210248 Contact Us For Availability
29
SCREW MAY 4356970 Contact Us For Availability
30
SCREW MAY 4357277 Contact Us For Availability
31
CAPACITOR MAY 8210273 Contact Us For Availability
32
GROMMET MAY 4357020 Contact Us For Availability
33
PLATE, EVAPORATOR MOUNT MAY 8210388 Contact Us For Availability
34
BLOCK, FOAM MAY 8210261 Contact Us For Availability
35
SCREW MAY 4390821 Contact Us For Availability
36
CLIP MAY W10164630 Contact Us For Availability
37
WIRE HARNESS MAY 68001719 Contact Us For Availability
NI
REFRIGERANT CHARGE, 6.2 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL, ENAMEL, WHITE (13 MAY 350930 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK SEALER (1/4 POUND) MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER MASTIC (1 QT.) MAY 505587 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL, BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
REFINISHING MATERIAL, ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION FIBERGLASS (63-1/2" MAY 978941 Contact Us For Availability
× ![]()
