Model Whirlpool AOES2430E ELECTRIC WALL OVEN – Common Parts & Diagrams

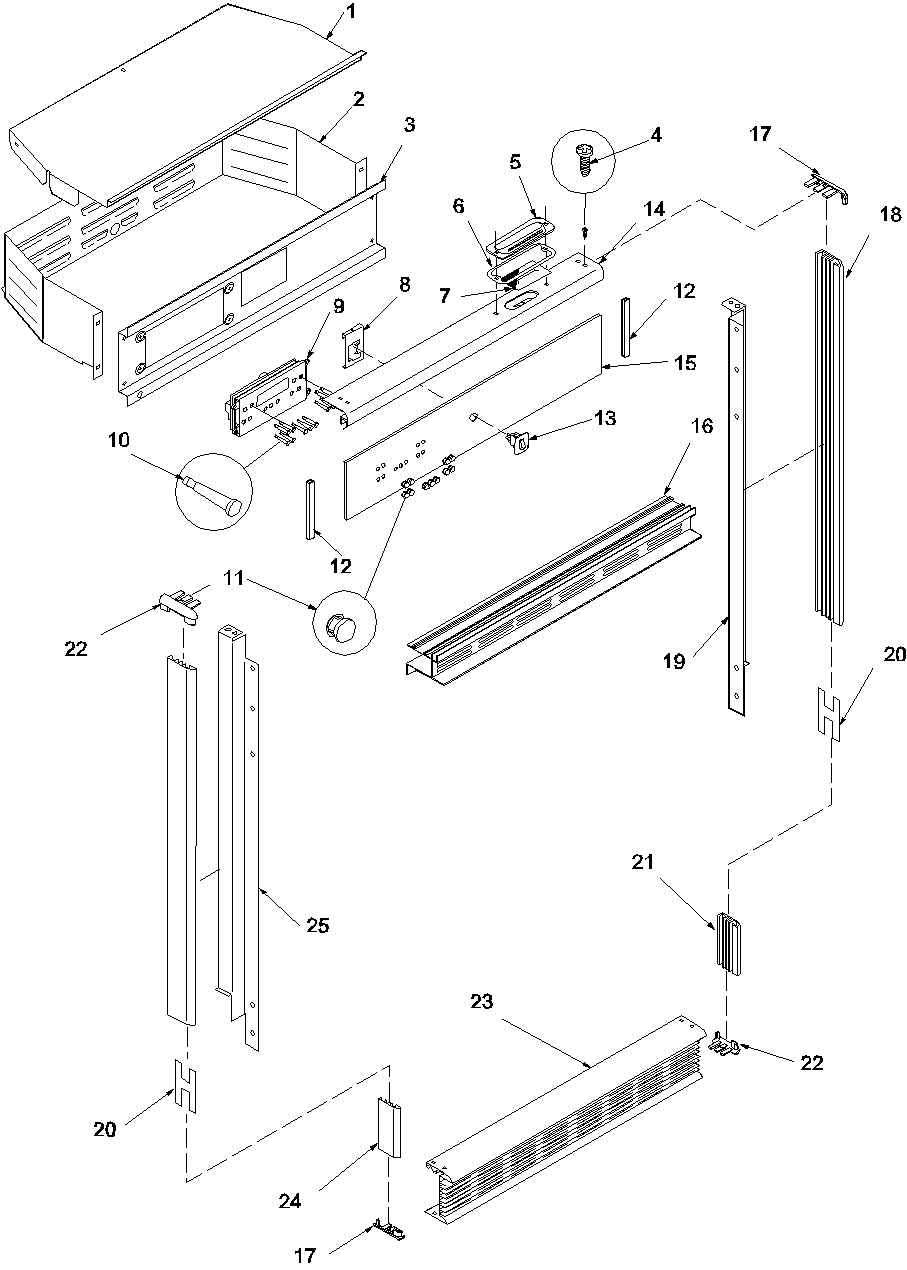

01 - Control Panel

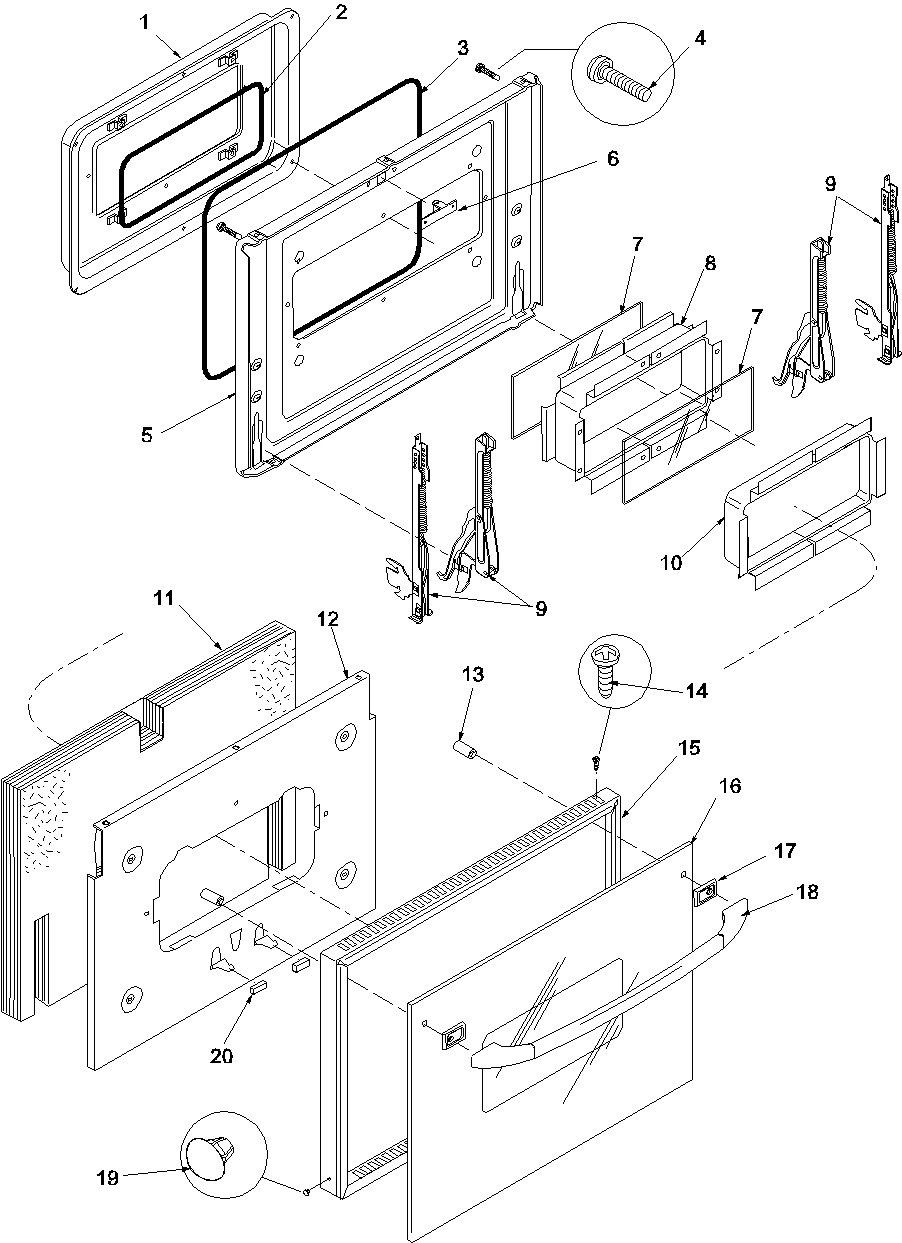

02 - Door Assy

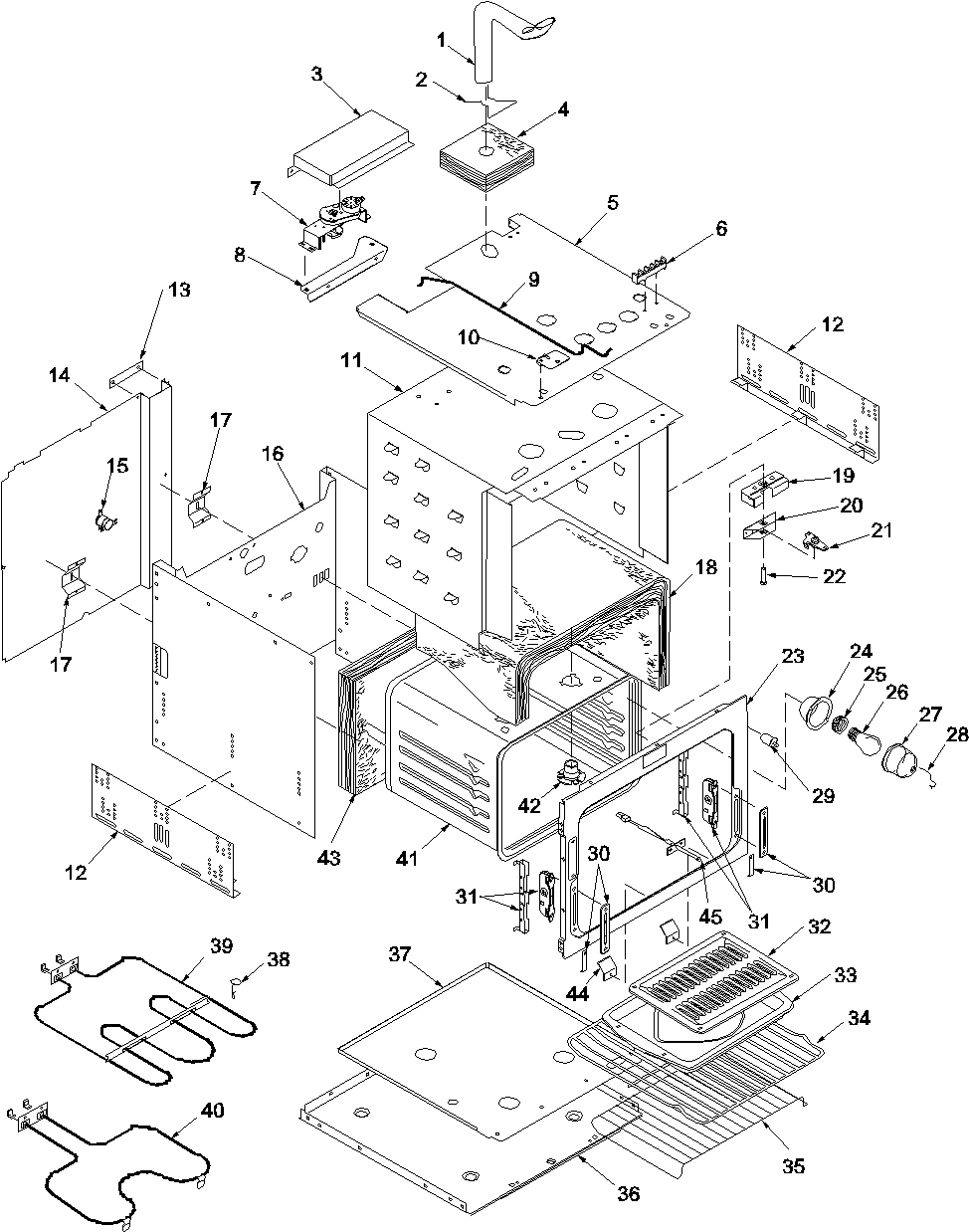

03 - Oven Body
Common parts from model Whirlpool AOES2430E ELECTRIC WALL OVEN
1
COVER, CONTROL HOUSING WPL R0762024 Contact Us For Availability
1
LINER, OVEN DOOR WPL R0762056 Contact Us For Availability
1
DUCT, OVEN VENT WPL R0762064 Contact Us For Availability
2
HOUSING, CONTROL WPL R0762016 Contact Us For Availability
2
SEAL, WINDOW WPL R0757006 Contact Us For Availability
2
CLIP, INSULATION RETAINER WPL R0751509 Contact Us For Availability
3
PLATE, INSTRUMENT WPL R0762068 Contact Us For Availability
3
SEAL, DOOR WPL R9900437 Contact Us For Availability
3
COVER, MOTOR WPL R0753009 Contact Us For Availability
4
SCREW, No.6-32X 3/8`` (BLACK) WPL R0762085 Contact Us For Availability
4
SCREW, HANDLE WPL R0762023 Contact Us For Availability
4
INSUL, OVEN VENT WPL R0762090 Contact Us For Availability
5
ASSY, HINGE (AO24SE2/SEW) WPL R0756506 Contact Us For Availability
5
LINER, DOOR BAFFLE WPL R9900424 Contact Us For Availability
5
WRAPPER, OUTER TOP WPL R0753016 Contact Us For Availability
6
SEAL, VENT COVER WPL R9900460 Contact Us For Availability
6
STRIKE, PLATE WPL R9900445 Contact Us For Availability
7
TAPE, VENT COVER WPL R0762037 Contact Us For Availability
7
GLASS, OVEN DOOR WPL R9900421 Contact Us For Availability
7
MOTOR, LATCH/LOCK WPL R0762078 Contact Us For Availability
8
BRACKET, LIGHT SWITCH WPL R0762067 Contact Us For Availability
8
SPACER, GLASS WPL R0762069 Contact Us For Availability
8
BRACKET, LATCH WPL R0762087 Contact Us For Availability
9
CLOCK/TIMER, ELECTRONIC WPL R0762043 Contact Us For Availability
9
HINGE, OVEN DOOR WPL R9900423 Contact Us For Availability
9
ROD WPL R0756007 Contact Us For Availability
10
BUTTON, SHAFT PUSH (CLOCK) WPL R0762038 Contact Us For Availability
10
COLLAR, GLASS MTG WPL R0762070 Contact Us For Availability
10
COVER, CAPILLARY WPL R0762081 Contact Us For Availability
11
KNOB, CLOCK WPL R0762044 Contact Us For Availability
11
INSULATION, OVEN DOOR WPL R0762019 Contact Us For Availability
11
SHIELD, INSUL TOP & SIDES WPL R9900439 Contact Us For Availability
12
BASE PAN ASSY WPL ARI1961A63 Contact Us For Availability
12
SHIELD, AIR WASH WPL R9900438 Contact Us For Availability
12
SUPPORT, ADJUSTABLE WPL R0762012 Contact Us For Availability
13
SWITCH,LIGHT/LAMP (BLACK) WPL R0762039 Contact Us For Availability
13
SPACER, HANDLE WPL R0757003 Contact Us For Availability
13
BRKT, OVEN BOTTOM WPL R0762103 Contact Us For Availability
14
TRIM, TOP (BLACK) WPL R0762048 Contact Us For Availability
14
SCREW, No.8-18X .531`` WPL R0762086 Contact Us For Availability
14
SHIELD, WIRE WPL R0762083 Contact Us For Availability
15
GLASS, CONT. PANEL WPL R0762042 Contact Us For Availability
15
TRIM, OVEN DOOR (BLACK) WPL R9900442 Contact Us For Availability
15
LIMIT, OVEN HIGH WPL R0762102 Contact Us For Availability
16
VENT TRIM, BLACK WPL R0762009 Contact Us For Availability
16
GLASS, OVEN DOOR (BLACK) WPL R0762061 Contact Us For Availability
16
WRAPPER, BACK & SIDES WPL R9900446 Contact Us For Availability
17
TRIM, CORNER-RT (BLK) WPL R0759508 Contact Us For Availability
17
SPACER, HANDLE WPL R0762099 Contact Us For Availability
17
SPRING,OVEN DOOR WPL R0751516 Contact Us For Availability
18
TRIM, SIDE OUTER WPL R0759507 Contact Us For Availability
18
HANDLE, OVEN DOOR WPL R0762057 Contact Us For Availability
18
INSULATION, WRAPPER WPL R9900444 Contact Us For Availability
19
TRIM, RH SIDE INNER WPL R0762050 Contact Us For Availability
19
BUTTON, SPACER WPL R0757007 Contact Us For Availability
19
HOUSING, LATCH WPL R0760014 Contact Us For Availability
20
SPACER, TRIM ADPT(BLACK) WPL R0181166 Contact Us For Availability
20
SPACER, CORK & RUBBER WPL R0762080 Contact Us For Availability
20
HOUSING, DOOR LOCK WPL R0762035 Contact Us For Availability
21
TRIM RH BOTTOM SIDE WPL R0759511 Contact Us For Availability
21
LATCH WPL R0756008 Contact Us For Availability
22
TRIM, CORNER-LT (BLK) WPL R0759509 Contact Us For Availability
22
PIN-HNG 5308012004 WPL R0751508 Contact Us For Availability
23
TRIM, BOTTOM VENT WPL R0759510 Contact Us For Availability
23
FRONT, OVEN WPL R9900420 Contact Us For Availability
24
TRIM, LH BOTTOM SIDE WPL R0759512 Contact Us For Availability
24
HOUSING-OVEN LIGHT WPL R0762104 Contact Us For Availability
25
TRIM, LH SIDE INNER WPL R0762051 Contact Us For Availability
25
RECEPTACLE WPL R0760004 Contact Us For Availability
27
LENS, GLASS OVEN LIGHT WPL R0758008 Contact Us For Availability
28
RETAINER, LENS WPL R9900429 Contact Us For Availability
29
SWITCH, OVEN DR WPL R0762066 Contact Us For Availability
30
RETAINER, DOOR WPL R9900428 Contact Us For Availability
31
CHANNEL, HINGE WPL R9900447 Contact Us For Availability
32
INSERT, PAN BROILER WPL R0762094 Contact Us For Availability
34
RACK, OVEN (REGULAR) WPL R0760019 Contact Us For Availability
35
SHELF, OVEN-OFFSET WPL R0762084 Contact Us For Availability
36
WRAPPER, BASE WPL R0762071 Contact Us For Availability
37
SHIELD, OVEN BOTTOM WPL R0762017 Contact Us For Availability
38
SUPPORT. ELEMENT WPL R9900440 Contact Us For Availability
39
ELEMENT, BROIL WPL R0762098 Contact Us For Availability
40
ELEMENT, BAKE WPL R9900419 Contact Us For Availability
41
ASSY, OVEN LINER WPL R0762065 Contact Us For Availability
42
ASSY, ADAPTER WPL R0762088 Contact Us For Availability
43
INSULATION, OVEN, BACK WPL R0762030 Contact Us For Availability
44
BRACKET, OVEN WPL R9900418 Contact Us For Availability
45
PROBE, OVEN TEMP WPL R0762076 Contact Us For Availability
NI
BUMPER WPL R0757001 Contact Us For Availability
NI
SCREW WPL R0760022 Contact Us For Availability
NI
SCREW, No.8X1/2`` WPL R0762077 Contact Us For Availability
NI
SCREW WPL R0762101 Contact Us For Availability
NI
SCREW WPL R9900431 Contact Us For Availability
NI
SCREW WPL R9900435 Contact Us For Availability
NI
TAPE, SEAL WPL R0762092 Contact Us For Availability
NI
SCREW, No.8-18X 1/2`` WPL R0762093 Contact Us For Availability
NI
SCREW WPL R9900430 Contact Us For Availability
NI
SCREW WPL R9900433 Contact Us For Availability
NI
SCREW WPL R9900436 Contact Us For Availability
NI
CLIP, WIRE WPL R0762033 Contact Us For Availability
NI
SCREW, No.6-20X 5/16`` WPL R0762097 Contact Us For Availability
NI
SCREW WPL R9900434 Contact Us For Availability
NI
ASSY, BOX AND WIRES WPL R9900448 Contact Us For Availability
× ![]()
