Model Whirlpool AO27DC ELECTRIC WALL OVEN – Common Parts & Diagrams
05 - GLASS DOOR

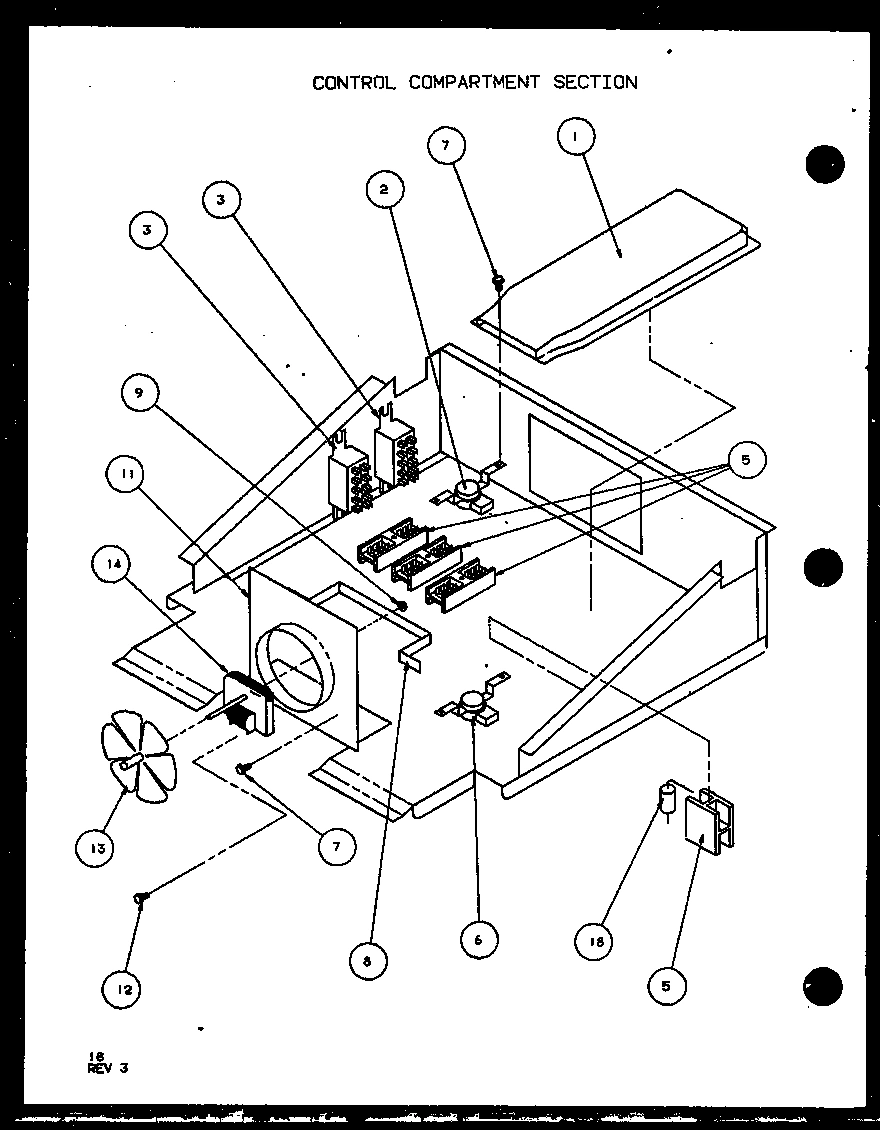

02 - CONTROL COMPARMENT SECTION

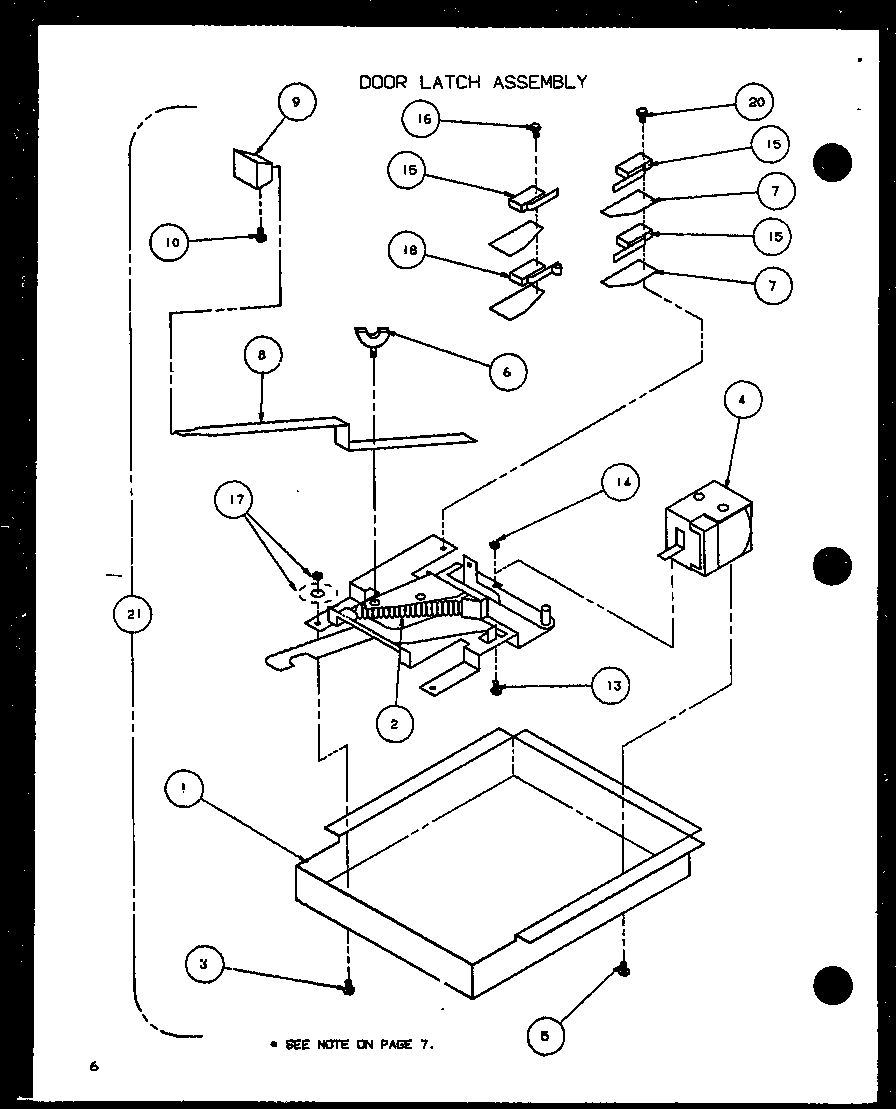

04 - DOOR LATCH ASSY
01 - CABINET SECTION - DOUBLE OVEN

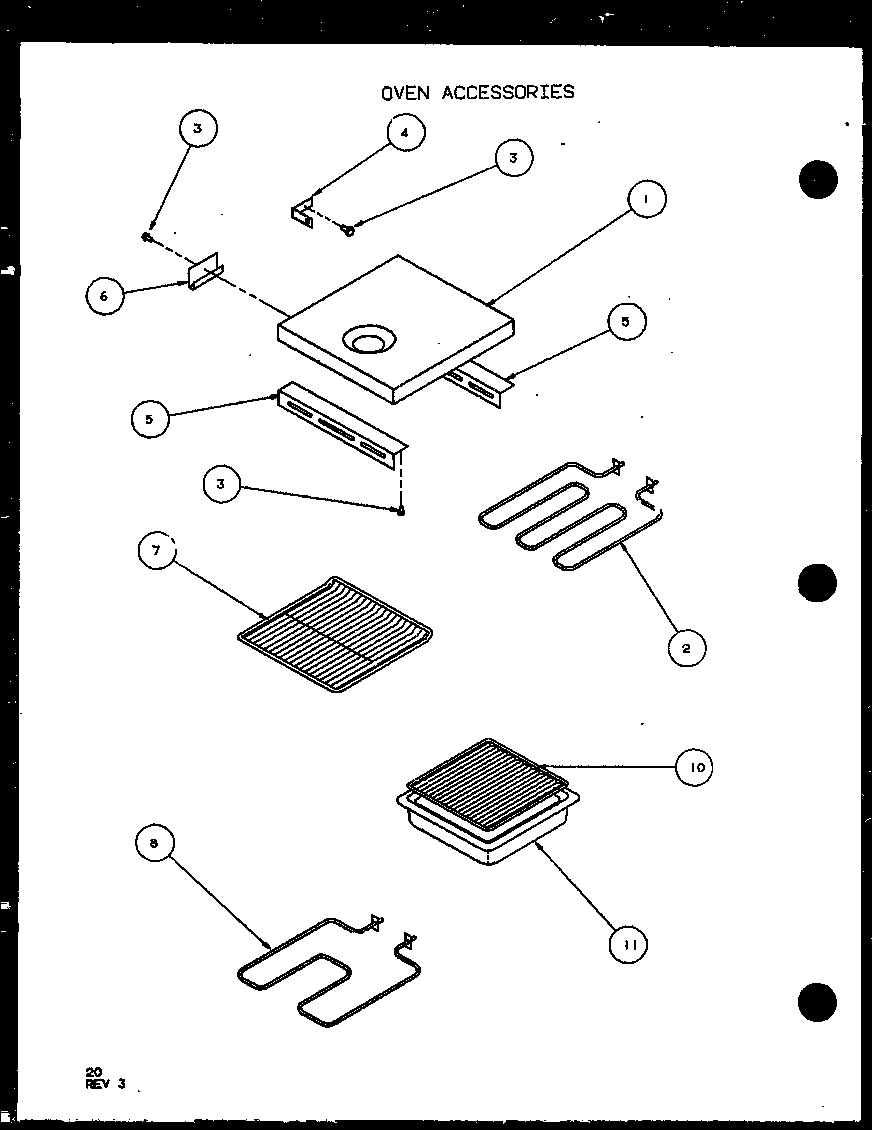

06 - OVEN ACCESSORIES

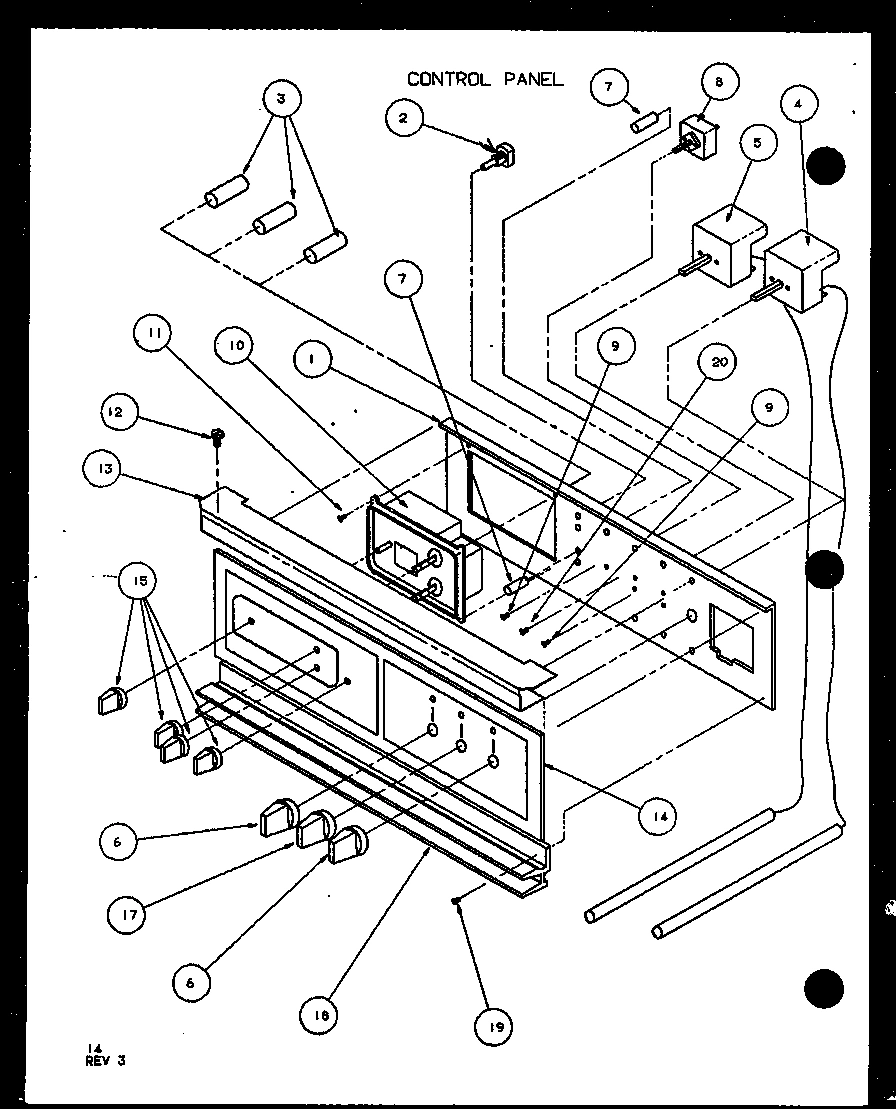

03 - CONTROL PANEL
Common parts from model Whirlpool AO27DC ELECTRIC WALL OVEN
1
DOOR HANDLE WPL R0199101 Contact Us For Availability
1
UPPER FLUE BOX WPL R0703026 Contact Us For Availability
1
CABINET TOP PYRO W.O. MM WPL R0157784 Contact Us For Availability
1
BROIL ELEMENT REFLECTOR PYRO WPL R0157902 Contact Us For Availability
1
CONTROL MTG BRKT. PYRO WO WPL R0199066 Contact Us For Availability
2
DOOR FRAME WPL R0199102 Contact Us For Availability
2
SWITCH FAN SPDT WPL R0199113 Contact Us For Availability
2
SPRING WPL R0157852 Contact Us For Availability
2
ELEMENT, BROIL (240V-2800W) WPL R0157903 Contact Us For Availability
2
SWITCH, OVEN LIGHT WPL R0157948 Contact Us For Availability
3
DOOR GLASS WPL R0199103 Contact Us For Availability
3
RELAY, OVEN WPL R0157898 Contact Us For Availability
3
SCREW WPL M0221040 Contact Us For Availability
3
SCREW, SM WPL R0157810 Contact Us For Availability
3
INDICATOR LIGHT WPL R0157758 Contact Us For Availability
4
DOOR TOP TRIM PK411 WPL R0157879 Contact Us For Availability
4
SOLENOID EATON PYRO TH WO WPL R0157770 Contact Us For Availability
4
UPPER CAB. BACK PYRO W/O WPL R0157787 Contact Us For Availability
4
THERMOSTAT MOUNTING BRACKET, R WPL R0157904 Contact Us For Availability
4
PYRO. THERMOSTAT WITH TOP HEAT WPL R0711004 Contact Us For Availability
5
INNER BAFFLE WPL R0199104 Contact Us For Availability
5
TERM BLK EO&GO 1M-2.5M-5M-10M WPL R0157896 Contact Us For Availability
5
SCREW K WPL M0207055 Contact Us For Availability
5
CONT. COMP. BACK PYRO W/O WPL R0157788 Contact Us For Availability
5
BROIL ELEMENT SUPPORT PYRO WPL R0157905 Contact Us For Availability
5
THERMOSTAT HW 6701 WPL R0711006 Contact Us For Availability
6
SCREW WPL R0700024 Contact Us For Availability
6
LIMIT CONTROL UP OVEN OP-200 WPL R0157889 Contact Us For Availability
6
SCREW 10-24 WPL R0700026 Contact Us For Availability
6
CONT. COMPART SIDE RT PYRO WPL R0157789 Contact Us For Availability
6
THERMOSTAT MTG BRKT FRT PYRO WPL R0157906 Contact Us For Availability
6
KNOB, CONTROL WPL R0703507 Contact Us For Availability
7
WINDOW MTG. BRKT. PK411 WPL R0157874 Contact Us For Availability
7
SCREW, SM WPL R0157761 Contact Us For Availability
7
INSULATOR-SWITCH WPL R0157781 Contact Us For Availability
7
RACK, OVEN WPL R0157907 Contact Us For Availability
7
SWITCH BUSHING ,METAL WPL R0157760 Contact Us For Availability
8
WINDOW ASSY WPL R0157858 Contact Us For Availability
8
FAN MOTOR MOUNT WPL R0157890 Contact Us For Availability
8
LATCH ARM (BLACK) WPL R0199067 Contact Us For Availability
8
TOP-UP OVEN WPL R0157828 Contact Us For Availability
8
LOWER OVEN TOP PYRO W/O WPL R0157829 Contact Us For Availability
8
ELEMENT, BAKE WPL R0157908 Contact Us For Availability
8
SELECTOR SWITCH WPL R0702510 Contact Us For Availability
9
DOOR LINER, CHARCOAL GRAY WPL R0199242 Contact Us For Availability
9
DOOR LATCH HANDLE WPL R0705536 Contact Us For Availability
9
INSULAT. RETAIN. REAR PYRO WPL R0157792 Contact Us For Availability
9
SCREW, No.8-32 X 3/16 PPH WPL R0157775 Contact Us For Availability
10
LATCH PLATE WPL R0705555 Contact Us For Availability
10
SCREW 6 32X5/16 PH FH WPL R0157859 Contact Us For Availability
10
PLUG BLOCK BAFFLE KET570 WPL R0157836 Contact Us For Availability
10
CLOCK, TIMER WPL R0704004 Contact Us For Availability
11
FAN MOUNTING PLATE WPL R0157893 Contact Us For Availability
11
LOWER OVEN VENT TUBE PYRO W/O WPL R0157837 Contact Us For Availability
11
SCREW WPL R0700028 Contact Us For Availability
12
SCREW No.8X3/8 SQ. DRIVE WPL R0157776 Contact Us For Availability
12
INSULATION,WRAPPER WPL R0157869 Contact Us For Availability
12
DOOR LATCH ASSY WO WPL R0157831 Contact Us For Availability
12
INSULATION,WRAPPER WPL R0157838 Contact Us For Availability
13
GASKET, DOOR (76``) WPL R0199105 Contact Us For Availability
13
SCREW 6 32X1 SLOTTED RN BRASS WPL R0157855 Contact Us For Availability
13
BLADE, FAN WPL R0157895 Contact Us For Availability
13
INSULATION,WRAPPER WPL R0157839 Contact Us For Availability
13
CONTROL PANEL TOP TRIM WPL R0199120 Contact Us For Availability
14
BACKER, OVEN DOOR WPL R0199244 Contact Us For Availability
14
FAN MOTOR WPL R0157894 Contact Us For Availability
14
OVEN LAMP SOCKET WPL R0712501 Contact Us For Availability
14
GLASS, CONTROL PANEL WPL R0707514 Contact Us For Availability
15
SCREW 8-32X.375 DK GL DR HDL WPL R0157878 Contact Us For Availability
15
SWITCH, CLEAN, PRIMARY INTERL WPL R0157864 Contact Us For Availability
15
LAMP CUP WPL R0157790 Contact Us For Availability
15
KNOB, DUAL TIMER WPL R0181089 Contact Us For Availability
16
SCREW 4-40X15/16`` WPL R0157865 Contact Us For Availability
16
KNOB, OVEN THERMOSTAT, UPPER A WPL R0703506 Contact Us For Availability
17
KNOB, SELECTOR SWITCH WPL R0703508 Contact Us For Availability
18
RESISTOR WPL R0199232 Contact Us For Availability
18
MAIN CONTACT SWITCH WPL R0157873 Contact Us For Availability
18
CONTROL PAN VENT TRIM WPL R0199112 Contact Us For Availability
19
REAR OVEN SUPPORT PYRO W/O WPL R0157843 Contact Us For Availability
19
BLACK SCREW 8-18X.500 WPL R0700027 Contact Us For Availability
20
SCREW 4X40X.500 DYRO T BLK WPL R0199107 Contact Us For Availability
20
INSULATION RETAINER SIDES PYRO WPL R0157793 Contact Us For Availability
20
SCREW, No.3-32 X.187 PAN HD PH WPL R0700022 Contact Us For Availability
21
LATCH ASSY WPL R0710026 Contact Us For Availability
21
LOWER CABINET BACK PYRO W/O WPL R0157844 Contact Us For Availability
25
BOTTOM, LWR OVEN WPL R0157799 Contact Us For Availability
26
BASE RUNNER PYRO W/O WPL R0157801 Contact Us For Availability
27
SIDE TRIM R.H. WPL R0705547 Contact Us For Availability
28
CAPILLARY HOLE COVER WPL R0705556 Contact Us For Availability
29
SMOKE ELIMINATOR WPL R0710023 Contact Us For Availability
29
SMOKE ELIMINATOR WPL R0710032 Contact Us For Availability
30
BOTTOM TRIM WPL R0199110 Contact Us For Availability
31
KIT, OVEN LINER, CG WPL R0199250 Contact Us For Availability
32
MAIN FRONT-DK GR WPL R0199248 Contact Us For Availability
33
LOWER CABINET SIDE LEFT WPL R0703024 Contact Us For Availability
33
LOWER CABINET SIDE RIGHT WPL R0703025 Contact Us For Availability
34
SHIELD, REFLECTOR WPL R0199253 Contact Us For Availability
35
OVEN LIGHT LENS WPL R0707577 Contact Us For Availability
36
GASKET,OVEN LIGHT WPL R0157816 Contact Us For Availability
37
LENS RETAINER STAINLESS STEEL WPL R0199255 Contact Us For Availability
38
SIDE TRIM LEFT AO27DB WPL R0705548 Contact Us For Availability
39
LATCH HANDLE GUIDE PYRO W.O. WPL R0199069 Contact Us For Availability
40
CENTER TRIM WPL R0705558 Contact Us For Availability
41
FRONT OVEN SUPPORT PYRO W/O WPL R0157848 Contact Us For Availability
43
HINGE ASSY WPL R0705557 Contact Us For Availability
44
HINGE ACCESS COVER PYRO W.O. WPL R0157821 Contact Us For Availability
45
OVEN DOOR SPRING PYRO W/O WPL R0157819 Contact Us For Availability
46
UPPER OVEN BOTTOM PYRO W/O WPL R0157849 Contact Us For Availability
47
PROBE RECEP COVER WPL R0199256 Contact Us For Availability
48
SCREW 8-18X5/16`` WPL R0157833 Contact Us For Availability
50
UPPER CABINET SIDE LH WPL R0703022 Contact Us For Availability
50
UPPER CABINET, R.H. WPL R0703023 Contact Us For Availability
51
CAPILLARY SHIELD PYRO W/O WPL R0157825 Contact Us For Availability
52
LATCH MTG. BRKT PYRO W/O WPL R0157850 Contact Us For Availability
53
CONT. COMP WPL R0157826 Contact Us For Availability
54
WPL R0157830 WPL R0157830 Contact Us For Availability
55
WPL R0705538 WPL R0705538 Contact Us For Availability
58
WPL R0705543 WPL R0705543 Contact Us For Availability
59
WPL R0157987 WPL R0157987 Contact Us For Availability
NI
WASHER, LOCK 13/16 X 3/8 O.D. WPL R0700502 Contact Us For Availability
NI
NUT WPL R0701006 Contact Us For Availability
NI
WPL R0710027 WPL R0710027 Contact Us For Availability
× ![]()
