Model Whirlpool AO24SE2 ELECTRIC WALL OVEN – Common Parts & Diagrams

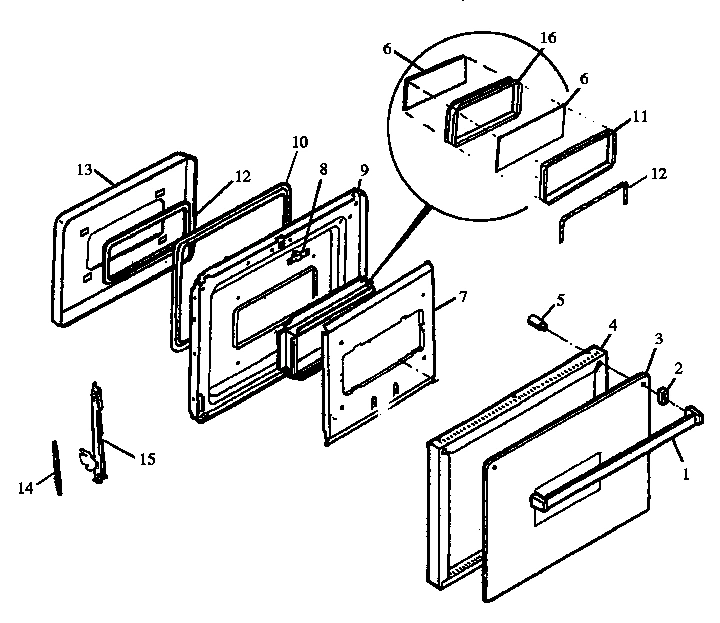

02 - Page 2

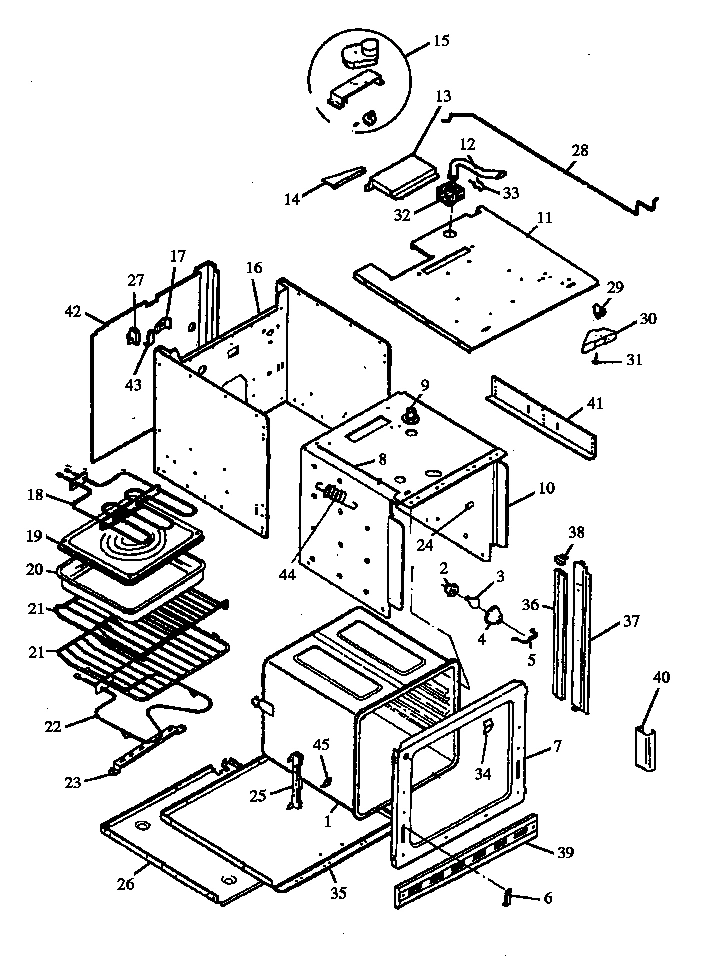

03 - Page 3

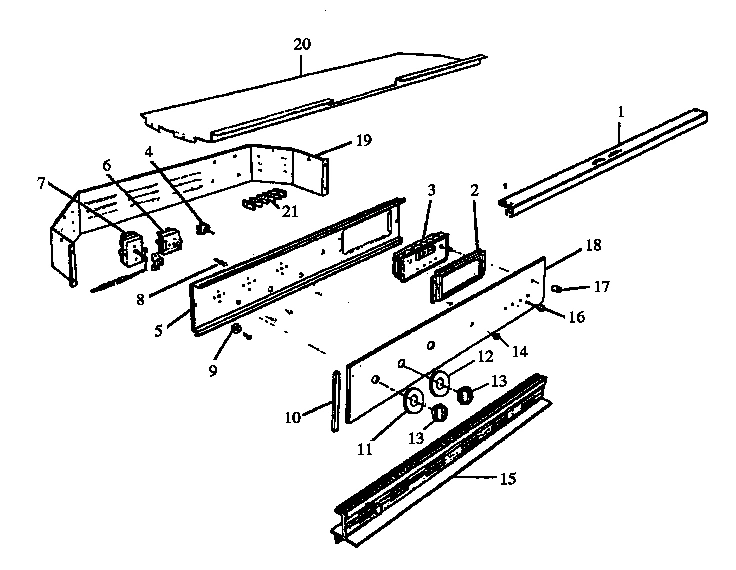

01 - Page 1
Common parts from model Whirlpool AO24SE2 ELECTRIC WALL OVEN
1
HANDLE WPL R0759527 Contact Us For Availability
1
LINER, OVEN ASSY WPL R0753014 Contact Us For Availability
1
TRIM, TOP VENT WPL R0759501 Contact Us For Availability
2
SPACER, HANDLE (BLACK) WPL R0759529 Contact Us For Availability
2
SOCKET, OVEN LIGHT WPL R0760021 Contact Us For Availability
2
BRACKET CLOCK WPL R0751501 Contact Us For Availability
3
GLASS, OUTER WPL R0758002 Contact Us For Availability
3
CLOCK WPL R0760001 Contact Us For Availability
4
TRIM, FRAME WPL R0759504 Contact Us For Availability
4
LENS, GLASS OVEN LIGHT WPL R0758008 Contact Us For Availability
4
SWITCH, OVEN LIGHT WPL R0752501 Contact Us For Availability
5
SPACER, HANDLE WPL R0757003 Contact Us For Availability
5
RETAINER-LENS WPL R0751505 Contact Us For Availability
5
PLATE, INST MTG WPL R0753001 Contact Us For Availability
6
GLASS,OV DR, HEAT BARRIER WPL R0758003 Contact Us For Availability
6
RETAINER- DOOR WPL R0751506 Contact Us For Availability
6
SWITCH SELECTOR WPL R0752502 Contact Us For Availability
7
PANEL AIR WASH WPL R0760002 Contact Us For Availability
7
FRAME, FRONT WPL R0758009 Contact Us For Availability
7
THERMOSTAT WPL R0761001 Contact Us For Availability
8
STRIKE ASSY WPL R0760003 Contact Us For Availability
8
ROD, SWITCH WPL R0756004 Contact Us For Availability
8
LIGHT-OVEN-IND WPL R0762001 Contact Us For Availability
9
LINER, DOOR ASS`Y WPL R0753015 Contact Us For Availability
9
VENT TUBE ASSY WPL R0760005 Contact Us For Availability
9
BUMPER WPL R0757001 Contact Us For Availability
10
SEAL, DOOR WPL R0757004 Contact Us For Availability
10
SHIELD, WOOL WPL R0755002 Contact Us For Availability
10
TRIM, CONT PANEL GLASS WPL R0759502 Contact Us For Availability
11
COLLAR, GLASS(SPACER) WPL R0757005 Contact Us For Availability
11
WRAPPER, OUTER TOP WPL R0753016 Contact Us For Availability
11
DIAL THERMOSTAT WPL R0756501 Contact Us For Availability
12
SEAL, WINDOW WPL R0757006 Contact Us For Availability
12
DUCT, VENT TUBE WPL R0753008 Contact Us For Availability
12
DIAL, SELECTOR SWITCH WPL R0756502 Contact Us For Availability
13
C0VER, INNER DOOR WPL R0753012 Contact Us For Availability
13
COVER, MOTOR WPL R0753009 Contact Us For Availability
13
KNOB WPL R0751001 Contact Us For Availability
14
BRKT, MOTOR MOUNT WPL R0756005 Contact Us For Availability
14
BEZEL, SWITCH WPL R0759525 Contact Us For Availability
15
ASSY, HINGE (AO24SE2/SEW) WPL R0753004 Contact Us For Availability
15
MOTOR, LATCH ASSY WPL R0760006 Contact Us For Availability
15
TRIM, CENTER. VENT WPL R0759523 Contact Us For Availability
16
SPACER, GLASS WPL R0758004 Contact Us For Availability
16
WRAPPER, OUTER BASE WPL R0753017 Contact Us For Availability
16
KNOB, CLOCK WPL R0751003 Contact Us For Availability
17
SPRING,OVEN DOOR WPL R0751516 Contact Us For Availability
17
KNOB WPL R0751004 Contact Us For Availability
18
ELEMENT, BROIL WPL R0760007 Contact Us For Availability
18
GLASS. CONTROL PANEL WPL R0758001 Contact Us For Availability
19
INSERT, BROILER PAN WPL R0760017 Contact Us For Availability
19
HOUSING, CONTROL WPL R0753002 Contact Us For Availability
20
COVER, CONTROL WPL R0753003 Contact Us For Availability
21
RACK, OVEN (REGULAR) WPL R0760019 Contact Us For Availability
21
RACK, OVEN WPL R0760020 Contact Us For Availability
22
ELEMENT-BAKE WPL R0760012 Contact Us For Availability
23
SUPPORT, ELEMENT WPL R0756006 Contact Us For Availability
25
HINGE ASSY WPL R0760013 Contact Us For Availability
26
WRAPPER, BASE WPL R0753011 Contact Us For Availability
27
SWITCH WPL R0752503 Contact Us For Availability
28
ROD WPL R0756007 Contact Us For Availability
29
LATCH WPL R0756008 Contact Us For Availability
30
HOUSING, LATCH WPL R0760014 Contact Us For Availability
31
PIN-HNG 5308012004 WPL R0751508 Contact Us For Availability
32
INSULATION, VENT WPL R0755003 Contact Us For Availability
33
CLIP, INSULATION RETAINER WPL R0751509 Contact Us For Availability
35
SHIELD, INSULATION WPL R0756014 Contact Us For Availability
36
TRIM, INNER RH WPL R0759505 Contact Us For Availability
36
TRIM, INNERLH WPL R0759506 Contact Us For Availability
37
TRIM, SIDE OUTER WPL R0759507 Contact Us For Availability
38
TRIM, CORNER-RT (BLK) WPL R0759508 Contact Us For Availability
38
TRIM, CORNER-LT (BLK) WPL R0759509 Contact Us For Availability
39
TRIM, BOTTOM VENT WPL R0759510 Contact Us For Availability
40
TRIM RH BOTTOM SIDE WPL R0759511 Contact Us For Availability
40
TRIM, LH BOTTOM SIDE WPL R0759512 Contact Us For Availability
41
SUPPORT WPL R0751518 Contact Us For Availability
42
COVER, WIRE WPL R0753013 Contact Us For Availability
43
BRKT SWITCH MTG WPL R0751511 Contact Us For Availability
44
SPRING, ROD WPL R0751512 Contact Us For Availability
45
CLIP, CAPILLARY WPL R0751517 Contact Us For Availability
45
CLIP- CAPILLARY WPL R0751513 Contact Us For Availability
45
CLIP CAPILLARY WPL R0751514 Contact Us For Availability
NI
TAPE-INNER DOOR WPL R0751504 Contact Us For Availability
NI
INSULATION, DOOR WPL R0755001 Contact Us For Availability
NI
BUTTON, SPACER WPL R0757007 Contact Us For Availability
NI
INSULATION, BACK WPL R0755005 Contact Us For Availability
NI
INSULATION, OVEN, BACK WPL R0755006 Contact Us For Availability
× ![]()
