Model Whirlpool AO24SE1 ELECTRIC WALL OVEN – Common Parts & Diagrams

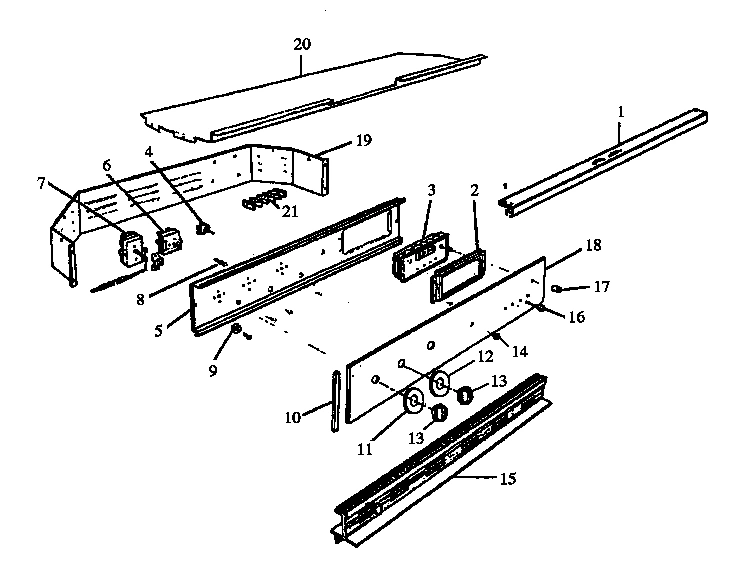

02 - PAGE 1

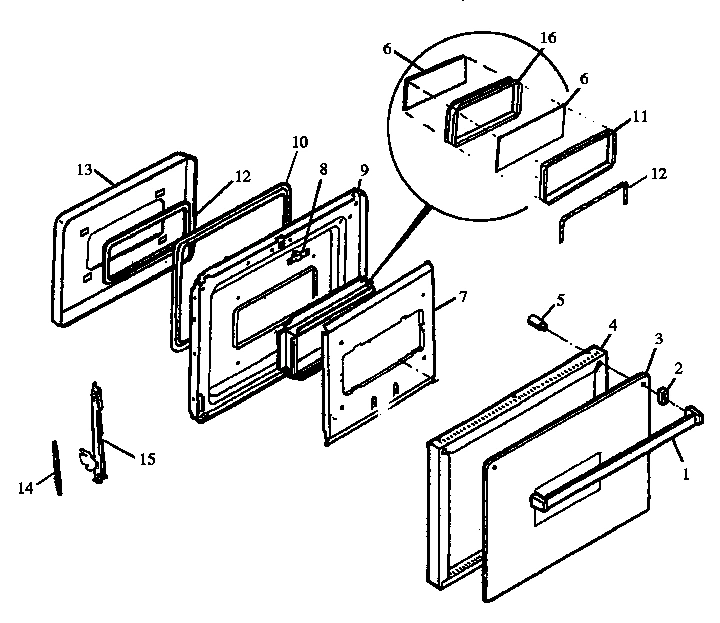

03 - PAGE 2
01 - MISCELLANEOUS INFORMATION

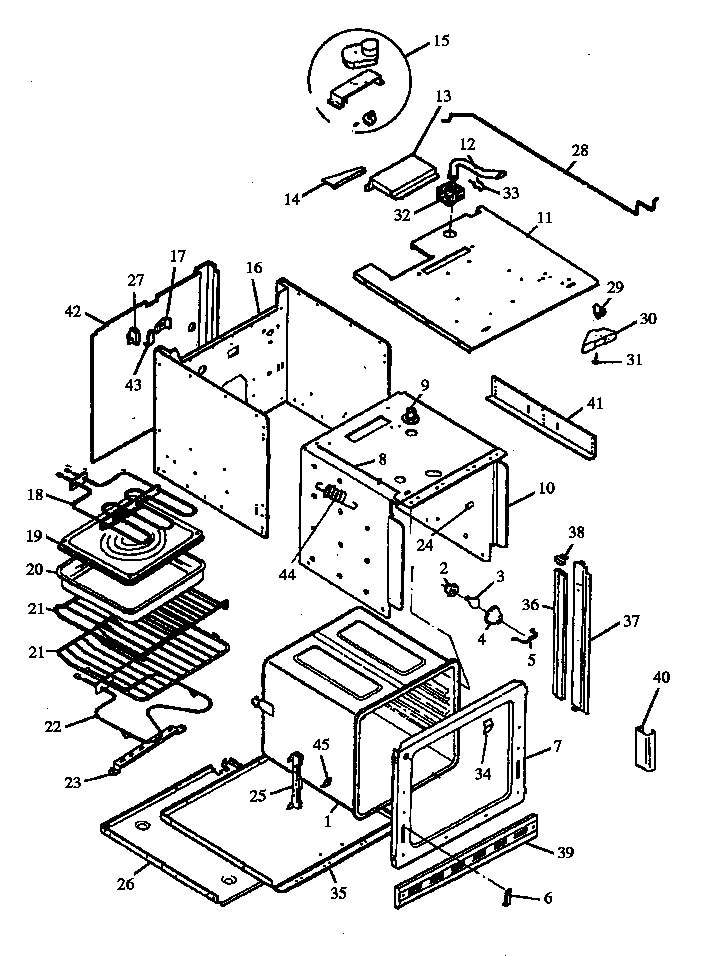

04 - PAGE 3
Common parts from model Whirlpool AO24SE1 ELECTRIC WALL OVEN
1
TRIM, TOP VENT WPL R0759513 Contact Us For Availability
1
HANDLE WPL R0756011 Contact Us For Availability
1
LINER, OVEN WPL R0753005 Contact Us For Availability
2
BRACKET CLOCK WPL R0751501 Contact Us For Availability
2
SPACER HANDLE WPL R0757009 Contact Us For Availability
2
RECEPTACLE WPL R0760004 Contact Us For Availability
3
CLOCK WPL R0760001 Contact Us For Availability
3
GLASS OUTER WPL R0758007 Contact Us For Availability
4
SWITCH, OVEN LIGHT WPL R0752504 Contact Us For Availability
4
TRIM, FRAME WPL R0759516 Contact Us For Availability
4
LENS WPL R0758005 Contact Us For Availability
5
PLATE, INST MTG WPL R0753001 Contact Us For Availability
5
SPACER, HANDLE WPL R0757003 Contact Us For Availability
5
RETAINER-LENS WPL R0751505 Contact Us For Availability
6
SWITCH SELECTOR WPL R0752502 Contact Us For Availability
6
GLASS,OV DR, HEAT BARRIER WPL R0758003 Contact Us For Availability
6
RETAINER- DOOR WPL R0751506 Contact Us For Availability
7
THERMOSTAT WPL R0761001 Contact Us For Availability
7
PANEL AIR WASH WPL R0760002 Contact Us For Availability
7
FRAME, FRONT WPL R0753006 Contact Us For Availability
8
LIGHT-OVEN-IND WPL R0762001 Contact Us For Availability
8
STRIKE ASSY WPL R0760003 Contact Us For Availability
8
ROD, SWITCH WPL R0756004 Contact Us For Availability
9
BUMPER WPL R0757001 Contact Us For Availability
9
LINER, DOOR WPL R0756002 Contact Us For Availability
9
VENT TUBE ASSY WPL R0760005 Contact Us For Availability
10
TRIM, CONTROL PANEL WPL R0759514 Contact Us For Availability
10
SEAL, DOOR WPL R0757004 Contact Us For Availability
10
SHIELD, WOOL WPL R0755002 Contact Us For Availability
11
DIAL, THERMOSTAT WPL R0756504 Contact Us For Availability
11
COLLAR, GLASS(SPACER) WPL R0757005 Contact Us For Availability
11
WRAPPER, TOP WPL R0753007 Contact Us For Availability
12
DIAL SELECTOR SWITCH WPL R0756505 Contact Us For Availability
12
SEAL, WINDOW WPL R0757006 Contact Us For Availability
12
DUCT, VENT TUBE WPL R0753008 Contact Us For Availability
13
KNOB WPL R0751004 Contact Us For Availability
13
BAFFLE, DOOR WPL R0756003 Contact Us For Availability
13
COVER, MOTOR WPL R0753009 Contact Us For Availability
14
BEZEL, SWITCH WPL R0752505 Contact Us For Availability
14
SPRING- DOOR WPL R0751503 Contact Us For Availability
14
BRKT, MOTOR MOUNT WPL R0756005 Contact Us For Availability
15
TRIM CONTROL VENT WPL R0759515 Contact Us For Availability
15
ASSY, HINGE (AO24SE2/SEW) WPL R0753004 Contact Us For Availability
15
MOTOR, LATCH ASSY WPL R0760006 Contact Us For Availability
16
KNOB -CLOCK (WHITE) WPL R0751006 Contact Us For Availability
16
SPACER, GLASS WPL R0758004 Contact Us For Availability
16
WRAPPER WPL R0753010 Contact Us For Availability
17
KNOB WPL R0751001 Contact Us For Availability
17
SPRING OVEN WPL R0751507 Contact Us For Availability
18
GLASS CONT. PANEL WPL R0758006 Contact Us For Availability
18
ELEMENT, BROIL WPL R0760007 Contact Us For Availability
19
HOUSING, CONTROL WPL R0753002 Contact Us For Availability
19
INSERT, BROILER PAN WPL R0760008 Contact Us For Availability
20
COVER, CONTROL WPL R0753003 Contact Us For Availability
21
RACK, OVEN (REGULAR) WPL R0760010 Contact Us For Availability
21
RACK- OFFSET WPL R0760011 Contact Us For Availability
22
ELEMENT-BAKE WPL R0760012 Contact Us For Availability
23
SUPPORT, ELEMENT WPL R0756006 Contact Us For Availability
24
SPACER, OVEN WPL R0757008 Contact Us For Availability
25
HINGE ASSY WPL R0760013 Contact Us For Availability
26
WRAPPER, BASE WPL R0753011 Contact Us For Availability
27
SWITCH WPL R0752503 Contact Us For Availability
28
ROD WPL R0756007 Contact Us For Availability
29
LATCH WPL R0756008 Contact Us For Availability
30
HOUSING, LATCH WPL R0760014 Contact Us For Availability
31
PIN-HNG 5308012004 WPL R0751508 Contact Us For Availability
32
INSULATION, VENT WPL R0755003 Contact Us For Availability
33
CLIP, INSULATION RETAINER WPL R0751509 Contact Us For Availability
34
COVER, SEAM WPL R0751510 Contact Us For Availability
35
SHIELD, INSULATION WPL R0755004 Contact Us For Availability
36
TRIM, INNER RH WPL R0759505 Contact Us For Availability
36
TRIM, INNERLH WPL R0759506 Contact Us For Availability
37
TRIM, SIDE OUTER(WHT) RH WPL R0759517 Contact Us For Availability
38
TRIM WPL R0759518 Contact Us For Availability
38
CAP, TRIM WHITE WPL R0759519 Contact Us For Availability
39
TRIM, BOTTOM VENT WPL R0759520 Contact Us For Availability
40
TRIM, RH BOTTOM SIDE WPL R0759521 Contact Us For Availability
40
TRIM, LH BOTTOM SIDE WPL R0759522 Contact Us For Availability
41
SUPPORT WPL R0756012 Contact Us For Availability
42
COVER WIRE WPL R0756010 Contact Us For Availability
43
BRKT SWITCH MTG WPL R0751511 Contact Us For Availability
44
SPRING, ROD WPL R0751512 Contact Us For Availability
45
CLIP- CAPILLARY WPL R0751513 Contact Us For Availability
NI
TAPE-INNER DOOR WPL R0751504 Contact Us For Availability
NI
INSULATION, DOOR WPL R0755001 Contact Us For Availability
NI
BUTTON, SPACER WPL R0757007 Contact Us For Availability
NI
USE AND CARE MANUAL WPL 107610015 Contact Us For Availability
NI
INSTALLATION INSTRUCTIONS WPL 107611015 Contact Us For Availability
NI
INSULATION, BACK WPL R0755005 Contact Us For Availability
NI
INSULATION, OVEN, BACK WPL R0755006 Contact Us For Availability
× ![]()
