Model Maytag AMV6502RES0 MICROWAVE – Common Parts & Diagrams
01 - COVER SHEET

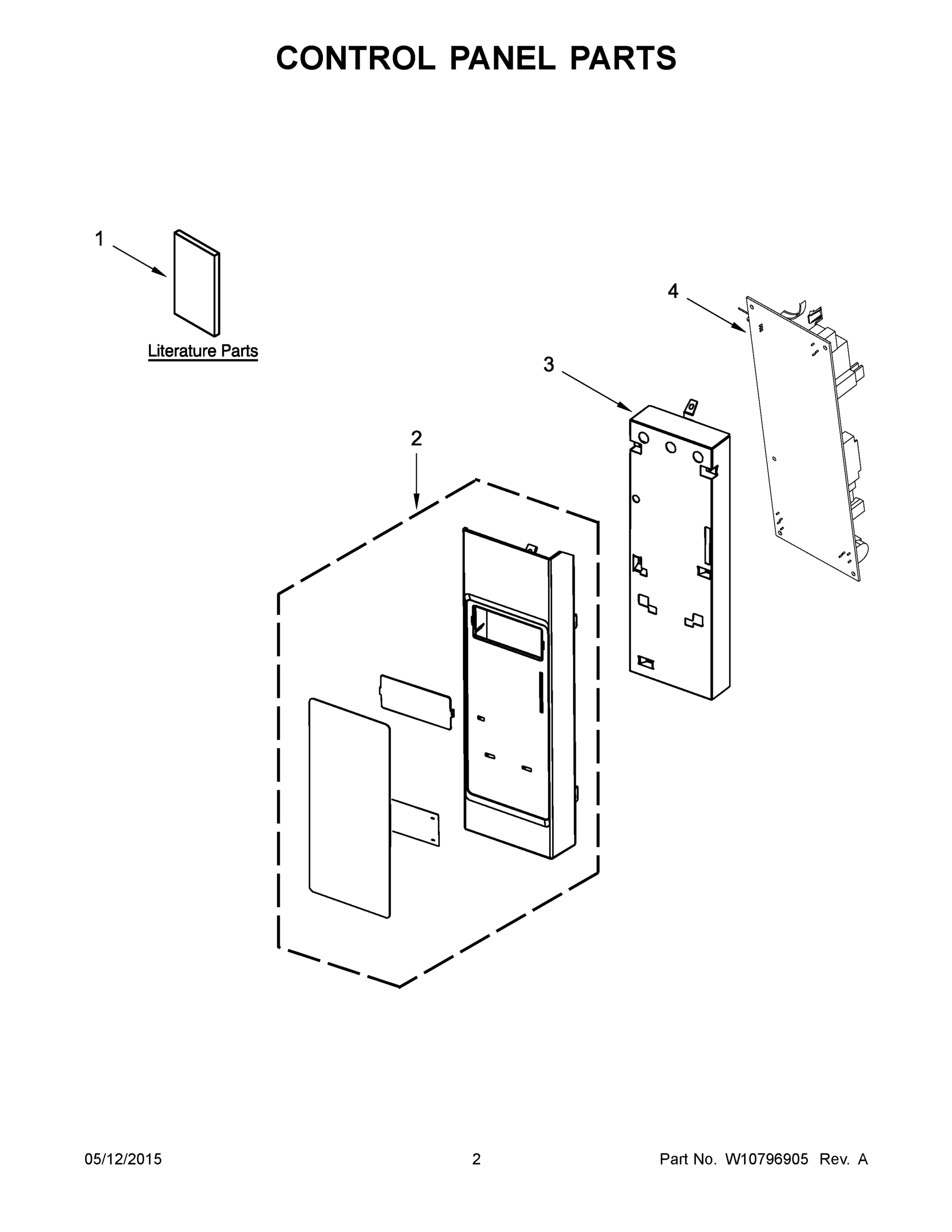

02 - CONTROL PANEL PARTS

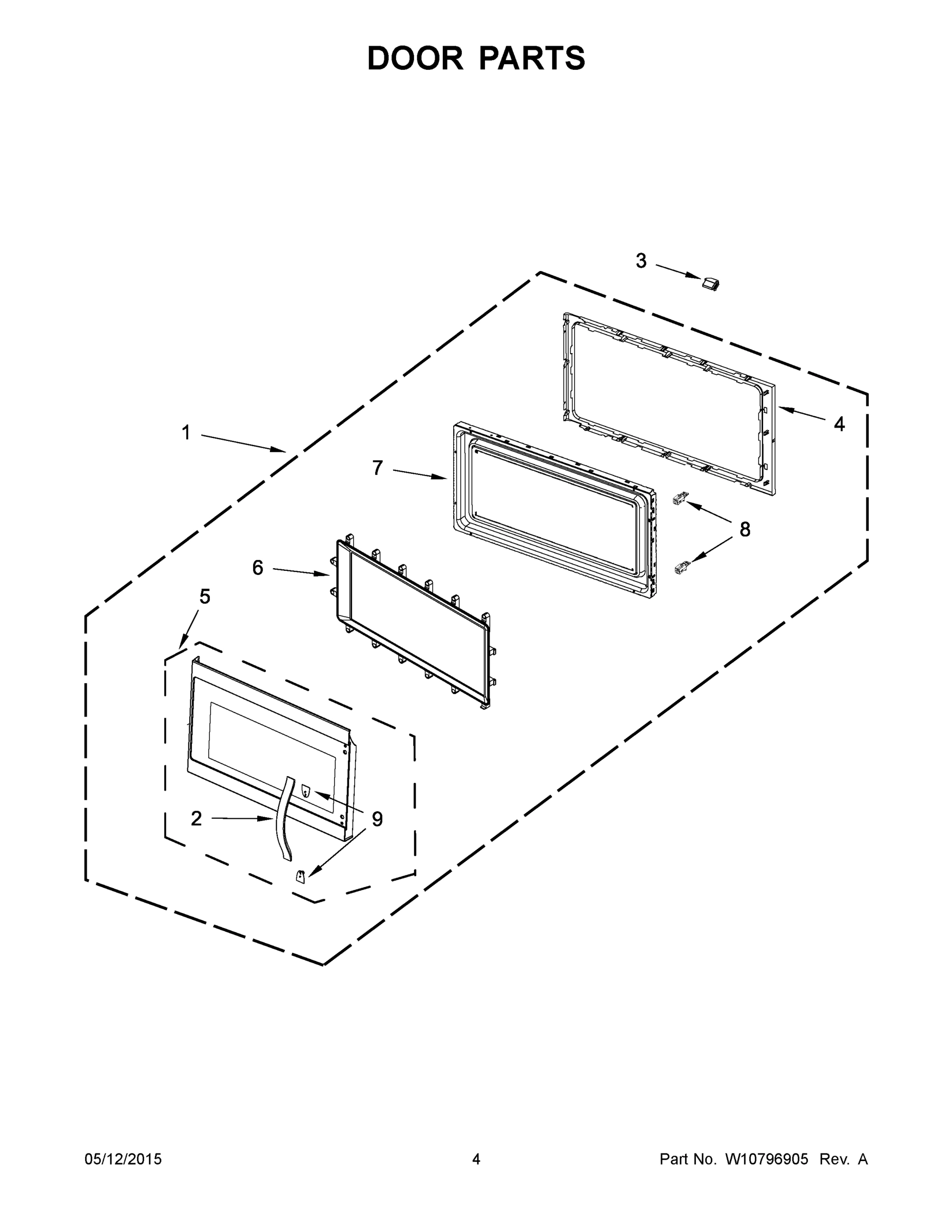

03 - DOOR PARTS

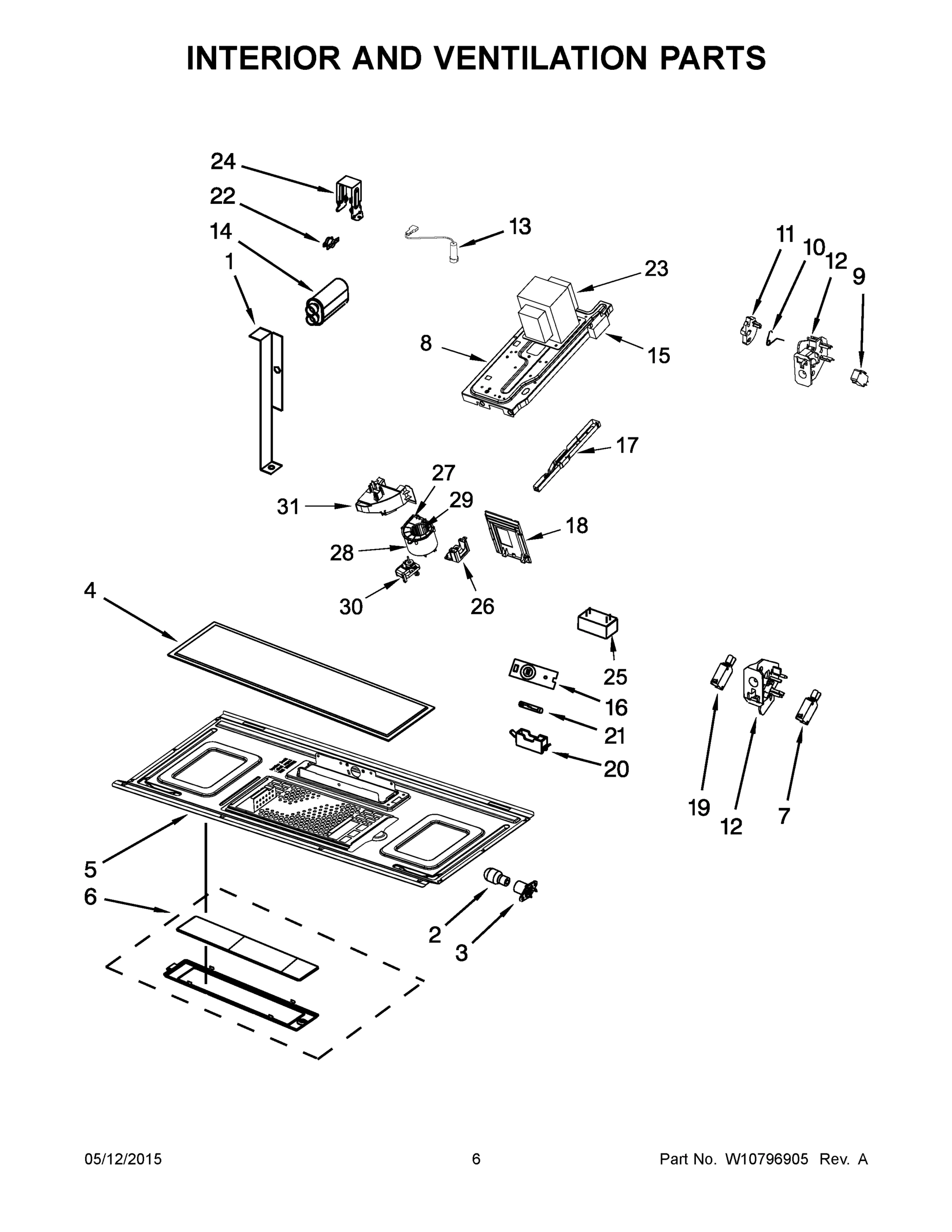

04 - INTERIOR AND VENTILATION PARTS

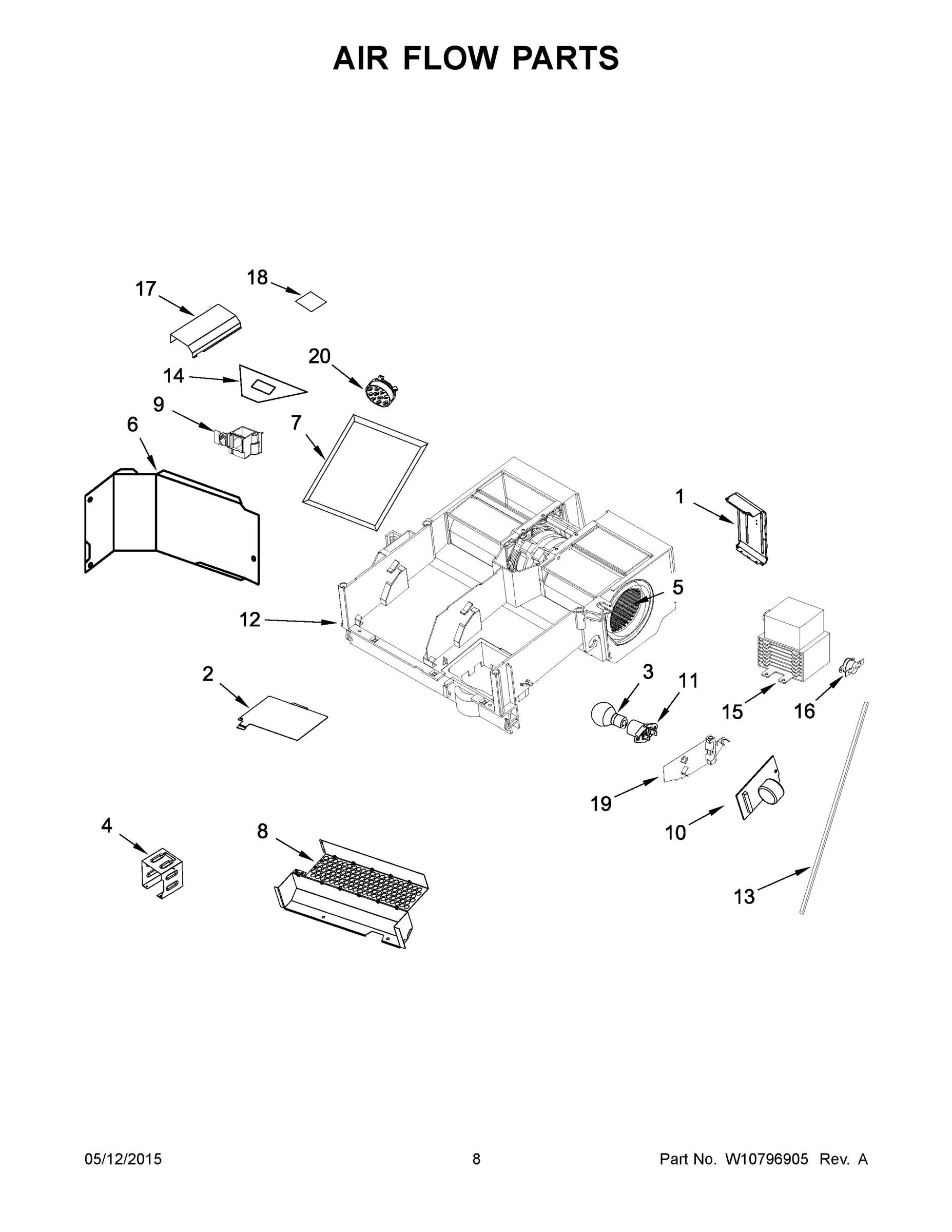

05 - AIR FLOW PARTS

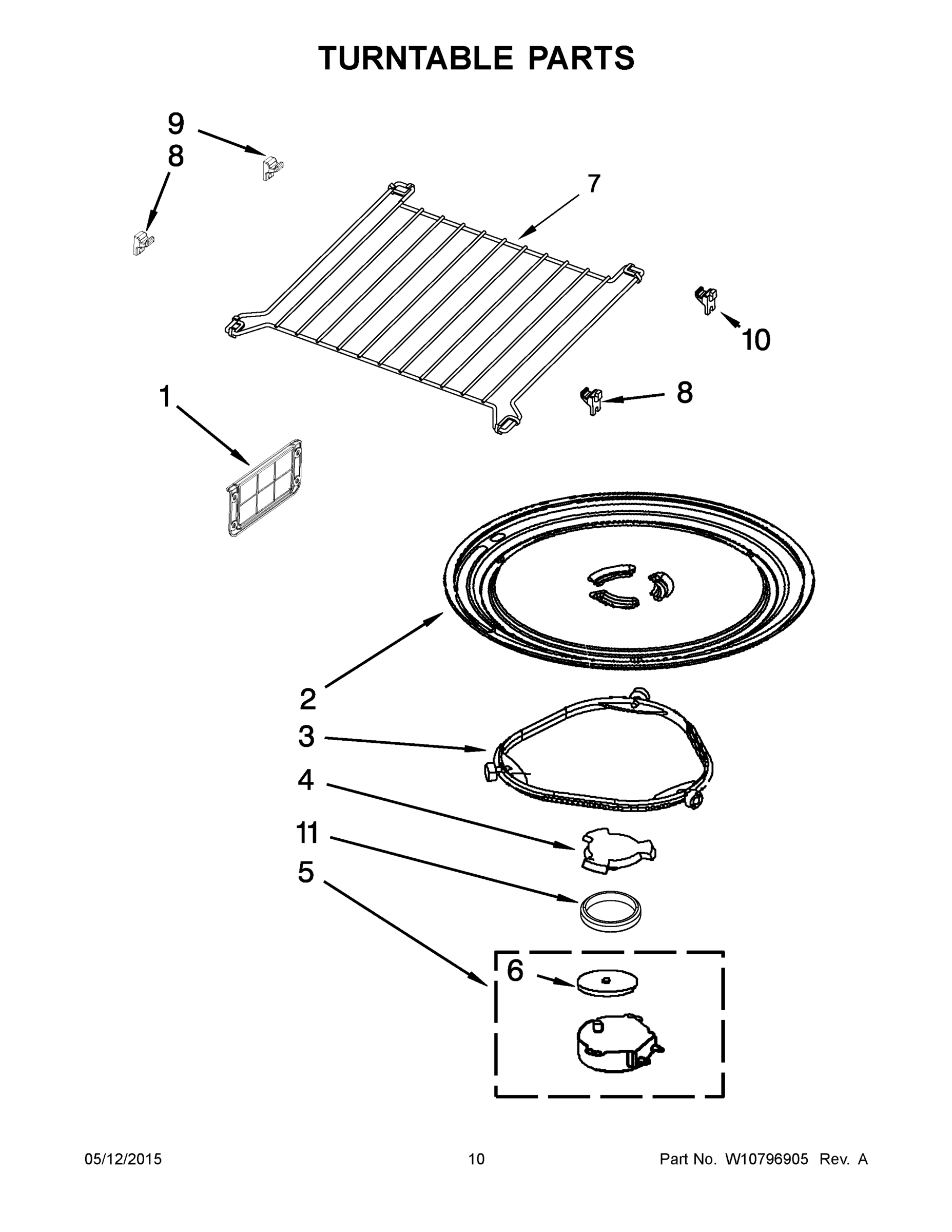

06 - TURNTABLE PARTS

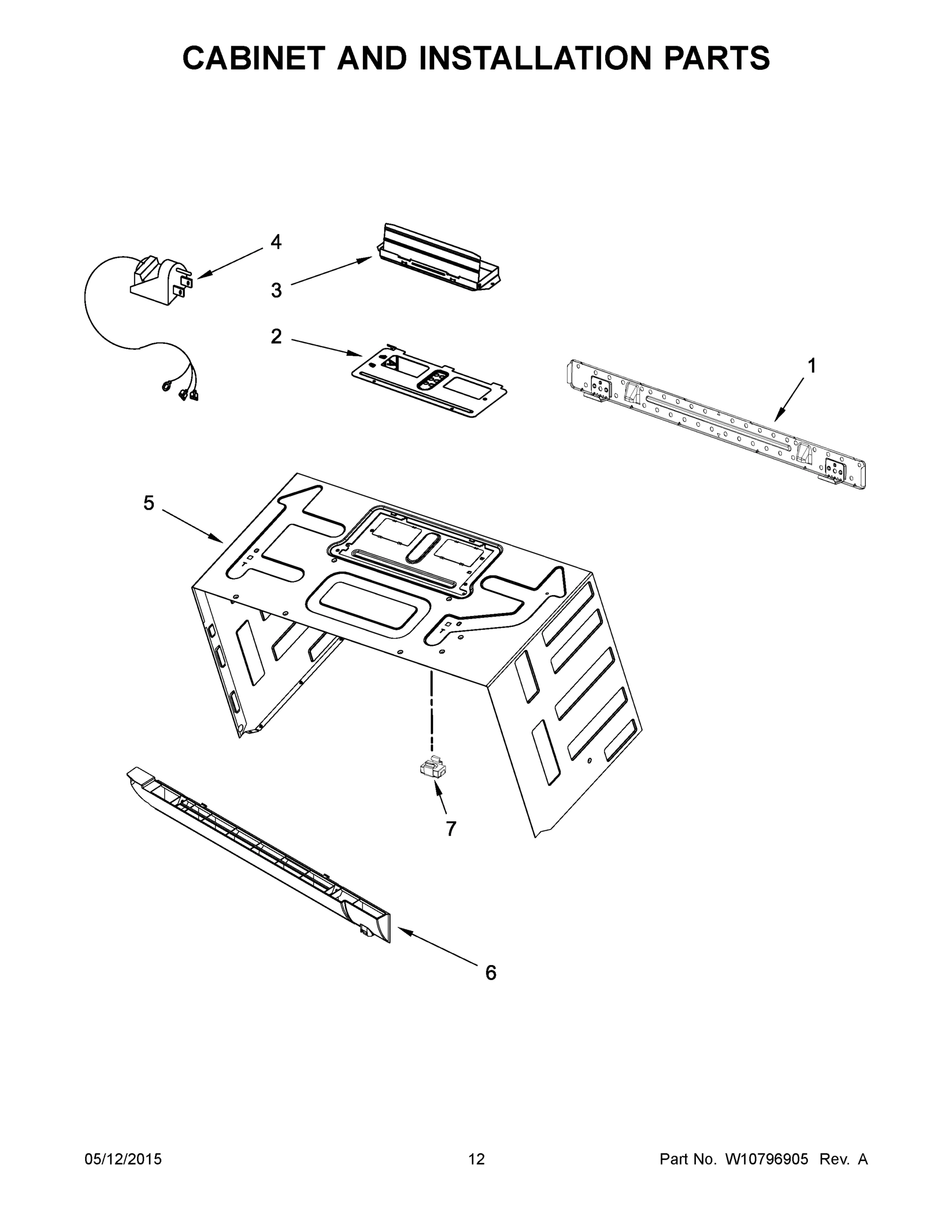

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag AMV6502RES0 MICROWAVE
1
MAY W10724870 MAY W10724870 Contact Us For Availability
1
MAY W10802521 MAY W10802521 Contact Us For Availability
1
MAY W10540715 MAY W10540715 Contact Us For Availability
1
MAY W10631697 MAY W10631697 Contact Us For Availability
1
MAY W10533497 MAY W10533497 Contact Us For Availability
1
MAY W10440498 MAY W10440498 Contact Us For Availability
1A
MAY W10792832 MAY W10792832 Contact Us For Availability
1A
MAY W10802522 MAY W10802522 Contact Us For Availability
1B
MAY W10792842 MAY W10792842 Contact Us For Availability
1B
MAY W10802523 MAY W10802523 Contact Us For Availability
1C
MAY W10799435 MAY W10799435 Contact Us For Availability
2
MAY W10802516 MAY W10802516 Contact Us For Availability
2
MAY W10445124 MAY W10445124 Contact Us For Availability
2
LAMP 40 WATT MAY 8206232 Contact Us For Availability
2
MAY 8206382 MAY 8206382 Contact Us For Availability
2
MAY W10531726 MAY W10531726 Contact Us For Availability
2
MAY W10625423 MAY W10625423 Contact Us For Availability
2A
MAY W10802517 MAY W10802517 Contact Us For Availability
2A
MAY W10445138 MAY W10445138 Contact Us For Availability
2B
MAY W10798052 MAY W10798052 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY W10506378 Contact Us For Availability
3
MAY W10639186 MAY W10639186 Contact Us For Availability
3
MAY W10643975 MAY W10643975 Contact Us For Availability
3
MAY W10210871 MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
MAY W10679311 MAY W10679311 Contact Us For Availability
3
MAY W10748710 MAY W10748710 Contact Us For Availability
3A
MAY W10643974 MAY W10643974 Contact Us For Availability
4
MAY W10678766 MAY W10678766 Contact Us For Availability
4
MAY W10647773 MAY W10647773 Contact Us For Availability
4
MAY W10208631 MAY W10208631 Contact Us For Availability
4
MAY W10556824 MAY W10556824 Contact Us For Availability
4
MAY W10337248 MAY W10337248 Contact Us For Availability
4
MAY W10654511 MAY W10654511 Contact Us For Availability
4A
MAY W10647772 MAY W10647772 Contact Us For Availability
5
MAY W10802518 MAY W10802518 Contact Us For Availability
5
MAY W10571127 MAY W10571127 Contact Us For Availability
5
MAY W10726505 MAY W10726505 Contact Us For Availability
5
MAY W10466420 MAY W10466420 Contact Us For Availability
5
MAY W10571410 MAY W10571410 Contact Us For Availability
5A
MAY W10802519 MAY W10802519 Contact Us For Availability
5A
MAY W10571405 MAY W10571405 Contact Us For Availability
5B
MAY W10802520 MAY W10802520 Contact Us For Availability
6
MAY W10562560 MAY W10562560 Contact Us For Availability
6
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
6
MAY W10533116 MAY W10533116 Contact Us For Availability
6
MAY 8184109 MAY 8184109 Contact Us For Availability
6
MAY W10701696 MAY W10701696 Contact Us For Availability
6A
MAY W10514243 MAY W10514243 Contact Us For Availability
6A
MAY W10701697 MAY W10701697 Contact Us For Availability
7
MAY W10647794 MAY W10647794 Contact Us For Availability
7
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
7
MAY 8206230 MAY 8206230 Contact Us For Availability
7
MAY W10637159 MAY W10637159 Contact Us For Availability
7
MAY W10596040 MAY W10596040 Contact Us For Availability
7A
MAY W10647793 MAY W10647793 Contact Us For Availability
8
MAY W10740455 MAY W10740455 Contact Us For Availability
8
MAY W10631826 MAY W10631826 Contact Us For Availability
8
MAY W10629803 MAY W10629803 Contact Us For Availability
8
MAY W10740485 MAY W10740485 Contact Us For Availability
9
MAY W10473991 MAY W10473991 Contact Us For Availability
9
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
9
MAY W10570208 MAY W10570208 Contact Us For Availability
9
MAY W10749119 MAY W10749119 Contact Us For Availability
10
MAY W10156812 MAY W10156812 Contact Us For Availability
10
MAY W10531156 MAY W10531156 Contact Us For Availability
10
MAY W10749120 MAY W10749120 Contact Us For Availability
11
MAY W10156811 MAY W10156811 Contact Us For Availability
11
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
11
MAY W10568148 MAY W10568148 Contact Us For Availability
12
MAY 8206419 MAY 8206419 Contact Us For Availability
12
MAY W10533096 MAY W10533096 Contact Us For Availability
12A
MAY W10156813 MAY W10156813 Contact Us For Availability
13
MAY W10575765 MAY W10575765 Contact Us For Availability
13
MAY W10626457 MAY W10626457 Contact Us For Availability
14
MAY W10574736 MAY W10574736 Contact Us For Availability
14
MAY W10139750 MAY W10139750 Contact Us For Availability
15
MAY W10605897 MAY W10605897 Contact Us For Availability
15
MAY W10772114 MAY W10772114 Contact Us For Availability
16
MAY W10536989 MAY W10536989 Contact Us For Availability
16
THERMOSTAT, CAVITY 125/-35 CELCIUS MAY W10476901 Contact Us For Availability
17
MAY W10540718 MAY W10540718 Contact Us For Availability
17
MAY W10533111 MAY W10533111 Contact Us For Availability
18
MAY W10533481 MAY W10533481 Contact Us For Availability
18
MAY W10531724 MAY W10531724 Contact Us For Availability
19
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
19
MAY W10533484 MAY W10533484 Contact Us For Availability
20
MAY W10245194 MAY W10245194 Contact Us For Availability
20
MAY W10557536 MAY W10557536 Contact Us For Availability
21
MAY W10138793 MAY W10138793 Contact Us For Availability
22
THERMOSTAT, MAGNETRON MAY W10598693 Contact Us For Availability
23
MAY W10772112 MAY W10772112 Contact Us For Availability
24
MAY W10518719 MAY W10518719 Contact Us For Availability
25
MAY W10568805 MAY W10568805 Contact Us For Availability
26
MAY W10533480 MAY W10533480 Contact Us For Availability
27
MAY W10533502 MAY W10533502 Contact Us For Availability
28
MAY W10533501 MAY W10533501 Contact Us For Availability
29
MAY W10533503 MAY W10533503 Contact Us For Availability
30
MAY W10536556 MAY W10536556 Contact Us For Availability
31
MAY W10631700 MAY W10631700 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MAY W10629733 MAY W10629733 Contact Us For Availability
NI
MAY W10710692 MAY W10710692 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10728970 Contact Us For Availability
× ![]()
