Model Whirlpool AMV6177AAQ CONVECTION MICROWAVE – Common Parts &amp; Diagrams

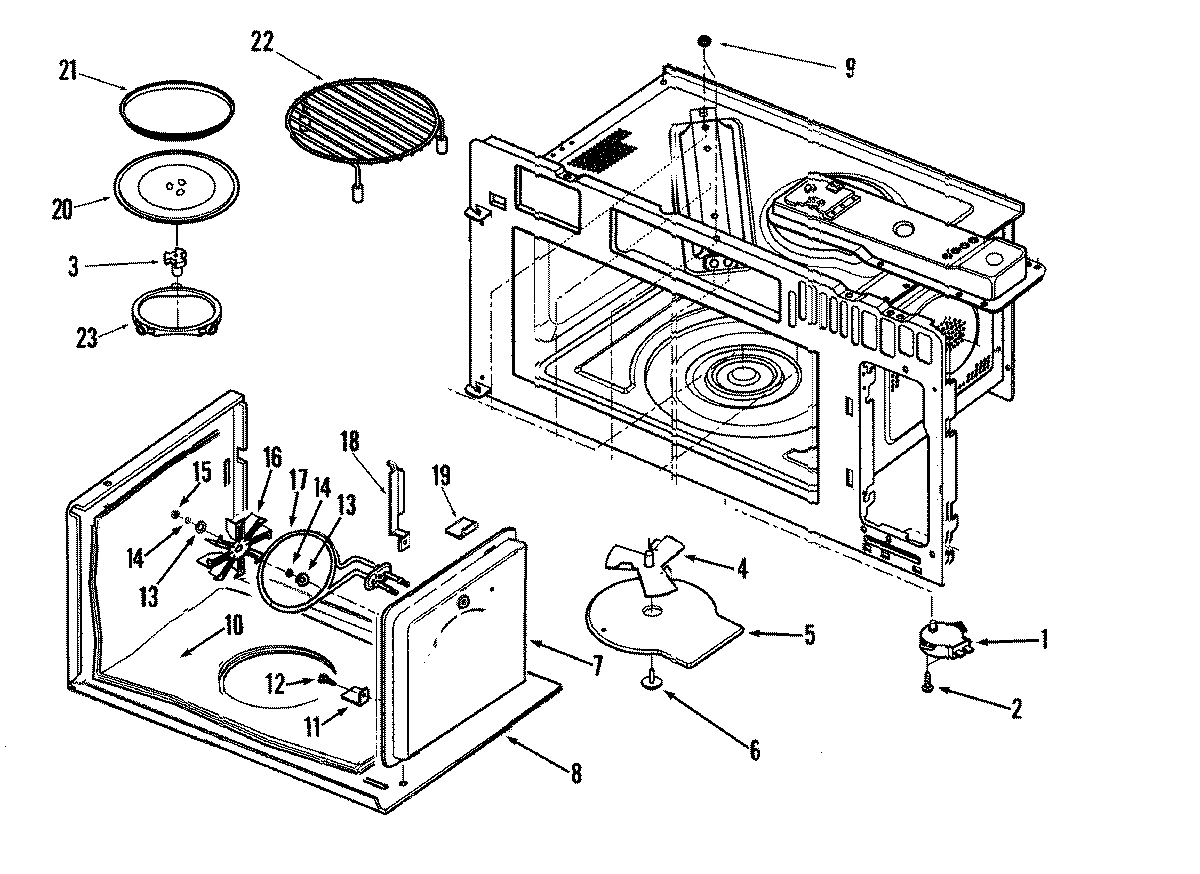

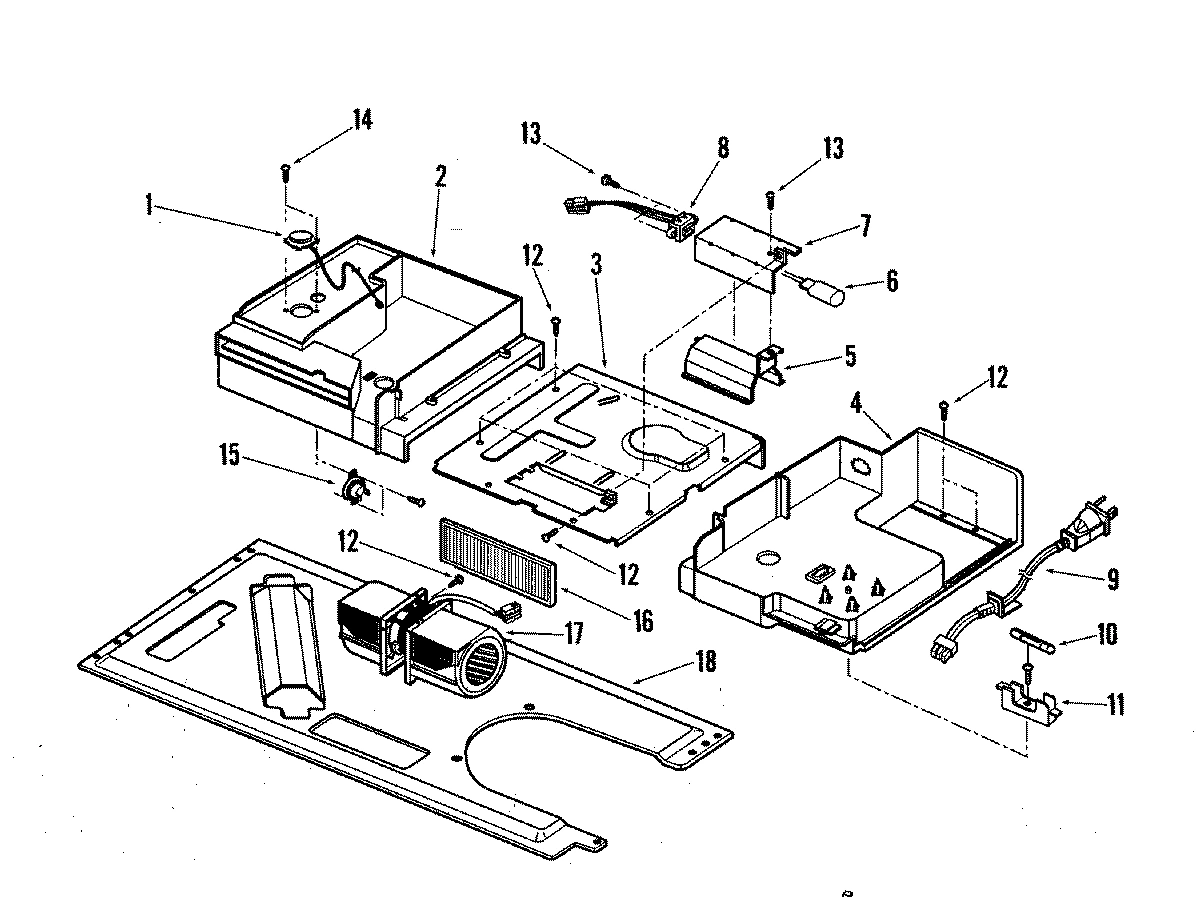

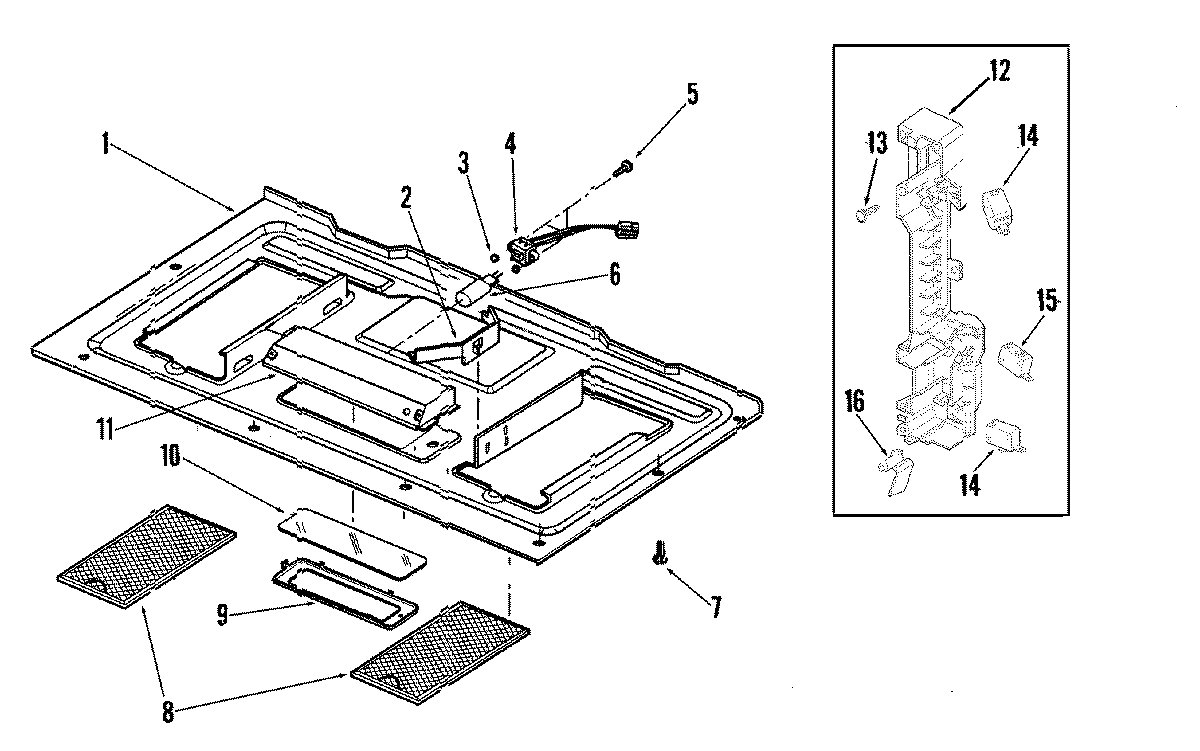

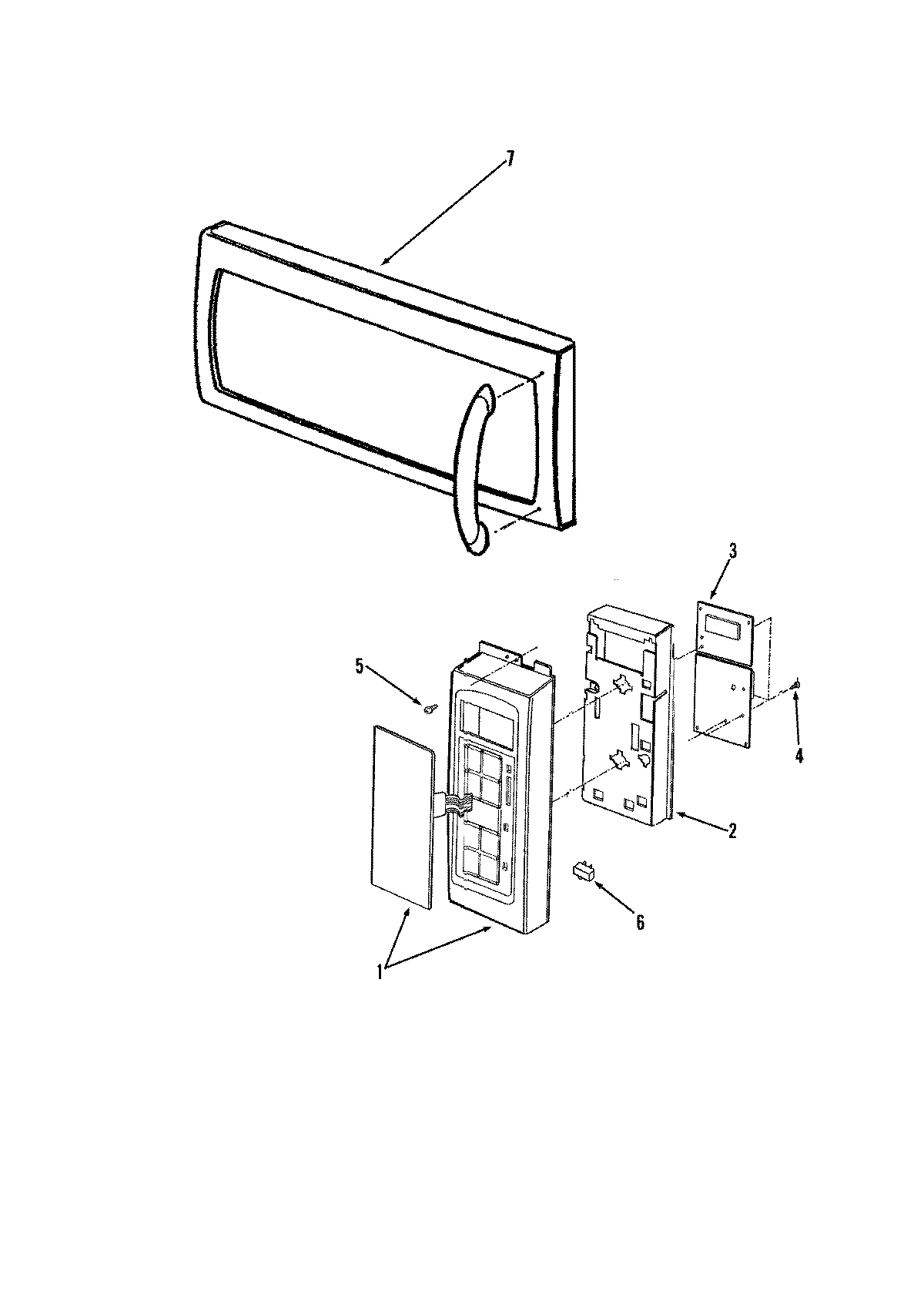

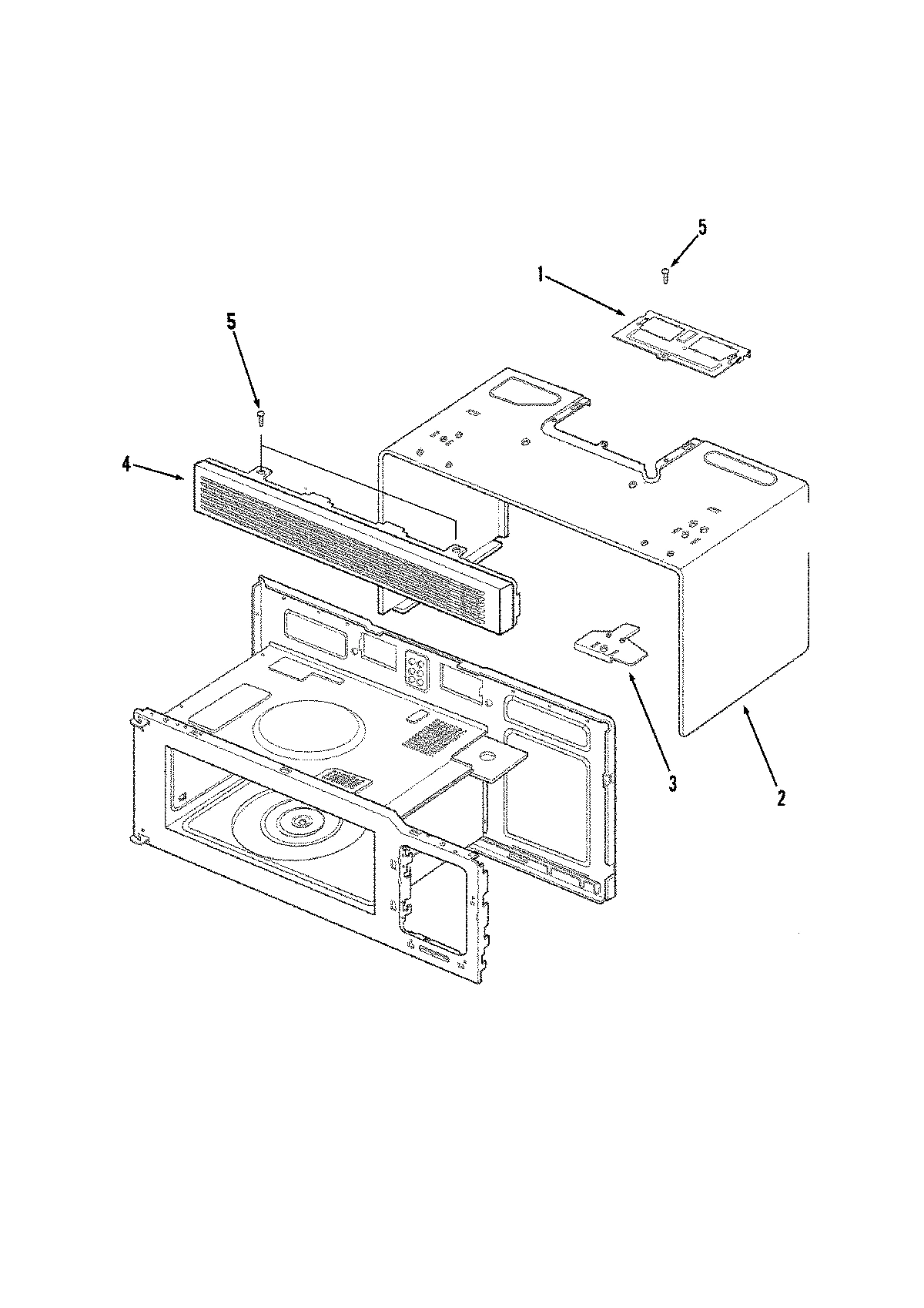

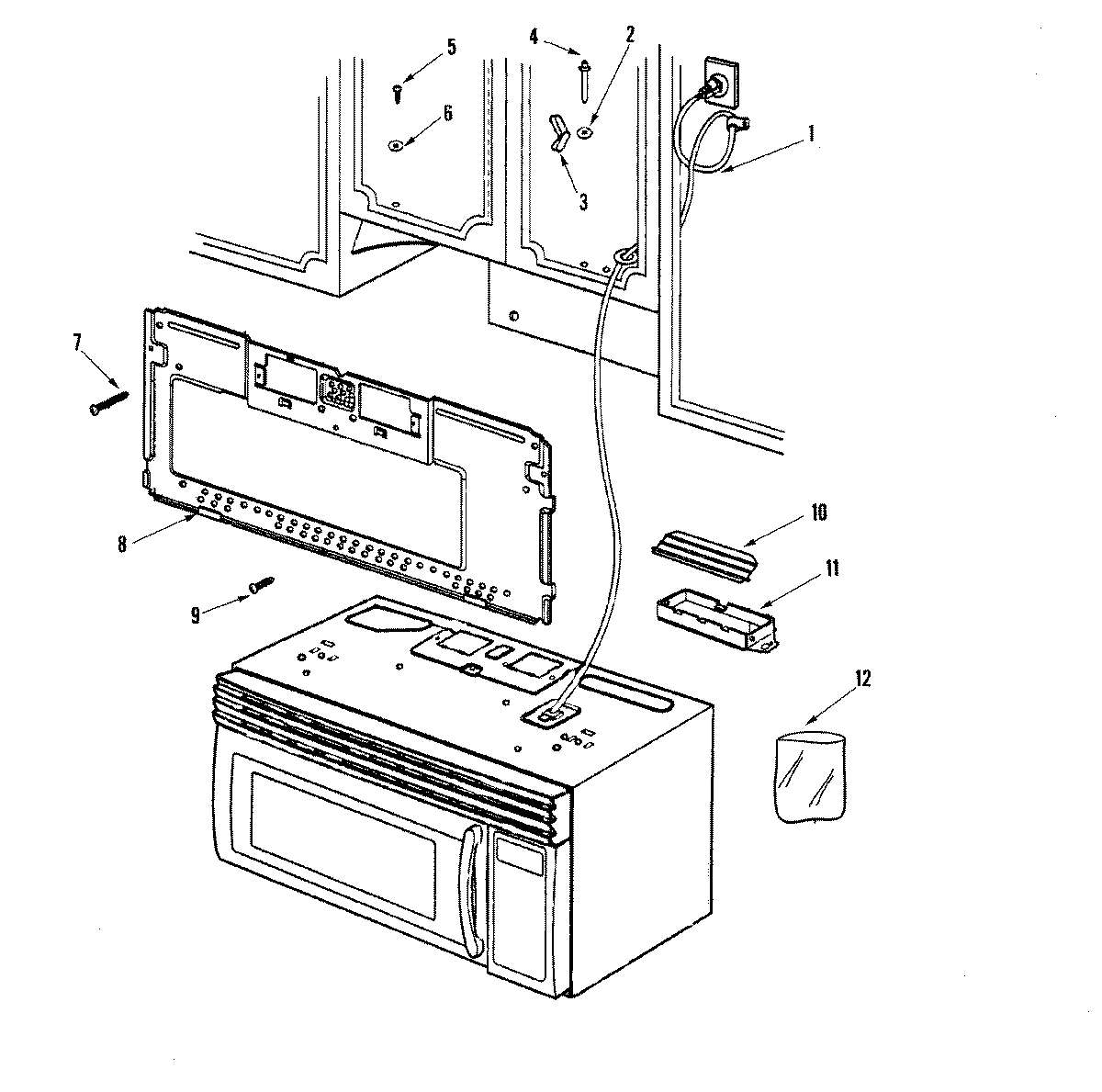

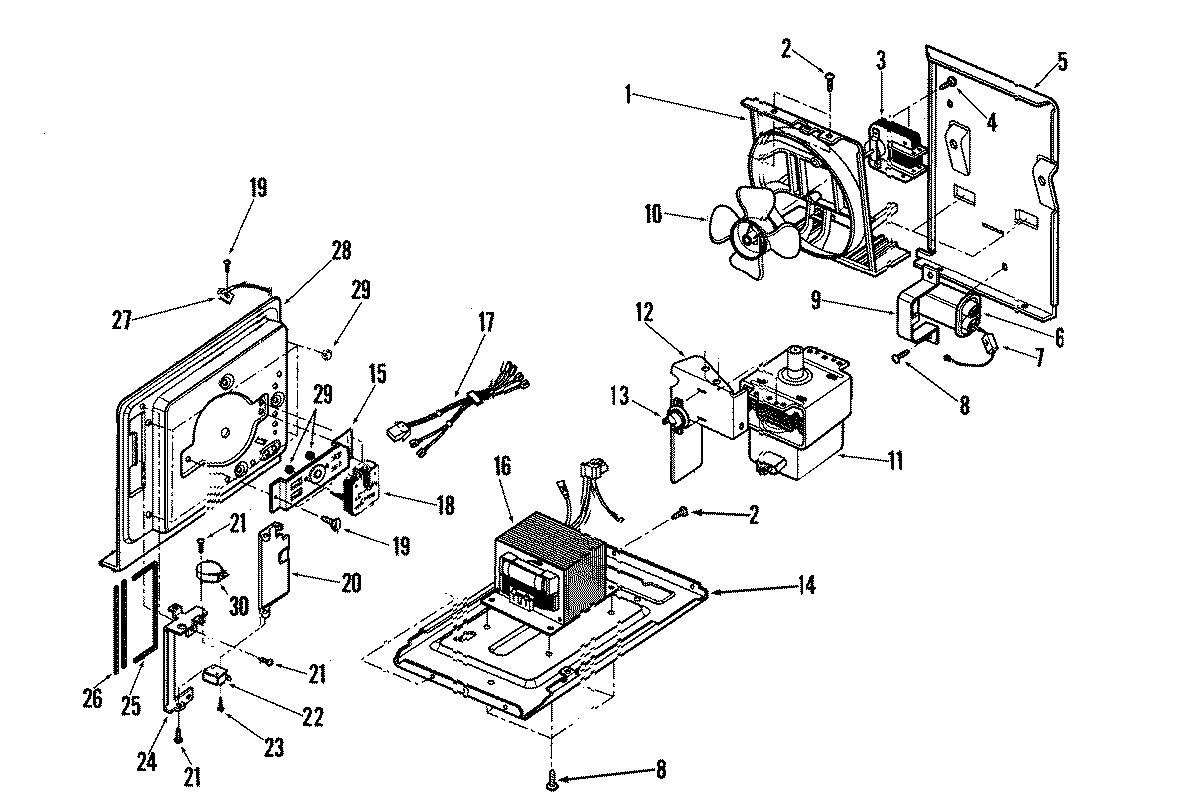

1

MANUAL, USE & CARE WPL 8112P26460 Contact Us For Availability

1

MOTOR, TURNTABLE WPL 53001440 Contact Us For Availability

1

PLATE, BASE WPL 53001457 Contact Us For Availability

1

CONTROL PANEL/SWITCH ASY (BSQ) WPL 53001490 Contact Us For Availability

1

MOUNT WPL 53001407 Contact Us For Availability

1

SENSOR ASSEMBLY WPL 53001432 Contact Us For Availability

1

GUIDE, SUCTION WPL 53001428 Contact Us For Availability

2

HARNESS WPL 53001434 Contact Us For Availability

2

HARNESS, WIRE WPL 53001877 Contact Us For Availability

2

SCREW, TRUSS HD WPL R0654183 Contact Us For Availability

2

PROTECTOR WPL 53001418 Contact Us For Availability

2

BRACKET, CONTROL PANEL WPL 53001397 Contact Us For Availability

2

CASE, OUTER (BSQ) WPL 53001403 Contact Us For Availability

2

TUNNEL, AIR (LT) WPL 53001410 Contact Us For Availability

3

TEMPLATE WPL 53001799 Contact Us For Availability

3

SHAFT, TURNTABLE WPL 53001409 Contact Us For Availability

3

WING NUT WPL R9800479 Contact Us For Availability

3

NUT WPL 53001464 Contact Us For Availability

3

BOARD, CONTROL (PCB) WPL 53001396 Contact Us For Availability

3

BRACKET, MOUNTING WPL R9800364 Contact Us For Availability

3

TUNNEL, AIR (CTR) WPL 53001422 Contact Us For Availability

3

MOTOR, FAN WPL 53001433 Contact Us For Availability

4

FAN ASSEMBLY WPL 53001438 Contact Us For Availability

4

ROD WPL R9800497 Contact Us For Availability

4

HOLDER ASSEMBLY (LAMP) WPL 53001405 Contact Us For Availability

4

SCREW, PAN HEAD WPL 53001462 Contact Us For Availability

4

GRILLE, VENT (BSQ) WPL 53001413 Contact Us For Availability

4

DUCT WPL 53001429 Contact Us For Availability

4

SCREW, TAP TH WPL R9800411 Contact Us For Availability

5

CANOPY WPL 53001400 Contact Us For Availability

5

SCREW WPL R9800487 Contact Us For Availability

5

SCREW, MACHINE (PAN HEAD) WPL 53001542 Contact Us For Availability

5

REFLECTOR WPL 53001417 Contact Us For Availability

5

GUIDE, AIR WPL 53001446 Contact Us For Availability

6

WP53001905 Whirlpool Halogen Lamp Light Bulb Backorder WPL WP53001905 $43.84

6

WP59001168 Whirlpool Microwave Capacitor Backorder WPL WP59001168 $153.00

6

SUPPORTER WPL 53001444 Contact Us For Availability

6

WASHER WPL R9800489 Contact Us For Availability

6

CAPACITOR WPL 53001344 Contact Us For Availability

7

WPR9800486 Whirlpool Microwave High Voltage D In Stock WPL WPR9800486 $17.13

7

BOLT, TOGGLE WPL R9800480 Contact Us For Availability

7

DOOR ASSEMBLY (BSQ) WPL 53001391 Contact Us For Availability

7

COVER, LAMP WPL 53001443 Contact Us For Availability

8

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $10.30

8

INSULATOR ASSEMBLY WPL 53001455 Contact Us For Availability

8

PLATE, MOUNTING PLATE WPL 59001113 Contact Us For Availability

8

HOLDER ASSEMBLY WPL 53001447 Contact Us For Availability

9

NUT WPL 53001515 Contact Us For Availability

9

CORD, POWER WPL R9800466 Contact Us For Availability

9

BOLT, LAG WPL R9800483 Contact Us For Availability

9

BRACKET, LAMP WPL 53001414 Contact Us For Availability

9

BRACKET, CAPACITOR WPL 53001427 Contact Us For Availability

WP8183507 Whirlpool Microwave Fuse Backorder WPL WP8183507 $12.80

INSULATION WPL 53001450 Contact Us For Availability

DAMPER, AIR WPL R9800478 Contact Us For Availability

GLASS, LAMP WPL 53001408 Contact Us For Availability

FAN WPL R0654051 Contact Us For Availability

BRACKET, HEATER WPL 53001426 Contact Us For Availability

ADAPTER, EXHAUST WPL R9800473 Contact Us For Availability

REFLECTOR WPL 53001416 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

MAGNETRON WPL 53001431 Contact Us For Availability

12

KIT, INSTALLATION WPL 53001458 Contact Us For Availability

12

BRACKET, LATCH WPL R0130612 Contact Us For Availability

12

GUIDE, AIR WPL 53001445 Contact Us For Availability

WASHER WPL R0654044 Contact Us For Availability

SCREW, SPECIAL D WPL R9800691 Contact Us For Availability

SCREW, TAPPING WPL 53001141 Contact Us For Availability

THERMOSTAT WPL 53001437 Contact Us For Availability

14

4392027 Whirlpool Microwave Primary Switch In Stock WPL 4392027 $93.43

14

WASHER, SPRING LOCK WPL R0654045 Contact Us For Availability

14

PLATE, BOTTOM WPL 53001441 Contact Us For Availability

15

NUT, HEX WPL R0654027 Contact Us For Availability

15

THERMOSTAT WPL 53001435 Contact Us For Availability

15

BRACKET, CIRCULATION MOTOR WPL 53001456 Contact Us For Availability

WP53001442 Whirlpool Microwave Filter In Stock WPL WP53001442 $18.35

FAN, STIRRER WPL R0130686 Contact Us For Availability

LEVER, LATCH WPL R9800416 Contact Us For Availability

TRANSFORMER WPL 53001430 Contact Us For Availability

17

HEATER WPL 53001451 Contact Us For Availability

17

MOTOR, VENTILATION WPL 53001415 Contact Us For Availability

17

HARNESS WPL 53001436 Contact Us For Availability

18

BRACKET, HEATER WPL 53001424 Contact Us For Availability

18

INSULATOR WPL 53001454 Contact Us For Availability

18

MOTOR, CIRCULATION WPL 53001452 Contact Us For Availability

19

SCREW, TRUSS HD S/TAP WPL W11380570 No Longer Available

19

BRACKET, HEATER WPL 53001425 Contact Us For Availability

19

ASSY, FUSE BLOCK/NOISE FILTER WPL R9800472 Contact Us For Availability

20

TRAY, GLASS WPL 53001404 Contact Us For Availability

20

DAMPER WPL 53001448 Contact Us For Availability

21

SCREW, PAN HD WPL R0654180 Contact Us For Availability

21

TRAY, METAL WPL 53001419 Contact Us For Availability

22

SHELF WPL 53001421 Contact Us For Availability

22

WRAP, CABINET (BSQ) WPL 53001090 Contact Us For Availability

23

RING, ROTATING WPL 53001024 Contact Us For Availability

23

SCREW, PAN HEAD WPL 53001463 Contact Us For Availability

24

BRACKET, DAMPER WPL 53001439 Contact Us For Availability

25

CUSHION WPL 53001460 Contact Us For Availability

26

CUSHION WPL 53001521 Contact Us For Availability

27

THERMISTOR WPL R0130687 Contact Us For Availability

28

INSULATOR WPL 53001453 Contact Us For Availability

29

NUT, HEX WPL R0654026 Contact Us For Availability

30

MOTOR, DAMPER WPL 53001140 Contact Us For Availability

NI

SCREW, TAP TH WPL R9800359 Contact Us For Availability
