Model Maytag AMV2174VAD5 MICROWAVE – Common Parts & Diagrams

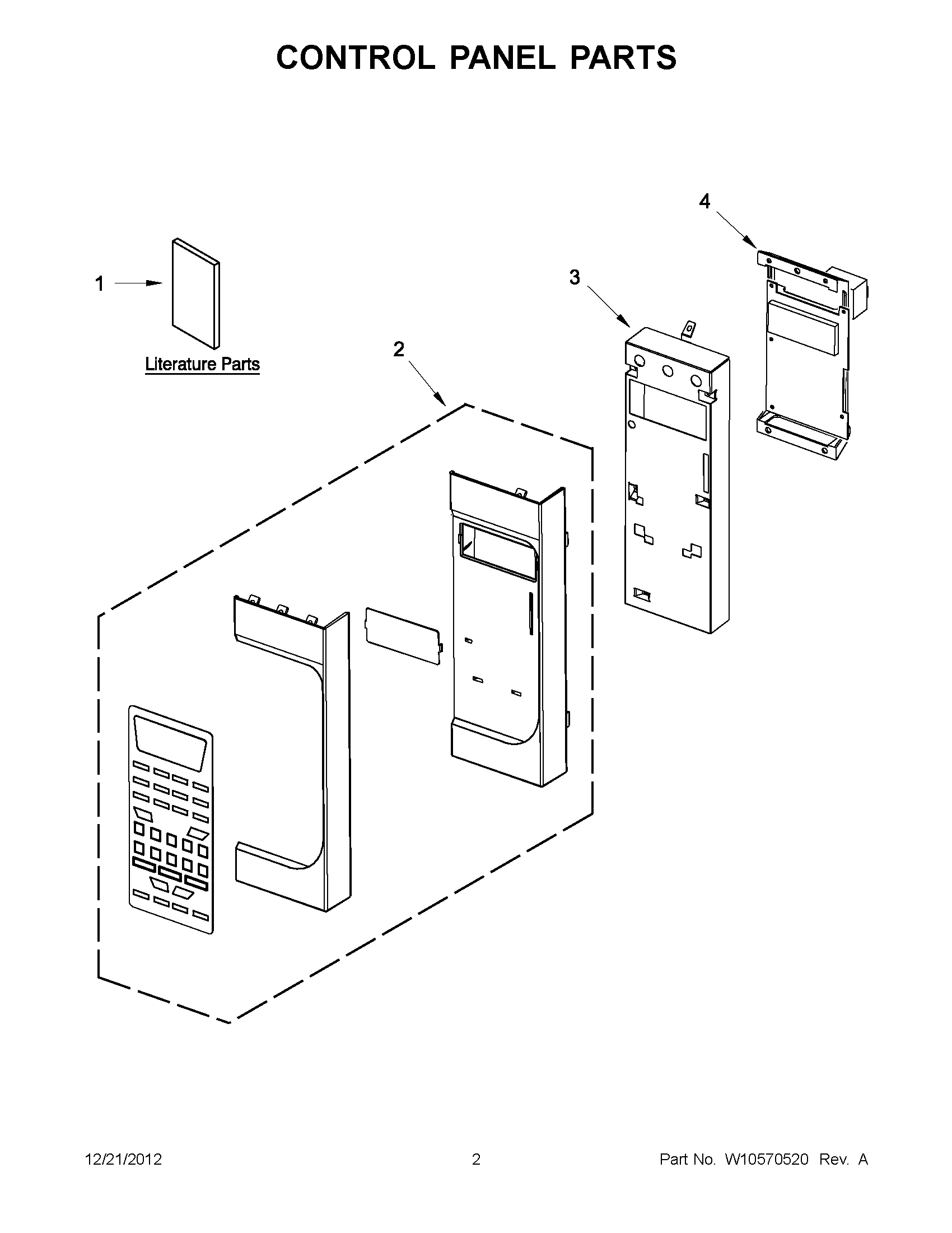

01 - CONTROL PANEL PARTS

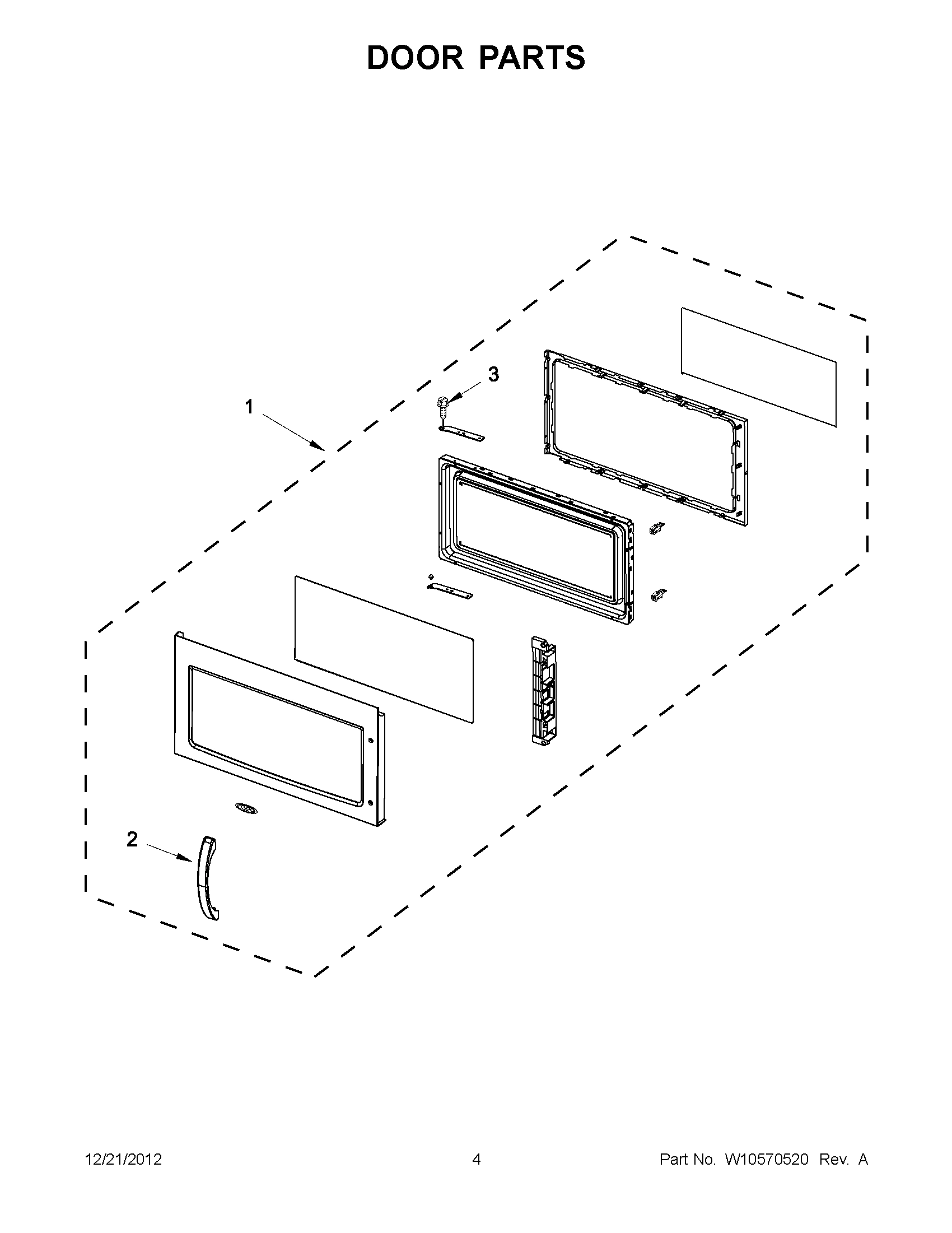

02 - DOOR PARTS

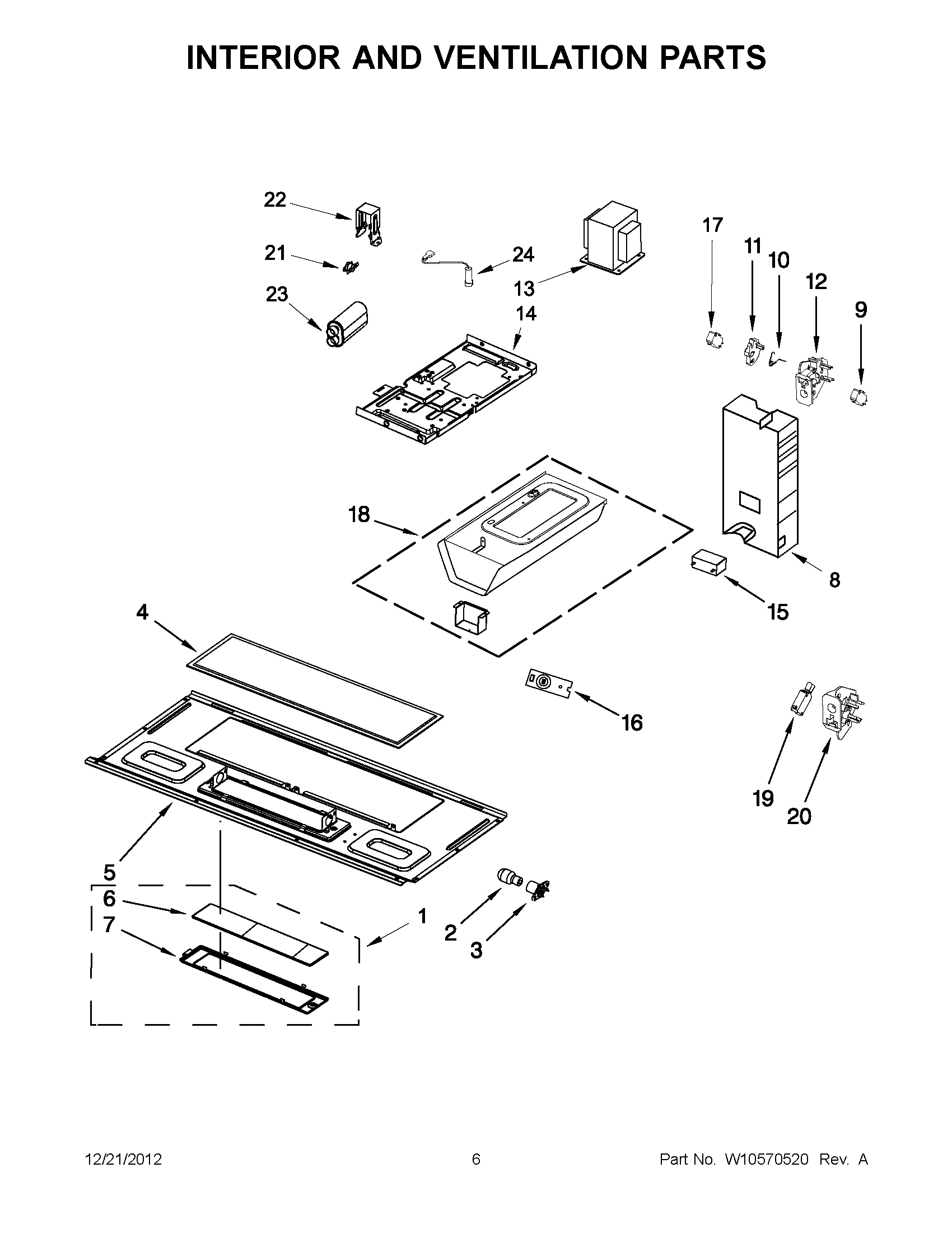

03 - INTERIOR AND VENTILATION PARTS

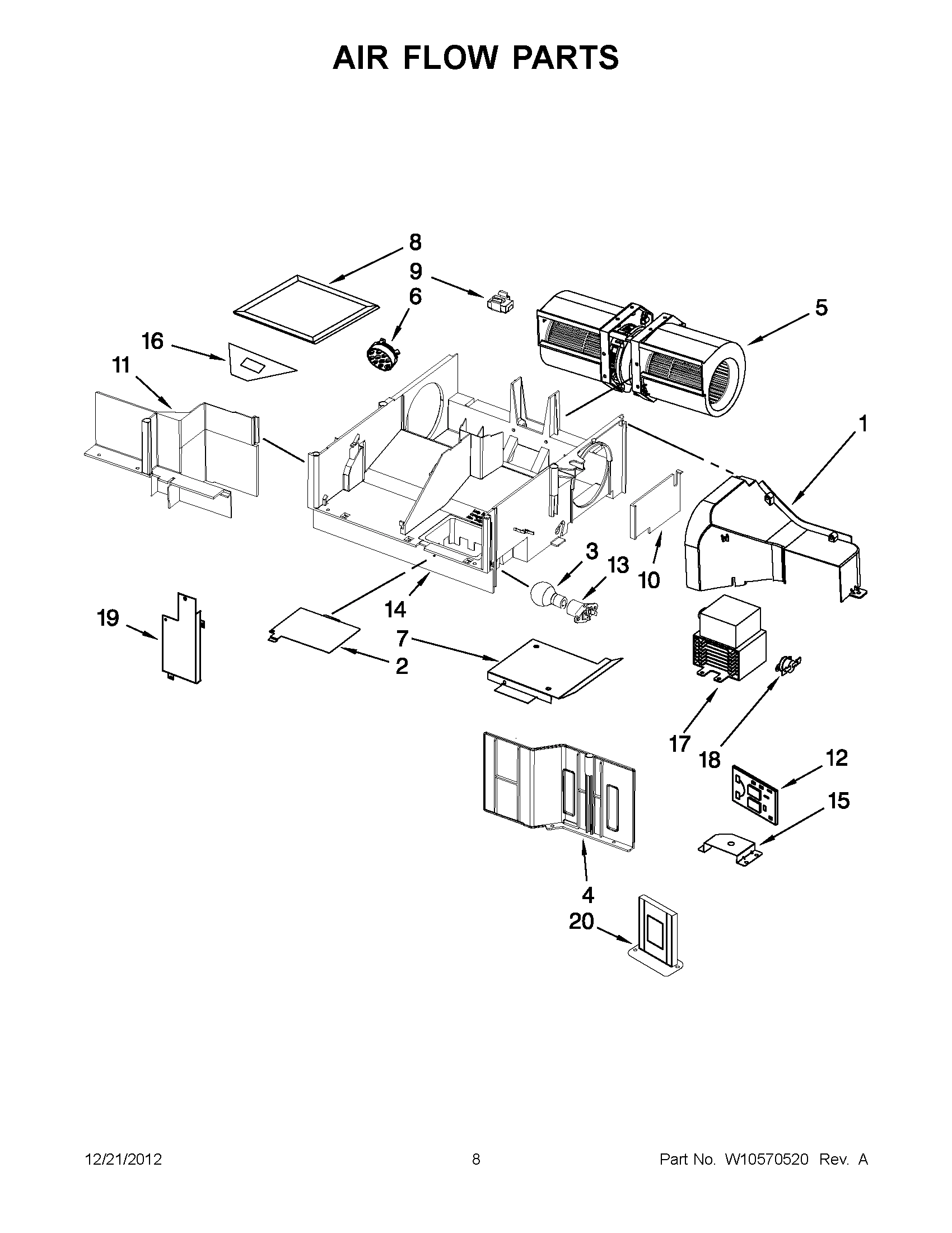

04 - AIR FLOW PARTS

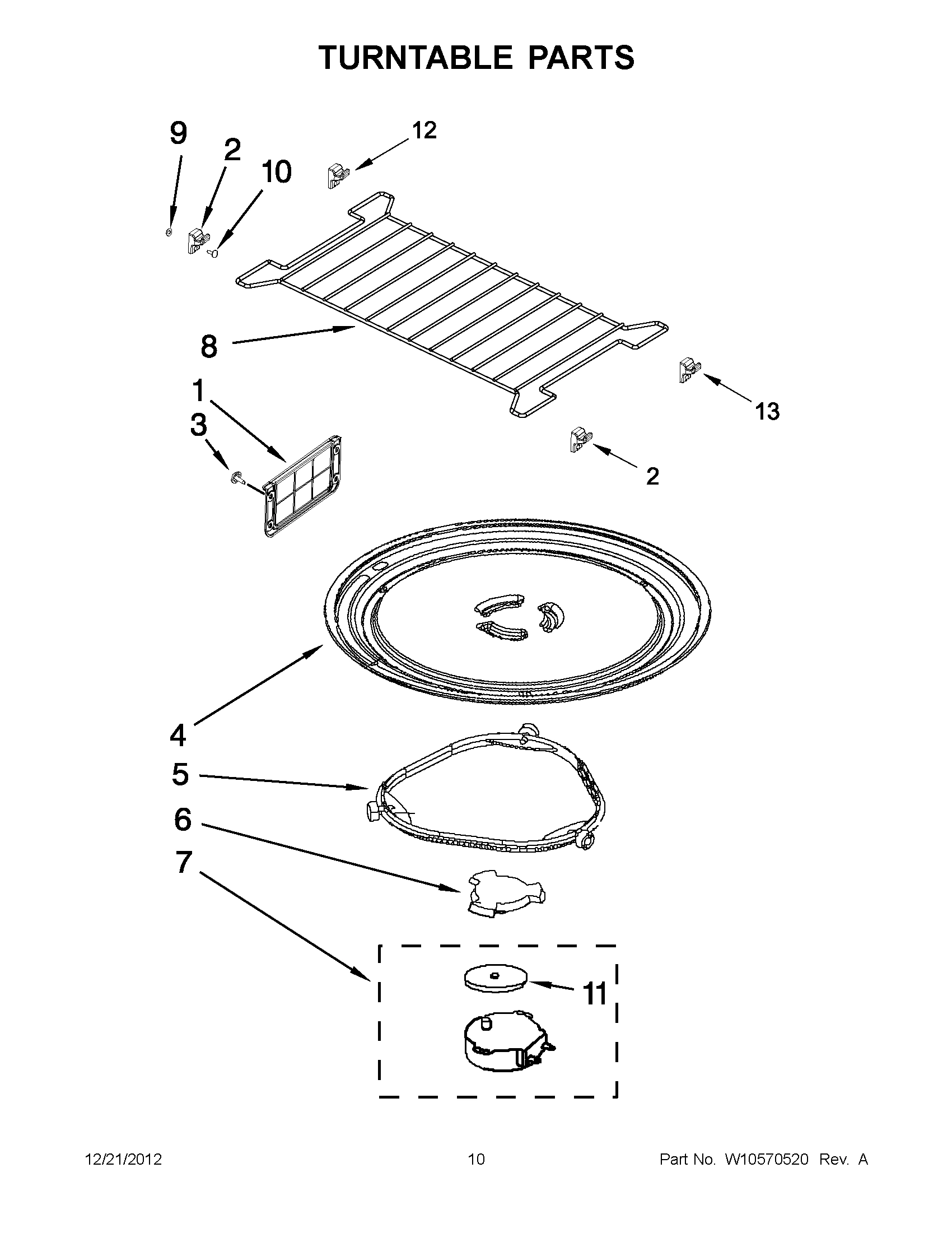

05 - TURNTABLE PARTS

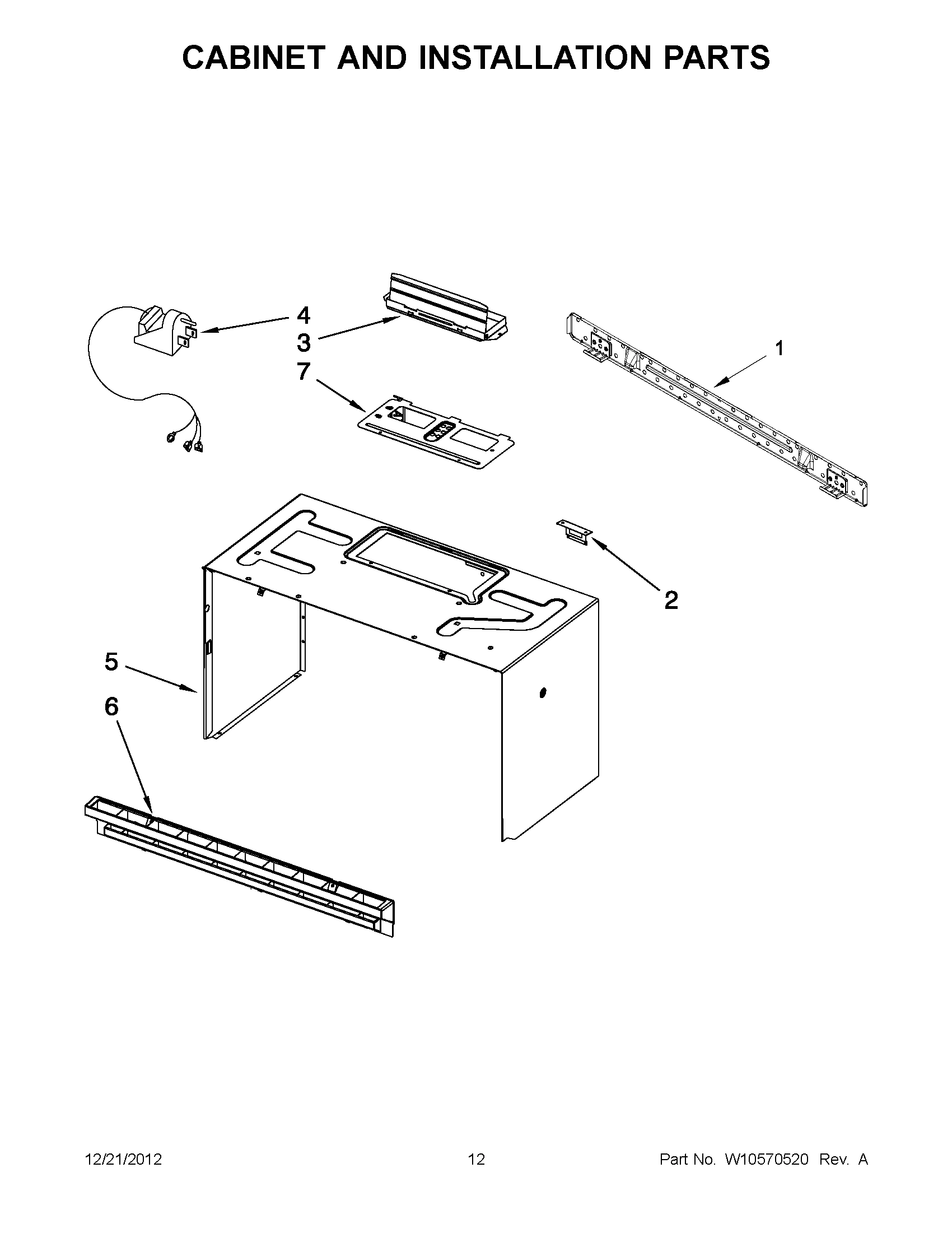

06 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag AMV2174VAD5 MICROWAVE
1
USE AND CARE GUIDE MAY W10182514 Contact Us For Availability
1
MAY W10197637 MAY W10197637 Contact Us For Availability
1
MAY W10247296 MAY W10247296 Contact Us For Availability
1
MAY W10387176 MAY W10387176 Contact Us For Availability
1
MAY W10212406 MAY W10212406 Contact Us For Availability
1
MAY W10212407 MAY W10212407 Contact Us For Availability
1
MAY W10212408 MAY W10212408 Contact Us For Availability
1
MAY W10212409 MAY W10212409 Contact Us For Availability
1
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
1
MAY 8206340 MAY 8206340 Contact Us For Availability
1
COVER, INLET INCLUDES NAILS AND BUSHINGS MAY W10313272 Contact Us For Availability
1
PLATE, MOUNTING MICROWAVE MAY W10440498 Contact Us For Availability
2
PANEL ASSEMBLY, CONTROL INCLUDES LENS AND MEM MAY W10212201 Contact Us For Availability
2
PANEL ASSEMBLY, CONTROL INCLUDES LENS AND MEM MAY W10212202 Contact Us For Availability
2
PANEL ASSEMBLY, CONTROL INCLUDES LENS AND MEM MAY W10212207 Contact Us For Availability
2
PANEL ASSEMBLY, CONTROL INCLUDES LENS AND MEM MAY W10212208 Contact Us For Availability
2
MAY W10212410 MAY W10212410 Contact Us For Availability
2
MAY W10212411 MAY W10212411 Contact Us For Availability
2
MAY W10212412 MAY W10212412 Contact Us For Availability
2
MAY W10212413 MAY W10212413 Contact Us For Availability
2
LAMP 40 WATT MAY 8206232 Contact Us For Availability
2
MAY 8206382 MAY 8206382 Contact Us For Availability
2
HOOK, MICROWAVE RACK (LEFT FRONT AND RIGHT FR MAY W10245207 Contact Us For Availability
2
MAY 8206385 MAY 8206385 Contact Us For Availability
3
MAY W10364246 MAY W10364246 Contact Us For Availability
3
Screw, Top Mountng MAY W10138802 Contact Us For Availability
3
MAY W10210871 MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
PLASTIC RIVET MAY W10138801 Contact Us For Availability
3
DAMPER MAY 8206442 Contact Us For Availability
4
MAY W10364245 MAY W10364245 Contact Us For Availability
4
MAY W10208631 MAY W10208631 Contact Us For Availability
4
SHIELD, FINGER MAY W10342991 Contact Us For Availability
4
MAY 4393799 MAY 4393799 Contact Us For Availability
4
MAY W10269470 MAY W10269470 Contact Us For Availability
5
MAY W10245196 MAY W10245196 Contact Us For Availability
5
MOTOR, FAN ASSEMBLY MAY W10325862 Contact Us For Availability
5
RING, TURNTABLE WITH ROLLERS MAY W10435114 Contact Us For Availability
5
MAY W10462001 MAY W10462001 Contact Us For Availability
5
MAY W10462003 MAY W10462003 Contact Us For Availability
6
MAY W10210875 MAY W10210875 Contact Us For Availability
6
MAY 8206626 MAY 8206626 Contact Us For Availability
6
MAY W10435116 MAY W10435116 Contact Us For Availability
6
MAY W10212405 MAY W10212405 Contact Us For Availability
6
MAY W10318624 MAY W10318624 Contact Us For Availability
6
MAY W10318625 MAY W10318625 Contact Us For Availability
7
MAY W10210873 MAY W10210873 Contact Us For Availability
7
MAY W10247762 MAY W10247762 Contact Us For Availability
7
MAY W10210848 MAY W10210848 Contact Us For Availability
7
COVER, HOOD FAN MOTOR MAY W10210832 Contact Us For Availability
8
AIRGUIDE, BASE PLATE MAY W10448770 Contact Us For Availability
8
MAY 8206230 MAY 8206230 Contact Us For Availability
8
MAY W10447234 MAY W10447234 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
9
MOUNTING, NUT MAY W10110862 Contact Us For Availability
9
MAY W10107790 MAY W10107790 Contact Us For Availability
10
MAY W10156812 MAY W10156812 Contact Us For Availability
10
MAY W10269469 MAY W10269469 Contact Us For Availability
10
MAY 8206618 MAY 8206618 Contact Us For Availability
11
MAY W10156811 MAY W10156811 Contact Us For Availability
11
MAY W10448768 MAY W10448768 Contact Us For Availability
11
MAY 8184109 MAY 8184109 Contact Us For Availability
12
TOP MAY 8206419 Contact Us For Availability
12
FILTER, NOISE MAY W10269465 Contact Us For Availability
12
HOOK, MICROWAVE RACK (LEFT REAR) MAY W10245208 Contact Us For Availability
13
MAY 8206343 MAY 8206343 Contact Us For Availability
13
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
13
HOOK, MICROWAVE RACK (RIGHT REAR) MAY W10245209 Contact Us For Availability
14
MAY W10269456 MAY W10269456 Contact Us For Availability
14
AIR GUIDE, BASE PLATE MAY W10448773 Contact Us For Availability
15
MAY 8206357 MAY 8206357 Contact Us For Availability
15
BRACKET, MOUNTING FILTER BOARD MAY W10313270 Contact Us For Availability
16
Thermistor (PCBA) MAY W10163422 Contact Us For Availability
16
MAY W10139750 MAY W10139750 Contact Us For Availability
17
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
17
MAY W10496310 MAY W10496310 Contact Us For Availability
18
MAY W10315759 MAY W10315759 Contact Us For Availability
18
THERMOSTAT, MAGNETRON MAY 8206342 Contact Us For Availability
19
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
19
COVER, CAVITY AIR GUIDE INLET MAY W10247764 Contact Us For Availability
20
BOTTOM MAY W10156813 Contact Us For Availability
20
PLATE, WATER PROOF MAY W10269467 Contact Us For Availability
21
THERMOSTAT, CAVITY MAY W10269232 Contact Us For Availability
22
MAY W10156817 MAY W10156817 Contact Us For Availability
23
MAY W10138798 MAY W10138798 Contact Us For Availability
24
MAY W10163432 MAY W10163432 Contact Us For Availability
NI
MISCELLANEOUS, 1/4-20X3`` PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MAY 8206614 MAY 8206614 Contact Us For Availability
NI
MISCELLANEOUS, TEMPLATE, UPPER MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS, MAIN HARNESS MAY W10346135 Contact Us For Availability
NI
MAY W10470168 MAY W10470168 Contact Us For Availability
NI
MAY W10539840 MAY W10539840 Contact Us For Availability
NI
MAY W10539841 MAY W10539841 Contact Us For Availability
NI
MAY W10539842 MAY W10539842 Contact Us For Availability
NI
MAY W10539846 MAY W10539846 Contact Us For Availability
× ![]()
