Model Maytag AMV1150VAB4 MICROWAVE – Common Parts & Diagrams

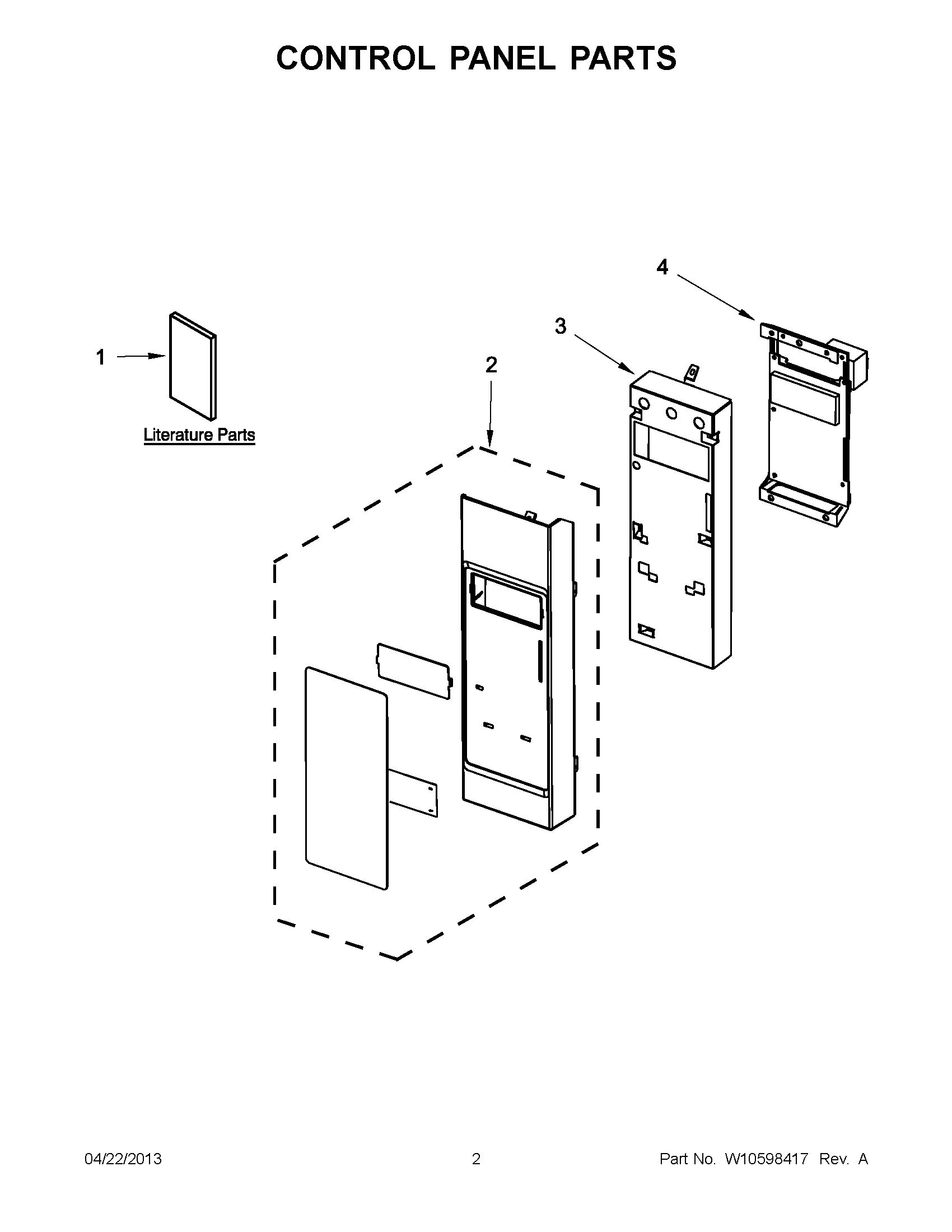

01 - CONTROL PANEL PARTS

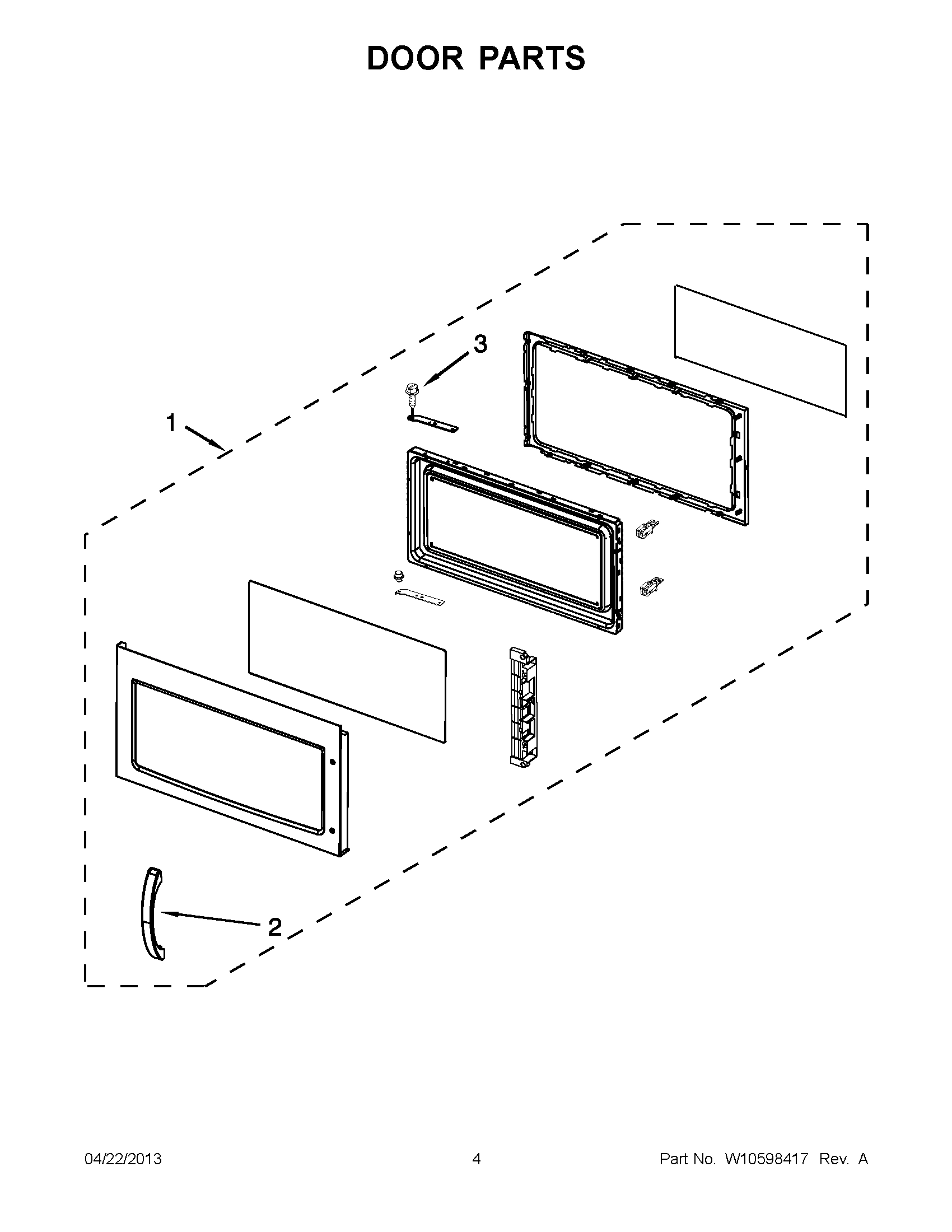

02 - DOOR PARTS

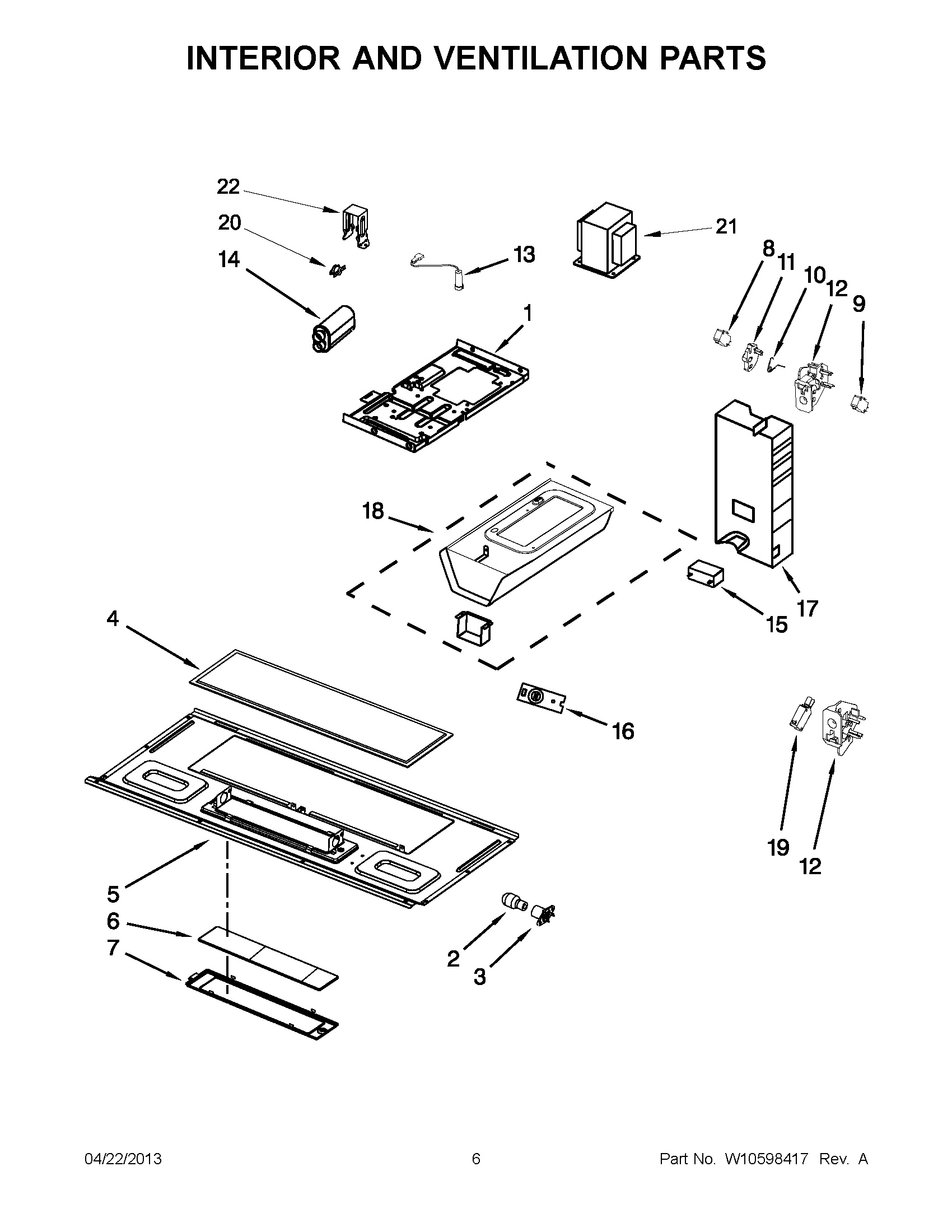

03 - INTERIOR AND VENTILATION PARTS

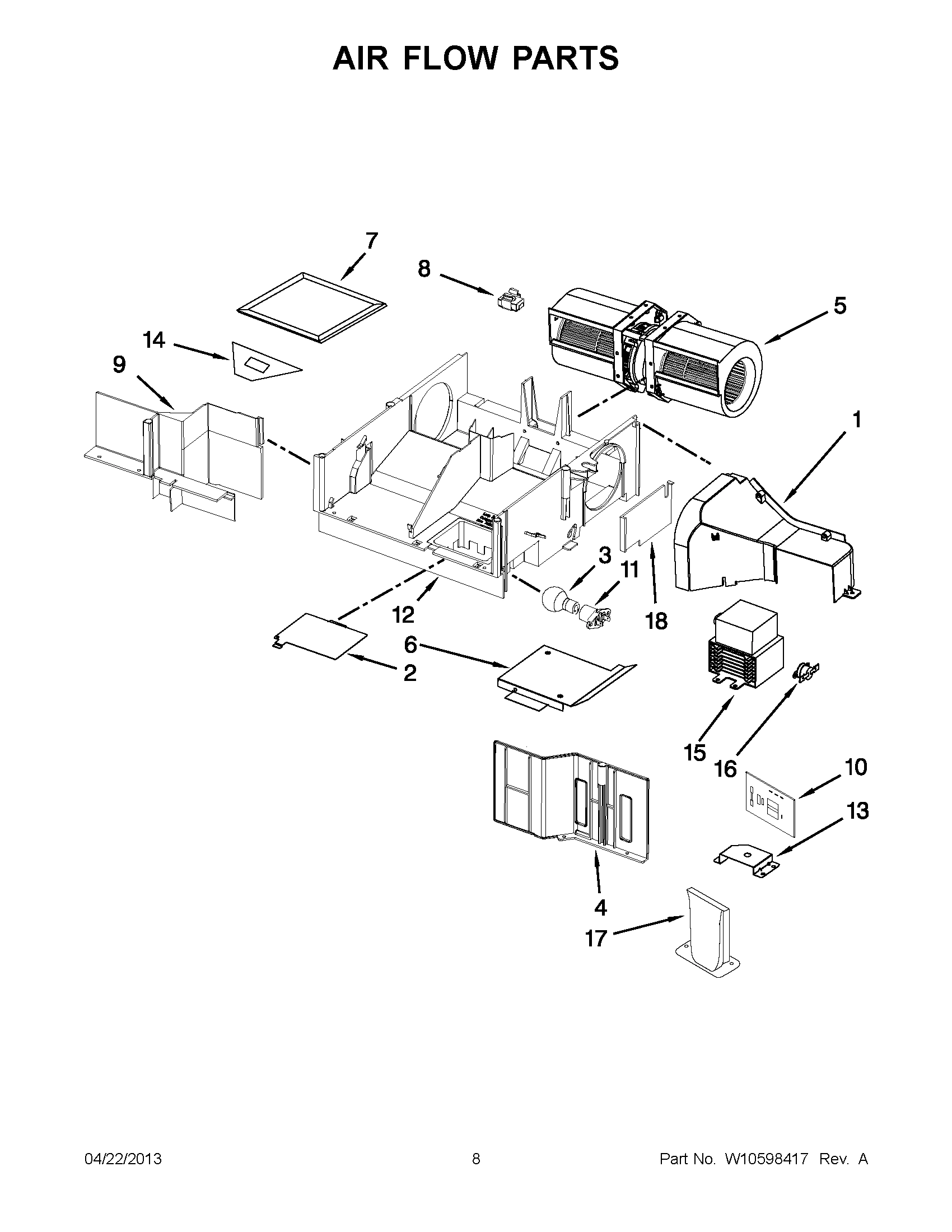

04 - AIR FLOW PARTS

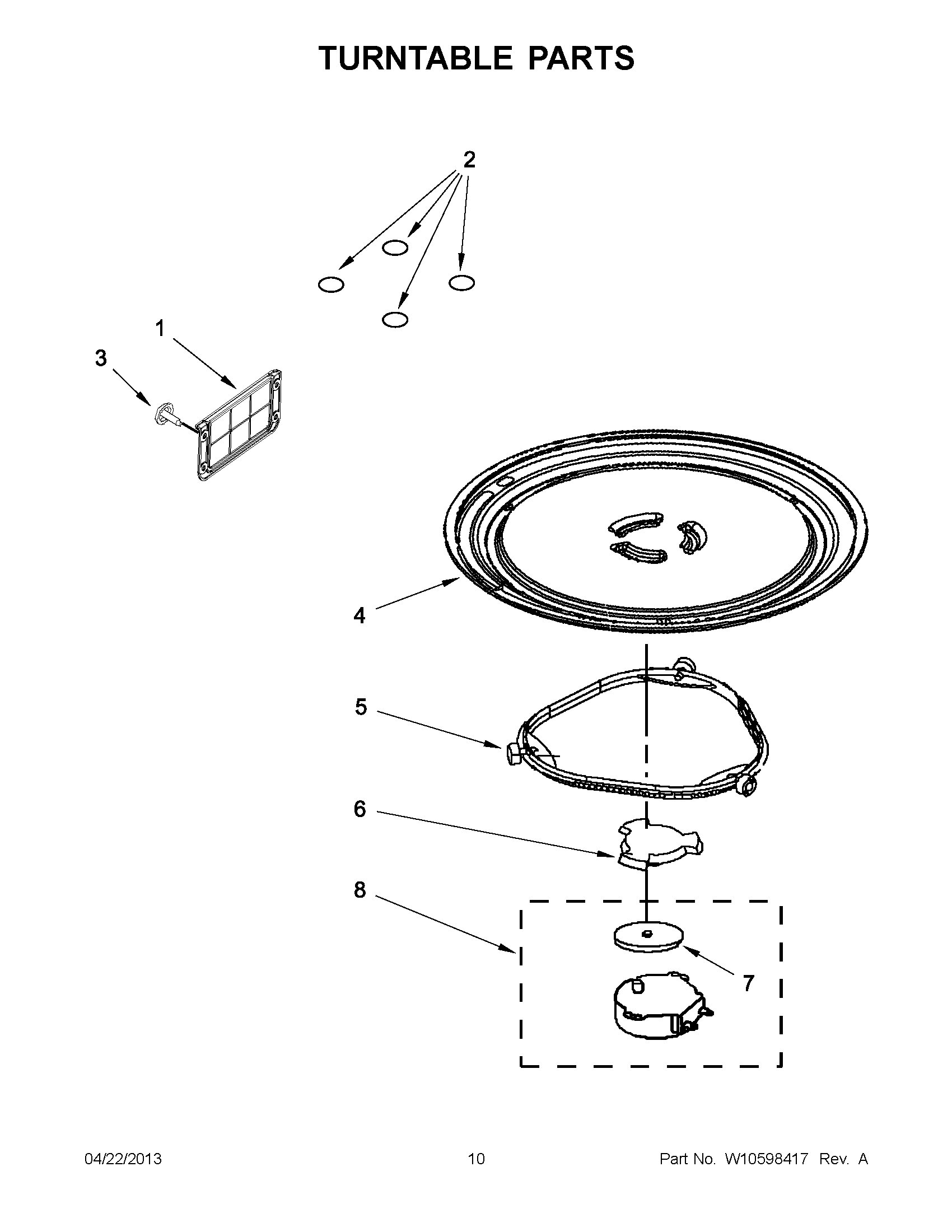

05 - TURNTABLE PARTS

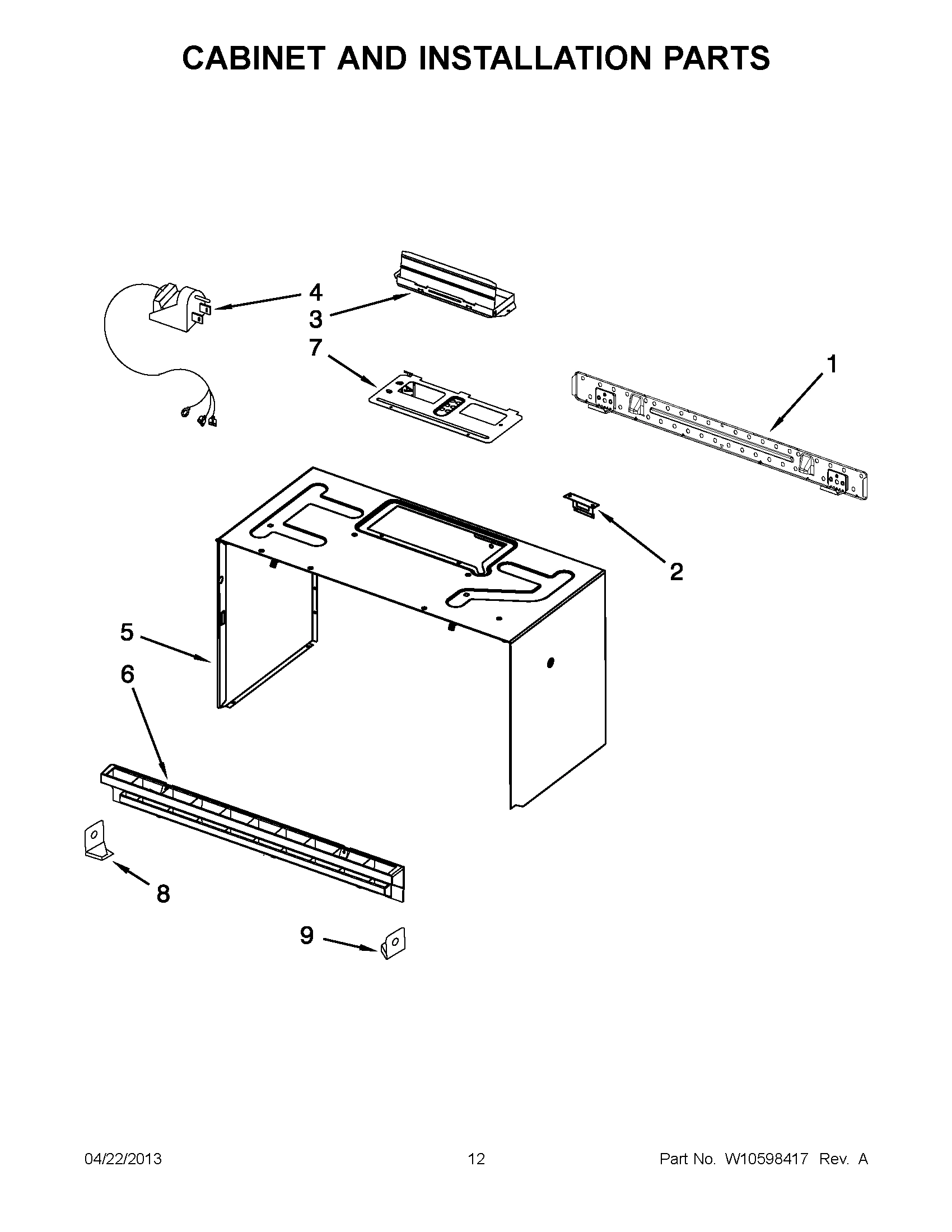

06 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag AMV1150VAB4 MICROWAVE
1
MAY W10197630 MAY W10197630 Contact Us For Availability
1
USE & CARE GUIDE MAY W10327331 Contact Us For Availability
1
MAY W10487519 MAY W10487519 Contact Us For Availability
1
MAY W10111666 MAY W10111666 Contact Us For Availability
1
MAY W10111667 MAY W10111667 Contact Us For Availability
1
COMPLETE DOOR (UNIVERSAL SILVER) MAY W10111668 Contact Us For Availability
1
COMPLETE DOOR (BISQUE/BISCUIT) MAY W10111669 Contact Us For Availability
1
MAY W10333874 MAY W10333874 Contact Us For Availability
1
MAY W10269456 MAY W10269456 Contact Us For Availability
1
MAY 8206340 MAY 8206340 Contact Us For Availability
1
COVER, INLET INCLUDES NAILS AND BUSHINGS MAY W10313272 Contact Us For Availability
1
PLATE, MOUNTING MICROWAVE MAY W10440498 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (INCLUDES LENS AND ME MAY W10333859 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (INCLUDES LENS AND ME MAY W10333862 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (INCLUDES LENS AND ME MAY W10333863 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (INCLUDES LENS AND ME MAY W10333864 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (INCLUDES LENS AND ME MAY W10333865 Contact Us For Availability
2
HANDLE (STAINLESS) MAY 8206404 Contact Us For Availability
2
HANDLE (WHITE) MAY W10445116 Contact Us For Availability
2
HANDLE (BLACK/UNIVERSAL SILVER MODELS) MAY W10445120 Contact Us For Availability
2
HANDLE (BISQUE/BISCUIT) MAY W10476103 Contact Us For Availability
2
LAMP 40 WATT MAY 8206232 Contact Us For Availability
2
MAY 8206382 MAY 8206382 Contact Us For Availability
2
COVER, RACK HOLDER HOLE MAY W10108800 Contact Us For Availability
2
MAY 8206385 MAY 8206385 Contact Us For Availability
3
MAY W10447235 MAY W10447235 Contact Us For Availability
3
MAY W10210871 MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
PLASTIC RIVET MAY W10138801 Contact Us For Availability
3
DAMPER MAY 8206442 Contact Us For Availability
4
MAY W10487532 MAY W10487532 Contact Us For Availability
4
MAY W10208631 MAY W10208631 Contact Us For Availability
4
SHIELD, FINGER MAY W10342991 Contact Us For Availability
4
MAY W10337247 MAY W10337247 Contact Us For Availability
4
MAY W10269470 MAY W10269470 Contact Us For Availability
5
MAY W10245196 MAY W10245196 Contact Us For Availability
5
MAY W10416638 MAY W10416638 Contact Us For Availability
5
RING, TURNTABLE WITH ROLLERS MAY W10435114 Contact Us For Availability
5
CASE, OUTER (BISQUE/BISCUIT) MAY W10461999 Contact Us For Availability
5
CASE, OUTER (BLACK/UNIVERSAL SILVER/STAINLESS MAY W10462001 Contact Us For Availability
5
MAY W10462003 MAY W10462003 Contact Us For Availability
6
MAY W10210875 MAY W10210875 Contact Us For Availability
6
MAY W10138797 MAY W10138797 Contact Us For Availability
6
MAY W10337248 MAY W10337248 Contact Us For Availability
6
GRILLE, VENT (BISQUE/BISCUIT) MAY W10139642 Contact Us For Availability
6
GRILLE, VENT (BLACK/UNIVERSAL SILVER/STAINLES MAY W10259625 Contact Us For Availability
6
MAY W10269471 MAY W10269471 Contact Us For Availability
7
MAY W10210873 MAY W10210873 Contact Us For Availability
7
MAY 8206230 MAY 8206230 Contact Us For Availability
7
MAY 8184109 MAY 8184109 Contact Us For Availability
7
COVER, HOOD FAN MOTOR MAY W10210832 Contact Us For Availability
8
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
8
MOUNTING, NUT MAY W10110862 Contact Us For Availability
8
MAY W10210848 MAY W10210848 Contact Us For Availability
8
HOLDER, VENT LEFT SIDE (WHITE) MAY W10393278 Contact Us For Availability
8
MAY W10406308 MAY W10406308 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
9
AIR GUIDE, SEALING PLATE MAY W10448769 Contact Us For Availability
9
HOLDER, VENT RIGHT SIDE (WHITE) MAY W10393276 Contact Us For Availability
9
MAY W10406307 MAY W10406307 Contact Us For Availability
10
MAY W10156812 MAY W10156812 Contact Us For Availability
10
FILTER, NOISE MAY W10422269 Contact Us For Availability
11
MAY W10156811 MAY W10156811 Contact Us For Availability
11
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
12
MAY 8206419 MAY 8206419 Contact Us For Availability
12
MAY W10156813 MAY W10156813 Contact Us For Availability
12
AIR GUIDE, BASE PLATE MAY W10448773 Contact Us For Availability
13
MAY W10492276 MAY W10492276 Contact Us For Availability
13
BRACKET, MOUNTING FILTER BOARD MAY W10313270 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE MAY W10138798 Contact Us For Availability
14
MAY W10139750 MAY W10139750 Contact Us For Availability
15
MAY 8206357 MAY 8206357 Contact Us For Availability
15
MAY W10210845 MAY W10210845 Contact Us For Availability
16
Thermistor (PCBA) MAY W10163422 Contact Us For Availability
16
THERMOSTAT, MAGNETRON MAY W10598693 Contact Us For Availability
17
MAY W10448770 MAY W10448770 Contact Us For Availability
17
PLATE, WATER PROOF MAY W10269467 Contact Us For Availability
18
MAY W10315759 MAY W10315759 Contact Us For Availability
18
MAY W10269469 MAY W10269469 Contact Us For Availability
19
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
20
THERMOSTAT, CAVITY MAY W10269232 Contact Us For Availability
21
MAY W10546703 MAY W10546703 Contact Us For Availability
22
MAY W10156817 MAY W10156817 Contact Us For Availability
NI
MISCELLANEOUS, INSTALLATION INSTRUCTIONS MAY W10247296 Contact Us For Availability
NI
MISCELLANEOUS, SCREW MAY W10138802 Contact Us For Availability
NI
MAY 8206614 MAY 8206614 Contact Us For Availability
NI
MAY W10470168 MAY W10470168 Contact Us For Availability
NI
MAY W10539840 MAY W10539840 Contact Us For Availability
NI
MAY W10539842 MAY W10539842 Contact Us For Availability
NI
MAY W10539846 MAY W10539846 Contact Us For Availability
NI
MAY W10540464 MAY W10540464 Contact Us For Availability
NI
MAY W10540465 MAY W10540465 Contact Us For Availability
NI
MAY W10563144 MAY W10563144 Contact Us For Availability
× ![]()
