Model Whirlpool ALF20040 AIR CONDITIONER – Common Parts & Diagrams
04 - AIRFLOW AND CONTROL , NOT ILLUSTRAT

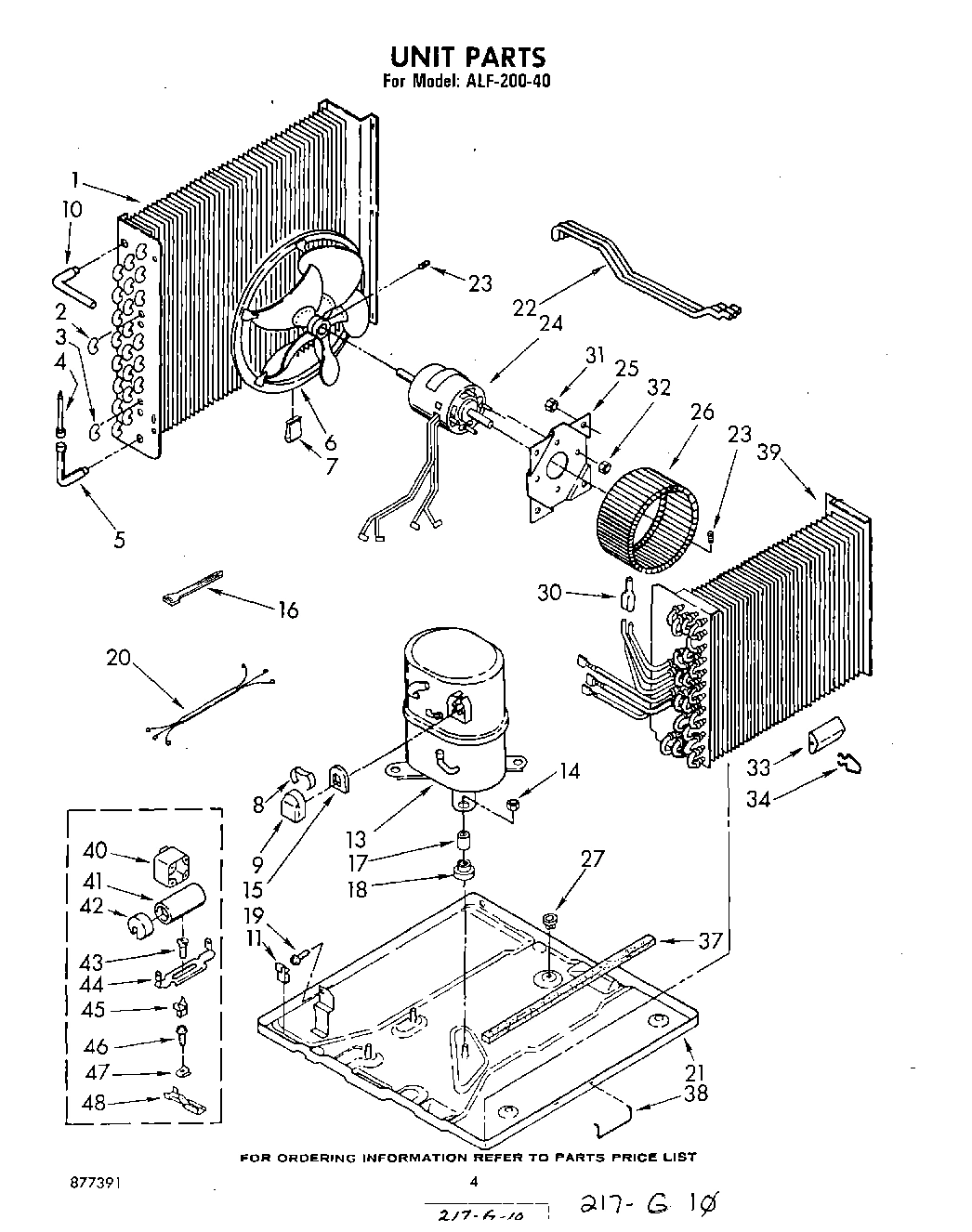

03 - UNIT

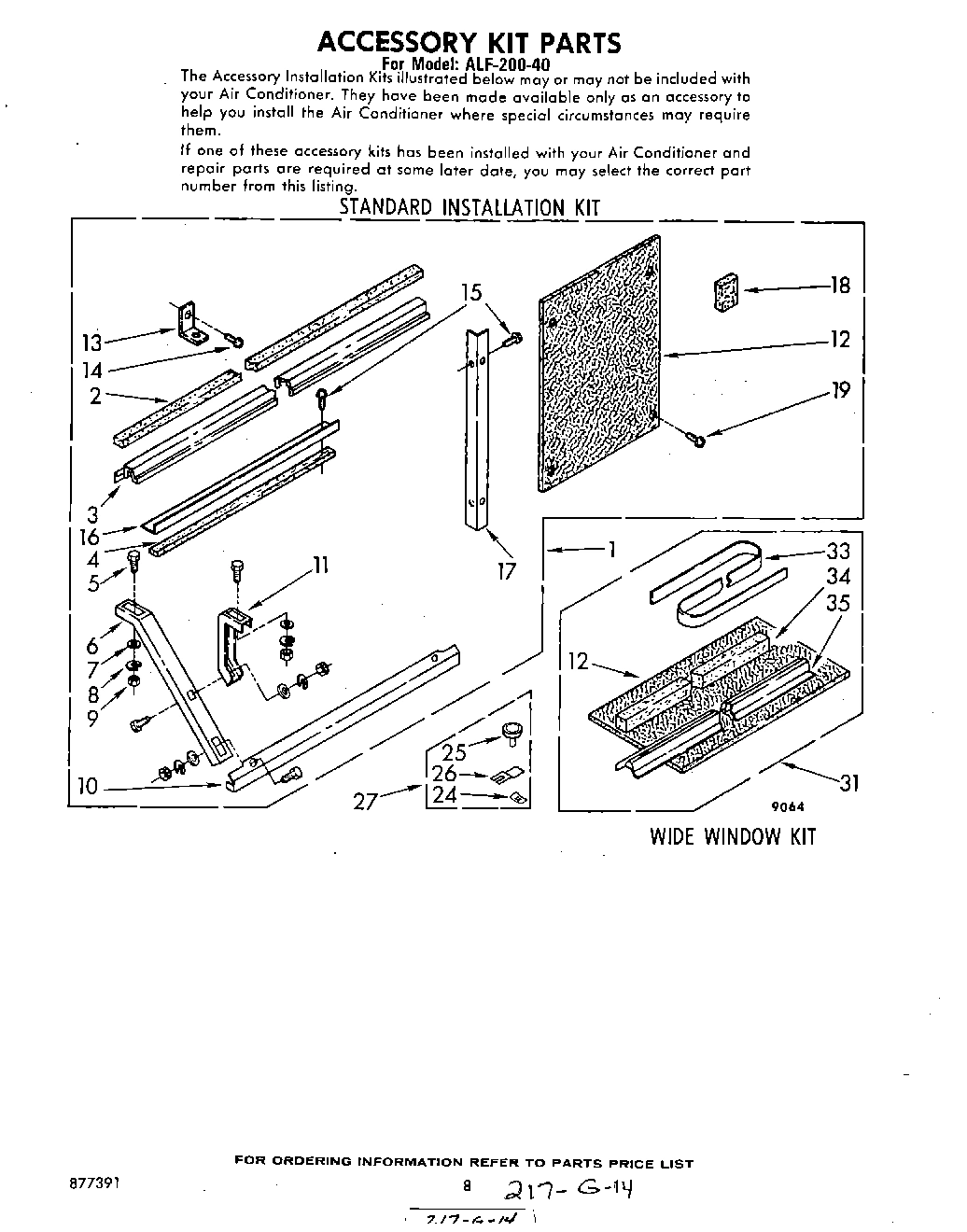

05 - ACCESSORY KIT

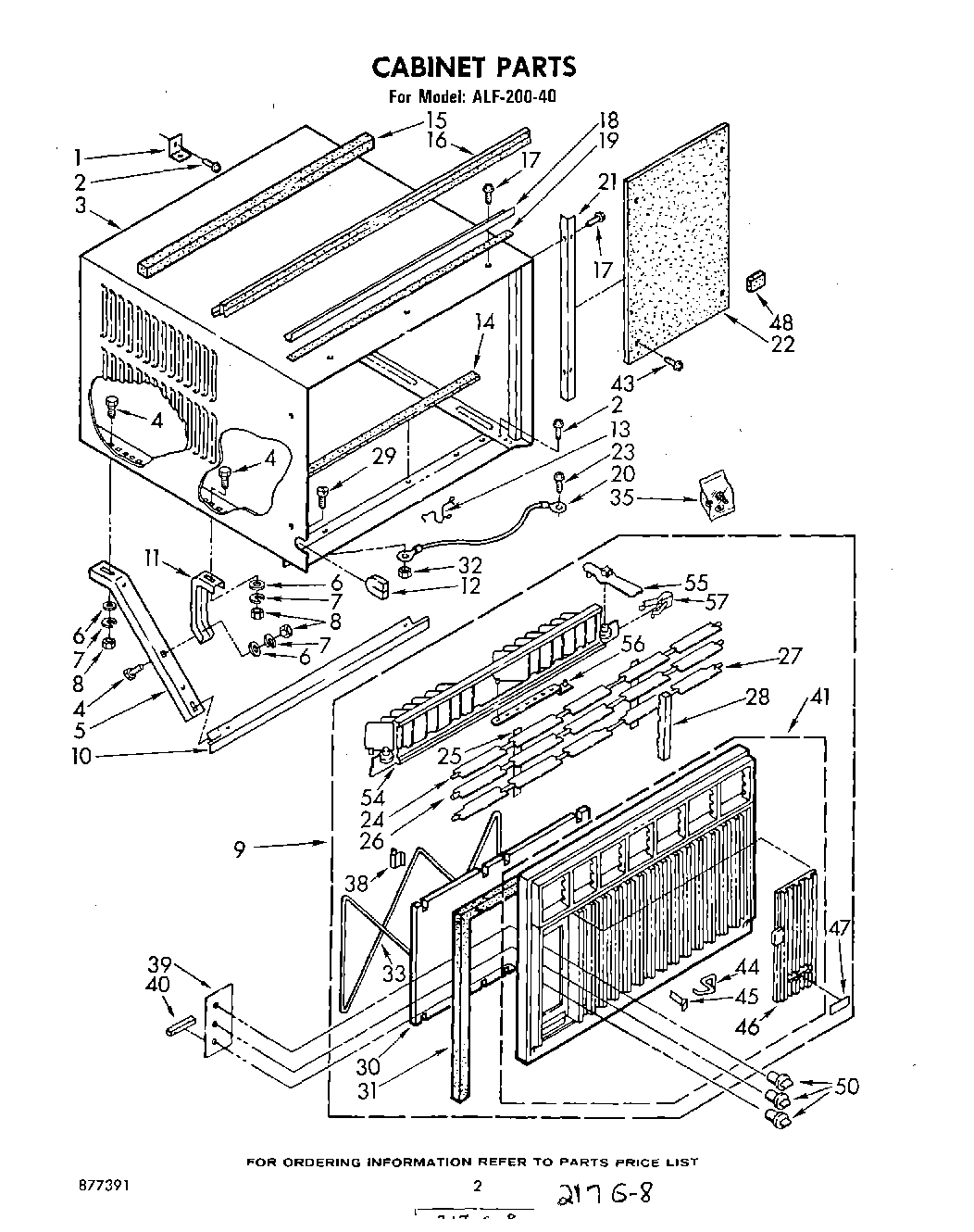

02 - CABINET
Common parts from model Whirlpool ALF20040 AIR CONDITIONER
1
Condenser WPL 949077 Contact Us For Availability
1
Kit, Standard Installation WPL 485854 Contact Us For Availability
1
Bracket WPL 644228 Contact Us For Availability
2
Bend, Return (22) Condenser WPL 855199 Contact Us For Availability
2
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
3
Cabinet WPL 997280 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
5
Support (2) WPL 649945 Contact Us For Availability
6
Blade, Fan WPL 997226 Contact Us For Availability
7
Lockwasher (6) WPL 486009 No Longer Available
7
Clip, Balancing WPL 485334 Contact Us For Availability
8
Retainer, Terminal Cover WPL 475062 Contact Us For Availability
8
Nut, Hex (1/4) (6) WPL 486035 Contact Us For Availability
9
Cover, Terminal WPL 855948 Contact Us For Availability
9
Front, Cabinet (Complete) WPL 947404 Contact Us For Availability
10
Tube, 90~ Connect WPL 649808 Contact Us For Availability
10
Bracket WPL 649947 Contact Us For Availability
11
Ground Wire WPL 998177 Contact Us For Availability
11
Clamp, Tube (2) WPL 471088 Contact Us For Availability
11
Retainer, Support (2) WPL 649946 Contact Us For Availability
12
Support, Unit WPL 997262 Contact Us For Availability
12
Grommet, Wiring WPL 647849 Contact Us For Availability
13
Housing, Blower Wheel WPL 997220 Contact Us For Availability
13
Compressor WPL 484440 Contact Us For Availability
13
Clip, Cabinet Front (3) WPL 852272 Contact Us For Availability
14
Guard, Evaporator Impeller WPL 856506 Contact Us For Availability
14
Locknut (4) WPL 858121 Contact Us For Availability
14
Seal, Bottom WPL 852220 Contact Us For Availability
15
Bracket WPL 852992 Contact Us For Availability
15
Gasket, Terminal WPL 949083 Contact Us For Availability
15
Seal, Meeting Rail WPL 469877 Contact Us For Availability
16
Bushing WPL 647879 Contact Us For Availability
16
Gasket, Sash WPL 644288 Contact Us For Availability
17
Shaft, Control WPL 852669 Contact Us For Availability
17
Sleeve (4) WPL 858116 Contact Us For Availability
18
Spring, Washer WPL 647881 Contact Us For Availability
18
Grommet (4) WPL 475041 Contact Us For Availability
18
Angle, Top WPL 644271 Contact Us For Availability
19
Strip, Seal WPL 855265 Contact Us For Availability
20
Screw, 8 x 1/2 WPL 489092 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Ground Wire (Base To Cabinet) WPL 857022 Contact Us For Availability
21
Cam WPL 647882 Contact Us For Availability
21
Base WPL 997202 Contact Us For Availability
21
Angle (2) WPL 644272 Contact Us For Availability
22
Switch, Rotary WPL 948306 Contact Us For Availability
22
Tube Restrictor (3) WPL 948809 Contact Us For Availability
22
Board, Filler WPL 644303 Contact Us For Availability
23
Control, Temperature WPL 949297 Contact Us For Availability
23
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
23
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
24
Motor, Fan WPL 997346 Contact Us For Availability
24
Speed Nut WPL 997286 Contact Us For Availability
24
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
25
Cover, Control Access WPL 997278 Contact Us For Availability
25
Plate, Fan Motor Mounting WPL 998024 Contact Us For Availability
25
Cup, Condensate WPL 997285 Contact Us For Availability
25
Retainer, Horizontal Louver (4) WPL 855998 Contact Us For Availability
26
Wheel, Blower WPL 647618 Contact Us For Availability
26
support, cup WPL 997284 Contact Us For Availability
26
Louver, Horizontal (Handle) WPL 947267 Contact Us For Availability
27
Door, Fresh Air WPL 997222 Contact Us For Availability
27
Bushing, Condensate WPL 948130 Contact Us For Availability
27
Kit, Condensate Cup WPL 876135 Contact Us For Availability
27
Louver, Horizontal (Notched) WPL 947268 Contact Us For Availability
28
Panel, Control WPL 852217 Contact Us For Availability
28
Rack, Louver (2) WPL 649955 Contact Us For Availability
29
Spring, Fresh Air Door WPL 998178 Contact Us For Availability
29
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
30
Seal, Evaporator Outlet Tube WPL 948520 Contact Us For Availability
30
Tube, Flow Divider WPL 947364 Contact Us For Availability
30
Filter WPL 649958 Contact Us For Availability
31
Screw, 6 x .175 WPL 488734 Contact Us For Availability
31
Locknut (4) WPL 858122 Contact Us For Availability
31
Kit, Wide Window WPL 485856 Contact Us For Availability
31
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
31
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
32
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
33
Ground Wire WPL 997388 Contact Us For Availability
33
Anticipator WPL 472046 Contact Us For Availability
33
Strip, Seal WPL 856979 Contact Us For Availability
33
Retainer, Filter WPL 476707 Contact Us For Availability
34
Wall, Dividing (Requires Insulation No. 46993 WPL 997208 Contact Us For Availability
34
Clip (2) WPL 472047 Contact Us For Availability
34
Seal, Meeting Rail WPL 470800 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
35
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
35
Instructions, Installation (Wide Window Stand WPL 852908 Contact Us For Availability
35
Bag, Accessory WPL 993848 Contact Us For Availability
36
Wire, Control Exhaust WPL 647883 Contact Us For Availability
36
Wire, Control (Fresh Air) WPL 859370 Contact Us For Availability
37
Spring, Exhaust Door WPL 859369 Contact Us For Availability
37
Seal WPL 853170 Contact Us For Availability
38
Clamp, Cable (2) WPL 947072 Contact Us For Availability
38
Handle, Base WPL 647971 Contact Us For Availability
38
Clip, Retainer (4) WPL 855999 Contact Us For Availability
39
Evaporator WPL 948922 Contact Us For Availability
39
Plate, Escutcheon WPL 947403 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
40
Relay WPL 484177 Contact Us For Availability
40
Spacer, Escutcheon Plate (3) WPL 469175 Contact Us For Availability
41
Cover, Evaporator (Requires Insulation No. 46 WPL 997269 Contact Us For Availability
41
xCapacitor WPL 47406 Contact Us For Availability
41
Frame, Front (Includes Illus. 44, 45 & 46) WPL 947405 Contact Us For Availability
42
Insulation, Condensate Pan WPL 997237 Contact Us For Availability
42
xCap, Capacitor WPL 791868 Contact Us For Availability
43
Pan, Condensate WPL 997238 Contact Us For Availability
43
xScrew, 10 x 5/8 (2) WPL 487880 Contact Us For Availability
44
xBracket WPL 41629 Contact Us For Availability
44
Pin, Hinge WPL 649943 Contact Us For Availability
45
Seal, Condenser Cover (Front) WPL 997265 Contact Us For Availability
45
seal, condenser cover (side) WPL 997266 Contact Us For Availability
45
Multiplier, Terminal WPL 90654 Contact Us For Availability
45
Spring, Catch WPL 649949 Contact Us For Availability
46
Door, Control WPL 947407 Contact Us For Availability
47
Nameplate WPL 947408 Contact Us For Availability
48
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
48
xTerminal, Flag WPL 45571 Contact Us For Availability
48
Spacer, Block (4) WPL 995274 Contact Us For Availability
49
Adapter, Evaporator Header Plate WPL 997239 Contact Us For Availability
50
Extension Assembly, Divider Wall WPL 997330 Contact Us For Availability
50
Knob, Control (3) WPL 947264 Contact Us For Availability
53
WPL 978029 WPL 978029 Contact Us For Availability
53
WPL 484069 WPL 484069 Contact Us For Availability
53
WPL 505168 WPL 505168 Contact Us For Availability
53
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
53
Insulation, Fiberglass WPL 469938 Contact Us For Availability
53
WPL 469939 WPL 469939 Contact Us For Availability
53
WPL 47261 WPL 47261 Contact Us For Availability
53
WPL 47262 WPL 47262 Contact Us For Availability
53
WPL 47263 WPL 47263 Contact Us For Availability
53
WPL 484220 WPL 484220 Contact Us For Availability
53
WPL 484310 WPL 484310 Contact Us For Availability
53
WPL 485426 WPL 485426 Contact Us For Availability
53
WPL 485883 WPL 485883 Contact Us For Availability
53
WPL 648791 WPL 648791 Contact Us For Availability
53
WPL 799351 WPL 799351 Contact Us For Availability
53
WPL 855438 WPL 855438 Contact Us For Availability
53
WPL 877391 WPL 877391 Contact Us For Availability
53
WPL 947598 WPL 947598 Contact Us For Availability
53
WPL 949752 WPL 949752 Contact Us For Availability
53
WPL 949753 WPL 949753 Contact Us For Availability
53
WPL 978028 WPL 978028 Contact Us For Availability
53
WPL 978317 WPL 978317 Contact Us For Availability
53
WPL 997236 WPL 997236 Contact Us For Availability
53
WPL 997273 WPL 997273 Contact Us For Availability
53
WPL 998179 WPL 998179 Contact Us For Availability
54
Louver, Vertical WPL 649957 Contact Us For Availability
55
Handle, Vertical Louver (2) WPL 852010 Contact Us For Availability
56
Link, Vertical Louver (2) WPL 852209 Contact Us For Availability
57
Spring, Detent (2) WPL 641484 Contact Us For Availability
× ![]()
