Model Whirlpool AKT3650SS ELECTRIC COOK-TOP – Common Parts & Diagrams
01 - BURNER BOX

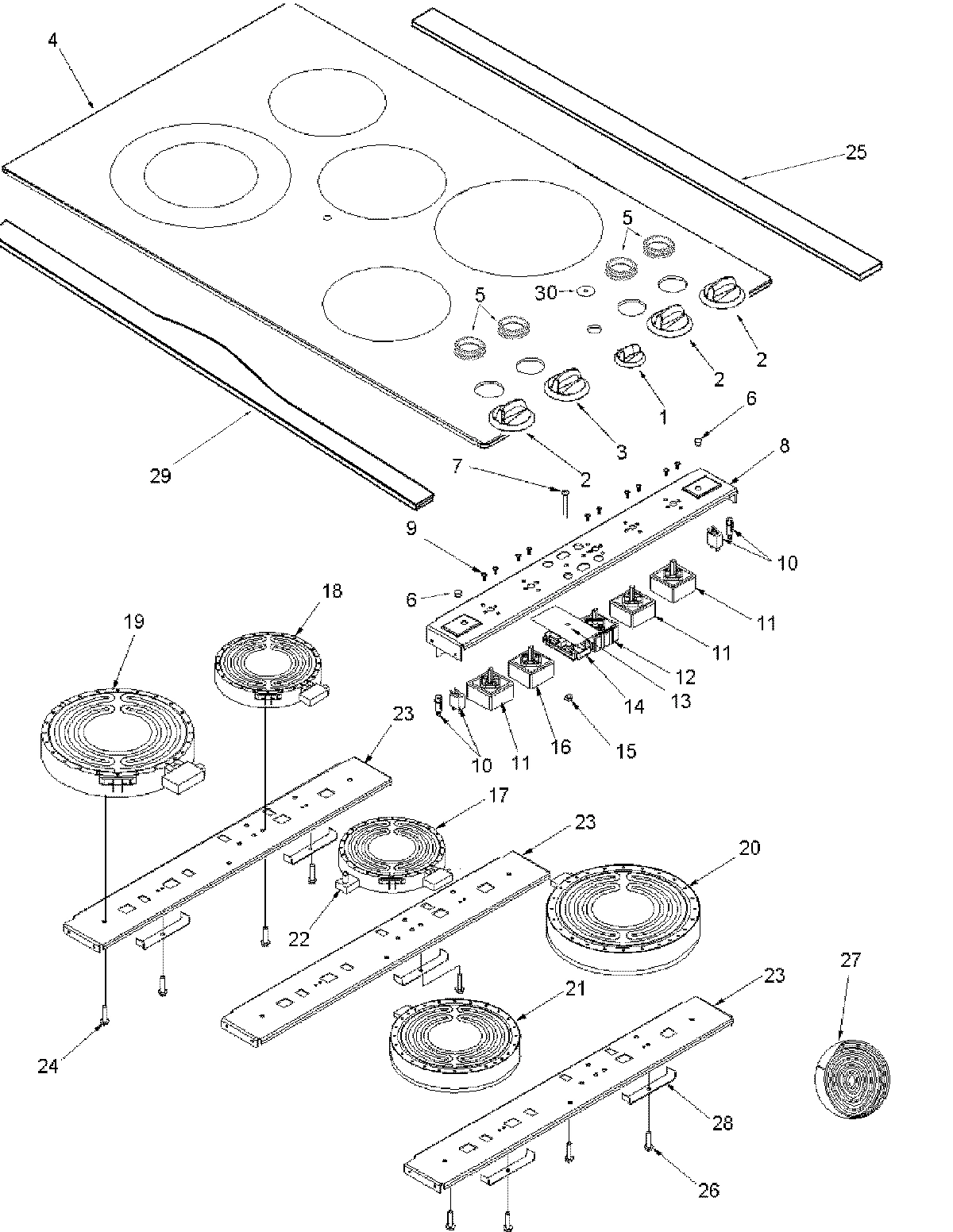

03 - TOP ASSEMBLY
02 - SUPPLEMENTAL INFORMATION

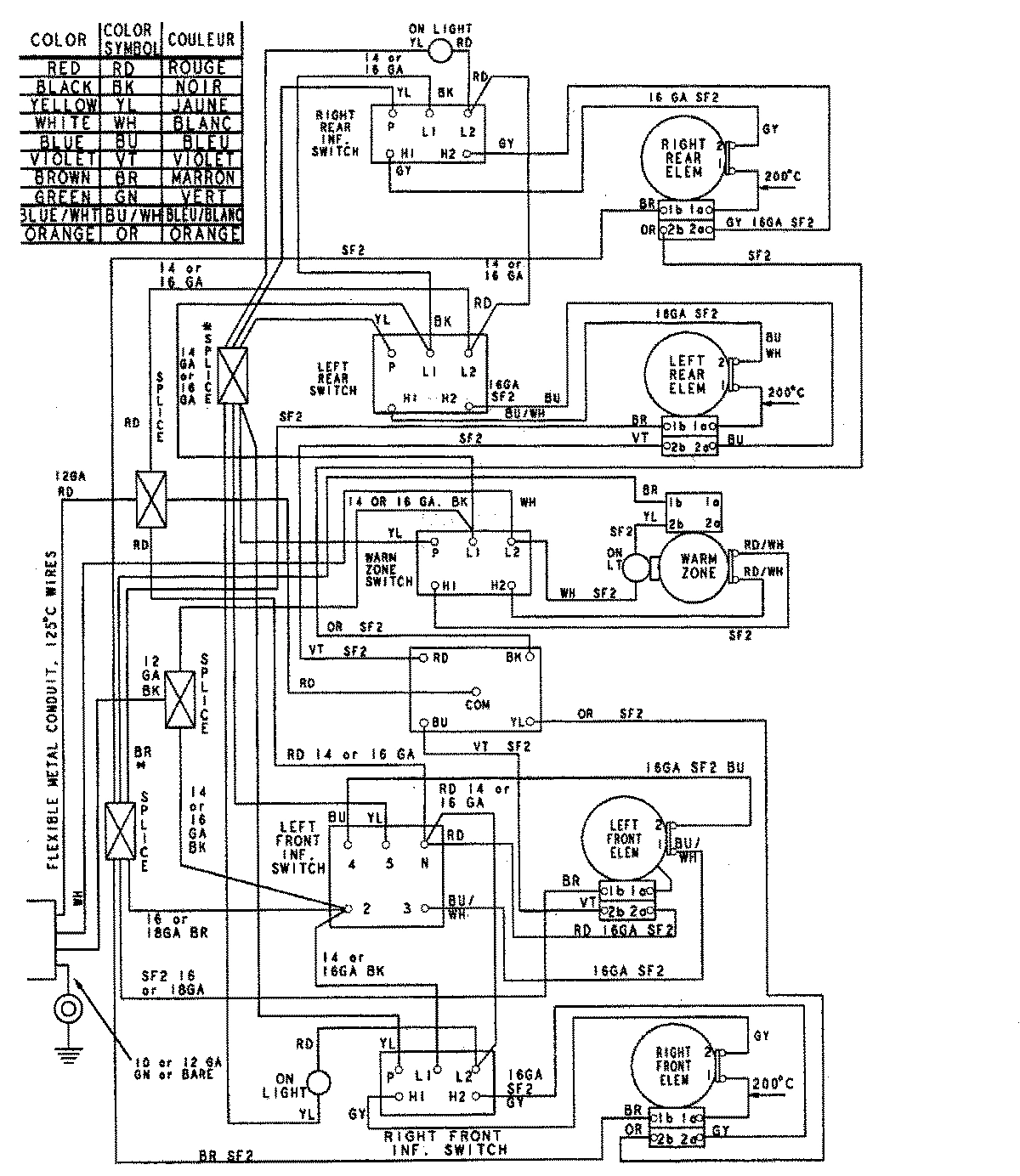

04 - WIRING INFORMATION
Common parts from model Whirlpool AKT3650SS ELECTRIC COOK-TOP
1
KNOB,WARM ZONE(BLACK) WPL 31918405B Contact Us For Availability
1
MANUAL, OWNERS WPL 32066301 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8111P46960 Contact Us For Availability
1
Manual, Use & Care WPL 8111P52260 Contact Us For Availability
2
PANEL, ACCESS 36`` WPL 31913401 Contact Us For Availability
2
KNOB, INFINITE (BLK) WPL 74008210 Contact Us For Availability
2
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
3
INSULATION,BOT BURNER BOX WPL 31974402 Contact Us For Availability
3
KNOB,DUAL INFINITE(BLACK) WPL 31926603B Contact Us For Availability
3
HARNESS, MAIN WPL 74009407 Contact Us For Availability
4
INSUL,36`` ELEC CKTP WPL 32014901 Contact Us For Availability
4
TOP ASSEMBLY (BLK) WPL 74009397 Contact Us For Availability
4
HARNESS, CONDUIT WPL 77001198 Contact Us For Availability
5
END, HEATER BOX WPL Y0316069 Contact Us For Availability
5
KNOB, GROMMET WPL 74008211 Contact Us For Availability
6
SIDE HEATER BOX WPL 31913601 Contact Us For Availability
6
LENS, INDICATOR LIGHT WPL 31934001 Contact Us For Availability
7
SCREW, No.8-18 X 1/4 P TRS HD WPL 31750422 Contact Us For Availability
7
SCREW WPL M0202521 Contact Us For Availability
8
SCREW, No.8-18 X 5/8 PPH WPL 31750431 Contact Us For Availability
8
BRACKET,CONTROL MTG WPL 32049801 Contact Us For Availability
9
CLAMP, TUBE (1/2``) WPL Y0307456 Contact Us For Availability
10
BAFFLE, HEATER BOX WPL 31913801 Contact Us For Availability
10
LIGHT,INDICATOR WPL 32049701 Contact Us For Availability
11
SIDE HEATER BOX WPL 31913501 Contact Us For Availability
12
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
12
SWITCH, INIFINITE WPL 74008230 Contact Us For Availability
13
BUSHING, CONDUIT WPL M0327601 Contact Us For Availability
13
INSULATION, IND. LIGHT WPL 0307444 Contact Us For Availability
14
PLATE, CONDUIT WPL Y0307451 Contact Us For Availability
14
LIGHT, INDICATOR WPL 74007880 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL M0321505 Contact Us For Availability
15
NUT WPL 74007879 Contact Us For Availability
16
SCREW, GRD No.10-32 X 1/2 PANHD WPL 31750523 Contact Us For Availability
17
HARNESS, CONDUIT WPL 31988601 Contact Us For Availability
17
ELEMENT, WARMING ZONE WPL 74007933 Contact Us For Availability
22
LIGHT,INDICATOR-HOT SURFACE WPL 31913001 Contact Us For Availability
23
BRACKET, ELEMENT MTG. WPL 31911601 Contact Us For Availability
24
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
25
TRIM, REAR (STL 36``) WPL 74009643 Contact Us For Availability
26
SCREW, No.8-18 X 3/8 PPH WPL 31750425 Contact Us For Availability
27
TAPE, INCH WPL 74007878 Contact Us For Availability
28
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
29
TRIM, FRONT (STL-36``) WPL 74009642 Contact Us For Availability
30
COVER, SWITCH HOLE WPL 31902601 Contact Us For Availability
NI
SCREW, No.6-20 X .625 TRUSS HD WPL 31750321 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003400 Contact Us For Availability
× ![]()
