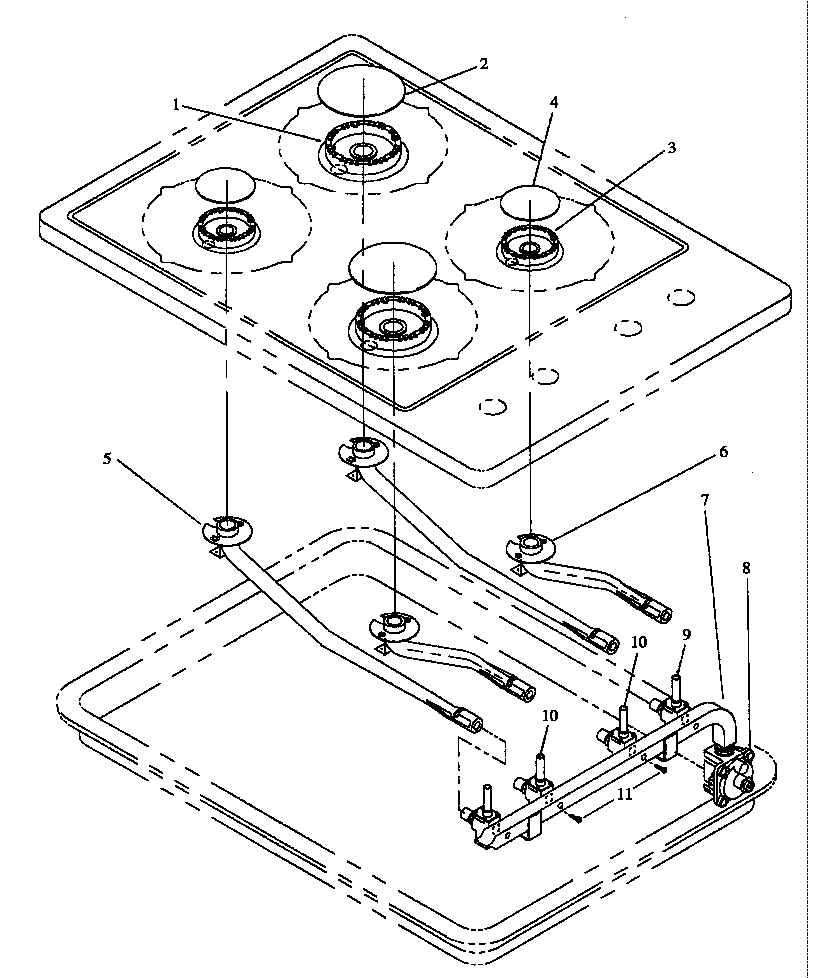

Model Whirlpool AKS30WW GAS COOK-TOP – Common Parts & Diagrams

1
ELECTRODE, TOP BURNER
ELECTRODE, TOP BURNER WPL Y0305975 Contact Us For Availability
View on Model
1
MAINTOP (WHITE)
MAINTOP (WHITE) WPL 307367W Contact Us For Availability
View on Model
1
BURNER, 4`` DIE CAST
BURNER, 4`` DIE CAST WPL Y0307339 Contact Us For Availability
View on Model
2
CLIP, ELECTRODE
CLIP, ELECTRODE WPL Y0307098 Contact Us For Availability
View on Model
2
DBL GRATE (GRAY)
DBL GRATE (GRAY) WPL 307398T Contact Us For Availability
View on Model
2
BURNER CAP, LARGE (LT GRAY)
BURNER CAP, LARGE (LT GRAY) WPL 305818T Contact Us For Availability
View on Model
3
KIT,SPARK MODULE(SERVICE)
KIT,SPARK MODULE(SERVICE) WPL Y0305451 Contact Us For Availability
View on Model
3
KNOB, TOP CONT (WHITE)
KNOB, TOP CONT (WHITE) WPL 307973W Contact Us For Availability
View on Model
3
BURNER, 3`` DIE CAST
BURNER, 3`` DIE CAST WPL Y0307338 Contact Us For Availability
View on Model
4
BRACKET, SPARK MODULE
BRACKET, SPARK MODULE WPL 0304971 Contact Us For Availability
View on Model
4
BUSHING, SNAP (WHT)
BUSHING, SNAP (WHT) WPL 308655W Contact Us For Availability
View on Model
4
BURNER CAP, SMALL (LT GRAY)
BURNER CAP, SMALL (LT GRAY) WPL 305817T Contact Us For Availability
View on Model
5
STRAIN RELIEF
STRAIN RELIEF WPL Y0042109 Contact Us For Availability
View on Model
5
GLASS, CONT PNL (WHITE)
GLASS, CONT PNL (WHITE) WPL 308242W Contact Us For Availability
View on Model
5
TUBE, VENTURI (LH)
TUBE, VENTURI (LH) WPL 0308245 Contact Us For Availability
View on Model
6
SUPPLY CORD KGT591-593
SUPPLY CORD KGT591-593 WPL Y0042030 Contact Us For Availability
View on Model
6
SHIELD, BOT. BURNER BOX
SHIELD, BOT. BURNER BOX WPL Y0308942 Contact Us For Availability
View on Model
6
TUBE, VENTURI (RH)
TUBE, VENTURI (RH) WPL Y0308246 Contact Us For Availability
View on Model
7
SWITCH,LICON GAS IGNITION
SWITCH,LICON GAS IGNITION WPL Y0300521 Contact Us For Availability
View on Model
7
INSULATION
INSULATION WPL Y0308940 Contact Us For Availability
View on Model
7
ASSY, MANIFOLD PIPE
ASSY, MANIFOLD PIPE WPL Y0308251 Contact Us For Availability
View on Model
8
HARNESS,IGN WIRE 31``
HARNESS,IGN WIRE 31`` WPL Y0307393 Contact Us For Availability
View on Model
8
HARNESS,IGN WIRE 20``
HARNESS,IGN WIRE 20`` WPL Y0307394 Contact Us For Availability
View on Model
8
SEAL, INLET
SEAL, INLET WPL Y0308941 Contact Us For Availability
View on Model
8
REGULATOR-5``/10`` SIDE INLET
REGULATOR-5``/10`` SIDE INLET WPL Y0063684 Contact Us For Availability
View on Model
9
MOUNTING BRACKET ASSEMBLY
MOUNTING BRACKET ASSEMBLY WPL Y0305287 Contact Us For Availability
View on Model
9
VALVE, 180 DEGREE
VALVE, 180 DEGREE WPL Y0308253 Contact Us For Availability
View on Model
10
BOX, BURNER (BLACK)
BOX, BURNER (BLACK) WPL 308508CG Contact Us For Availability
View on Model
10
VALVE, 180 DEGREE
VALVE, 180 DEGREE WPL Y0308252 Contact Us For Availability
View on Model
11
SURFACE VALVE BOLT& GASKET
SURFACE VALVE BOLT& GASKET WPL Y0056115 Contact Us For Availability
View on Model
NI
WASHER HANDLE MOUNTING
WASHER HANDLE MOUNTING WPL 0041937 Contact Us For Availability
View on Model
NI
SCREW, No.8-32 X3/8 P TRS HD LP
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
View on Model
NI
SCREW, No.10-24X3/8 (PH TRS HD)
SCREW, No.10-24X3/8 (PH TRS HD) WPL Y0079357 Contact Us For Availability
View on Model
NI
SCREW CABINET TRIM
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
View on Model
